TOYOTA C-HR 2023 Owners Manual

7698-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications

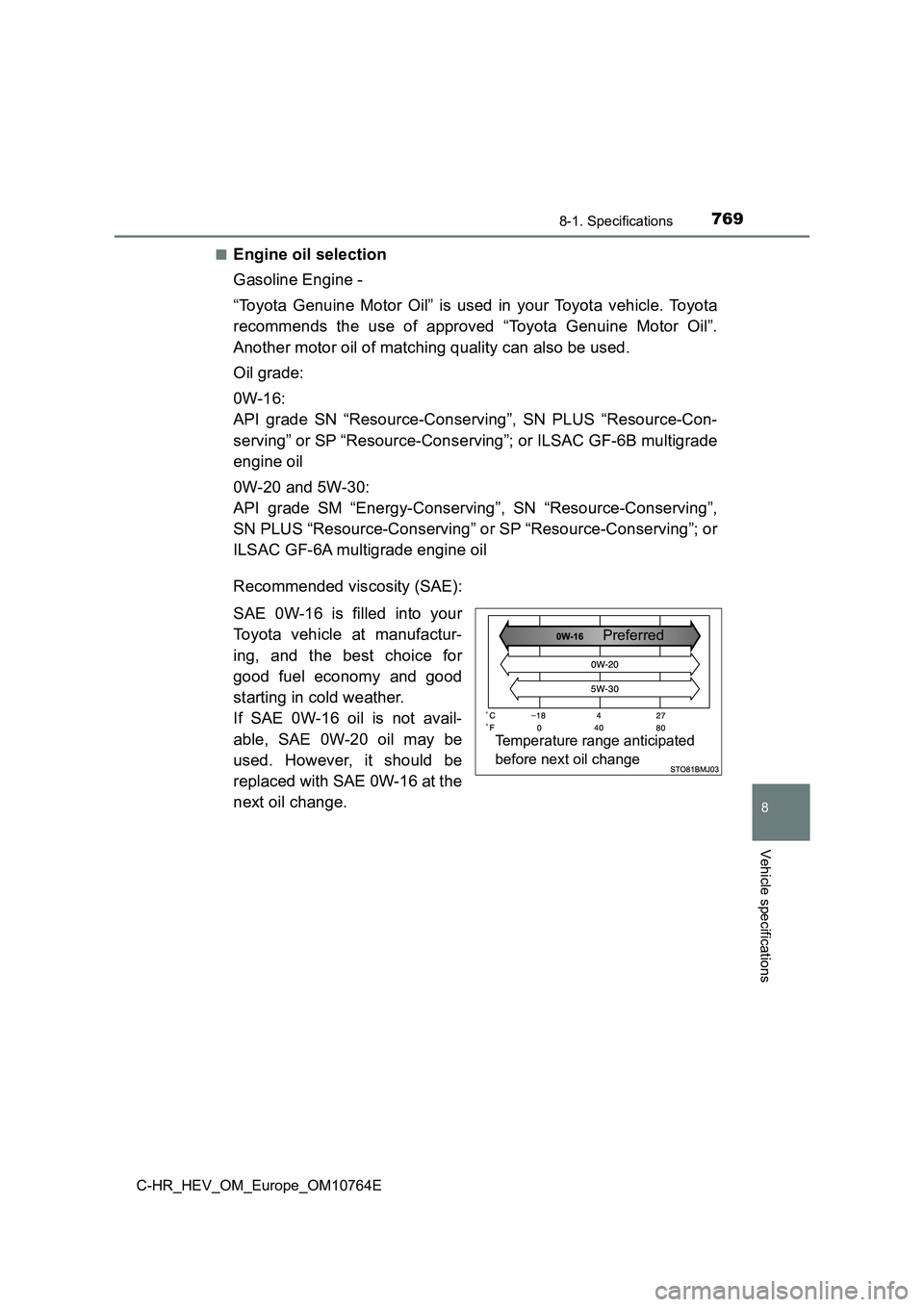

■Engine oil selection
Gasoline Engine -
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyo ta
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserving”, SN PLUS “Resource-Con-
serving” or SP “Resource-Conserving”; or ILSAC GF-6B multigrade
engine oil
0W-20 and 5W-30:
API grade SM “Energy-Conserving”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving” or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-16 oil is not avail-
able, SAE 0W-20 oil may be
used. However, it should be
replaced with SAE 0W-16 at the
next oil change.
Temperature range anticipated
before next oil change
Preferred

7708-1. Specifications
C-HR_HEV_OM_Europe_OM10764E

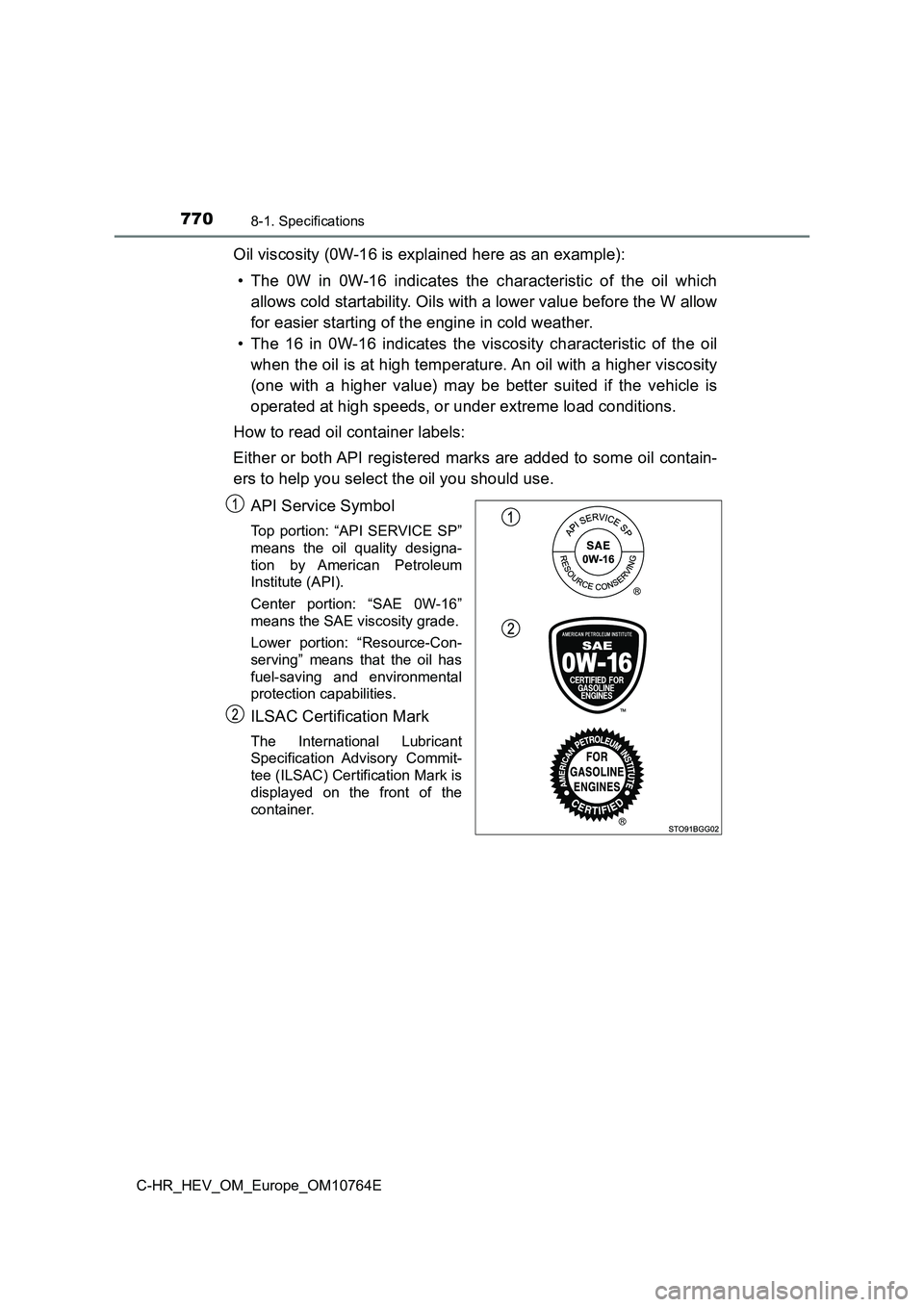

Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher visco sity
(one with a higher value) may be better suited if the vehicle i s
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil conta in-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
displayed on the front of the
container.

7718-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or
Toyota authorized repairer, or any reliable repairer.
Cooling system
Capacity*
Gasoline
engine
2ZR-FXE engine
5.4 L (5.7 qt., 4.7 Imp.qt.)
M20A-FXS engine
5.9 L (6.2 qt., 5.2 Imp.qt.)
Power
control unit
2ZR-FXE engine
1.4 L (1.5 qt., 1.3 Imp.qt.)
M20A-FXS engine
1.6 L (1.7 qt., 1.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
Make
2ZR-FXE engine
DENSO FC16HR-CY9
M20A-FXS engine
DENSO FC16HR-Q8
Gap
2ZR-FXE engine
0.9 mm (0.035 in.)
M20A-FXS engine
0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.

7728-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or
Toyota authorized repairer, or any reliable repairer.

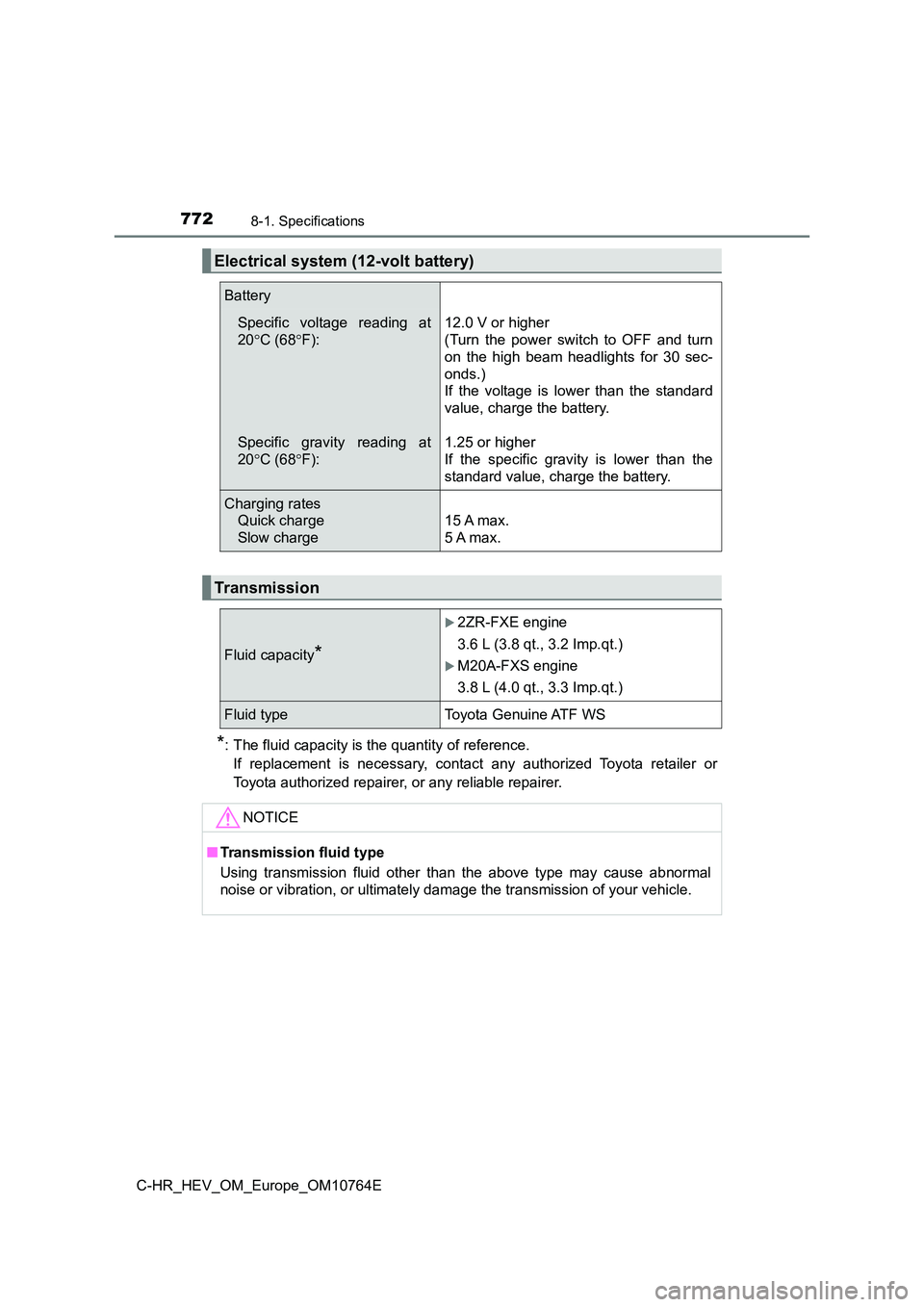

Electrical system (12-volt battery)
Battery
Specific voltage reading at
20 C (68F):
Specific gravity reading at
20 C (68F):
12.0 V or higher
(Turn the power switch to OFF and turn
on the high beam headlights for 30 sec-
onds.)
If the voltage is lower than the standard
value, charge the battery.
1.25 or higher
If the specific gravity is lower than the
standard value, charge the battery.
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Transmission
Fluid capacity*
2ZR-FXE engine
3.6 L (3.8 qt., 3.2 Imp.qt.)
M20A-FXS engine
3.8 L (4.0 qt., 3.3 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than the above type may cause ab normal
noise or vibration, or ultimately damage the transmission of yo ur vehicle.

7738-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
*: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the hybrid system is operating.

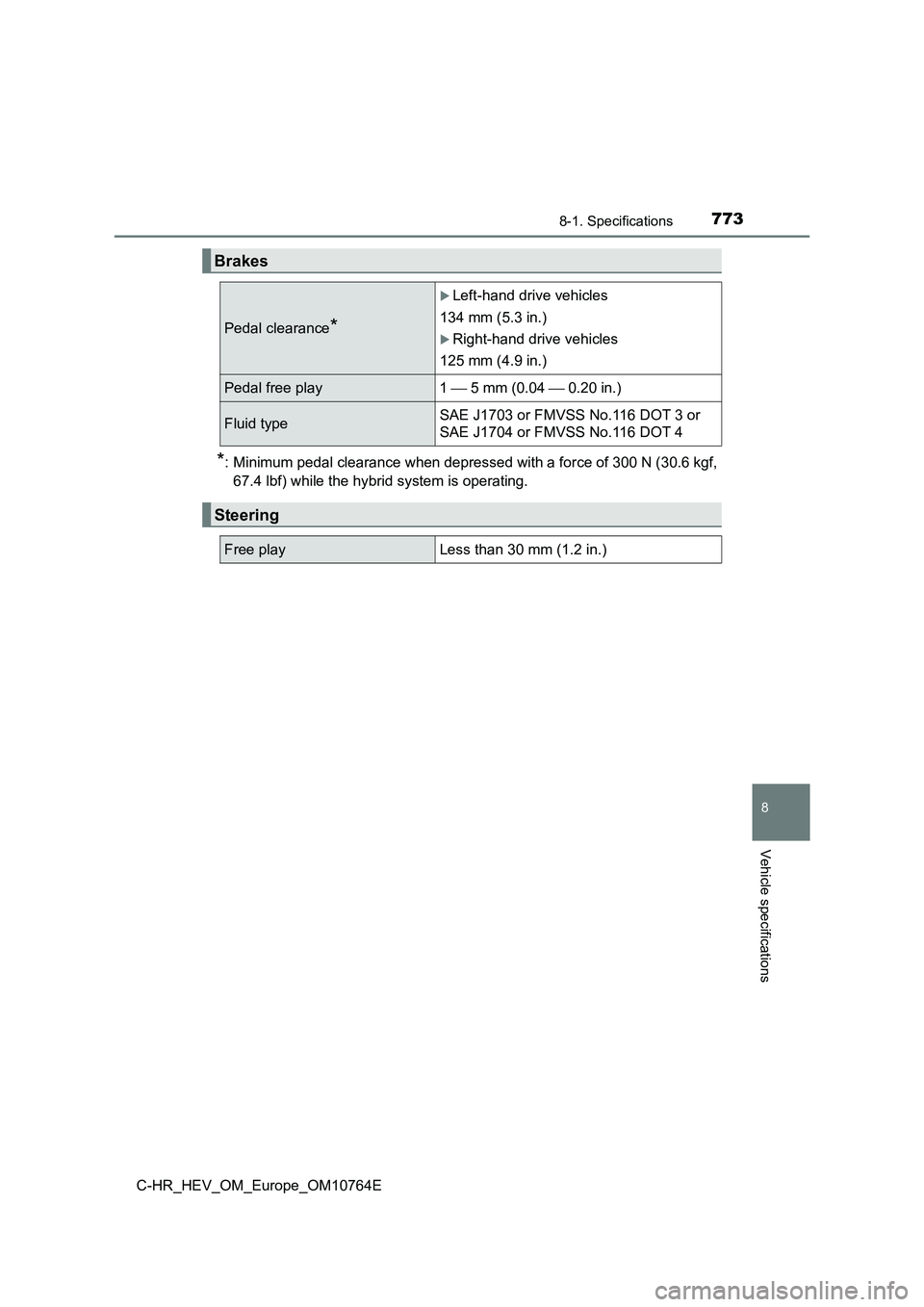

Brakes
Pedal clearance*
Left-hand drive vehicles
134 mm (5.3 in.)
Right-hand drive vehicles
125 mm (4.9 in.)
Pedal free play 1  5 mm (0.04  0.20 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

7748-1. Specifications
C-HR_HEV_OM_Europe_OM10764E

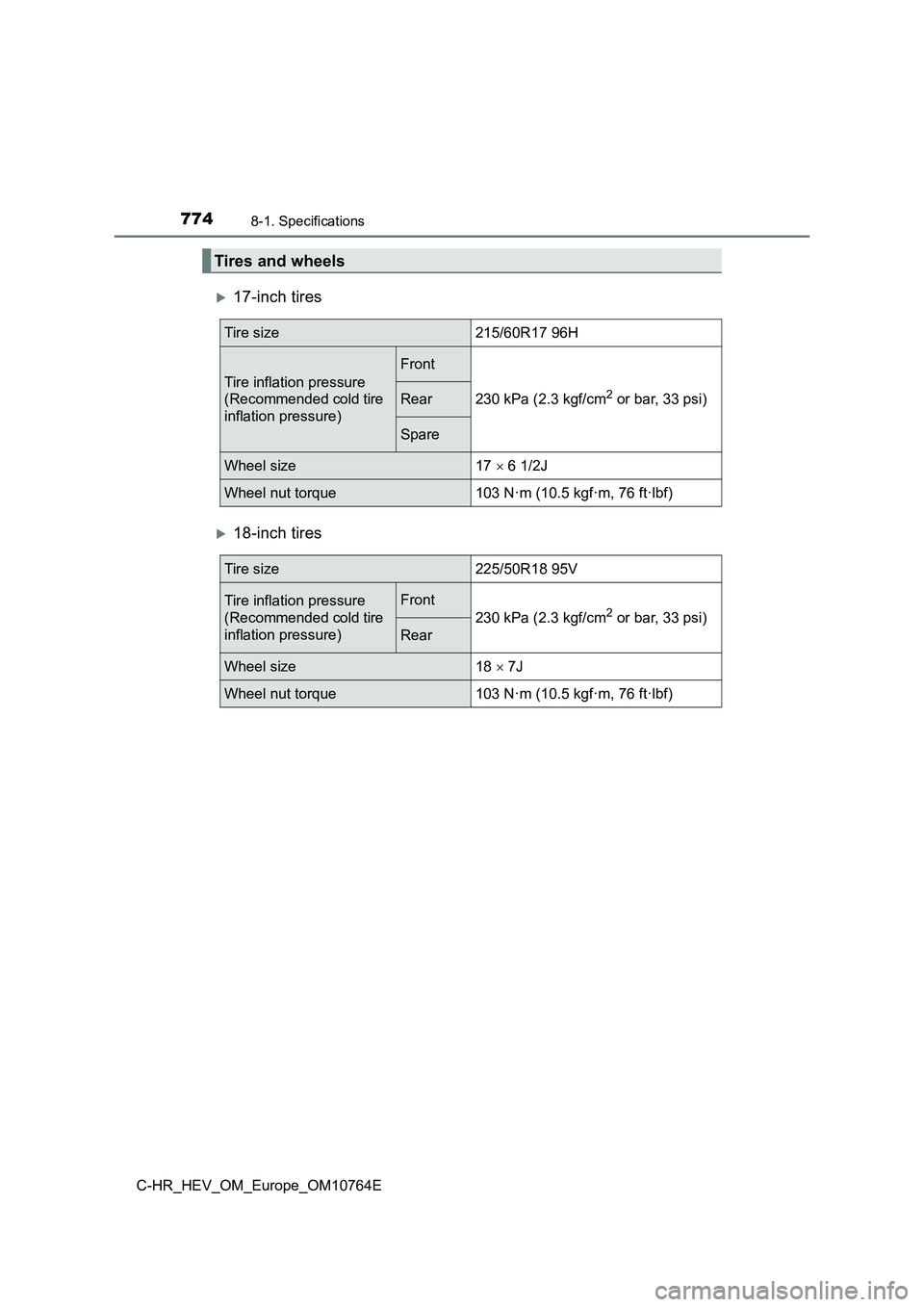

17-inch tires
18-inch tires
Tires and wheels
Tire size215/60R17 96H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)Rear
Spare
Wheel size17  6 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size225/50R18 95V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear
Wheel size18  7J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

7758-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications

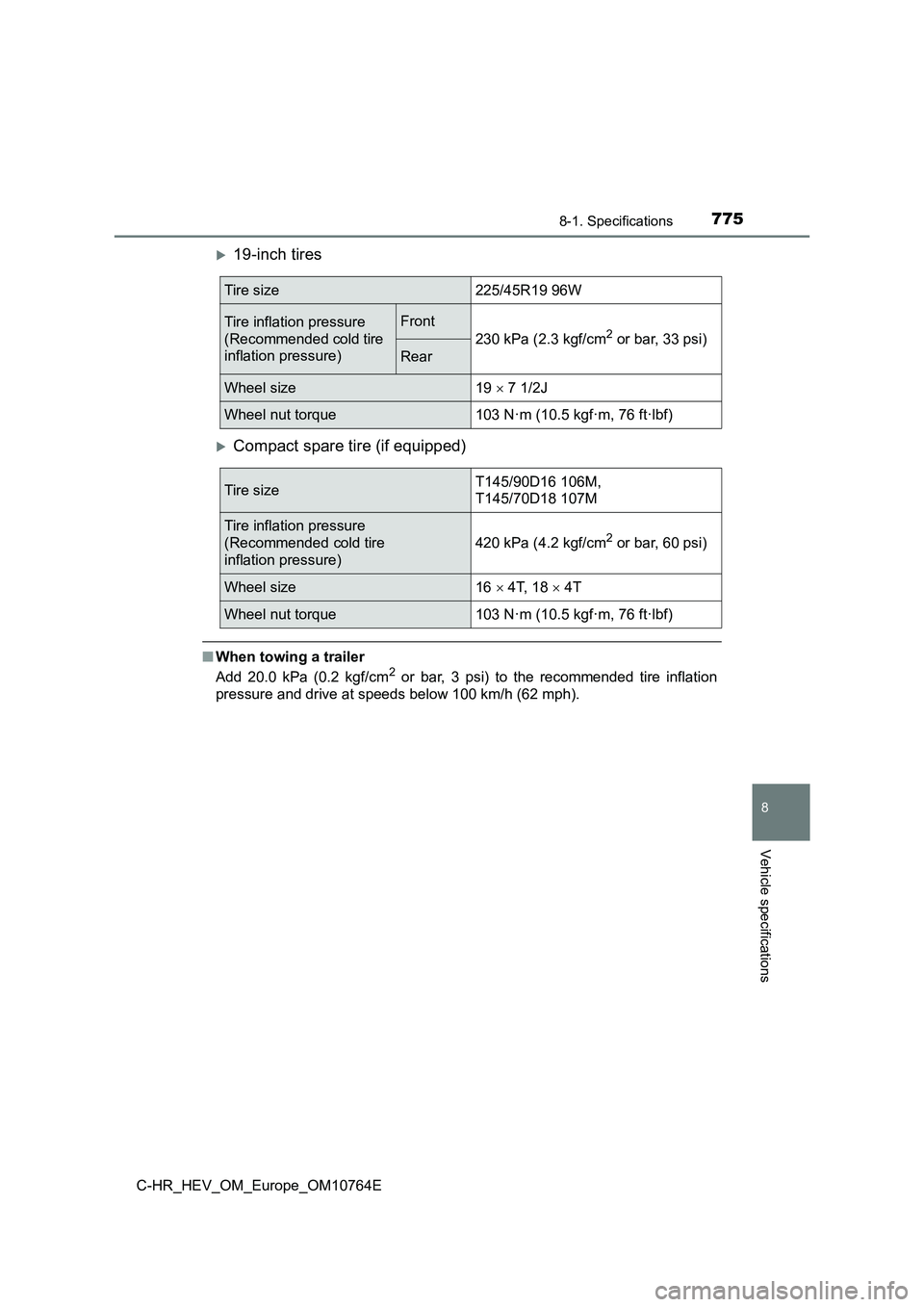

19-inch tires
Compact spare tire (if equipped)
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire size225/45R19 96W
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear
Wheel size19  7 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire sizeT145/90D16 106M,
T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T, 18  4T
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

7768-1. Specifications
C-HR_HEV_OM_Europe_OM10764E

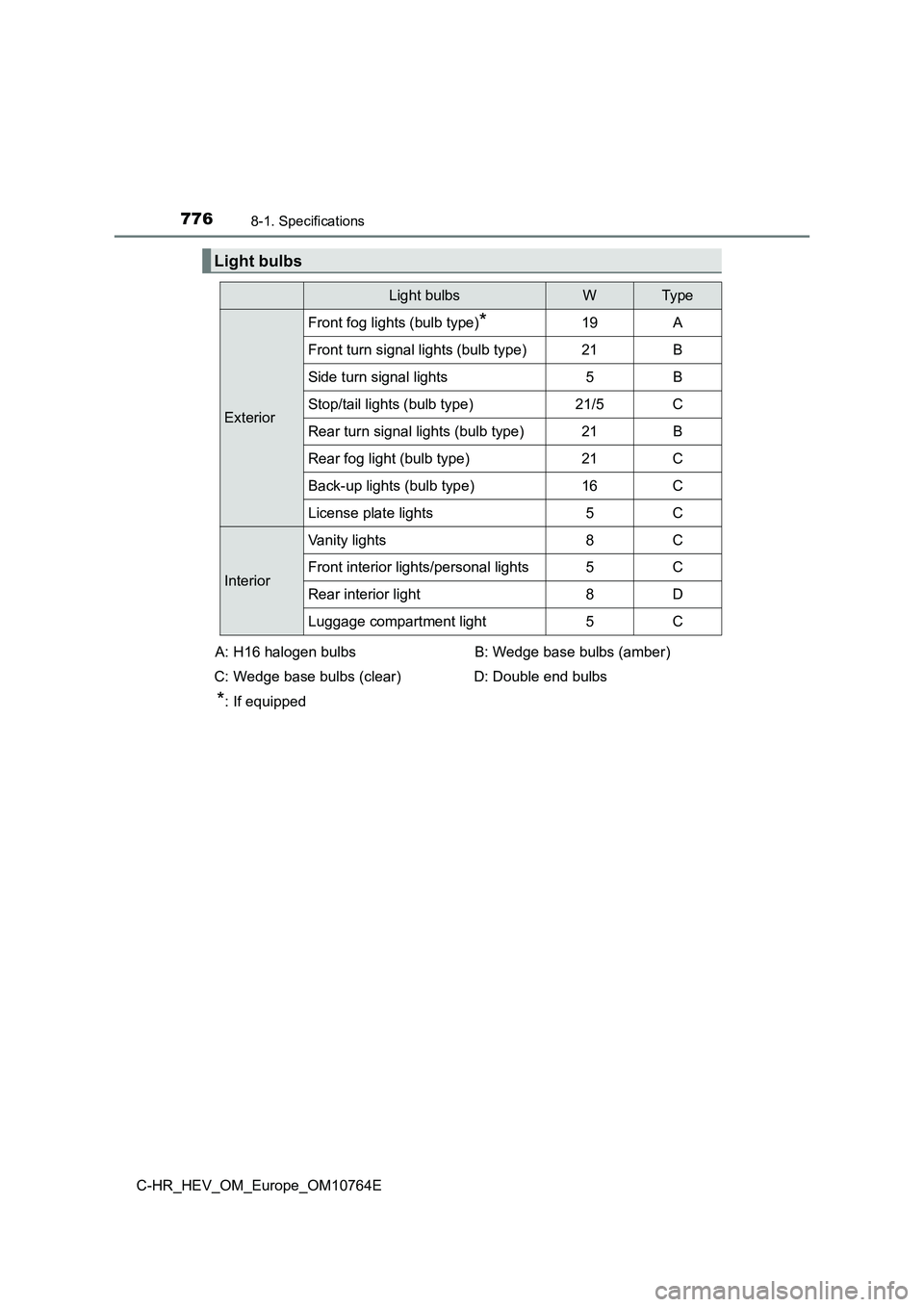

Light bulbs
Light bulbsWTyp e
Exterior
Front fog lights (bulb type)*19A
Front turn signal lights (bulb type)21B
Side turn signal lights5B
Stop/tail lights (bulb type)21/5C
Rear turn signal lights (bulb type)21B
Rear fog light (bulb type)21C
Back-up lights (bulb type)16C
License plate lights5C
Interior
Vanity lights8C
Front interior lights/personal lights5C
Rear interior light8D
Luggage compartment light5C
A: H16 halogen bulbs
C: Wedge base bulbs (clear)
*: If equipped
B: Wedge base bulbs (amber)
D: Double end bulbs

7778-1. Specifications
8
Vehicle specifications
C-HR_HEV_OM_Europe_OM10764E
Fuel infor mation
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the eth anol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

7788-1. Specifications
C-HR_HEV_OM_Europe_OM10764E

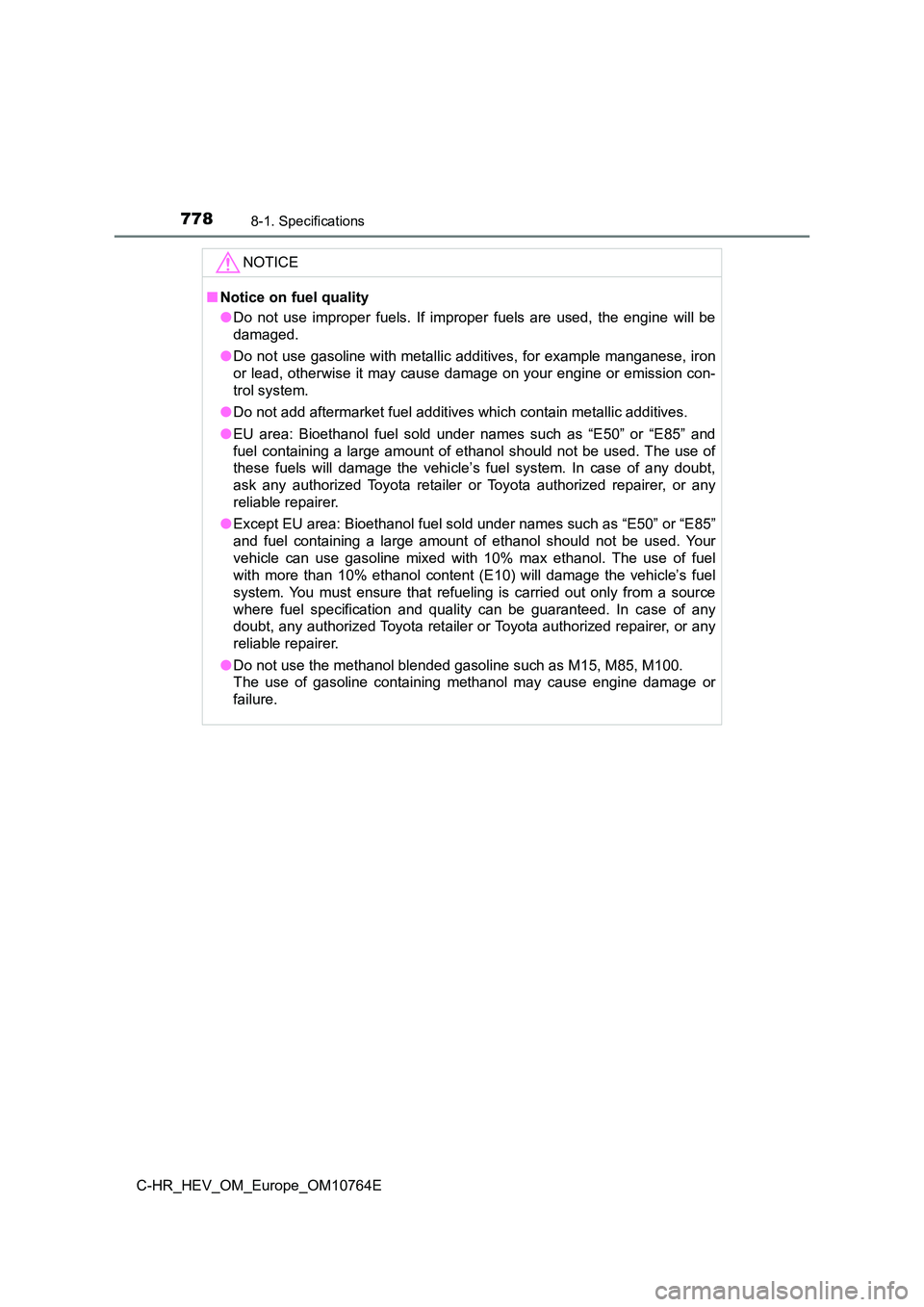

NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emissi on con-
trol system.
● Do not add aftermarket fuel additives which contain metallic additives.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. T he use of
these fuels will damage the vehi cle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repaire r, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be use d. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicl e’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, any authorized Toyota retailer or Toyota authorized repa irer, or any
reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.
