TOYOTA C-HR 2023 Owners Manual

7898-2. Customization
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications

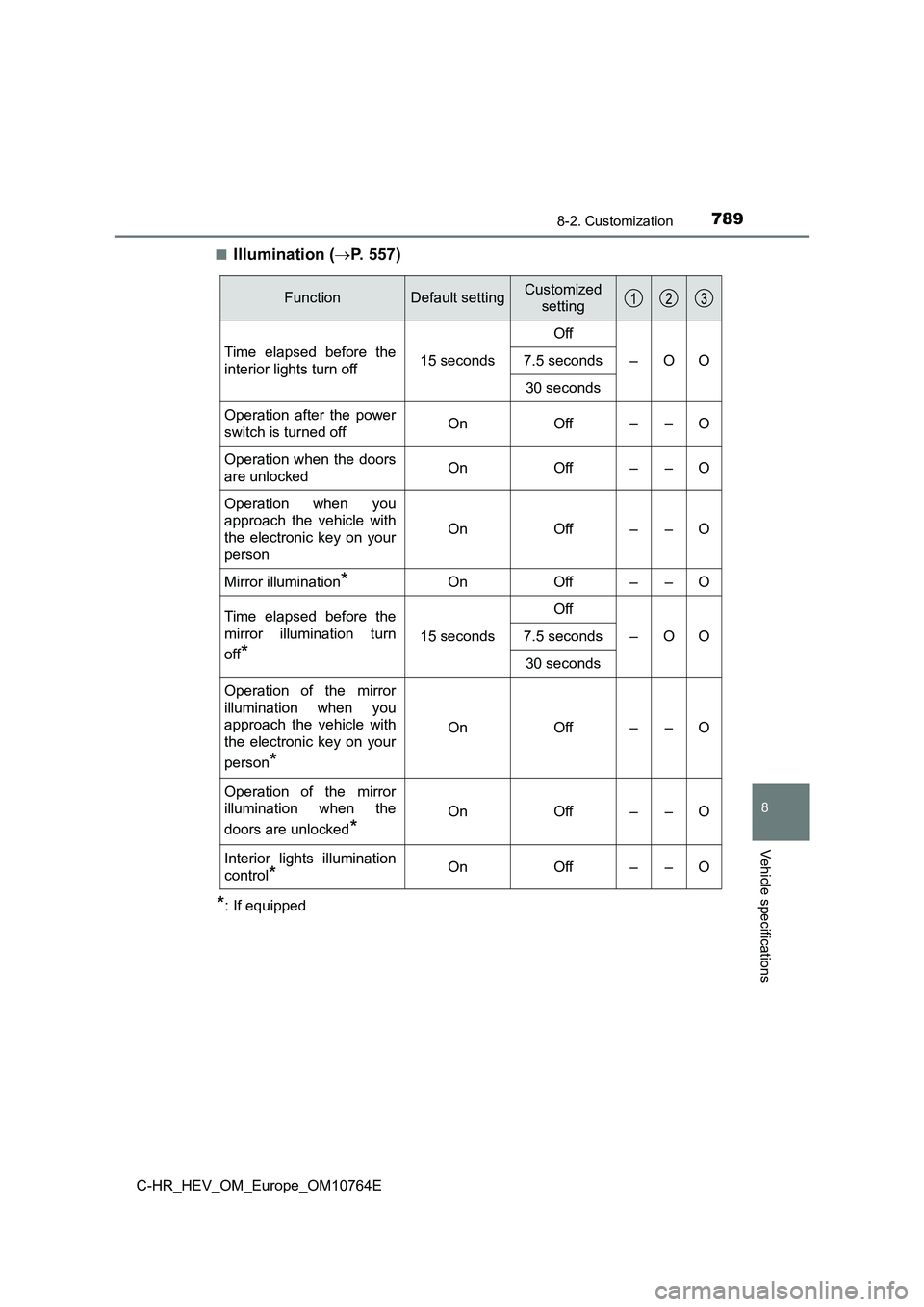

■Illumination (P. 5 5 7 )
*: If equipped
FunctionDefault settingCustomized
setting
Time elapsed before the
interior lights turn off15 seconds
Off
–OO7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors
are unlockedOnOff––O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff––O
Mirror illumination*OnOff––O
Time elapsed before the
mirror illumination turn
off*
15 seconds
Off
–OO7.5 seconds
30 seconds
Operation of the mirror
illumination when you
approach the vehicle with
the electronic key on your
person*
OnOff––O
Operation of the mirror
illumination when the
doors are unlocked*
OnOff––O
Interior lights illumination
control*OnOff––O

7908-2. Customization
C-HR_HEV_OM_Europe_OM10764E

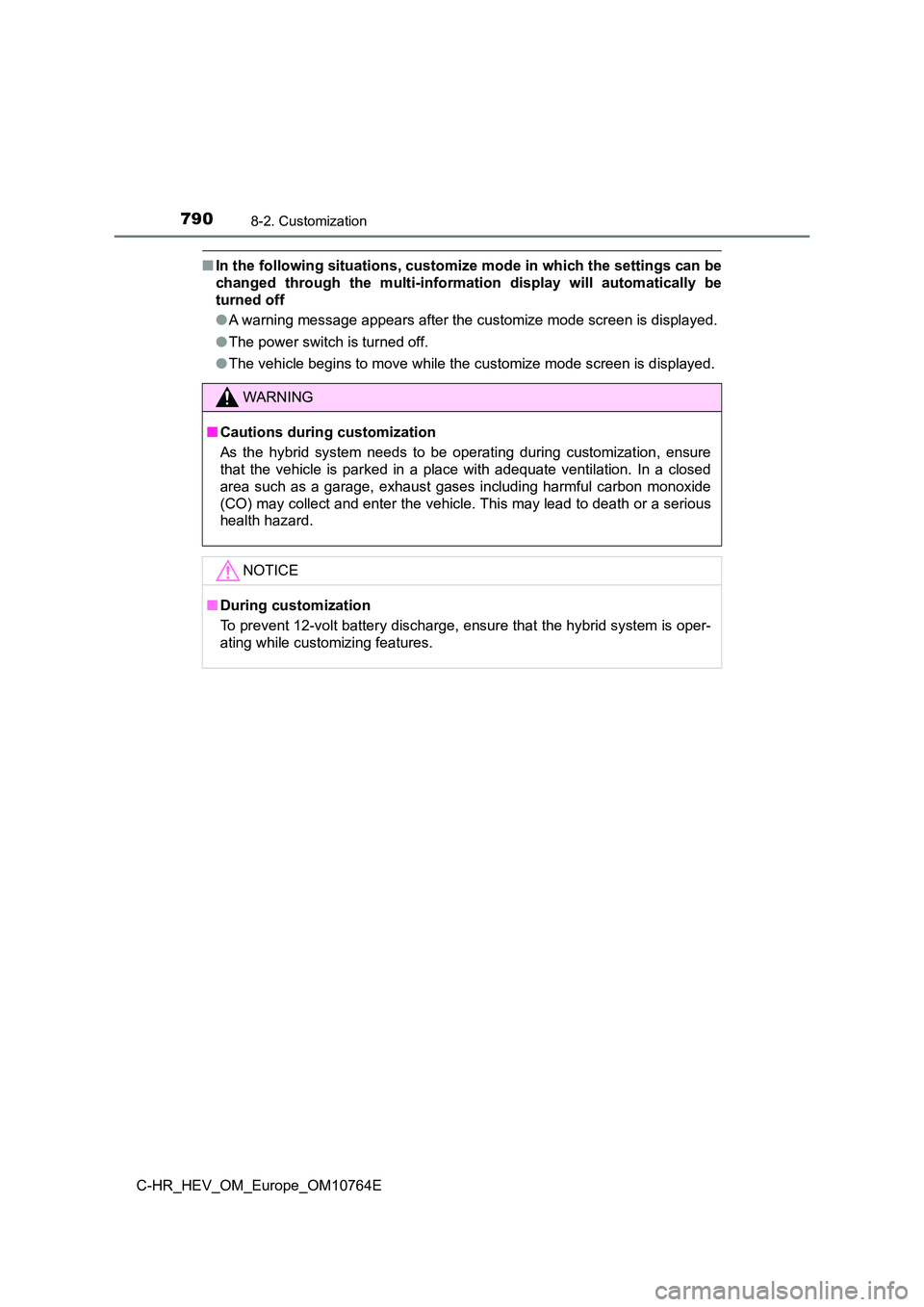

■In the following situations, customize mode in which the settings can be
changed through the multi-information display will automaticall y be
turned off
● A warning message appears after the customize mode screen is displayed.
● The power switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
WARNING
■Cautions during customization
As the hybrid system needs to be operating during customization , ensure
that the vehicle is parked in a place with adequate ventilation . In a closed
area such as a garage, exhaust gases including harmful carbon m onoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the hybrid sy stem is oper-
ating while customizing features.

7918-3. Initialization
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Power window• When functioning abnormallyP. 277
S-IPA (Simple Intelligent
Parking Assist System) (if
equipped)
• After reconnecting or chang-
ing the 12-volt batteryP. 517
Tire pressure warning sys-
tem
• When changing the tire size
• When changing the tire infla-
tion pressure by changing
traveling speed or load
weight, etc.
P. 617
PKSB (Parking Support
Brake) (if equipped)
• After reconnecting or chang-
ing the batteryP. 481

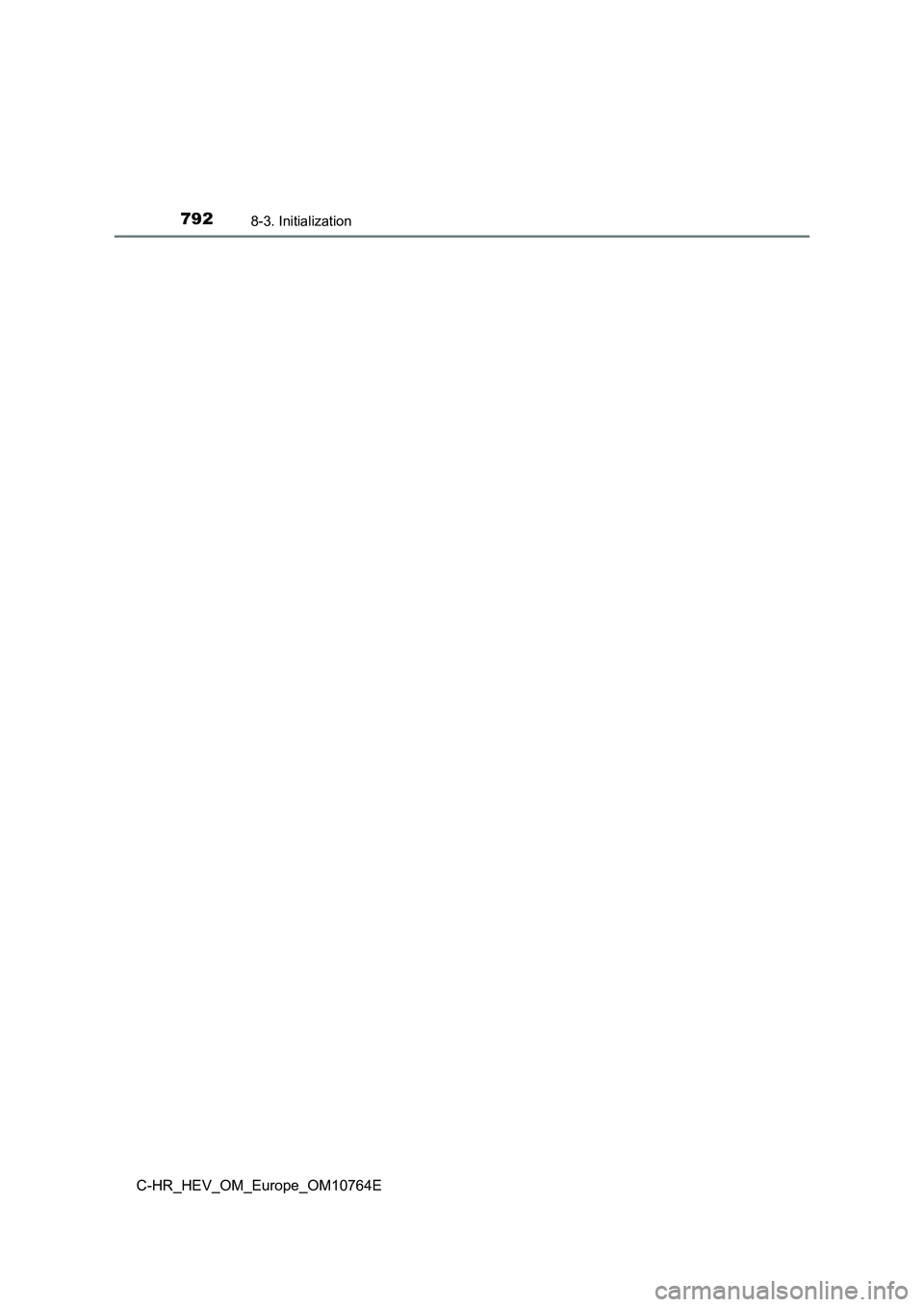

7928-3. Initialization
C-HR_HEV_OM_Europe_OM10764E

793
Index
C-HR_HEV_OM_Europe_OM10764E
What to do if...
(Troubleshooting) ..................... 794
Alphabetical index ...................... 798
For vehicles with navigation/multimedia system, refer to the
“Navigation and multimedia system Owner’s manual” or “Multi-
media owner’s manual” for information regarding the equip-
ment listed below.
• Audio/visual system
• Navigation system
• Rear view monitor system
• Hands-free system
(for cellular phone)

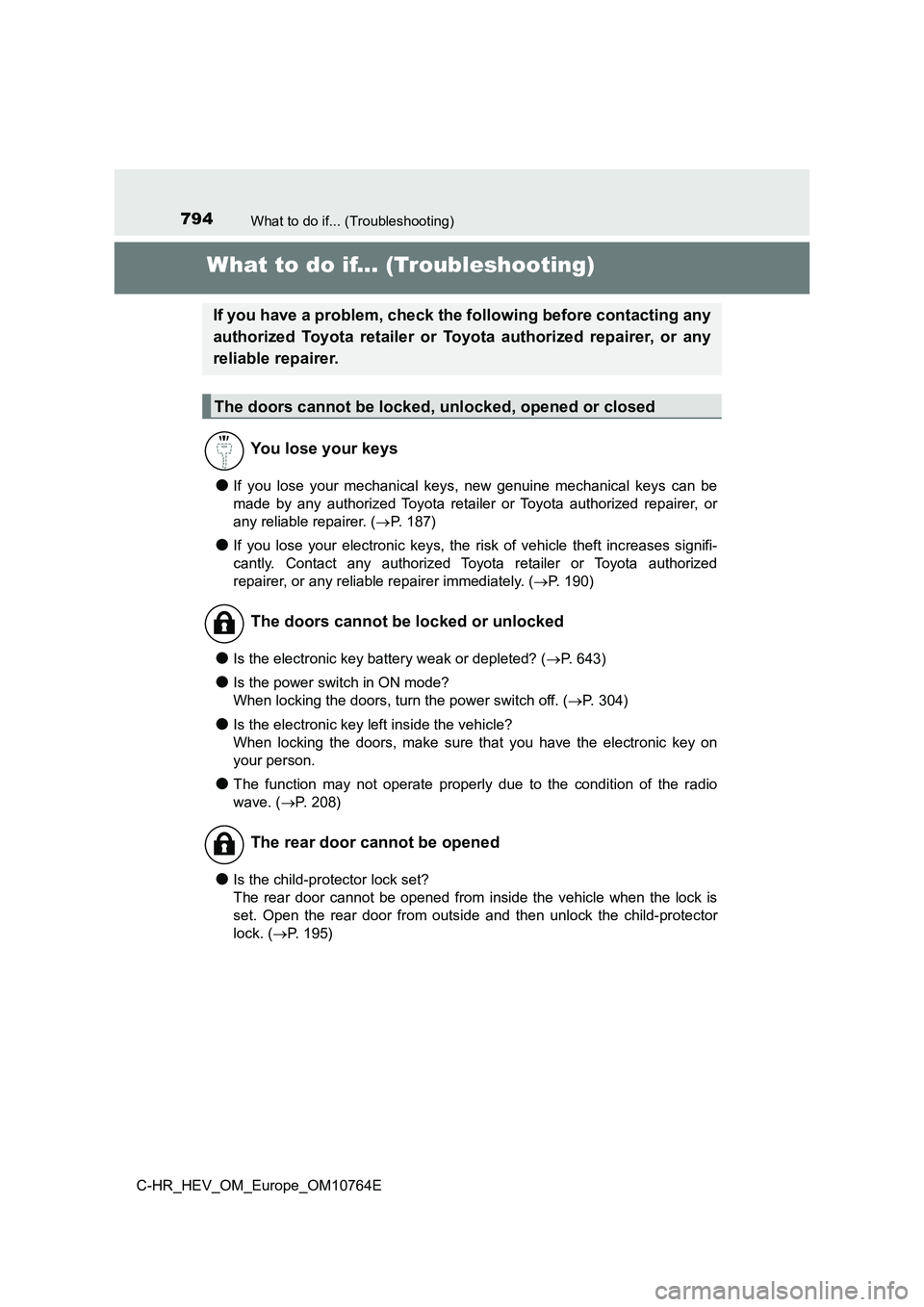

794What to do if... (Troubleshooting)
C-HR_HEV_OM_Europe_OM10764E
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be
made by any authorized Toyota retailer or Toyota authorized rep airer, or
any reliable repairer. ( P. 187)
●If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota retailer or Toyota author ized
repairer, or any reliable repairer immediately. ( P. 190)
●Is the electronic key battery weak or depleted? (P. 643)
●Is the power switch in ON mode?
When locking the doors, turn the power switch off. ( P. 304)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of t he radio
wave. ( P. 208)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child- protector
lock. ( P. 195)
If you have a problem, check the following before contacting any
authorized Toyota retailer or Toyota authorized repairer, or an y
reliable repairer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

795What to do if... (Troubleshooting)
C-HR_HEV_OM_Europe_OM10764E
●Did you press the power switch while firmly depressing the brake pedal?
( P. 303)
●Is the shift lever in P? (P. 3 0 6 )
●Is the electronic key anywhere detectable inside the vehicle? (P. 206)
●Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary w ay.
( P. 745)
●Is the 12-volt battery discharged? (P. 747)
●Is the power switch in ON mode?
If you cannot release the shift lever by depressing the brake p edal with the
power switch in ON mode. ( P. 315)
●It is locked automatically to prevent theft of the vehicle. (P. 306)
●Is the window lock switch pressed?
The power windows except for the one at the driver’s seat canno t be oper-
ated if the window lock switch is pressed. ( P. 275)
●The auto power off function will be operated if the vehicle is left in
ACCESSORY or ON mode (the hybrid system is not operating) for a
period of time. ( P. 3 0 5 )
If you think something is wrong
The hybrid system does not start
The shift lever cannot be shifted from P even if you depress
the brake pedal
The steering wheel cannot be turned after the hybrid system
is stopped
The windows do not open or close by operating the power
window switches
The power switch is turned off automatically

796What to do if... (Troubleshooting)
C-HR_HEV_OM_Europe_OM10764E
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 683)
●The parking brake indicator is on
Is the parking brake released? ( P. 323)
Depending on the situation, other types of warning buzzer may a lso sound.
( P. 679, 690)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 146)
Do one of the following to deactivate or stop the alarms:
●Unlock the doors using the entry function (if equipped) or wire less remote
control.
●Start the hybrid system. (The alarm will be deactivated or stop ped after a
few seconds.)
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. ( P. 690)
●When a warning light turns on or a warning message is displayed, refer to
P. 679, 690.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

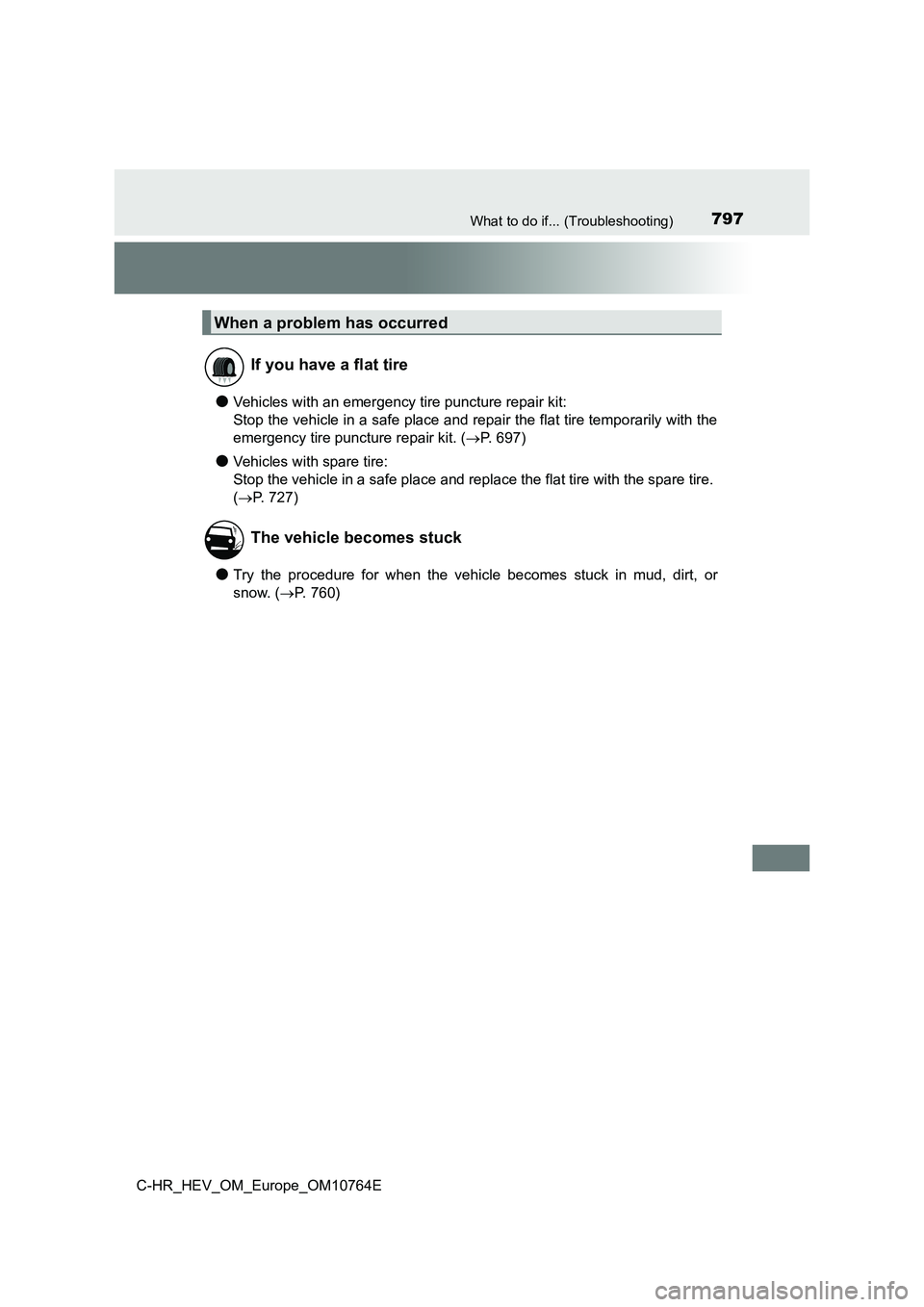

797What to do if... (Troubleshooting)
C-HR_HEV_OM_Europe_OM10764E
●Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire tempo rarily with the
emergency tire puncture repair kit. ( P. 697)
●Vehicles with spare tire:
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
( P. 727)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( P. 760)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

798Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Alphabetical index
A/C............................................. 546
Air conditioning filter.............. 635
Climate preference................ 549
ABS
(Anti-lock Brake System) ...... 530
Function ................................ 530
Warning light ......................... 680
ACA
(Active Cornering Assist) ..... 531
Acoustic vehicle alerting
system .................................... 118
Active Cornering Assist
(ACA) ...................................... 531
AFS (Adaptive
Front-lighting System) .......... 333
Air conditioning filter .............. 635
Air conditioning system .......... 546
Air conditioning filter.............. 635
Climate preference................ 549
Air intake vent .......................... 123
Cleaning ................................ 638
Airbag manual on-off
system ...................................... 55
Airbags ....................................... 41
Airbag manual on-off
system .................................. 55
Airbag operating conditions .... 49
Airbag precautions for
your child .............................. 44
Airbag warning light .............. 680
Correct driving posture............ 34
Curtain shield airbag
operating conditions ............. 50
Curtain shield airbag
precautions ........................... 44
General airbag precautions..... 44
Locations of airbags................ 41
Modification and
disposal of airbags ............... 48
Side airbag operating
conditions ............................. 50
Side airbag precautions .......... 44
Side and curtain shield airbags
operating conditions ............. 50
Side and curtain shield airbags
precautions........................... 44
SRS airbags............................ 41
Alarm ........................................ 146
Antenna
Smart entry & start system ... 205
Anti-lock brake system
(ABS) ...................................... 530
Function ................................ 530
Warning light ......................... 680
Approach warning
Dynamic radar cruise control
with full-speed range .......... 418
Assist grips .............................. 575
Audio input*
Audio system*
Automatic air conditioning
system
Air conditioning filter ............. 635
Automatic
air conditioning system ....... 546
Climate preference ............... 549
Automatic headlight
leveling system ..................... 335
Automatic High Beam ............. 336
Automatic light control
system .................................... 334
Auxiliary boxes ........................ 565
A
