TOYOTA C_HR HYBRID 2017 Owners Manual

461
5
5-7. “SETUP” menu
Audio system
C-HR_HV_OM_Europe_OM10538E
Using the “SETUP” menu (“PHONE” menu)
Select “Add contacts” using the tune/scroll knob. (P. 453)
● Transferring all contacts from the cellular phone
Select “Overwrite all” using the tune/scroll knob and press
(“YES”).
● Transferring one contact from the cellular phone
Select “Add one contact” using the tune/scroll knob and press
(“YES”).
Select “Add SD” using the tune/scroll knob. ( P. 453)
Select the desired data using the knob.
Press the desired preset button (from [1] to [5]).
For details about setting speed dials from the call history: P. 468
For details about deleting speed dials: P. 467
Select “Delete call history” using the tune/scroll knob. (P. 453)
● Deleting outgoing call history
Select “Outgoing Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
(“YES”).
To delete all outgoing call history data, press (“ALL”) and
then press (“YES”).
Adding a new phone number
Setting speed dials
Deleting call histories
1
2
3
1
2

4625-7. “SETUP” menu
C-HR_HV_OM_Europe_OM10538E
●Deleting incoming call history
Select “Incoming Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
(“YES”).
To delete all incoming call history data, press (“ALL”) and
then press (“YES”).
● Deleting missed call history
Select “Missed Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
(“YES”).
To delete all missed call history data, press (“ALL”) and then
press (“YES”).
● Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
(“YES”).
To delete all of the call histories data, press (“ALL”) and then
press (“YES”).
1
2
1
2
1
2

4635-7. “SETUP” menu
5
Audio system
C-HR_HV_OM_Europe_OM10538E
Select “Delete contacts” using the tune/scroll knob. (P. 453)
Select the desired phone number using the knob and press
(“YES”).
To delete all the registered phone numbers, press (“ALL”) and
then press (“YES”).
Press (“A-Z”) to display the registered names in alphabetical
order of the initial.
Select “Delete other PB” using the tune/scroll knob. ( P. 453)
Select the desired phonebook using the knob and press
(“YES”).
Select “Call volume” using the tune/scroll knob. ( P. 453)
Change the call volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (“BACK”).
Deleting a registered phone number
Deleting another cellular phone’s phonebook
Setting call volume
1
2
1
2
1
2

4645-7. “SETUP” menu
C-HR_HV_OM_Europe_OM10538E
Select “Ringtone volume” using the tune/scroll knob. (P. 453)
Change the ring tone volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (“BACK”).
Select “Ringtone” using the tune/scroll knob. ( P. 453)
Using the knob, select a ring tone (1 - 3). To set the selected ring
tone, press (“BACK”).
Select “Transfer histories” using the tune/scroll knob ( P. 453) and
press (“YES”).
■ Phone number
Up to 1000 names can be stored.
■ Call history
Up to 10 numbers can be stored in each of the outgoing, incoming and
missed call history memories.
■ Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
Setting ring tone volume
Setting ring tone
Transferring call histories
1
2
1
2

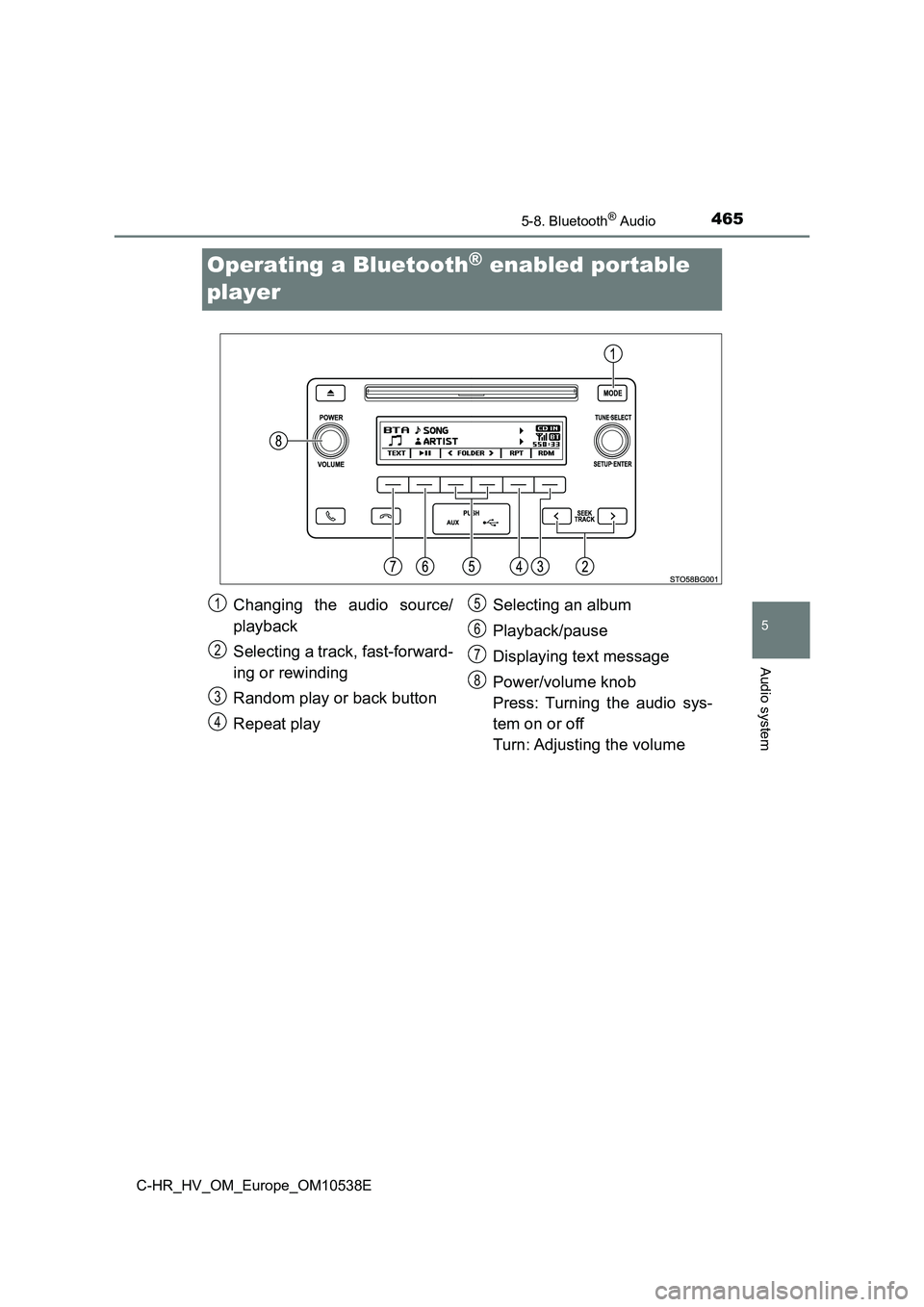

465
5
5-8. Bluetooth® Audio
Audio system
C-HR_HV_OM_Europe_OM10538E
Operating a Bluetooth® enabled portable
player
Changing the audio source/
playback
Selecting a track, fast-forward-
ing or rewinding
Random play or back button
Repeat play
Selecting an album
Playback/pause
Displaying text message
Power/volume knob
Press: Turning the audio sys-
tem on or off
Turn: Adjusting the volume
1
2
3
4
5
6
7
8

4665-8. Bluetooth® Audio
C-HR_HV_OM_Europe_OM10538E
Press (“”) to select desired
album.
Press the “<” or “>” button of “SEEK TRACK” to select the desired
track.
Press and hold the “<” or “>” button of “SEEK TRACK”.
Pressing (“RPT”) changes modes in the following order:
Track repeat Album repeatOff
Pressing (“RDM”) changes modes in the following order:
Album random All track randomOff
Press ( ).
Press (“TEXT”) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
■ Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■ Display
 P. 429
Selecting an album
Selecting a track
Fast-forwarding and rewinding tracks
Repeat play
Random play
Playing and pausing tracks
Switching the display

467
5
5-9. Bluetooth® Phone
Audio system
C-HR_HV_OM_Europe_OM10538E
Making a phone call
Select “Phonebook” using the tune/scroll knob.
Select the desired name using the knob and press the off-hook
switch.
By pressing (“Add S. Dial”) and one of the speed dial buttons
(from [1] to [5]) while the desired name is selected, it
can be registered as a speed dial.
Press (“A-Z”) to display the registered names in alphabetical
order of the initial.
Select “Speed dials” using the tune/scroll knob.
Press the desired preset button (from [1] to [5]) and
press the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press (“DELETE”) and
then press (“YES”).
To enter the “PHONE” or “TEL” mode, press the off-hook switch.
Dialing by selecting a name
Speed dialing
1
2
1
2

4685-9. Bluetooth® Phone
C-HR_HV_OM_Europe_OM10538E
Select “Dial by number” using the tune/scroll knob.
Enter the phone number and press the off-hook switch.
Select “All Calls”, “Missed Calls”, “Incoming Calls” or “Outgoing
Calls” using the tune/scroll knob.
Select a desired number using the knob and press the off-hook
switch.
The following operations can be performed:
● Registering a number as a speed dial
Press (“Add S. Dial”) and then press the desired preset but-
ton (from [1] to [5]).
● Deleting the selected number
Press (“DELETE”) and press (“YES”).
Dialing by entering the number
Dialing from call histories
1
2
1
2

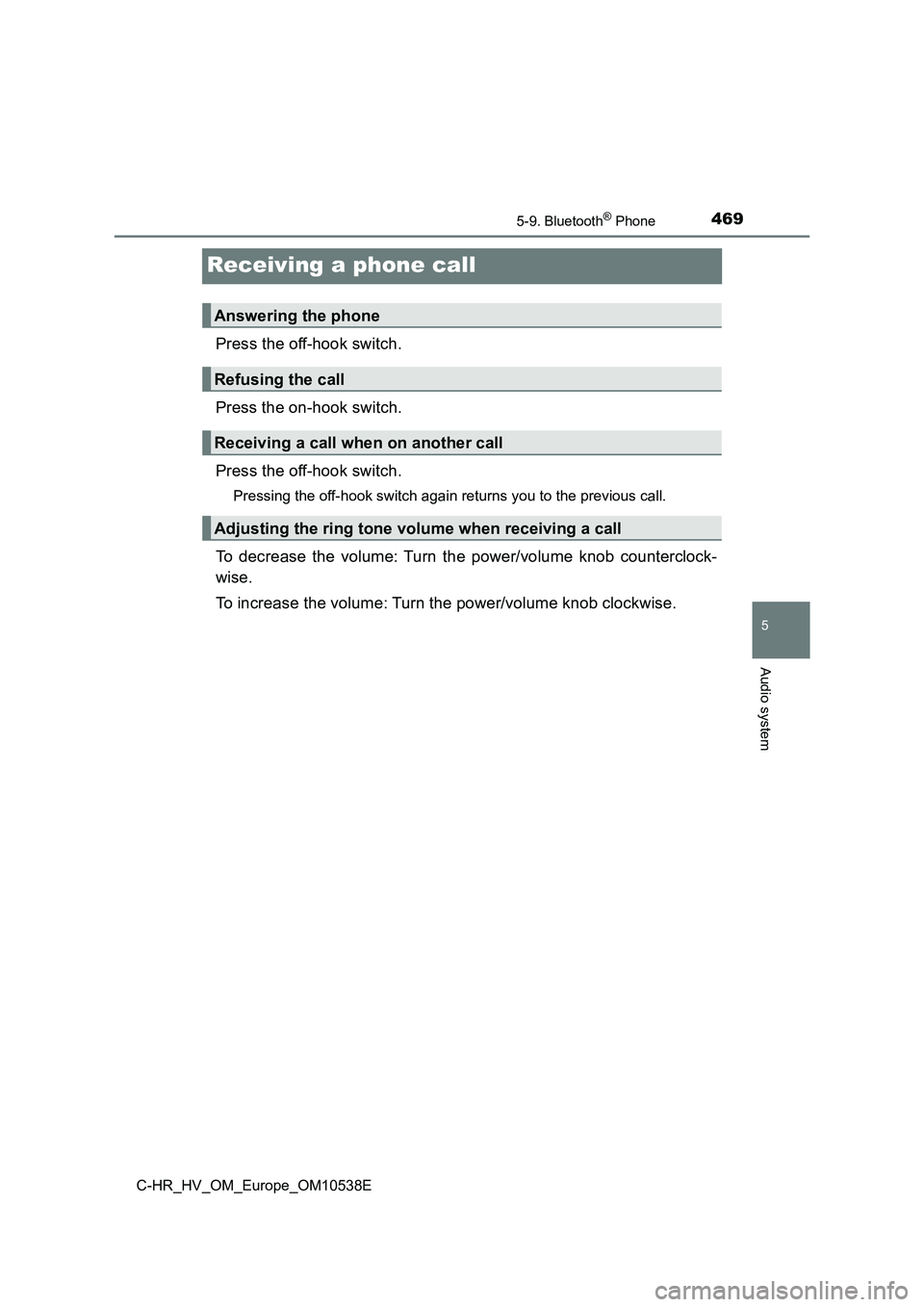

469
5
5-9. Bluetooth® Phone
Audio system
C-HR_HV_OM_Europe_OM10538E
Receiving a phone call
Press the off-hook switch.
Press the on-hook switch.
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
To decrease the volume: Turn the power/volume knob counterclock-
wise.
To increase the volume: Turn the power/volume knob clockwise.
Answering the phone
Refusing the call
Receiving a call when on another call
Adjusting the ring tone volume when receiving a call

4705-9. Bluetooth® Phone
C-HR_HV_OM_Europe_OM10538E
Speaking on the phone
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation
of the phone.
b. Press the (“PHONE”).*
*: This operation can be performed only when transferring a call from the
cellular phone to the system during a call.
Press (“MUTE”).
Press [0-9] and use the tune/scroll knob to input the desired
digits.
• To send the input digits press (“SEND”).
• When finished, press (“EXIT”) to return to the previous
screen.
To decrease the volume: Turn the power/volume knob counterclock-
wise.
To increase the volume: Turn the power/volume knob clockwise.
Transferring a call
Muting your voice
Inputting digits
Setting call volume
