TOYOTA CAMRY 2000 Service Repair Manual

BO0N8±01
± BODYREAR SEAT (TMMK Made)
BO±121
2469 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disasssembly (See page BO±120).

BO0N9±01
BO±122
± BODYREAR SEAT (TMMK Made)
2470 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BO±119).

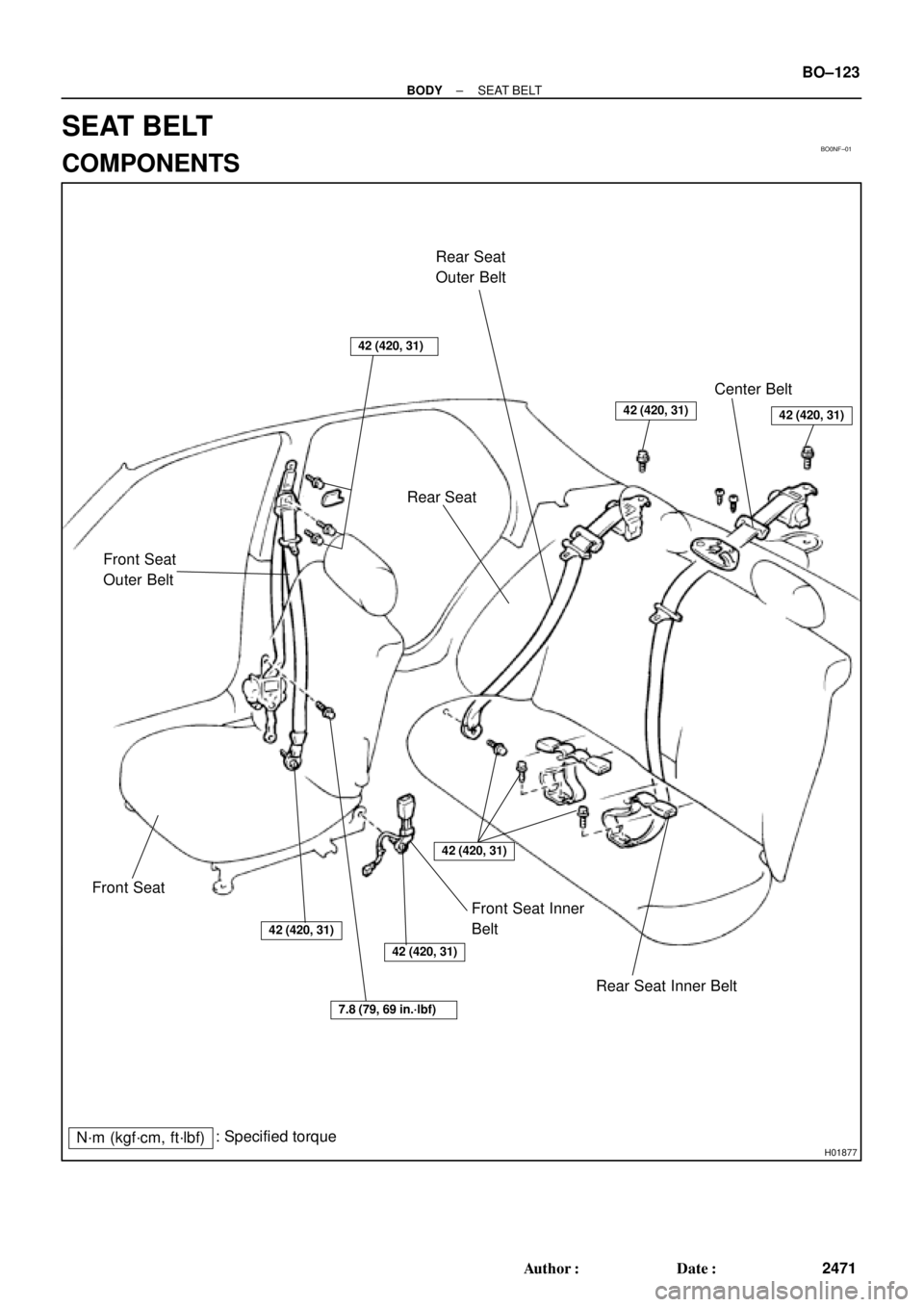

BO0NF±01
H01877
42 (420, 31)
Front Seat
Outer Belt
42 (420, 31)
Rear Seat
Center Belt
42 (420, 31)
Front Seat
42 (420, 31)
Front Seat Inner
Belt
42 (420, 31)
Rear Seat Inner Belt
N´m (kgf´cm, ft´lbf): Specified torque
Rear Seat
Outer Belt
7.8 (79, 69 in.´lbf)
42 (420, 31)
± BODYSEAT BELT
BO±123
2471 Author: Date:
SEAT BELT
COMPONENTS

BO0NG±01
BO0632
BO0633
15°
45° BO±124
± BODYSEAT BELT
2472 Author: Date:
INSPECTION
CAUTION:
Replace the seat belt assembly (outer belt, inner belt, bolts,
nuts or sill±bar) if it has been used in a severe impact. The
entire assembly should be replaced even if damage is not
obvious.
1. All Seat Belt:
RUNNING TEST (IN SAFE AREA)
(a) Fasten the front seat belts.
(b) Drive the car at 10 mph (16 km/h) and slam on the brakes.
Check that the belt locks and cannot be extended at this
time.
HINT:
Conduct this test in a safe area. If the belt does not lock, remove
the belt mechanism assembly and conduct the following static
check. Also, whenever installing a new belt assembly, verify the
proper operation before installation.
2. Driver 's Seat Belt (ELR):
STATIC TEST
(a) Make sure that the belt locks when pulled out quickly.
(b) Remove the locking retractor assembly.
(c) Tilt the retractor slowly.
(d) Make sure that the belt can be pulled out at a tilt of 15 de-
grees or less, and cannot be pulled out over 45 degrees
of tilt.
If a problem is found, replace the assembly.
3. Front RH Seat Belt and Rear Seat Belt (ALR/ELR):
STATIC TEST
(a) Make sure that the belt locks when pulled out quickly.
(b) Remove the locking retractor assembly.
(c) Pull out the whole belt and measure the length of the
whole belt.
Then retract the belt slightly and pull it out again
(d) Make sure that the belt cannot be extended further.
If a problem is found, replace the assembly.

N10070
Full Belt Length Minus
200 mm (7.87 in.)
BO0633
15°
45°
± BODYSEAT BELT
BO±125
2473 Author: Date:
(e) Retract the whole belt, then pull out the belt until 200 mm
(7.87 in.) of belt remains retracted.
(f) Tilt the retractor slowly.
(g) Make sure that the belt can be pulled out at a tilt of 15 de-
grees or less, and cannot be pulled out at over 45 degrees
of tilt.
If a problem is found, replace the assembly.

BO0NH±01
H01346
BO±126
± BODYSEAT BELT PRETENSIONER
2474 Author: Date:
SEAT BELT PRETENSIONER
REMOVAL
NOTICE:

If the wiring connector of the supplemental restraint
system is disconnected with the ignition switch at ON
or ACC, diagnostic trouble codes will be recorded.

Never use SRS parts from another vehicle. When re-
placing parts, replace them with new parts.
1. REMOVE THESE PARTS:
(a) Front door scuff plate
(b) Center pillar lower garnish
2. REMOVE FRONT SEAT OUTER BELT
CAUTION:
Never disassemble the front seat outer belt.
NOTICE:
When removing the front outer seat belt, take care not to
pull the seat belt pretensioner wire harness.
(a) Remove the bolts and floor anchor.
(b) Using a screwdriver, remove the anchor caps.
HINT:
Tape the screwdriver tip before use.
(c) Remove the bolt and shoulder anchor.
(d) Disconnect the pretensioner connector as shown in the
illustration.
(e) Remove the 2 bolts and front seat outer belt.

BO0NI±01
H00563
H01878
± BODYSEAT BELT PRETENSIONER
BO±127
2475 Author: Date:
INSPECTION
1. PRETENSIONER IS NOT ACTIVATED
(a) Perform a diagnostic system check.
(See page DI±626)
(b) Perform a visual check which includes the following items
with the front seat outer belt removed from the vehicle.

Check for cuts and cracks in, or marked discolor-
ation of the center pillar lower garnish.

Check for cuts and cracks in wire harnesses, and for
chipping in connectors.

Check for deformation of the center pillar.
CAUTION:
For removal and installation of the front seat outer belt, see
page BO±123.
Be sure to follow the correct procedure.
2. PRETENSIONER IS ACTIVATED
(a) Perform a diagnostic system check.
(See page DI±626)
(b) Perform a visual check which includes the following items
with the front seat outer belt removed from the vehicle.

Check for deformation of the center pillar.

Check for damage on the connector and wire har-
ness.

BO0NJ±01
AB0152
SST BO±128
± BODYSEAT BELT PRETENSIONER
2476 Author: Date:
DISPOSAL
HINT:
When scrapping vehicles equipped with a supplemental re-
straint system or disposing of a front seat outer belt (with seat
belt pretensioner) always first activate the seat belt pretension-
er in accordance with the procedure described below. If any ab-
normality occurs with the seat belt pretensioner operation, con-
tact the SERVICE DEPT. of the DISTRIBUTOR. when
disposing of a front seat outer belt (with seat belt pretensioner)
deployed in a collision, follow the same procedure given in step
1±(d) in ºDISPOSALº.
CAUTION:

Never dispose of front seat outer belt which has an
undeployed pretensioner.

The seat belt pretensioner produces a sizeable ex-
ploding sound when it deploys, so perform the opera-
tion out±of±door and where it will not create a nui-
sance to nearby residents.

When deploying the seat belt pretensioner, always
use the specified SST. (SRS Airbag Deployment Tool)
Perform the operation in a place away from electrical
noise.
SST 09082±00700, 09082±00740

When deploying a front seat outer belt (with seat belt
pretensioner), perform the operation from at least
10 m (33 ft) away from the front seat outer belt.

Use gloves and safety glasses when handling a front
seat outer belt with operated pretensioner.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a front seat outer belt with
operated pretensioner.

AB0158
SSTBattery
AB0152
SST
AB0158
SSTBattery
H01580
SST
H01346
± BODYSEAT BELT PRETENSIONER
BO±129
2477 Author: Date:
1. SEAT BELT PRETENSIONER DEPLOYMENT WHEN
SCRAPPING VEHICLE
HINT:
Have a battery ready as the power source to deploy the airbag.
(a) Check functioning of SST
CAUTION:
When deploying the seat belt pretensioner, always use the
specified SST: SRS Airbag Deployment Tool.
SST 09082±00700, 09082±00740
(1) Connect the SST to battery.
Connect the red clip of the SST to the battery posi-
tive (+) terminal and the black clip to the battery neg-
ative (±) terminal.
HINT:
Do not connect the yellow connector which will be connected
with the seat belt pretensioner.
(2) Check functioning of SST
Press the SST activation switch, and check the LED
of the SST activation switch lights up.
CAUTION:
If the LED lights up when the activation switch is not being
pressed, SST malfunction is probable, so definitely do not
use the SST.
(b) Install the SST.
(1) Remove the front door scuff plate.
(2) Remove the center pillar lower garnish.
(3) Disconnect the pretensioner connector as shown in
the illustration.
(4) Buckle the front seat belt and check that there is no
looseness and slack in the front seat inner belt and
front seat outer belt.
SST 09082±00700, 09082±00740

H01880
SST SST
R13455
10 m (33 ft) or more BO±130
± BODYSEAT BELT PRETENSIONER
2478 Author: Date:
(5) Connect the 2 SST, then connect them to the seat
belt pretensioner.
SST 09082±00700, 09082±00740
NOTICE:
To avoid damaging the SST connector and wire harness,
do not lock the secondary lock of secondary lock of the
twin lock.
(6) Move the SST to at least 10mm (33 ft) from the front
of the vehicle.
(7) Close all the doors and windows of the vehicle.
NOTICE:
Take care not to damage the SST wire harness.
(8) Connect the SST red clip the battery positive (±) ter-
minal and the black clip to the negative (+) terminal.
(c) Deploy the airbag.
(1) Confirm that no one is inside the vehicle or within 10
m (33 ft) area around of the vehicle.
(2) Press the SST activation switch and activate the
seat belt pretensioner.
HINT:
The seat belt pretensioner operates simultaneously as the LED
of the SST activation switch light up.
(d) Disposal of front seat outer belt (with seat belt pretension-
er).
CAUTION:

The front seat outer belt is very hot when the seat belt
pretensioner is deployed, so leave it alone for at least
30 minutes after deployment.

Use gloves and safety glasses when handling a front
seat outer belt with deployed seat belt pretensioner.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a front seat outer belt with
deployed seat belt pretensioner.
When scrapping a vehicle, activate the seat belt preten-
sioner and scrap the vehicle with operated front seat out-
er belt still installed.
