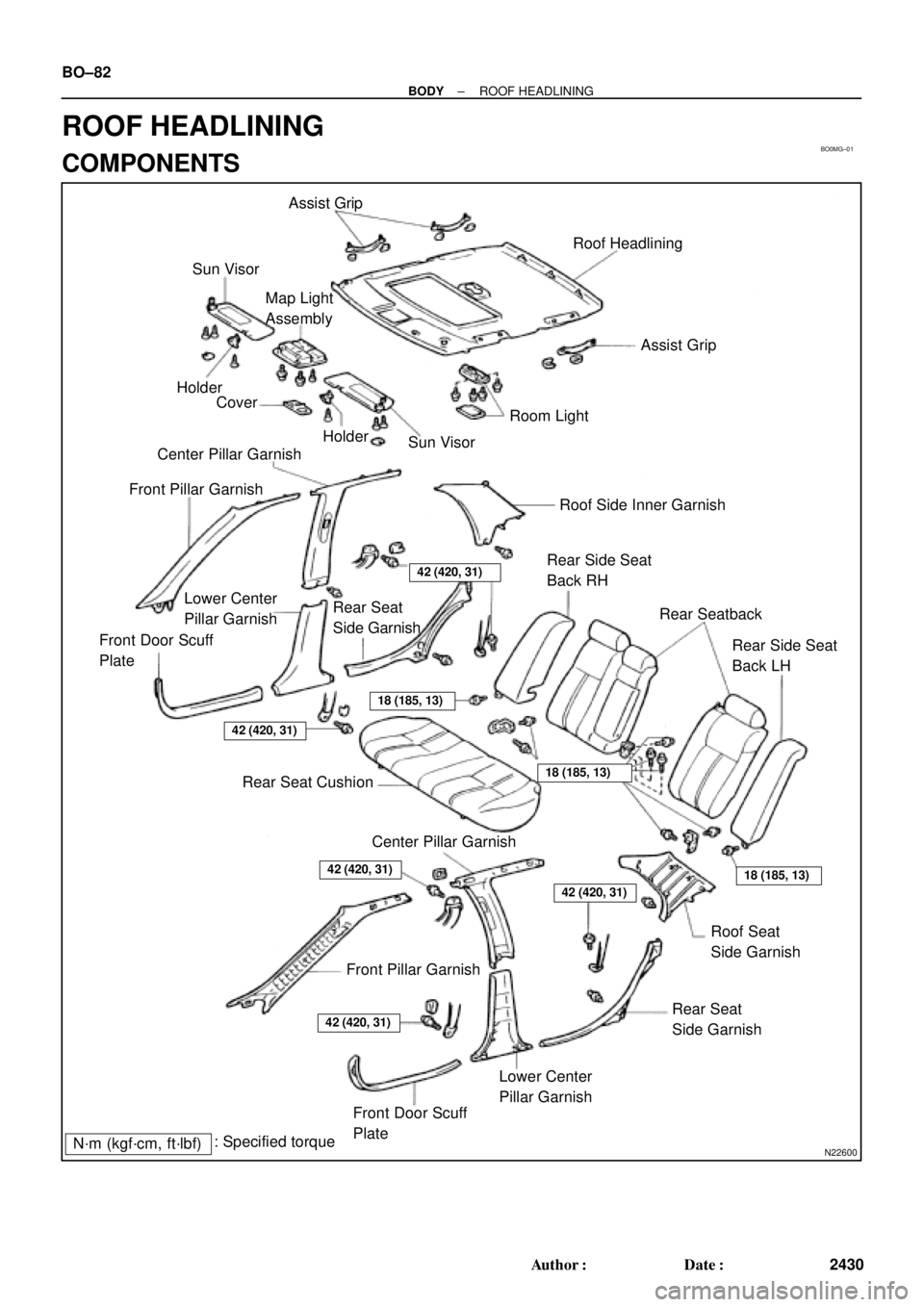

TOYOTA CAMRY 2000 Service Repair Manual

BO0MG±01
N22600


Assist Grip
Sun VisorRoof Headlining
Assist Grip
Room Light Map Light
Assembly
Holder
Cover
Holder
Sun Visor
Center Pillar Garnish
Roof Side Inner Garnish Front Pillar Garnish
Front Door Scuff
PlateLower Center
Pillar GarnishRear Side Seat
Back RH
42 (420, 31)
Rear Seat
Side GarnishRear Seatback
Rear Side Seat
Back LH
42 (420, 31)
18 (185, 13)
18 (185, 13)
18 (185, 13)
Rear Seat Cushion
Center Pillar Garnish
42 (420, 31)
42 (420, 31)
Roof Seat
Side Garnish
Front Pillar Garnish
Rear Seat
Side Garnish
Lower Center
Pillar Garnish
42 (420, 31)
Front Door Scuff
Plate
N´m (kgf´cm, ft´lbf): Specified torque BO±82
± BODYROOF HEADLINING
2430 Author: Date:
ROOF HEADLINING
COMPONENTS

BO0MH±01
N21457
: 4 Clips
N21458
: Clip
: 2 Clips
N21415
± BODYROOF HEADLINING
BO±83
2431 Author: Date:
REMOVAL
1. REMOVE THESE PARTS:
(a) Rear seat cushion
(b) Rear seatback and rear side seatbacks
(c) Front door scuff plates
(d) Front seat belt shoulder anchor bolts
(e) Sun visor and holders
(f) Assist grips
(g) Front pillar garnishes
(h) Rear door scuff plates
(i) Lower center pillar garnishes
2. REMOVE ROOF SIDE INNER GARNISH
(See page BO±28)
3. REMOVE FRONT PILLAR GARNISH
(a) Pry out clips by your hand.
(b) Pull the garnish upward to remove it.
4. REMOVE CENTER PILLAR GARNISH
(a) Remove the clip.
(b) Pry off the garnish.
5. REMOVE ROOM LIGHT
(a) Using a screwdriver, remove the room light cover.
HINT:
Tape the screwdriver tip before use.
(b) Remove the 4 screws, then disconnect the connector.
6. REMOVE MAP LIGHT ASSEMBLY

N22971
2 Clips BO±84
± BODYROOF HEADLINING
2432 Author: Date:
7. REMOVE ROOF HEADLINING
(a) Remove the 2 clips from the roof panel rear end.
(b) Remove the headlining.
(c) Bring out the headlining.

BO0MI±01
± BODYROOF HEADLINING
BO±85
2433 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BO±83).

BO0MI±01
± BODYROOF HEADLINING
BO±85
2433 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BO±83).

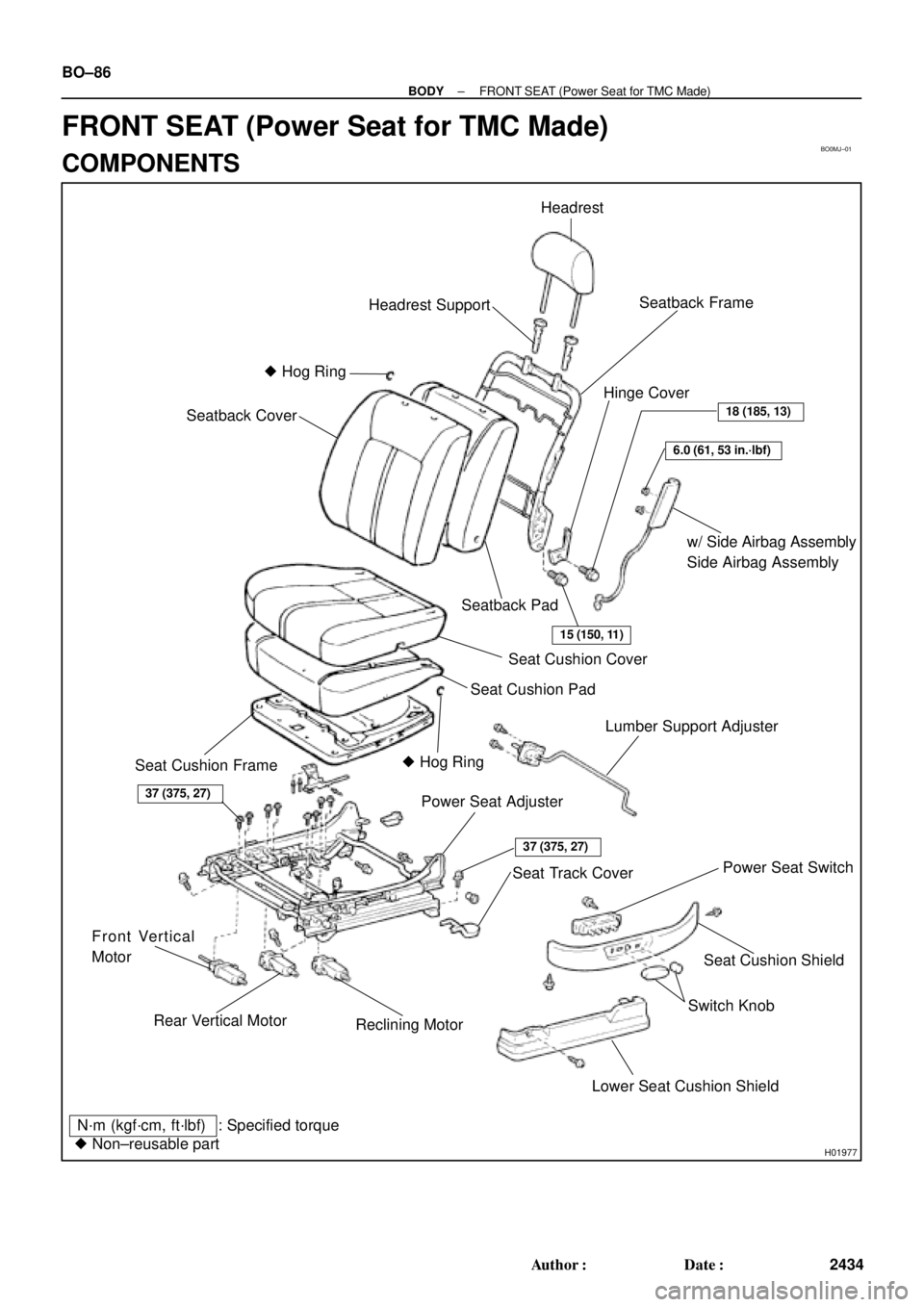

BO0MJ±01
H01977
Headrest
Seatback Frame
w/ Side Airbag Assembly
Side Airbag Assembly Headrest Support

Hog Ring
Seatback Pad Seatback Cover
Seat Cushion Cover
Seat Cushion Pad
Seat Cushion Frame
Hog RingLumber Support Adjuster
Power Seat Adjuster
Seat Cushion Shield
Switch Knob Front Vertical
Motor
Lower Seat Cushion ShieldHinge Cover
Power Seat Switch
: Specified torque
N´m (kgf´cm, ft´lbf)

Non±reusable part
37 (375, 27)
37 (375, 27)
Rear Vertical Motor
Seat Track Cover
Reclining Motor
15 (150, 11)
6.0 (61, 53 in.´lbf)
18 (185, 13)
BO±86
± BODYFRONT SEAT (Power Seat for TMC Made)
2434 Author: Date:
FRONT SEAT (Power Seat for TMC Made)
COMPONENTS

BO0MK±01
± BODYFRONT SEAT (Power Seat for TMC Made)
BO±87
2435 Author: Date:
REMOVAL
REMOVE FRONT SEAT
(a) Using a screwdriver, remove the seat track covers.
HINT:
Tape the screwdriver tip before use.
(b) Remove the 4 bolts.
(c) Disconnect the connector.
(d) Remove the front seat.
NOTICE:
Be careful not to damage the body.

BO0ML±01
H01870
BO±88
± BODYFRONT SEAT (Power Seat for TMC Made)
2436 Author: Date:
DISASSEMBLY
1. REMOVE THESE PARTS:
(a) Headrest
(b) Switch knobs
(c) Seat cushion shield
(d) Lower seat cushion shield
(e) Power seat switch
2. REMOVE SEATBACK ASSEMBLY
(a) Remove the 3 clips of the side airbag wire harness from
the seat cushion frame.
(b) Remove the 4 bolts and seatback assembly.
3. REMOVE SEATBACK COVER
(a) Remove the hog rings and hooks.
(b) Remove the hook as shown in the illustration.
(c) Remove the headrest supports.
(d) Remove the hog rings and seatback frame from seatback
cover with pad.
(e) Remove the hog rings and seatback cover from seatback
pad.
4. REMOVE SIDE AIRBAG ASSEMBLY
Remove the 1 clip of side airbag wire harness, 2 nuts and side
airbag assembly from the seatback frame.
CAUTION:

Do not store the side airbag assembly with the airbag
deployment direction facing down.

Never disassemble the side airbag assembly.
5. REMOVE LUMBER SUPPORT ADJUSTER
Remove the 2 screws and lumber support adjuster.
6. REMOVE SEAT CUSHION ASSEMBLY
Remove the 4 bolts and seat cushion assembly.
7. REMOVE SEAT CUSHION COVER
(a) Remove the 2 clips, hook and seat cushion frame from
seat cushion cover with pad.
(b) Remove the hog rings and seat cushion cover from the
seat cushion pad.

H01978
H01979
H01980
± BODYFRONT SEAT (Power Seat for TMC Made)
BO±89
2437 Author: Date:
8. REMOVE REAR VERTICAL MOTOR
Remove the 2 screws and front vertical motor.
9. REMOVE SLIDE MOTOR
(a) Remove the 2 screws.
(b) Disconnect the No.1 drive cable, then remove the slide
motor.
10. REMOVE RECLINING MOTOR
(a) Remove the 2 screws.
(b) Disconnect the No.2 drive cable, then remove the reclin-
ing motor.

BO0MM±01
H01980
H01979
H01978
BO±90
± BODYFRONT SEAT (Power Seat for TMC Made)
2438 Author: Date:
REASSEMBLY
1. INSTALL RECLINING MOTOR
Connect the No.2 drive cable, then install the reclining motor
with 2 screws.
2. INSTALL SLIDE MOTOR
Connect the No.1 drive cable, then install the slide motor with
2 screws.
3. INSTALL REAR VERTICAL MOTOR
Install the front vertical motor with 2 screws.
4. INSTALL LOWER SEAT CUSHION SHIELD
5. INSTALL SEAT CUSHION COVER
(a) Install the seat cushion cover with new hog rings to seat
cushion pad.
(b) Install the seat cushion cover with pad to the seat cushion
frame with hook and 2 clips.
HINT:
Install the hog rings to prevent wrinkles as least as possible.
6. INSTALL SEAT CUSHION ASSEMBLY
Install the seat cushion assembly with 4 bolts.
7. INSTALL SIDE AIRBAG ASSEMBLY
Install the side airbag assembly with 2 new nuts and 1 clip of
side airbag wire harness to the seatback frame.
Torque: 6.0 N´m (61 N´m, 53 in.´lbf)
NOTICE:

Make sure that the side airbag assembly is installed
to the specified torque.

If the side airbag assembly has been dropped, or
there are cracks, dents or other defects in the case or
connector, replace the side airbag assembly with a
new one.
8. INSTALL SEATBACK COVER
(a) Install the seatback cover with new hog rings to the seat-
back pad.
(b) Install the seatback cover with pad to the seatback frame
with new hog rings.
(c) Install the headrest supports.
