± BODYFRONT SEAT (Power Seat for TMC Made)
BO±91
2439 Author: Date:

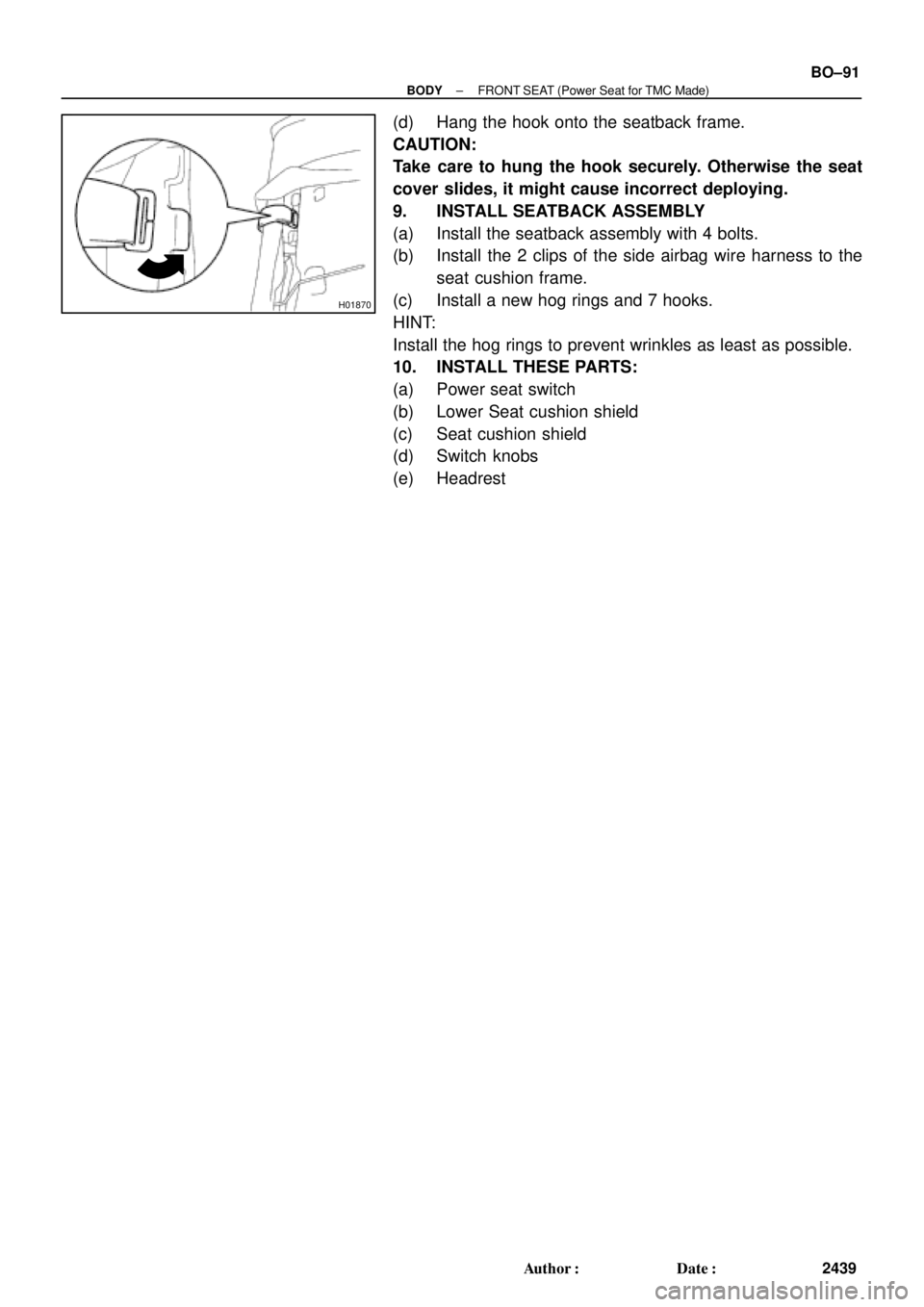

(d) Hang the hook onto the seatback frame.
CAUTION:
Take care to hung the hook securely. Otherwise the seat
cover slides, it might cause incorrect deploying.
9. INSTALL SEATBACK ASSEMBLY
(a) Install the seatback assembly with 4 bolts.
(b) Install the 2 clips of the side airbag wire harness to the
seat cushion frame.
(c) Install a new hog rings and 7 hooks.
HINT:
Install the hog rings to prevent wrinkles as least as possible.
10. INSTALL THESE PARTS:
(a) Power seat switch
(b) Lower Seat cushion shield
(c) Seat cushion shield
(d) Switch knobs
(e) Headrest

BO0MN±01
BO±92
± BODYFRONT SEAT (Power Seat for TMC Made)
2440 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BO±87).

BO0MU±01
H01873
Front Seat Cushion
Cover

Hog Ring

Hog Ring
Front Seat Cushion
Pad
Front Seat Cushion Frame
Front Seat Adjuster
Assembly
Front Seat Cushion
Inner No.1 Shield
Front Seatback
PadHeadrest
Front
Seatback
Hinge
CoverHeadrest
Support
Seatback Frame
Front Seatback-
HingeCover
w/ Lumber Support:
Lumber Support Lever
Front Power Seat
Switch
Front Seat Cushion
Shield
Switch Knob
Seat Cushion Lower
Shield
Front Seat Cushion
Bracket
w/ Side Airbag
Assembly:
Side Airbag Assembly
6.0 (61, 53 in.´lbf)
N´m (kgf´cm, ft´lbf): Specified torque

Non±reusable part
Front Seatback Cover
± BODYFRONT SEAT (Power Seat for TMMK Made)
BO±93
2441 Author: Date:
FRONT SEAT (Power Seat for TMMK Made)

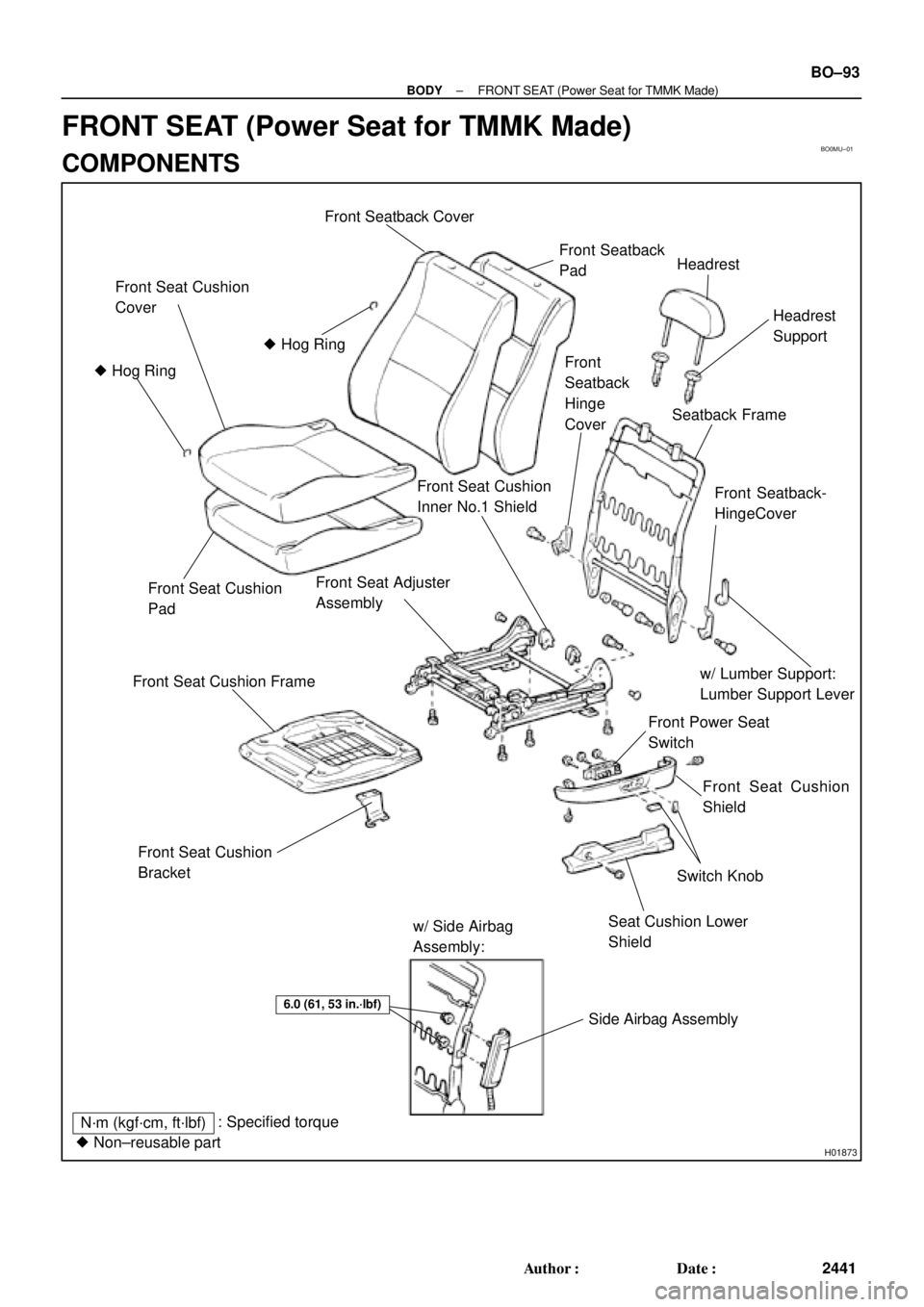

COMPONENTS

BO0MV±01
BO±94
± BODYFRONT SEAT (Power Seat for TMMK Made)
2442 Author: Date:
REMOVAL
REMOVE FRONT SEAT
(a) Using a screwdriver, remove the seat track covers.
HINT:
Tape the screwdriver tip before use.
(b) Remove the 4 bolts.
(c) w/ Side Airbag Assembly:
Disconnect the connector.
(d) Disconnect the front power seat connector.
(e) Remove the front seat.
NOTICE:
Be careful not to damage the body.

BO0MW±01
H01870
± BODYFRONT SEAT (Power Seat for TMMK Made)
BO±95
2443 Author: Date:
DISASSEMBLY
1. REMOVE THESE PARTS:
(a) Switch knob
(b) Front seat cushion shield
(c) Front power seat switch
(d) Seat cushion lower shield
(e) w/ Lumber Support:
Lumber support lever
(f) Headrest
(g) Front seat inner belt
2. REMOVE SEATBACK ASSEMBLY
(a) w/ Side Airbag Assembly:
Remove the side airbag wire harness after removing
clips.
(b) Remove the hog rings.
(c) Remove the bolts and front seatback hinge cover.
(d) Remove the seatback assembly.
3. REMOVE SEATBACK COVER

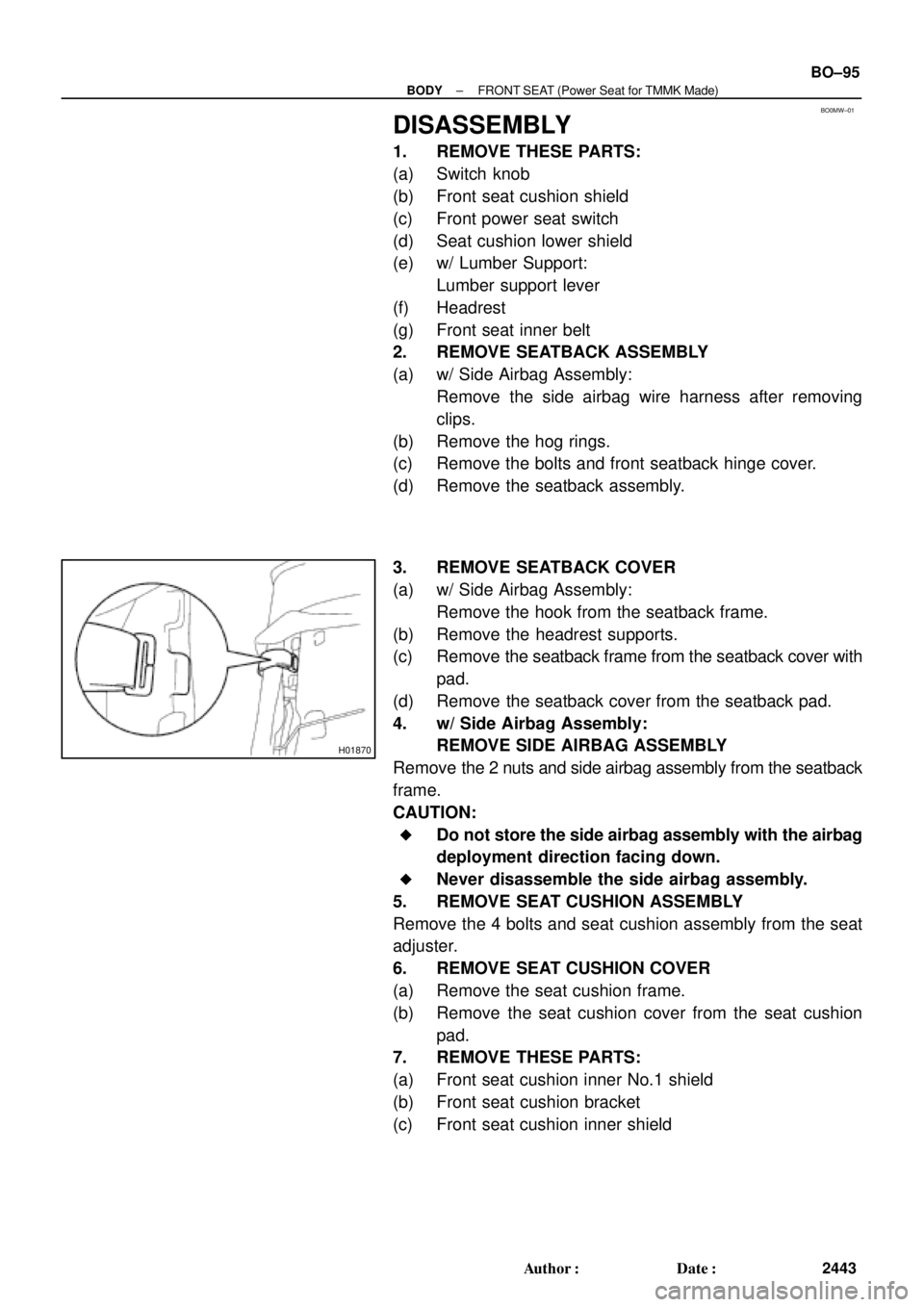

(a) w/ Side Airbag Assembly:
Remove the hook from the seatback frame.
(b) Remove the headrest supports.
(c) Remove the seatback frame from the seatback cover with
pad.
(d) Remove the seatback cover from the seatback pad.
4. w/ Side Airbag Assembly:
REMOVE SIDE AIRBAG ASSEMBLY
Remove the 2 nuts and side airbag assembly from the seatback
frame.
CAUTION:

Do not store the side airbag assembly with the airbag
deployment direction facing down.

Never disassemble the side airbag assembly.
5. REMOVE SEAT CUSHION ASSEMBLY
Remove the 4 bolts and seat cushion assembly from the seat
adjuster.
6. REMOVE SEAT CUSHION COVER
(a) Remove the seat cushion frame.
(b) Remove the seat cushion cover from the seat cushion
pad.
7. REMOVE THESE PARTS:
(a) Front seat cushion inner No.1 shield
(b) Front seat cushion bracket
(c) Front seat cushion inner shield

BO0MX±01
H01870
BO±96
± BODYFRONT SEAT (Power Seat for TMMK Made)
2444 Author: Date:
REASSEMBLY
1. INSTALL THESE PARTS:
(a) Front seat cushion inner shield
(b) Front seat cushion bracket
(c) Front seat cushion inner No.1 shield
2. INSTALL SEAT CUSHION COVER
(a) Install the seat cushion cover to seat cushion pad.
(b) Install the seat cushion cover with pad to the seat cushion
frame.
3. INSTALL SEAT CUSHION ASSEMBLY
Install the seat cushion assembly with 4 bolts to the seat adjust-
er.
HINT:
Tighten the 4 bolts temporarily, then from the bolts on the rear
side tighten completely.
4. w/ Side Airbag Assembly:
INSTALL SIDE AIRBAG ASSEMBLY
Install the side airbag assembly with 2 nuts to the seatback
frame.
Torque: 6.0 N´m (61 kgf´cm, 53 in.´lbf)
NOTICE:

Make sure that the side airbag assembly is installed
to the specified torque.

If the side airbag assembly has been dropped, or
there are cracks, dents or other defects in the case or
connector, replace the side airbag assembly with a
new one.

When installing the side airbag assembly, take care
is not pinched between other parts.
5. INSTALL SEATBACK COVER
(a) Install the seatback cover to the seatback pad.
(b) Install the seatback cover with pad to the seatback frame.
(c) Install the headrest supports.

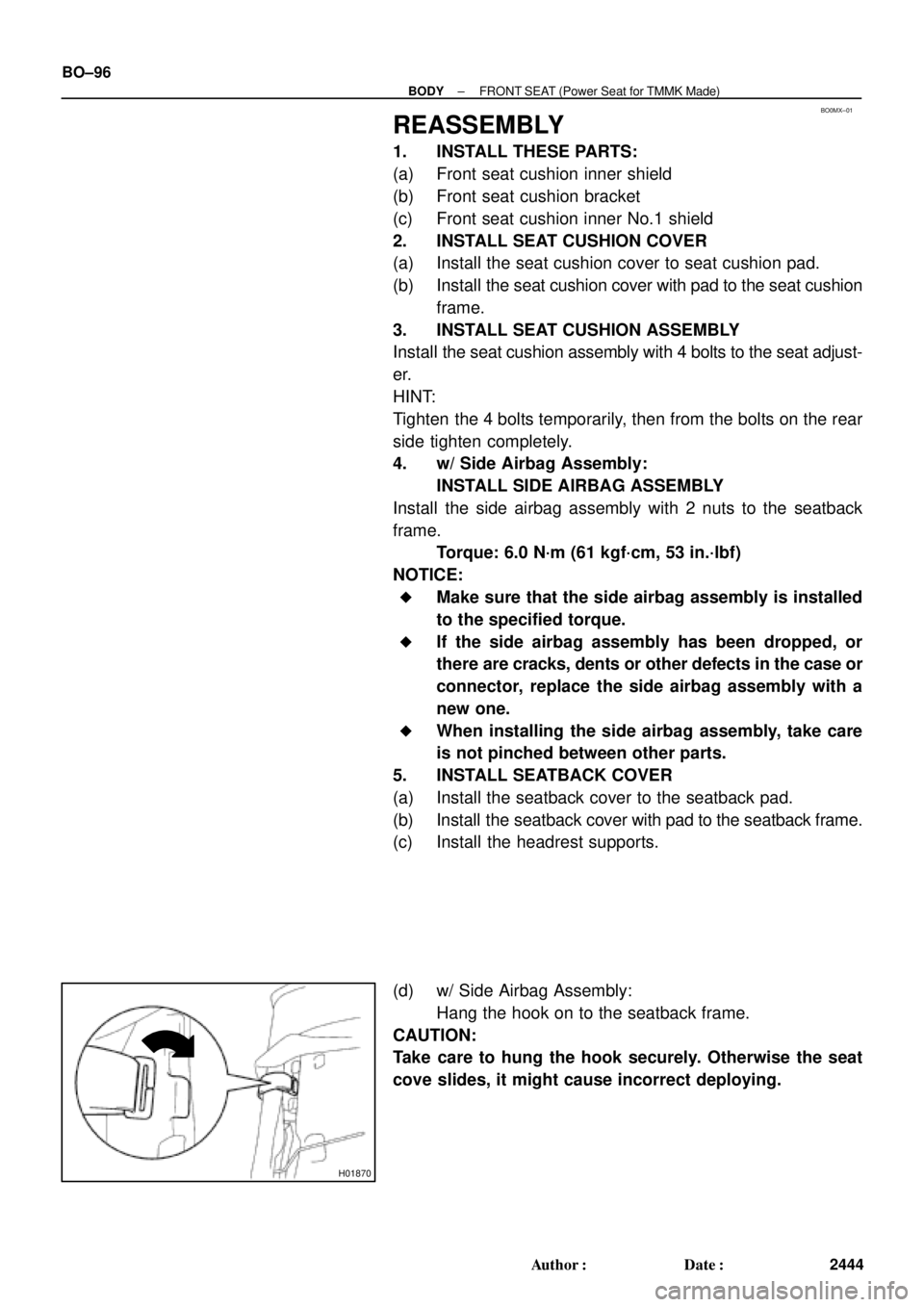

(d) w/ Side Airbag Assembly:
Hang the hook on to the seatback frame.
CAUTION:
Take care to hung the hook securely. Otherwise the seat
cove slides, it might cause incorrect deploying.

H01871
± BODYFRONT SEAT (Power Seat for TMMK Made)
BO±97
2445 Author: Date:
6. INSTALL SEATBACK ASSEMBLY
(a) Install the seatback assembly with 4 bolts.
HINT:
Tighten the 4 bolts temporarily, then from the bolt on the front
right side tighten completely.
(b) Install Front Seatback hinge cover with bolts.
(c) Install a new hog rings.
HINT:
Install the hog rings to prevent wrinkles as least as possible.
(d) w/ Side Airbag Assembly:
Securely fix the side airbag wire harness to seat cushion
by clips.
7. INSTALL THESE PARTS:
(a) Front seat inner belt
(b) Headrest
(c) w/ Lumber Support:
Lumber support lever
(d) Seat cushion lower shield
(e) Front power seat switch
(f) Front seat cushion shield
(g) Switch knob

BO0MY±01
BO±98
± BODYFRONT SEAT (Power Seat for TMMK Made)
2446 Author: Date:
INSTALLATION
INSTALL FRONT SEAT
(a) Mount the seat to the vehicle.
(b) w/ Side Airbag:
Connect the connector.
(c) Connect the front power seat connector.
(d) Tighten the bolts on the rear side temporarily, from the bolt on the inner side tighten completely.
(e) Slide the seat to the most rear position to install the bolts on the front side.

BO0MZ±01
H01869

Hog RingSeatback PadHeadrest
Seatback Cover
Headrest Support
Seat Cushion Cover
Seatback Frame
w/ Side Airbag:
Side Airbag
Assembly
Seat Cushion
Inner Shield
w/ Lumber Support:
Lumper Support Lever

Hog Ring
Seat Cushion
Pad
Seat Cushion
Frame
Seat Track Adjusting
HandleFront Seat Inner Upper Track
18 (185, 13)
37 (375, 27)
Seat Track Cover
18 (185, 13)
Front Seat
Inner Track
37 (375, 27)
Front Seat Cushion
Shield
Release
Handle
Front Seat Cushion
Lower Shield
Vertical Adjuster
Knob w/o Vertical:
Front Seat Inner Upper Track
18 (185, 13)
18 (185, 13)
Front Seat
Inner Track37 (375, 27)
37 (375, 27)
Front Seat Outer
Adjuster
Front Seat Cushion
Shield
Release
Handle
N´m (kgf´cm, ft´lbf)
Front Seat Cushion Lower Shield
: Specified torque

Non±reusable part
37 (375, 27)
6.0 (61, 53 in.´lbf)
18 (185, 13)
± BODYFRONT SEAT (Manual Seat for TMC Made)
BO±99
2447 Author: Date:
FRONT SEAT (Manual Seat for TMC Made)

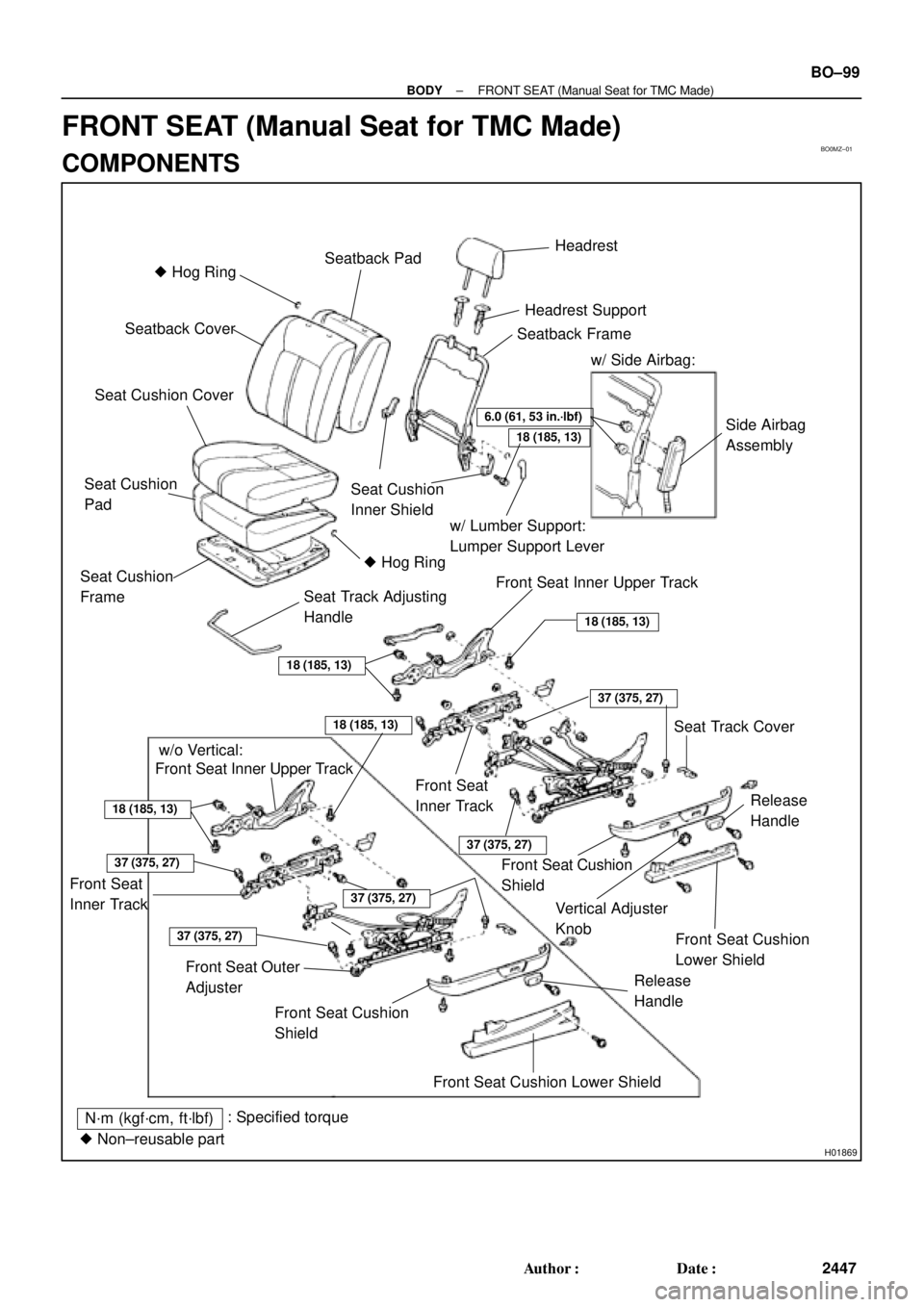

COMPONENTS

BO0N0±01
BO±100
± BODYFRONT SEAT (Manual Seat for TMC Made)
2448 Author: Date:
REMOVAL
REMOVE FRONT SEAT
(a) Using a screwdriver, remove the seat track outer cover.
HINT:
Tape the screwdriver tip before use.
(b) Remove the 4 bolts.
(c) w/ Side Airbag Assembly:
Disconnect the connector.
(d) Remove the front seat.
NOTICE:
Be careful not to damage the body.
