± BODY ELECTRICALBODY ELECTRICAL SYSTEM
BE±7
2227 Author: Date:
Seat Belt warning light does not light up.
1. Bulb
2. Seat Belt Buckle Switch
3. Integration Relay (I/P J/B No.1)
4. Wire Harness±
BE±47
BE±47
±
Discharge warning light does not light up.
1. IGN Fuse (I/P J/B No.1)
2. Bulb
3. Wire Harness
4. Generator (5S±FE)
(1MZ±FE)±
±
±
CH±1
CH±1
Light Failure warning light does not light up.
1. Bulb
2. Light Failure Sensor
3. Bulb Check Relay
4. Wire Harness
5. Taillight system±
BE±37
BE±47
±
BE±24
Brake warning light does not light up.
1. Bulb
2. Parking Brake Switch
3. Brake Fluid Level Warning Switch
4. Bulb Check Relay
5. Meter Circuit Plate
6. Wire Harness±
BE±47
BE±47
BE±47
BE±46
±
SRS Warning light does not light up.
1. ECU±B Fuse (E/G Room J/B No.2)
2. Bulb
3. Airbag Sensor Assembly
4. Meter Circuit Plate
5. Wire Harness±
±
DI±626
BE±46
±
Open Door warning light does not light up.
1. DOME Fuse (E/G Room J/B No.2)
2. Bulb
3. Door Courtesy Switch
4. Meter Circuit Plate
5. Wire Harness±
±
BE±32
BE±46
±
Washer Level warning light does not light up.
1. Bulb
2. Washer Fluid Level Warning Switch
3. Meter Circuit Plate
4. Wire Harness±
BE±47
BE±46
±
COMBINATION METER
INDICATOR LIGHTS:
SymptomSuspect AreaSee page
O/D OFF indicator light does not light up.
1. Bulb
2. O/D OFF Switch (A140E)
(A541E)
3. Meter Circuit Plate
4. Wire Harness±
DI±431
DI±487
BE±46
±
Cruise Control indicator light does not light up.
1. Bulb
2. Cruise Control ECU
3. Meter Circuit Plate
4. Wire Harness±
IN±31
BE±46
±
High beam indicator light does not light up.
1. Bulb
2. Meter Circuit Plate
3. Wire Harness
4. Headlight System±
BE±46
±
BE±22
Turn indicator light does not light up.
1. Bulb
2. Meter Circuit Plate
3. Wire Harness
4. Turn Signal and Hazard Warning System±
BE±46
±
BE±29

BE±8
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2228 Author: Date:
Shift indicator lights do not light up.
1. Bulb
2. Meter Circuit Plate
3. Park/Neutral Position Switch (A140E)
(A541E)
4. Wire Harness±
BE±46
DI±424
DI±479
±
Only one shift indicator does not light up.1. Bulb
2. Meter Circuit Plate±
BE±46
Malfunction indicator light does not light up.
1. Bulb
2. ECM
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
SLIP indicator light does not light up.
1. Bulb
2. Traction ECU
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
TRAC OFF indicator light does not light up.
1. Bulb
2. Traction ECU
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
Security indicator light does not light up.
1. Bulb
2. Security ECU
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
Indicator lights do not light up. (Except Turn, Hi±beam and
security)1. GAUGE Fuse (I/P J/B No.1)
2. Wire Harness±
±
DEFOGGER SYSTEM
SymptomSuspect AreaSee page
All defogger systems do not operate.
1. DEFOG M±Fuse (I/P J/B No.1)
2. HTR Fuse (I/P J/B No.1)
3. Defogger Relay (I/P J/B No.1)
4. Defogger Switch
5. Wire Harness±
±
BE±56
BE±56
±
Rear window defogger does not operate.
1. Defogger Wire
2. Choke Coil
3. Wire HarnessBE±56
±
±
Mirror defogger does not operate.
1. MIR/HTR Fuse (I/P J/B No.1)
2. Mirror Defogger
3. Wire Harness±
BE±56
±
POWER WINDOW CONTROL SYSTEM
SymptomSuspect AreaSee page
Power window does not operate (ALL).
(Power Door Lock does not operate)1. POWER M±Fuse (I/P J/B No.1)
2. Power Main Relay (I/P J/B No.1)
3. Wire Harness±
BE±60
±
Power window does not operate (ALL).
(Power Door Lock is normal)1. Ignition Switch
2. Power Window Master Switch
3. Wire HarnessBE±14
BE±60
±
ºOne Touch Power Window Systemº does not operate.1. Power Window Master SwitchBE±60
Only one window glass does not move.
1. Power Window Master Switch
2. Power Window Switch
3. Power Window Motor
4. Wire HarnessBE±60
BE±60
BE±60
±
ºWindow Lock Systemº does not operate.1. Power Window Master SwitchBE±60

± BODY ELECTRICALBODY ELECTRICAL SYSTEM
BE±9
2229 Author: Date:
ºWindow Lock Illuminationº does not light up.1. Power Window Master SwitchBE±60
Key±off power window does not operate.
1. GAUGE Fuse (I/P J/B No.1)
2. Integration Relay (I/P J/B No.1)
3. Ignition Switch
4. Door Courtesy Switch
5. Wire Harness±
BE±60
BE±14
BE±32
±
POWER DOOR LOCK CONTROL SYSTEM
SymptomSuspect AreaSee page
ºDoor lock systemº does not operate at all.
1. POWER M±Fuse (I/P J/B No.1)
2. CIG Fuse (I/P J/B No.1)
3. DOOR Fuse (I/P J/B No.1)
4. Integration Relay (I/P J/B No.1)
5. Wire Harness±
±
±
BE±70
±
Door lock system does not operate by manual switch.
1. Power Window Master Switch
2. Door Lock Manual Switch
3. Integration Relay (I/P J/B No.1)
4. Wire HarnessBE±60
BE±70
BE±70
±
Door lock system does not operate by door key.
1. Door Key Lock and Unlock Switch
2. Integration Relay (I/P J/B No.1)
3. Wire Harness
4. Door Lock Link DisconnectedBE±70
BE±70
±
±
Fault in 2±Operation unlock function of Driver's side door key lock
and unlock switch.1. Door Key Lock and Unlock Switch
2. Integration Relay (I/P J/B No.1)
3. Wire HarnessBE±70
BE±70
±
Fault in key confine prevention operate.
1. Integration Relay (I/P J/B No.1)
2. Key Unlock Warning Switch
3. Door Courtesy Switch
4. Wire HarnessBE±70
BE±14
BE±32
±
Only one door lock does not operate.1. Door Lock Motor
2. Wire HarnessBE±70
±
SLIDING ROOF SYSTEM
SymptomSuspect AreaSee page
Sliding roof system does not operate.
(Door Lock does not operate)1. POWER M±Fuse (I/P J/B No.1)
2. Power Main Relay (I/P J/B No.1)
3. Wire Harness±
BE±60
±
Sliding roof system does not operate.
(Door Lock is normal)
1. Ignition Switch
2. Sliding Roof Control Relay and Switch
3. Sliding Roof Motor and Limit Switch
4. Wire HarnessBE±14
BE±74
BE±74
±
Sliding roof system operates abnormally.
1. Sliding Roof Control Relay and Switch
2. Sliding Roof Motor and Limit Switch
3. Wire HarnessBE±74
BE±74
±
Sliding roof system stops operation half way.
(Stones of foreign material trapped in motor assembly)1. Sliding Roof Control Relay and Switch
2. Sliding Roof Motor and Limit Switch
3. Wire HarnessBE±74
BE±74
±
ºKey±off Sliding Roofº operation does not operate.
1. DOME Fuse (E/G Room J/B No.2)
2. GAUGE Fuse (I/P J/B No.1)
3. Ignition Switch
4. Integration Relay (I/P J/B No.1)
5. Wire Harness±
±
BE±14
BE±14
±

BE±10
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2230 Author: Date:
POWER SEAT CONTROL SYSTEM
SymptomSuspect AreaSee page
Power seat does not operate.
(Door lock system does not operate)1. POWER M±Fuse (I/P J/B No.1)
2. Wire Harness±
±
Power seat does not operate.
(Door lock system is normal)1. Power Seat Swtich (D,P)
2. Wire HarnessBE±78
±
ºSlide operationº does not operate.
1. Power Seat Switch (D, P)
2. Wire Harness
3. Slide Motor (D, P)BE±78
±
BE±78
ºLifter Operationº does not operate.
1. Power Seat Switch (D, P)
2. Wire Harness
3. Lifter Motor (D, P)BE±78
±
BE±78
ºReclining Operationº does not operate.
1. Power Seat Switch (D, P)
2. Wire Harness
3. Reclining Motor (D, P)BE±78
±
BE±78
(D): Driver's seat
(P): Passenger's seat
POWER MIRROR CONTROL SYSTEM
SymptomSuspect AreaSee page
Mirror does not operate.
1. CIG Fuse (I/P J/B No.1)
2. Mirror Switch
3. Mirror Motor
4. Wire Harness±
BE±83
BE±83
±
Mirror operates abnormally.
1. Mirror Switch
2. Mirror Motor
3. Wire HarnessBE±83
BE±83
±

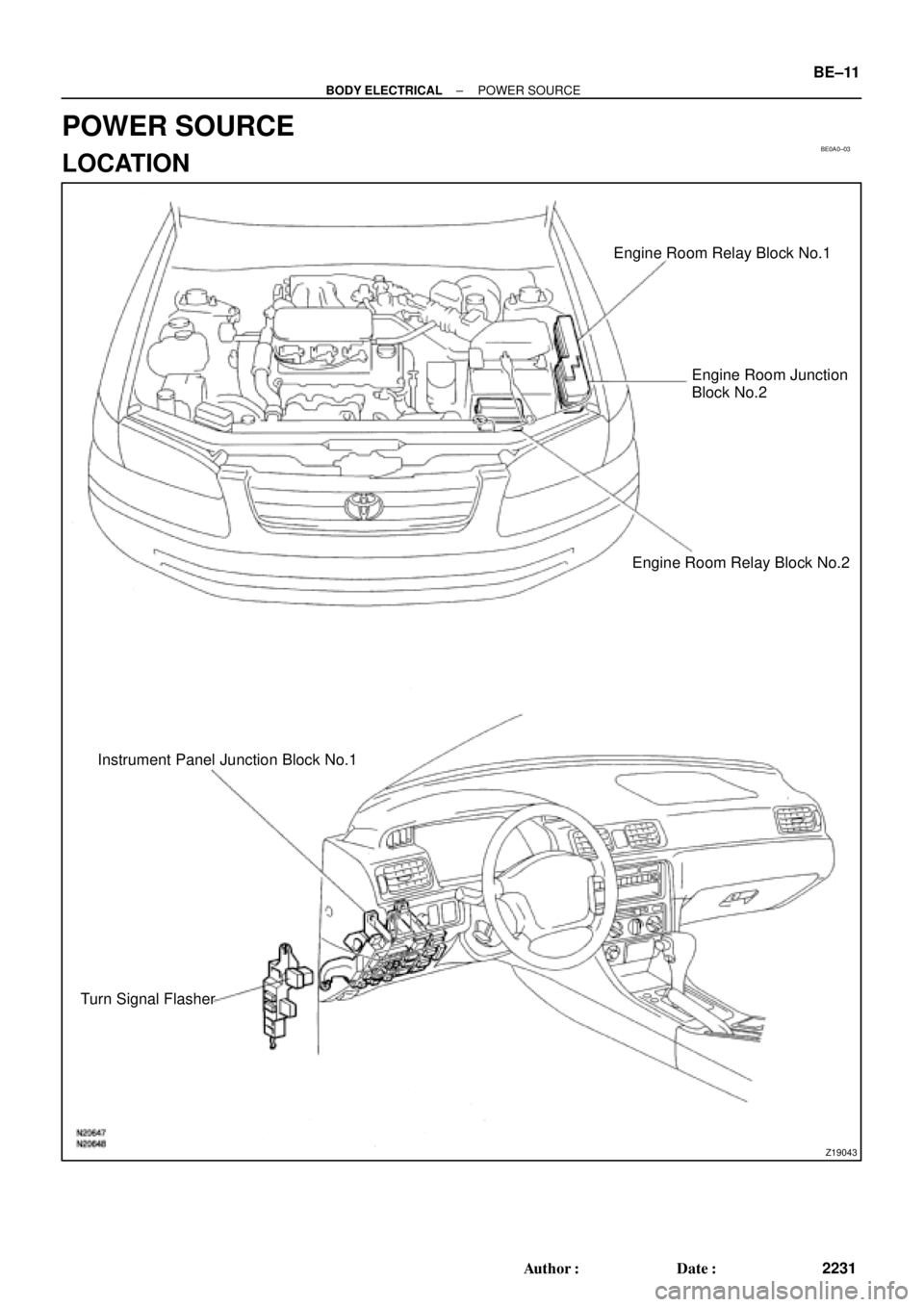

BE0A0±03
Z19043
Engine Room Relay Block No.1
Engine Room Junction
Block No.2
Engine Room Relay Block No.2
Instrument Panel Junction Block No.1
Turn Signal Flasher
± BODY ELECTRICALPOWER SOURCE
BE±11
2231 Author: Date:

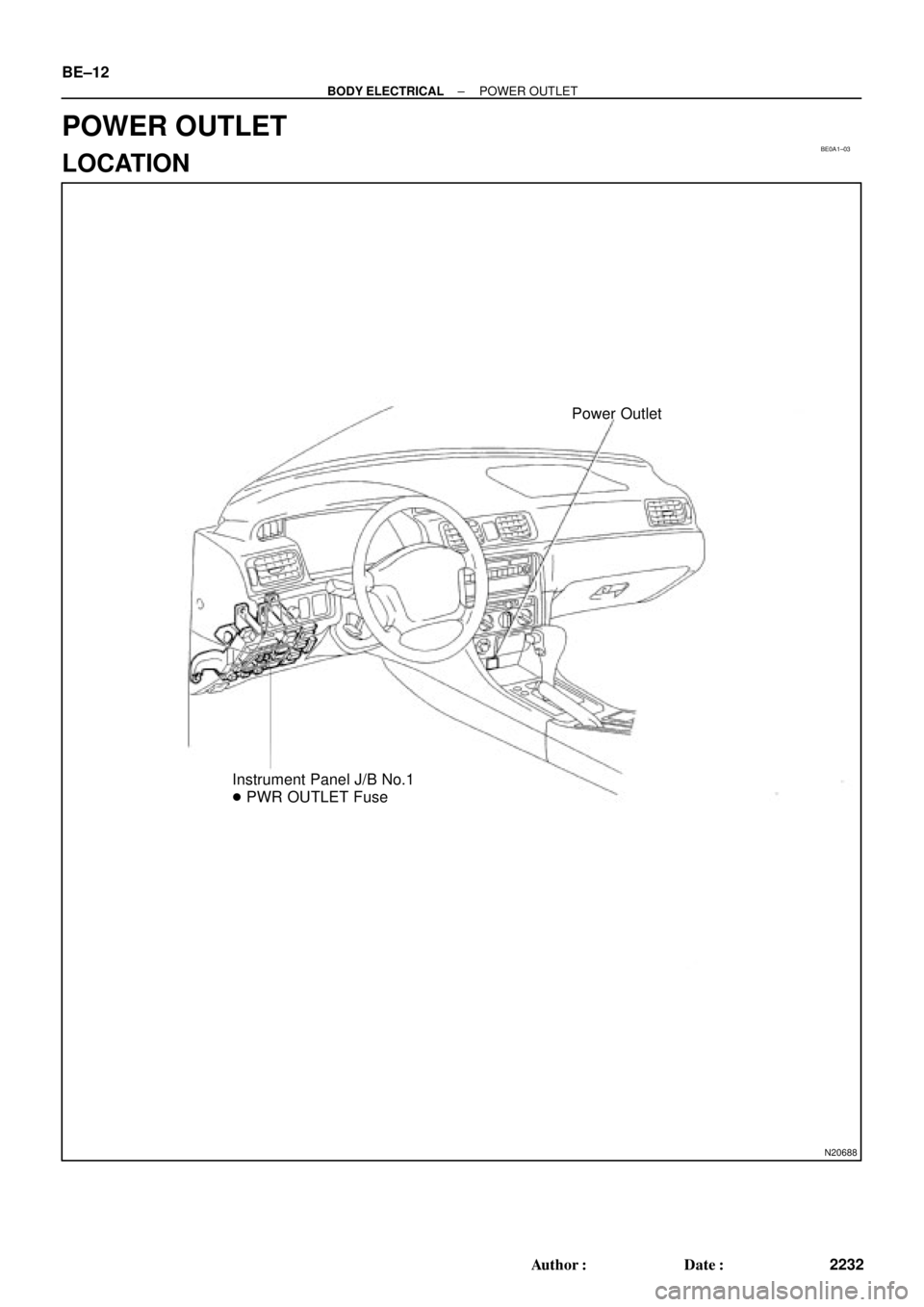

POWER SOURCE
LOCATION

BE0A1±03
N20688
Power Outlet
Instrument Panel J/B No.1

PWR OUTLET Fuse BE±12
± BODY ELECTRICALPOWER OUTLET
2232 Author: Date:
POWER OUTLET
LOCATION

BE0A2±03

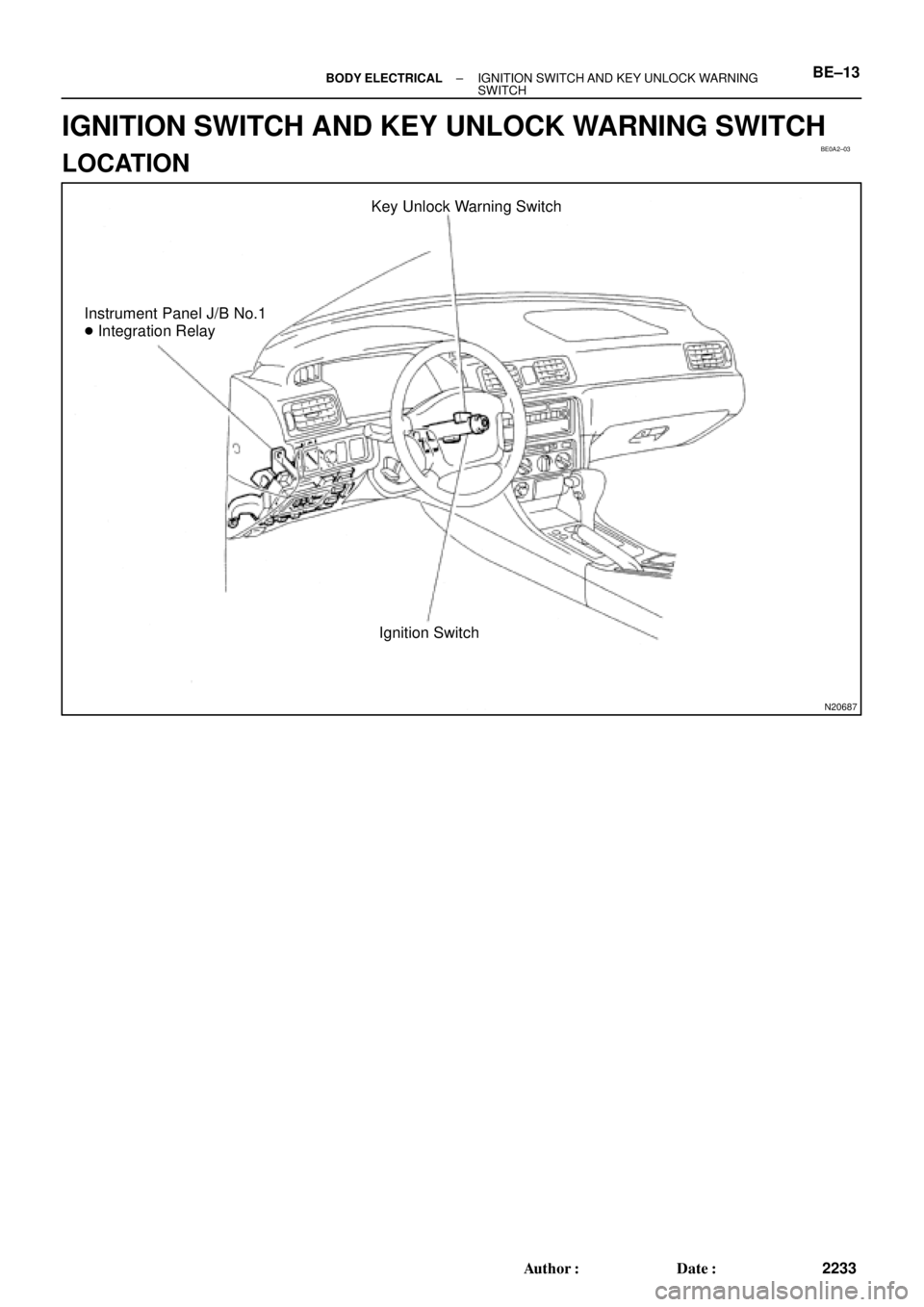

N20687
Key Unlock Warning Switch
Instrument Panel J/B No.1

Integration Relay
Ignition Switch
± BODY ELECTRICALIGNITION SWITCH AND KEY UNLOCK WARNING
SWITCHBE±13
2233 Author: Date:
IGNITION SWITCH AND KEY UNLOCK WARNING SWITCH
LOCATION

BE0A3±02
N14824
LOCKACC
ON
1 3 4
5 76 8
START2
N20125
OFF
ON
1
2
N20126
101
6
5
N20127
101
6
5 BE±14
± BODY ELECTRICALIGNITION SWITCH AND KEY UNLOCK WARNING
SWITCH
2234 Author: Date:
INSPECTION
1. INSPECT IGNITION SWITCH CONTINUITY
Switch positionTester connectionSpecified condition
LOCK±No continuity
ACC2 ± 3Continuity
ON2 ± 3 ± 4
6 ± 7Continuity
START1 ± 2 ± 4
6 ± 7 ± 8Continuity
If continuity is not as specified, replace the switch.
2. INSPECT KEY UNLOCK WARNING SWITCH CONTI-
NUITY
Switch positionTester connectionSpecified condition
OFF (Key removed)±No continuity
ON (Key set)1 ± 2Continuity
If continuity is not as specified, replace the switch.
3. Key unlock warning system:
INSPECT INTEGRATION RELAY (TYPE A) OPERA-
TION
(a) Connect the positive (+) lead from the battery to terminal
1.
(b) Connect the negative (±) lead from the battery to termi-
nals 5, 6 and 10.
(c) Check the buzzer sounds.
(d) Disconnect the negative (±) lead from the battery to termi-
nal 6.
(e) Check that the buzzerr stops sounding.

N20128
101
6
5
N20129
10
1 6
5
N20130
101 65
N20131
101 65
N20132
101 6
5
± BODY ELECTRICALIGNITION SWITCH AND KEY UNLOCK WARNING
SWITCHBE±15
2235 Author: Date:
(f) Connect the negative (±) lead from the battery to terminal
6.
(g) Disconnect the negative (±) lead from the battery to termi-
nal 5.
(h) Check that the buzzerr stops sounding.
If operation is not as specified, replace the relay.
4. Key unlock warning system:
INSPECT INTEGRATION RELAY (TYPE B) OPERA-
TION
(a) Connect the positive (+) lead from the battery to terminal
1.
(b) Connect the negative (±) lead from the battery to termi-
nals 5, 6 and 10.
(c) Check the buzzerr sounds.
(d) Disconnect the negative (±) lead from the battery to termi-
nal 6.
(e) Check that the buzzerr stops sounding.
(f) Connect the negative (±) lead from the battery to terminal
6.
(g) Disconnect the negative (±) lead from the battery to termi-
nal 5.
(h) Check that the buzzerr stops sounding.
If operation is not as specified, replace the relay.
5. Key unlock warning system:
INSPECT INTEGRATION RELAY (TYPE C) OPERA-
TION
(a) Connect the positive (+) lead from the battery to terminal
1.
(b) Connect the negative (±) lead from the battery to termi-
nals 5, 6 and 10.
(c) Check the buzzerr sounds.

N20133
101 65
N20134
101 65
N20135
Junction block side:
1 2 3 4 5 6 7 8 10 11 9 12
BE±16± BODY ELECTRICALIGNITION SWITCH AND KEY UNLOCK WARNING
SWITCH
2236 Author: Date:
(d) Disconnect the negative (±) lead from the battery to termi-
nal 6.
(e) Check that the buzzerr stops sounding.
(f) Connect the negative (±) lead from the battery to terminal
6.
(g) Disconnect the negative (±) lead from the battery to termi-
nal 5.
(h) Check that the buzzerr stops sounding.
If operation is not as specified, replace the relay.
6. INSPECT INTEGRATION RELAY (TYPE A) CIRCUIT
(a) Remove the relay from the junction block No.1 and in-
spect the connector on the junction block side.
Tester connectionConditionSpecified condition
2 ± Ground
4 ± GroundPassenger's door courtesy switch OFF (Door
closed)No continuity
2 ± Ground
4 ± GroundPassenger's door courtesy switch ON (Door
opened)Continuity
5 ± GroundKey unlock warning switch OFFNo continuity
5 ± GroundKey unlock warning switch ONContinuity
6 ± GroundDriver's door courtesy switch OFFNo continuity
6 ± GroundDriver's door courtesy switch ONContinuity
8 ± GroundBuckle switch OFF (Seat belt unfastened)No continuity
8 ± GroundBuckle switch ON (Seat belt fastened)Continuity
10 ± GroundConstantContinuity
1 ± GroundConstantBattery positive voltage
7 ± Ground
9 ± GroundIgnition switch LOCK or ACCNo voltage
7 ± Ground
9 ± GroundIgnition switch ONBattery positive voltage
