SEAT BELT EXTENDERS: '95 ± '99 ± BO020±98 July 3, 1998
Page 2 of 7
1. Owner requests a seat belt extender from dealer.
2. Dealer verifies the need for a seat belt extender and obtains a current copy of this
TSB and copies the worksheet.
3. Dealer measures the customer and completes the worksheet. Dealer determines the
correct part number and places a Critical Order for the part through the TDN Parts
Network.
4. Dealer receives seat belt extender and calls the customer in to check fit of the part.
5. If the seat belt extender fit is good, dealership personnel completes the customer
information label on the part, explains usage of the part, and gives the customer a
copy of the completed worksheet.
6. Dealer places a copy of the completed worksheet in the customer's records.
DEALER
MEASURE
CUSTOMER
&
COMPLETE
WORKSHEET
PLACE
CRITICAL
ORDER
THROUGH
TDNSHIP SEAT
BELT
EXTENDER
TO
DEALERTEST FIT
CUSTOMER
WITH PARTCOMPLETE
LABEL AND
ADVISE
OWNERRECEIVE
COPY OF
WORKSHEET
& USE
EXTENDER
FILE
WORKSHEET
IN
CUSTOMER
RECORDS

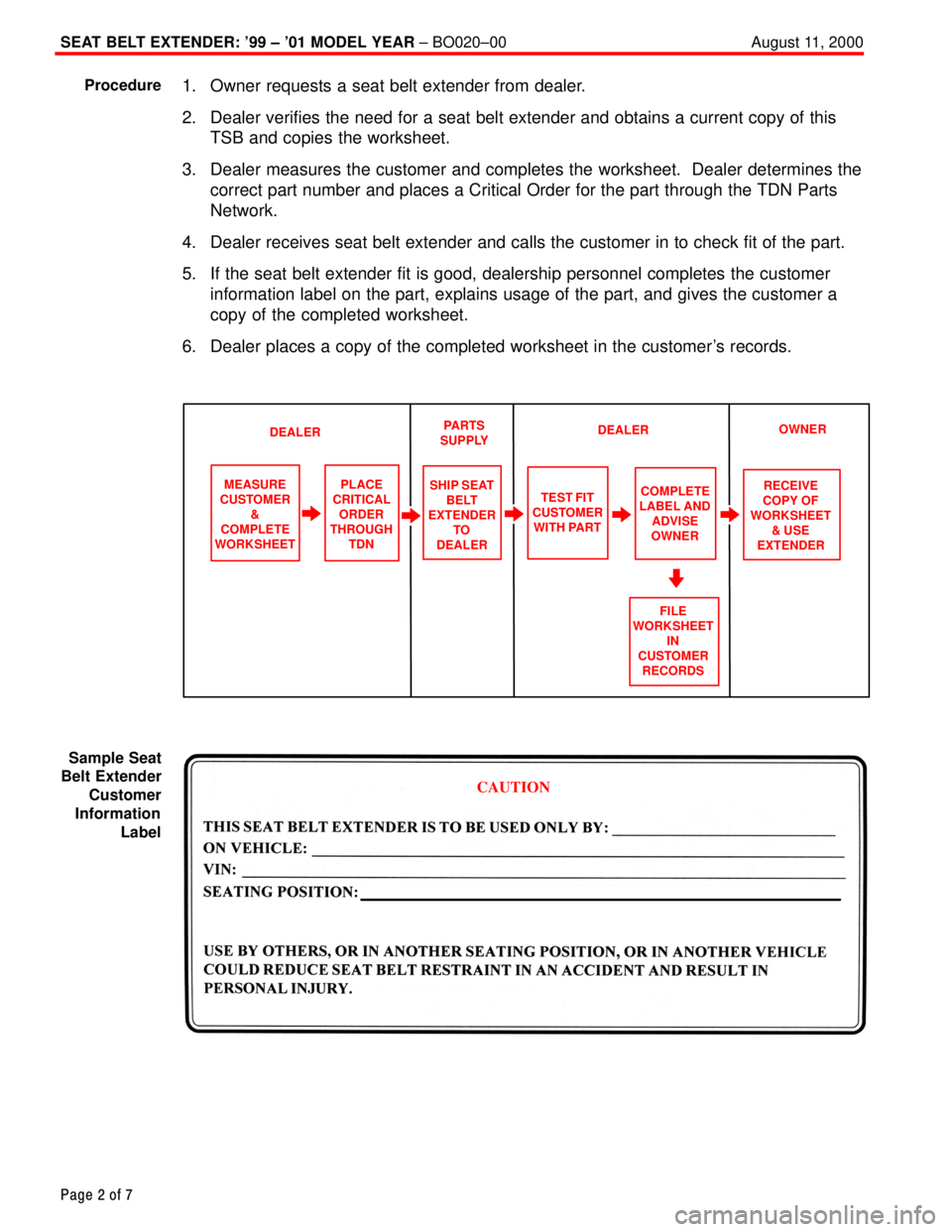

EXTENDER FLOW CHART
PARTS
SUPPLYDEALEROWNER
CAUTION
DriverPassenger
FrontRear
Procedure
Sample Seat
Belt Extender
Label
Page 4482 of 4770

SEAT BELT EXTENDERS: '95 ± '99 ± BO020±98 July 3, 1998
Page 3 of 7
FRONT SEAT ± EXTENDER APPLICATION
MODELTYPE'99'98'97'96'95
RAV4R5R5K±5R5N/A
TERCELR±5R±5R±5R±5R±5
RH EXCEPT CONVERTIBLER±5R±5R±5R±5R±3*1
PASEOLH EXCEPT CONVERTIBLER±5R±5R±5R±5R±3
CONVERTIBLE RH & LHN±6N±6N±6N/AN/A
SDN & WGN..JPP W/TR *2
N/AN/AN/AR±5R±3
COROLLASDN & WGN..JPP W/QSS *3N/AN/AN/A
Q±4Q±2NAP (NUMMI, TMMC)Q±4Q±4Q±4Q±4Q±2
MR2N/AN/AN/AN/AR±3
CELICAN±6N±6N±6N±6R±3
JPPTOKAI RIKA *2R±3
CAMRYJPPQSS *3
Q±4Q±4Q±2Q±2Q±2NAPQ±4Q±4Q±2Q±2Q±2
SUPRAN/AR±3R±3R±3R±3
AVALON *4Q±2Q±2Q±2Q±2Q±2
PREVIAN/AN/AR±5R±3R±3
SIENNAQ±4Q±4N/AN/AN/A
TACOMA *4S±1S±1Q±4Q±4Q±4
REGULAR
JPP..TOKAI RIKA *2R±1
COMPACT
TRUCK
REGULAR
CABJPP..QSS *3
N/AN/AN/AN/AQ±1TRUCK
(
PICKUP) *4
CABNAPN/AN/AN/AN/AQ±1
(PICKUP)
XTRACAB(ALL)R±1
T100 *4(ALL)R±5R±5R±5R±5R±5
4RUNNER4 DOORK±5K±5K±5K±1K±1
LAND CRUISERK±5R±3R±3R±3R±3

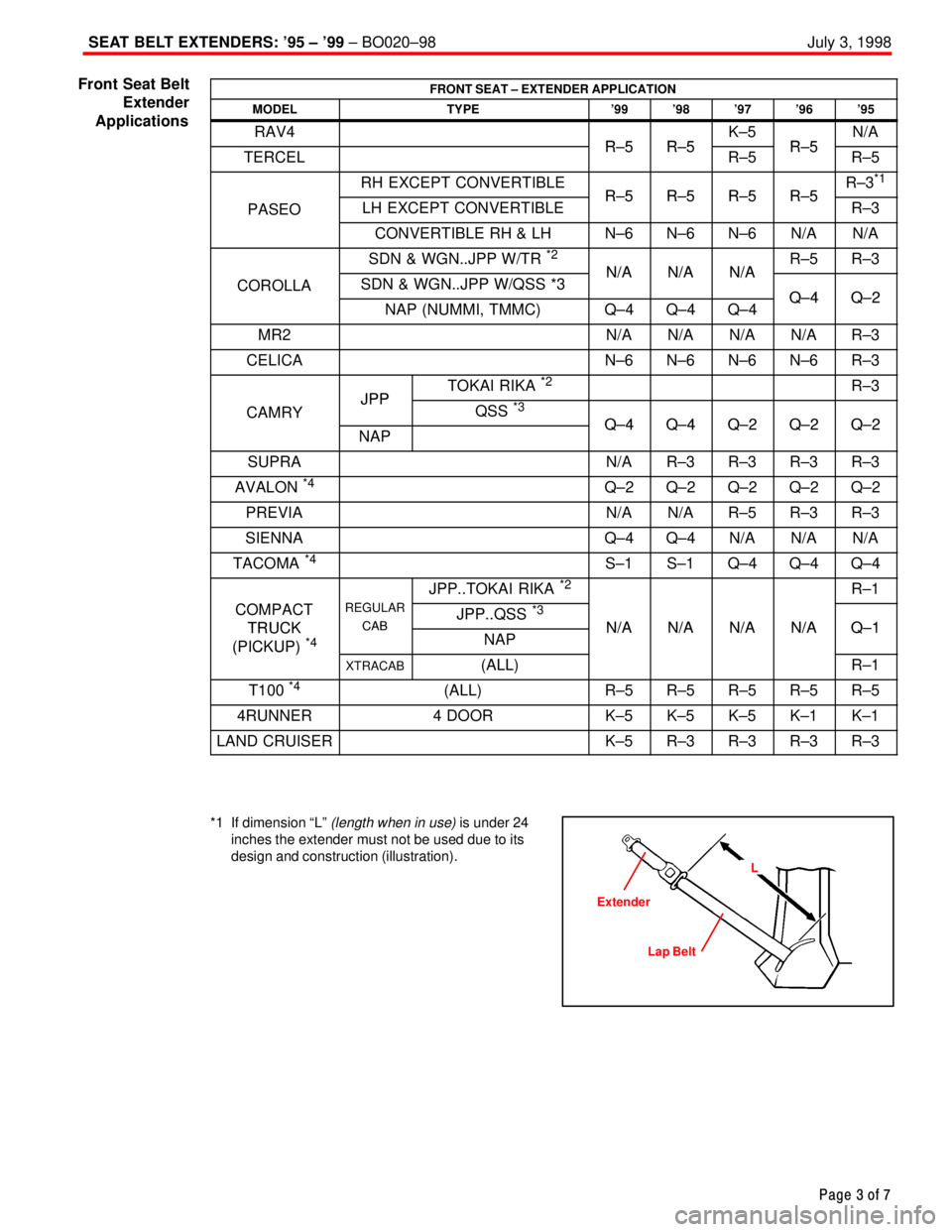

*1 If dimension ªLº (length when in use) is under 24
inches the extender must not be used due to its
design and construction (illustration).
Front Seat Belt
Extender
Applications
Extender
Lap Belt
L
Page 4483 of 4770

SEAT BELT EXTENDERS: '95 ± '99 ± BO020±98 July 3, 1998
Page 4 of 7
REAR SEAT ± EXTENDER APPLICATION
MODELTYPE'99'98'97'96'95
RAV4TOKAI RIKA *2R±5R±5R±5R±5N/ARAV4QSS *3Q±4Q±4Q±4Q±4N/A
TERCELTOKAI RIKA *2R±5R±5R±5R±5R±5TERCELQSS *3Q±4Q±4Q±4Q±4Q±4
RH.. CONVERTIBLEN±3N±3*5N±1N/AN/APASEOLH.. CONVERTIBLEN±6N±6*5N±5N/AN/A
RH & LH ..COUPER±5R±5R±5R±5R±3
SDN & WGN..JPP W/TR *2
N/AN/AN/AR±5R±3
COROLLASDN ..JPP W/QSS *3N/AN/AN/A
Q±4Q±2COROLLANAP (TMMC)Q±4Q±4Q±4Q±4Q±2
NAP (NUMMI)T±1T±1A±2A±2A±2
LIFTBACK & COUPEN±6N±6N±6N±6N±3
CELICARH ..CONVERTIBLEN±1N±1N±1N±1N±1
LH ..CONVERTIBLEN±5N±5N±5N±5N±5
JPPTOKAI RIKA *2N/AN/AN/AR±3R±3JPPQSS *3
Q±4Q±4Q±4CAMRYSDNQ±4Q±4Q±4Q±2Q±2
NAPCOUPE & WAGONN/AN/AN/ASOLARAQ±4N/AN/AN/AN/A
AVALON *4Q±2Q±2Q±2Q±2Q±2
SUPRAN/AR±3R±3R±3R±3PREVIAN/AN/AR±5R±3R±3
SIENNAQ±4Q±4N/AN/AN/A
TACOMA *4XTRACABA±2A±2K±3K±3K±3
PICKUP *4XTRACABN/AN/AN/AN/AR±1
T100 *4XTRACABN/AK±4K±4K±4K±4
4RUNNERR±5R±5R±5R±5R±1
LAND CRUISERK±5K±5K±4K±4K±4
*2 This seat belt was supplied by TOKAI RIKA.
Make sure that the identification mark on the back
side of the seat belt buckle is the same as shown.
*3 This seat belt was supplied by QSS. Make sure
that the identification mark on the back side of the
seat belt buckle is the same as shown.
Rear Seat Belt
Extender
Applications
Page 4484 of 4770

SEAT BELT EXTENDERS: '95 ± '99 ± BO020±98 July 3, 1998
Page 5 of 7
*4 Extenders must not be used for center front seat belt positions for Avalon, Tacoma, Compact Pickup and
T100 models with bench seats or for the center rear seat belt positions,
except for the 1997 ± 1999
Camry.
*5 For 1998 model year through November 1997 production of Paseo convertibles, use N±1 for RH and N±5
for LH. For 1998 Paseo convertible models from December 1997 production, use N±3 and N±6.
PART NUMBER PREFIX: 73399±
SERIESLENGTHSERIES6 INCH9 INCH12 INCH15 INCH18 INCH
R±1±12010±12020±12030±12040±12050
R±2±12160±12170±12180±12190±12200
R±3±50010±50020±50030±50040±50050
R±4±16010±16020±16030±16040±16050
R±5±16060±16070±16080±16090±16100
N±1±12060±12070±12080±12090±12100
N±3±20011±20021±20031±20041±20051
N±4±20060±20070±20080±20090±20100
N±5±20110±20120±20130±20140±20150
N±6±20160±20170±20180±20190±20200
K±1±12110±12120±12130±12140±12150
K±2±22010±22020±22030±22040±22050
K±3±22060±22070±22080±22090±22100
K±4±33010±33020±33030±33040±33050
K±5±35010±35020±35030±35040±35050
A±1±02010±02020±02030±02040±02050
A±2±01060*6±01070±01080±01090±01100
Q±1±02060±02070±02080±02090±02100
Q±2±06010±06020±06030±06040±06050
Q±3±0W010±0W020±0W030±0W040±0W050
Q±4±0W010±0W020±0W030±0W040±0W050
S±1±04010±04020±04030±04040±04050
T±1±01110±01120±01130±01140±01150
*6 Length: 7 1/4º
Rear Seat Belt
Extender
Applications
(Continued)
Parts
Information
Page 4485 of 4770

SEAT BELT EXTENDERS: '95 ± '99 ± BO020±98 July 3, 1998
Page 6 of 7
Failure to follow the recommendations indicated below could result in less effectiveness
of the seat belt restraint system in case of vehicle collision, causing personal injury.
The seat belt extender must not be used:
A. By anyone other than for whom it was provided (name recorded on seat belt
extender).
B. In any vehicle and/or seat position other than the one for which it was provided.
C. When the seat belt extender is provided for rear seat positions (with automatic
locking retractor), make sure the retractor is locked when in use.
If your seat belt cannot be fastened securely because it is not long enough, a
personalized seat belt extender is available from your Toyota dealer free of charge.
Please contact your local Toyota dealer so that the dealer can order the proper required
length for the extender. Bring the heaviest coat you expect to wear for proper
measurement and selection of length. Additional ordering information is available at your
Toyota dealer.
CAUTION:
When using the seat belt extender, observe the following. Failure to follow these
instructions could result in less effectiveness of the seat belt restraint system in case
of vehicle accident, increasing the chance of personal injury.
Never use the seat belt extender if you can COMFORTABLY fasten the seat belt
without it.
Remember that the extender provided for you may not be safe when used on a
different vehicle, or for another person or at a different seating position than the
one originally intended for.
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the ªPRESSº signs on
the buckle±release buttons of the
extender and the seat belt are both
facing outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle±release button on the
extender, not on the seat belt. This helps
prevent damage to the vehicle interior
and extender itself.
When not in use, remove the extender and store in the vehicle for future use.
Owner
Instructions
Seat Belt Extender
Seat Belt Release
Page 4486 of 4770

SEAT BELT EXTENDERS: '95 ± '99 ± BO020±98 July 3, 1998
Page 7 of 7
SEAT BELT EXTENDER WORKSHEET
PLEASE COPY THIS ORIGINAL WORKSHEET FOR EACH EXTENDER NEEDED
CAUTION:
When using the seat belt extender, observe the following. Failure to follow these instructions could result in
less effectiveness of the seat belt restraint system in case of vehicle accident, increasing the chance of
personal injury.
To minimize the chance and/or severity of injury in an accident, the seat belt
extender must only be used:
1 By the person for whom it was provided
2 In the seat position for which it was provided
The seat belt extender must never be used with any child safety seats.
When the seat belt extender is provided for rear seat positions (with automatic
locking retractor), make sure the retractor is locked when extender belt is in use.
DEALER
SEAT BELT EXTENDER APPLICATIONAPPLICANT
DEALER CODEDEALER NAMEAPPLICANT NAME
ADDRESSADDRESS
CITY & STATEZIPCITY & STATEZIPPHONE
EMPLOYEE NAMEMODEL YEARBODY TYPESEATING POSITIONVEHICLE IDENTIFICATION NUMBER

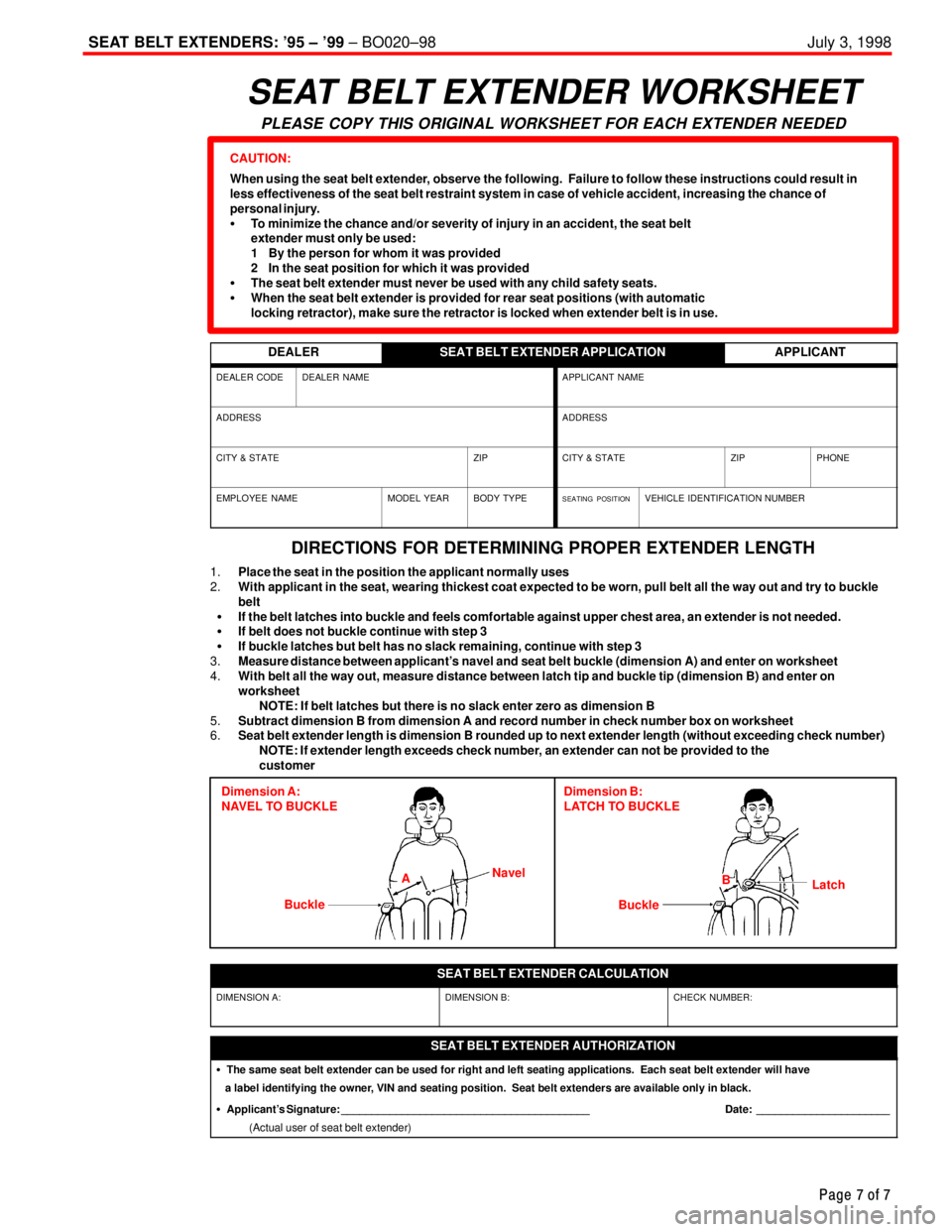

DIRECTIONS FOR DETERMINING PROPER EXTENDER LENGTH
1.Place the seat in the position the applicant normally uses
2.With applicant in the seat, wearing thickest coat expected to be worn, pull belt all the way out and try to buckle
belt
If the belt latches into buckle and feels comfortable against upper chest area, an extender is not needed.
If belt does not buckle continue with step 3
If buckle latches but belt has no slack remaining, continue with step 3
3.Measure distance between applicant's navel and seat belt buckle (dimension A) and enter on worksheet
4.With belt all the way out, measure distance between latch tip and buckle tip (dimension B) and enter on
worksheet
NOTE: If belt latches but there is no slack enter zero as dimension B
5.Subtract dimension B from dimension A and record number in check number box on worksheet
6.Seat belt extender length is dimension B rounded up to next extender length (without exceeding check number)
NOTE: If extender length exceeds check number, an extender can not be provided to the
customer
Dimension A:
NAVEL TO BUCKLEDimension B:
LATCH TO BUCKLE
Buckle
Buckle Navel
Latch A
B
SEAT BELT EXTENDER CALCULATION
DIMENSION A:DIMENSION B:CHECK NUMBER:
SEAT BELT EXTENDER AUTHORIZATION
The same seat belt extender can be used for right and left seating applications. Each seat belt extender will have
a label identifying the owner, VIN and seating position. Seat belt extenders are available only in black.
Applicant's Signature: _________________________________________ Date: ______________________
(Actual user of seat belt extender)
Page 4487 of 4770

Toyota Supports ASE CertificationPage 1 of 7
BO020±00
Title:
SEAT BELT EXTENDER
Models:
'99 ± '01 Model Year
Technical Service
BULLETIN
August 11, 2000
Toyota customers who find it necessary to
increase the length of their seat belts may
obtain Seat Belt Extenders at no cost
through their local Toyota dealer.
The extender is available in 6 inch, 9 inch,
12 inch, 15 inch and 18 inch lengths.
The extender is available only in black.
Owners are informed of the seat belt
extender availability through the Toyota
Owner 's Manual included in each vehicle.
The customer
(individual requiring the extender) must visit a Toyota dealership to have
the required measurements made and to complete the seat belt extender worksheet.
The worksheet will allow the proper fitting and selection of a seat belt extender for the
customer. The dealership personnel should then determine the applicable part number
and place a
Critical Order through the TDN Parts Network.
The dealership service department should complete the affixed Seat Belt Extender Label
and review the ªowner instruction sheetº with the customer. The dealership should give a
copy of the completed worksheet to the customer and keep the original in the customer's
file.
To assure utmost owner satisfaction, it is recommended that a dealership designate one
person to coordinate all activities related to the seat belt extender issue.
From past sales history, it is recommended that dealerships do not
stock Seat belt
extenders due to low demand and the need for customer fitting.
This bulletin contains the following information:
Procedure and Sample Label.................Page 2
Application Charts .................................Page 3±4
Part Number Information........................Page 5
Owner Instructions..................................Page 6
Seat Belt Extender Worksheet............... Page 7
1999 through 2001 model year Toyota vehicles.
OP CODEDESCRIPTIONTIMEOPNT1T2
N/ANot Applicable to Warranty ±±±±
BODY
Introduction
Extender Seat Belt
Applicable
Vehicles
Warranty
Information
Page 4488 of 4770

SEAT BELT EXTENDER: '99 ± '01 MODEL YEAR ± BO020±00 August 11, 2000
Page 2 of 7
1. Owner requests a seat belt extender from dealer.
2. Dealer verifies the need for a seat belt extender and obtains a current copy of this
TSB and copies the worksheet.
3. Dealer measures the customer and completes the worksheet. Dealer determines the
correct part number and places a Critical Order for the part through the TDN Parts
Network.
4. Dealer receives seat belt extender and calls the customer in to check fit of the part.
5. If the seat belt extender fit is good, dealership personnel completes the customer
information label on the part, explains usage of the part, and gives the customer a
copy of the completed worksheet.
6. Dealer places a copy of the completed worksheet in the customer's records.
DEALER
MEASURE
CUSTOMER
&
COMPLETE
WORKSHEET
PLACE
CRITICAL
ORDER
THROUGH
TDNSHIP SEAT
BELT
EXTENDER
TO
DEALERTEST FIT
CUSTOMER
WITH PARTCOMPLETE
LABEL AND
ADVISE
OWNERRECEIVE
COPY OF
WORKSHEET
& USE
EXTENDER
FILE
WORKSHEET
IN
CUSTOMER
RECORDS
PARTS
SUPPLYDEALEROWNER
CAUTION
Procedure
Sample Seat
Belt Extender
Customer
Information
Label
Page 4489 of 4770

SEAT BELT EXTENDER: '99 ± '01 MODEL YEAR ± BO020±00 August 11, 2000
Page 3 of 7
FRONT SEAT ± EXTENDER APPLICATION
MODELTYPE'01'00'99
RAV4ÐR±5R±5R±5
ECHOÐK±55±5Ð
COROLLATMMC PRODUCTIONQ±4Q±4Q±4COROLLANUMMI PRODUCTIONQ±4Q±4Q±4
PRIUSÐN±7ÐÐ
MR2 SPYDERÐN±6N±6Ð
CELICALIFTBACK & COUPEN±6N±6N±6CELICACONVERTIBLEÐÐN±6
CAMRYTMC PRODUCTIONQ±4Q±4Q±4CAMRYTMMK PRODUCTIONQ±4Q±4Q±4
CAMRYCOUPEQ±4Q±4Q±4CAMRY
SOLARACOVERTIBLEQ±4Q±4Ð
AVALON *1ÐT±1T±1Q±2
SIENNAÐQ±4Q±4Q±4
TACOMA *1ÐS±2S±1S±1
4RUNNERÐK±5K±5K±5
LAND CRUISERÐK±5K±5K±5
SEQUIOAÐQ±4ÐÐ
TUNDRA *1ÐQ±4Q±4Ð
*1 The extender must not be used for the center seat belt of Avalon, Tacoma and Tundra which have bench
seats.
Front Seat Belt
Extender
Applications
Page 4490 of 4770

SEAT BELT EXTENDER: '99 ± '01 MODEL YEAR ± BO020±00 August 11, 2000
Page 4 of 7
REAR SEAT ± EXTENDER APPLICATION
MODELTYPE'01'00'99
RAV4W/TOKAI RIKAR±5R±5*1R±5*1
RAV4W/QSSÐQ±4*2Q±4*2
ECHOÐR±5R±5Ð
COROLLATMMC PRODUCTIONQ±4Q±4Q±4COROLLANUMMI PRODUCTIONT±1T±1T±1
PRIUSÐN±7ÐÐ
LIFTBACK & COUPEN±6N±6N±6
CELICACONVERTIBLE (RH)ÐÐN±1
CONVERTIBLE (LH)ÐÐN±5
CAMRYTMC PRODUCTIONQ±4Q±4Q±4CAMRYTMMK PRODUCTIONQ±4Q±4Q±4
CAMRYCOUPEQ±4Q±4Q±4CAMRY
SOLARACONVERTIBLEQ±4Q±4Ð
AVALONÐT±1T±1Q±2
SIENNAÐQ±4Q±4Q±4
TACOMAXTRACABA±2A±2A±2
4RUNNERÐR±5R±5R±5
LAND CRUISERÐK±5K±5K±5
SEQUOIAREAR SEAT #1T±1ÐÐSEQUOIAREAR SEAT #2Q±4ÐÐ
TUNDRAACCESS CABQ±4Q±4Ð
*1 This seat belt was supplied by TOKAI RIKA.
Make sure that the I/D mark on the back side of
the seat belt buckle is the same as shown.
*2 This seat belt was supplied by QSS. Make sure
that the I/D mark on the back side of the seat belt
buckle is the same as shown.
NOTE:
The seat belt extender must not be
used for the center rear seat belt. Rear Seat Belt
Extender
Applications
