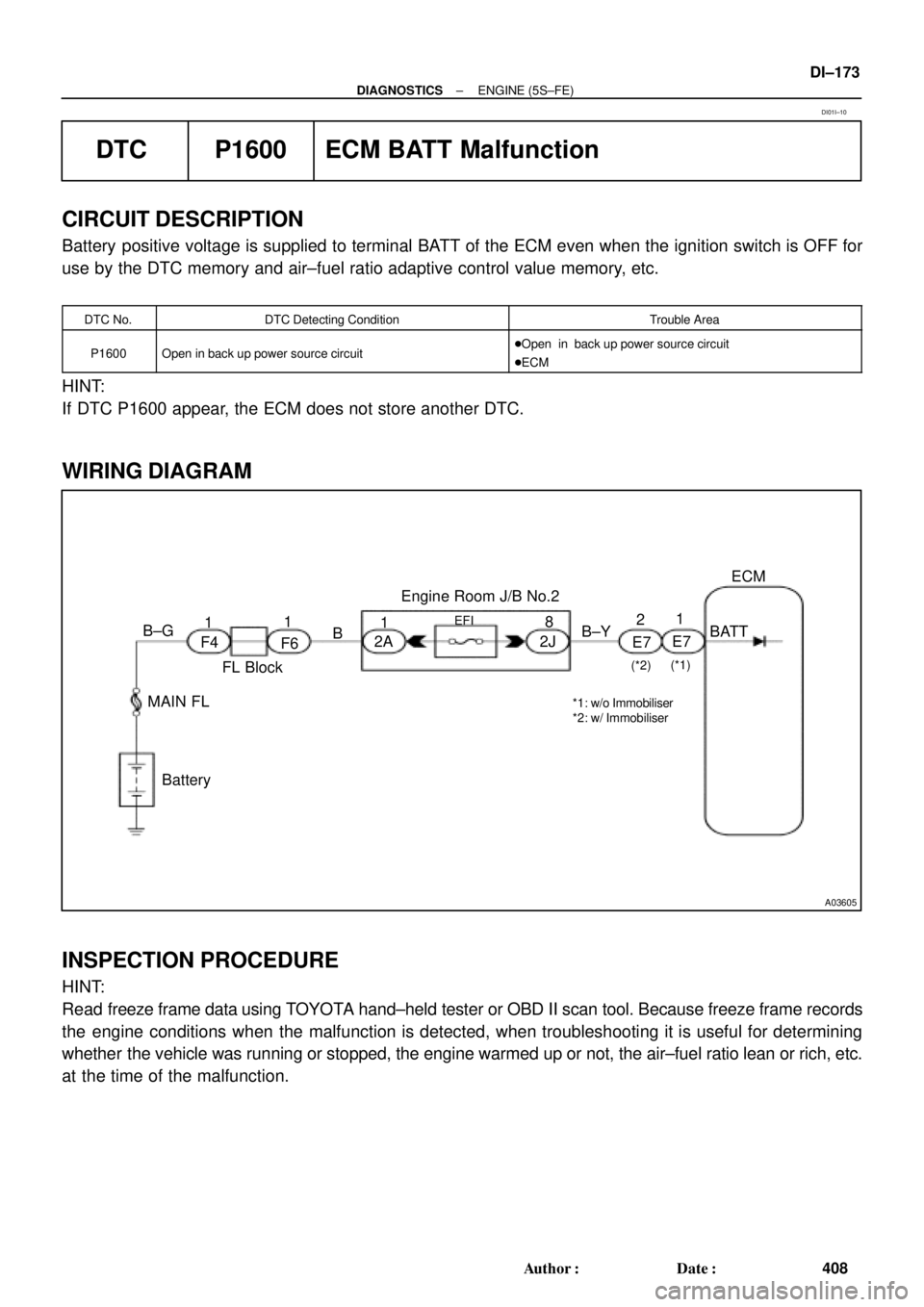

A03605
Engine Room J/B No.2
EFI11
B
Battery B±G11
2A E7ECM
F4BATT
2JB±Y
F68
FL Block
MAIN FL
*1: w/o Immobiliser
*2: w/ Immobiliser(*1)
(*2)
E72
± DIAGNOSTICSENGINE (5S±FE)
DI±173
408 Author: Date:
DTC P1600 ECM BATT Malfunction
CIRCUIT DESCRIPTION
Battery positive voltage is supplied to terminal BATT of the ECM even when the ignition switch is OFF for
use by the DTC memory and air±fuel ratio adaptive control value memory, etc.
DTC No.DTC Detecting ConditionTrouble Area
P1600Open in back up power source circuit
Open in back up power source circuit

ECM
HINT:
If DTC P1600 appear, the ECM does not store another DTC.
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
Read freeze frame data using TOYOTA hand±held tester or OBD II scan tool. Because freeze frame records
the engine conditions when the malfunction is detected, when troubleshooting it is useful for determining
whether the vehicle was running or stopped, the engine warmed up or not, the air±fuel ratio lean or rich, etc.
at the time of the malfunction.
DI01I±10

± DIAGNOSTICSENGINE (5S±FE)
DI±175
410 Author: Date:
DTC P1780 Park/Neutral Position Switch Malfunction
(Only for A/T)
CIRCUIT DESCRIPTION
The park/neutral position switch goes on when the shift lever is in the N or P shift position. When it goes on
terminal NSW of the ECM is grounded to body ground via the starter relay thus the terminal NSW voltage
becomes 0V. When the shift lever is in the D, 2, L or R position, the park/neutral position switch goes off,
so the voltage of ECM. Terminal NSW becomes battery positive voltage, the voltage of the ECM internal
power source.
If the shift lever is moved from the N position to the D position, this signal is used for air±fuel ratio correction
and for idle speed control (estimated control), etc.

DTC No.DTC Detecting ConditionTrouble Area
2 or more switches are ON simultaneously for P, R, N, D, 2
and L positions
(2 trip detection logic)
Sh t i k/ t l iti it h i it
P1780When driving under conditions (a) and (b) for 30 sec. or more
park/neutral position switch is ON (N position):
(2 trip detection logic)
(a) Vehicle speed: 80 km/h (50 mph) or more
(b) Engine speed: 2,000 ~ 5,000 rpm
Short in park/neutral position switch circuit

Park/neutral position switch

ECM
HINT:
After confirming DTC P1780, use the TOYOTA hand±held tester to confirm the PNP switch signal from the
CURRENT DATA.
WIRING DIAGRAM
Refer to DTC P1780 on page DI±424.
INSPECTION PROCEDURE
HINT:
Read freeze frame data using TOYOTA hand±held tester or OBD II scan tool. Because freeze frame records
the engine conditions when the malfunction is detected, when troubleshooting it is useful for determining
whether the vehicle was running or stopped, the engine warmed up or not, the air±fuel ratio lean or rich, etc.
at the time of the malfunction.
Refer to DTC P1780 on DI±424.
DI01J±05

DI078±08
Vehicle Brought to Workshop
Customer Problem Analysis P. DI±196
Problem Symptom Confirmation
If the engine does not start, perform steps 10 and 12 firstConnect the OBD II scan tool or TOYOTA hand±held tester to DLC3 P. DI±197
If the display indicates a communication fault in the tool, inspect DLC3 P. DI±197
Check DTC and Freezed Frame Data (Precheck)
Record or Print DTC and Freezed Frame Data P. DI±197
Clear DTC and Freezed Frame Data P. DI±197
Visual Inspection
Setting the Check Mode Diagnosis P. DI±197
Symptom Simulation P. IN ± 23
DTC Chart P. DI±211
Problem Symptoms Table P. DI±221
Circuit Inspection P. DI±222
Adjustment, Repair
DTC Check P. DI±197
Titles insideare titles of pages in
in the bottom portion. See the indicated
pages for detailed explanations.this manual with the page number indicated
Malfunction
occurs.Malfunction does not occur.
Parts Inspection
Check for Intermittent Problems P. DI±197
Identification of Problem
Confirmation Test
End 1
2
3
4
5
6
7
108
9
11
12
13
15 14
16
Normal Malfunction code.
17Basic Inspection P. DI±197
± DIAGNOSTICSENGINE (1MZ±FE)
DI±195
430 Author: Date:
ENGINE (1MZ±FE)
HOW TO PROCEED WITH TROUBLESHOOTING
Troubleshoot in accordance with the procedure on the following page.

DI07A±06
FI0534
A06134
TOYOTA Hand±Held Tester
± DIAGNOSTICSENGINE (1MZ±FE)
DI±197
432 Author: Date:
PRE±CHECK
1. DIAGNOSIS SYSTEM
(a) Description

When troubleshooting OBD II vehicles, the only dif-
ference from the usual troubleshooting procedure
is that you connect to the vehicle the OBD II scan
tool complying with SAE J1978 or TOYOTA hand±
held tester, and read off various data output from
the vehicle's ECM.

OBD II regulations require that the vehicle's on±
board computer lights up the Malfunction Indicator
Lamp (MIL) on the instrument panel when the com-
puter detects a malfunction in the emission control
system/components or in the powertrain control
components which affect vehicle emissions, or a
malfunction in the computer. In addition to the MIL
lighting up when a malfunction is detected, the ap-
plicable Diagnostic Trouble Codes (DTC) pre-
scribed by SAE J2012 are recorded in the ECM
memory (See page DI±211).
If the malfunction does not reoccur in 3 consecutive trips, the
MIL goes off but the DTCs remain recorded in the ECM memory.

To check the DTC, connect the OBD II scan tool or
TOYOTA hand±held tester to Data Link Connector
3 (DLC3) on the vehicle. The OBD II scan tool or
TOYOTA hand±held tester also enables you to
erase the DTC and check freezed frame data and
various forms of engine data (For operating instruc-
tions, see the OBD II scan tool's instruction book.).
DTC include SAE controlled codes and manufac-
turer controlled codes. SAE controlled codes must
be set as prescribed by the SAE, while manufactur-
er controlled codes can be set freely by the
manufacturer within the prescribed limits (See DTC
chart on page DI±211).

DI±198
± DIAGNOSTICSENGINE (1MZ±FE)
433 Author: Date:

The diagnosis system operates in normal mode
during normal vehicle use. It also has a check mode
for technicians to simulate malfunction symptoms
and troubleshoot. Most DTC use 2 trip detection
logic* to prevent erroneous detection, and ensure
thorough malfunction detection. By switching the
ECM to check mode when troubleshooting, the
technician can cause the MIL to light up for a mal-
function that is only detected once or momentarily
(TOYOTA hand±held tester only). (See page
DI±197)

*2 trip detection logic:
When a malfunction is first detected, the malfunc-
tion is temporarily stored in the ECM memory. (1st
trip)
If the same malfunction is detected again during the second
drive test, this second detection causes the MIL to light up. (2nd
trip) (However, the IG switch must be turned OFF between the
1st trip and the 2nd trip.).

Freeze frame data:
Freeze frame data records the engine condition
when a misfire (DTCs P0300 ~ P0306) or fuel trim
malfunction (DTCs P0171, P0172) or other mal-
function (first malfunction only), is detected.
Because freeze frame data records the engine
conditions (fuel system, calculated load, engine
coolant temperature, fuel trim, engine speed, ve-
hicle speed, etc.) when the malfunction is detected,
when troubleshooting it is useful for determining
whether the vehicle was running or stopped, the en-
gine warmed up or not, the air±fuel ratio lean or rich,
etc. at the time of the malfunction.

Priorities for troubleshooting:
If troubleshooting priorities for multiple DTC are given in the ap-
plicable DTC chart, these should be followed.
If no instructions are given troubleshoot DTC according to the
following priorities.
(1) DTC other than fuel trim malfunction (DTCs P0171,
P0172), EGR (DTCs P0401, P0402) and misfire
(DTCs P0300 ~ P0306).
(2) Fuel trim malfunction (DTCs P0171, P0172) and
EGR (DTCs P0401, P0402).
(3) Misfire (DTCs P0300 ~ P0306).

DI±202
± DIAGNOSTICSENGINE (1MZ±FE)
437 Author: Date:
4. FAIL±SAFE CHART
If any of the following codes is recorded, the ECM enters fail±safe mode.
DTC No.Fail±Safe OperationFail±Safe Deactivation Conditions
P0100Ignition timing fixed at 10° BTDCReturned to normal condition
P0110Intake air temperature is fixed at 20°C (68°F)Returned to normal condition
P0115Engine coolant temperature is fixed at 80°C (176°F)Returned to normal condition
P0120VTA is fixed at 0°
The following condition must be repeated at least 2 times
consecutively
(a) Vehicle speed: 0km/h (0mph)
(b) VTA 0.1 V and  0.95 V
P0135
P0141
P0155The heater circuit in which an abnormality is detected is
turned offIgnition switch OFF
P0325
P0330Max. timing retardationIgnition switch OFF
P1300Fuel cutIGF signal is detected for 6 consecutive ignition
5. CHECK FOR INTERMITTENT PROBLEMS
TOYOTA HAND±HELD TESTER only:
By putting the vehicle's ECM in check mode, 1 trip detection logic is possible instead of 2 trip detection logic
and sensitivity to detect open circuits is increased. This makes it easier to detect intermittent problems.
(1) Clear the DTC (See page DI±197).
(2) Set the check mode (See page DI±197).
(3) Perform a simulation test (See page IN±21).
(4) Check the connector and terminal (See page IN±31).
(5) Handle the connector (See page IN±31).
6. BASIC INSPECTION
When the malfunction code is not confirmed in the DTC check, troubleshooting should be performed in the
order for all possible circuits to be considered as the causes of the problems. In many cases, by carrying
out the basic engine check shown in the following flow chart, the location causing the problem can be found
quickly and efficiently. Therefore, use of this check is essential in engine troubleshooting.
1 Is battery positive voltage 11 V or more when engine is stopped ?
NO Charge or replace battery.
YES

A06156
Engine Room J/B
EFI Relay
Junction
Connector
J20
Junction
Connector EFI
2A
2K2J
2C B
EB
7 1
2
5
13
2
F9
F4
11
B±G
Mass Air
Flow Meter
B±Y
B±Y
B±Y
R
R±BECM
E2GVG
E2 P 5B
B
9
4 A A
5
3
8
W±B
E10 B±W
E7 10
19
MRELB+ E10 Junction
ConnectorJ35 J36
A
A
B±W
Fusible
Link
Block
FL
MAIN
Battery
J27J28
II3
± DIAGNOSTICSENGINE (1MZ±FE)
DI±223
458 Author: Date:
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
Read freeze frame data using TOYOTA hand±held tester or OBD II scan tool. Because freeze frame records
the engine conditions when the malfunction is detected, when troubleshooting it is useful for determining
whether the vehicle was running or stopped, the engine warmed up or not, the air±fuel ratio lean or rich, etc.
at the time of the malfunction.

± DIAGNOSTICSENGINE (1MZ±FE)
DI±227
462 Author: Date:
DTC P0101 Mass Air Flow Circuit Range/Performance
Problem
CIRCUIT DESCRIPTION
Refer to DTC P0100 (Mass Air Flow Circuit Malfunction) on page DI±222.
DTC No.DTC Detecting ConditionTrouble Area
P0101
Conditions (a), (b) and (c) continue 10 sec. or more with
engine speed NE < 900:
(2 trip detection logic)
(a) Throttle valve fully closed
(b) Mass air flow meter output  2.2 V
(c) THW  70°C

Mass air flow meterP0101
Conditions (a) and (b) continue 10 sec. or more with engine
speed 1,500 rpm or more:
(2 trip detection logic)
(a) VTA  0.63 V
(b) Mass air flow meter output
1.06 V

Mass air flow meter
WIRING DIAGRAM
Refer to DTC P0100 (Mass Air Flow Circuit Malfunction) on page DI±222.
INSPECTION PROCEDURE
HINT:
Read freeze frame data using TOYOTA hand±held tester or OBD II scan tool. Because freeze frame records
the engine conditions when the malfunction is detected, when troubleshooting it is useful for determining
whether the vehicle was running or stopped, the engine warmed up or not, the air±fuel ratio lean or rich, etc.
at the time of the malfunction.
1 Are there any other codes (besides DTC P0101) being output?
NO Replace mass air flow meter.
YES
Go to relevant DTC chart.
DI07G±06

FI6448
Intake Air Temp. Sensor
(Inside the Mass Air Flow Meter)ECM
5 V
THA
E2
E1 1
2R
L±Y
BR
E10E1022
18
± DIAGNOSTICSENGINE (1MZ±FE)
DI±229
464 Author: Date:
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:

If DTCs P0110 (Intake Air Temp. Circuit Malfunction), P0115 (Engine Coolant Temp. Circuit Malfunc-
tion), P0120 (Throttle/Pedal Position Sensor/Switch ºAº Circuit Malfunction) and P1410 (EGR Valve
Position Sensor Circuit Malfunction) are output simultaneously, E2 (Sensor Ground) may be open.

Read freeze frame data using TOYOTA hand±held tester or OBD II scan tool. Because freeze frame
records the engine conditions when the malfunction is detected, when troubleshooting it is useful for
determining whether the vehicle was running or stopped, the engine warmed up or not, the air±fuel
ratio lean or rich, etc. at the time of the malfunction.

FI6448
Engine Coolant Temp. SensorECM
5V
THW
E2
E1 2
1G±B
BR
E10
14
18
E10
± DIAGNOSTICSENGINE (1MZ±FE)
DI±233
468 Author: Date:
DTC P0115 Engine Coolant Temp. Circuit Malfunction

CIRCUIT DESCRIPTION
A thermistor built into the engine coolant temp. sensor changes the resistance value according to the engine
coolant temp.
The structure of the sensor and connection to the ECM is the same as in the intake air temp. circuit malfunc-
tion shown on page DI±228.
If the ECM detects the DTC P0115, it operates fail±safe function in which the engine coolant temperature
is assumed to be 80°C (176°F).
DTC No.Detection ItemTrouble Area
P0115Open or short in engine coolant temp. sensor circuit

Open or short in engine coolant temp. sensor circuit

Engine coolant temp. sensor

ECM
HINT:
After confirming DTC P0115, use the OBD II scan tool or TOYOTA hand±held tester to confirm the engine
coolant temp. from CURRENT DATA.
Temperature DisplayedMalfunction
±40°C (±40°F)Open circuit
140°C (284°F) or moreShort circuit
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:

If DTCs P0110 (Intake Air Temp. Circuit Malfunction), P0115 (Engine Coolant Temp. Circuit Malfunc-
tion), P0120 (Throttle/Pedal/Position Sensor/Switch ºAº Circuit Malfunction) and P1410 (EGR Valve
Position Sensor Circuit Malfunction) are output simultaneously, E2 (Sensor Ground) may be open.

Read freeze frame data using TOYOTA hand±held tester or OBD II scan tool. Because freeze frame
records the engine conditions when the malfunction is detected, when troubleshooting it is useful for
determining whether the vehicle was running or stopped, the engine warmed up or not, the air±fuel
ratio lean or rich, etc. at the time of the malfunction.
DI07I±06
