TOYOTA CAMRY 2021 Accessories, Audio & Navigation (in English)

2217-3. Panoramic view monitor
7
Peripheral monitoring system
CAMRY_CAMRY HV(TMMK)_Navi_(U)
Side viewsDistance guide lines
Show distance in front of the vehicle.
• Display points approximately 1 .5 ft. (0.5 m) from the edge of the bumper.
Vehicle width guide lines
Shows guide lines of the vehicle’ s width including the outside rear view mir-
rors.
Front tire guide lines
Shows guide lines of where the f ront tire touches the ground.
Automatic display button
Select to turn automatic display mode on/off. The indicator on the button
illuminates during autom atic display mode. (P.223)
Intuitive parking assist
When a sensor detects an obstacle, the direction of and the app roximate
distance to the obsta cle are displayed and the buzzer sounds.
Checking the sides of the vehicle
The side view screen displays images from the cameras
installed on each outside rear view mirror. This screen is
designed to support the driver in safe driving in situations
such as when driving on a narrow road, by allowing them to
check the areas around the sides of the vehicle.
To display the screen, press the camera switch when the shift
lever is in the “N” or “D” position with the vehicle moving
approximately 7 mph (12 km/h) or less.

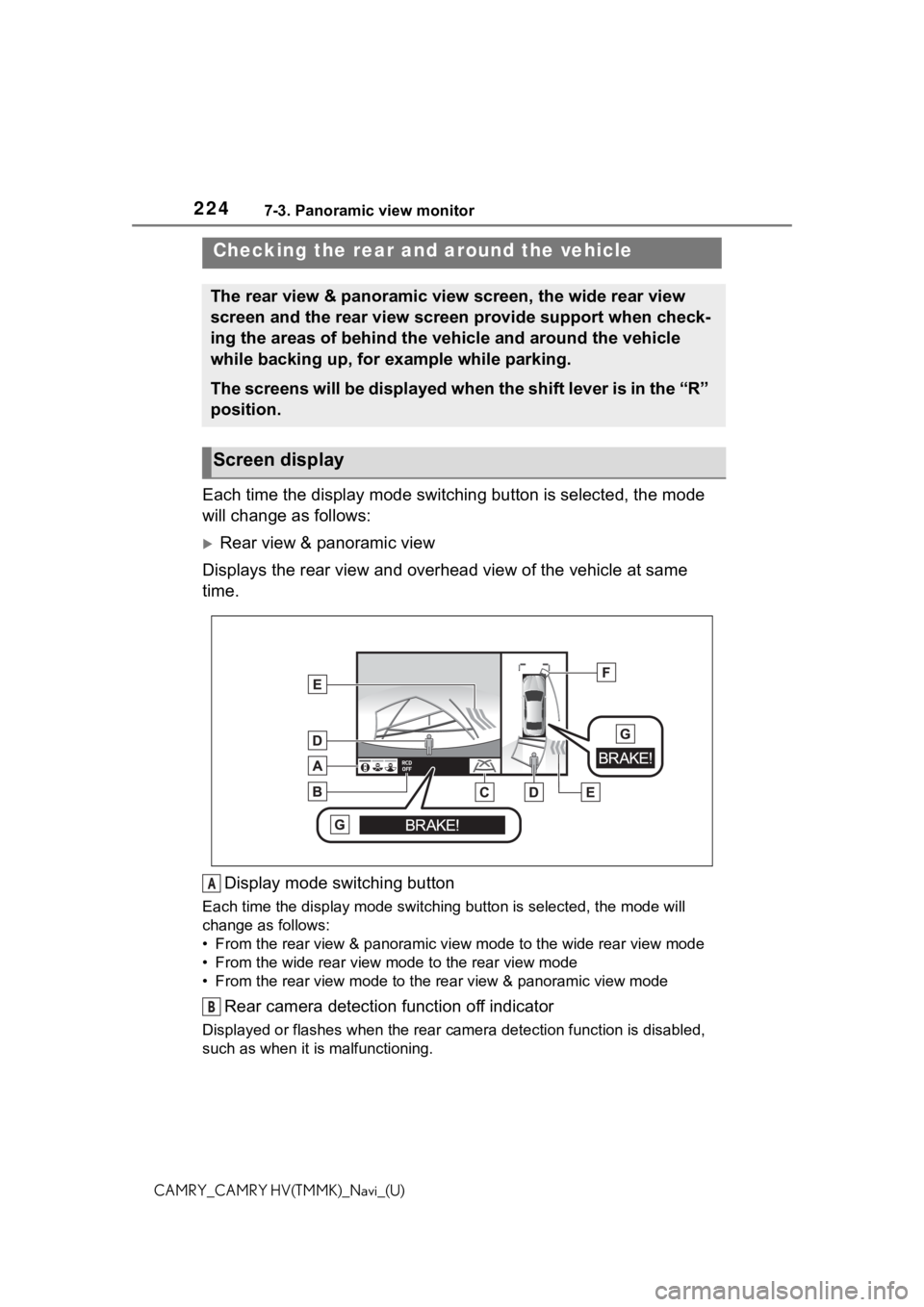

Screen display
A
B
C
D
E

2227-3. Panoramic view monitor
CAMRY_CAMRY HV(TMMK)_Navi_(U)
●Pressing the camera switch changes the screen to the wide front view &
panoramic view screen or previousl y displayed screen, such as the navi-
gation screen.
WA R N I N G
●When a sensor indicator on the intuitive parking assist display illumi-
nates in red or a buzzer sounds continuously, be sure to check the area
around the vehicle immediately a nd do not proceed any further until
safety has been ensured, otherwise an unexpected accident may o ccur.
●As the intuitive parking assist display is displayed over the c amera view,
it may be difficult to see the intuitive parking assist display depending on
the color and brightness of the surrounding area.

2237-3. Panoramic view monitor
7
Peripheral monitoring system
CAMRY_CAMRY HV(TMMK)_Navi_(U)
In addition to screen switching
by operating the camera switch,
automatic display mode is avail-
able. In this mode, the screen is
switched automatically in
response to vehicle speed.
In automatic display mode, the
monitor will automatically dis-
play images in the following situ-
ations:
When the shift lever is shifted
to “N” or “D” position.
 When vehicle speed is
reduced to approximately 6
mph (10 km/h) or less.
 Check the positions and dis-
tance between the vehicle width guide line and a target
object such as the obstacle or
curb of the road.
 P u l l o v er t o t he c ur b a s s h ow n
in the illustration above, tak-
ing care not to let the vehicle
width guide line overlap the
target object.
 Ensure that the vehicle width
line is parallel to the target
object enables parking along-
side the target object.

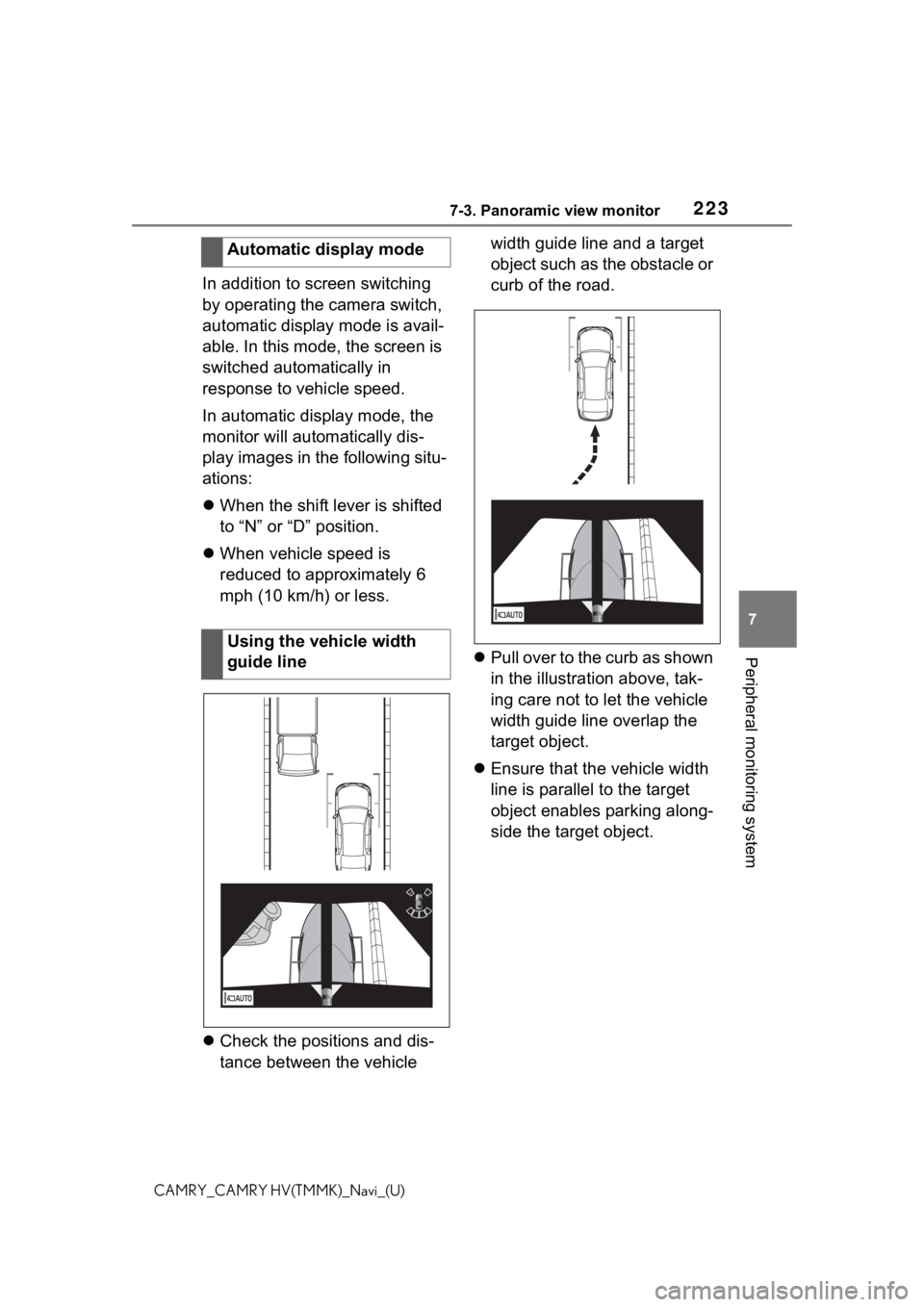

Automatic display mode
Using the vehicle width
guide line

2247-3. Panoramic view monitor
CAMRY_CAMRY HV(TMMK)_Navi_(U)
Each time the display mode switching button is selected, the mo de
will change as follows:
Rear view & panoramic view
Displays the rear view and overhead view of the vehicle at same
time.
Display mode switching button
Each time the display mode swit ching button is selected, the mode will
change as follows:
• From the rear view & panoramic v iew mode to the wide rear view mode
• From the wide rear view mode to the rear view mode
• From the rear view mode to the rear view & panoramic view mode
Rear camera detection function off indicator
Displayed or flashes when the rear camera detection function is disabled,
such as when it is malfunctioning.
Checking the rear and around the vehicle
The rear view & panoramic view screen, the wide rear view
screen and the rear view screen provide support when check-
ing the areas of behind the vehicle and around the vehicle
while backing up, for example while parking.
The screens will be displayed when the shift lever is in the “R ”
position.
Screen display
A
B

2257-3. Panoramic view monitor
7
Peripheral monitoring system
CAMRY_CAMRY HV(TMMK)_Navi_(U)
Guide line switching button
Select to switch the guide line mode. (P.228)
Rear Camera Detection
Displayed automatically wh en a pedestrian is detected.
Rear Cross Traffic Alert
When a sensor detects an obstacle, the direction of obstacle is displayed
and the buzzer sounds.
Intuitive parking assist
When a sensor detects an obstacle, the direction of and the app roximate
distance to the obsta cle are displayed and the buzzer sounds.
Parking Support Brake
When the system determines that the possibility of a collision with a
detected object is high, a warning message is displayed.
Wide rear view
Displays a near 180° image from the rear view camera.
Display mode switching button
Each time the display mode swit ching button is selected, the mode will
change as follows:
• From the rear view & panoramic v iew mode to the wide rear view mode
• From the wide rear view mode to the rear view mode
• From the rear view mode to the rear view & panoramic view mode
Rear camera detection function off indicator
Displayed or flashes when the rear camera detection function is disabled,
such as when it is malfunctioning.
Guide line switching button
C
D
E
F
G
A
B
C

2267-3. Panoramic view monitor
CAMRY_CAMRY HV(TMMK)_Navi_(U)Select to switch the guide line mode. (
P.228)
Rear Camera Detection
Displayed automatically wh en a pedestrian is detected.
Rear Cross Traffic Alert
When a sensor detects an obstacle, the direction of obstacle is displayed
and the buzzer sounds.
Intuitive parking assist
When a sensor detects an obstacle, the direction of and the app roximate
distance to the obsta cle are displayed and the buzzer sounds.
Parking Support Brake
When the system determines that the possibility of a collision with a
detected object is high, a warning message is displayed.
Rear view
Displays the rear view of the vehicle.
Display mode switching button
Each time the display mode swit ching button is selected, the mode will
change as follows:
• From the rear view & panoramic v iew mode to the wide rear view mode
• From the wide rear view mode to the rear view mode
• From the rear view mode to the rear view & panoramic view mode
Rear camera detection function off indicator
Displayed or flashes when the rear camera detection function is disabled,
such as when it is malfunctioning.
Guide line switching button
Select to switch the guide line mode. ( P.228)
D
E
F
G
A
B
C

2277-3. Panoramic view monitor
7
Peripheral monitoring system
CAMRY_CAMRY HV(TMMK)_Navi_(U)
Rear Camera Detection
Displayed automatically when a pedestrian is detected.
Rear Cross Traffic Alert
When a sensor detects an obstacle, the direction of obstacle is displayed
and the buzzer sounds.
Intuitive parking assist
When a sensor detects an obstacle, the direction of and the app roximate
distance to the obsta cle are displayed and the buzzer sounds.
Parking Support Brake
When the system determines that the possibility of a collision with a
detected object is high, a warning message is displayed.
●The monitor is cancelled when the shift lever is shifted into any position
other than the “R” position.
●For details about the Rear Cross Traffic Alert function, rear camera detec-
tion function and intuitive park ing assist, refer to the “OWNER ’S MAN-
UAL”.
WA R N I N G
●When a sensor indicator on the intuitive parking assist display illumi-
nates in red or a buzzer sounds continuously, be sure to check the area
around the vehicle immediately a nd do not proceed any further until
safety has been ensured, otherwise an unexpected accident may o ccur.
●As the intuitive parking assist display and Rear Cross Traffic Alert dis-
play are displayed over the came ra view, it may be difficult to see the
intuitive parking assist display and Rear Cross Traffic Alert display
depending on the color and brigh tness of the surrounding area.
D
E
F
G

2287-3. Panoramic view monitor
CAMRY_CAMRY HV(TMMK)_Navi_(U)
Each time the guide line switching button is selected, the mode will
change as follows:
Estimated course line
Estimated course lines are displ ayed which move in accordance w ith
the operation of the steering wheel.
Distance guide lines
Shows distance in front of the vehicle.
• Display points approximately 3 ft. (1 m) from the edge of the bumper.
Estimated course lines
Shows an estimated course when the steering wheel is turned.
Distance guide lines
Shows the distance behind the vehicle when the steering wheel i s turned.
• The guide lines move in conjunc tion with the estimated course lines.
• The guide lines display points approximately 1.5 ft. (0.5 m) (red) and
approximately 3 ft. (1 m) (yello w) from the center of the edge of the
bumper.
Distance guide line
Shows the distance behind the vehicle.
• Displays a point approximately 1.5 ft. (0.5 m) (blue) from the edge of the
bumper.
Vehicle width guide lines
Displays a guide path w hen the vehicle is being backed straight up.
Vehicle center guide line
Indicates the estimated vehicle center on the ground.

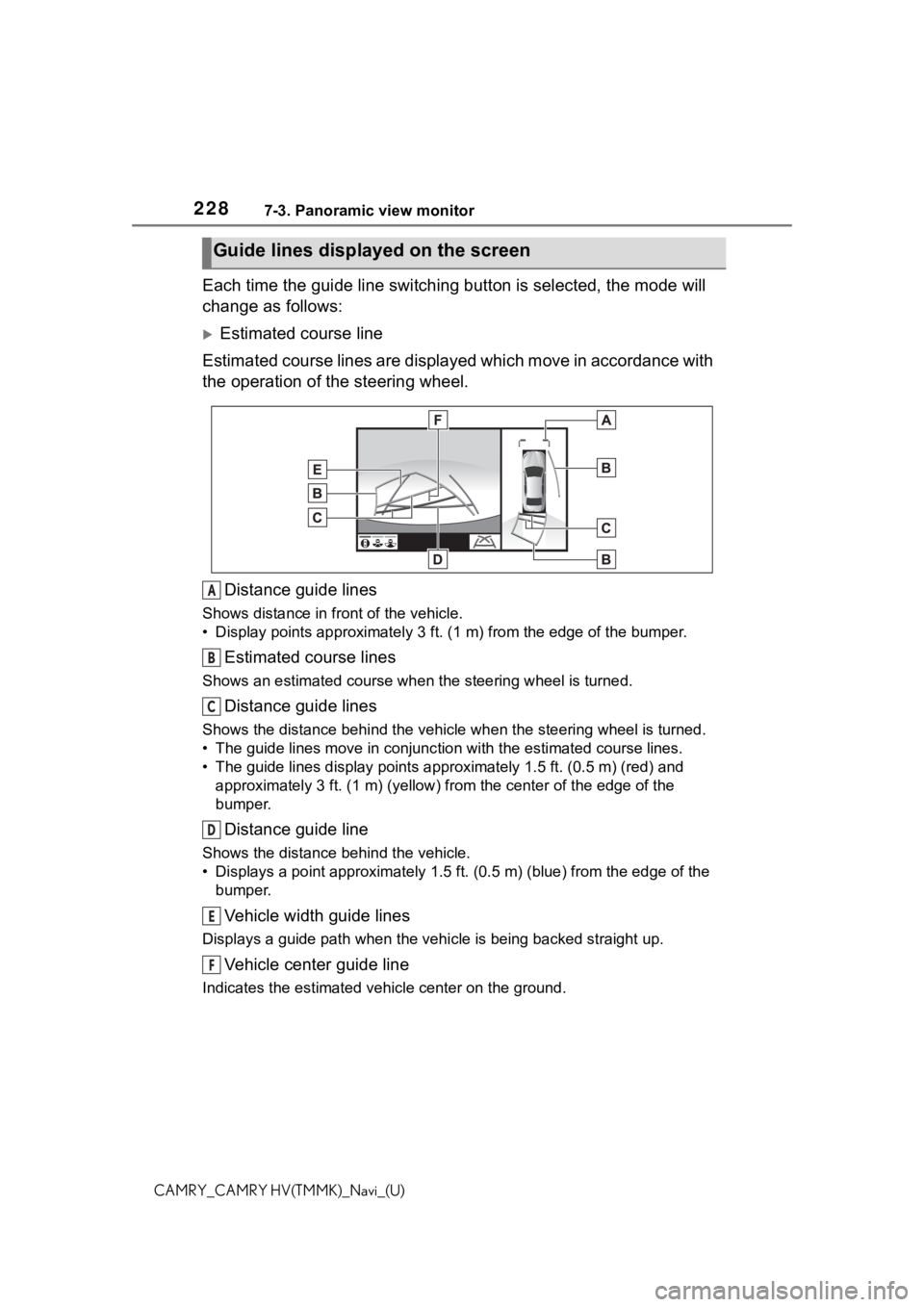

Guide lines displayed on the screen
A
B
C
D
E
F

2297-3. Panoramic view monitor
7
Peripheral monitoring system
CAMRY_CAMRY HV(TMMK)_Navi_(U)

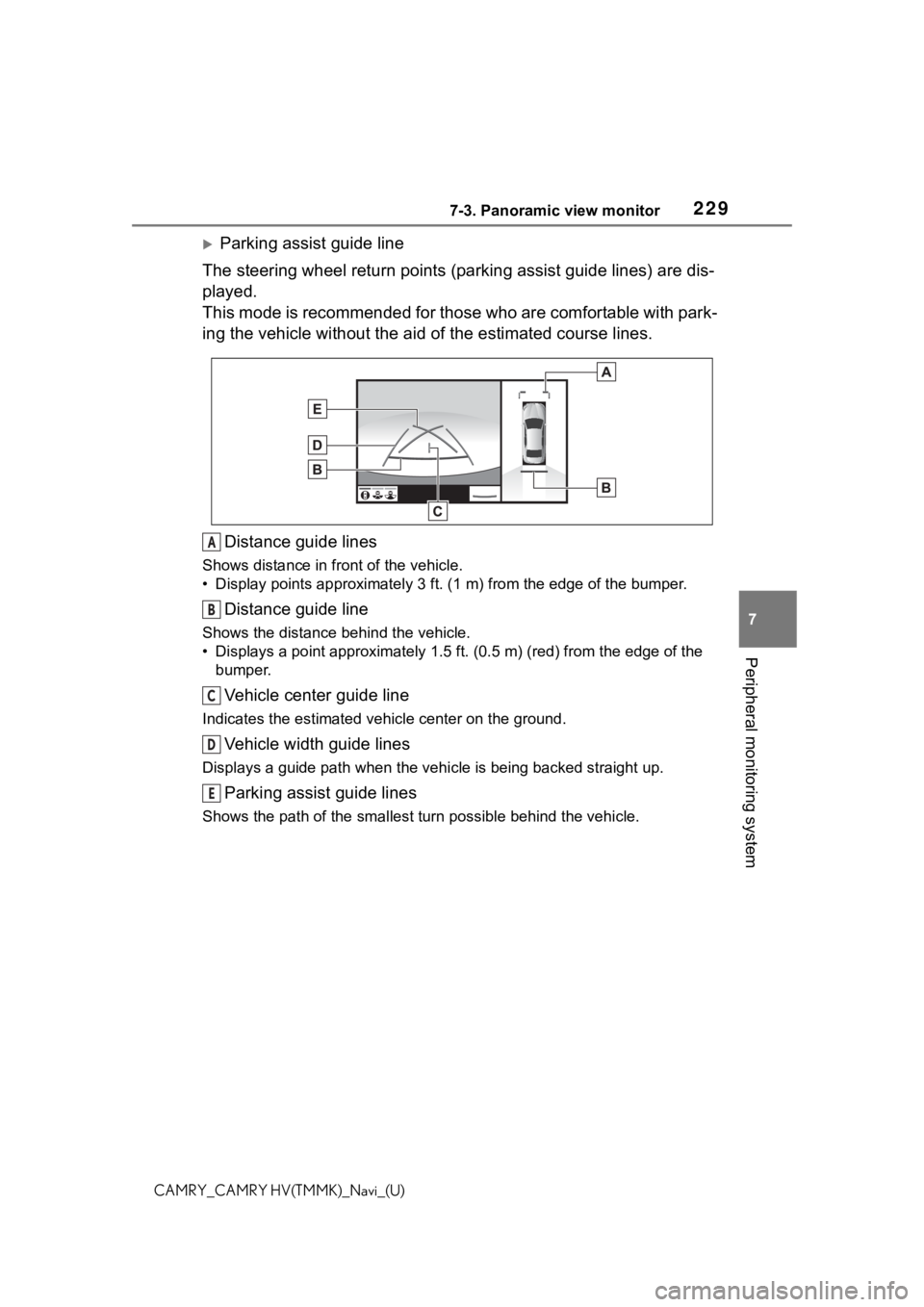

Parking assist guide line
The steering wheel return points (parking assist guide lines) are dis-
played.
This mode is recommended for those who are comfortable with par k-
ing the vehicle without the aid of the estimated course lines.
Distance guide lines
Shows distance in front of the vehicle.
• Display points approximately 3 ft. (1 m) from the edge of the bumper.
Distance guide line
Shows the distance behind the vehicle.
• Displays a point approximately 1.5 ft. (0.5 m) (red) from the edge of the
bumper.
Vehicle center guide line
Indicates the estimated ve hicle center on the ground.
Vehicle width guide lines
Displays a guide path when the vehicle is being backed straight up.
Parking assist guide lines
Shows the path of the smallest turn possible behind the vehicle .
A
B
C
D
E

2307-3. Panoramic view monitor
CAMRY_CAMRY HV(TMMK)_Navi_(U)

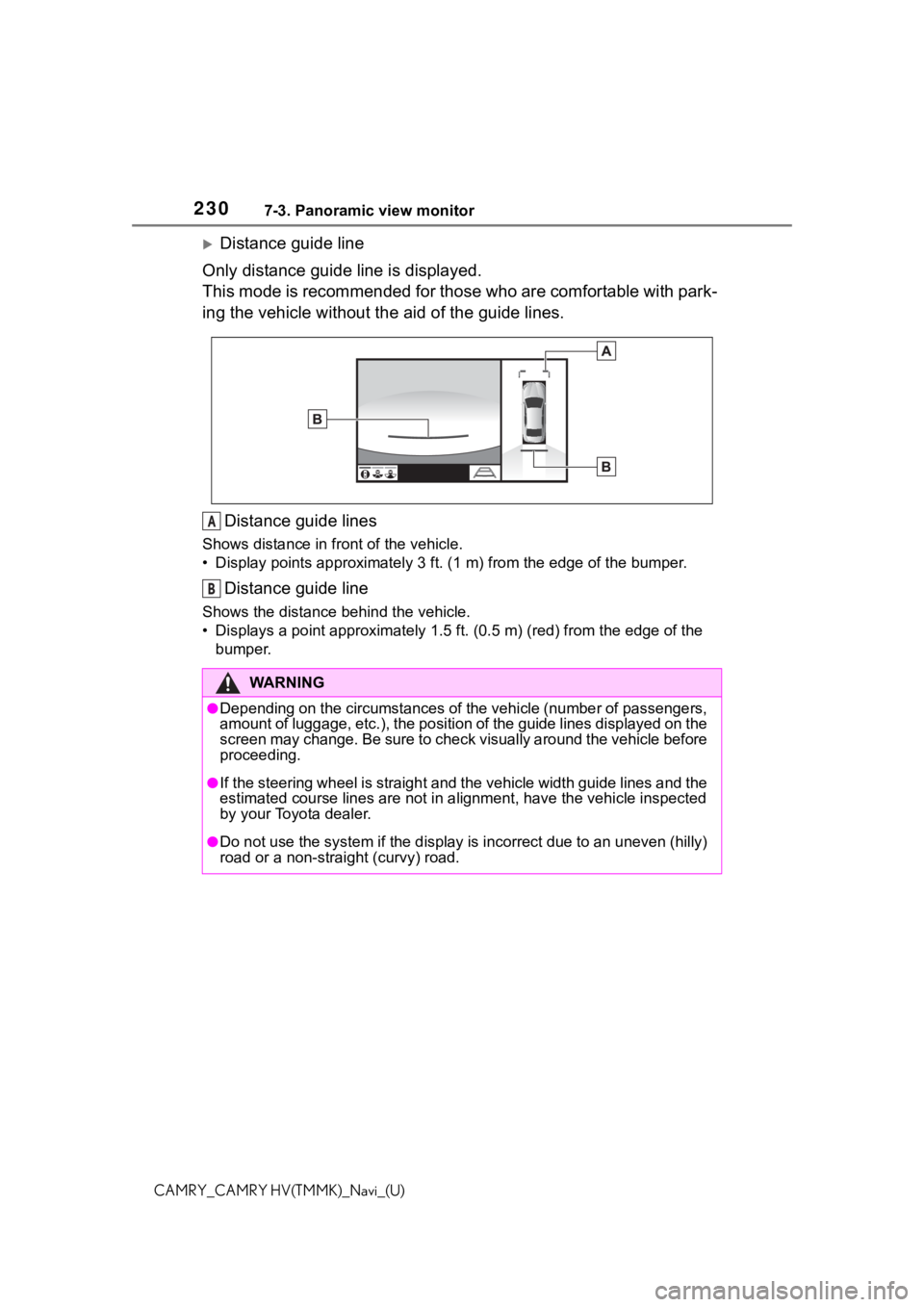

Distance guide line
Only distance guide line is displayed.
This mode is recommended for those who are comfortable with par k-
ing the vehicle without the aid of the guide lines.
Distance guide lines
Shows distance in front of the vehicle.
• Display points approximately 3 ft. (1 m) from the edge of the bumper.
Distance guide line
Shows the distance behind the vehicle.
• Displays a point approximately 1.5 ft. (0.5 m) (red) from the edge of the
bumper.
WA R N I N G
●Depending on the circumstances of the vehicle (number of passen gers,
amount of luggage, etc.), the position of the guide lines displ ayed on the
screen may change. Be sure to check visually around the vehicle before
proceeding.
●If the steering wheel is straight and the vehicle width guide l ines and the
estimated course lines are not in alignment, have the vehicle i nspected
by your Toyota dealer.
●Do not use the system if the display is incorrect due to an une ven (hilly)
road or a non-straight (curvy) road.
A
B
