15Pictorial index
CAMRY_UWindshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Precautions for winter season . . . . . . . . . . . . . . . . . . . . . . . . . P. 386
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 587
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . P. 482
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 386
Checking/rotation/tire pressur e warning system . . . . . . . . .P. 482
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 553
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 466
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 466
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 588
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 577
Front turn signal lights/
parking lights/daytime running lights
*2 . . . . . . . . . . . . . . . P. 233
Headlights/daytime running lights
*3. . . . . . . . . . . . . . . . . . P. 233
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Side turn signal lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Rear turn signal lights/r ear side marker lights/
tail lights/stoplights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225, 233
Tail lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 512, Watts: P. 599)
8
9
10
11
12
13
14
*1: If equipped
*2: Vehicles with LED type front side marker lights
*3: Vehicles with bulb type front side marker lights

5888-1. Specifications
CAMRY_U■
Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used whe
n changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
2.5 L 4-cylinder (A25A-FKS) engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat -
isfy the following grade and viscosity.
Oil grade: API SN/RC multigrade engine oil
Recommended viscosity: SAE 0W-16
SAE 0W-16 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-16 is not available, SAE
0W-20 oil may be used. However,
it must be replaced with SAE 0W-
16 at the next oil change.
Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for ea sier starting of
the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
Lubrication system
With filterWithout filter
2.5 L 4-cylinder
(A25A-FKS) engine4.8 qt.
(4.5 L, 4.0 Imp. qt.)4.4 qt.
(4.2 L, 3.7 Imp. qt.)
3.5 L V6 (2GR-FKS)
engine5.7 qt.
(5.4 L, 4.8 Imp. qt.)5.6 qt.
(5.3 L, 4.7 Imp. qt.)
Outside temperature

5908-1. Specifications
CAMRY_U
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Cooling system
Capacity
(Reference)
2.5 L 4-cylinder (A25A-FKS) engine
7.3 qt. (6.9 L, 6.1 Imp. qt.)
3.5 L V6 (2GR-FKS) engine
9.1 qt. (8.6 L, 7.6 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-basednon-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make2.5 L 4-cylinder (A25A-FKS) engine
DENSO FC16HR-Q8
3.5 L V6 (2GR-FKS) engine
DENSO FK20HBR8
Gap0.031 in. (0.8 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug g ap.

6108-1. Specifications
CAMRY_U

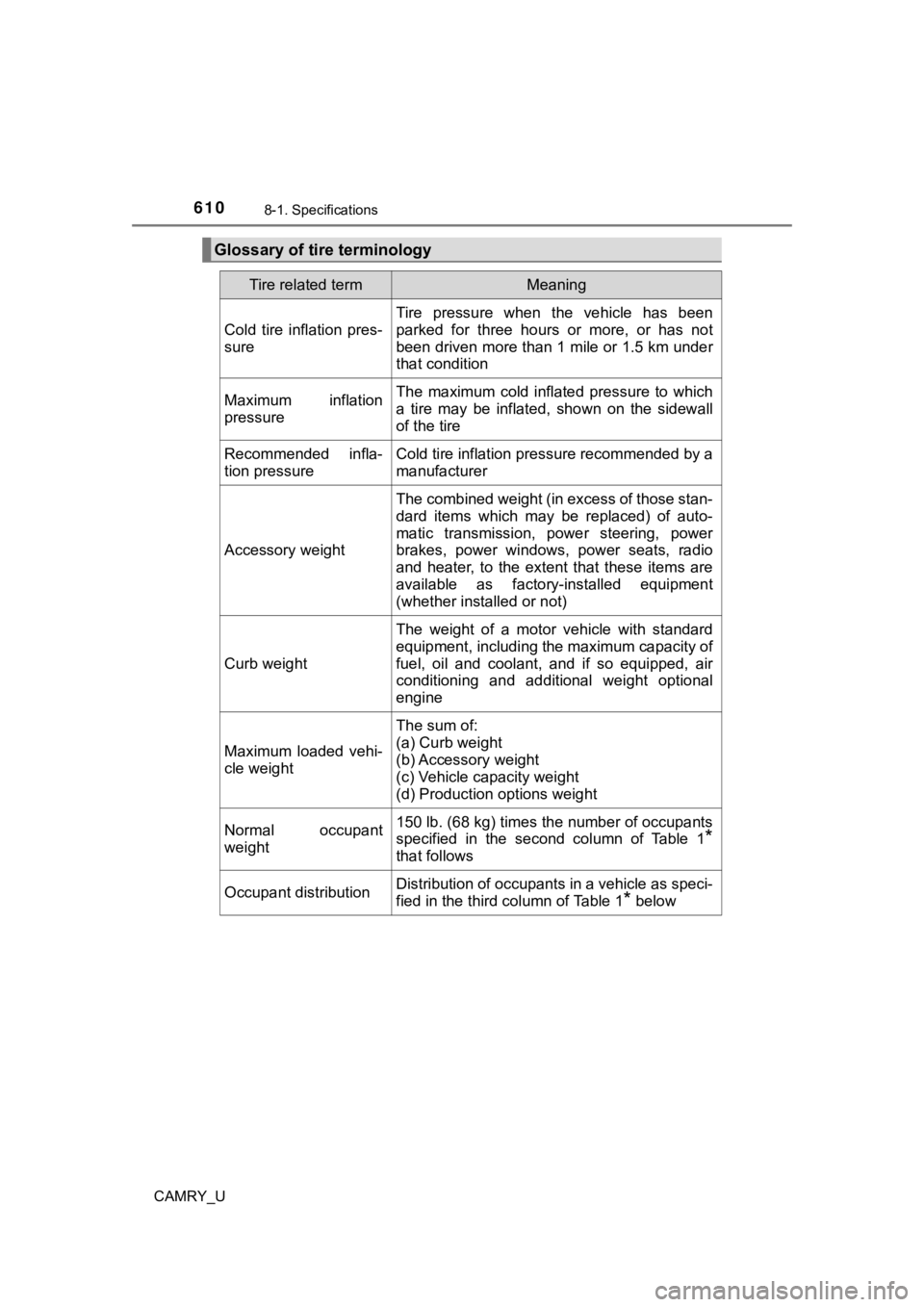

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below

648Alphabetical index
CAMRY_U
Dynamic radar cruise control with full-speed range ............ 294
Dynamic Torque Control AWD system .......................... 327
Eco drive mode ........................ 384
Eco Driving Indicator ...... 107, 124
Eco-friendly driving information ............................ 113
EDR (Event data recorder) ........ 10
Electric Power Steering
(EPS)....................................... 327 Warning light ......................... 539
Electronic key .......................... 138 Battery-saving function ......... 163
If the electronic key does not operate properly ................. 569
Replacing the battery ............ 504
Emergency flashers ................ 526
Emergency, in case of
If a warning buzzer sounds ................................ 538
If a warning light turns on...... 538
If a warning message is displayed ............................ 548
If the battery is discharged.... 572
If the electronic key does not
operate properly ................. 569
If the engine will not start ...... 567
If the vehicle is trapped in
rising water ......................... 529
If you have a flat tire ............. 553
If you lose your keys ............. 142
If you think something is wrong.................................. 536
If your vehicle becomes stuck ................................... 580
If your vehicle has to be
stopped in an emergency ... 527
If your vehicle needs to be towed .................................. 530
If your vehicle overheats ....... 577 Engine
ACCESSORY mode ............. 215
Compartment ........................ 469
Engine switch ............... 211, 213
Hood ..................................... 466
How to start the
engine ........................ 211, 213
Identification number ............ 587
If your vehicle has to be
stopped in an
emergency ......................... 527
Ignition switch (engine switch) ........... 211, 213
Overheating .......................... 577
Engine coolant Capacity................................ 590
Checking............................... 475
Preparing and checking before winter ...................... 386
Engine coolant temperature
gauge ....................................... 92
Engine immobilizer system ...... 79
Engine oil Capacity................................ 588
Checking............................... 471
Preparing and checking before winter ...................... 386
Engine switch .................. 211, 213
Enhanced VSC ......................... 326
EPS (Electric Power Steering) ..... 327 Warning light......................... 539
Event data recorder (EDR)........ 10
E

660
CAMRY_U
GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 466 P. 156P. 246
Hood lock release
leverFuel filler
door openerTire inflation pressure
P. 466 P. 246P. 594
Fuel tank capacity
(Reference) P. 587
Fuel type
P. 587, 600
Cold tire inflation
pressure P. 5 9 4
Engine oil capacity
(Drain and refill —
reference) P. 588
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 588
