2794-5. Using the driving support systems
4
Driving
CAMRY_U
The illustration used is intended as an example, and may differ from
the image that is actually display ed on the multi-information display.
LTA i n d i c a t o r
The illumination condition of the
indicator informs the driver of
the system ope ration status.
Illuminated in white:
LTA system is operating.
Illuminated in green:
Steering wheel assistance of the
steering assist function or lane
centering function is operating.
Flashing in yellow:
Lane departure alert function is
operating.
Operation display of steer ing wheel operation support
Displayed when the multi-informat ion display is switched to the
driving assist system information display.
Indicates that steering wheel ass istance of the steering assist func-
tion or lane centering fu nction is operating.
Both outer sides of the lane are displayed: Indicates that stee ring
wheel assist of the lane centering function is operating.
One outer side of the lane is displayed: Indicates that steerin g
wheel assist of the steering assist function is operating.
Both outer sides of the lane are flashing: Alerts the driver that their
input is necessary to stay in the center of the lane (lane cent ering
function).
Indications on multi-information display
1
2

2804-5. Using the driving support systems
CAMRY_U
Lane departure alert function display
Displayed when the multi-informat ion display is switched to the
driving assist system information display.
*: Boundary between asphalt and the side of the road, such as gra ss, soil, or
a curb
Follow-up cruising display
Displayed when the multi-informat ion display is switched to the
driving assist system information display.
Indicates that steering assist of the lane centering function i s operating
by monitoring the position of a preceding vehicle.
When the follow-up cruising display is displayed, if the preced ing vehi-
cle moves, your vehicle may move in the same way. Always pay ca reful
attention to your surroundings and operate the steering wheel a s neces-
sary to correct the path of the vehicle and ensure safety.
3
Inside of displayed lines is
whiteInside of displayed lines is
black
Indicates that the system is recog-
nizing white (yellow) lines or a
course
*. When the vehicle
departs from its lane, the white
line displayed on the side the
vehicle departs from flashes yel-
low. Indicates that the system is not
able to recognize white (yellow)
lines or a course* or is temporar-
ily canceled.
4

2814-5. Using the driving support systems
4
Driving
CAMRY_U
■Operation conditions of each function
●Lane departure alert function
This function operates when all of the following conditions are met.
• LTA is turned on.
• Vehicle speed is approximately 32 mph (50 km/h) or more.
*1
• System recognizes white (yellow) lane lines or a course*2. (When a white
[yellow] line or course
*2 is recognized on only one side, the system will
operate only for the recognized side.)
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• Turn signal lever is not operated. (Vehicle with BSM: Except when
another vehicle is in the lane on the side where the turn signa l was oper-
ated)
• Vehicle is not being driven around a sharp curve.
• No system malfunctions are detected. ( P. 284)
*1: The function operates even if the vehicle speed is less than a pproxi-
mately 32 mph (50 km/h) when the lane centering function is ope rating.
*2: Boundary between asphalt and the side of the road, such as gra ss, soil,
or a curb
● Steering assist function
This function operates when all of the following conditions are met in addi-
tion to the operation conditions for the lane departure alert function.
• Vehicle is not accelerated or decelerated by a fixed amount or more.
• Steering wheel is not operated with a steering force level suitable for
changing lanes.
• ABS, VSC, TRAC and PCS are not operating.
• TRAC or VSC is not turned off.
● Vehicle sway warning function
This function operates when all of the following conditions are met.
• Setting for “Sway Warning” in (4.2-inch display) or (7-inch display)
of the multi-information display is set to “On”. ( P. 9 8 , 111 )
• Vehicle speed is approximately 32 mph (50 km/h) or more.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• No system malfunctions are detected. ( P. 284)
● Lane centering function
This function operates when all of the following conditions are met.
• LTA is turned on.
• Setting for “Lane Center” in (4.2-inch display) or (7-inch d isplay)
of the multi-information display is set to “On”. ( P. 9 8 , 111 )
• This function recognizes white (yellow) lane lines or the posi tion of a pre-
ceding vehicle (except when the preceding vehicle is small, such as a
motorcycle).

2824-5. Using the driving support systems
CAMRY_U• The dynamic radar cruise control with full-speed range or dyna
mic radar
cruise control is operating in vehicle-to-vehicle distance cont rol mode.
• Width of traffic lane is approximately 10 to 13 ft. (3 to 4 m) .
• Turn signal lever is not operated.
• Vehicle is not being driven around a sharp curve.
• No system malfunctions are detected. ( P. 284)
• Vehicle does not accelerate or decelerate by a fixed amount or more.
• Steering wheel is not operated with a steering force level suitable for changing lanes.
• ABS, VSC, TRAC and PCS are not operating.
• TRAC or VSC is not turned off.
• Hands off steering wheel warning is not displayed. ( P. 283)
• The vehicle is being driven in the center of a lane.
• Steering assist function is not operating.
■ Temporary cancelation of functions
●When operation conditions are no longer met, a function may be temporarily
canceled. However, when the operation conditions are met again, operation
of the function is automatically restored. ( P. 281)
● If the operation conditions ( P. 281) are no longer met while the lane cen-
tering function is operating, the buzzer may sound to indicate that the func-
tion has been temporarily canceled.
■ Steering assist function/lane centering function
●Depending on the vehicle speed, lane departure situation, road conditions,
etc., the driver may not feel the function is operating or the function may not
operate at all.
● The steering control of the function is overridden by the drive r’s steering
wheel operation.
● Do not attempt to test the operation of the steering assist fun ction.
■ Lane departure alert function
●The warning buzzer may be difficult to hear due to external noi se, audio
playback, etc.
● If the edge of the course
* is not clear or straight, the lane departure alert
function may not operate.
● Vehicle with BSM: It may not be possible for the system to determine if there
is a danger of a collision with a vehicle in an adjacent lane.
● Do not attempt to test the operation of the lane departure aler t function.
*: Boundary between asphalt and the side of the road, such as gra ss, soil, or
a curb

2834-5. Using the driving support systems
4
Driving
CAMRY_U■
Hands off steering wheel warning
●When the system determines the driver is not holding the steering wheel
while the lane centering function is operating.
If the driver continues to keep their hands off of the steering wheel, the
buzzer sounds, the driver is warned and the function is temporarily canceled.
This warning also operates in the same way when the driver continuously
operates the steering wheel only a small amount.
● When the system determines that the vehicle may deviate from th e lane
while driving around a curve while the lane centering function is operating.
Depending on the vehicle condition and road conditions, the war ning may not
operate. Also, if the system determines that the vehicle is driving around a
curve, warnings will occur earlier than during straight-lane dr iving.
● When the system determines that t he driver is driving without holding the
steering wheel while the steering wheel assist of the steering assist function
is operating.
If the driver continues to keep their hands off of the steering wheel and the
steering wheel assist is operating, the buzzer sounds and the d river is
warned. Each time the buzzer sounds, the continuing time of the buzzer
becomes longer.
■ Vehicle sway warning function
Depending on the vehicle and road conditions, the warning may n ot operate.
In the following situations, a warning mes-
sage urging the driver
to hold the steering
wheel and the symbol shown in the illus-
tration are displayed on the multi-informa-
tion display to warn the driver. The
warning stops when the system deter-
mines that the driver holds the steering
wheel. Always keep your hands on the
steering wheel when using this system,
regardless of warnings.
When the system determines that the
vehicle is swaying while the vehicle sway
warning function is operating, a buzzer
sounds and a warning message urging
the driver to rest and the symbol shown in
the illustration are simultaneously dis-
played on the multi-information display.

2844-5. Using the driving support systems
CAMRY_U■
Warning message
If the following warning message is displayed on the multi-info rmation display
and the LTA indicator illuminates in yellow, follow the appropr iate trouble-
shooting procedure. Also, if a different warning message is displayed, follow
the instructions displayed on the screen.
● “LTA Malfunction Visit Your Dealer”
The system may not be operating properly. Have the vehicle insp ected by
your Toyota dealer.
● “LTA Unavailable”
The system is temporarily canceled due to a malfunction in a se nsor other
than the front camera. Turn the LTA system off, wait for a little while, and then
turn the LTA system back on.
● “LTA Unavailable at Current Speed”
The function cannot be used as the vehicle speed exceeds the LT A operation
range. Drive slower.
■ Customization
Function settings can be changed. ( P. 103, 117)

2854-5. Using the driving support systems
4
Driving
CAMRY_U
The RSA system recognizes spe-
cific road signs using the front
camera and/or navigation system
(when speed limit information is
available) to provide information
to the driver via the display.
If the system judges that the vehicle is being driven over the speed
limit, performing prohibited ac tions, etc. according to the recognized
road signs, it notifies the driver through a visual notification and notifi-
cation buzzer
*.
*: This setting needs to be customized.
RSA (Road Sign Assist)
: If equipped
Summary of function
Front camera
WARNING
■ Before using the RSA
Do not rely solely upon the RSA system. RSA is a system which supports
the driver by providing information, but it is not a replacement for a driver’s
own vision and awareness. Drive safely by always paying careful attention
to the traffic rules.

2864-5. Using the driving support systems
CAMRY_U
When the front camera recognizes a sign and/or information of a sign
is available from the navigation system, the sign will be displ ayed on
the multi-inform ation display.
● When the driving assist system
information is selected, a maxi-
mum of 3 signs can be dis-
played. ( P. 98, 111)
● When a tab other than the driv-
ing assist system information is
selected, the following types of
road signs will be displayed.
( P. 98, 111)

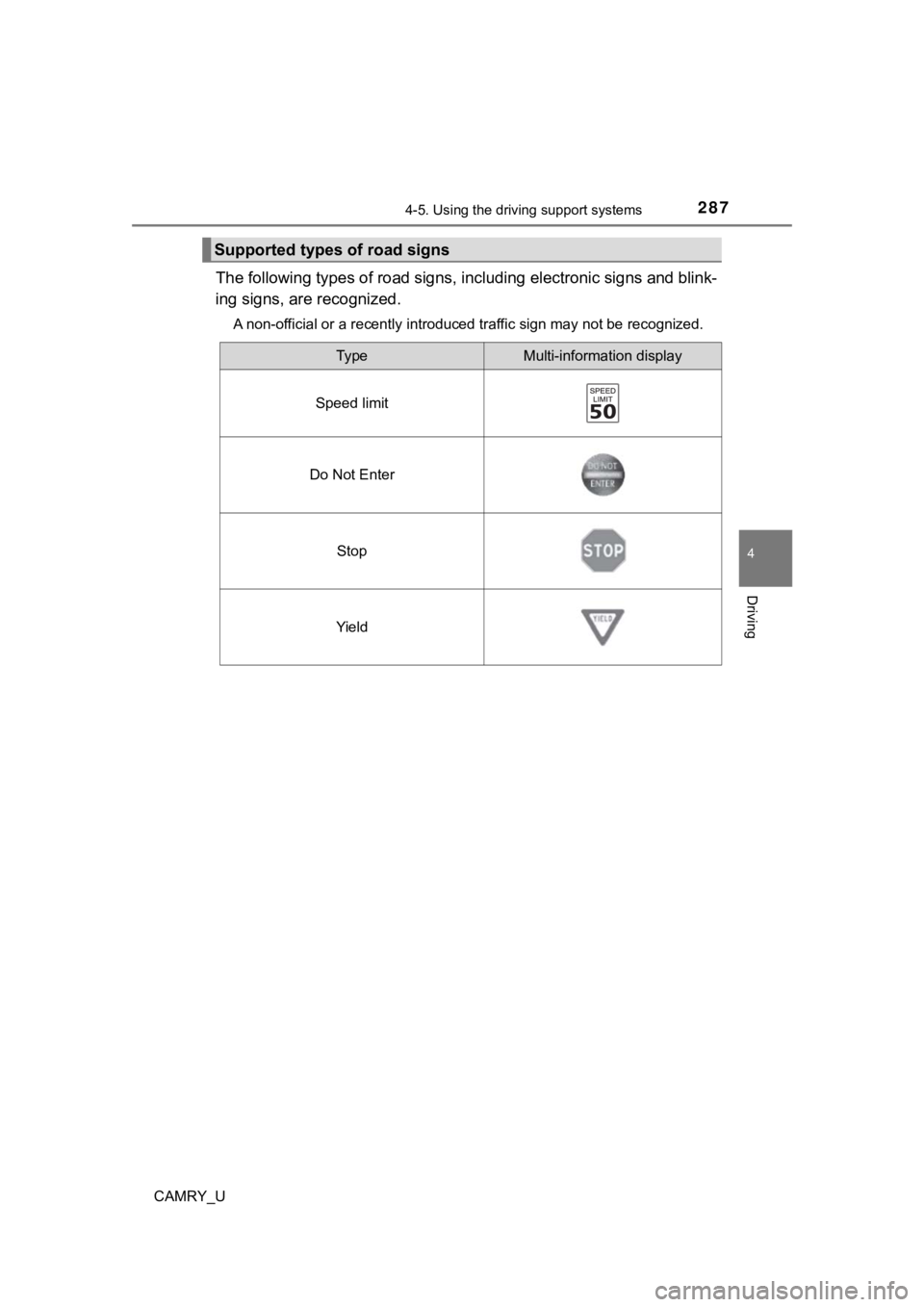

• Speed limit sign
• Do Not Enter sign (when notification is necessary)
If signs other than speed limit signs are recognized, they will be dis-
played in an overlapping stack under the current speed limit si gn.
Indication on the multi-information display

2874-5. Using the driving support systems
4
Driving
CAMRY_U
The following types of road signs, including electronic signs a nd blink-
ing signs, are recognized.
A non-official or a recently introduced traffic sign may not be recognized.
Supported types of road signs
Ty p eMulti-information display
Speed limit
Do Not Enter
Stop
Yield

2884-5. Using the driving support systems
CAMRY_U
In the following situations, the RSA syst em will notify the driver.
● When the vehicle speed exceeds the speed notification threshold of
the speed limit sign displayed, the sign display will be emphas ized
and a buzzer will sound.
● When the RSA system recognizes a do not enter sign and deter-
mines that your vehicle has ent ered a no-entry area, the displayed
sign will flash and a buzzer will sound.
Depending on the situation, a not ification function may not operate
properly.
■ Setting procedure
Vehicles with 4.2-inch multi-information display
Press / of the meter control switches, select .
Press / of the meter control switches, select .
Press of the meter control switch.
Each time is pressed, the function changes on/off.
Vehicles with 7-inch multi-information display
Press / of the meter control switches, select .
Press / of the meter control switches, select .
Press of the meter control switch.
Each time is pressed, the function changes on/off.
■ Automatic turn-off of RSA sign display
In the following situations, a displayed speed limit sign and/o r do not enter
sign will stop being displayed automatically:
● No sign has been recognized for a certain distance.
● The road changes due to a left or right turn, etc.
In the following situations, stop and yield signs will stop bei ng displayed auto-
matically:
● The system determines that your vehicle has passed the sign.
● The road changes due to a left or right turn, etc.
Notification function
1
2
3
1
2
3
