TOYOTA CAMRY HYBRID 2018 Owners Manual (in English)

912. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( →P. 480)*2
(Canada)
Parking brake indicator
(→P. 481)
*1
(Canada)
(Red)
Brake system warning
light ( →P. 480)
*1, 2
Brake hold operated
indicator ( →P. 481)
*1
(Yellow)
Brake system warning
light ( →P. 480)*1
(Red/yellow)
Electric power steering
system warning light
(→P. 481)
*1
(U.S.A.)
Malfunction indicator
lamp ( →P. 480)*1, 2
PCS warning light
(→P. 482)
*1
(Canada)
Malfunction indicator
lamp ( →P. 480)*1, 2
(if equipped)
ICS OFF indicator
(→P. 482)
*1SRS warning light
(→P. 480)
(Yellow)
LDA (Lane Departure
Alert) indicator
(→P. 481)
*1
(U.S.A.)
ABS warning light
(→P. 481)*1
Slip indicator ( →P. 482)
*1
(Canada)
ABS warning light
(→P. 481)Low fuel level warning
light ( →P. 483)
*2
(U.S.A.)
Parking brake indicator
(→P. 481)
Driver’s and front
passenger’s seat belt
reminder light
(→P. 483)

922. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: This light flashes to indicate a malfunction.
*3: This light illuminates on the center panel.
*3
(Type A)
Rear passengers’ seat
belt reminder lights
(→P. 483)*1
Master warning light
(→P. 483)
*3
(Type B)
Rear passengers’ seat
belt reminder lights
(→P. 483)*1
Tire pressure warning
light ( →P. 483)

932. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( →P. 219) Radar cruise control
indicator
(
→P. 270)
(U.S.A.)
Headlight indicator
(→P. 227) Cruise control “SET”
indicator
(
→P. 270)
(Canada)
Tail light indicator
(→P. 227) *1, 2PCS warning light
(→P. 252)
Headlight high beam
indicator ( →P. 227)
*1, 2
(if equipped)
ICS OFF indicator
(→P. 315)
*1Automatic High Beam
indicator ( →P. 230)
(White)
LDA (Lane Departure
Alert) indicator
(→P. 260)
AGC (Auto Glide Con-
trol) indicator ( →P. 334)
(Green)
LDA (Lane Departure
Alert) indicator
(→P. 260)
(U.S.A.)
Parking brake indicator
(→P. 220)*3
(Yellow)
LDA (Lane Departure
Alert) indicator
(→P. 260)
(Canada)
Parking brake indicator
(→P. 220)*1, 3
Slip indicator ( →P. 284)
*1Brake hold operated
indicator (→P. 224)*1, 2VSC OFF indicator
(→P. 285)
*1Brake hold standby
indicator ( →P. 224)
(if equipped)
“BSM” indicator
(→P. 290)
Cruise control indicator
( →P. 270)
(if equipped)
“RCTA” indicator
(→P. 290)

942. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: This light turns on when the system is off.
*3: This light flashes to indicate that the system is operating.
*4, 5
(if equipped)
BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(→P. 290) “SPORT” indicator
(
→P. 333)
*1, 6
(Type A for
U.S.A.)
“AIRBAG ON/OFF”
indicator ( →P. 4 7 ) “ECO MODE” indicator
(
→P. 333)
*1, 6
(Type B for
U.S.A.)
“AIRBAG ON/OFF”
indicator ( →P. 4 7 ) “READY” indicator
(
→P. 204)
*1, 6
(Type A for
Canada)
“AIRBAG ON/OFF”
indicator ( →P. 4 7 ) EV indicator (
→P. 75)
*1, 6
(Type B for
Canada)
“AIRBAG ON/OFF”
indicator ( →P. 4 7 ) EV drive mode indicator
(
→P. 210)
*6
Security indicator
(→P. 84, 86)*7
Low outside tempera-
ture indicator ( →P. 96)
(if equipped)
Intuitive parking assist
indicator (→P. 304)

952. Instrument cluster
2
Instrument cluster
*4: These indicators will illuminate in the following situations to indicate that
the system initial check is being performed:
• When the BSM function or RCTA function is enabled and the power switch is turned to ON mode.
• When the power switch is ON mode and the BSM function is enabled.
• When the power switch is ON mode and the RCTA function is enabled. (At this time, a buzzer will also sound).
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion is enabled, the system may be malfunctioning. Have the vehicle
inspected by your Toyota dealer.
*5: This light illuminates on the outside rear view mirrors.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10 seconds, then stay on.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could r\
esult
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

962. Instrument cluster
4.2-inch display
7-inch display

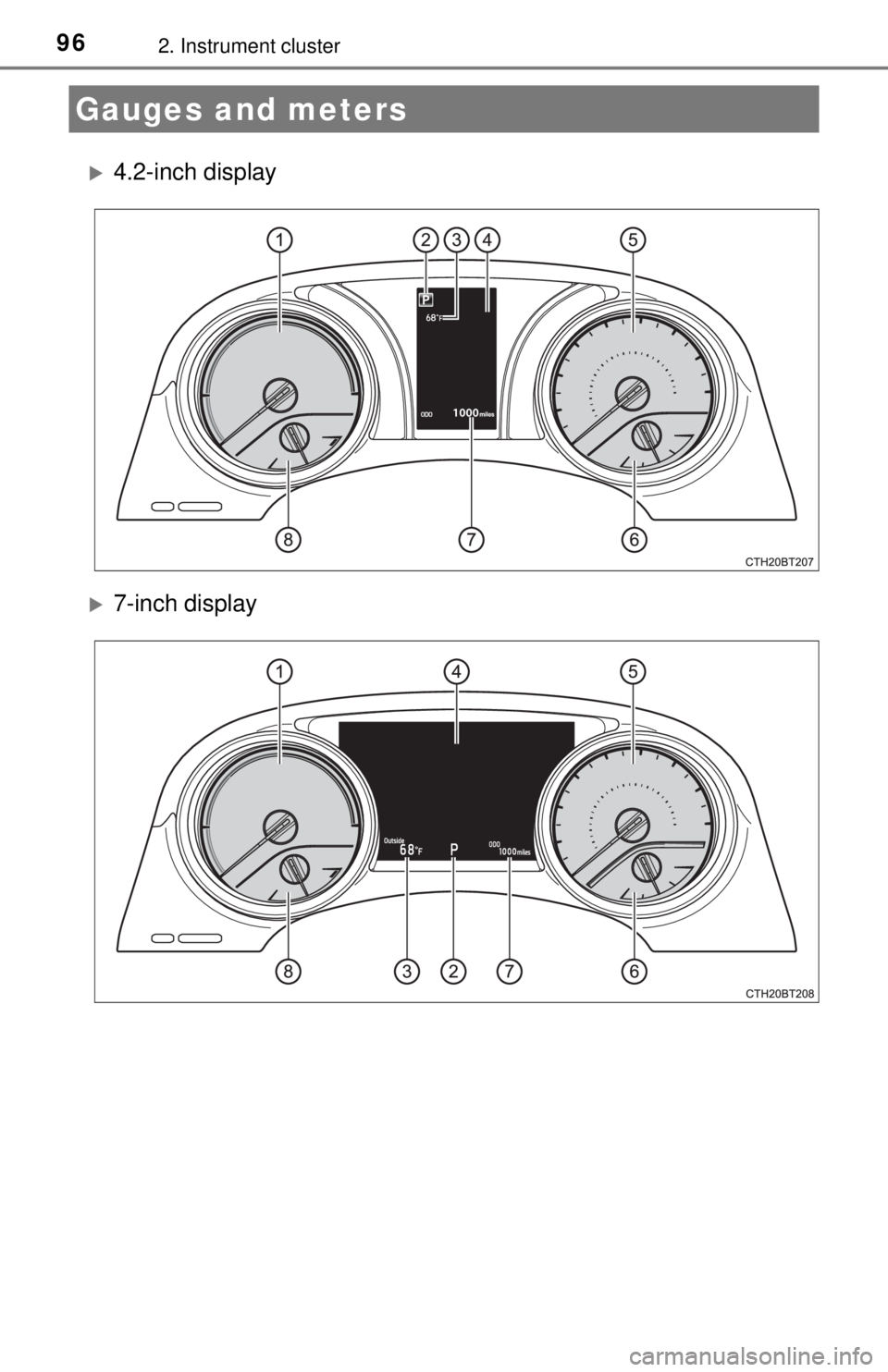

Gauges and meters

972. Instrument cluster
2
Instrument cluster
Hybrid System Indicator
Displays hybrid system output or regeneration level (→P. 98)
Shift position (→P. 213)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( →P. 100, 112)
Displays warning messages in case of a malfunction ( →P. 490)
Speedometer
Fuel gauge
Odometer and trip meter (→P. 109, 125)
Engine coolant temperature gauge
Displays the engine coolant temperature

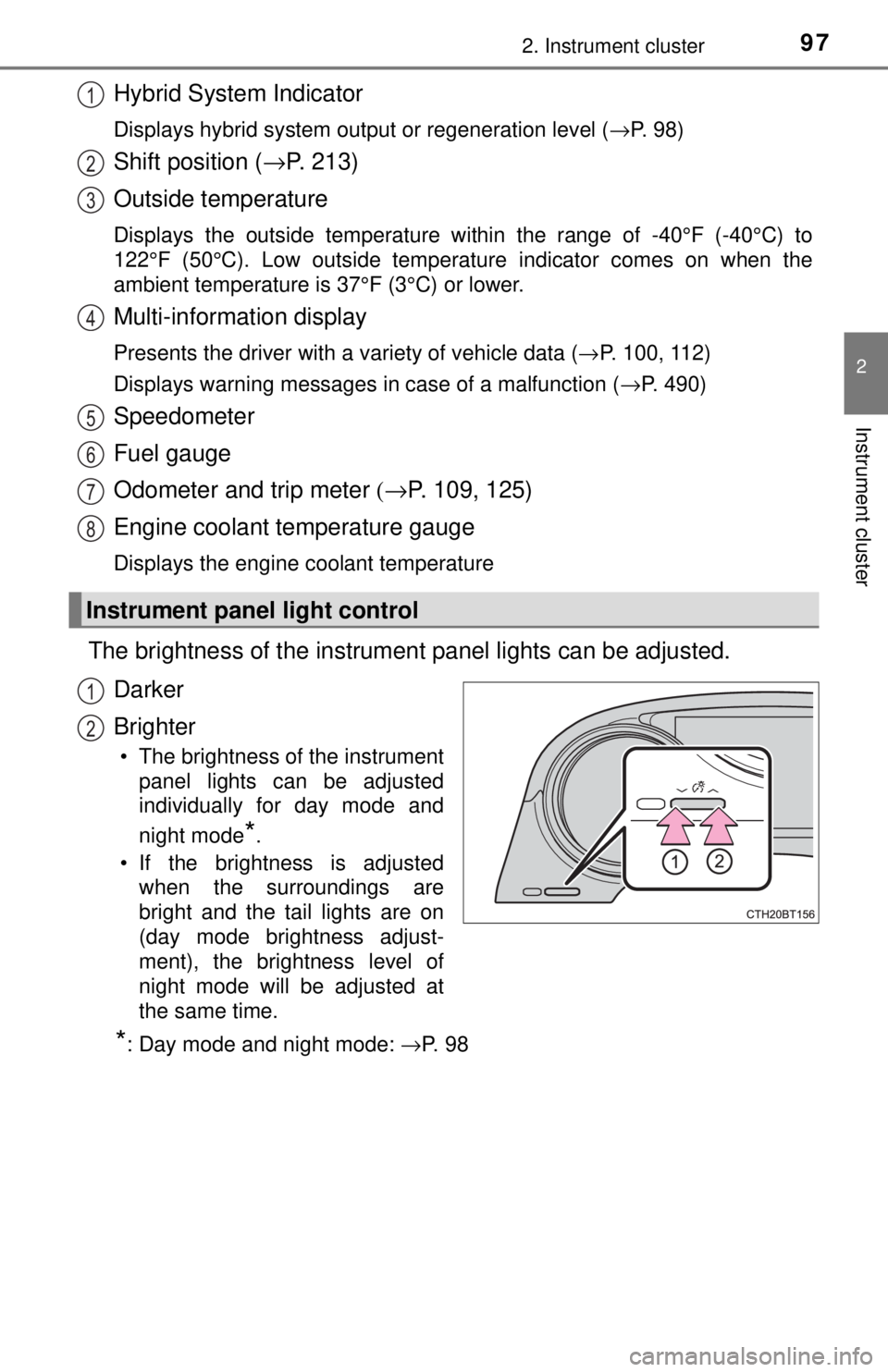

The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
• The brightness of the instrument panel lights can be adjusted
individually for day mode and
night mode
*.
• If the brightness is adjusted when the surroundings are
bright and the tail lights are on
(day mode brightness adjust-
ment), the brightness level of
night mode will be adjusted at
the same time.
*: Day mode and night mode: → P. 9 8
Instrument panel light control
1
2
3
4
5
6
7
8
1
2

982. Instrument cluster
■The meters and display illuminate when
The power switch is in ON mode.
■ Brightness of the meters (day mode and night mode)
●The brightness of the meters is changed between day mode and night
mode.
• Day mode: When the tail lights are off or when the tail lights are on but
the surrounding area is bright
• Night mode: When the tail lights are on and the surrounding area is dark
● When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.

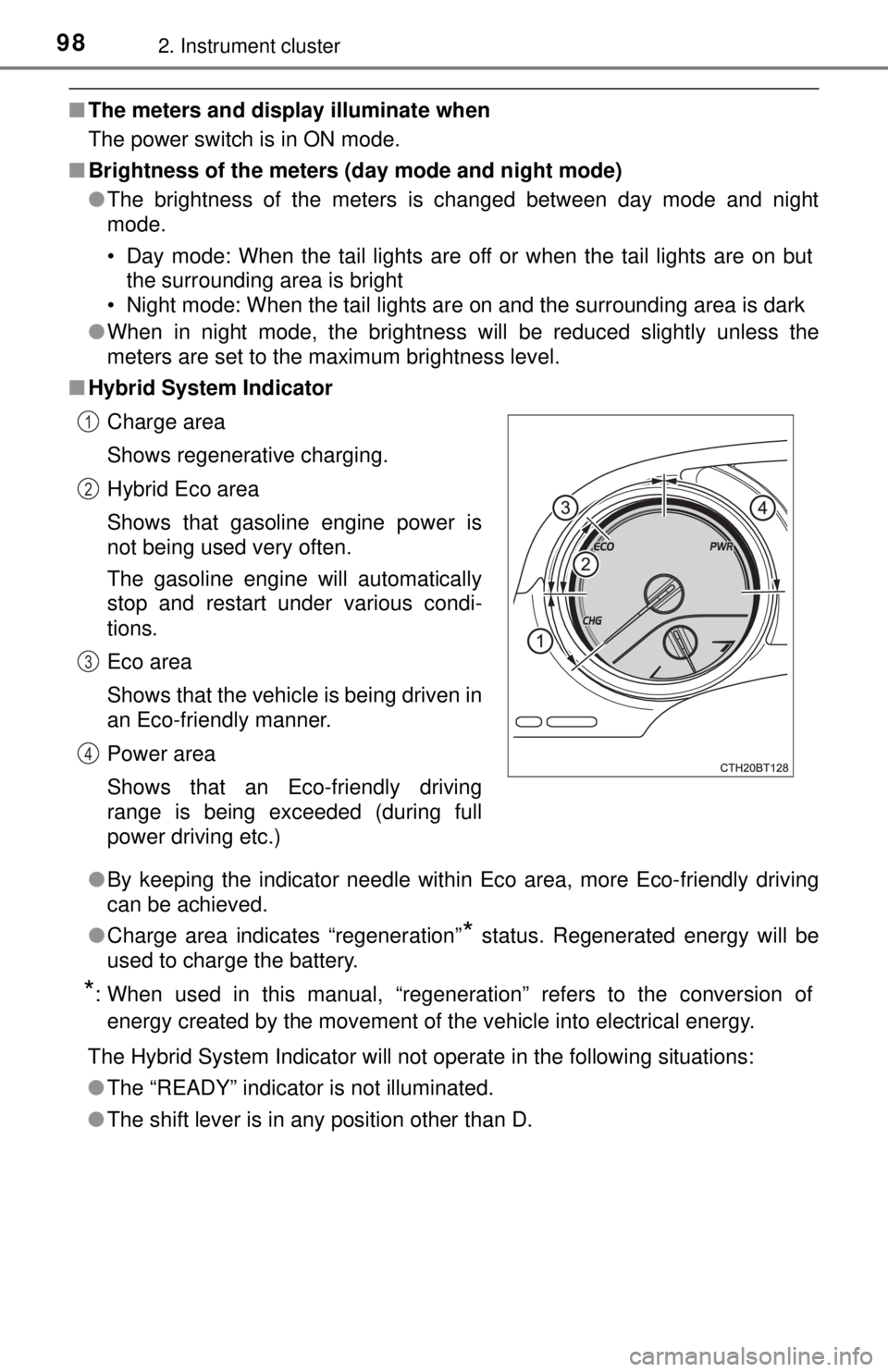

■ Hybrid System Indicator
●By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates “regeneration”
* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
The Hybrid System Indicator will not operate in the following situations:
● The “READY” indicator is not illuminated.
● The shift lever is in any position other than D. Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4

992. Instrument cluster
2
Instrument cluster
■Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
■ Outside temperature display
In the following situations, the correct outside temperature may not be \
dis-
played, or the display may take longer than normal to change:
●When stopped, or driving at low speeds (less than 16 mph [25 km/h])
● When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
● When “ − −” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( →P. 519)

1002. Instrument cluster
The multi-information display presents the driver with a variety of driv-
ing-related data, such as the curr ent outside temperature. The multi-
information display can also be used to change the display settings
and other settings.
Shift position (→ P. 213)
Menu icon display area
Displays the following items.
When a menu icon is not selected, the outside temperature is displayed. • Menu icons ( →P. 102)
• Outside temperature ( →P. 96)
Content display area
A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.
• Menu icon content ( →P. 102)
• Suggestion function ( →P. 109)
• Warning message ( →P. 490)
Odometer/trip meter ( →P. 109)
Indicators ( →P. 90)
“ODO/TRIP” switch ( →P. 101)
Meter control switches ( →P. 101)

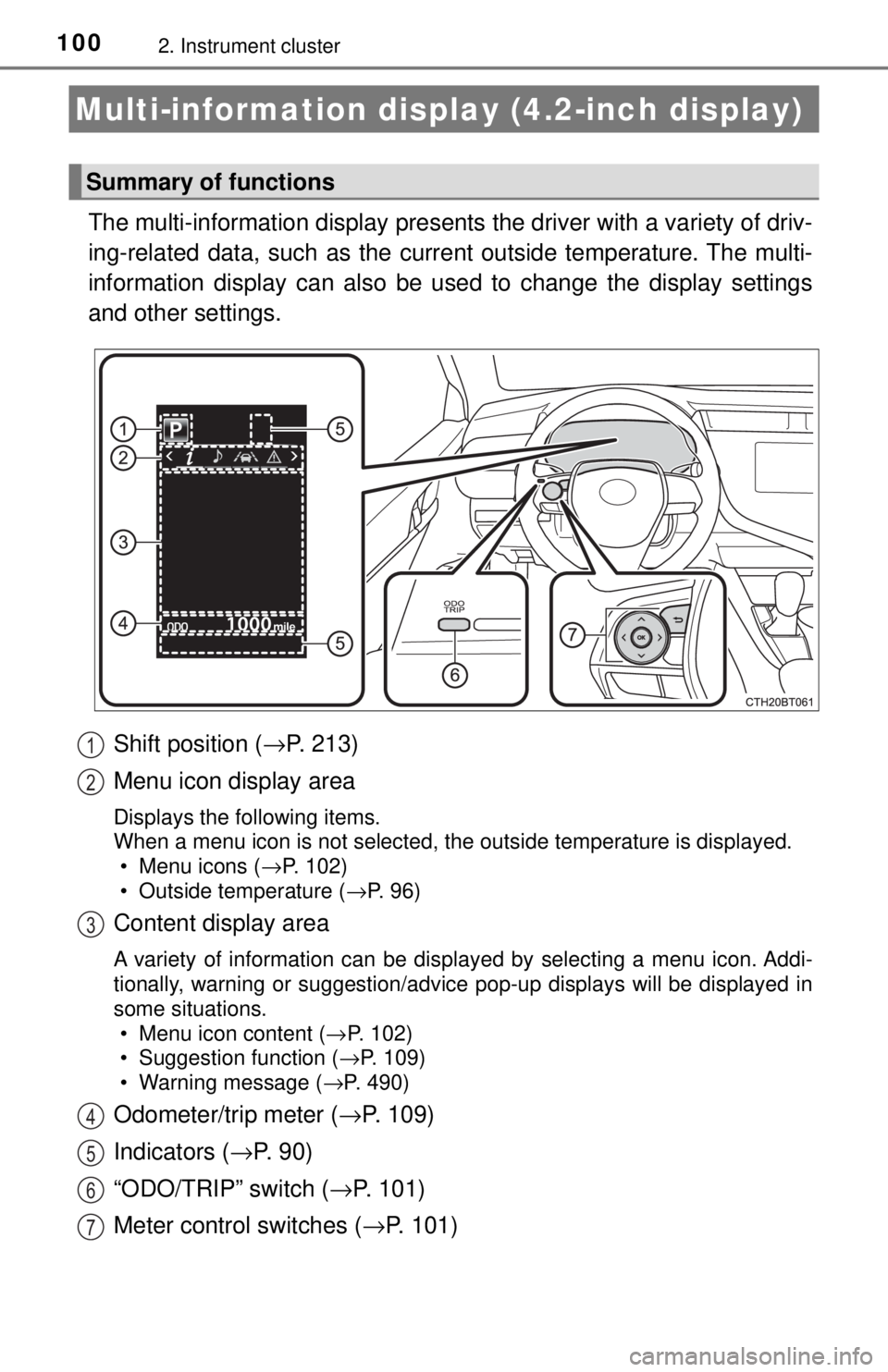

Multi-information disp lay (4.2-inch display)
Summary of functions
1
2
3
4
5
6
7
