TOYOTA CAMRY HYBRID 2018 Owners Manual (in English)

1012. Instrument cluster
2
Instrument cluster
◆Using the content display area
The content display area is operated using the meter control
switches.
Scroll screens
*, change the
displayed content
* and move
the cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous
screen
Pressing and holding the switch
will display the first screen of the
selected menu icon.
*: When the screen can be scrolled or different content can be displayed, a mark, such as an arrow, will be displayed to suggest which switch to
operate.
◆Using the odometer/trip meter
Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item
Each time the switch is pressed,
the displayed item will be
changed.
Press and hold: Reset
Display the desired trip meter
and press and hold the switch to
reset the trip meter.
Using the multi-information display
1
2
3

1022. Instrument cluster
Select a menu icon to display its content.Drive information ( →P. 103)
Select to display various drive data.
Audio system-linked display
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist sy stem information
Select to display the operational status of the following systems:
• Dynamic radar cruise control with full-speed range ( →P. 270)
• LDA (Lane Departure Alert with steering control) ( →P. 260)
Warning message display (→P. 490)
Select to display warning messages and measures to be taken if a mal-
function is detected.
Settings display ( →P. 105)
Select to change the meter display settings and other settings.
Menu icons

1032. Instrument cluster
2
Instrument cluster
■Trip (after start)Average fuel economy
*
Displays the average fuel con-
sumption since hybrid system
start.
Average vehicle speed
Displays the average vehicle
speed since hybrid system start.
Elapsed time
Displays the time elapsed since
hybrid system start.
*: Use the displayed fuel consumption as a reference only.
■
Total (after reset) Current fuel consumption
Displays the instantaneous cur-
rent fuel consumption.
Average fuel economy*1, 2
Displays the average fuel con-
sumption since the display was
reset.
Average vehicle speed/
Elapsed time
*1
Displays the average vehicle speed since reset or elapsed time since
reset, as selected in . ( →P. 105)
*1: Pressing and holding will reset the average fuel consumption
and average vehicle speed/elapsed time.
*2: Use the displayed fuel consumption as a reference only.
Drive information ( )
1
2
3
1
2
3

1042. Instrument cluster
■Tank (after refuel)Driving range
*1, 2
Displays the driving range with
remaining fuel.
Average fuel economy*1, 3
Displays the average fuel con-
sumption since the vehicle was
refueled.
*1: When only a small amount of fuel is added to the tank, the display maynot be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.
*2: This distance is computed based on your average fuel consumption. Asa result, the actual distance that can be driven may differ from that dis-
played.
*3: Use the displayed fuel consumption as a reference only.
■
Energy monitor
→ P. 1 3 5
■Speedometer
Displays the vehicle speed.
■Tire pressure (vehicles with a tire inflation pressure display
function)
→ P. 4 2 9
■Blank (No items)
Displays no drive information contents.
1
2

1052. Instrument cluster
2
Instrument cluster
◆Changing settings
Use the meter control switches on the steering wheel to change
settings.Press or to select .
Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the
screen.
◆Setting items
■ LDA (Lane Departure Alert with steering control) ( →P. 260)
The following LDA system settings can be changed:
Settings display ( )
1
2
3
ItemSettingsDetails
Steering assist On
Select to enable/disable steering
wheel assistance.
Off
Alert sensitivityHighSelect to set the warning sensi-
tivity.
Normal
Sway warningOnSelect to enable/disable the vehi-
cle sway warning.
Off
Sway sensitivity
High
Select to set the vehicle sway
warning sensitivity.Medium
Low

1062. Instrument cluster
■ PCS (Pre-Collision System) (→P. 249)
The following pre-collision sy stem settings can be changed:
■ BSM (Blind Spot Monitor) function (if equipped) (→P. 290)
■RCTA (Rear Cross Traffic Al ert) function (if equipped)
( → P. 290)
ItemSettingsDetails
PCS On
Select to enable/disable the pre-
collision system.
Off
Warning sensitivitySelect to change the warning
timing.
ItemSettingsDetails
BSM On
Select to enable/disable the
Blind Spot Monitor function.
Off
ItemSettingsDetails
RCTA On
Select to enable/disable the Rear
Cross Traffic Alert function.
Off

1072. Instrument cluster
2
Instrument cluster

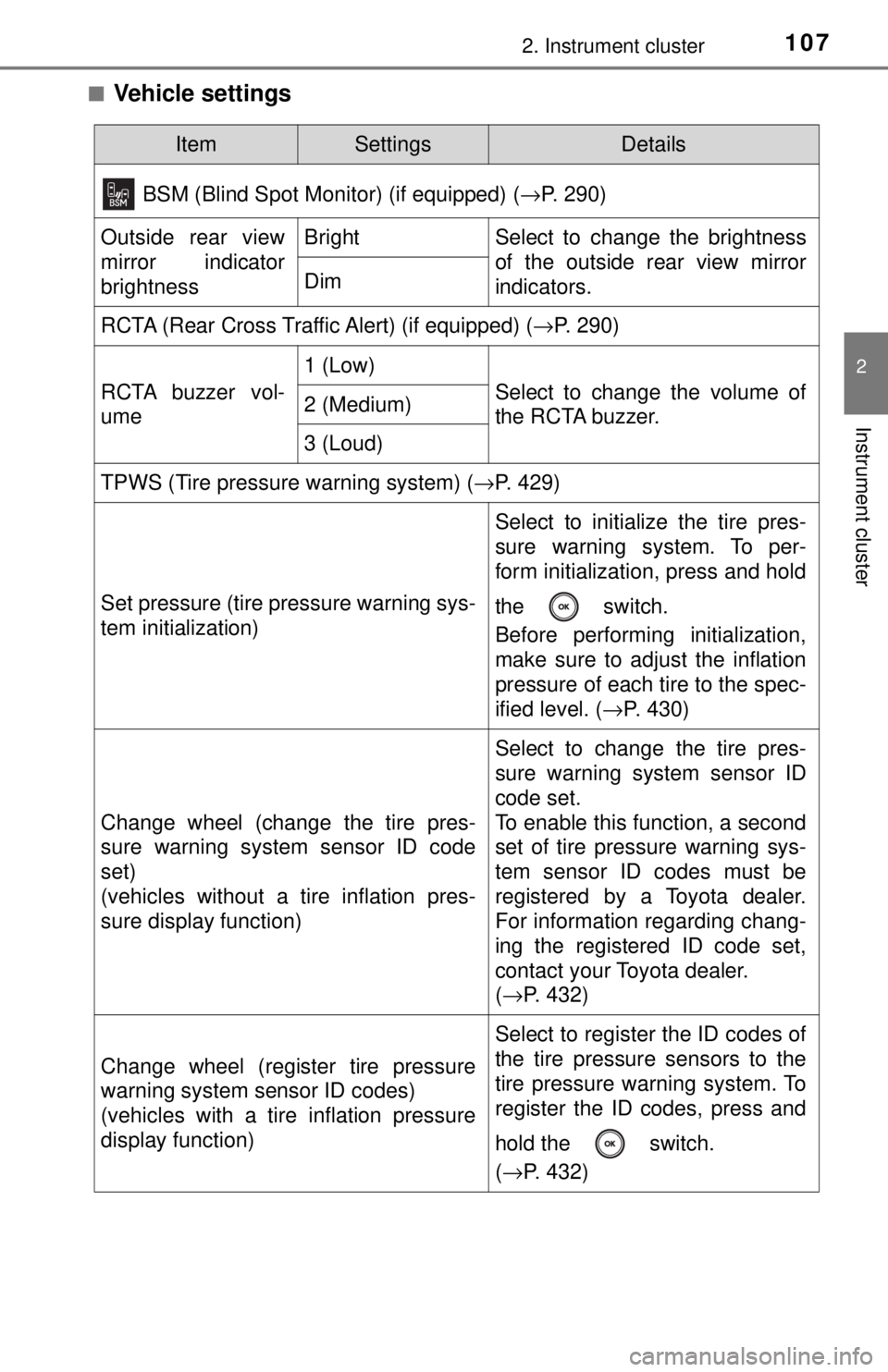

■Vehicle settings
ItemSettingsDetails
BSM (Blind Spot Monitor) (if equipped) ( →P. 290)
Outside rear view
mirror indicator
brightnessBrightSelect to change the brightness
of the outside rear view mirror
indicators.
Dim
RCTA (Rear Cross Traffic Alert) (if equipped) ( →P. 290)
RCTA buzzer vol-
ume
1 (Low)
Select to change the volume of
the RCTA buzzer.2 (Medium)
3 (Loud)
TPWS (Tire pressure warning system) (→P. 429)
Set pressure (tire pressure warning sys-
tem initialization)
Select to initialize the tire pres-
sure warning system. To per-
form initialization, press and hold
the switch.
Before performing initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (→P. 430)
Change wheel (change the tire pres-
sure warning system sensor ID code
set)
(vehicles without a tire inflation pres-
sure display function)
Select to change the tire pres-
sure warning system sensor ID
code set.
To enable this function, a second
set of tire pressure warning sys-
tem sensor ID codes must be
registered by a Toyota dealer.
For information regarding chang-
ing the registered ID code set,
contact your Toyota dealer.
(→P. 432)
Change wheel (register tire pressure
warning system sensor ID codes)
(vehicles with a tire inflation pressure
display function)
Select to register the ID codes of
the tire pressure sensors to the
tire pressure warning system. To
register the ID codes, press and
hold the switch.
(→P. 432)

1082. Instrument cluster
■Meter settings
Scheduled maintenance display
Maintenance data reset
Select to reset the message indi-
cating maintenance is required,
after the required maintenance is
performed. (→P. 405)
ItemSettingsDetails
ItemSettingsDetails
Language Select to change the language
displayed.
UnitsSelect to change the units of
measure displayed.
(EV indicator)
OnSelect to enable/disable the EV
indicator. (
→P. 75)
Off
Drive information
(total [after reset])Average vehicle
speedSelect to change the display
between average speed/elapsed
time.
Elapsed time
Pop-up display
Incoming callsSelect to enable/disable the pop-
up display.Brightness adjust-
ment
Default settingSelect to reset the meter display
settings to the default setting.

1092. Instrument cluster
2
Instrument cluster
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.
Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestio n, use the meter control switches.
The suggestion function can be turned on/off.
(Customizable features: →P. 551)
■
Suggestion to turn off the headlights
If the headlights are left on for a certain amount of time after the
power switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion mess age will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.
If a front door is opened after the power switch is turned off, this sugges-
tion message will not be displayed.
Odometer/trip meter
Suggestion function

1102. Instrument cluster
■Suspension of the settings display
●Some settings cannot be changed while driving. When changing settings,
park the vehicle in a safe place.
● If a warning message is displayed, operation of the settings display will be
suspended.
■ Tire pressure (vehicles with a tire inflation pressure display function)
● It may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to dis-
play the tire inflation pressure after inflation pressure has been adjus\
ted.
● “---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.
● Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Customization
Some functions can be customized. ( →P. 105, 551)
