1312. Instrument cluster
2
Instrument cluster

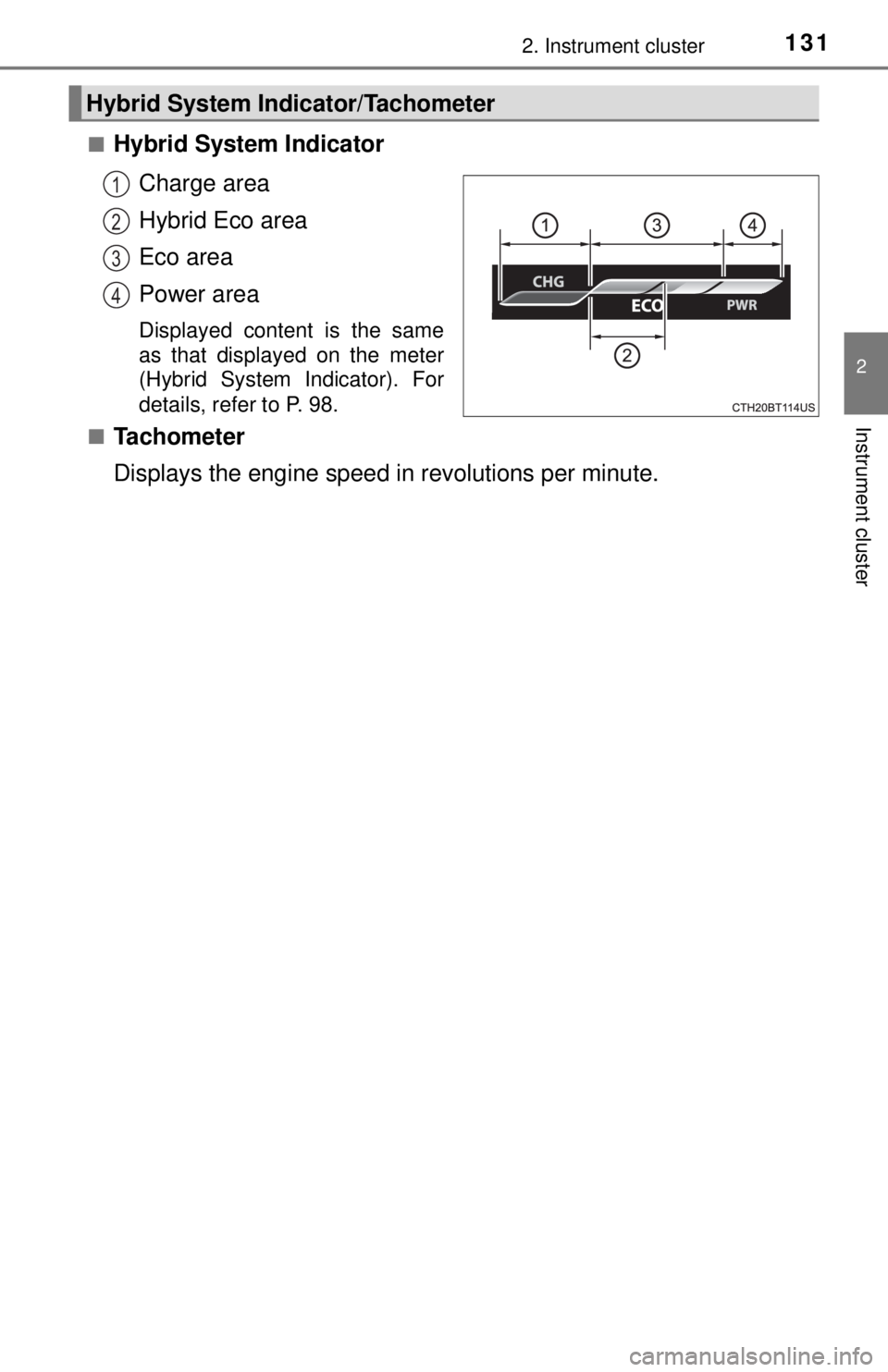

■Hybrid System IndicatorCharge area
Hybrid Eco area
Eco area
Power area
Displayed content is the same
as that displayed on the meter
(Hybrid System Indicator). For
details, refer to P. 98.
■
Tachometer
Displays the engine speed in revolutions per minute.
Hybrid System Indicator/Tachometer
1
2
3
4

1322. Instrument cluster
Displays the following items in the appropriate situation:
■Warning/Message
●Alert from the LDA (Lane Departure Alert with steering control)
● Dynamic radar cruise control with full-speed range
● message
Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. ( →P. 125)
● message
Displayed when a warning message is displayed on the multi-informa-
tion display. ( →P. 490)
● Outside temperature
Displayed in the following situations:
• When the power switch is turned to ON mode
• When the low outside temperature indicator is flashing
Displayed content is the same as that displayed on the multi-information
display. For details, refer to the explanation of the outside temperature
display on the multi-information display. ( →P. 96)
■
Hands-free system status
Displayed when the hands-free system is operated.
■
Audio system operation status
Displayed when the audio system is operated.
Information display area

1332. Instrument cluster
2
Instrument cluster
■Head-up display
The head-up display may seem dark or hard to see when viewed through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
■ Display brightness
The brightness of the head-up display can be adjusted on of the multi-
information display. Also, it is automatically adjusted according to the ambient
brightness.
■ Enabling/disabling of the head-up display
If the head-up display is disabled, it will remain disabled when the power
switch is turned off then back to ON mode.
■ Street name display (vehicles with a navigation system)
Only street names which are included in the map data will be displayed.
WARNING
■Before using the head-up display
● Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident,
resulting in death or serious injury.
● Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.\
■ Caution for changing settings of the head-up display
As the hybrid system needs to be running while changing the settings of the
head-up display, ensure that the vehicle is parked in a place with adequate
ventilation. In a closed area such as a garage, exhaust gases including
harmful carbon monoxide (CO) may collect and enter the vehicle. This may
lead to death or a serious health hazard.

1342. Instrument cluster
NOTICE
■To prevent damage to components
■ When changing the setting s of the head-up display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while the changing the settings of the head-up display.

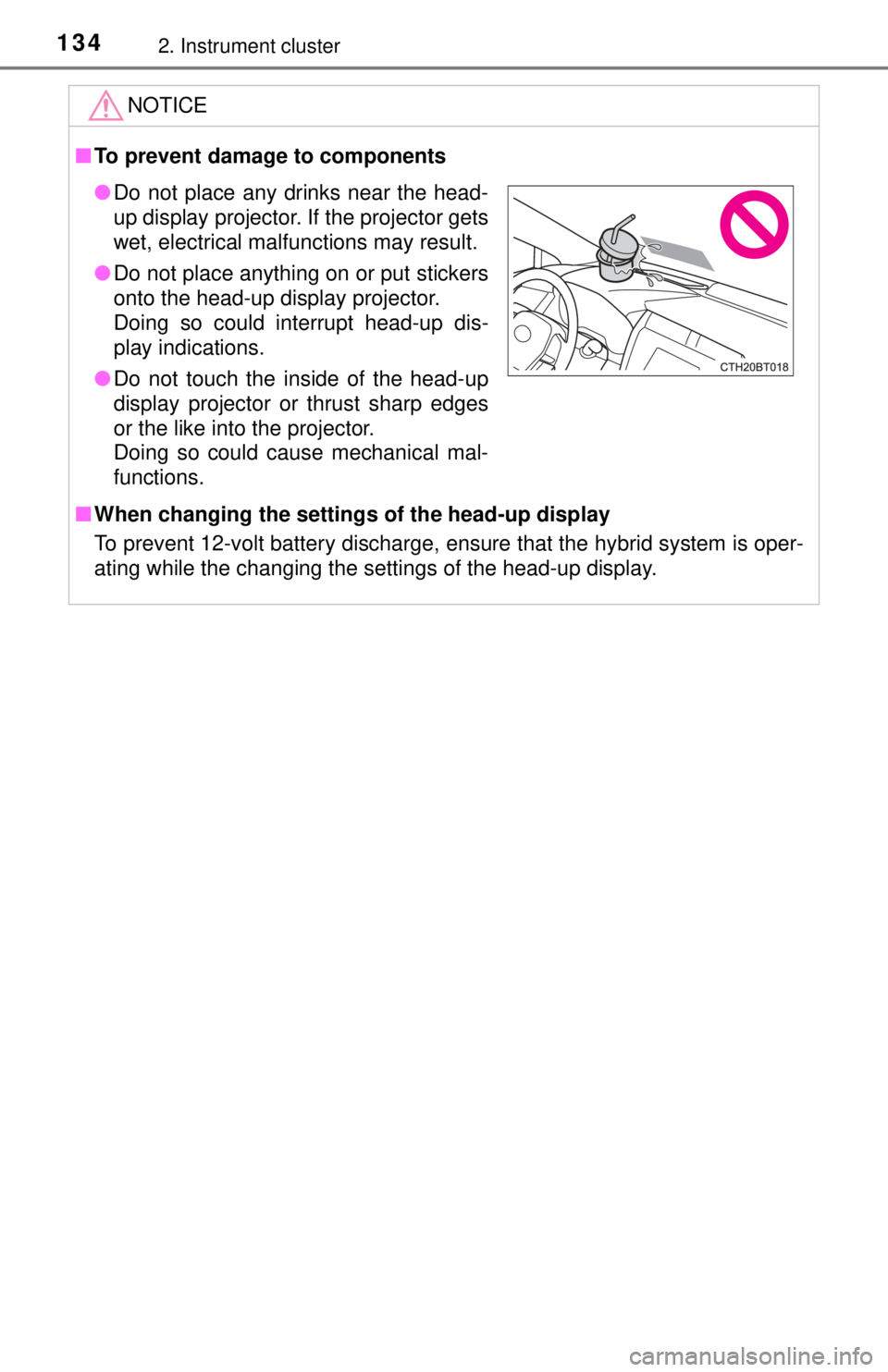

● Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.
● Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.
● Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

1352. Instrument cluster
2
Instrument cluster
Audio system screen
Multi-information display
Energy monitor/consumption screen

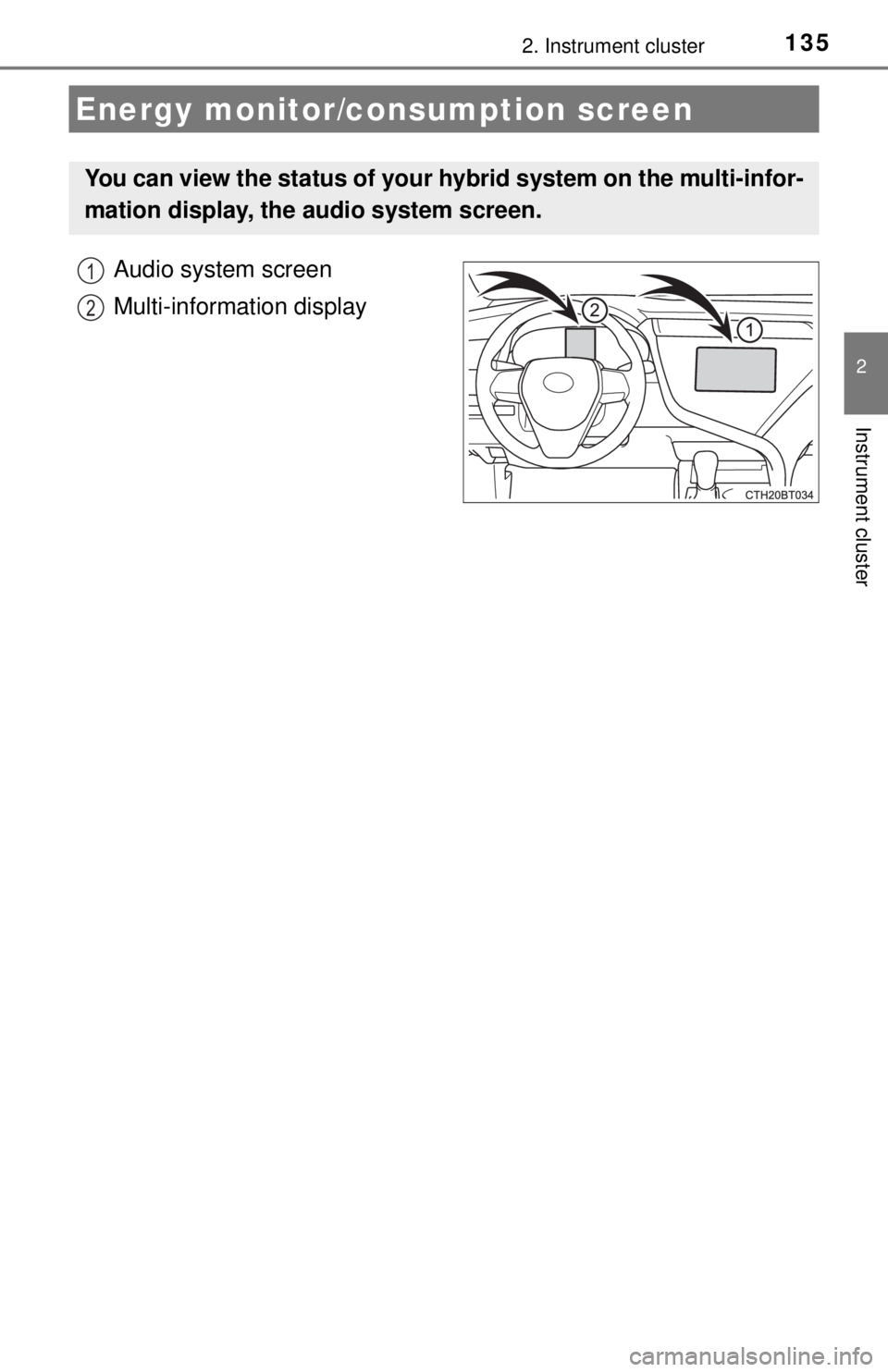

You can view the status of your hybrid system on the multi-infor-
mation display, the audio system screen.
1
2

1362. Instrument cluster
Entune Audio or Entune Audio Plus (vehicles without Data Commu-
nication Module)

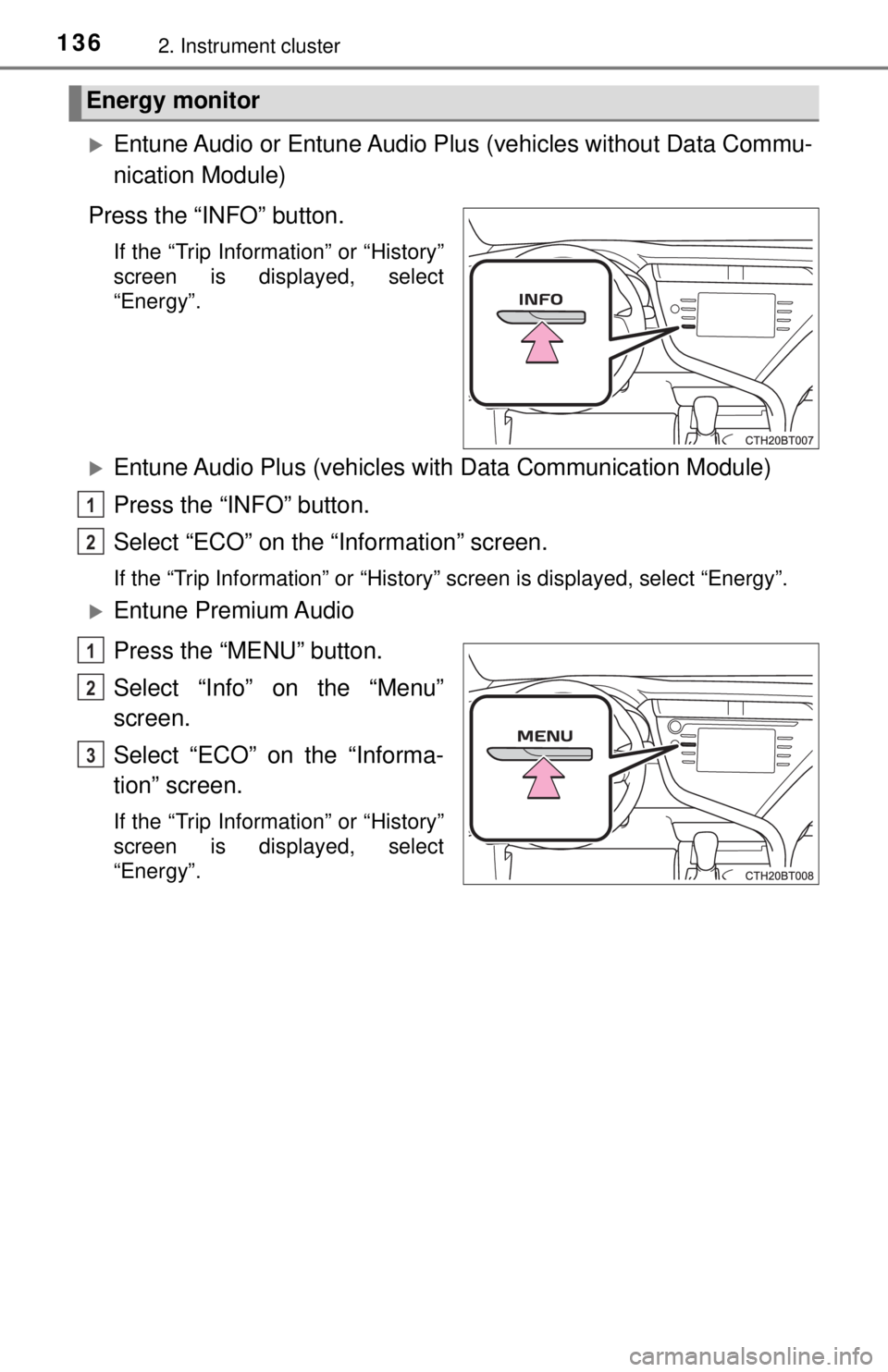

Press the “INFO” button.
If the “Trip Information” or “History”
screen is displayed, select
“Energy”.
Entune Audio Plus (vehicles with Data Communication Module)
Press the “INFO” button.
Select “ECO” on the “Information” screen.
If the “Trip Information” or “History” screen is displayed, select “Energy”.
Entune Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu”
screen.
Select “ECO” on the “Informa-
tion” screen.
If the “Trip Information” or “History”
screen is displayed, select
“Energy”.
Energy monitor
1
2
1
2
3

1372. Instrument cluster
2
Instrument cluster
■Multi-information display

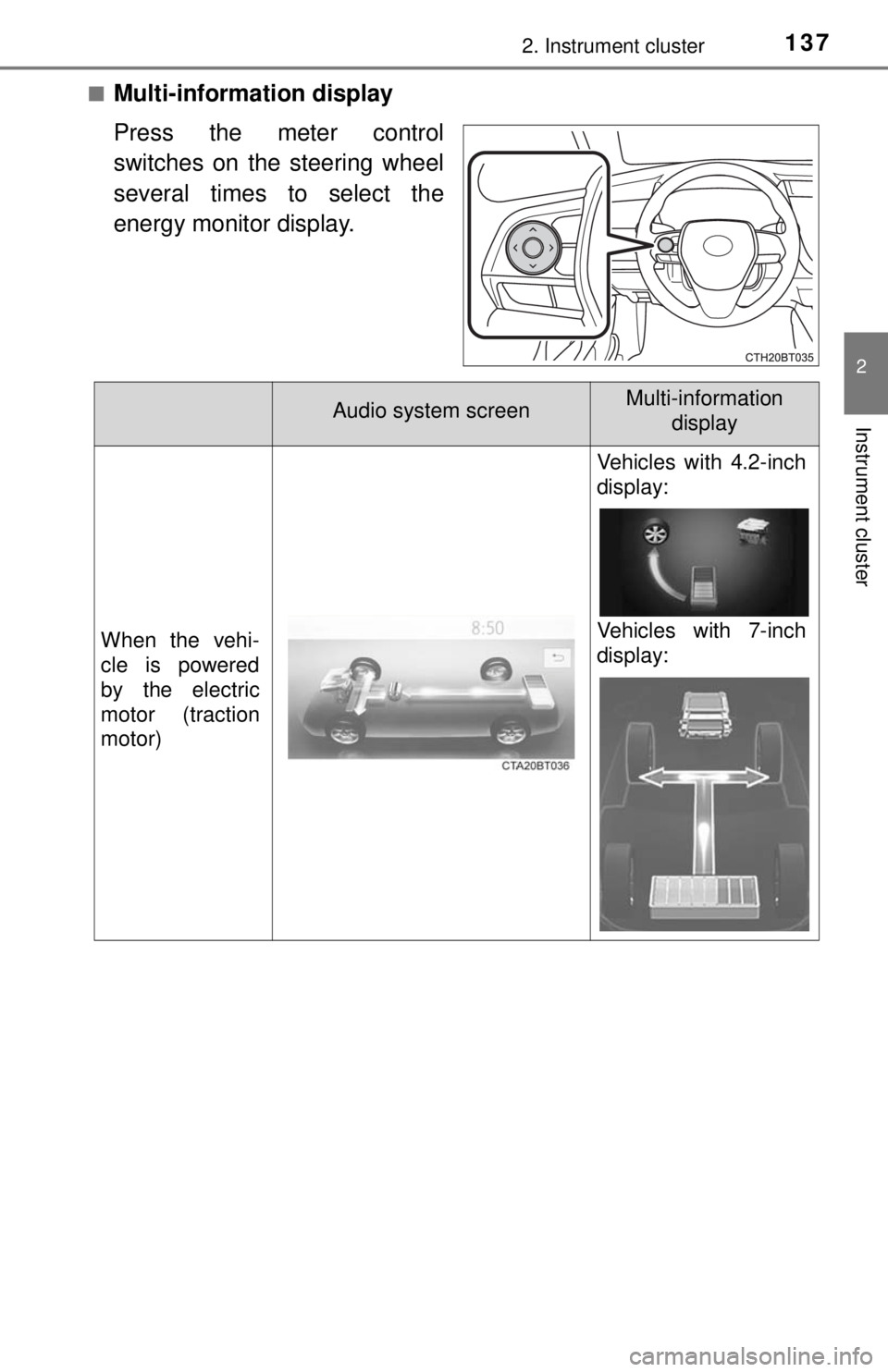

Press the meter control
switches on the steering wheel
several times to select the
energy monitor display.
Audio system screenMulti-information display
When the vehi-
cle is powered
by the electric
motor (traction
motor)
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:

1382. Instrument cluster
When the vehi-
cle is powered
by the gasoline
engine
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:

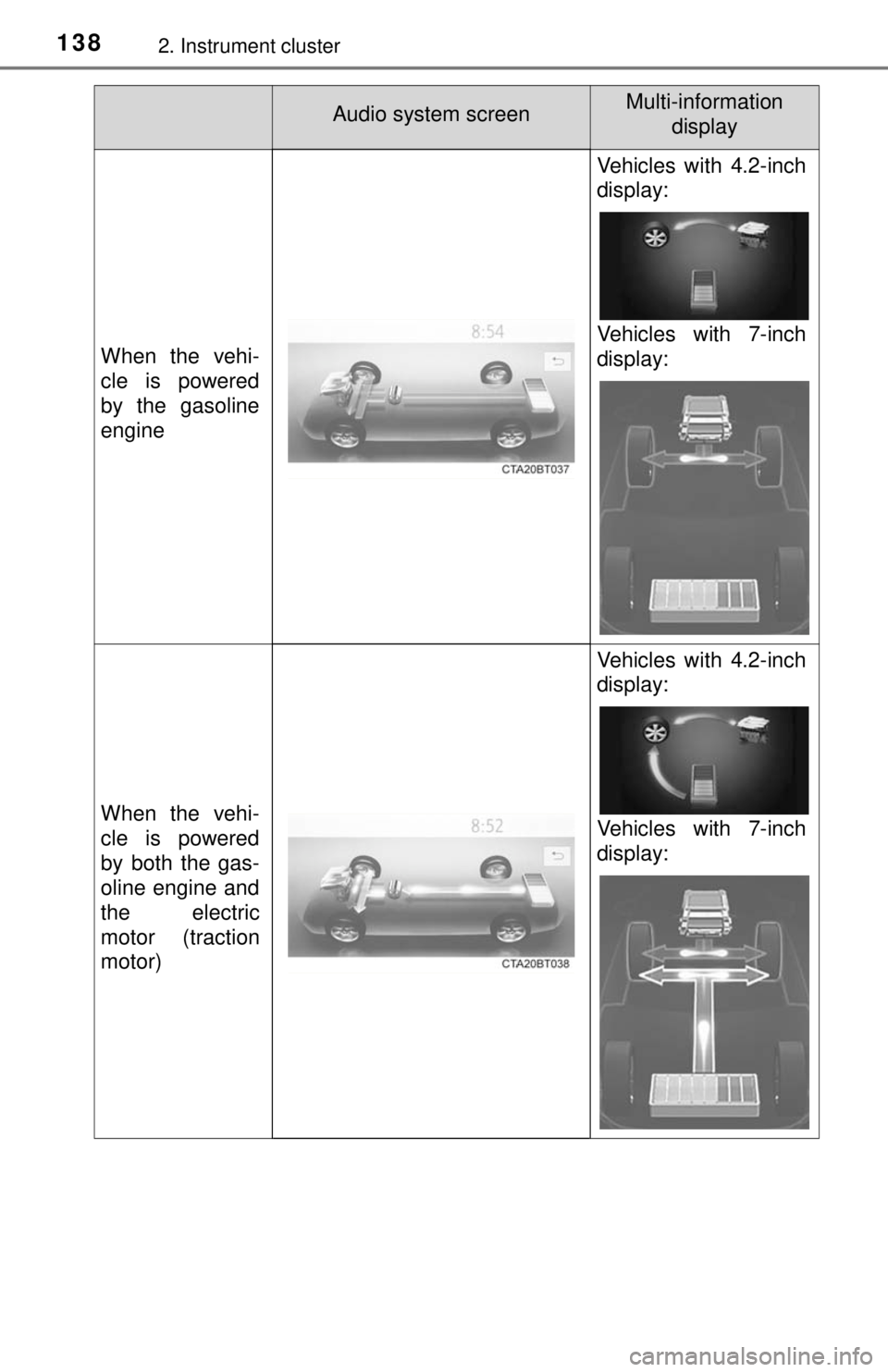

When the vehi-
cle is powered
by both the gas-
oline engine and
the electric
motor (traction
motor)
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Audio system screenMulti-information display

1392. Instrument cluster
2
Instrument cluster

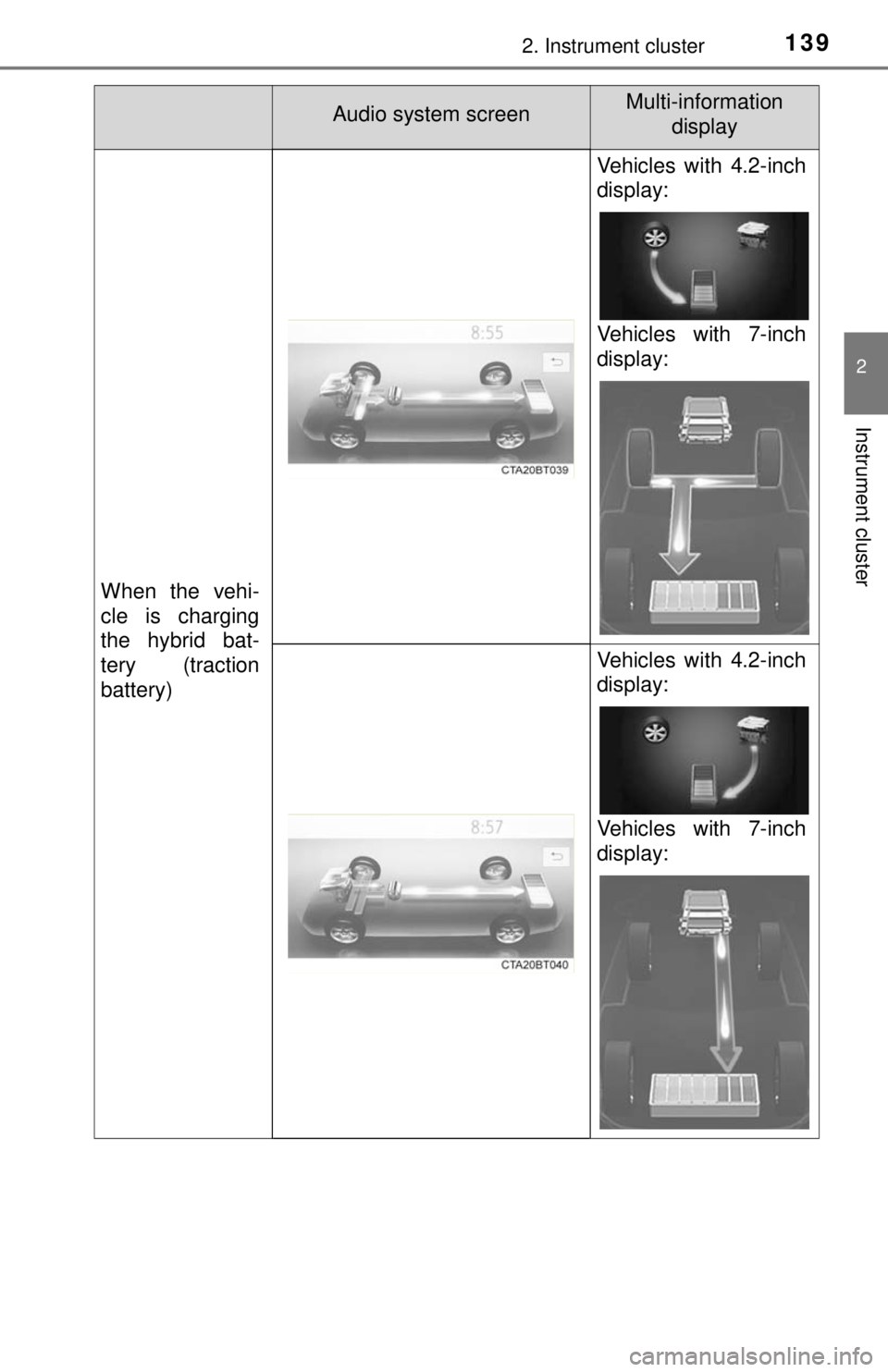

When the vehi-
cle is charging
the hybrid bat-
tery (traction
battery)
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Audio system screenMulti-information display

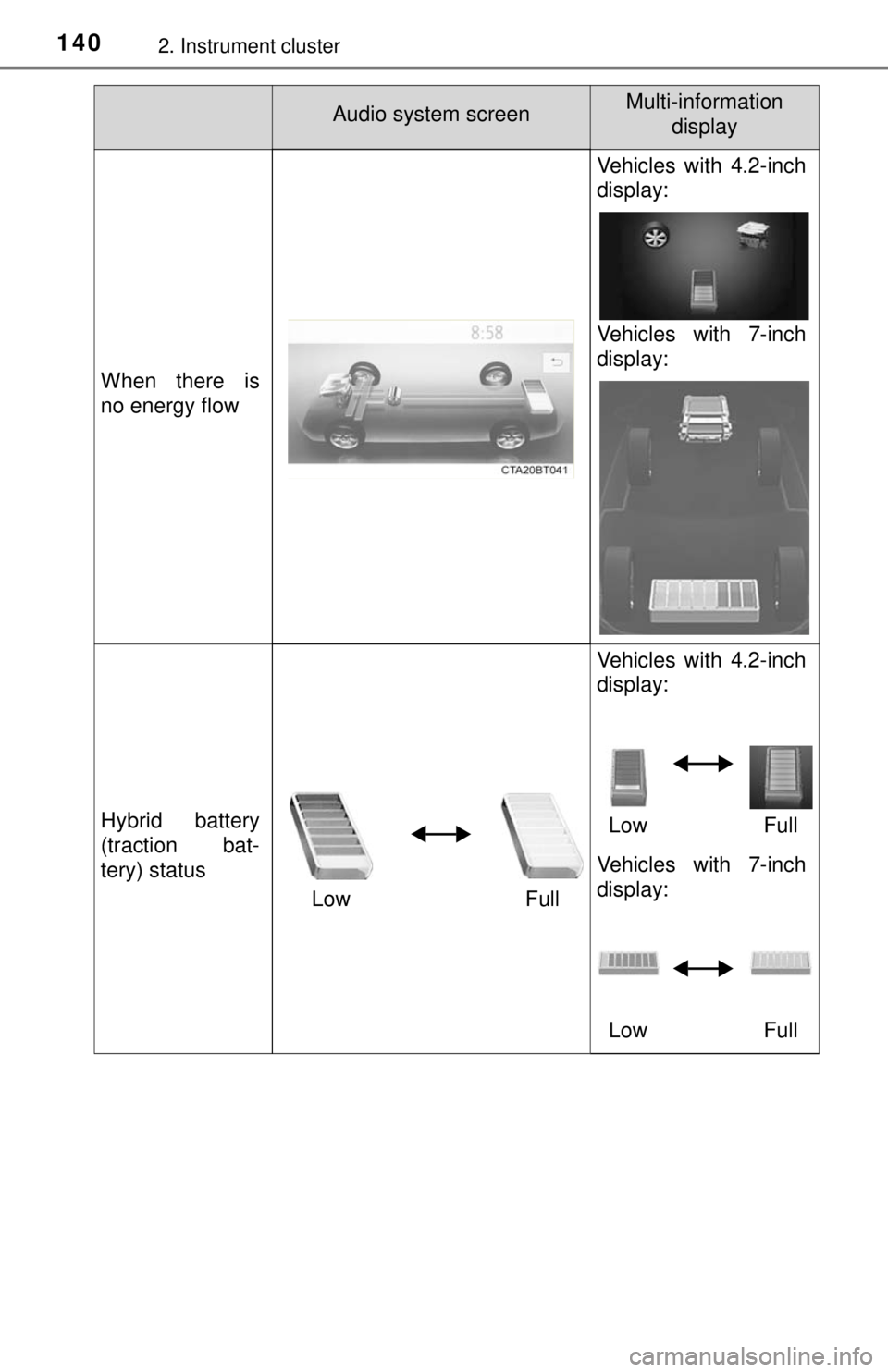

1402. Instrument cluster
When there is
no energy flow
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Hybrid battery
(traction bat-
tery) statusLow Full Vehicles with 4.2-inch
display:
Low Full
Vehicles with 7-inch
display:
Low Full
Audio system screenMulti-information display
