TOYOTA COROLLA 2000 Owners Manual

2000 Corolla(U)
11 7
DolbyB NR*
If you are listening to a tape that was
recorded with Dolby B Noise Reduction,
push the button marked with the double- D
symbol. The double- D symbol will appear
on the display. Push the button again to
turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
*: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. DOLBYº and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push FMº to switch the FM band. FM1º
or FM2º will appear on the display. This
system allows you to set twelve FM sta-
tions, two for each button.
If the audio system is off, you can turn
on the radio by pushing FMº. Also, push
FMº to switch from cassette or compact
disc operation to radio operation.PROG (Program)
Push PROGº to select the other side of
a cassette tape. The display indicates
which side is currently selected (
º indi-
cates top side,
º indicates bottom
side).
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.RAND (Random)
There are two random featuresÐyou can
either listen to the tracks on all the com-
pact discs in the magazine in random or-
der, or only listen to the tracks on a
specific compact disc in random order.
To randomly play the tracks on a disc:
Quickly push and release ºRANDº. ºRANDº
will appear on the display. The disc you
are listening to will play in random order.
If you hear a beep, you held the button
too long, and the player will play all the
tracks in the magazine in random order.
To turn off the random feature, push the
ºRANDº a second time.
Compact disc auto changer onlyÐ
To randomly play all the tracks in the
magazine:
Push and hold RANDº until you hear a
beep. D´RANDº will appear on the display
and the player will perform all the tracks
on all the discs in the magazine in ran-
dom order. To turn off the random feature,
push RANDº a second time.
ProCarManuals.com

2000 Corolla(U)
11 8
RPT (Repeat)
There are two repeat featuresÐyou can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release RPTº while the
track is playing. RPTº will appear on the
display. If you hear a beep, you held the
button too long, and the player will repeat
the whole disc. When the track ends, it
will automatically be replayed. This pro-
cess will be continued until you push the
button again to turn off the repeat feature.
Compact disc auto changer onlyÐ
Repeating a disc:
Push and hold RPTº until you hear a
beep. D´RPTº will appear on the display.
The player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the top track of the disc and replay.
This process will be continued until you
push the button again to turn off the re-
peat feature.SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold SCANº until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for a
few seconds, and then move to the next
preset station. To select a station, push
SCANº a second time.
To scan all the frequencies:
Quickly push and release SCANº. If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for a few
seconds, and then scan again. To select
a station, push SCANº a second time.Compact disc player
There are two scan featuresÐyou can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning for the tracks on a disc:
Quickly push and release SCANº. SCANº
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first tracks of all the discs
in the magazine. To select a track, push
the SCANº a second time. If the player
scanned all the tracks on the disc, it will
stop scanning.
Compact disc auto changer onlyÐ
Scanning for the first tracks of all the
discs in the magazine:
Push and hold SCANº until you hear a
beep. D´SCANº will appear on the display
and the player will perform the first track
of the next disc. To select a disc, push
the SCANº a second time. If the player
has scanned all the discs, it will stop
scanning.
ProCarManuals.com

2000 Corolla(U)
11 9
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. STº appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push TAPEº to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing TAPEº.
In both cases, a cassette must already be
loaded in the player.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.TUNE
Tuning
Your Toyota has an electronic tuning radio
(ETR). Push and release the
º (up) or
º (down) side of TUNEº to step up or
down the station band. (If you hear a
beep, you held the button too long and
the radio will go into the seek mode.)
Seeking
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, push and hold the
º
or º side of TUNEº until you hear a
beep. Do this again to find another sta-
tion.
VOL/PWR (Volume/Power)
Push VOL/PWRº to turn the audio system
on and off. Turn VOL/PWRº to adjust the
volume.
ProCarManuals.com

2000 Corolla(U)
120

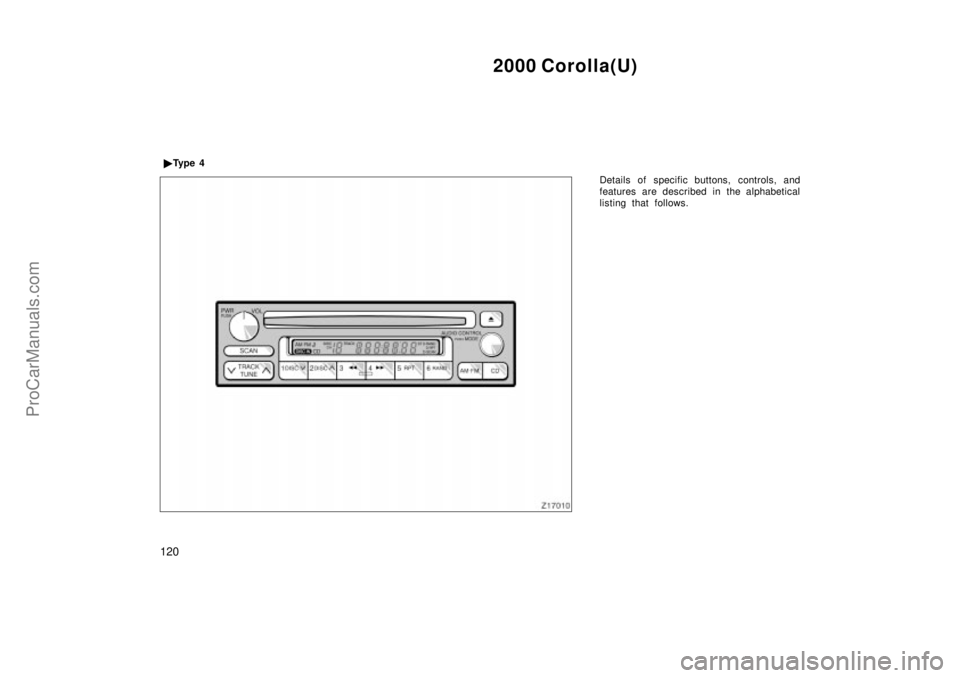

Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
Ty p e 4
ProCarManuals.com

2000 Corolla(U)
121
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNEº button).
Push and hold down the button until you
hear a beepÐthis will set the station to
the button. The button number will appear
on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AMº, FM1º or FM2º when you
push AM´FMº).
(Eject button)
Push this button to eject a compact disc.
After you turn the ignition to LOCKº, you
will be able to eject a disc but you will
not be able to reinsert it.
(Reverse/Fast forward buttons)
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.
AM´FM
Push AM´FMº to switch between the AM
and FM bands. AMº, FM1º or FM2º will
appear on the display. These systems al-
low you to set twelve FM stations, two for
each button.
If the audio system is off, you can turn
on the radio by pushing AM´FMº. Also,
push AM´FMº to switch from compact
disc operation to radio operation.
AUDIO CONTROL / MODE
Manual tone adjustment functionÐ
This knob is used to adjust the tone
manually.
For low- pitch tone adjustment, push
AUDIO CONTROL / MODEº repeatedly
until BASº appears on the display. Then
turn the knob to suit your preference.
The display will show the range from
BAS -5º to BAS 5º.For high- pitch tone adjustment, push
AUDIO CONTROL / MODEº repeatedly
until TREº appears on the display. Then
turn the knob to suit your preference.
The display will show the range from
TRE -5º to TRE 5º.
Sound balance adjustment functionÐ
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.
For front/rear adjustment, push AUDIO
CONTROL / MODEº repeatedly until FAdº
appears on the display. Then turn the
knob to adjust the front/rear balance.
The display will show the range from FAd
F7º to FAd R7º.
For left/right adjustment, push AUDIO
CONTROL / MODEº repeatedly until BALº
appears on the display. Then turn the
knob to adjust the left/right balance.
The display will show the range from BAL
L7º to BAL R7º.
ProCarManuals.com

2000 Corolla(U)
122
CD (Compact Disc)
Push CDº to switch from radio operation
to compact disc operation. If the audio
system is off, you can turn on the com-
pact disc player by pushing CDº. In both
cases, a disc must already be loaded in
the player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push CDº, the
system changes between built- in single
disc player and automatic changer.
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
If WAITº appears on the display, it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If Err 1º appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up- side down. Clean the
disc or insert it correctly.If Err 2º appears on the display, it
indicates no disc is loaded inside the
magazine, insert a disc.
If Err 3º or Err 4º on the display, it
indicates there is a trouble inside the sys-
tem. Eject the disc or magazine. Set the
disc or magazine again.
If OPEnº appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
DISC

Compact disc auto changer onlyÐ
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
PWR/VOL (Power/Volume)
Push PWR/VOLº to turn the audio system
on and off. Turn PWR/VOLº to adjust the
volume.RAND (Random)
There are two random featuresÐyou can
either listen to the tracks on all the com-
pact discs in the magazine in random or-
der, or only listen to the tracks on a
specific compact disc in random order.
To randomly play the tracks on a disc:
Quickly push and release ºRANDº. ºRANDº
will appear on the display. The disc you
are listening to will play in random order.
If you hear a beep, you held the button
too long, and the player will play all the
tracks in the magazine in random order.
To turn off the random feature, push the
ºRANDº a second time.
Compact disc auto changer onlyÐ
To randomly play all the tracks in the
magazine:
Push and hold RANDº until you hear a
beep. D´RANDº will appear on the display
and the player will perform all the tracks
on all the discs in the magazine in ran-
dom order. To turn off the random feature,
push RANDº a second time.
ProCarManuals.com

2000 Corolla(U)
123
RPT (Repeat)
There are two repeat featuresÐyou can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release RPTº while the
track is playing. RPTº will appear on the
display. If you hear a beep, you held the
button too long, and the player will repeat
the whole disc. When the track ends, it
will automatically be replayed. This pro-
cess will be continued until you push the
button again to turn off the repeat feature.
Compact disc auto changer onlyÐ
Repeating a disc:
Push and hold RPTº until you hear a
beep. D´RPTº will appear on the display.
The player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the top track of the disc and replay.
This process will be continued until you
push the button again to turn off the re-
peat feature.SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold SCANº until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for a
few seconds, and then move to the next
preset station. To select a station, push
SCANº a second time.
To scan all the frequencies:
Quickly push and release SCANº. If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for a few
seconds, and then scan again. To select
a station, push SCANº a second time.Compact disc player
There are two scan featuresÐyou can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning for the tracks on a disc:
Quickly push and release SCANº. SCANº
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first tracks of all the discs
in the magazine. To select a track, push
the SCANº a second time. If the player
scanned all the tracks on the disc, it will
stop scanning.
Compact disc auto changer onlyÐ
Scanning for the first tracks of all the
discs in the magazine:
Push and hold SCANº until you hear a
beep. D´SCANº will appear on the display
and the player will perform the first track
of the next disc. To select a disc, push
the SCANº a second time. If the player
has scanned all the discs, it will stop
scanning.
ProCarManuals.com

2000 Corolla(U)
124
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. STº appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.TUNE (Tuning)
Tuning
Your Toyota has an electronic tuning radio
(ETR). Push and release the
º (up) or
º (down) side of TUNEº to step up or
down the station band. (If you hear a
beep, you held the button too long and
the radio will go into the seek mode.)
Seeking
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, push and hold the
º
or º side of TUNEº until you hear a
beep. Do this again to find another sta-
tion.NOTICE
To ensure the correct audio system
operation:

Be careful not to spill beverages
over the audio system.

Do not put anything other than a
cassette tape or Compact Disc into
the slot.

The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio sys-
tem which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radioÐit is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.
Car audio system operating
hints
ProCarManuals.com

2000 Corolla(U)
125
Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stationsÐGenerally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi- pathÐFM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and flutteringÐThese occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swappingÐIf the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.AM
FadingÐAM broadcasts are reflected by
the upper atmosphereÐespecially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interferenceÐWhen a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
StaticÐAM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)Use high- quality cassettes.
Low- quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto- reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
ProCarManuals.com

2000 Corolla(U)
126
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS

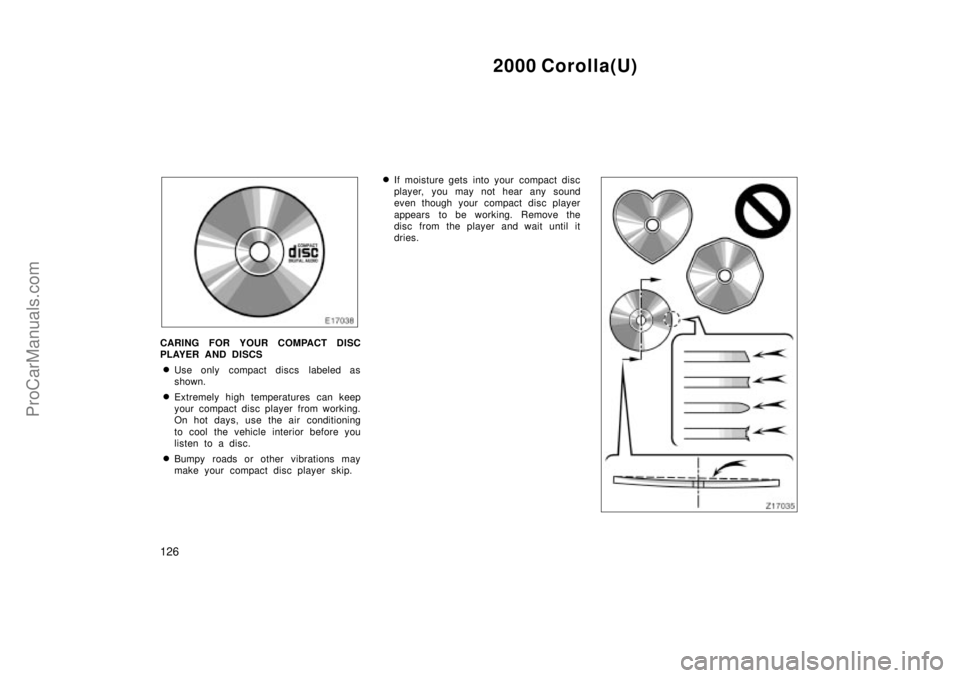

Use only compact discs labeled as
shown.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
ProCarManuals.com
