TOYOTA COROLLA 2000 Owners Manual

2000 Corolla(U)
107
TONE AND BALANCE
For details about your system's tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with different mixes
of treble and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
To lower a manual antenna, carefully push
it down.
NOTICE
To prevent damage to the antenna,
make sure it is retracted before driv-
ing your Toyota through an automatic
car wash.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should be to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a compact
disc into the slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diameter- smaller than standard
discs.
After you eject a compact disc single, do
not insert a standard 12 cm (5 in.) disc
until DISCº disappears from the display.
ProCarManuals.com

2000 Corolla(U)
108
NOTICE
Do not use an adaptor for compact
disc singlesÐit could cause tracking
errors or interfere with the ejection of
compact discs.
ProCarManuals.com

2000 Corolla(U)
109
Details of specific buttons, controls and
features are described in the alphabetical
listing that follows.
ÐControls and features

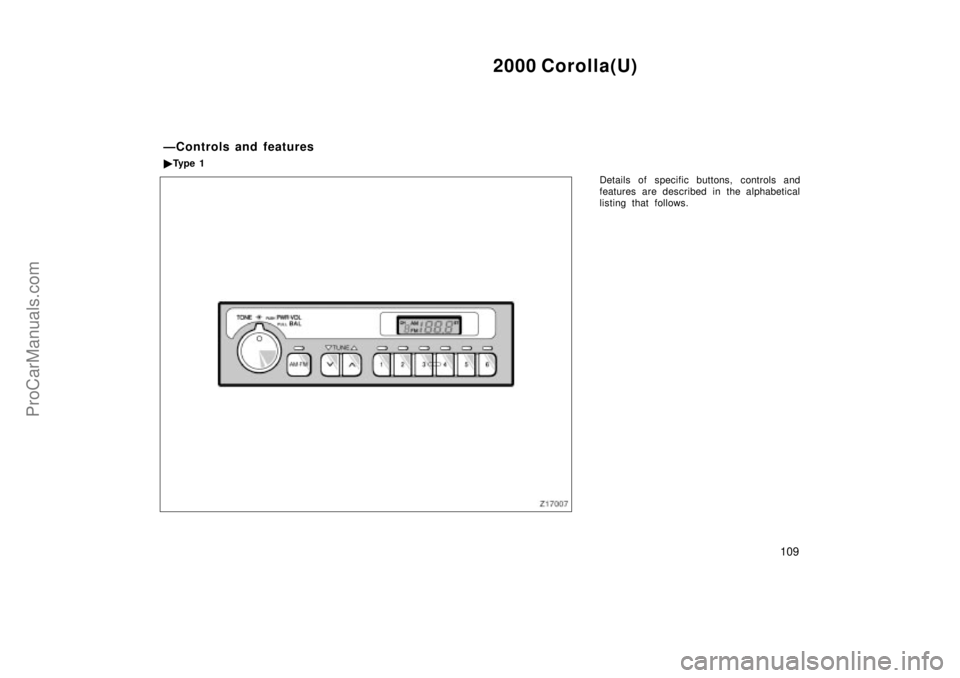

Ty p e 1
ProCarManuals.com

2000 Corolla(U)
11 0
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNEº button).
Push and hold down the button until you
hear a beepÐthis will set the station to
the button. The button number will appear
on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and one
FM station for each button. The preset
station memory will be canceled out if the
power source is interrupted (battery dis-
connected or fuse blown).
AM´FM
Push AM´FMº to switch between the AM
and FM bands. AMº or FMº will appear
on the display.
If the audio system is off, you can turn
on the radio by pushing AM´FMº.BAL (Balance)
Turn the BALº knob with pulling to adjust
the balance between the right and left
speakers.
PWR´VOL (Power´Volume)
Push PWR´VOLº to turn the audio system
on and off. Turn PWR´VOLº to adjust the
volume.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. STº appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TONE
Move the TONEº ring around BALº to
adjust the tone.TUNE
Tuning
Your Toyota has an electronic tuning radio
(ETR). Push and release the
º (up) or
º (down) side of TUNEº to step up or
down the station band. (If you hear a
beep, you held the button too long and
the radio will go into the seek mode.)
Seeking
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, push and hold the
º
or º side of TUNEº until you hear a
beep. Do this again to find another sta-
tion.
ProCarManuals.com

2000 Corolla(U)
111
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
Ty p e 2
ProCarManuals.com

2000 Corolla(U)
11 2
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNEº button).
Push and hold down the button until you
hear a beepÐthis will set the station to
the button. The button number will appear
on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and one
FM station for each button. The preset
station memory will be canceled out if the
power source is interrupted (battery dis-
connected or fuse blown).
(Eject button)
Push this button to eject a cassette.
AM´FM
Push AM´FMº to switch between the AM
and FM bands. AMº or FMº will appear
on the display.
If the audio system is off, you can turn
on the radio by pushing AM´FMº. Also,
push AM´FMº to switch from cassette op-
eration to radio operation.BAL (Balance)
Move the BALº ring around TONEº to
adjust the balance between the right and
left speakers
FF (Fast forward)
Push the FFº to fast forward a cassette
tape.
To stop the tape while it is fast forward-
ing, lightly push the REWº.
If a tape fast forwards completely, the
cassette player will play the other side of
the tape, using the auto- reverse feature.
PROG (Program)
Push PROGº to select the other side of
a cassette tape.
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
REW (Rewind)
Push the REWº to rewind to a tape.
To stop the tape while it is rewinding,
lightly push the FFº.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side.ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. STº appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push TAPEº to switch from radio opera-
tion to cassette operation. If the audio
system is off, you can turn on the cas-
sette player by pushing TAPEº. In both
cases, a cassette must already be loaded
in the player.
TONE
Turn the TONEº knob to adjust the tone.
ProCarManuals.com

2000 Corolla(U)
11 3
TUNE
Tuning
Your Toyota has an electronic tuning radio
(ETR). Push and release the
º (up) or
º (down) side of TUNEº to step up or
down the station band. (If you hear a
beep, you held the button too long and
the radio will go into the seek mode.)
Seeking
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, push and hold the
º
or º side of TUNEº until you hear a
beep. Do this again to find another sta-
tion.
VOL/PWR (Volume/Power)
Push VOL/PWRº to turn the audio system
on and off. Turn VOL/PWRº to adjust the
volume.
ProCarManuals.com

2000 Corolla(U)
11 4
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.

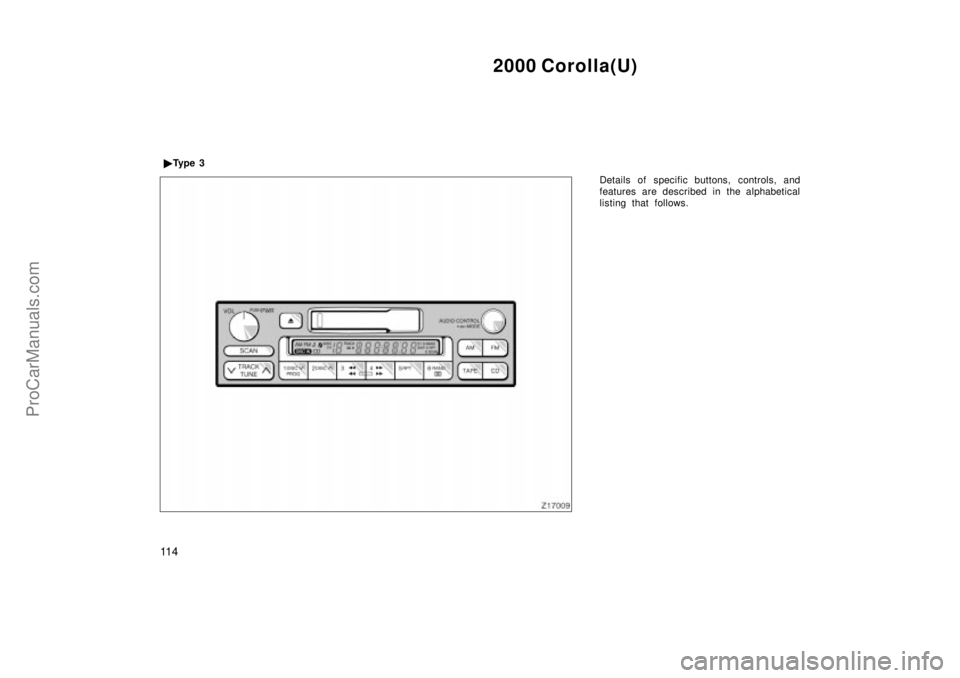

Ty p e 3
ProCarManuals.com

2000 Corolla(U)
11 5
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNEº button).
Push and hold down the button until you
hear a beepÐthis will set the station to
the button. The button number will appear
on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AMº, FM1º or FM2º when you
push AMº or FMº).
(Eject button)
Push this button to eject a cassette.
After you turn the ignition to LOCKº, you
will be able to eject a cassette but you
will not be able to reinsert it.
(Reverse/Fast forward buttons)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. FFº will appear on
the display. Push the reverse button to
rewind a tape. REWº will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPEº; to stop the tape while it is re-
winding, push the reverse button or
TAPEº.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto- re-
verse feature.
Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.AM
Push AMº to switch the AM band. AMº
will appear on the display.
If the audio system is off, you can turn
on the radio by pushing AMº. Also, push
AMº to switch from cassette or compact
disc operation to radio operation.
AUDIO CONTROL / MODE
Manual tone adjustment functionÐ
This knob is used to adjust the tone
manually.
For low- pitch tone adjustment, push
AUDIO CONTROL / MODEº repeatedly
until BASº appears on the display. Then
turn the knob to suit your preference.
The display will show the range from
BAS -5º to BAS 5º.
For high- pitch tone adjustment, push
AUDIO CONTROL / MODEº repeatedly
until TREº appears on the display. Then
turn the knob to suit your preference.
The display will show the range from
TRE -5º to TRE 5º.
ProCarManuals.com

2000 Corolla(U)
11 6
Sound balance adjustment functionÐ
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.
For front/rear adjustment, push AUDIO
CONTROL / MODEº repeatedly until FAdº
appears on the display. Then turn the
knob to adjust the front/rear balance.
The display will show the range from FAd
F7º to FAd R7º.
For left/right adjustment, push AUDIO
CONTROL / MODEº repeatedly until BALº
appears on the display. Then turn the
knob to adjust the left/right balance.
The display will show the range from BAL
L7º to BAL R7º.CD (Compact Disc)
Push CDº to switch from radio or cas-
sette operation to compact disc operation.
If the audio system is off, you can turn
on the compact disc player by pushing
CDº. In both cases, a disc must already
be loaded in the player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push CDº, the
system changes between single disc play-
er and automatic changer.
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
If WAITº appears on the display, it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If Err 1º appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up- side down. Clean the
disc or insert it correctly.If Err 2º appears on the display, it
indicates no disc is loaded inside the
magazine, insert a disc.
If Err 3º or Err 4º on the display, it
indicates there is a trouble inside the sys-
tem. Eject the disc or magazine. Set the
disc or magazine again.
If OPEnº appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
DISC

Compact disc auto changer onlyÐ
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
ProCarManuals.com
