TOYOTA COROLLA 2000 Owners Manual

2000 Corolla(U)
127
Your compact disc player cannot play
special shaped or low- quality compact
discs such as those shown here. Do
not use them as the player could be
damaged.
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening
to them. Store them in their plastic
cases away from moisture, heat, and
direct sunlight.
To clean a compact disc: Wipe it with a
soft, lint- free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint- free cloth. Do not use a conventional
record cleaner or anti- static device.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.
ProCarManuals.com

2000 Corolla(U)
128
ProCarManuals.com

2000 Corolla(U)
129
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Controls130 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air flow selector settings133 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips133 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side vents135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1- 8
ProCarManuals.com

2000 Corolla(U)
130
Controls
1. Temperature Selector
2. Air Intake Selector
3. Air Flow Selector
4. A/Cº Button
5. Fan Speed Selector
ProCarManuals.com

2000 Corolla(U)
131
Fan speed selector
Turn the knob to adjust the fan speedÐto
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperatureÐ
to the right to warm, to the left to cool.
Air flow selector
Turn the knob to select the vents used for
air flow.
1. PanelÐAir flows mainly from the
instrument panel vents.
2. Bi- levelÐAir flows from both the floor
vents and the instrument panel vents.
3. FloorÐAir flows mainly from the floor
vents.
4. Floor/WindshieldÐAir flows mainly
from the floor vents and windshield
vents.
Use with the air intake selector posi-
tioned in Fresh.5. WindshieldÐAir flows mainly from the
windshield vents.
Use with the air intake selector posi-
tioned in Fresh.
For details about air flow selector settings,
see the illustration after A/Cº button.
Turning the air flow control knob to wind-
shield or floor/windshield position turns on
the defroster- linked air conditioning. At
this time, the A/Cº button indicator comes
on regardless of whether or not the A/Cº
button is pressed in. This is to clean up
the front view more quickly.
When the A/Cº button is not pressed in,
turning the air flow control knob to anoth-
er position turns off the air conditioning.
ProCarManuals.com

2000 Corolla(U)
132
Air intake selector
Move the lever to select the air source.
1. RecirculateÐRecirculates the air inside
the vehicle.
2. FreshÐDraws outside air into the sys-
tem.A/Cº button
To turn on the air conditioning, press the
A/Cº button. The A/Cº button indicator
will come on. To turn the air conditioning
off, press the button again.
If the A/Cº button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.
ProCarManuals.com

2000 Corolla(U)
133

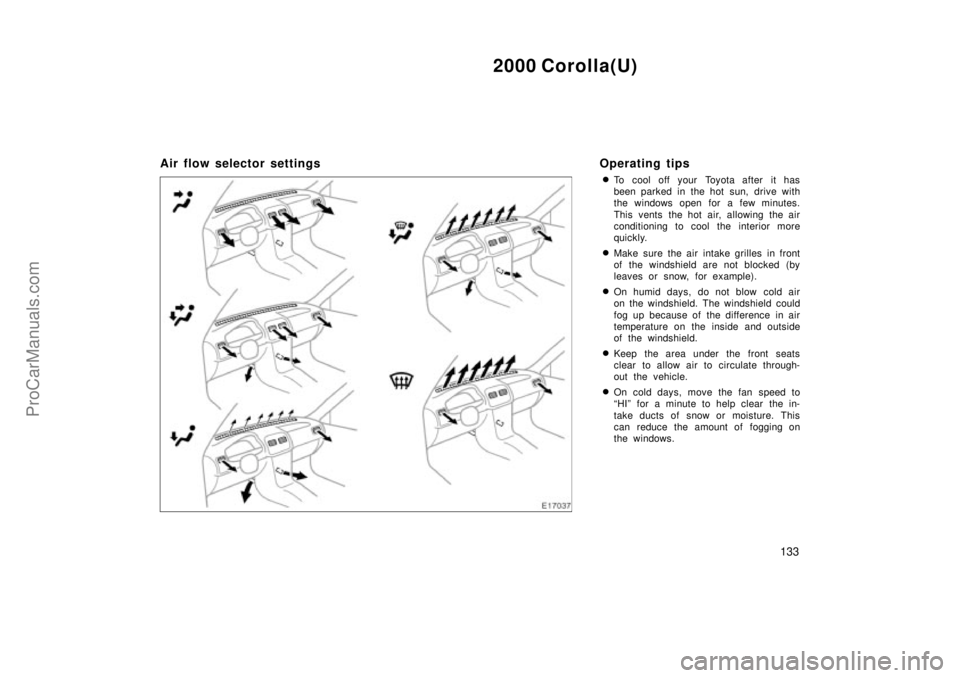

Air flow selector settings Operating tips

To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.

Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).

On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.

Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.

On cold days, move the fan speed to
HIº for a minute to help clear the in-
take ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
ProCarManuals.com

2000 Corolla(U)
134

When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except OFFº.

If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speedÐAny setting except OFFº
TemperatureÐTowards red zone
Air intakeÐFRESH (outside air)
Air flowÐFLOOR
Air conditioningÐOFF

For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.

Press the A/Cº button on for dehumidi-
fied heating.

Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.Air conditioning
For best results, set controls to:
Fan speedÐAny setting except OFFº
TemperatureÐTowards blue zone
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐON

For quick cooling, move the air intake
selector to recirculate for a few min-
utes.
Ventilation
For best results, set controls to:
Fan speedÐAny setting except OFFº
TemperatureÐTowards blue zone
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐOFF
ProCarManuals.com

2000 Corolla(U)
135
Defogging
The inside of the windshield
For best results, set controls to:
Fan speedÐAny setting except OFFº
TemperatureÐTowards red zone to heat;
blue zone to cool
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Turning the air flow control knob to wind-
shield position turns on the defroster-
linked air conditioning. At this time, the
A/Cº button indicator comes on regard-
less of whether or not the A/Cº button is
pressed in. This is to clean up the front
view more quickly.
When the A/Cº button is not pressed in,
turning the air flow control knob to a posi-
tion other than windshield or floor/wind-
shield turns off the air conditioning.

On humid days, do not blow cold air
on the windshieldÐthe difference be-
tween the outside and inside tempera-
tures could make the fogging worse.Defrosting
The outside of the windshield
For best results, set controls to:
Fan speedÐAny setting except OFFº
TemperatureÐTowards red zone
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Turning the air flow control knob to wind-
shield position turns on the defroster-
linked air conditioning. At this time, the
A/Cº button indicator comes on regard-
less of whether or not the A/Cº button is
pressed in. This is to clean up the front
view more quickly.
When the A/Cº button is not pressed in,
turning the air flow control knob to a posi-
tion other than windshield or floor/wind-
shield turns off the air conditioning.

To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

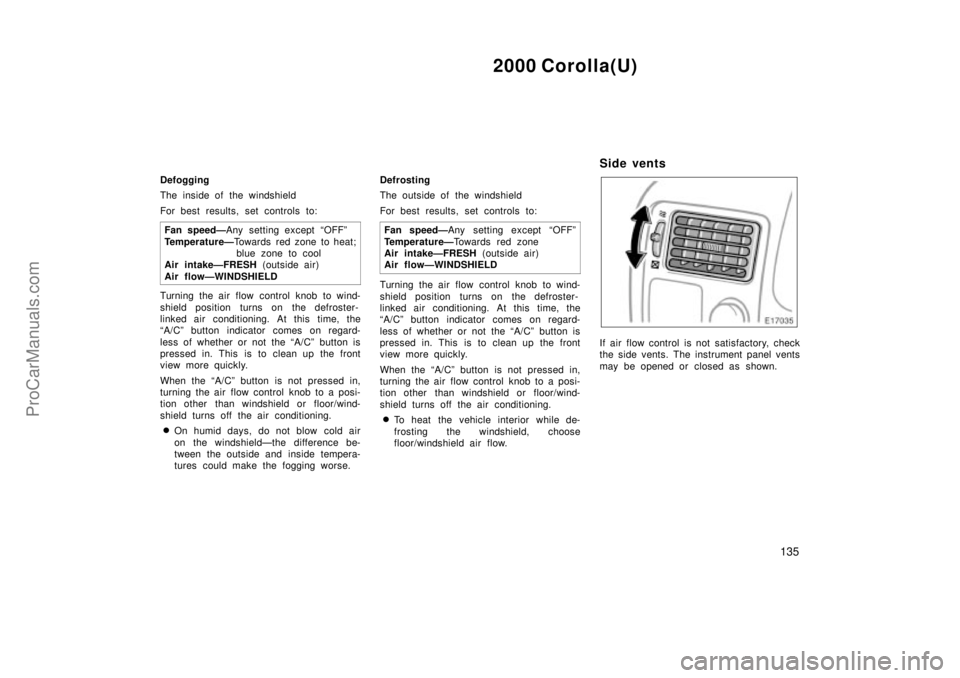

Side vents
If air flow control is not satisfactory, check
the side vents. The instrument panel vents
may be opened or closed as shown.
