TOYOTA COROLLA 2000 Owners Manual

2000 Corolla(U)
137
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock138 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray138 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box139 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes139 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders140 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat140 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1- 9
ProCarManuals.com

2000 Corolla(U)
138

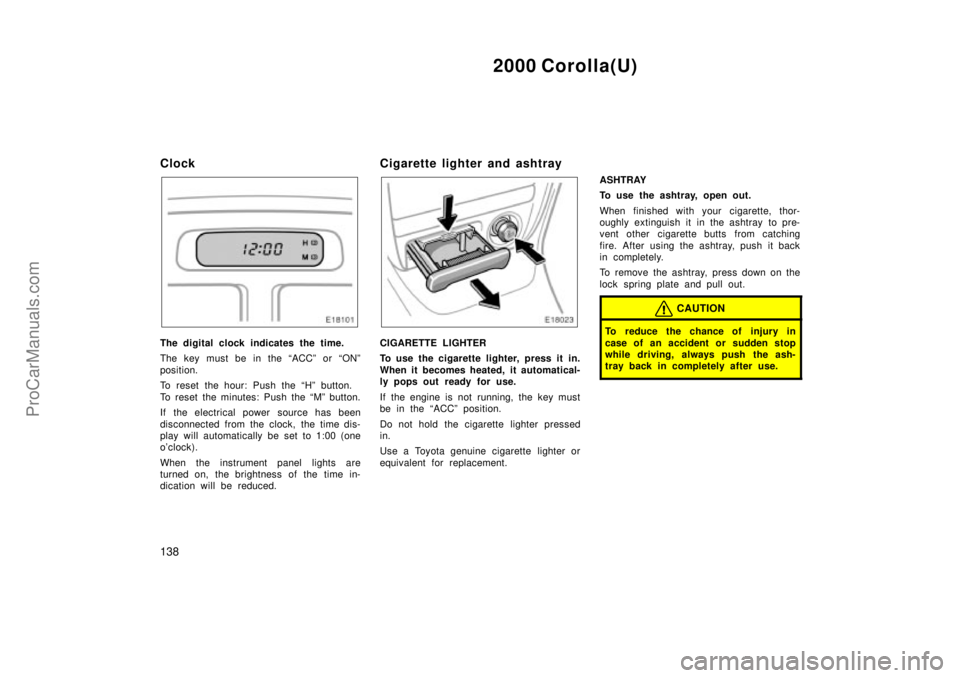

Clock
The digital clock indicates the time.
The key must be in the ACCº or ONº
position.
To reset the hour: Push the Hº button.
To reset the minutes: Push the Mº button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o'clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
Cigarette lighter and ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
When it becomes heated, it automatical-
ly pops out ready for use.
If the engine is not running, the key must
be in the ACCº position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.ASHTRAY
To use the ashtray, open out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always push the ash-
tray back in completely after use.
ProCarManuals.com

2000 Corolla(U)
139

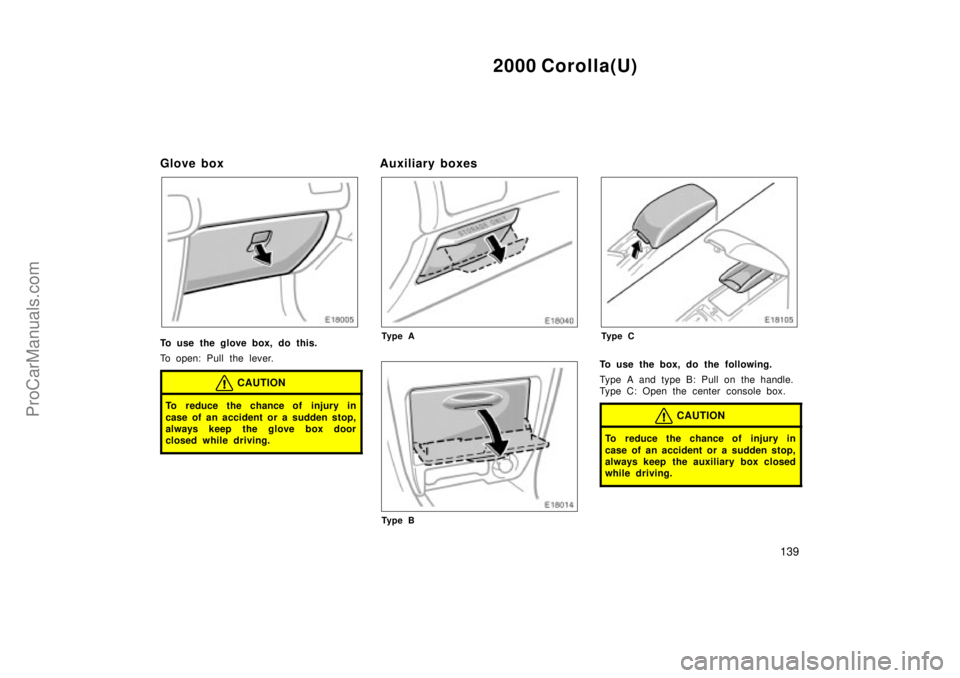

Glove box
To use the glove box, do this.
To open: Pull the lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Auxiliary boxes
Ty p e A
Ty p e B
Ty p e C
To use the box, do the following.
Type A and type B: Pull on the handle.
Type C: Open the center console box.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
ProCarManuals.com

2000 Corolla(U)
140

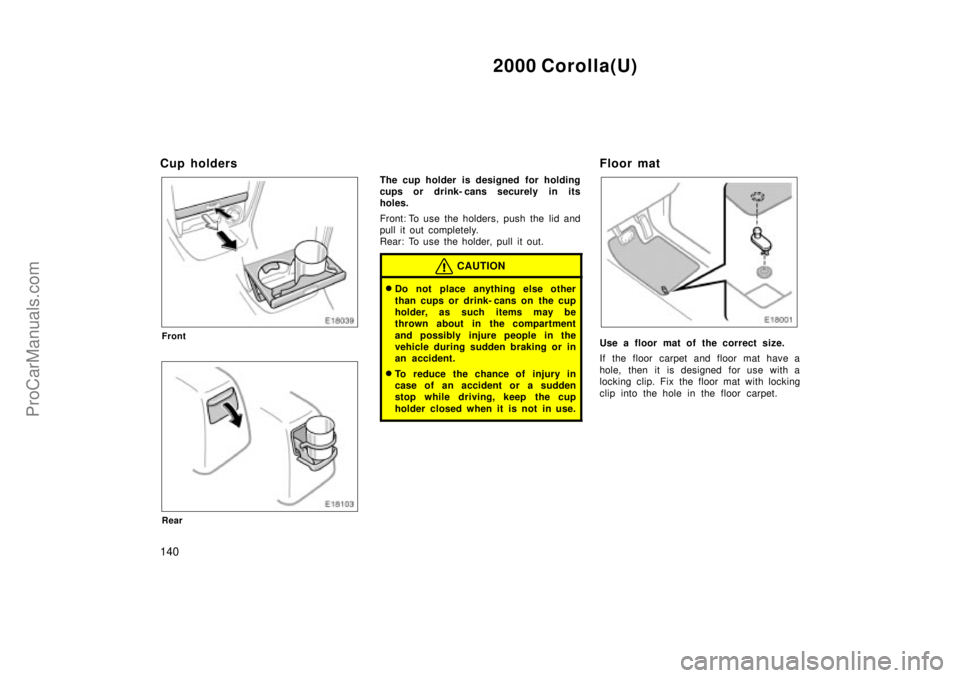

Cup holders
Front
Rear
The cup holder is designed for holding
cups or drink- cans securely in its
holes.
Front: To use the holders, push the lid and
pull it out completely.
Rear: To use the holder, pull it out.
CAUTION

Do not place anything else other
than cups or drink- cans on the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.

To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder closed when it is not in use.
Floor mat
Use a floor mat of the correct size.
If the floor carpet and floor mat have a
hole, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the hole in the floor carpet.

ProCarManuals.com

2000 Corolla(U)
141

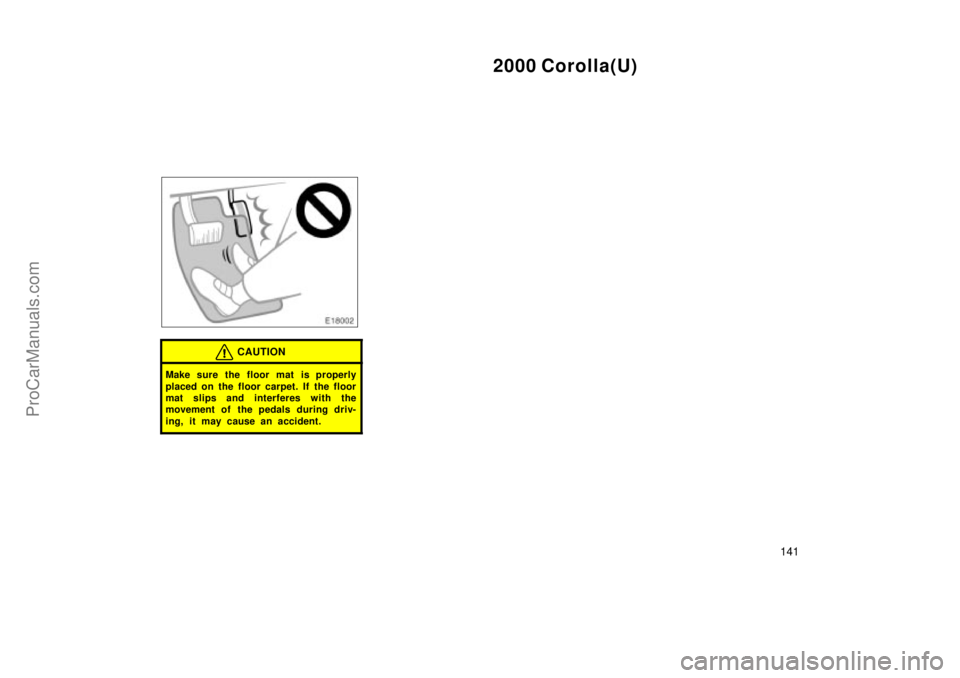

CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
ProCarManuals.com

2000 Corolla(U)
142
ProCarManuals.com

2000 Corolla(U)
199
DO- IT- YOURSELF MAINTENANCE
Introduction
Engine compartment overview200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations201 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Do- it- yourself service precaution202 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools203 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7- 1
ProCarManuals.com

2000 Corolla(U)
200
Engine compartment overview
1. Power steering fluid reservoir
2. Engine oil level dipstick
3. Engine oil filler cap
4. Brake fluid reservoir
5. Fuse blocks
6. Battery
7. Engine coolant reservoir
8. Electric cooling fans
9. Windshield washer fluid tank
ProCarManuals.com

2000 Corolla(U)
201

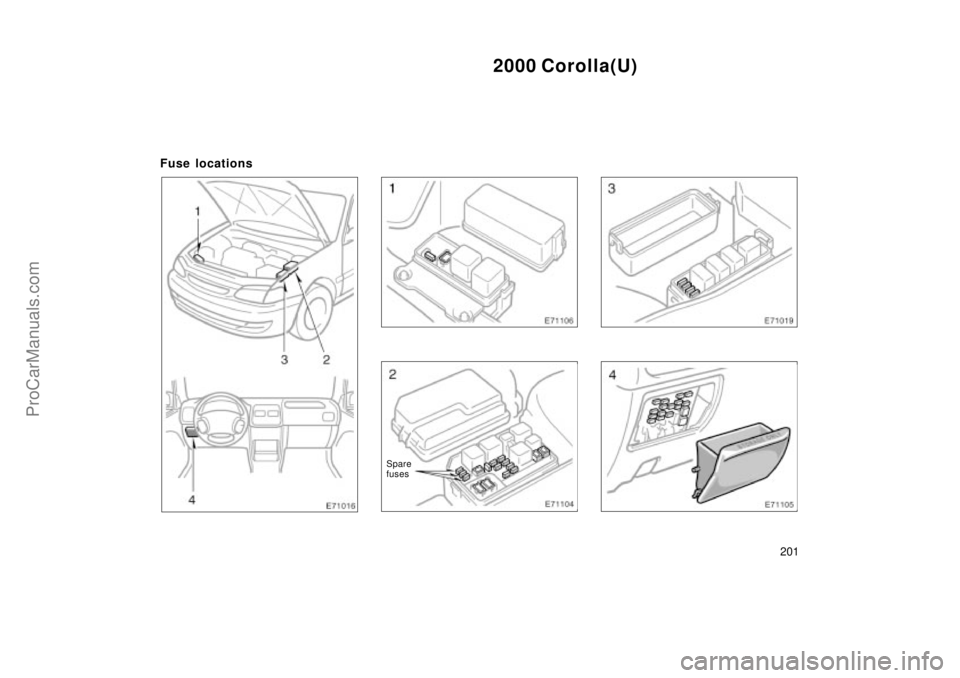

Fuse locations
Spare
fuses
ProCarManuals.com

2000 Corolla(U)
202
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do- it- yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do-
it- yourself maintenance, see Parts and
toolsº.

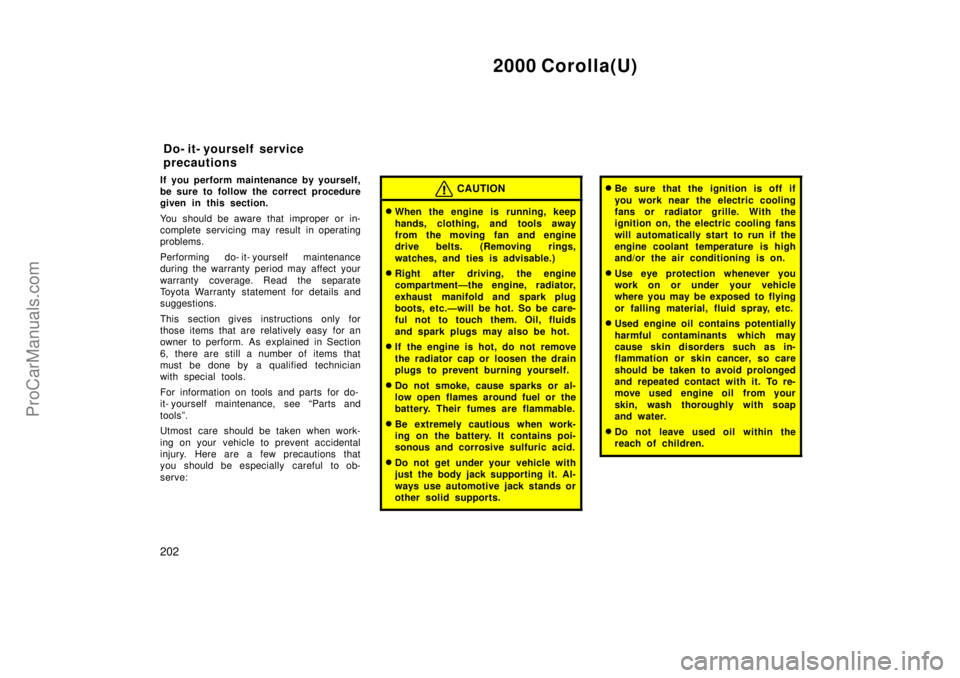

Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:CAUTION

When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)

Right after driving, the engine
compartmentÐthe engine, radiator,
exhaust manifold and spark plug
boots, etc.Ðwill be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.

If the engine is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.

Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.

Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric acid.

Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.

Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.

Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.

Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.

Do not leave used oil within the
reach of children.
Do- it- yourself service
precautions
ProCarManuals.com
