TOYOTA COROLLA 2016 11.G Owners Manual

2815-8. Bluetooth® Audio
5
Audio system
COROLLA_TMMMS_TMMC_U (OM12J84U)
Pressing (RPT) changes the repeat play mode in the following
order:
Track repeat  Album repeat
*  Off
*: Available except when RDM (random playback) is selected
Press .
Track title and artist name are displayed on the display.
To return to the previous display, press or (BACK).
nBluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
Repeat play
Switching the display

282
COROLLA_TMMMS_TMMC_U (OM12J84U)
5-9. Bluetooth® Phone
nMaking a phone call
lDialing by selecting a name
l Speed dialing
l Dialing by entering the number
l Dialing from call histories
nReceiving a phone call
lAnswering the phone
l Refusing a call
nOperations during a call
lTransferring a call
l Muting your voice
l Inputting digits
l Setting call volume
nAdjusting the ringtone volume when receiving a call
Making a phone call
To enter the “PHONE” mode, press the off-hook switch.

2835-9. Bluetooth® Phone
5
Audio system
COROLLA_TMMMS_TMMC_U (OM12J84U)
Select “Phonebook” using .
Select the desired name using and press the off-hook
switch.
By pressing (Add S. Dial) and then one of the speed dial but-
tons (from to ) while the desired name is selected, it can
be registered as a speed dial.
Select “Speed dials” using .
Press the desired preset butto n (from to ) and press
the off-hook switch.
Select “Dial by number” using .
Enter the phone number and press the off-hook switch.
Dialing by selecting a name
Speed dialing
Dialing by entering the number
1
2
1
2
1
2

2845-9. Bluetooth® Phone
COROLLA_TMMMS_TMMC_U (OM12J84U)
Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
using .
Select the desired number using and press the off-hook
switch.
The following operations can be performed:
l Registering a number as a speed dial
Press (Add S. Dial) and then press and hold the desired pre-
set button (from to ).
l Deleting the selected number
Press (DELETE) and press (YES).
Dialing from call histories
1
2

2855-9. Bluetooth® Phone
5
Audio system
COROLLA_TMMMS_TMMC_U (OM12J84U)
Press the off-hook switch.
Press the on-hook switch.
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
Change the ringtone volume using .
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
Receiving a phone call
Answering the phone
Refusing a call
Receiving a call when on another call
Adjusting the ringtone volume when receiving a call

2865-9. Bluetooth® Phone
COROLLA_TMMMS_TMMC_U (OM12J84U)
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a.Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation of
the phone.
b.Press * (PHONE).
*: This operation can be performed only when transferring a call from the cel-
lular phone to the system during a call.
Press (MUTE).
Press (0 - 9) and use to input the desired digits.
• To send the input digits, press (SEND).
• When finished, press (EXIT) to return to the previous screen.
Change the call volume using .
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
Speaking on the phone
Transferring a call
Muting your voice
Inputting digits
Setting call volume

2875-9. Bluetooth® Phone
5
Audio system
COROLLA_TMMMS_TMMC_U (OM12J84U)
nWhen talking on the phone
lDo not talk at the same time as the other party.
l Keep the volume of the received voice down. Otherwise, voice echo will
increase.
n Automatic volume adjustment
When vehicle speed is 50 mph (80 km/h) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 43 mph (70 km/h) or less.
n Phone call system functions
Depending on the cellular phone, certain functions may not be available.
n Situations where the system m ay not recognize your voice
l When driving on a rough road
l When driving at high speeds
l When air is blowing out of the vents onto the microphone
l When the air conditioning fan emits a loud noise

288
COROLLA_TMMMS_TMMC_U (OM12J84U)
5-10. Bluetooth®
nWhen using the Bluetooth® audio system
l In the following situations, the system may not function.
• The portable player does not support Bluetooth
®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or console
box, or is touching or covered by metal objects
l There may be a delay if a cellular phone connection is made during
Bluetooth
® audio playback.
l Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
n When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 273)
n About Bluetooth
®
nCompatible models
lBluetooth® specifications:
Ver. 1.1, or higher (recommended: Ver. 2.1 + EDR or higher)
l Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (recom-
mended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recom-
mended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
l Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0
Bluetooth®
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

2895-10. Bluetooth®
5
Audio system
COROLLA_TMMMS_TMMC_U (OM12J84U)
CAUTION
nWhile driving
Do not operate the portable audio player, cellular phone or connect a device
to the Bluetooth
® system.
n Caution regarding interfer ence with electronic devices
l Your audio unit is fitted with Bluetooth
® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas. The radio waves
may affect the operation of such devices.
l Before using Bluetooth
® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
n When leaving the vehicle
Do not leave your portable audio player or cellular phone in the vehicle. The
inside of the vehicle may become hot, causing damage to the portable
audio player or cellular phone.

290
COROLLA_TMMMS_TMMC_U (OM12J84U)

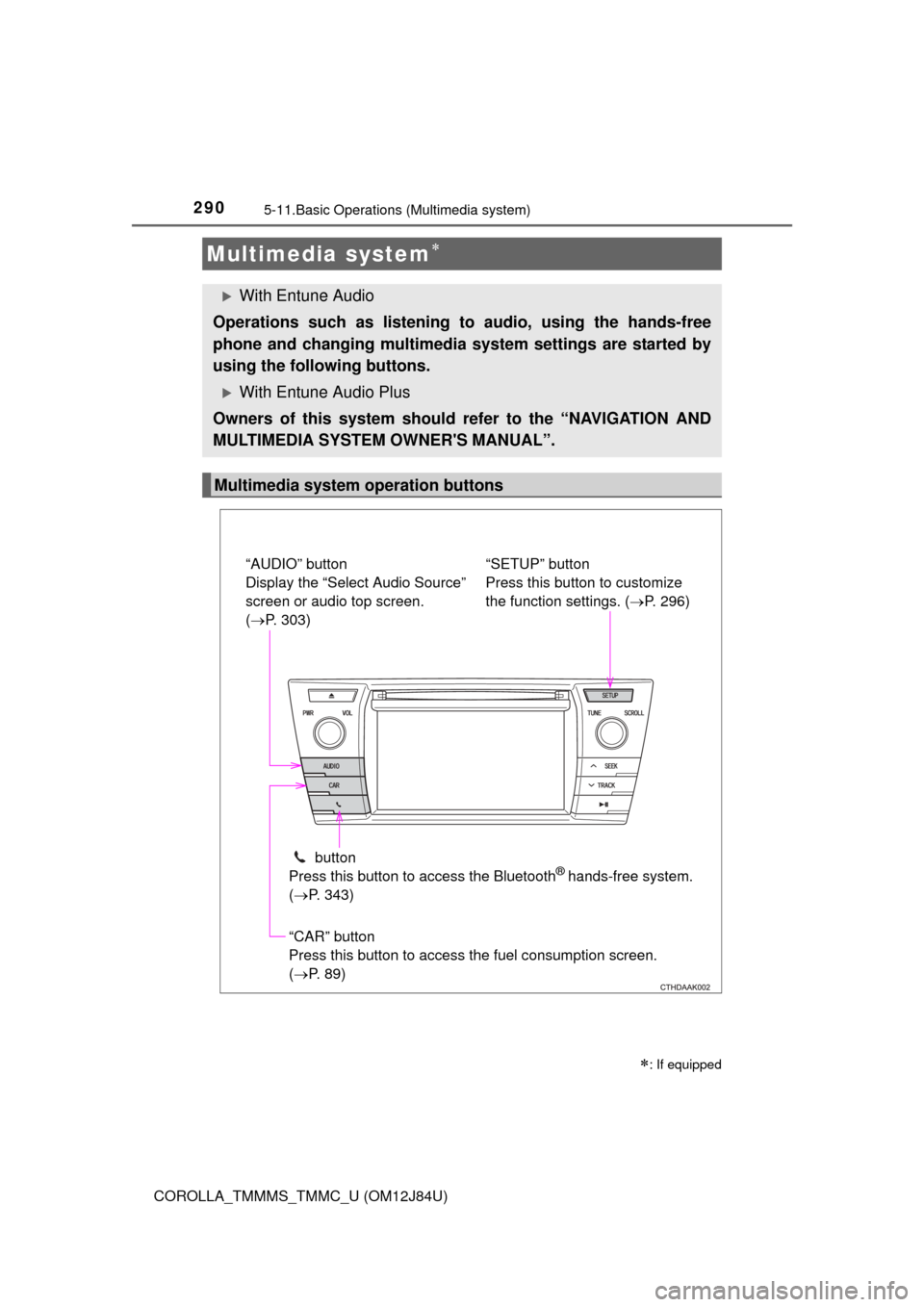

5-11.Basic Operations (Multimedia system)
Multimedia system
: If equipped
With Entune Audio
Operations such as listening to audio, using the hands-free
phone and changing multimedia sy stem settings are started by
using the following buttons.
With Entune Audio Plus
Owners of this system should refer to the “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER'S MANUAL”.
Multimedia system operation buttons
“AUDIO” button
Display the “Select Audio Source”
screen or audio top screen.
( P. 303)
button
Press this button to access the Bluetooth
® hands-free system.
( P. 343)
“CAR” button
Press this button to access the fuel consumption screen.
(P. 8 9 ) “SETUP” button
Press this button to customize
the function settings. (
P. 296)
