TOYOTA COROLLA HATCHBACK 2022 Owners Manual (in English)

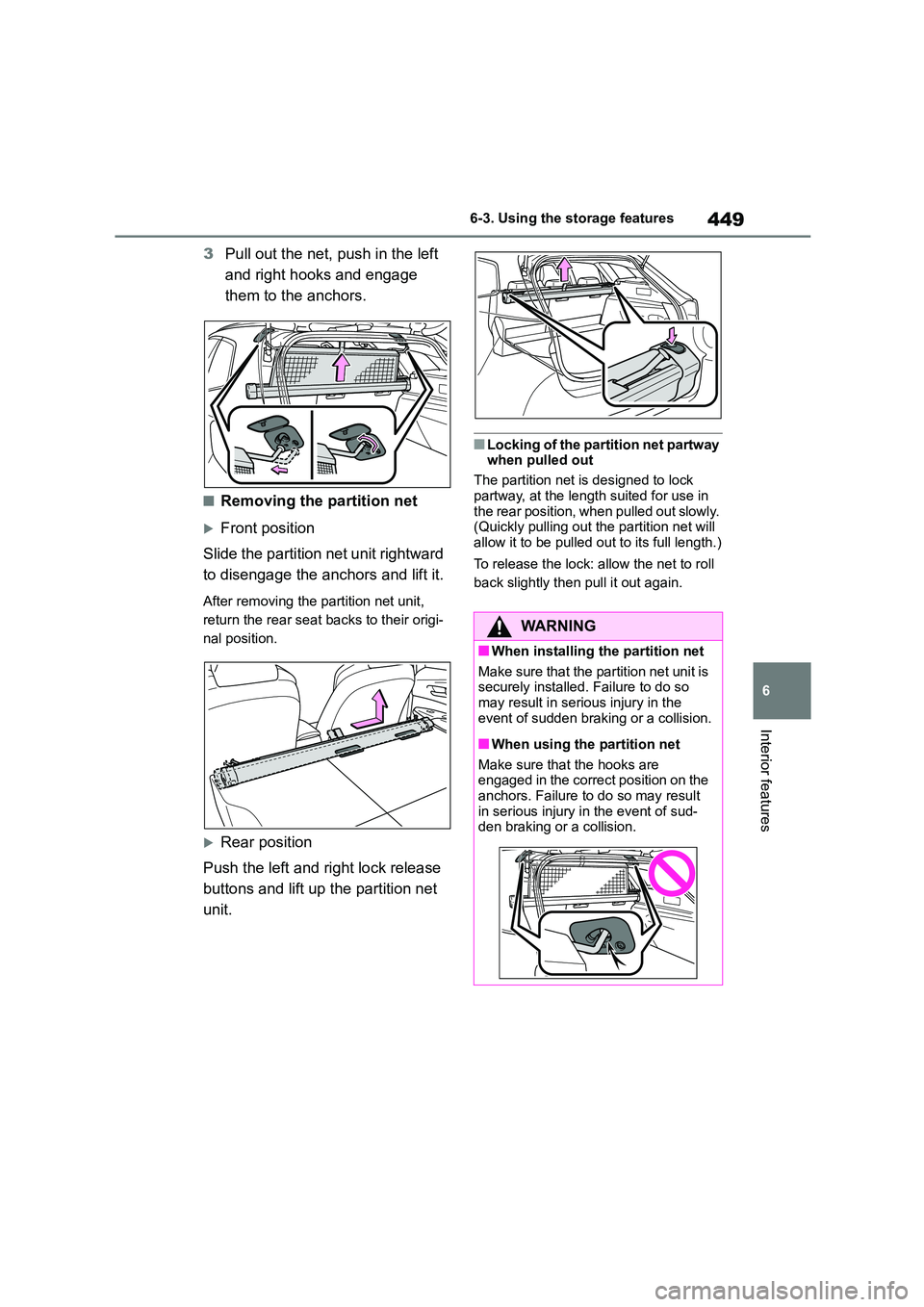

449
6
6-3. Using the storage features
Interior features
3 Pull out the net, push in the left
and right hooks and engage
them to the anchors.
■Removing the partition net
Front position
Slide the partition net unit rightward
to disengage the anchors and lift it.
After removing the partition net unit,
return the rear seat backs to their origi-
nal position.
Rear position
Push the left and right lock release
buttons and lift up the partition net
unit.
■Locking of the partition net partway when pulled out
The partition net is designed to lock
partway, at the length suited for use in the rear position, when pulled out slowly.
(Quickly pulling out the partition net will
allow it to be pulled out to its full length.)
To release the lock: allow the net to roll
back slightly then pull it out again.
WA R N I N G
■When installing the partition net
Make sure that the partition net unit is
securely installed. Failure to do so may result in seri ous injury in the
event of sudden braking or a collision.
■When using the partition net
Make sure that the hooks are
engaged in the correct position on the anchors. Failure to do so may result
in serious injury in the event of sud-
den braking or a collision.

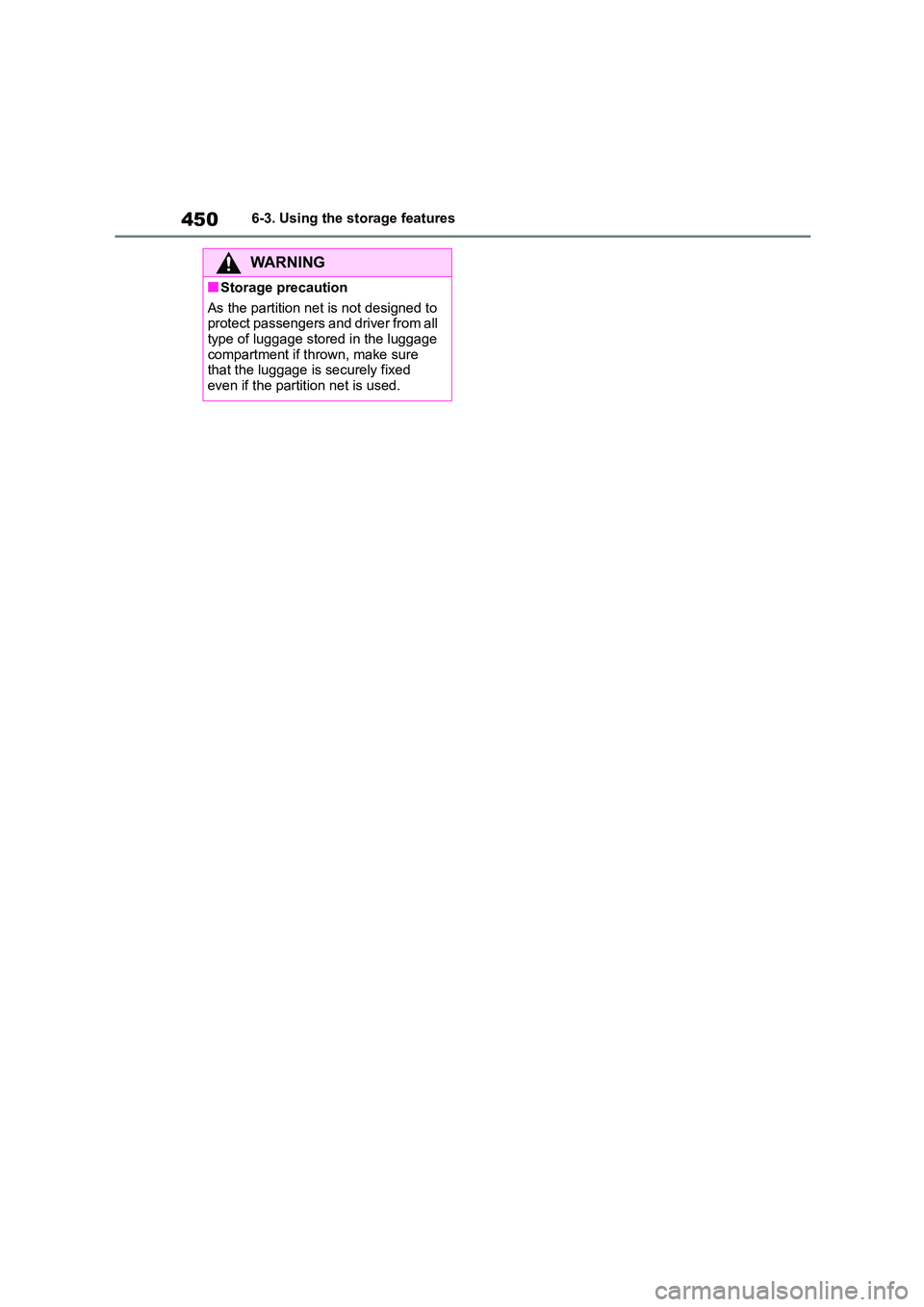

4506-3. Using the storage features
WA R N I N G
■Storage precaution
As the partition net is not designed to
protect passengers and driver from all type of luggage stored in the luggage
compartment if thrown, make sure
that the luggage is securely fixed even if the partition net is used.

451
6
6-4. Other interior features
Interior features
6-4.Other interior features
The USB charging port are used to
supply 2.1 A of electricity at 5 V to
external devices.
The USB charging port are for
charging only. They are not
designed for data transfer or other
purposes.
Depending on the external device,
it may not charge properly. Refer to
the manual included with the device
before using a USB charging port.
■Using the USB charging port
Open the console box lid.
■The USB charging port can be used
when
The engine switch is in ACC or ON.
■Situations in which the USB charg- ing port may not operate correctly
●If a device which consumes more than
2.1 A at 5 V is connected
●If a device designed to communicate
with a personal computer, such as a USB memory device, is connected
●If the connected external device is turned off (depending on device)
●If the temperature inside the vehicle is
high, such as afte r the vehicle has been parked in the sun
■About connected external device
Depending on the connected external
device, charging may occasionally be suspended and then start again. This is
not a malfunction.
The power outlet can be used for
12 V accessories that run on less
than 10 A.
Front
Open the console box lid and open
Other interior features
USB charging port (if
equipped)
NOTICE
■To prevent damage to the USB
charging port
●Do not insert foreign objects into
the port.
●Do not spill water or other liquids
into the port.
●Do not apply excessive force to or
impact the USB charging port.
●Do not disassemble or modify the
USB charging port.
■To prevent damage to external
devices
●Do not leave external devices in the vehicle. The temperature inside the
vehicle may become high, resulting
in damage to an external device.
●Do not push down on or apply
unnecessary force to an external device or the cable of an external
device while it is connected.
■To prevent battery discharge
Do not use the USB charging port for
a long period of time with the engine stopped.
Power outlet

4526-4. Other interior features
the lid.
Luggage compartment (wagon)
Open the cover.
2ZR-FXE engine:
M20A-FXS engine:
■The power outlet can be used when
The engine switch is in ACC or ON.
■When turning the engine switch off
Disconnect electrical devices with
charging functions, such as mobile bat- tery packs.
If such devices are left connected, the
engine switch may not be turned off nor-
mally.
A portable device, such as a
smartphone or mobile battery, can
be charged by just placing it on the
charging area, provided the device
is compatible with the Qi wireless
charging standard created by the
Wireless Power Consortium.
The wireless charger cannot be
used with a portable device that is
larger than the charging area. Addi-
tionally, depending on the portable
device, the wireless charger may
not operate properly. Refer to the
operation manual of the portable
device.
■The “Qi” symbol
The “Qi” symbol is a trademark of
the Wireless Power Consortium.
NOTICE
■To prevent the fu se from being blown
Do not use an accessory that uses
more than 12 V 10 A.
■To avoid damaging the power
outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter
the power outlet may cause a short circuit.
■To prevent the battery from being discharged
Do not use the power outlet longer
than necessary when the engine is not running.
Wireless charger (if
equipped)

453
6
6-4. Other interior features
Interior features
■Name for all parts
Power supply switch
Operation indicator light
Charge area
■Using the wireless charger
1 Press the power supply switch
of the wireless charger.
Pressing the switch again turns the
wireless charger off. When turned on, the operation indicator
light (green) comes on.
When the engine switch is turned off, the on/off state of the wireless charger
will be memorized.
2 Place a portable device on the
charging area with its charging
surface facing down.
While charging, the operation indicator
light (orange) will be illuminated. If charging does not begin, move the
portable device as close to the center of
the charging area as possible. When charging is complete, the opera-
tion indicator light (green) will illumi-
nate.
■Recharging function
 If a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the wire-
less charger will restart charging.
 If the portable device is moved
within the charging area, charg-
ing will stop temporarily then
restart.

4546-4. Other interior features
■Operation indicator light status
*: Depending on the portable device, the operation indicator light may stay illumi-
nated (orange) after charging has completed.
 If the operation indicator light blinks
If an error is detected, the operation indicator light will blink (orange). Take the
appropriate measures according to the table below.
■The wireless charger can be oper-
ated when
The engine switch is in ACC or ON.
■Portable devices that can be
charged
●Portable devices compatible with the
Qi wireless charging standard can be
charged by the wireless charger. How- ever, compatibility with all devices
which meet the Qi wireless charging
standard is not guaranteed.
●The wireless charger is designed to
supply low power electricity (5 W or
less) to a cellular phone, smartphone,
or other portable device.
■If a cover or accessory is attached to the portable device
Do not charge a portable device if a
cover or accessory which is not Qi com- patible is attached. Depending on the
Operation indicator lightState
OffThe Wireless charger is off
Green (illuminated)Standby (charging is possible)
Charging is complete*
Orange (illuminated)
A portable device has been placed on the
charging area (identifying the portable device)
Charging in progress
Operation indicator lightSuspected causeMeasure
Blinks (orange) at a one
second interval continu-
ously
Vehicle to charger commu-
nication failure.
Contact any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer.
Blinks (orange) 3 times
repeatedly
A foreign object exists
between the portable
device and charging area.
Remove the foreign object.
Portable device is not posi-
tioned properly on the
charging area.
Move the portable device
toward the center of the
charging area.
Blinks (orange) 4 times
repeatedly
The temperature of the
wireless charger is exces-
sively high.
Stop charging immediately
and continue charging
after a while.

455
6
6-4. Other interior features
Interior features
type of cover and/or accessory
attached, it may not be possible to charge the portable device. If the porta-
ble device is placed on the charging
area and does not charge, remove the cover and/or accessories.
■If interference is heard in AM radio
broadcasts while charging
Turn off the wireless charger and check if the noise is reduced. If noise is
reduced, press and hold the power sup-
ply switch of the wireless charger for 2 seconds. The frequency of the wireless
charger is changed and noise may be
reduced. When the frequency is changed, the operation indicator light
will blink (orange) 2 times.
■Charging precautions
●If the electronic key cannot be
detected in the cabin, charging cannot
be performed. When a door is opened and closed, charging may be tempo-
rarily suspended.
●While charging, the wireless charger
and the portable device will become
warm. This is not a malfunction.If a portable
device becomes warm while charging
and charging stops due to the protec- tion function of the portable device,
wait until the portable device cools
down and charge it again.
■Sound generated during operation
When the power supply switch is turned
on or while a portable device is being
identified, operation sounds may be heard. This is not a malfunction.
■Cleaning the wireless charger
 P.463
WA R N I N G
■Caution while driving
When charging a portable device while driving, for safety reasons, the
driver should not operate the portable
device.
■Caution regarding interference with electronic devices
People with implantable cardiac pace-
makers, cardiac re synchronization therapy pacemakers or implantable
cardioverter defibrillators, as well as
any other electrical medical device, should consult their physician about
the usage of the wireless charger.
Operations of the wireless charger may have an affect on medical
devices.
■To prevent damage or burns
Observe the following precautions.
Failure to do so may result in the pos- sibility of fire, equipment failure or
damage, or burns due to heat.
●Do not put any metallic objects
between the charging area and the
portable device while charging.
●Do not attach metallic objects, such
as aluminum stickers, to the charg- ing area.
●Do not cover the wireless charger with a cloth or other object while
charging.
●Do not attempt to charge portable
devices which are not compatible
with the Qi wireless charging stand- ard.
●Do not disassemble, modify or remove the wireless charger.
●Do not apply force or impact to the wireless charger.
NOTICE
■Conditions in which the wireless
charger may not operate cor-
rectly
In the following situations, the wire-
less charger may not operate cor-
rectly:
●When a portable device is fully
charged

4566-4. Other interior features
1To set the visor in the forward
position, flip it down.
2 To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The vanity light turns on. (if equipped)
NOTICE
●When there is a foreign object
between the charging area and
portable device
●When a portable device becomes
hot while charging
●When a portable device is placed
on the wireless area with its charg-
ing surface facing up
●When a portable device is not cen-
tered on the charging area
●When the vehicle is near a TV
tower, electric power plant, gas sta- tion, radio station, large display, air-
port or other facility that generates
strong radio waves or electrical noise
●When the portable device is in con-tact with, or is covered by any of the
following metallic objects:
• Cards to which aluminum foil is attached
• Cigarette boxes that have alumi- num foil inside
• Metallic wallets or bags
• Coins
• Metal hand warmers
• Media such as CDs and DVDs
●When wireless keys (that emit radio
waves) other than those of your vehicle are being used nearby.
If in situations other than above the
wireless charger does not operate
properly or the operation indicator
light is blinking, the wireless charger
may be malfunctioning. Contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■To prevent failure or damage to data
●Do not bring magnetic cards, such
as a credit card, or magnetic recording media, close to the wire-
less charger while charging. Other-
wise, data may be erased due to the influence of magnetism.
Additionally, do not bring precision
instruments such as wrist watches, close to the wireless charger, as
such objects may malfunction.
●Do not leave portable devices in the
cabin. The temperature inside the
cabin may become high when parked in the sun, and cause dam-
age to the device.
■To prevent battery discharge
Do not use the wireless charger for a
long period of time with the engine stopped.
Sun visors
Vanity mirrors

457
6
6-4. Other interior features
Interior features
■To prevent battery discharge
If the vanity lights remain on when the
engine switch is OFF, the lights will go
off automatically after 20 minutes.
Fold down the armrest for use.
An assist grip inst alled on the ceil-
ing can be used to support your
body while sitting on the seat.
The coat hooks are provided with
the rear assist grips.
NOTICE
■To prevent the battery from being discharged
Do not leave the vanity lights on for
extended periods while the engine is stopped.
Armrest (if equipped)
NOTICE
■To prevent damage to the arm-
rest
Do not apply too much load on the armrest.
Assist grips
WA R N I N G
■Assist grip
Do not use the assist grip when get-
ting in or out of the vehicle or rising
from your seat.
NOTICE
■To prevent damage to the assist
grip
Do not hang any heavy object or put a
heavy load on the assist grip.

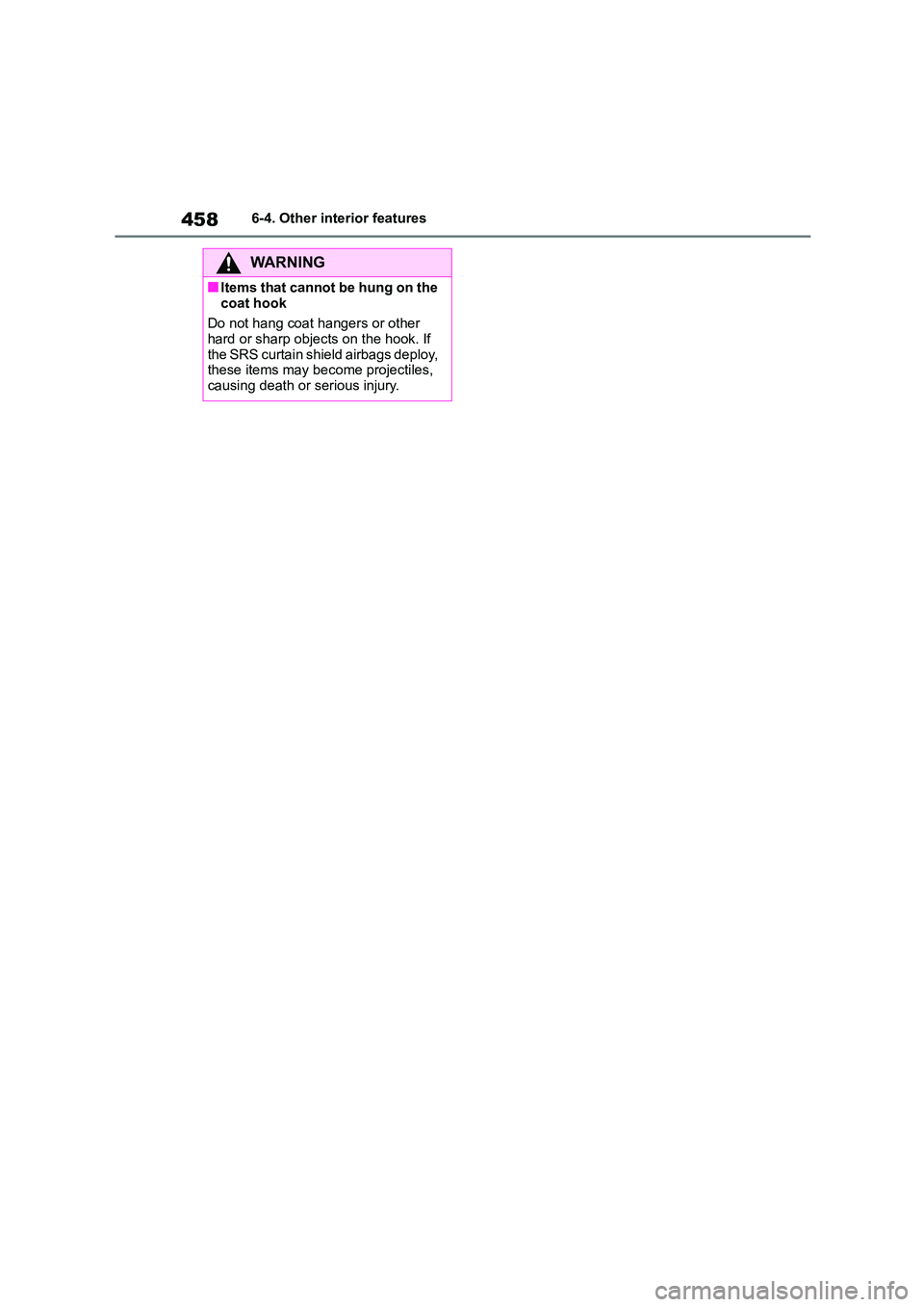

Coat hooks

4586-4. Other interior features
WA R N I N G
■Items that cannot be hung on the
coat hook
Do not hang coat hangers or other hard or sharp objects on the hook. If
the SRS curtain shield airbags deploy,
these items may become projectiles, causing death or serious injury.
