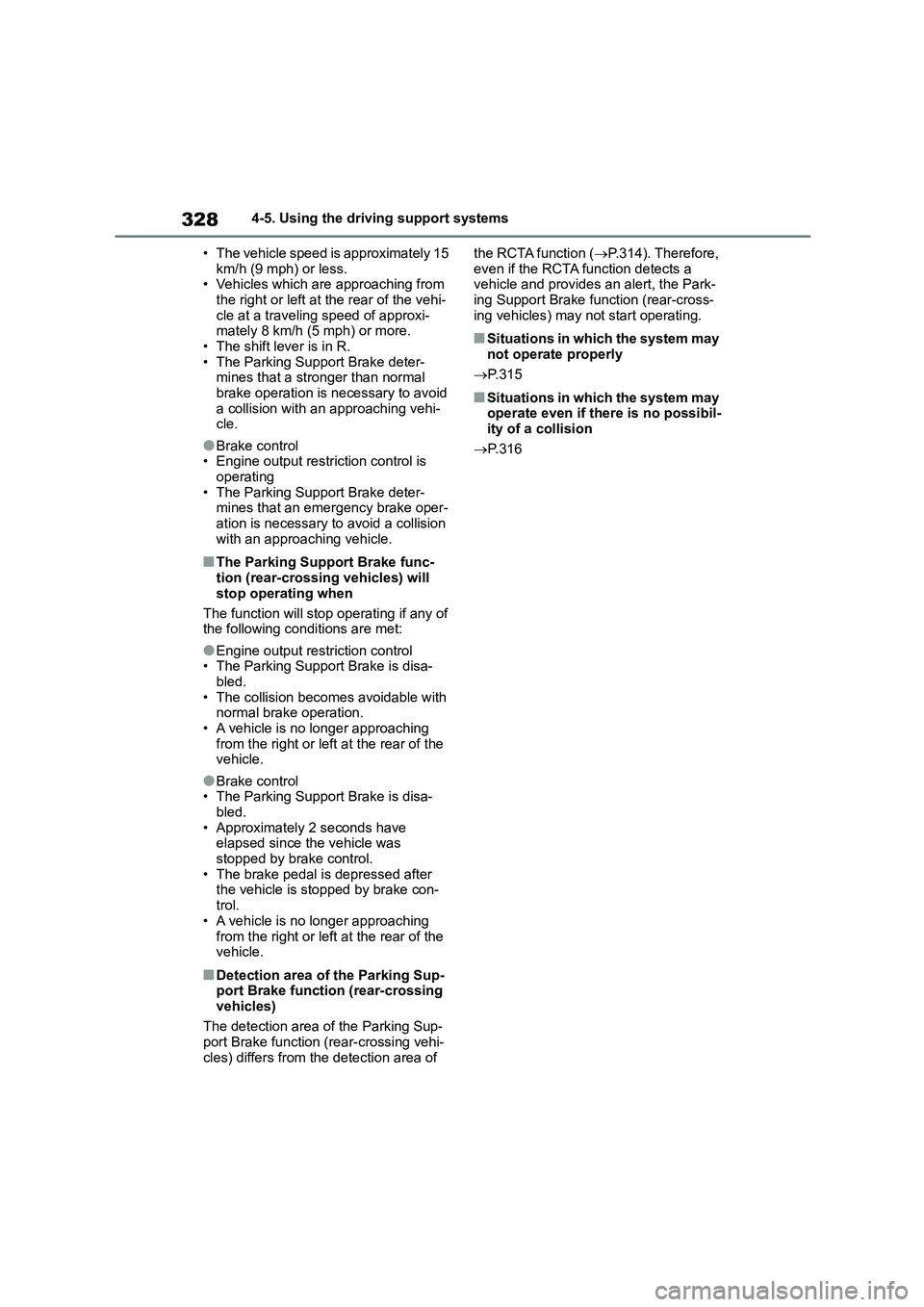

3284-5. Using the driving support systems
• The vehicle speed is approximately 15
km/h (9 mph) or less. • Vehicles which are approaching from
the right or left at the rear of the vehi-
cle at a traveling speed of approxi- mately 8 km/h (5 mph) or more.
• The shift lever is in R.
• The Parking Support Brake deter- mines that a stronger than normal
brake operation is necessary to avoid
a collision with an approaching vehi- cle.
●Brake control• Engine output restriction control is
operating
• The Parking Support Brake deter- mines that an emergency brake oper-
ation is necessary to avoid a collision
with an approaching vehicle.
■The Parking Support Brake func- tion (rear-crossing vehicles) will
stop operating when
The function will stop operating if any of the following conditions are met:
●Engine output restriction control• The Parking Support Brake is disa-
bled.
• The collision becomes avoidable with normal brake operation.
• A vehicle is no longer approaching
from the right or left at the rear of the vehicle.
●Brake control• The Parking Support Brake is disa-
bled.
• Approximately 2 seconds have elapsed since the vehicle was
stopped by brake control.
• The brake pedal is depressed after the vehicle is stopped by brake con-
trol.
• A vehicle is no longer approaching
from the right or left at the rear of the vehicle.
■Detection area of the Parking Sup-
port Brake function (rear-crossing
vehicles)
The detection area of the Parking Sup-
port Brake function (rear-crossing vehi-
cles) differs from the detection area of
the RCTA function ( P.314). Therefore,
even if the RCTA function detects a vehicle and provides an alert, the Park-
ing Support Brake function (rear-cross-
ing vehicles) may not start operating.
■Situations in which the system may not operate properly
 P. 3 1 5
■Situations in which the system may
operate even if there is no possibil- ity of a collision
 P. 3 1 6

3304-5. Using the driving support systems
■PKSB (Parking Support Brake) sys-
tem while the Simple Intelligent
Parking Assist System is operating
While the Simple Intelligent Parking
Assist System is ope rating, if the system
detects an obstacle that could result in a collision, engine output suppression
control and brake control of the PKSB
(Parking Support Brake) system are operated, regardless of whether the
PKSB (Parking Support Brake) system
is on or off. ( P.318)
●After the PKSB (Parking Support
Brake) system operates, operation of the Simple Intelligent Parking Assist
System is temporarily stopped, and
operation of the PKSB (Parking Sup- port Brake) system is indicated on the
multi-information display. ( P.319)
●When operation of the Simple Intelli-
gent Parking Assist System is stopped
3 times by operation of the PKSB
(Parking Support Brake) system, the Simple Intelligent Parking Assist Sys-
tem is canceled.
●Once the Simple Intelligent Parking
Assist System becomes available
after the PKSB (Parking Support Brake) system is operated, a mes-
sage prompting you to shift is dis-
played on the multi-information display. Operation of the Simple Intel-
ligent Parking Assist System can be
resumed by shifting according to the
prompt on the multi-information dis- play and pressing the S-IPA switch
( P.331) again.
■Shifting while the Simple Intelligent
Parking Assist System is operating
If the system determi nes that the drivers
intends to move forward or in reverse,
Chart of Simple Intelligent Parking Assist System assist
modes and functions
Assist modeType of park-
ingFunction summarySee page
Parallel parking
assist mode
Parallel park-
ing
Guidance is provided to detect the
intended parking spot and reach a
position to begin backing up from.
Assistance is provided from when
the vehicle begins backing up until
it reaches the intended parking
spot.
P. 3 3 3
Exit parallel parking
assist mode
Exit parallel
parking
Assistance starts after the vehicle
has been parallel parked. Assis-
tance is provided to guide the
vehicle from the parking space to a
position from which it can take off.
P. 3 3 7
Back-in parking
assist mode (with
forward guidance
function)
Back-in park-
ing
Assistance starts after stopping
the vehicle in front of the intended
parking spot, and is provided for
backing into a parking space,
including guidance to reach a posi-
tion to begin backing up from.
P. 3 4 1

331
4
4-5. Using the driving support systems
Driving
assistance continues even if the drivers
shifted before being prompted to do so by the system. However, because driver
operation differs from the guidance pro-
vided by the system, the number of turn- ing maneuvers may increase.
■Switching using the S-IPA
switch
Press the switch.
This allows you to switch functions
and cancel or restart assist modes.
While the engine switch is on, the
vehicle speed is approximately 30
km/h (19 mph) or less, each time
the S-IPA switch is pressed the
function switches as follows.
The selected function is indicated
on the operation display area of the
multi-information display ( P.331).
Each time the S-IPA switch is
pressed with the sh ift lever not in
P, the mode changes as follows:
Parallel parking assist
mode Back-in parking assist
mode* Off
Each time the S-IPA switch is
pressed with the shift lever in P,
the mode changes as follows:
Exit parallel parking assist
mode Off
*: The back-in parking assist mode can
be switched to when its operating
conditions are met ( P.336). When
the operating conditions are not met,
it switches to off.
The guidance screen is displayed
on the multi-information display.
Operation display area
Displays the operating condition of the
Simple Intelligent Parking Assist Sys-
tem.
Stop display
When illuminated, depress the brake
pedal and stop the vehicle at once.
Assistance level indicator
Displays a gauge indicating the level
until the vehicle’s stopping position/the
position at which assist control ends.
S-IPA switch icon
Switching assist mode
Guidance screen

3324-5. Using the driving support systems
Displayed when the assist mode can be
changed and the system can be turned
off or on using the S-IPA switch.
Toyota parking assist-sensor
display/door position
(open/close) display
 P.304
Steering wheel auto operation
display
Displays when the steering wheel auto
operation is being performed.
Advice display
Follow the instructions on the display
and perform any indicated operations.
As an example, the illustration shows
the display indicating it is necessary to
depress the brake pedal in order to
control the vehicle speed and to con-
firm the safety of your surroundings.
■S-IPA indicator inside the meter ( P. 8 7 )
This indicator illuminates when the
steering wheel auto operation is being performed by the Simple Intelligent
Parking Assist Syst em. After control
ends, the indicator blinks for a short period of time and then turns off.
■Toyota parking assist-sensor
pop-up display
While the Simple Intelligent Parking
Assist System is operating, if the PKSB (Parking Support Brak e) system detects
an obstacle, the Toyota parking
assist-sensor display automatically pops up on the guidance screen ( P.304),
regardless of whether the PKSB (Park-
ing Support Brake) system is on or off. ( P.304)
Assist mode will be canceled or
stopped in the following cases.
Assist control is canceled when
 The system temperature preser-
vation function operates
 There is a system malfunction
 System determined that the
parking environment is not suita-
ble for assist to continue
When assist control is canceled,
firmly grasp the steering wheel,
depress the brake pedal and stop
the vehicle.
Start again from the beginning, as
the system will already be
canceled. When continuing to park
manually, operate the steering
wheel as you normally would.
Assist control is stopped when
 The steering wheel is operated
 The vehicle speed exceeds 7
km/h (4 mph) during assist con-
trol
 The PKSB (Parking Support
Brake) system operates
When assist contro l is stopped, it
can be resumed by following the
guidance shown on the screen.
Canceling or stopping assist
mode

333
4
4-5. Using the driving support systems
Driving
■If the vehicle speed is about to exceed the speed limit during
assist control
A buzzer will sound and a message indi-
cating that the vehicle speed may
exceed the operation speed limit will be displayed. When the message is dis-
played, immediately depress the brake
pedal to decelerate. If the vehicle contin- ues to accelerate, a ssist control will be
canceled when the vehicle speed
exceeds a certain speed. ( P.350)
■Function summary
If a parking space can be detected,
you will be guided forward until you
reach the assist control starting
position, and then the parallel park-
ing assist mode can be used. Fur-
thermore, depending on the parking
space and other conditions,
multi-turn maneuvering assist con-
trol is also provided if necessary.
1 Continue moving forward with
the vehicle parallel to the curb or
road, and stop so that the center
of the target parking spot
appears nearly perpendicular to
the vehicle. Then, press the
S-IPA switch 1 time to select the
parallel parking assist mode.
2 Travel straight ahead parallel
with the road or curb so that the
parking space is detected.
3 A sound is issued and a display
is shown to notify you when the
vehicle reaches a position
where assist control can be
used to begin backing up from,
and then when the shift lever is
changed according to guidance
provided by the system, steering
wheel auto operation begins.
If the detected parking space or road
width (distance to the side of the road
across from the parking space) is nar-
row, or if there are obstacles in front of
the vehicle, guidance will not be issued.
4 Parking is complete.
This completes the assist mode.
Depending on the condition of the park-
How to parallel park (parallel
parking assist mode)

3344-5. Using the driving support systems
ing space, guidance to starting points
for moving forward and backing up, as
well as the steering wheel auto opera-
tion, are repeated any time multi-turn
maneuvering is necessary following
step 3 from the time the vehicle begins
backing up until parking completes.
■Parking
1 Stop so that the center of the
target parking spot appears
nearly perpendicular to vehicle.
Then, press the S-IPA switch 1
time and check that the display
on the multi-information display
switches to “Parallel Parking”.
 The mode switches each time
the S-IPA switch is pressed.
( P.331)
 When the vehicle speed is
approximately 30 km/h (19 mph)
or higher, pressing the S-IPA
switch will not cause the screen
to switch to the “Parallel Parking”
display.
2 Travel straight ahead parallel
with the road (or curb), and
maintain a gap of approximately
1 m (3.3 ft.) from any parked
vehicles.
1 m (3.3 ft.)
 Proceed slowly.
 The system will begin searching
for a parking space.
 While searching for a space, the
turn signal lever ( P.189) can
be operated to select a parking
space on the left or right.
 When stopping the function,
press the S-IPA switch once to
turn the function off.
 When a parking space is
detected, the screen will change.

335
4
4-5. Using the driving support systems
Driving
3 When a level beep is emitted
and the stop display ( P.331) is
shown on the display, stop the
vehicle.
4 When the shift lever is changed
to R, a high-pitched beep is
emitted and assi st control will
start.
 When the steering wheel auto
operation starts, the steering
wheel auto operation display and
assistance level indicator
( P.331) will be shown in the
display area.
 To stop assist control, press the
S-IPA switch.
5 Assume an ordinary posture for
backing up, rest your hands
lightly on the steering wheel
without applying any force,
directly confirm the safety of the
area to the rear and around the
vehicle, confirm that there are
no obstacles in the parking
space, and slowly back up while
adjusting your speed by
depressing the brake pedal.
 When backing up too quickly, a
sharp beeping sound is emitted
and assist control is stopped.
( P.332)
 When the vehicle cannot be
cleanly entered within the target
parking spot on the first try and
multi-turn maneuvering is neces-
sary, proceed to step 6.
When multi-turn maneuvering is
not necessary, proceed to step
12 .
6 When a level beep is emitted
and the stop display ( P.331) is
shown on the display, stop the
vehicle.
7 Change the shift lever to D or M.
8 Assume an ordinary driving pos-
ture, rest your hands lightly on
the steering wheel without
applying any force, directly con-
firm the safety of the area to the
front and around the vehicle and

3384-5. Using the driving support systems
1With the shift lever in P, press
the S-IPA switch, select exit par-
allel parking assist mode, and
then operate the turn signal
lever to select the desired
departure direction.
2 Steering wheel auto operation
starts when the shift lever is
changed accordin g to guidance
provided by the system.
3 A sound is issued and a display
is shown to notify you when the
vehicle reaches a position from
which you can take off.
Depending on the condition of the park-
ing space, guidance to starting points
for moving forward and backing up, as
well as the steering wheel auto opera-
tion, are repeated any time multi-turn
maneuvering is necessary from the
time the steering wheel auto operation
begins in step 2 up until the vehicle
reaches a position from which it can
take off.
■Using the exit parallel parking
assist mode to depart
1 With the shift lever in P, press
the S-IPA switch and check that
the display on the multi-informa-
tion display switches to “Exit
Parallel Parking”.
2 Operate the turn signal lever
( P.189) to select whether you
would like to depart to the left or
right.
If there are any obstacles in the direc-
tion the vehicle is departing in, the sys-
tem determines that it is not possible to depart, and assist control is stopped.
3 When the shift lever is changed
to R (or D) according to the
advice display on the screen
( P.331), a high-pitched beep
is emitted and assist control will
start.
Step 4 and onward is for cases in which the advice display shows “Shift to R”
after operating the turn signal lever to
select a departure direction.
 When the steering wheel auto
operation starts, the steering
wheel auto operation display and
assistance level indicator
( P.331) will be shown in the
display area.

341
4
4-5. Using the driving support systems
Driving
the vehicle, within the area that the
vehicle will move to depart: • Trees or poles
• Fire hydrants
• Tall grass, flower beds, etc. • Walls which would surround the vehi-
cle
• Vehicles waiting near the parking spot • Metal I-beams
• Walls with protrusions
•Holes
■Function summary
Stop so that the cent er of the target
parking spot appears nearly per-
pendicular to the vehicle. If the
space is detectable, the forward
guidance function can be used.
Furthermore, depending on the
parking space and other conditions,
multi-turn maneuvering assist con-
trol is also provided if necessary.
WA R N I N G
■When using exit parallel parking assist mode
In the following situation, be sure to
drive carefully as the side sensors may not be able to correctly detect
objects, possibly leading to an acci-
dent.
When an object is in an area which is
out of the detection range of the side
sensors.
Object
NOTICE
■When using the exit parallel park- ing assist mode
●Do not use exit parallel parking
assist mode in any situation other than when departing a parallel park-
ing spot.
If assist control is started uninten- tionally, depress the brake pedal
and stop the vehicle, then press the
S-IPA switch to cancel the assist control.
●The detection range of the sensors ( P.308) is limited. Directly confirm
the safety of your surroundings,
and if there is a possibility of a con- tact accident, stop the vehicle by
depressing the brake pedal.
●It may not be possible to detect
objects that are low to the ground.
Directly confirm the safety of your surroundings and, if it seems the
vehicle may make contact with an
obstacle, stop the vehicle by depressing the brake pedal.
●When departing for a position from which you can take off, directly con-
firm the safety of your
surroundings.
How to park next to other
vehicles (back-in parking
assist mode)

3424-5. Using the driving support systems
1Stop so that the center of the
target parking spot appears
nearly perpendicular to the vehi-
cle. Then, press the S-IPA
switch 2 times to select back-in
parking assist mode.
2 Steering wheel auto operation
starts when the vehicle begins
to move.
3 A sound is issued and a display
is shown to notify you when the
vehicle reaches the position to
start backing up from.
If the detected parking space or road
width (distance to the side of the road
across from the parking space) is nar-
row, or if there are obstacles in front of
the vehicle, guidance will not be issued.
4 Parking is complete.
This completes the assist mode.
Depending on the condition of the park-
ing space, guidance to starting points
for moving forward and backing up, as
well as the steering wheel auto opera-
tion, are repeated any time multi-turn
maneuvering is necessary following
step 3 from the time the vehicle begins
backing up until parking completes.
■Parking
1 Stop so that the center of the
target parking spot appears
nearly perpendicular to vehicle.
Then, press the S-IPA switch 2
times and check that the display
on the multi-information display
switches to “Reverse-in Park-
ing”.
1 m (3.3 ft.)
 Visually check the area in the
direction of the arrow indicating
the direction of the steering
wheel auto operation and the tar-
get parking spot on the display.
 The mode switches each time
the S-IPA switch is pressed.
( P.331)
 When the shift lever is not in D or
M, or when the vehicle speed
has been detected, pressing the
S-IPA switch will not cause the
screen to switch to the
“Reverse-in Parking” display.
 The turn signal lever (P.189)
