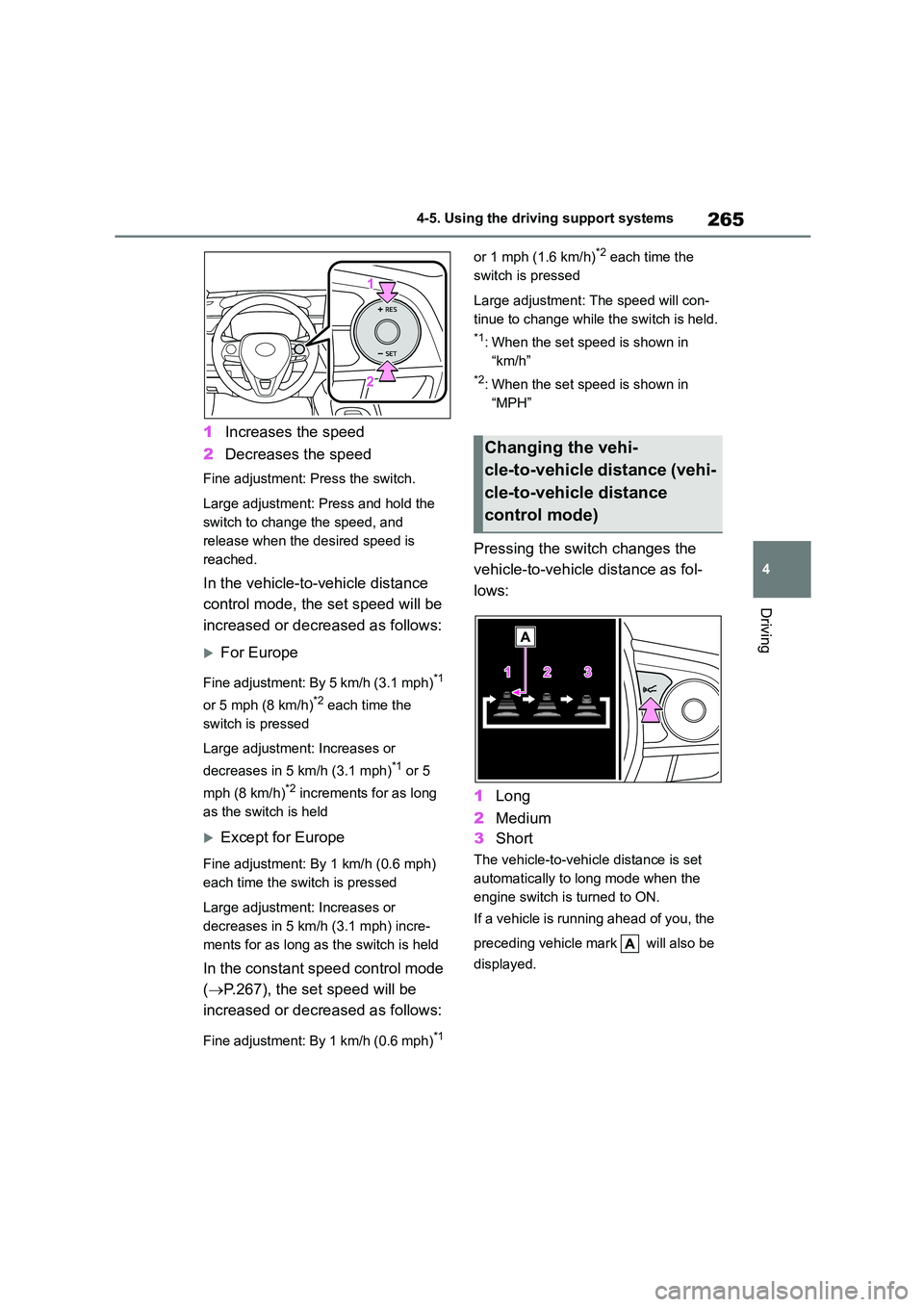

4-5. Using the driving support systems
Driving
1 Increases the speed
2 Decreases the speed
Fine adjustment: Press the switch.
Large adjustment: Press and hold the
switch to change the speed, and
release when the desired speed is
reached.
In the vehicle-to-vehicle distance
control mode, the set speed will be
increased or decreased as follows:
For Europe
Fine adjustment: By 5 km/h (3.1 mph)*1
or 5 mph (8 km/h)*2 each time the
switch is pressed
Large adjustment: Increases or
decreases in 5 km/h (3.1 mph)*1 or 5
mph (8 km/h)*2 increments for as long
as the switch is held
Except for Europe
Fine adjustment: By 1 km/h (0.6 mph)
each time the sw itch is pressed
Large adjustment: Increases or
decreases in 5 km/h (3.1 mph) incre-
ments for as long as the switch is held
In the constant speed control mode
( P.267), the set speed will be
increased or decreased as follows:
Fine adjustment: By 1 km/h (0.6 mph)*1
or 1 mph (1.6 km/h)*2 each time the
switch is pressed
Large adjustment: The speed will con-
tinue to change while the switch is held.
*1: When the set speed is shown in
“km/h”
*2: When the set speed is shown in
“MPH”
Pressing the switch changes the
vehicle-to-vehicle distance as fol-
lows:
1 Long
2 Medium
3 Short
The vehicle-to-vehicle distance is set
automatically to long mode when the
engine switch is turned to ON.
If a vehicle is running ahead of you, the
preceding vehicle mark will also be
displayed.
Changing the vehi-
cle-to-vehicle distance (vehi-
cle-to-vehicle distance
control mode)

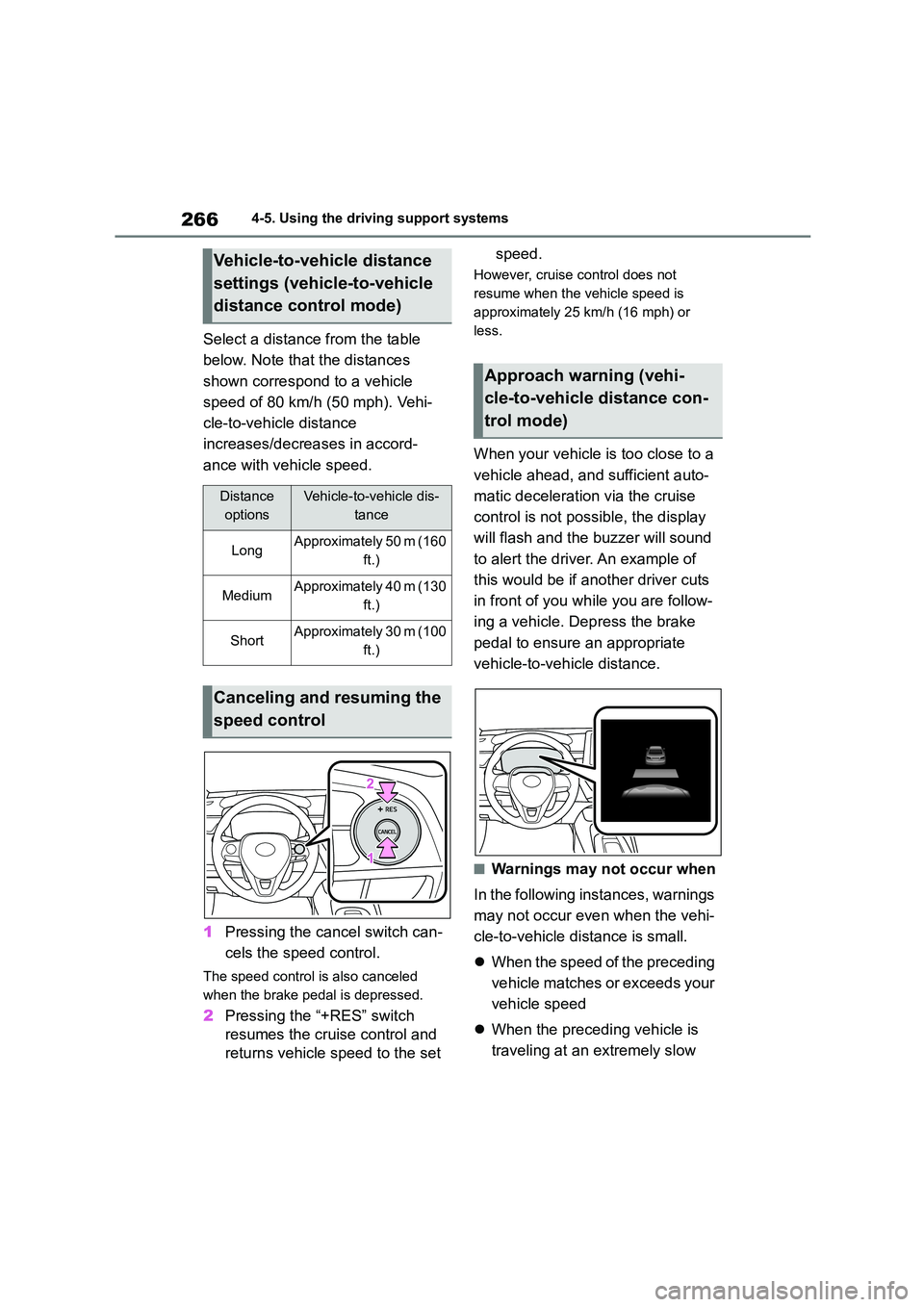

2664-5. Using the driving support systems
Select a distance from the table
below. Note that the distances
shown correspond to a vehicle
speed of 80 km/h (50 mph). Vehi-
cle-to-vehicle distance
increases/decrea ses in accord-
ance with vehicle speed.
1 Pressing the cancel switch can-
cels the speed control.
The speed control is also canceled
when the brake pedal is depressed.
2 Pressing the “+RES” switch
resumes the cruise control and
returns vehicle speed to the set
speed.
However, cruise control does not
resume when the vehicle speed is
approximately 25 km/h (16 mph) or
less.
When your vehicle is too close to a
vehicle ahead, and sufficient auto-
matic deceleration via the cruise
control is not poss ible, the display
will flash and the buzzer will sound
to alert the driver. An example of
this would be if another driver cuts
in front of you wh ile you are follow-
ing a vehicle. Depress the brake
pedal to ensure an appropriate
vehicle-to-vehicle distance.
■Warnings may not occur when
In the following in stances, warnings
may not occur even when the vehi-
cle-to-vehicle distance is small.
 When the speed of the preceding
vehicle matches or exceeds your
vehicle speed
 When the preceding vehicle is
traveling at an extremely slow
Vehicle-to-vehicle distance
settings (vehicle-to-vehicle
distance control mode)
Distance
options
Vehicle-to-vehicle dis-
tance
LongApproximately 50 m (160
ft.)
MediumApproximately 40 m (130
ft.)
ShortApproximately 30 m (100
ft.)
Canceling and resuming the
speed control
Approach warning (vehi-
cle-to-vehicle distance con-
trol mode)

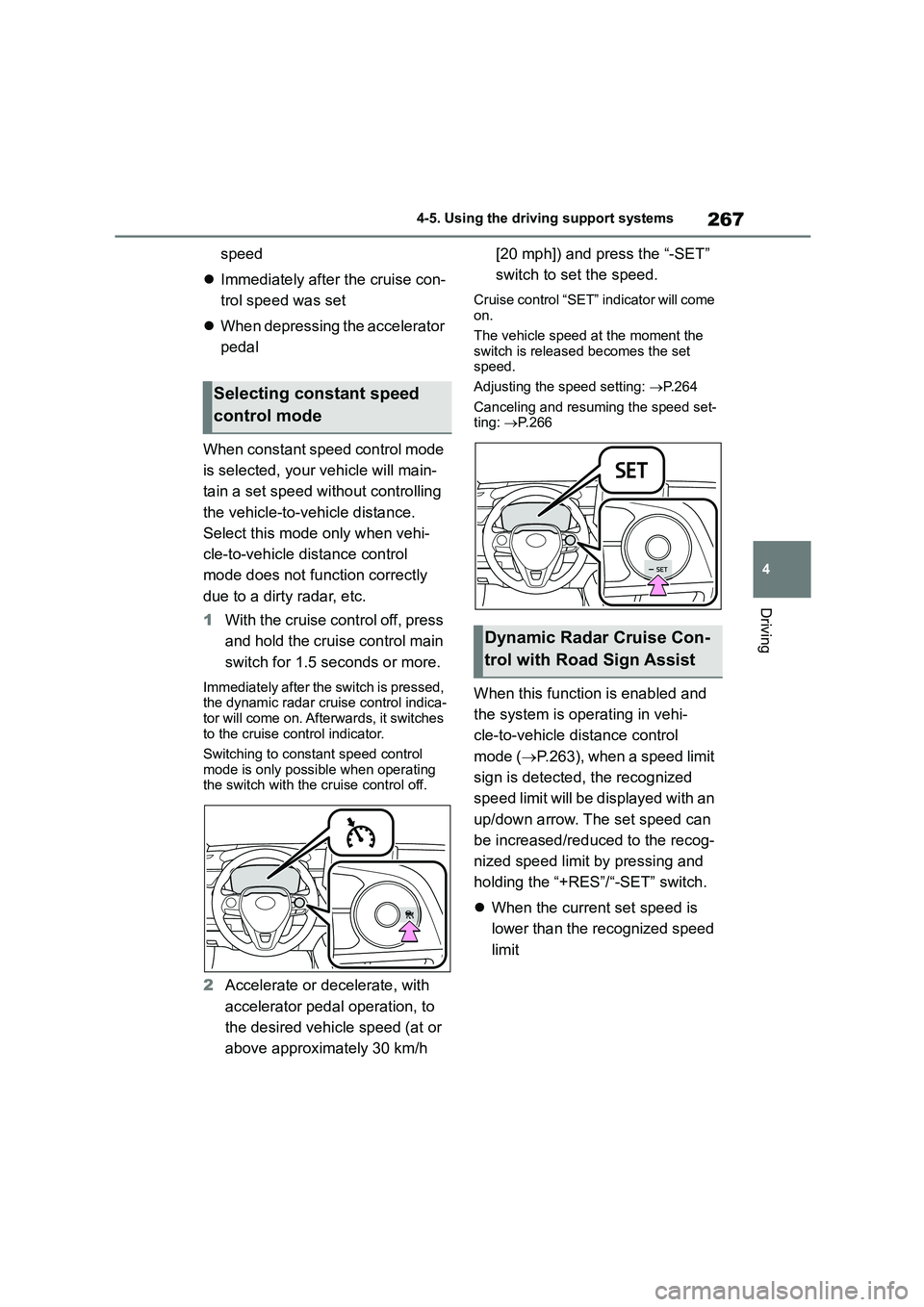

267
4
4-5. Using the driving support systems
Driving
speed
 Immediately after the cruise con-
trol speed was set
 When depressing the accelerator
pedal
When constant speed control mode
is selected, your vehicle will main-
tain a set speed without controlling
the vehicle-to-vehicle distance.
Select this mode only when vehi-
cle-to-vehicle distance control
mode does not function correctly
due to a dirty radar, etc.
1 With the cruise control off, press
and hold the cruise control main
switch for 1.5 seconds or more.
Immediately after the switch is pressed,
the dynamic radar cruise control indica-
tor will come on. Afte rwards, it switches to the cruise control indicator.
Switching to constant speed control
mode is only possible when operating the switch with the cruise control off.
2Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed (at or
above approximately 30 km/h
[20 mph]) and press the “-SET”
switch to set the speed.
Cruise control “SET” indicator will come
on.
The vehicle speed at the moment the
switch is released becomes the set
speed.
Adjusting the speed setting: P. 2 6 4
Canceling and resuming the speed set-
ting: P.266
When this function is enabled and
the system is operating in vehi-
cle-to-vehicle distance control
mode ( P.263), when a speed limit
sign is detected, the recognized
speed limit will be displayed with an
up/down arrow. The set speed can
be increased/reduced to the recog-
nized speed limit by pressing and
holding the “+RES”/“-SET” switch.
 When the current set speed is
lower than the recognized speed
limit
Selecting constant speed
control mode
Dynamic Radar Cruise Con-
trol with Road Sign Assist

2684-5. Using the driving support systems
Press and hold the “+RES” switch.
 When the current set speed is
higher than the recognized
speed limit
Press and hold the “-SET” switch.
Dynamic Radar Cruise Control with
Road Sign Assist can be ena-
bled/disabled in on the
multi-information display. ( P. 9 9 )
■Dynamic radar cruise control can be set when
●The shift lever is in range 2nd or higher.
●Depending on the control mode, this
item can be set at the following speeds.
• Vehicle-to-vehicle distance control
mode: Approximately 30 km/h (20
mph) or more • Constant speed control mode:
Approximately 30 km/h (20 mph) or
more
■Accelerating after setting the vehi- cle speed
The vehicle can accelerate by operating
the accelerator pedal. After accelerat- ing, the set speed resumes. However,
during vehicle-to-vehicle distance con-
trol mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding
vehicle.
■Shift position selection
Select a shift positi on according to the
vehicle speed. If the engine speed is too
high or too low, control may be automat- ically canceled.
■Automatic cancelation of vehi-
cle-to-vehicle distance control
mode
Vehicle-to-vehicle distance control mode
is automatically canceled in the follow-
ing situations.
●Actual vehicle speed falls below
approximately 25 km/h (16 mph).
●VSC is activated.
●TRC is activated for a period of time.
●When the VSC or TRC system is turned off.
●The sensor cannot detect correctly because it is covered in some way.
●Pre-collision braking is activated.
●When the shift lever is in N or the
clutch pedal is depressed for a certain amount of time or more.
If vehicle-to-vehicle distance control
mode is automatically canceled for any
reasons other than the above, there may be a malfunction in the system.
Contact any authorized Toyota retailer
or Toyota authorized repairer, or any reli- able repairer.
Enabling/Disabling the
Dynamic Radar Cruise Con-
trol with Road Sign Assist

269
4
4-5. Using the driving support systems
Driving
■Automatic cancelation of constant
speed control mode
Constant speed control mode is auto-
matically canceled in the following situa-
tions:
●Actual vehicle speed is more than
approximately 16 km/h (10 mph) below the set vehicle speed.
●Actual vehicle speed falls below approximately 30 km/h (20 mph).
●VSC is activated.
●TRC is activated for a period of time.
●When the VSC or TRC system is
turned off.
●Pre-collision braking is activated.
●When the shift lever is in N or the clutch pedal is depressed for a certain
amount of time or more.
If constant speed control mode is auto- matically canceled for any reasons other
than the above, there may be a malfunc-
tion in the system. Contact any author- ized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
■The Dynamic Radar Cruise Control
with Road Sign Assist may not operate properly when
As the Dynamic Radar Cruise Control
with Road Sign Assist may not operate properly in conditions in which RSA may
not operate or detect correctly
( P.279), when using this function, make sure to check the speed limit sign
displayed.
In the following situations, the set speed may not be changed to the recognized
speed limit by pressing and holding the
“+RES”/“-SET” switch.
●If speed limit information is not availa-
ble
●When the recognized speed limit is
the same as the set speed
●When the recognized speed limit is
outside of the speed range that the
dynamic radar cruise control system can operate
■Brake operation
A brake operation sound may be heard and the brake pedal response may
change, but these are not malfunctions.
■Warning messages and buzzers for
dynamic radar cruise control
Warning messages and buzzers are
used to indicate a system malfunction or
to inform the driver of the need for cau- tion while driving. If a warning message
is shown on the multi-information dis-
play, read the message and follow the instructions. ( P.222, 520)
■When the sensor may not be cor-
rectly detecting the vehicle ahead
In the case of the following and depend- ing on the conditions, operate the brake
pedal when deceleration of the system
is insufficient or operate the accelerator pedal when acceleration is required.
As the sensor may not be able to cor-
rectly detect these types of vehicles, the approach warning ( P.266) may not be
activated.
●Vehicles that cut in suddenly
●Vehicles traveling at low speeds
●Vehicles that are not moving in the
same lane
●Vehicles with small rear ends (trailers
with no load on board, etc.)
●Motorcycles traveling in the same lane
●When water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor
●When your vehicle is pointing
upwards (caused by a heavy load in
the luggage compartment, etc.)

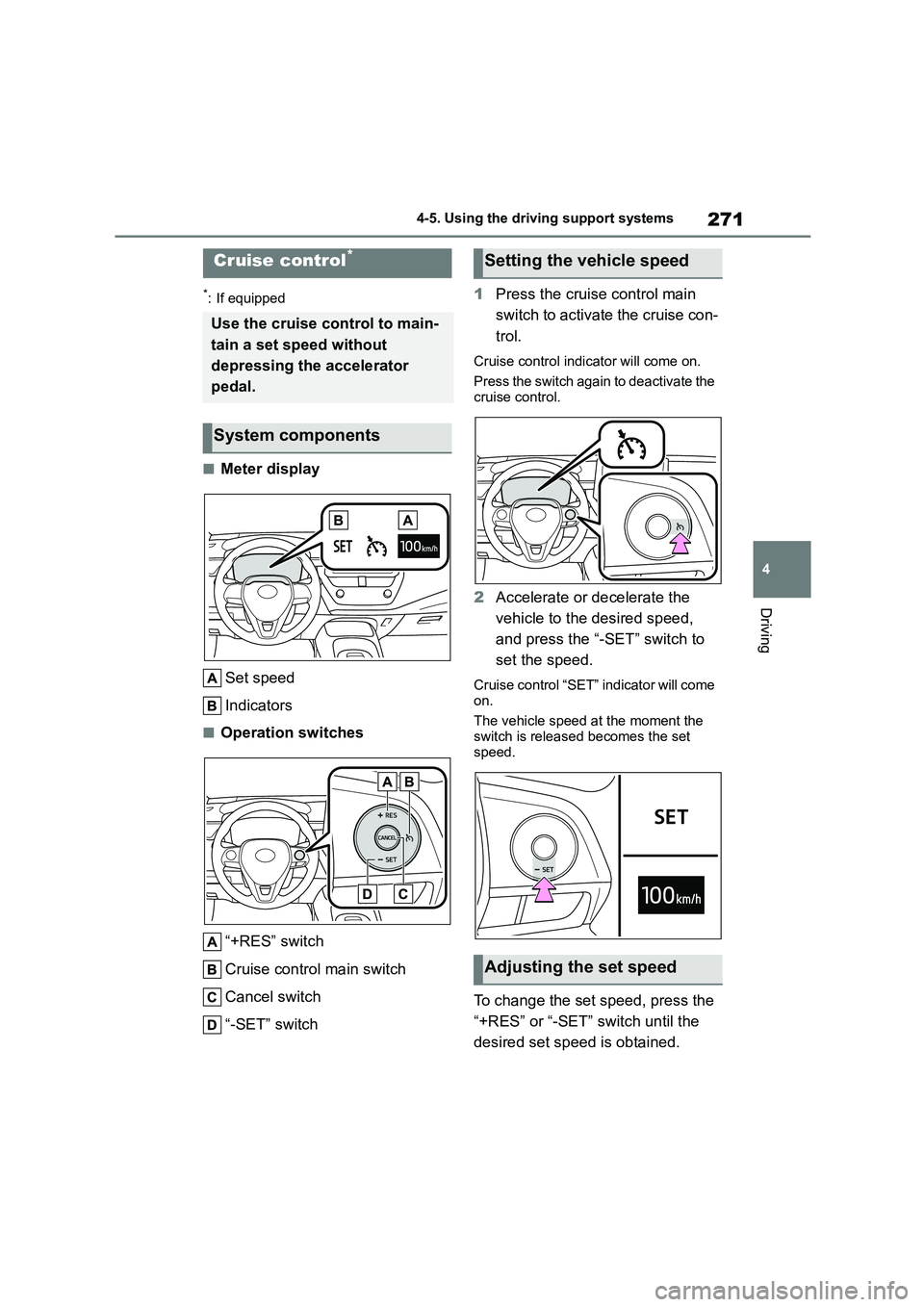

271
4
4-5. Using the driving support systems
Driving
*: If equipped
■Meter display
Set speed
Indicators
■Operation switches
“+RES” switch
Cruise control main switch
Cancel switch
“-SET” switch
1 Press the cruise control main
switch to activate the cruise con-
trol.
Cruise control indicator will come on.
Press the switch again to deactivate the
cruise control.
2 Accelerate or decelerate the
vehicle to the desired speed,
and press the “-SET” switch to
set the speed.
Cruise control “SET” indicator will come
on.
The vehicle speed at the moment the
switch is released becomes the set
speed.
To change the set speed, press the
“+RES” or “-SET” switch until the
desired set speed is obtained.
Cruise control*
Use the cruise control to main-
tain a set speed without
depressing the accelerator
pedal.
System components
Setting the vehicle speed
Adjusting the set speed

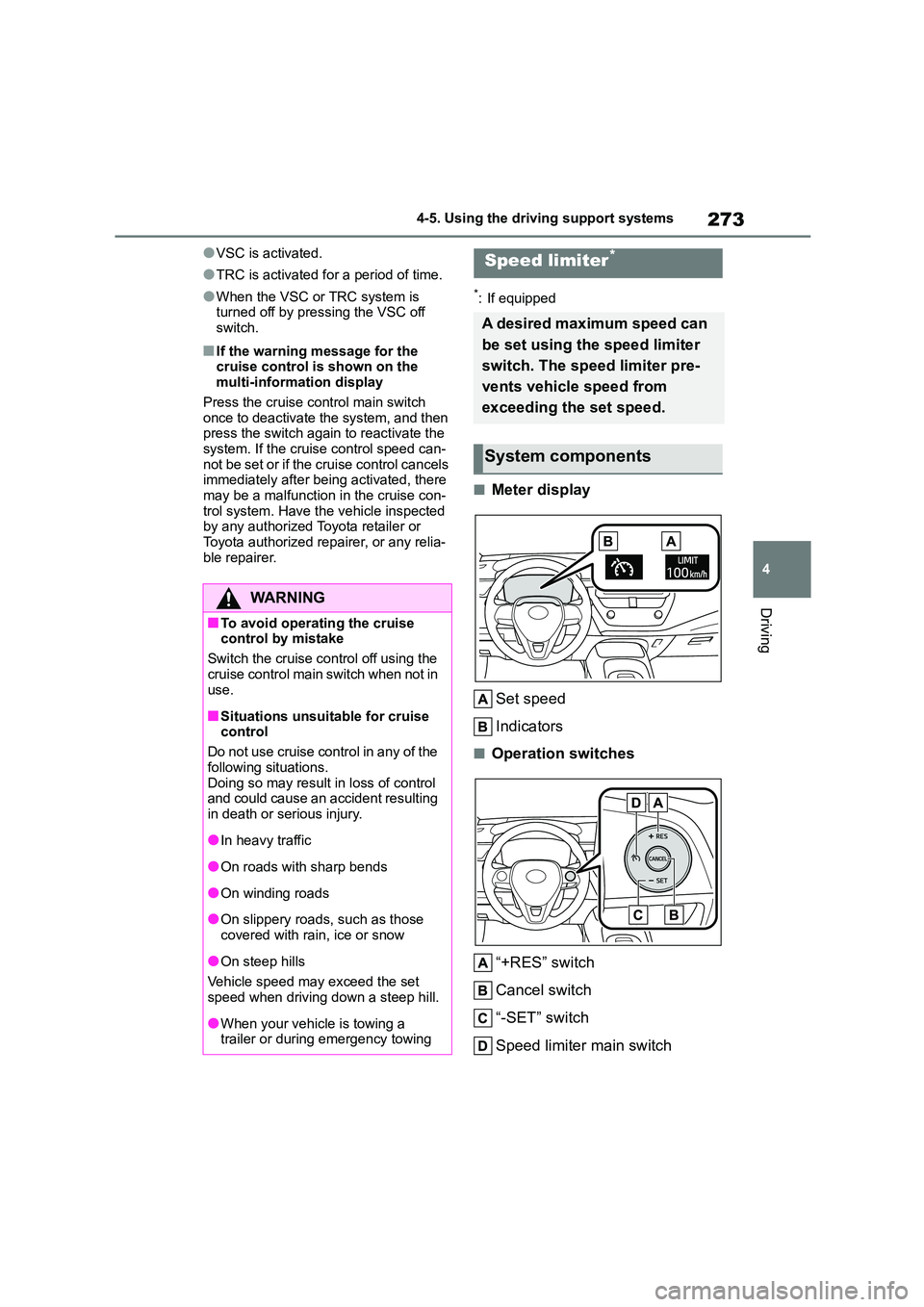

273
4
4-5. Using the driving support systems
Driving
●VSC is activated.
●TRC is activated for a period of time.
●When the VSC or TRC system is turned off by pressing the VSC off
switch.
■If the warning message for the
cruise control is shown on the multi-information display
Press the cruise control main switch
once to deactivate the system, and then press the switch again to reactivate the
system. If the cruise control speed can-
not be set or if the cruise control cancels immediately after being activated, there
may be a malfunction in the cruise con-
trol system. Have t he vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any relia-
ble repairer.
*: If equipped
■Meter display
Set speed
Indicators
■Operation switches
“+RES” switch
Cancel switch
“-SET” switch
Speed limiter main switch
WA R N I N G
■To avoid operating the cruise control by mistake
Switch the cruise control off using the
cruise control main switch when not in use.
■Situations unsuitable for cruise control
Do not use cruise control in any of the
following situations. Doing so may result in loss of control
and could cause an accident resulting
in death or serious injury.
●In heavy traffic
●On roads with sharp bends
●On winding roads
●On slippery roads, such as those
covered with rain, ice or snow
●On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
●When your vehicle is towing a trailer or during emergency towing
Speed limiter*
A desired maximum speed can
be set using the speed limiter
switch. The speed limiter pre-
vents vehicle speed from
exceeding the set speed.
System components

2744-5. Using the driving support systems

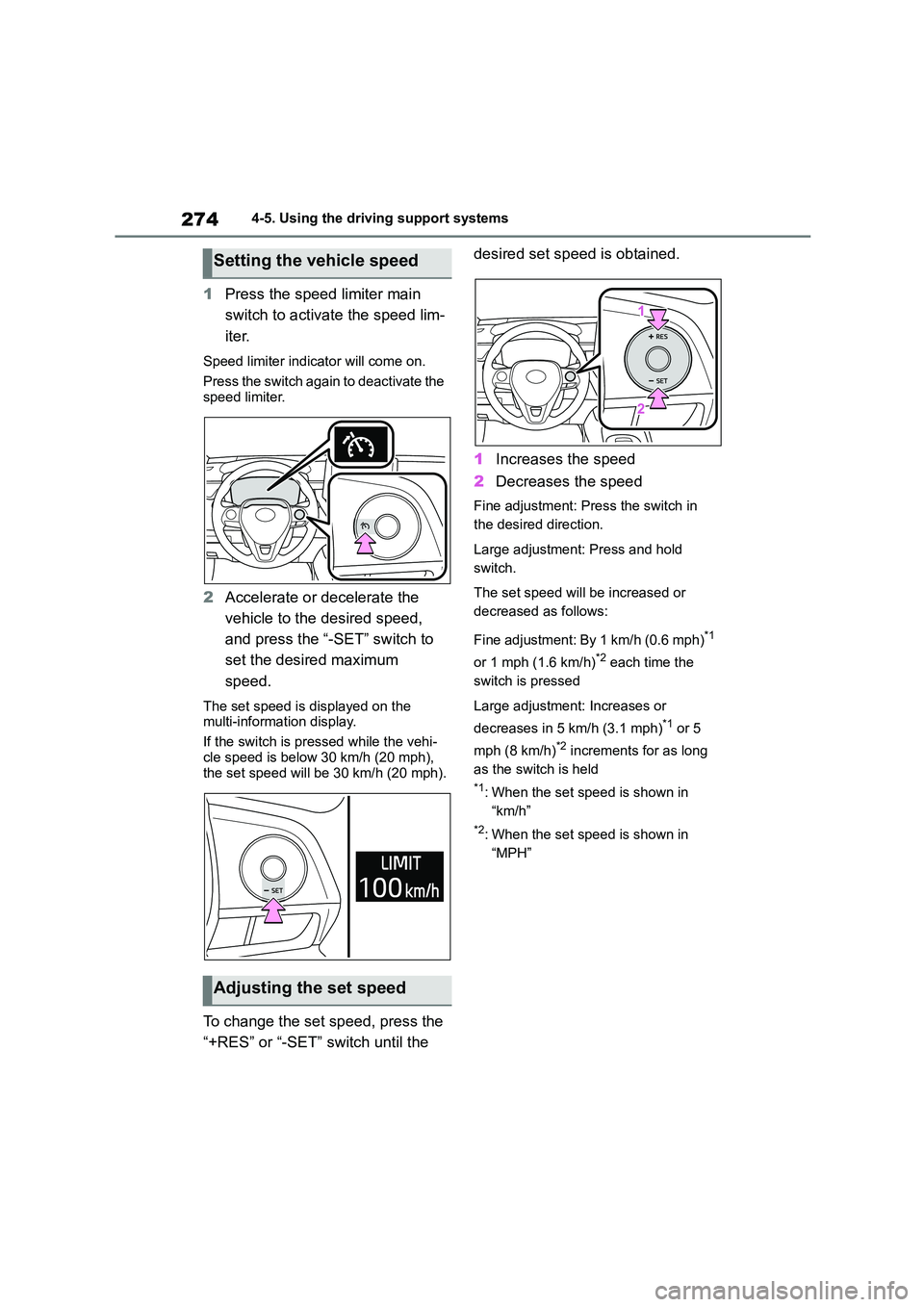

1Press the speed limiter main
switch to activate the speed lim-
iter.
Speed limiter indicator will come on.
Press the switch again to deactivate the
speed limiter.
2 Accelerate or decelerate the
vehicle to the desired speed,
and press the “-SET” switch to
set the desired maximum
speed.
The set speed is displayed on the
multi-information display.
If the switch is pressed while the vehi-
cle speed is below 30 km/h (20 mph),
the set speed will be 30 km/h (20 mph).
To change the set speed, press the
“+RES” or “-SET” switch until the
desired set speed is obtained.
1 Increases the speed
2 Decreases the speed
Fine adjustment: Press the switch in
the desired direction.
Large adjustment: Press and hold
switch.
The set speed will be increased or
decreased as follows:
Fine adjustment: By 1 km/h (0.6 mph)*1
or 1 mph (1.6 km/h)*2 each time the
switch is pressed
Large adjustment: Increases or
decreases in 5 km/h (3.1 mph)*1 or 5
mph (8 km/h)*2 increments for as long
as the switch is held
*1: When the set speed is shown in
“km/h”
*2: When the set speed is shown in
“MPH”
Setting the vehicle speed
Adjusting the set speed

275
4
4-5. Using the driving support systems
Driving

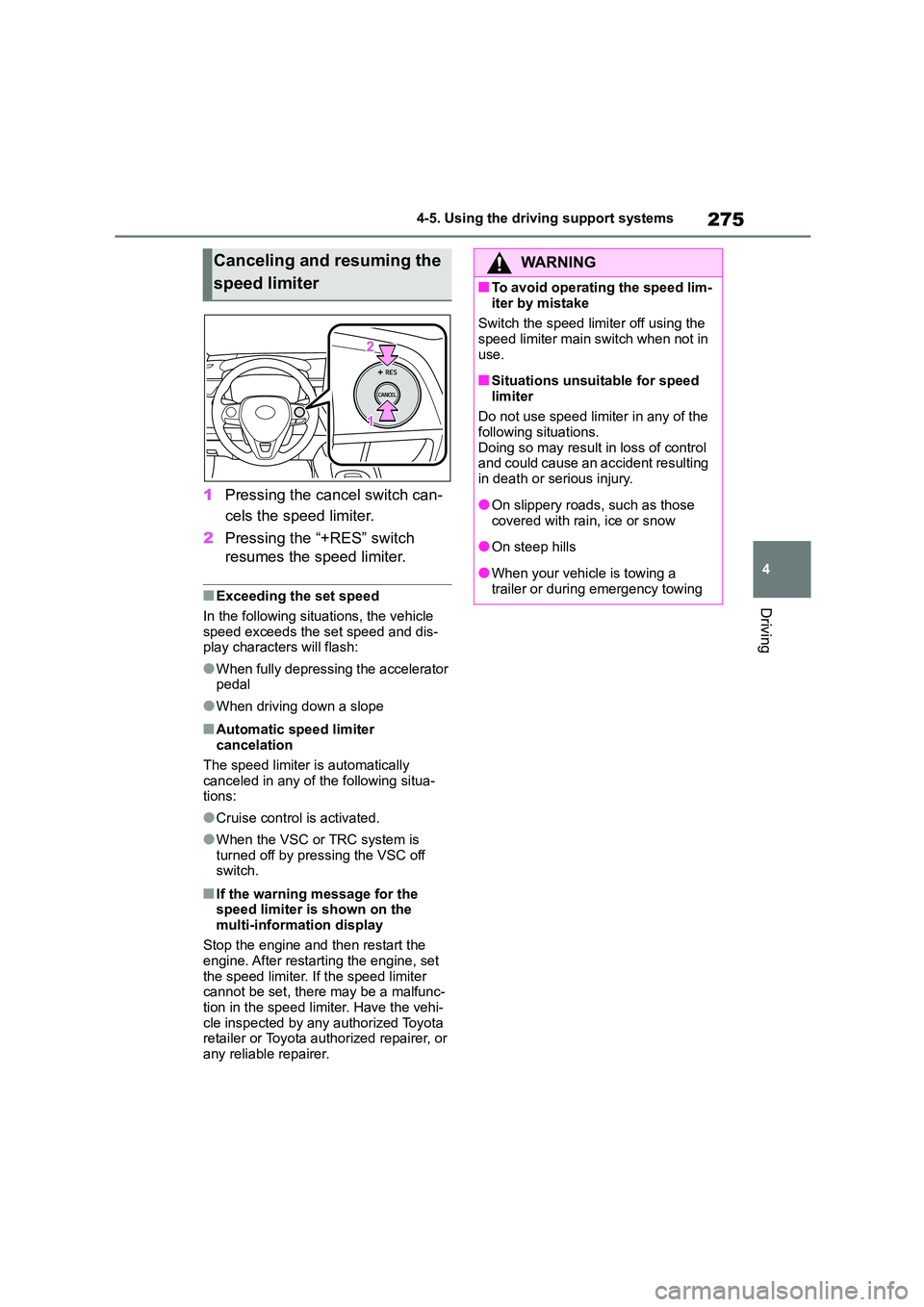

1 Pressing the cancel switch can-
cels the speed limiter.
2 Pressing the “+RES” switch
resumes the speed limiter.
■Exceeding the set speed
In the following situations, the vehicle
speed exceeds the set speed and dis-
play characters will flash:
●When fully depressing the accelerator
pedal
●When driving down a slope
■Automatic speed limiter
cancelation
The speed limiter is automatically
canceled in any of the following situa-
tions:
●Cruise control is activated.
●When the VSC or TRC system is
turned off by pressing the VSC off
switch.
■If the warning message for the speed limiter is shown on the
multi-information display
Stop the engine and then restart the
engine. After restarting the engine, set the speed limiter. If the speed limiter
cannot be set, there may be a malfunc-
tion in the speed limiter. Have the vehi- cle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or
any reliable repairer.
Canceling and resuming the
speed limiter
WA R N I N G
■To avoid operating the speed lim-
iter by mistake
Switch the speed limiter off using the speed limiter main switch when not in
use.
■Situations unsuitable for speed
limiter
Do not use speed limiter in any of the
following situations. Doing so may result in loss of control
and could cause an accident resulting
in death or serious injury.
●On slippery roads, such as those
covered with rain, ice or snow
●On steep hills
●When your vehicle is towing a
trailer or during emergency towing

2764-5. Using the driving support systems
*: If equipped

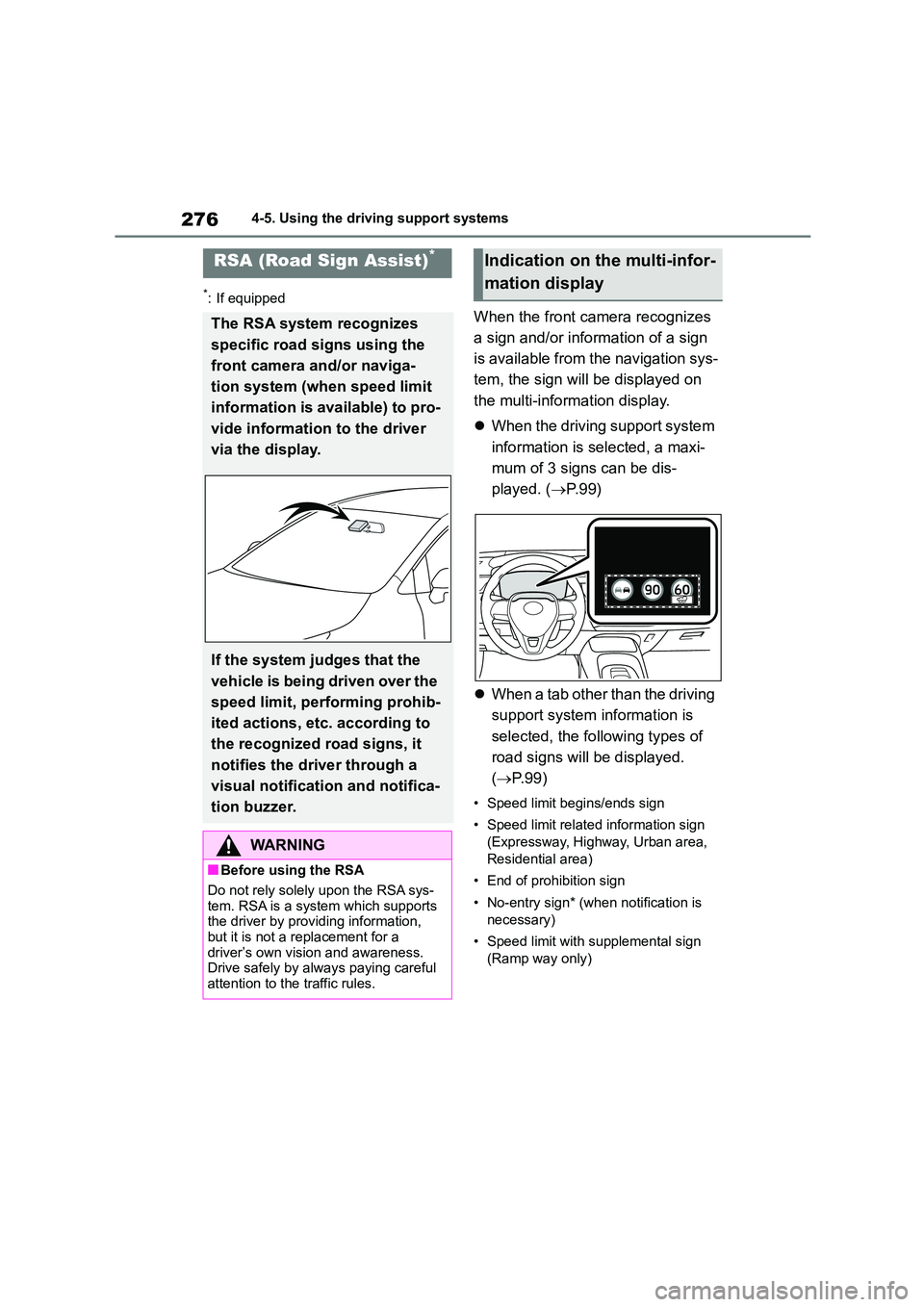

When the front camera recognizes
a sign and/or information of a sign
is available from the navigation sys-
tem, the sign will be displayed on
the multi-information display.
 When the driving support system
information is selected, a maxi-
mum of 3 signs can be dis-
played. ( P. 9 9 )
 When a tab other than the driving
support system information is
selected, the following types of
road signs will be displayed.
( P. 9 9 )
• Speed limit begins/ends sign
• Speed limit related information sign
(Expressway, Highway, Urban area,
Residential area)
• End of prohibition sign
• No-entry sign* (when notification is
necessary)
• Speed limit with supplemental sign
(Ramp way only)
RSA (Road Sign Assist)*
The RSA system recognizes
specific road signs using the
front camera and/or naviga-
tion system (when speed limit
information is available) to pro-
vide information to the driver
via the display.
If the system judges that the
vehicle is being driven over the
speed limit, performing prohib-
ited actions, etc. according to
the recognized road signs, it
notifies the driver through a
visual notification and notifica-
tion buzzer.
WA R N I N G
■Before using the RSA
Do not rely solely upon the RSA sys-
tem. RSA is a system which supports the driver by providing information,
but it is not a replacement for a
driver’s own vision and awareness. Drive safely by always paying careful
attention to the traffic rules.
Indication on the multi-infor-
mation display
