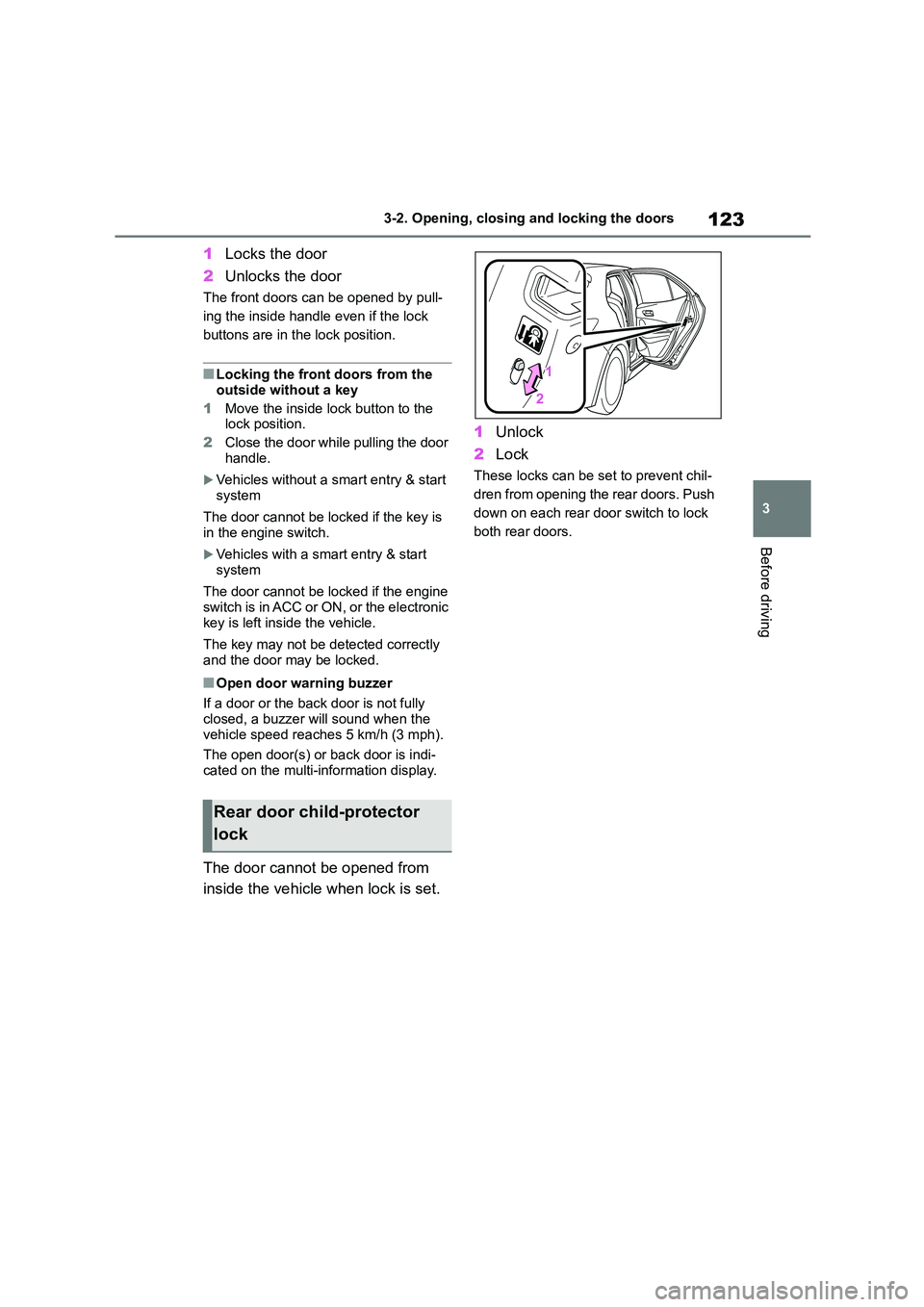

123
3
3-2. Opening, closing and locking the doors
Before driving
1 Locks the door
2 Unlocks the door
The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position.
■Locking the front doors from the
outside without a key
1 Move the inside lock button to the lock position.
2 Close the door while pulling the door
handle.
Vehicles without a smart entry & start
system
The door cannot be locked if the key is
in the engine switch.
Vehicles with a smart entry & start
system
The door cannot be locked if the engine
switch is in ACC or ON, or the electronic
key is left inside the vehicle.
The key may not be detected correctly
and the door may be locked.
■Open door warning buzzer
If a door or the back door is not fully
closed, a buzzer will sound when the
vehicle speed reaches 5 km/h (3 mph).
The open door(s) or back door is indi-
cated on the multi-information display.
The door cannot be opened from
inside the vehicle when lock is set.
1 Unlock
2 Lock
These locks can be set to prevent chil-
dren from opening the rear doors. Push
down on each rear door switch to lock
both rear doors.
Rear door child-protector
lock

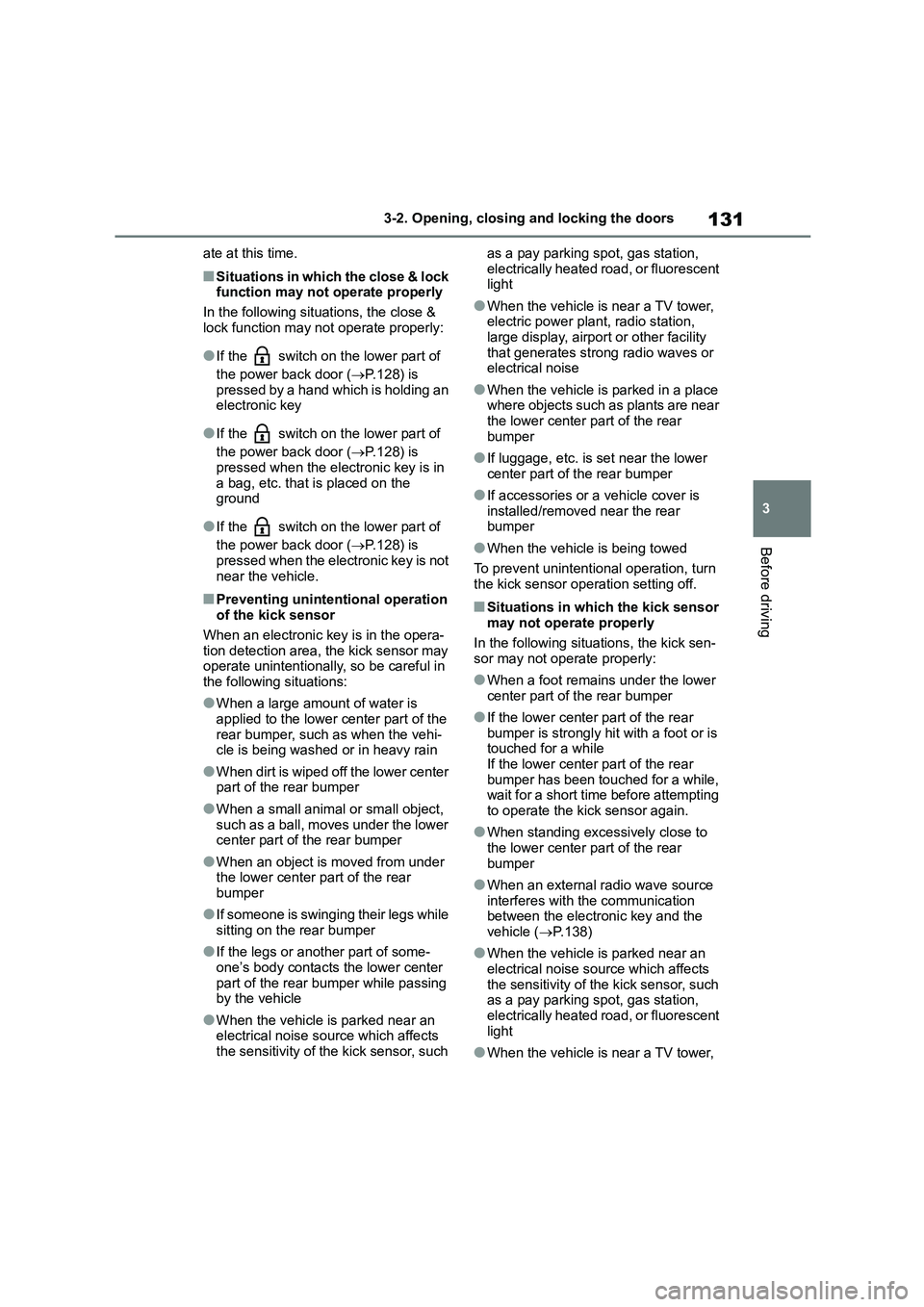

131
3
3-2. Opening, closing and locking the doors
Before driving
ate at this time.
■Situations in which the close & lock
function may not operate properly
In the following situations, the close &
lock function may not operate properly:
●If the switch on the lower part of
the power back door ( P.128) is
pressed by a hand which is holding an electronic key
●If the switch on the lower part of
the power back door ( P.128) is
pressed when the electronic key is in
a bag, etc. that is placed on the ground
●If the switch on the lower part of
the power back door ( P.128) is
pressed when the electronic key is not
near the vehicle.
■Preventing unintentional operation of the kick sensor
When an electronic key is in the opera-
tion detection area, the kick sensor may operate unintentionally, so be careful in
the following situations:
●When a large amount of water is
applied to the lower center part of the
rear bumper, such as when the vehi- cle is being washed or in heavy rain
●When dirt is wiped off the lower center part of the rear bumper
●When a small animal or small object,
such as a ball, moves under the lower center part of the rear bumper
●When an object is moved from under the lower center part of the rear
bumper
●If someone is swinging their legs while
sitting on the rear bumper
●If the legs or another part of some-
one’s body contacts the lower center
part of the rear bumper while passing by the vehicle
●When the vehicle is parked near an electrical noise source which affects
the sensitivity of the kick sensor, such
as a pay parking spot, gas station,
electrically heated road, or fluorescent light
●When the vehicle is near a TV tower, electric power plant, radio station,
large display, airport or other facility
that generates strong radio waves or electrical noise
●When the vehicle is parked in a place where objects such as plants are near
the lower center part of the rear
bumper
●If luggage, etc. is set near the lower
center part of the rear bumper
●If accessories or a vehicle cover is
installed/removed near the rear bumper
●When the vehicle is being towed
To prevent unintentional operation, turn
the kick sensor operation setting off.
■Situations in which the kick sensor
may not operate properly
In the following situations, the kick sen-
sor may not operate properly:
●When a foot remains under the lower
center part of the rear bumper
●If the lower center part of the rear
bumper is strongly hit with a foot or is
touched for a while If the lower center part of the rear
bumper has been touched for a while,
wait for a short time before attempting to operate the kick sensor again.
●When standing exce ssively close to the lower center part of the rear
bumper
●When an external radio wave source
interferes with the communication
between the electronic key and the
vehicle ( P.138)
●When the vehicle is parked near an
electrical noise source which affects the sensitivity of the kick sensor, such
as a pay parking spot, gas station,
electrically heated road, or fluorescent light
●When the vehicle is near a TV tower,

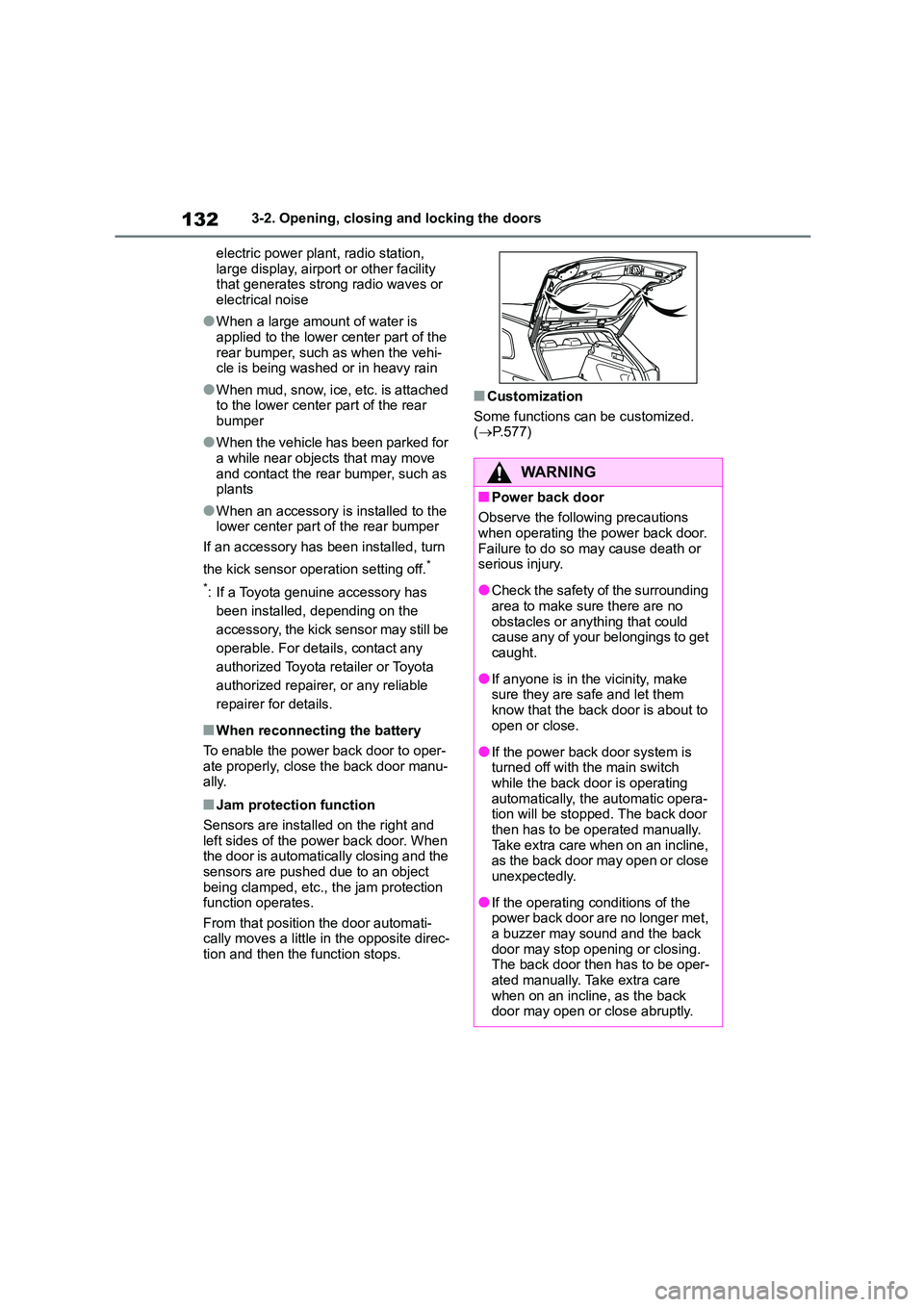

1323-2. Opening, closing and locking the doors
electric power plant, radio station,
large display, airport or other facility that generates strong radio waves or
electrical noise
●When a large amount of water is
applied to the lower center part of the
rear bumper, such as when the vehi- cle is being washed or in heavy rain
●When mud, snow, ice, etc. is attached to the lower center part of the rear
bumper
●When the vehicle has been parked for
a while near objects that may move
and contact the rear bumper, such as plants
●When an accessory is installed to the lower center part of the rear bumper
If an accessory has been installed, turn
the kick sensor operation setting off.*
*: If a Toyota genuine accessory has
been installed, depending on the
accessory, the kick sensor may still be
operable. For details, contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer for details.
■When reconnecting the battery
To enable the power back door to oper-
ate properly, close the back door manu- ally.
■Jam protection function
Sensors are installed on the right and
left sides of the power back door. When the door is automatically closing and the
sensors are pushed due to an object
being clamped, etc., the jam protection function operates.
From that position the door automati-
cally moves a little in the opposite direc-
tion and then the function stops.
■Customization
Some functions can be customized. ( P.577)
WA R N I N G
■Power back door
Observe the following precautions
when operating the power back door. Failure to do so may cause death or
serious injury.
●Check the safety of the surrounding
area to make sure there are no
obstacles or anything that could cause any of your belongings to get
caught.
●If anyone is in the vicinity, make
sure they are safe and let them
know that the back door is about to open or close.
●If the power back door system is turned off with the main switch
while the back door is operating
automatically, the automatic opera- tion will be stopped. The back door
then has to be operated manually.
Take extra care when on an incline, as the back door may open or close
unexpectedly.
●If the operating conditions of the
power back door are no longer met,
a buzzer may sound and the back door may stop opening or closing.
The back door then has to be oper-
ated manually. Take extra care when on an incline, as the back
door may open or close abruptly.

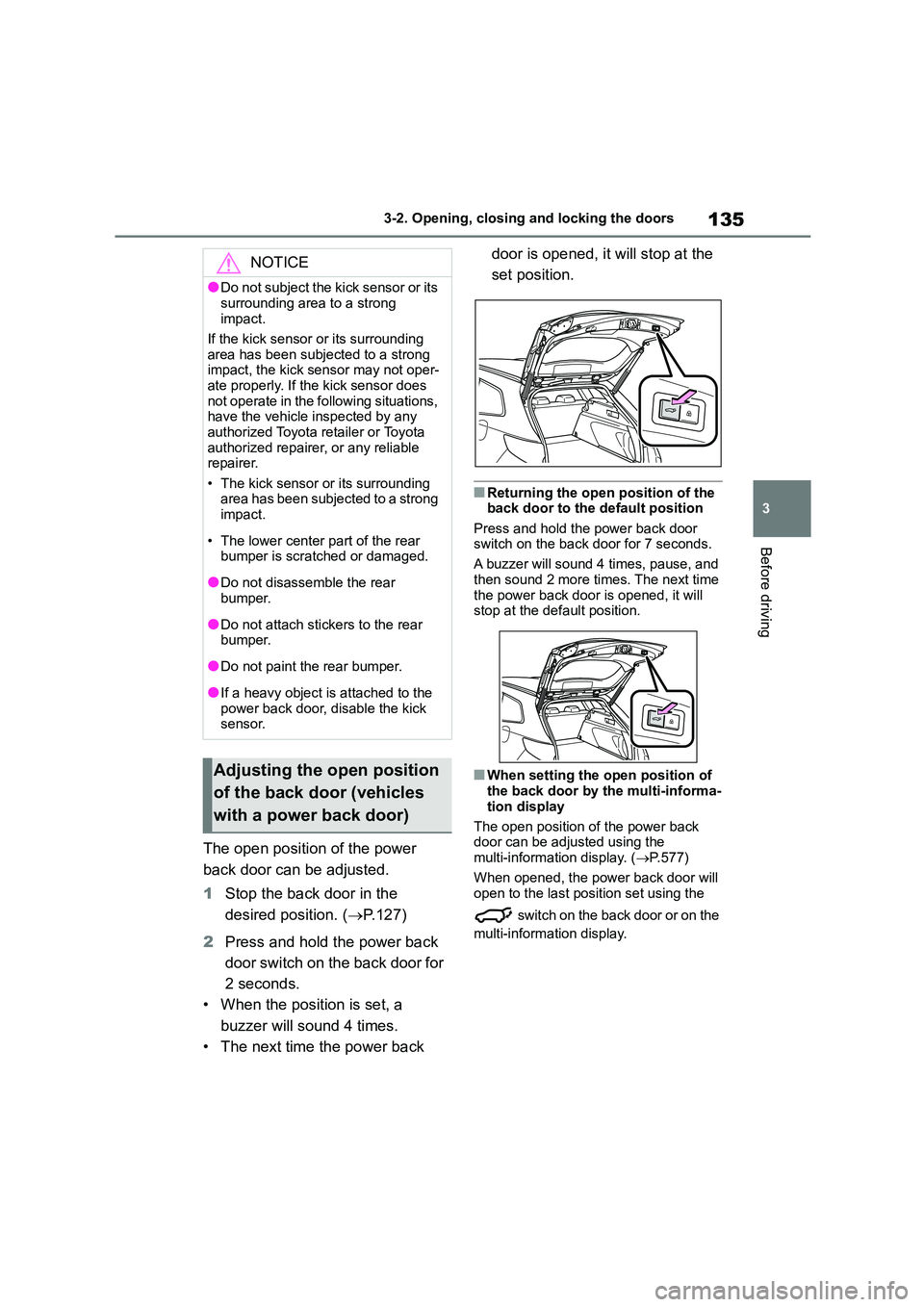

135
3
3-2. Opening, closing and locking the doors
Before driving
The open position of the power
back door can be adjusted.
1 Stop the back door in the
desired position. ( P.127)
2 Press and hold the power back
door switch on the back door for
2 seconds.
• When the position is set, a
buzzer will sound 4 times.
• The next time the power back
door is opened, it will stop at the
set position.
■Returning the open position of the
back door to the default position
Press and hold the power back door switch on the back door for 7 seconds.
A buzzer will sound 4 times, pause, and
then sound 2 more times. The next time the power back door is opened, it will
stop at the default position.
■When setting the open position of
the back door by the multi-informa-
tion display
The open position of the power back
door can be adjusted using the
multi-information display. ( P.577)
When opened, the power back door will
open to the last position set using the
switch on the back door or on the
multi-information display.
NOTICE
●Do not subject the kick sensor or its
surrounding area to a strong
impact.
If the kick sensor or its surrounding
area has been subjected to a strong
impact, the kick sensor may not oper- ate properly. If the kick sensor does
not operate in the following situations,
have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
• The kick sensor or its surrounding area has been subjected to a strong
impact.
• The lower center part of the rear
bumper is scratched or damaged.
●Do not disassemble the rear
bumper.
●Do not attach stickers to the rear
bumper.
●Do not paint the rear bumper.
●If a heavy object is attached to the power back door, disable the kick
sensor.
Adjusting the open position
of the back door (vehicles
with a power back door)

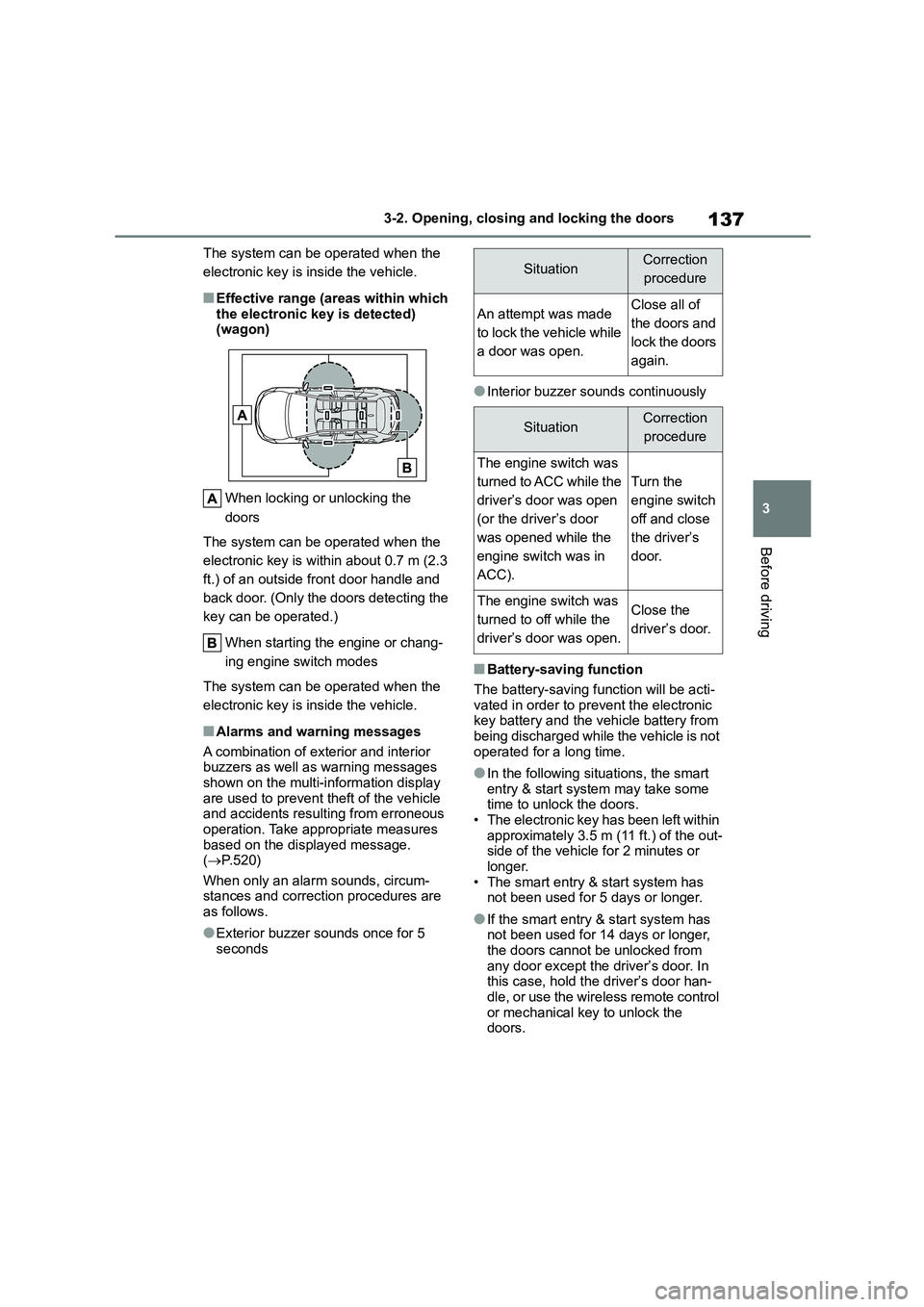

137
3
3-2. Opening, closing and locking the doors
Before driving
The system can be operated when the
electronic key is inside the vehicle.
■Effective range (areas within which
the electronic key is detected)
(wagon)
When locking or unlocking the
doors
The system can be operated when the
electronic key is within about 0.7 m (2.3
ft.) of an outside front door handle and
back door. (Only the doors detecting the
key can be operated.)
When starting the engine or chang-
ing engine switch modes
The system can be operated when the
electronic key is inside the vehicle.
■Alarms and warning messages
A combination of exterior and interior buzzers as well as warning messages
shown on the multi-information display
are used to prevent theft of the vehicle and accidents resulting from erroneous
operation. Take appropriate measures
based on the displayed message. ( P.520)
When only an alarm sounds, circum-
stances and correction procedures are as follows.
●Exterior buzzer sounds once for 5 seconds
●Interior buzzer sounds continuously
■Battery-saving function
The battery-saving function will be acti-
vated in order to prevent the electronic
key battery and the vehicle battery from being discharged while the vehicle is not
operated for a long time.
●In the following situations, the smart
entry & start system may take some
time to unlock the doors. • The electronic key has been left within
approximately 3.5 m (11 ft.) of the out-
side of the vehicle for 2 minutes or longer.
• The smart entry & start system has
not been used for 5 days or longer.
●If the smart entry & start system has
not been used for 14 days or longer,
the doors cannot be unlocked from any door except the driver’s door. In
this case, hold the driver’s door han-
dle, or use the wireless remote control or mechanical key to unlock the
doors.
SituationCorrection
procedure
An attempt was made
to lock the vehicle while
a door was open.
Close all of
the doors and
lock the doors
again.
SituationCorrection
procedure
The engine switch was
turned to ACC while the
driver’s door was open
(or the driver’s door
was opened while the
engine switch was in
ACC).
Turn the
engine switch
off and close
the driver’s
door.
The engine switch was
turned to off while the
driver’s door was open.
Close the
driver’s door.

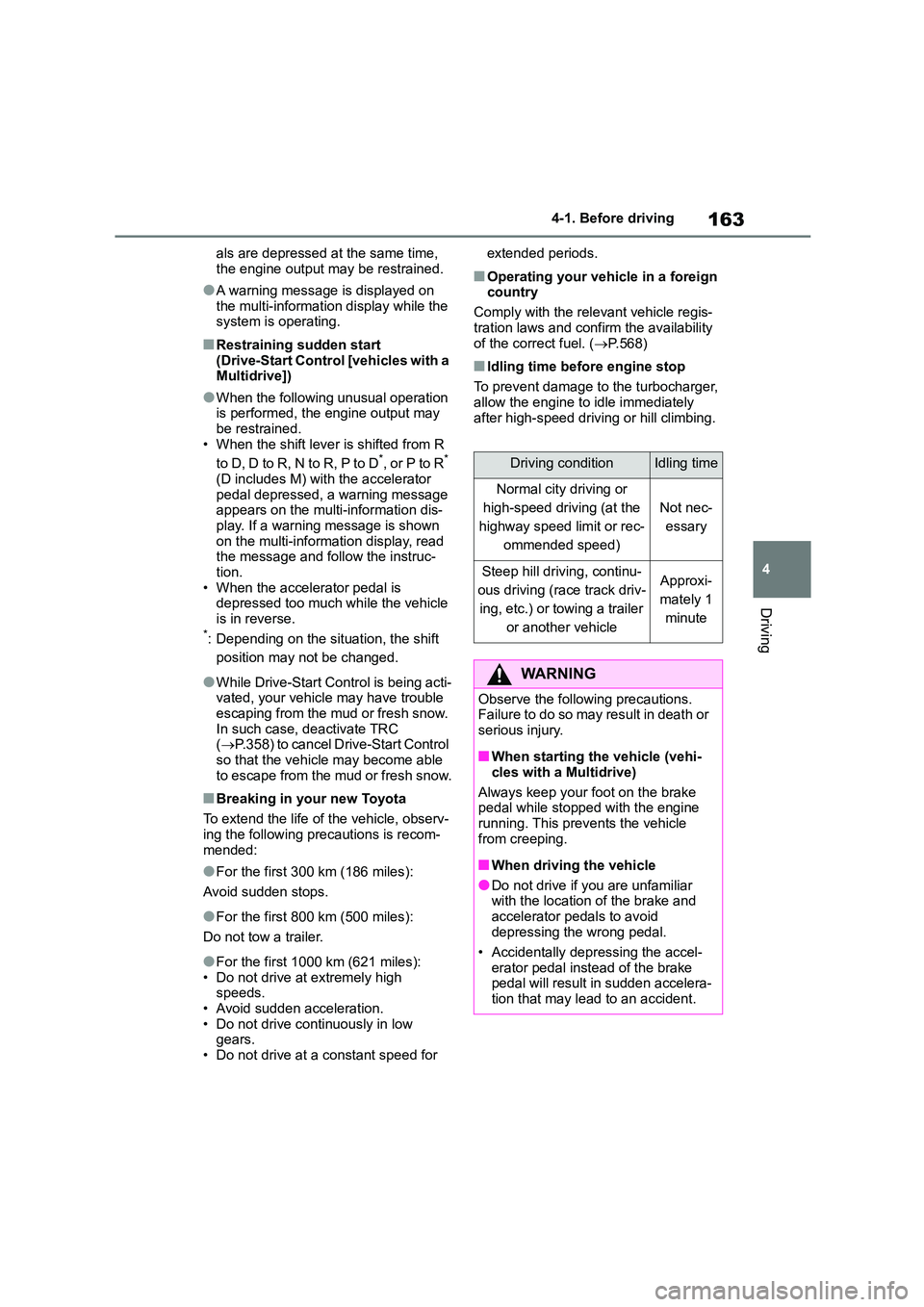

163
4
4-1. Before driving
Driving
als are depressed at the same time,
the engine output may be restrained.
●A warning message is displayed on
the multi-information display while the system is operating.
■Restraining sudden start
(Drive-Start Control [vehicles with a
Multidrive])
●When the following unusual operation
is performed, the engine output may be restrained.
• When the shift lever is shifted from R
to D, D to R, N to R, P to D*, or P to R* (D includes M) with the accelerator
pedal depressed, a warning message
appears on the multi-information dis- play. If a warning message is shown
on the multi-information display, read
the message and follow the instruc- tion.
• When the accelerator pedal is
depressed too much while the vehicle is in reverse.*: Depending on the situation, the shift
position may not be changed.
●While Drive-Start Control is being acti- vated, your vehicle may have trouble
escaping from the mud or fresh snow.
In such case, deactivate TRC ( P.358) to cancel Drive-Start Control
so that the vehicle may become able
to escape from the mud or fresh snow.
■Breaking in your new Toyota
To extend the life of the vehicle, observ-
ing the following precautions is recom-
mended:
●For the first 300 km (186 miles):
Avoid sudden stops.
●For the first 800 km (500 miles):
Do not tow a trailer.
●For the first 1000 km (621 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for
extended periods.
■Operating your vehicle in a foreign
country
Comply with the relevant vehicle regis-
tration laws and confirm the availability
of the correct fuel. ( P.568)
■Idling time before engine stop
To prevent damage to the turbocharger,
allow the engine to idle immediately
after high-speed driving or hill climbing.
Driving conditionIdling time
Normal city driving or
high-speed driving (at the
highway speed limit or rec-
ommended speed)
Not nec-
essary
Steep hill driving, continu-
ous driving (race track driv-
ing, etc.) or towing a trailer
or another vehicle
Approxi-
mately 1
minute
WA R N I N G
Observe the following precautions.
Failure to do so may result in death or
serious injury.
■When starting the vehicle (vehi-
cles with a Multidrive)
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle from creeping.
■When driving the vehicle
●Do not drive if you are unfamiliar
with the location of the brake and
accelerator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accel-
erator pedal instead of the brake pedal will result in sudden accelera-
tion that may lead to an accident.

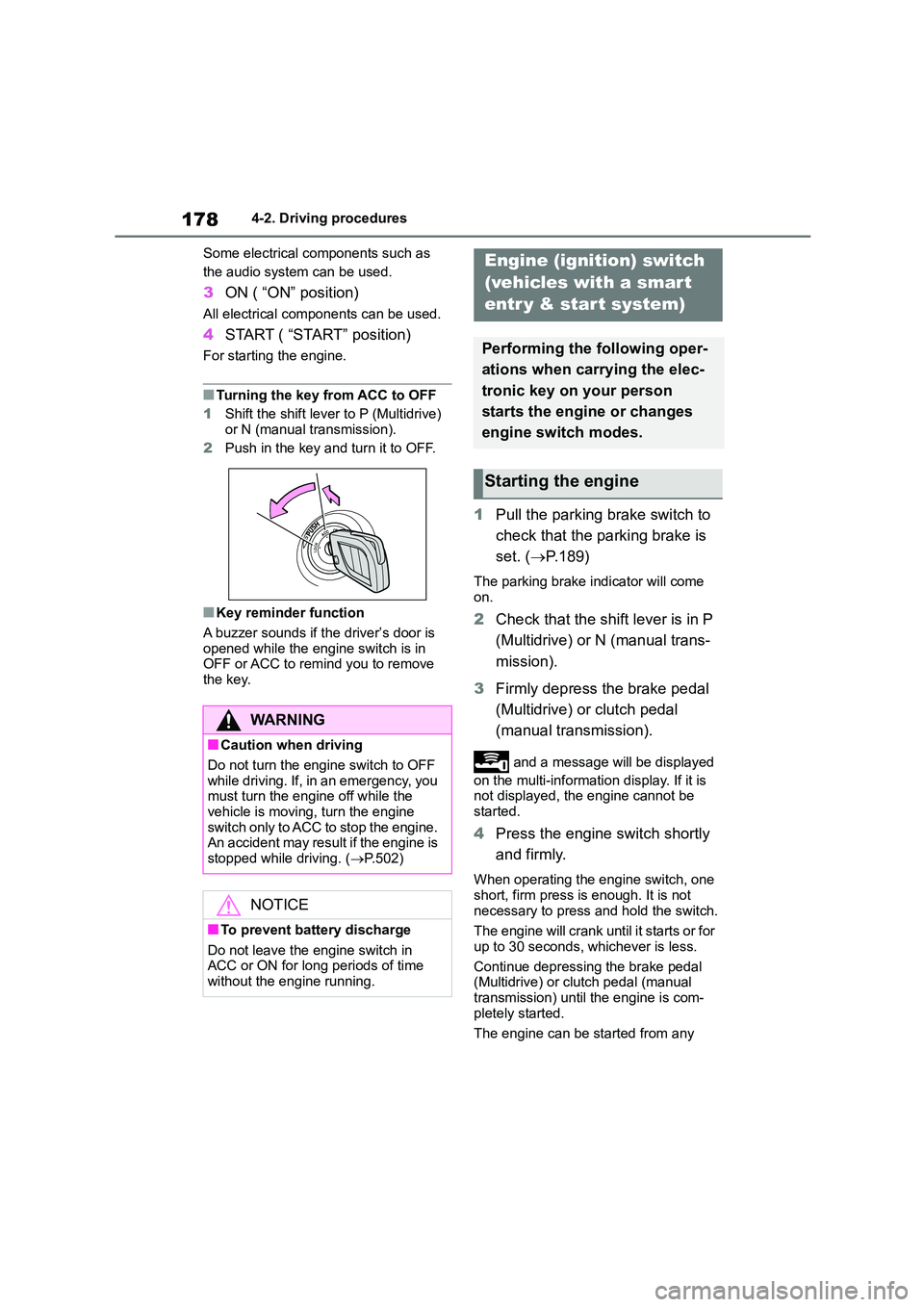

1784-2. Driving procedures
Some electrical components such as
the audio system can be used.
3 ON ( “ON” position)
All electrical components can be used.
4START ( “START” position)
For starting the engine.
■Turning the key from ACC to OFF
1 Shift the shift lever to P (Multidrive)
or N (manual transmission).
2 Push in the key and turn it to OFF.
■Key reminder function
A buzzer sounds if the driver’s door is opened while the engine switch is in
OFF or ACC to remind you to remove
the key.
1 Pull the parking brake switch to
check that the parking brake is
set. ( P.189)
The parking brake indicator will come
on.
2 Check that the shift lever is in P
(Multidrive) or N (manual trans-
mission).
3 Firmly depress the brake pedal
(Multidrive) or clutch pedal
(manual transmission).
and a message will be displayed
on the multi-information display. If it is
not displayed, the engine cannot be
started.
4 Press the engine switch shortly
and firmly.
When operating the engine switch, one
short, firm press is enough. It is not
necessary to press and hold the switch.
The engine will crank until it starts or for
up to 30 seconds, whichever is less.
Continue depressing the brake pedal (Multidrive) or clutch pedal (manual
transmission) until the engine is com-
pletely started.
The engine can be started from any
WA R N I N G
■Caution when driving
Do not turn the engine switch to OFF
while driving. If, in an emergency, you
must turn the engine off while the vehicle is moving, turn the engine
switch only to ACC to stop the engine.
An accident may result if the engine is stopped while driving. ( P.502)
NOTICE
■To prevent battery discharge
Do not leave the engine switch in ACC or ON for long periods of time
without the engine running.
Engine (ignition) switch
(vehicles with a smar t
entr y & star t system)
Performing the following oper-
ations when carrying the elec-
tronic key on your person
starts the engine or changes
engine switch modes.
Starting the engine

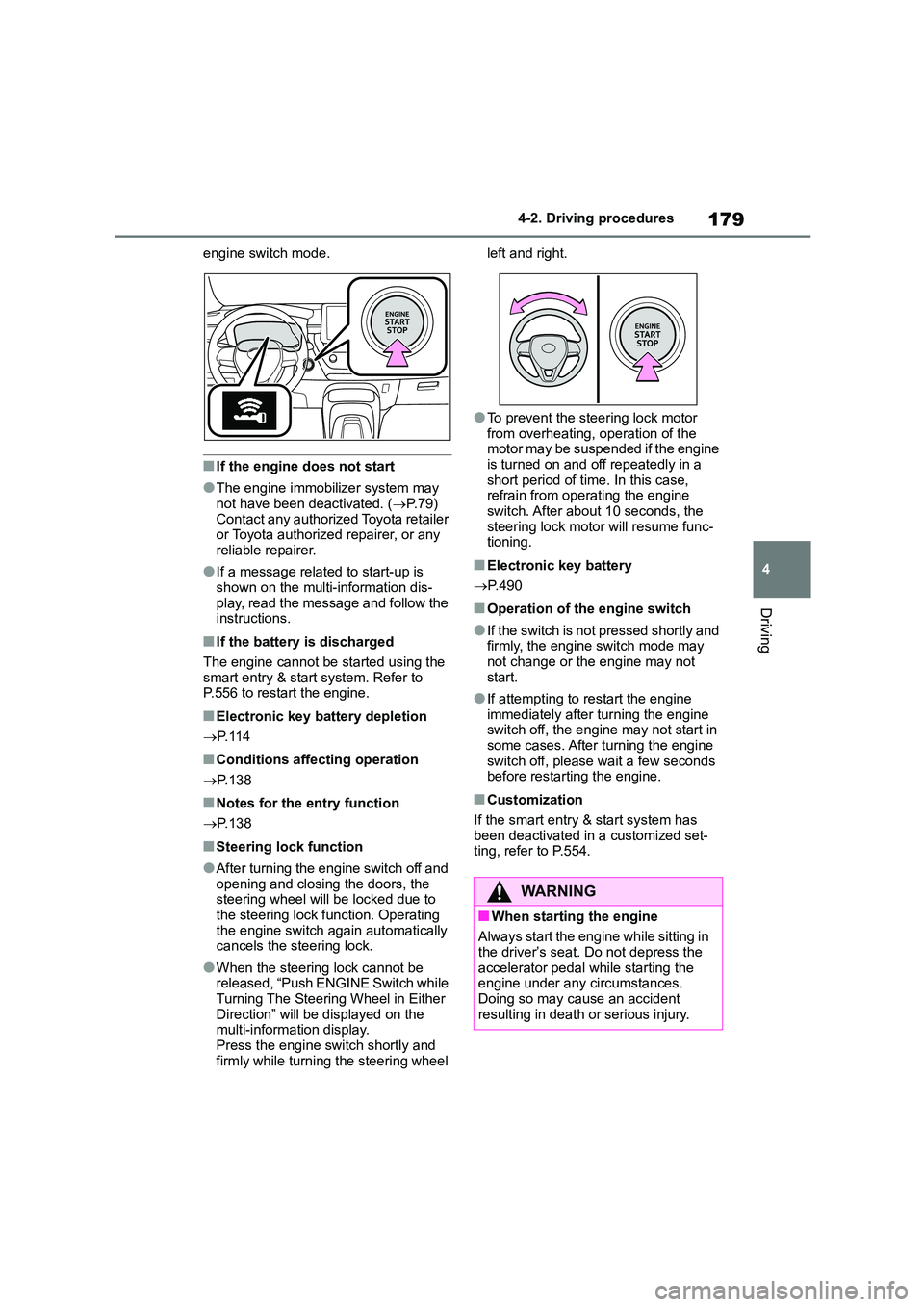

179
4
4-2. Driving procedures
Driving
engine switch mode.
■If the engine does not start
●The engine immobilizer system may
not have been deactivated. ( P.79)
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●If a message related to start-up is
shown on the multi-information dis-
play, read the message and follow the instructions.
■If the battery is discharged
The engine cannot be started using the
smart entry & start system. Refer to P.556 to restart the engine.
■Electronic key battery depletion
 P. 1 1 4
■Conditions affecting operation
 P.138
■Notes for the entry function
 P.138
■Steering lock function
●After turning the engine switch off and opening and closing the doors, the
steering wheel will be locked due to
the steering lock function. Operating
the engine switch again automatically cancels the steering lock.
●When the steering lock cannot be released, “Push ENGINE Switch while
Turning The Steering Wheel in Either
Direction” will be displayed on the multi-information display.
Press the engine switch shortly and
firmly while turning the steering wheel
left and right.
●To prevent the steering lock motor
from overheating, operation of the
motor may be suspended if the engine is turned on and off repeatedly in a
short period of time. In this case,
refrain from operating the engine switch. After about 10 seconds, the
steering lock motor will resume func-
tioning.
■Electronic key battery
 P. 4 9 0
■Operation of the engine switch
●If the switch is not pressed shortly and firmly, the engine switch mode may
not change or the engine may not
start.
●If attempting to restart the engine
immediately after turning the engine switch off, the engine may not start in
some cases. After turning the engine
switch off, please wait a few seconds before restarting the engine.
■Customization
If the smart entry & start system has
been deactivated in a customized set- ting, refer to P.554.
WA R N I N G
■When starting the engine
Always start the engine while sitting in
the driver’s seat. Do not depress the accelerator pedal while starting the
engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.

1804-2. Driving procedures
Multidrive
1 Stop the vehicle completely.
2 Set the parking brake (P.189),
and shift the shift lever to P.
Check the parking brake indicator is
illuminated.
3 Press the engine switch.
The engine will stop, and the meter dis-
play will be extinguished.
4 Release the brake pedal and
check that “ACCESSORY” or
“IGNITION ON” is not shown on
the multi-information display.
Manual transmission
1 Stop the vehicle completely.
2 If the parking brake is in manual
mode, set the parking brake.
( P.189)
Check the parking brake indicator is illuminated.
3 Shift the shift lever to N.
( P.186)
4 Press the engine switch.
The engine will stop, and the meter dis-
play will be extinguished.
5 Release the brake pedal and
check that “ACCESSORY” or
“IGNITION ON” is not shown on
the multi-information display.
WA R N I N G
■Caution while driving
If engine failure occurs while the vehi-
cle is moving, do not lock or open the doors until the vehicle reaches a safe
and complete stop. Activation of the
steering lock in this circumstance may lead to an accident, resulting in death
or serious injury.
NOTICE
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to
start or stalls frequently, have your vehicle checked by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.
■Symptoms indicating a malfunc-tion with the engine switch
If the engine switch seems to be oper-
ating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact
any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer immediately.
Stopping the engine
WA R N I N G
■Stopping the engine in an emer-gency
●If you want to stop the engine in an
emergency while driving the vehi- cle, press and hold the engine
switch for more than 2 seconds, or
press it briefly 3 times or more in succession. (P.502)
However, do not touch the engine
switch while driving except in an emergency. Turning the engine off
while driving will not cause loss of
steering or braking control, but the power assist to these systems will
be lost. This will make it more diffi-
cult to steer and brake, so you should pull over and stop the vehi-
cle as soon as it is safe to do so.
●If the engine switch is operated
while the vehicle is running, a warn-
ing message will be shown on the multi-information display and a
buzzer sounds.

181
4
4-2. Driving procedures
Driving
Modes can be changed by pressing
the engine switch with brake pedal
(Multidrive) or clutch pedal (man-
ual transmission) released. (The
mode changes each time the
switch is pressed.)
1 OFF*
The emergency flashers can be used.
2ACC
Some electrical components such as
the audio system can be used.
“ACCESSORY” will be displayed on the
multi-information display.
3 ON
All electrical components can be used.
“IGNITION ON” will be displayed on the
multi-information display.
*: Vehicles with a Multidrive: If the shift
lever is in a position other than P
when turning off the engine, the
engine switch will be turned to ACC,
not to off.
■Auto power off function
Multidrive: If the vehicle is left in ACC for more than 20 minutes or ON (the engine
is not running) for more than an hour
with the shift lever in P, the engine switch will automatically turn off. How-
ever, this function cannot entirely pre-
vent battery discharge. Do not leave the vehicle with the engine switch in ACC or
ON for long periods of time when the
engine is not running.
Manual transmission: If the vehicle is left
in ACC for more than 20 minutes or ON
(the engine is not running) for more than
an hour, the engine switch will automati- cally turn off. However, this function can-
not entirely prevent battery discharge.
Do not leave the vehicle with the engine switch in ACC or ON for long periods of
time when the engine is not running.
WA R N I N G
●Vehicles with a Multidrive: To restart
the engine after performing an
emergency shutdown, shift the shift lever to N and then press the
engine switch.
●Vehicles with a manual transmis-
sion: To restart the engine after per-
forming an emergency shutdown,
depress the clutch pedal and then press the engine switch.
Changing engine switch
modes
NOTICE
■To prevent battery discharge
●Do not leave the engine switch in
ACC or ON for long periods of time
without the engine running.
