TOYOTA COROLLA HYBRID 2021 (in English) User Guide

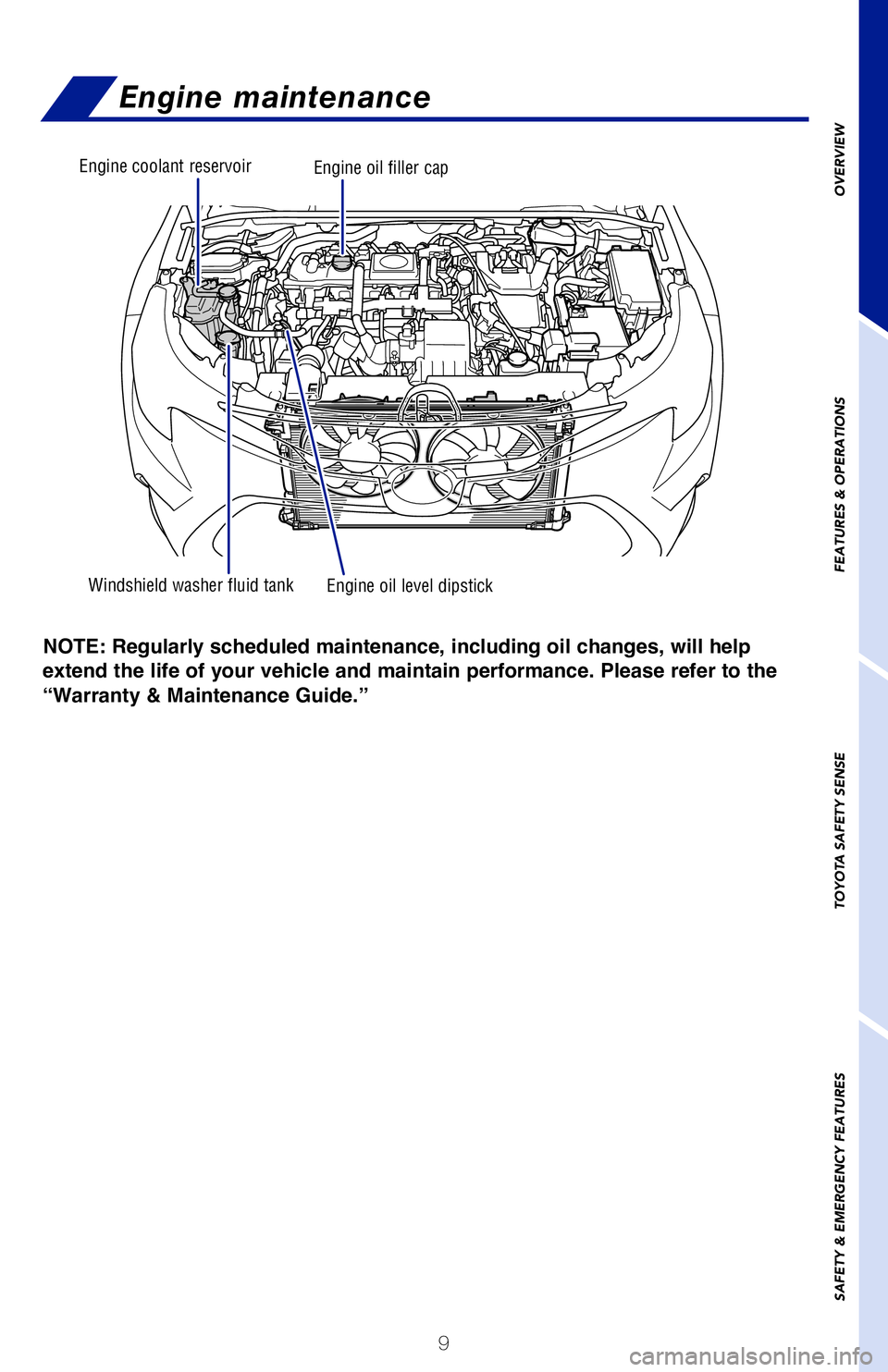

9
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Engine maintenance
Windshield washer fluid tank
Engine coolant reservoirEngine oil filler cap
Engine oil level dipstick
Instrument panel light control
145651_Corolla_Hybrid_QRG_guts.indd 93/23/20 4:10 PM

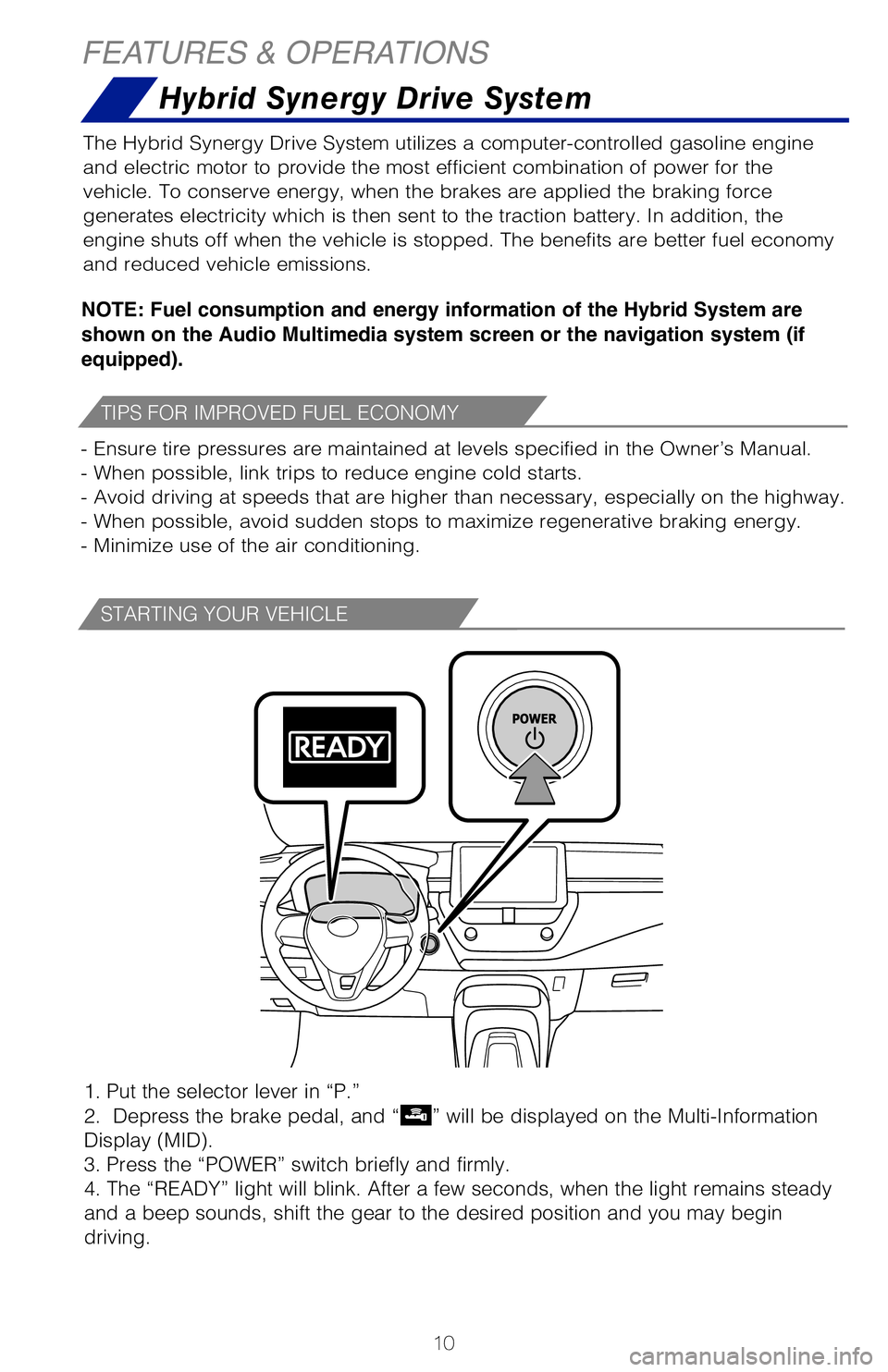

10
* The “POWER” switch must be in the “IGNITION ON” mode and t\
he brake pedal depressed to shift from Park.
FEATURES & OPERATIONS
TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE
DEFAULT SETTING
CUSTOMIZED SETTING
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Audio Multimedia system screen or the navigation system (if
equipped).
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the
vehicle. To conserve energy, when the brakes are applied the braking for\
ce
generates electricity which is then sent to the traction battery. In add\
ition, the
engine shuts off when the vehicle is stopped. The benefits are better fu\
el economy
and reduced vehicle emissions.
- Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- When possible, link trips to reduce engine cold starts.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
Hybrid Synergy Drive System
1. Put the selector lever in “P.”
2. Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display (MID).
3. Press the “POWER” switch briefly and firmly.
4. The “READY” light will blink. After a few seconds, when the lig\
ht remains steady
and a beep sounds, shift the gear to the desired position and you may be\
gin
driving.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 k\
m/h).
Driver’s door linked door unlocking function
-Doors automatically unlock when driver

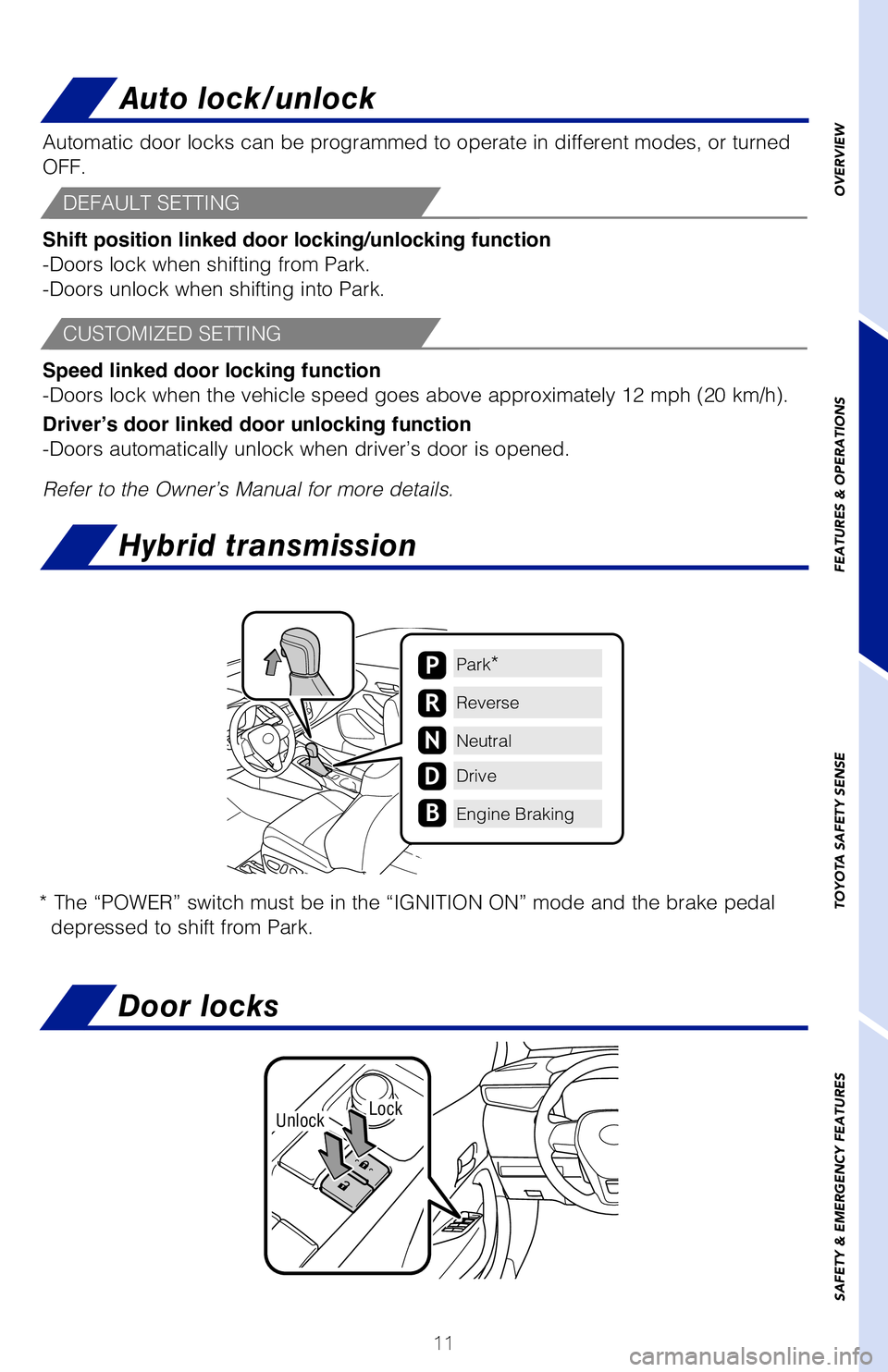

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Hybrid transmission
* The “POWER” switch must be in the “IGNITION ON” mode and t\
he brake pedal
depressed to shift from Park.
Park*P
ReverseR
NeutralN
DriveD
Engine BrakingB
DEFAULT SETTING
CUSTOMIZED SETTING
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Audio Multimedia system screen or the navigation system (if
equipped).
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the
vehicle. To conserve energy, when the brakes are applied the braking for\
ce
generates electricity which is then sent to the traction battery. In add\
ition, the
engine shuts off when the vehicle is stopped. The benefits are better fu\
el economy
and reduced vehicle emissions.
- Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- When possible, link trips to reduce engine cold starts.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
1. Put the selector lever in “P.”
2. Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display (MID).
3. Press the “POWER” switch briefly and firmly.
4. The “READY” light will blink. After a few seconds, when the lig\
ht remains steady
and a beep sounds, shift the gear to the desired position and you may be\
gin
driving.
Auto lock/unlock
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park. Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 k\
m/h).
Driver’s door linked door unlocking function
-Doors automatically unlock when driver’s door is opened.
Refer to the Owner’s Manual for more details.
LockUnlock
Door locks
145651_Corolla_Hybrid_QRG_guts.indd 113/23/20 4:10 PM

12
NOTE: Do not attempt to adjust while the vehicle is in motion.Lock release lever
Hold wheel, push lever down, set angle and length, and return lever.
Driver side
All window auto up/down
Push the switch completely down or pull it completely up and release to \
fully open
or close. To stop the window partway, operate the switch in the opposite\
direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable. \
When the steering lock cannot be released, “Push Power Switch while T\
urning
Steering Wheel in Either Direction” will be displayed on the multi-information display.
Press the power switch shortly and firmly while turning the steering whe\
el left and
right.

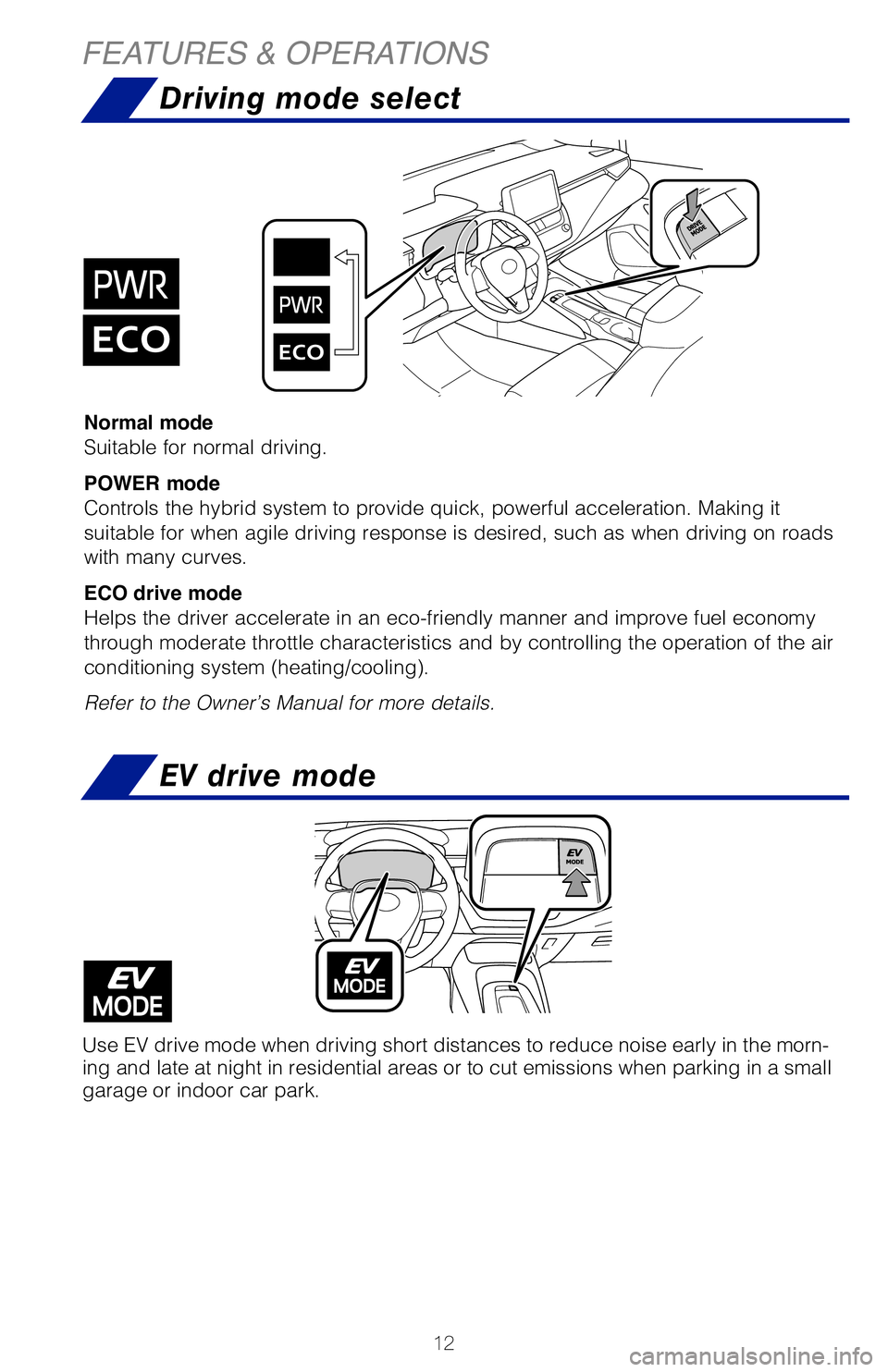

Driving mode select
Normal mode
Suitable for normal driving.
POWER mode
Controls the hybrid system to provide quick, powerful acceleration. Maki\
ng it
suitable for when agile driving response is desired, such as when drivin\
g on roads
with many curves.
ECO drive mode
Helps the driver accelerate in an eco-friendly manner and improve fuel e\
conomy
through moderate throttle characteristics and by controlling the operati\
on of the air
conditioning system (heating/cooling).
Refer to the Owner’s Manual for more details.
EV drive mode
Use EV drive mode when driving short distances to reduce noise early in \
the morn-
ing and late at night in residential areas or to cut emissions when park\
ing in a small
garage or indoor car park.
FEATURES & OPERATIONS
145651_Corolla_Hybrid_QRG_guts.indd 123/23/20 4:10 PM

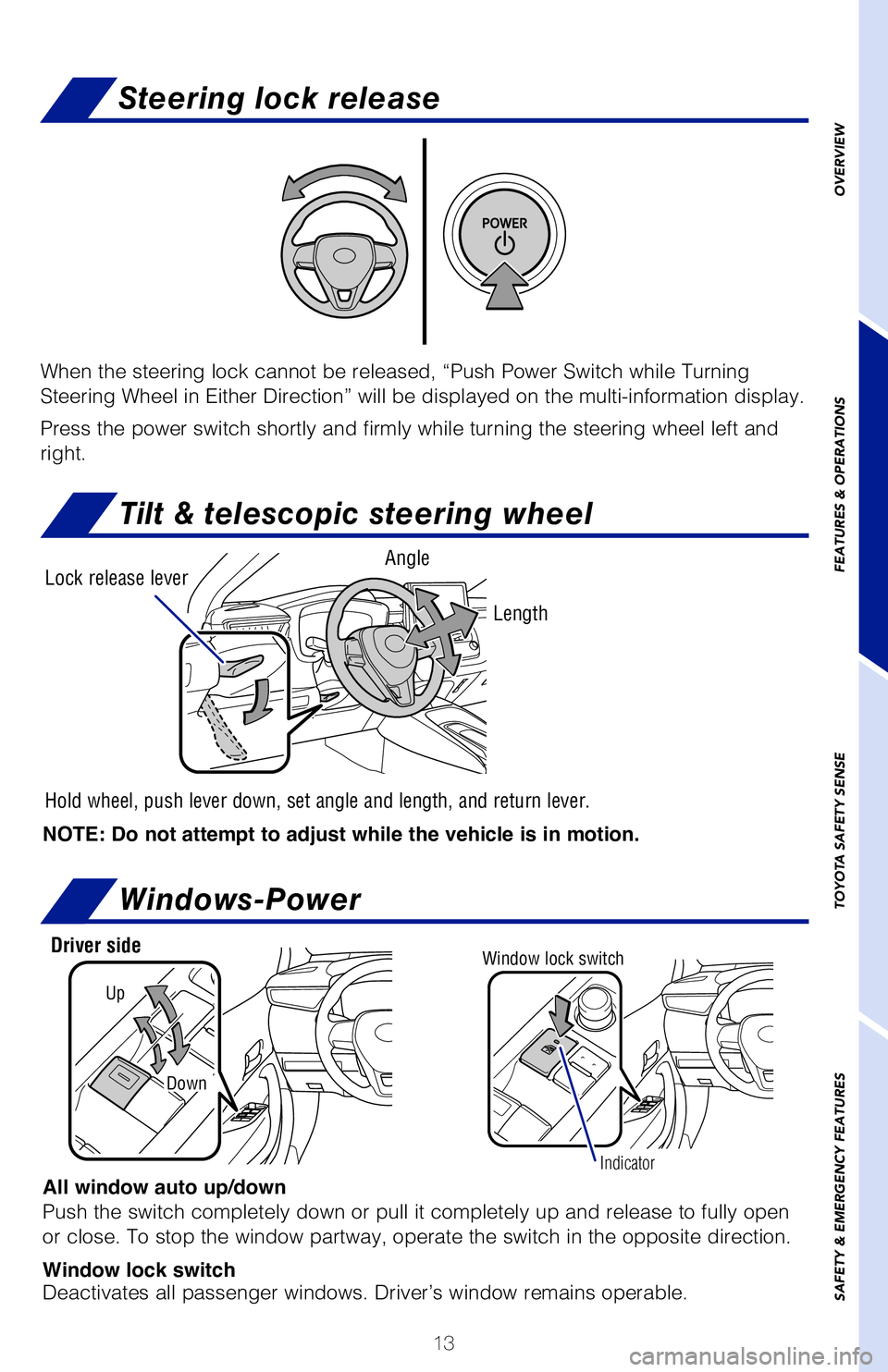

13
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Tilt & telescopic steering wheel
NOTE: Do not attempt to adjust while the vehicle is in motion. Lock release lever
Angle
Length
Hold wheel, push lever down, set angle and length, and return lever.
Windows-Power
Up
Down
Driver sideWindow lock switch
All window auto up/down
Push the switch completely down or pull it completely up and release to \
fully open
or close. To stop the window partway, operate the switch in the opposite\
direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable. \
When the steering lock cannot be released, “Push Power Switch while T\
urning
Steering Wheel in Either Direction” will be displayed on the multi-information display.
Press the power switch shortly and firmly while turning the steering whe\
el left and
right.
Steering lock release
Indicator
Driving mode select
Normal mode
Suitable for normal driving.
POWER mode
Controls the hybrid system to provide quick, powerful acceleration. Maki\
ng it
suitable for when agile driving response is desired, such as when drivin\
g on roads
with many curves.
ECO drive mode
Helps the driver accelerate in an eco-friendly manner and improve fuel e\
conomy
through moderate throttle characteristics and by controlling the operati\
on of the air
conditioning system (heating/cooling).
Refer to the Owner’s Manual for more details.
Use EV drive mode when driving short distances to reduce noise early in \
the morn-ing and late at night in residential areas or to cut emissions when park\
ing in a small
garage or indoor car park.
145651_Corolla_Hybrid_QRG_guts.indd 133/23/20 4:10 PM

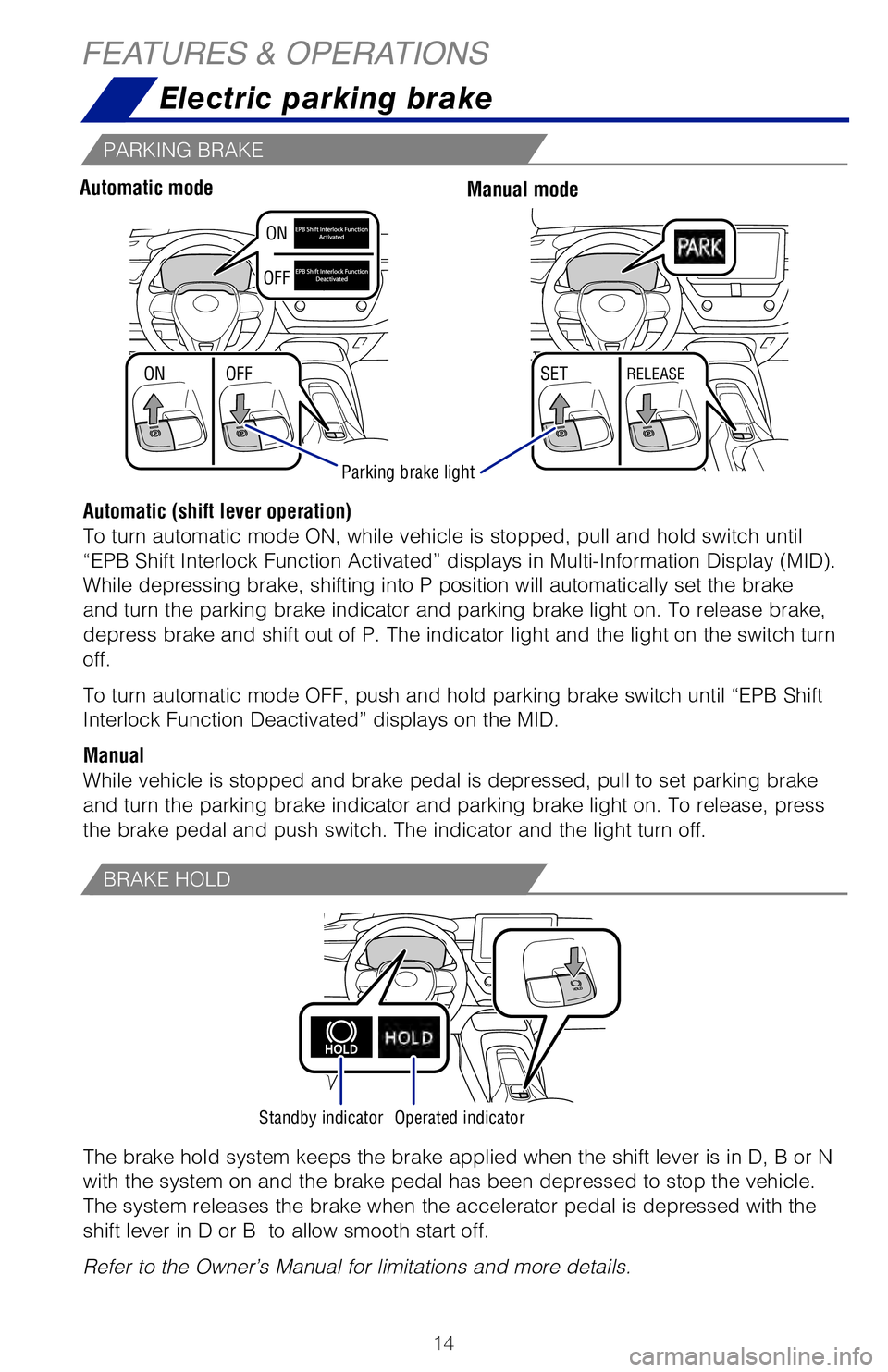

14
FEATURES & OPERATIONSElectric parking brake
Driver sideAutomatic modeManual mode
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switc\
h until
“EPB Shift Interlock Function Activated” displays in Multi-Informa\
tion Display (MID).
While depressing brake, shifting into P position will automatically set \
the brake
and turn the parking brake indicator and parking brake light on. To rele\
ase brake,
depress brake and shift out of P. The indicator light and the light on t\
he switch turn
off.
To turn automatic mode OFF, push and hold parking brake switch until “\
EPB Shift
Interlock Function Deactivated” displays on the MID.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parki\
ng brake
and turn the parking brake indicator and parking brake light on. To rele\
ase, press
the brake pedal and push switch. The indicator and the light turn off.
The brake hold system keeps the brake applied when the shift lever is in\
D, B or N
with the system on and the brake pedal has been depressed to stop the ve\
hicle.
The system releases the brake when the accelerator pedal is depressed wi\
th the
shift lever in D or B to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Refer to the Owner’s Manual for limitations and more details.
Standby indicatorOperated indicator
BRAKE HOLD
PARKING BRAKE
ON ON
SET
OFF OFFRELEASE
Parking brake light
Push “ ” or “ ” and “” on steering wheel to change and select information in
the following:
Meter control switches 7-inch display
145651_Corolla_Hybrid_QRG_guts.indd 143/23/20 4:10 PM

15
Electric parking brake
Manual mode
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switc\
h until
“EPB Shift Interlock Function Activated” displays in Multi-Informa\
tion Display (MID).
While depressing brake, shifting into P position will automatically set \
the brake
and turn the parking brake indicator and parking brake light on. To rele\
ase brake,
depress brake and shift out of P. The indicator light and the light on t\
he switch turn
off.
To turn automatic mode OFF, push and hold parking brake switch until “\
EPB Shift
Interlock Function Deactivated” displays on the MID.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parki\
ng brake
and turn the parking brake indicator and parking brake light on. To rele\
ase, press
the brake pedal and push switch. The indicator and the light turn off.
The brake hold system keeps the brake applied when the shift lever is in\
D, B or N
with the system on and the brake pedal has been depressed to stop the ve\
hicle.
The system releases the brake when the accelerator pedal is depressed wi\
th the
shift lever in D or B to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Refer to the Owner’s Manual for limitations and more details.
Driving support system status display area
Content display area
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Push “” or “” and “” on steering wheel to change and select information in
the following:
Multi-Information Display (MID)
Meter control switches 7-inch display
Previous screen
Push: enter/
Push and hold: reset
Scroll/search screens
Driving support system information display Driving information display
Vehicle information display
Audio system-linked display
Settings display
Warning message display
145651_Corolla_Hybrid_QRG_guts.indd 153/23/20 4:10 PM

16

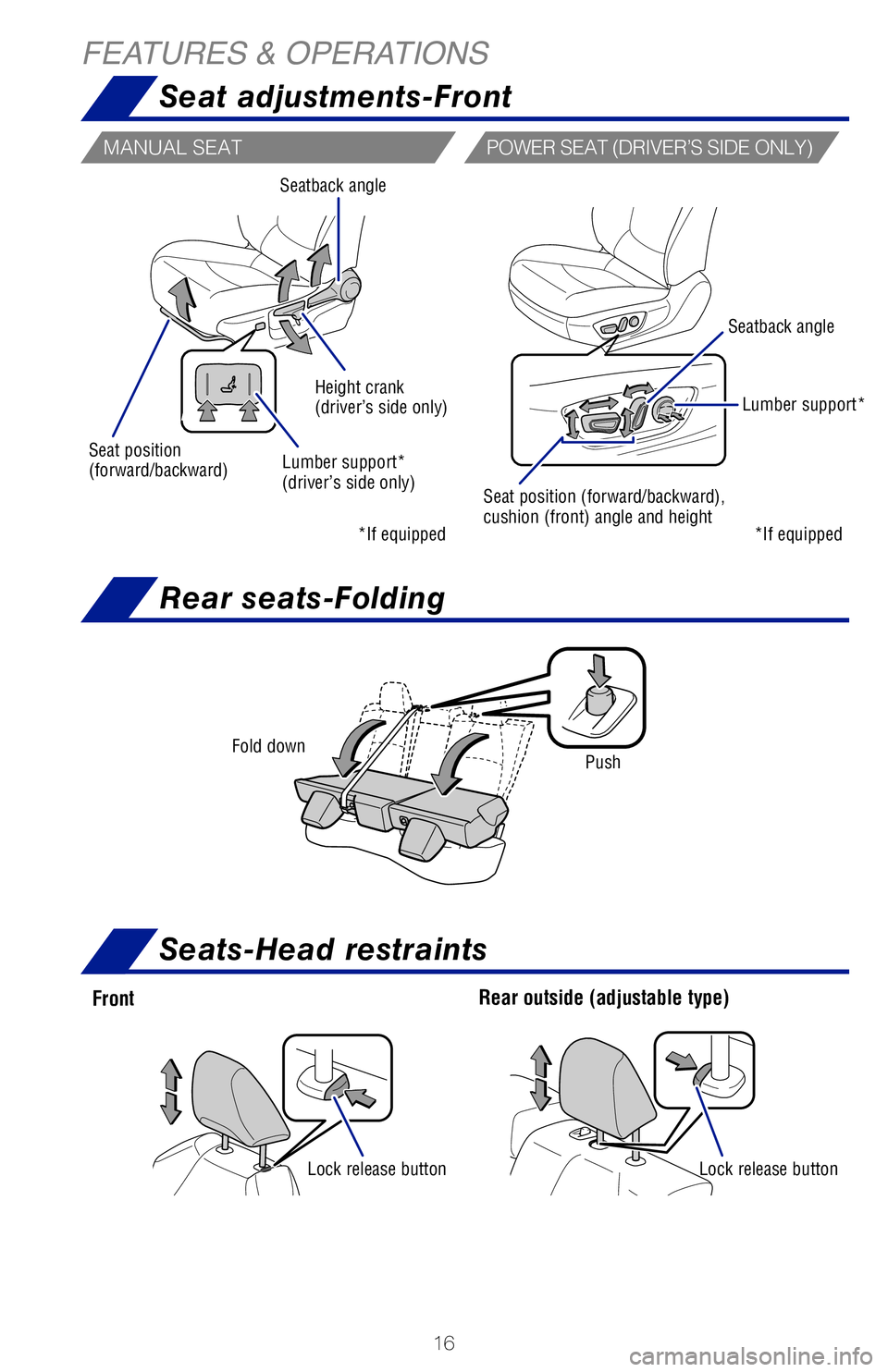

FEATURES & OPERATIONSSeat adjustments-Front
Front Rear outside (adjustable type)
Lock release button
Lock release button
Fold down
Push
MANUAL SEATPOWER SEAT (DRIVER’S SIDE ONLY)
-Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\
night.
-Automatic light cut off system Automatically turns lights off after 30 second delay, or lock switch on remote is pushed after locking .
-Automatic High Beam (AHB) system Automatically switches between high and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ 2.0 (TSS 2.0) in this guide or the Ow\
ner’s Manual
for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for d\
etails.
Parking lights
Rear seats-Folding
Seats-Head restraints
HEADLIGHTS
TURN SIGNALS
* Move lever partway and release; the signals will flash three times.
Lumber support*
Lumber support*
(driver’s side only)
Seat position
(forward/backward) Height crank
(driver’s side only)
Seatback angle
Seat position (forward/backward),
cushion (front) angle and height Seatback angle
*If equipped
*If equipped
145651_Corolla_Hybrid_QRG_guts.indd 163/23/20 4:10 PM

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Lock release button
POWER SEAT (DRIVER’S SIDE ONLY)
-Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\
night.
-Automatic light cut off system Automatically turns lights off after 30 second delay, or lock switch on remote is pushed after locking .
-Automatic High Beam (AHB) system Automatically switches between high and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ 2.0 (TSS 2.0) in this guide or the Ow\
ner’s Manual
for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for d\
etails.
Headlights
AUTO
DRL OFF
Parking lightsLow beam
(Original position)
or
High beam (Push)High beam flasher
(Pull)
Automatic High Beam*

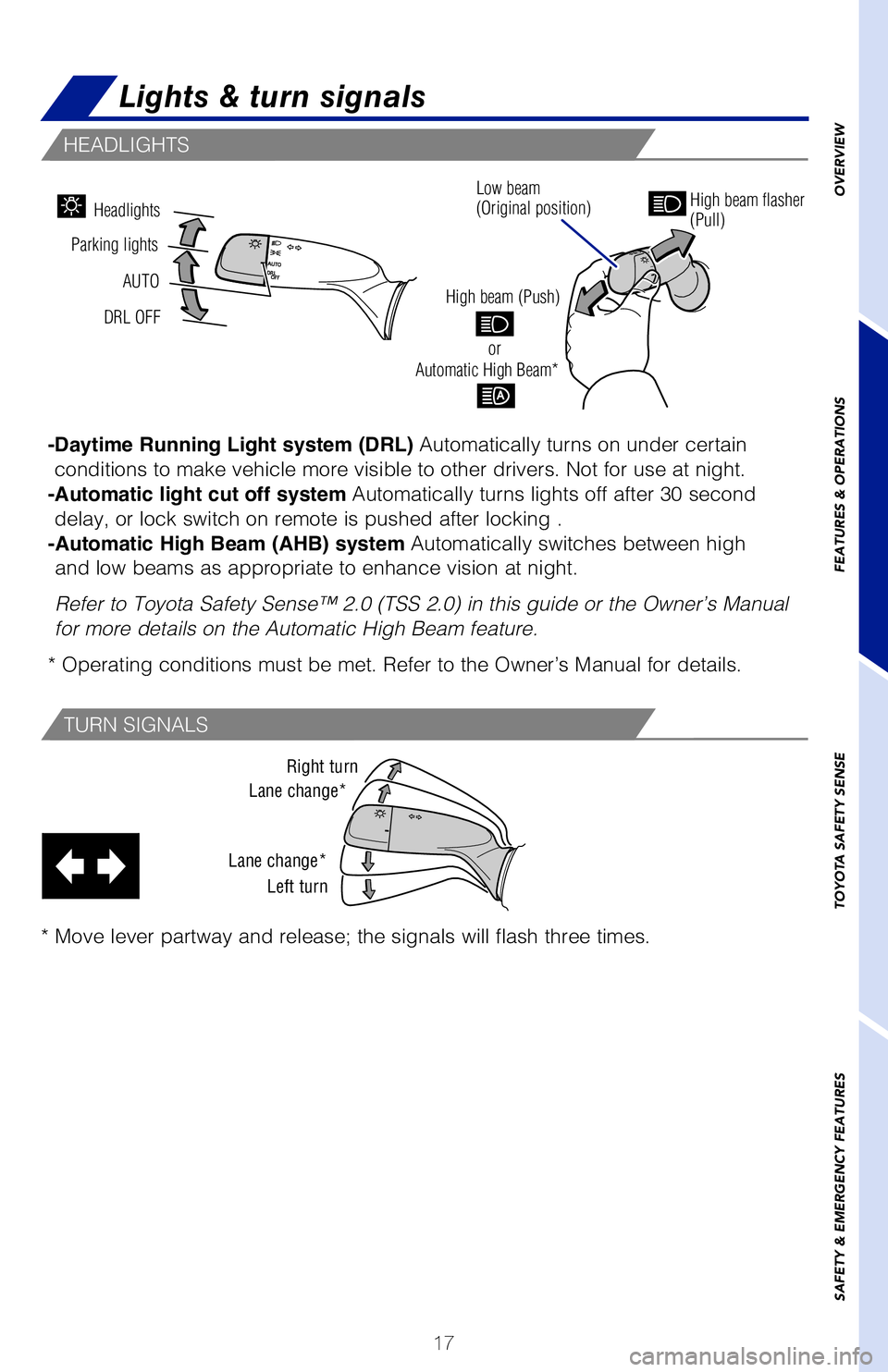

Lights & turn signals
HEADLIGHTS
TURN SIGNALS
Right turn
Lane change*
Lane change* Left turn
* Move lever partway and release; the signals will flash three times.
Lumber support*
Seatback angle
*If equipped
145651_Corolla_Hybrid_QRG_guts.indd 173/23/20 4:10 PM

18
FEATURES & OPERATIONS
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system. The power switch must be in the “ACCESSORY” or “IGNITION ON”\
mode for use.
The power switch must be in the “ACCESSORY” or “IGNITION ON”\
mode for use.
Interval wipe
Mist
Slow
Fast
Pull to wash and wipe

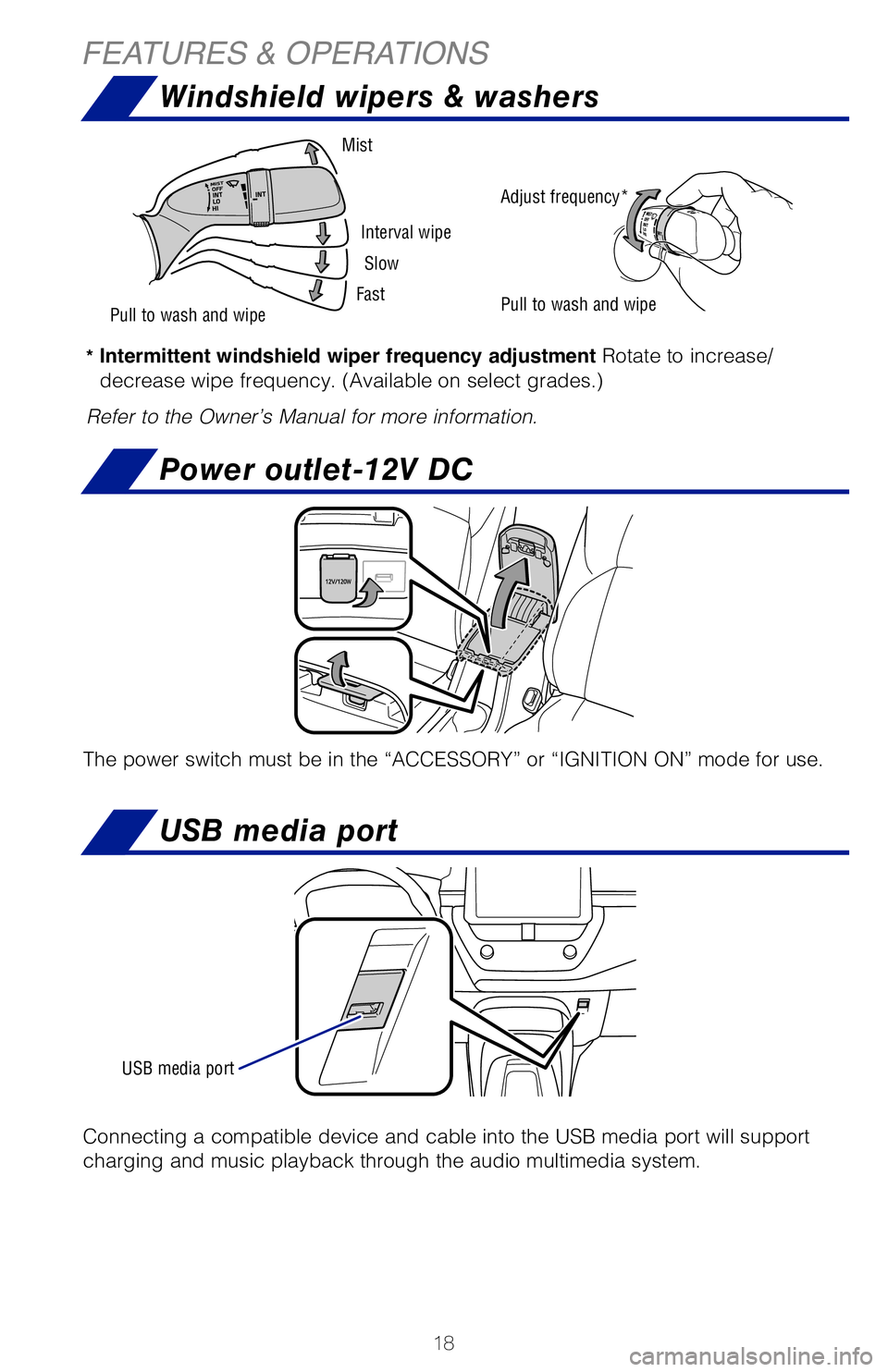

Windshield wipers & washers
* Intermittent windshield wiper frequency adjustment Rotate to increase/ decrease wipe frequency. (Available on select grades.)
Refer to the Owner’s Manual for more information.
Adjust frequency*
Pull to wash and wipe
USB media portA mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An \
amber
indicator illuminates while charging is in progress. When charging is co\
mplete, the
indicator illuminates green. Some phones, cases or cover type wireless c\
hargers
may not cause the green indicator to illuminate even though it is fully \
charged.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
Operation indicator light
Power outlet-12V DC
USB media port
145651_Corolla_Hybrid_QRG_guts.indd 183/23/20 4:10 PM
