TOYOTA COROLLA HYBRID 2021 (in English) Owner's Manual

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system. The power switch must be in the “ACCESSORY” or “IGNITION ON”\
mode for use.
The power switch must be in the “ACCESSORY” or “IGNITION ON”\
mode for use.
* Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency. (Available on select grades.)
Refer to the Owner’s Manual for more information.

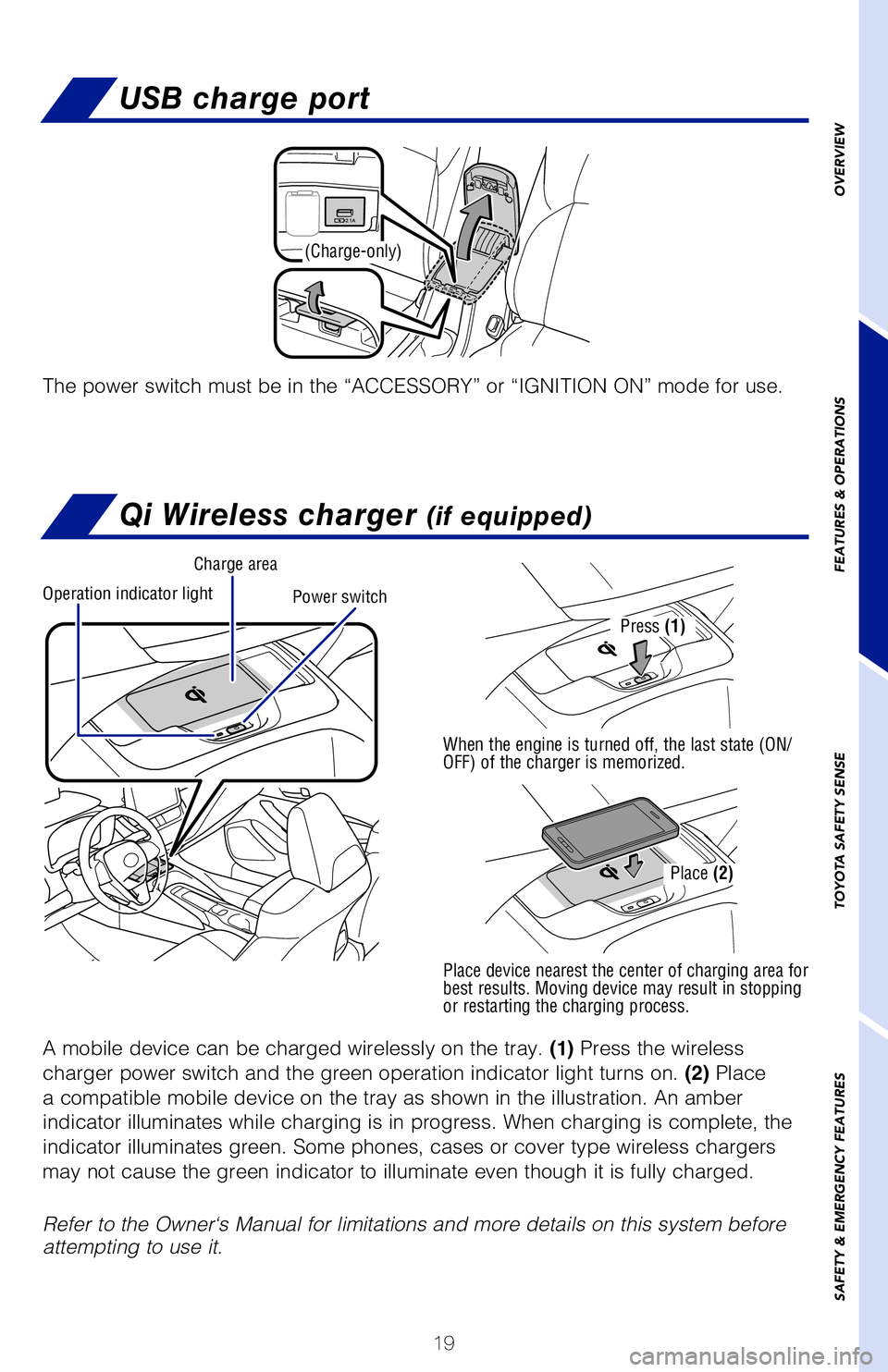

USB charge port
(Charge-only)
Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An \
amber
indicator illuminates while charging is in progress. When charging is co\
mplete, the
indicator illuminates green. Some phones, cases or cover type wireless c\
hargers
may not cause the green indicator to illuminate even though it is fully \
charged.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
Power switch
Charge area
Operation indicator light
Press (1)
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place (2)
145651_Corolla_Hybrid_QRG_guts.indd 193/23/20 4:10 PM

20
FEATURES & OPERATIONS

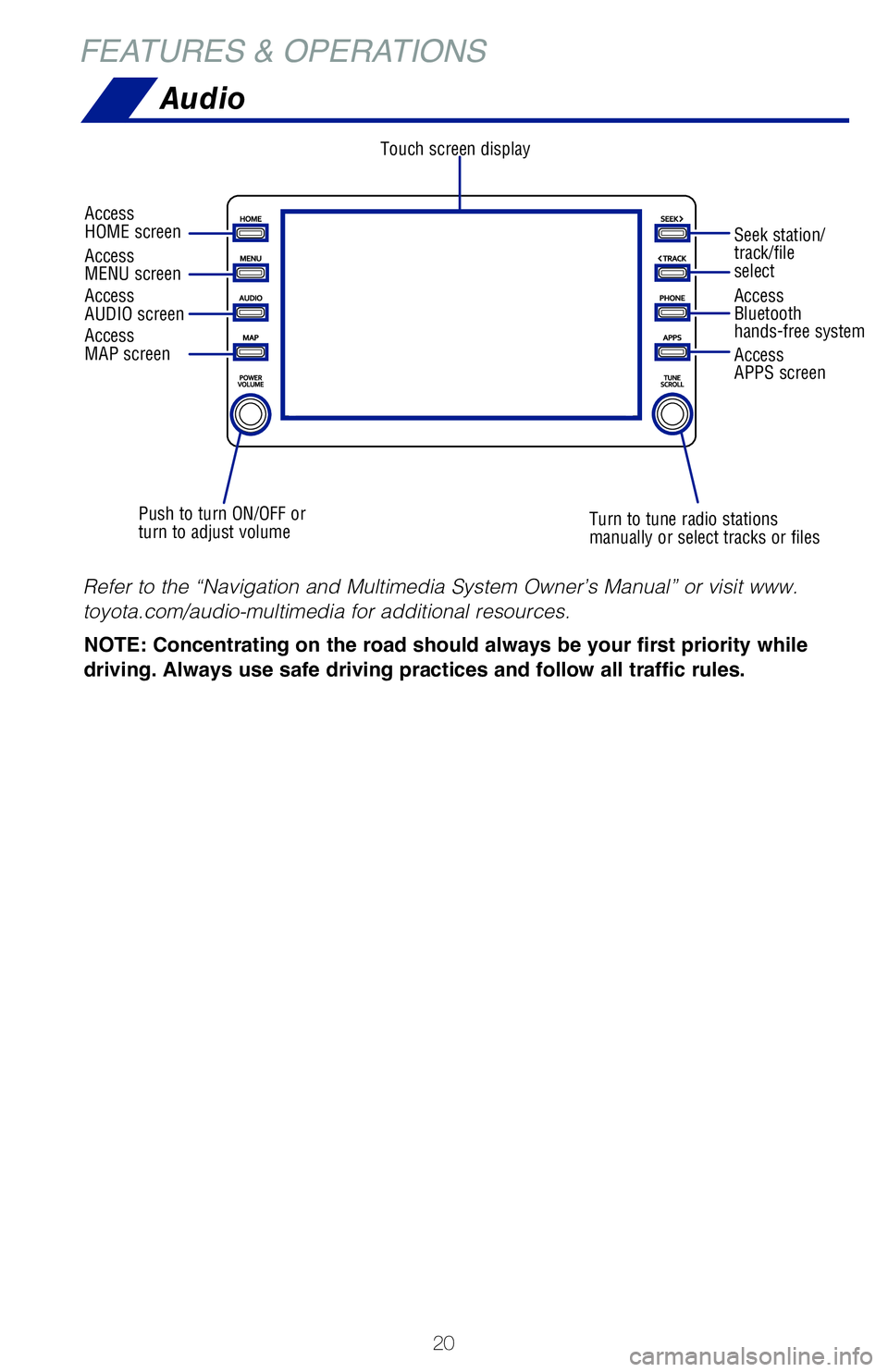

Audio
NOTE: Concentrating on the road should always be your first priority while
driving. Always use safe driving practices and follow all traffic rules.
Refer to the “Navigation and Multimedia System Owner’s Manual” or vi\
sit www.
toyota.com/audio-multimedia for additional resources.
Touch screen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volume Turn to tune radio stations
manually or select tracks or filesAccess
Bluetooth
hands-free system
Seek station/
track/file
select
Access
HOME screen
Access
MENU screen
Access
APPS screen
Access
MAP screen
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.

Refer to the Bluetooth® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Concentrating on the road should always be your first priority while
driving. Always use safe driving practices and follow all traffic rules.
Volume control
145651_Corolla_Hybrid_QRG_guts-r1.indd 203/24/20 9:10 AM

21

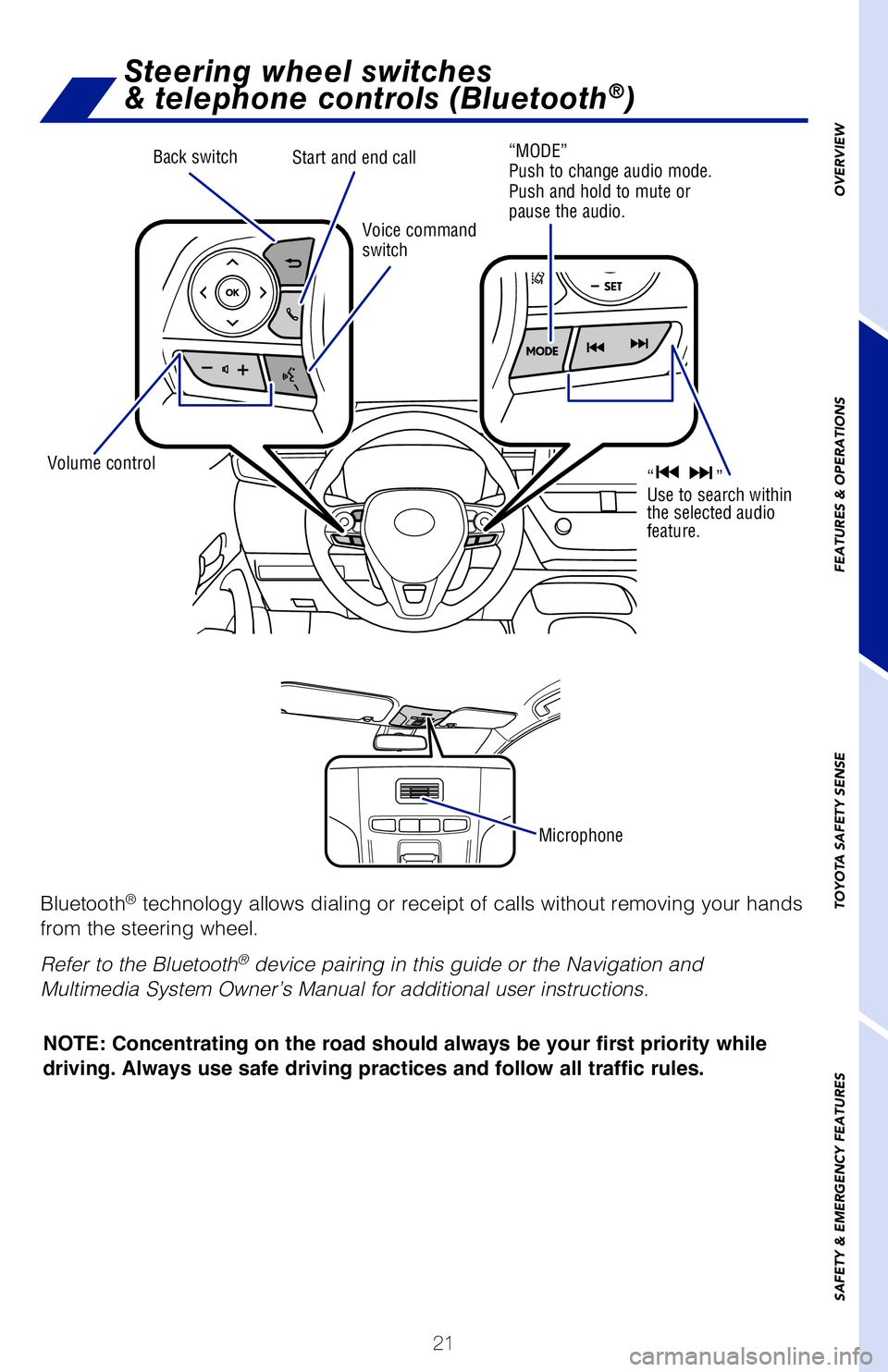

Steering wheel switches
& telephone controls (Bluetooth®)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: Concentrating on the road should always be your first priority while
driving. Always use safe driving practices and follow all traffic rules.
Refer to the “Navigation and Multimedia System Owner’s Manual” or vi\
sit www.
toyota.com/audio-multimedia for additional resources.
Turn to tune radio stations
manually or select tracks or files Access
Bluetooth
hands-free
system
Seek station/ track/file
select
Access
APPS screen
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.

Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
Back switch
NOTE: Concentrating on the road should always be your first priority while
driving. Always use safe driving practices and follow all traffic rules.
Volume control Voice command
switch
Start and end call
“MODE”
Push to change audio mode.
Push and hold to mute or
pause the audio.
“ ”
Use to search within
the selected audio
feature.
Microphone
145651_Corolla_Hybrid_QRG_guts-r1.indd 213/24/20 9:10 AM

22

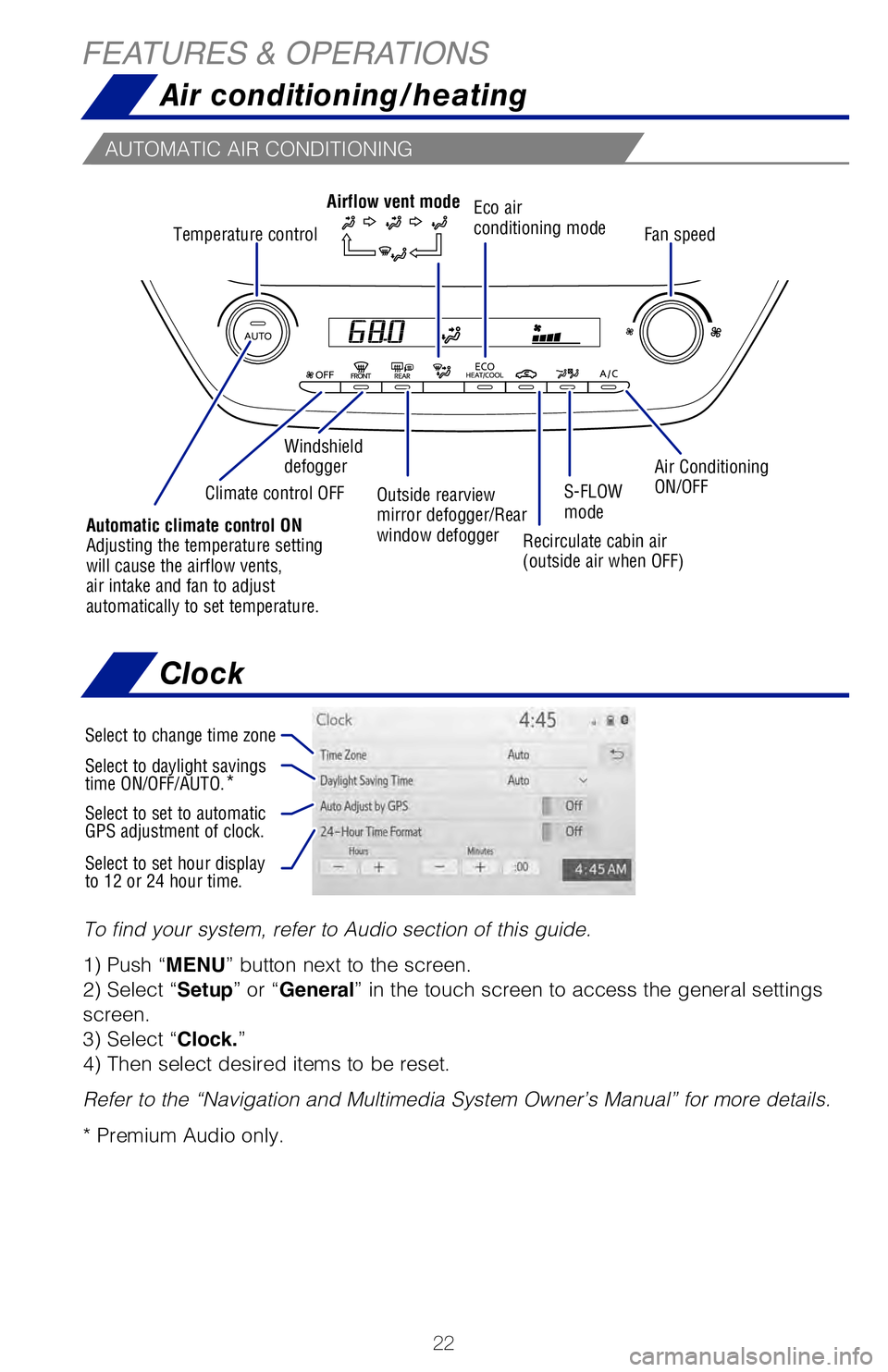

FEATURES & OPERATIONSAir conditioning/heating
Temperature control Fan speed
Windshield
defogger
Air Conditioning
ON/OFF
Climate control OFF Eco air
conditioning mode
Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically to set temperature.
Airflow vent mode
Outside rearview
mirror defogger/Rear
window defogger Recirculate cabin air
(outside air when OFF)S-FLOW
modeFRONT
FRONT (DOOR MOUNTED)
To find your system, refer to Audio section of this guide.
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touch screen to access the general settings
screen.
3) Select “Clock.”
4) Then select desired items to be reset.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
* Premium Audio only.
Select to change time zone
Select to daylight savings
time ON/OFF/AUTO.*
Select to set to automatic
GPS adjustment of clock.
Select to set hour display
to 12 or 24 hour time.
Clock
AUTOMATIC AIR CONDITIONING
145651_Corolla_Hybrid_QRG_guts.indd 223/23/20 4:11 PM

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Air conditioning/heating
FRONT
REAR

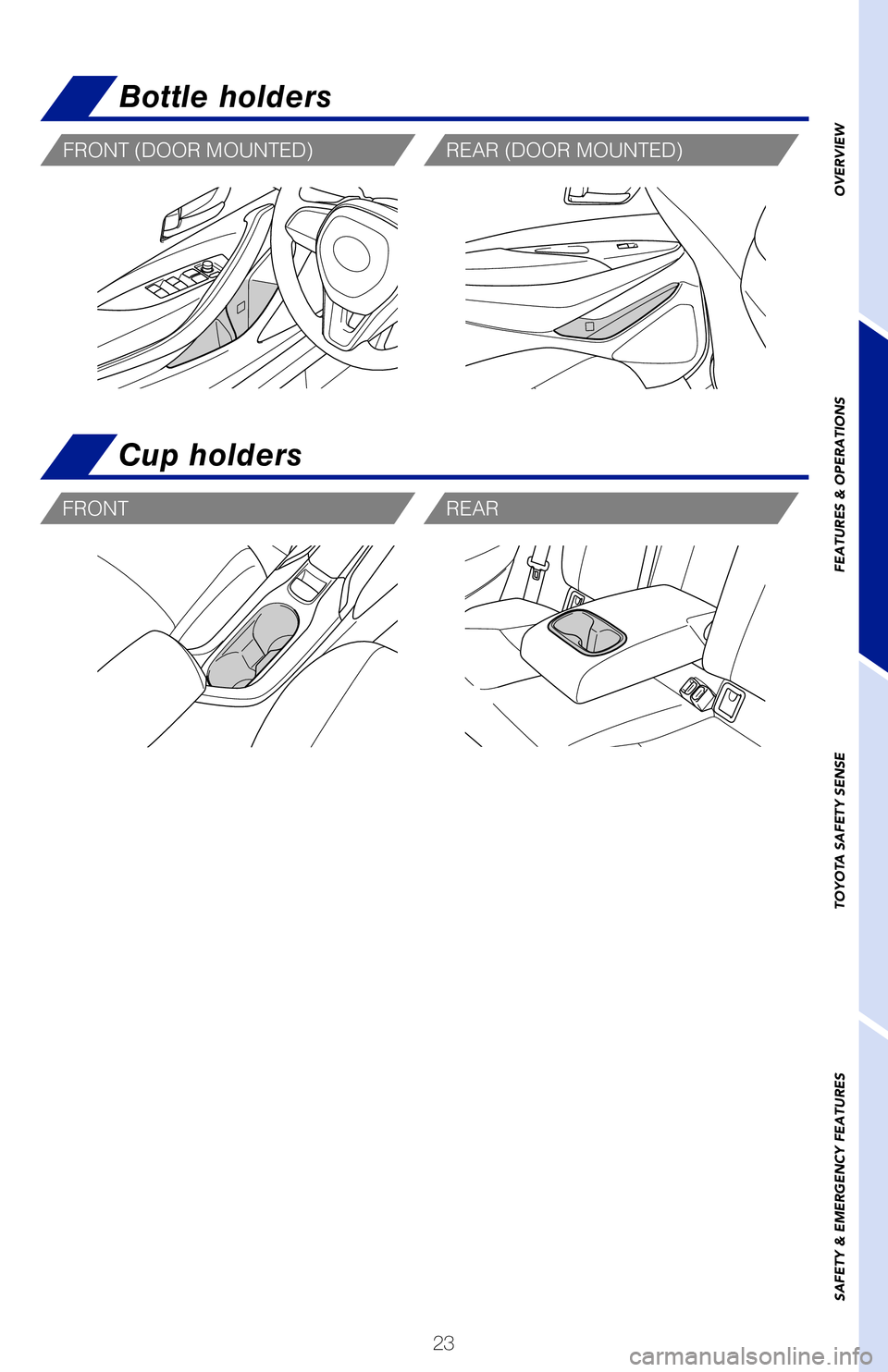

Cup holders
FRONT (DOOR MOUNTED)REAR (DOOR MOUNTED)
Bottle holders
To find your system, refer to Audio section of this guide.
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touch screen to access the general settings
screen.
3) Select “Clock.”
4) Then select desired items to be reset.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
* Premium Audio only.
Clock
145651_Corolla_Hybrid_QRG_guts.indd 233/23/20 4:11 PM

24
FEATURES & OPERATIONS
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\
ngs like
mud, dirt or snow. While the vehicle is stopped, press switch to disable\
the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at l\
east 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU”\
button and
select “Display” on the screen. Select “Camera” to adjust th\
e screen contrast and
brightness.
Refer to the Owner’s Manual and the Navigation and Multimedia Owner‘\
s Manual
for limitations and more details on this system.

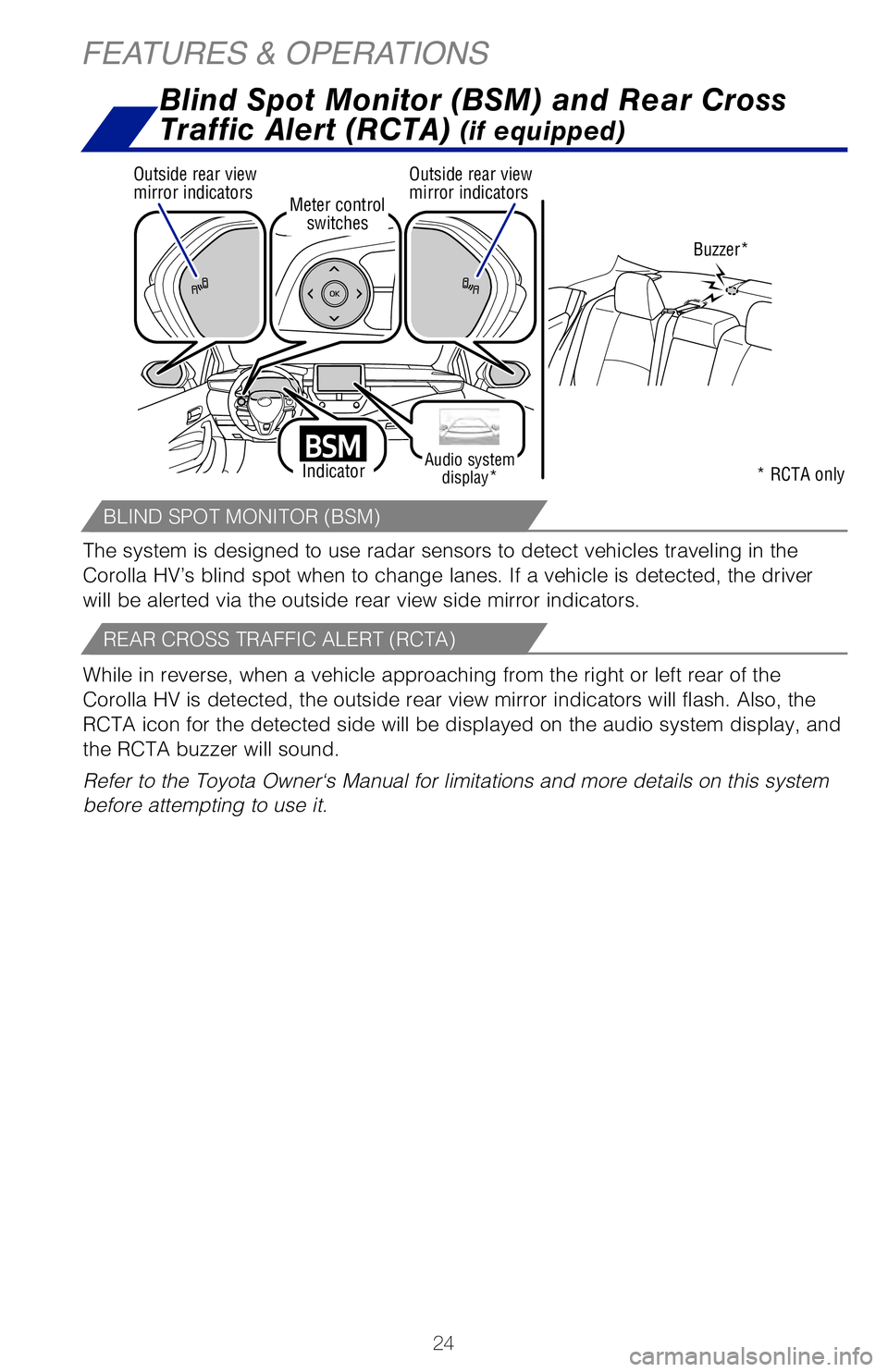

Blind Spot Monitor (BSM) and Rear Cross
Traffic Alert (RCTA)
(if equipped)
Buzzer** RCTA only
The system is designed to use radar sensors to detect vehicles traveling\
in the
Corolla HV’s blind spot when to change lanes. If a vehicle is detecte\
d, the driver
will be alerted via the outside rear view side mirror indicators.
While in reverse, when a vehicle approaching from the right or left rear\
of the
Corolla HV is detected, the outside rear view mirror indicators will fla\
sh. Also, the
RCTA icon for the detected side will be displayed on the audio system di\
splay, and
the RCTA buzzer will sound.
Refer to the Toyota Owner‘s Manual for limitations and more details o\
n this system
before attempting to use it.
BLIND SPOT MONITOR (BSM)
REAR CROSS TRAFFIC ALERT (RCTA)
IndicatorAudio system display*
Outside rear view
mirror indicators
Outside rear view
mirror indicators
Meter control
switches
145651_Corolla_Hybrid_QRG_guts.indd 243/23/20 4:11 PM

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\
ngs like
mud, dirt or snow. While the vehicle is stopped, press switch to disable\
the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at l\
east 3
seconds.
Refer to the Owner’s Manual for limitations and more details.

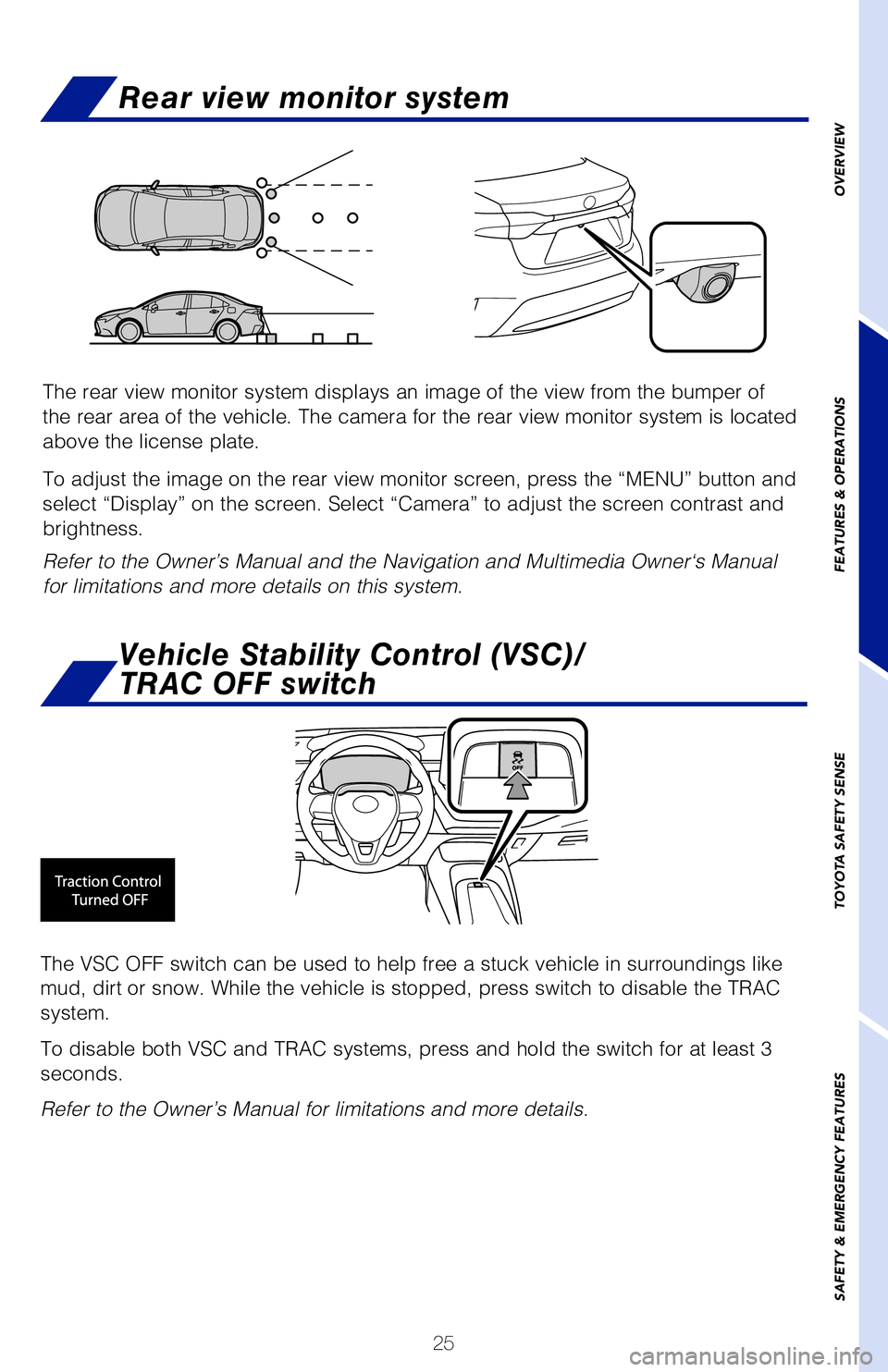

Vehicle Stability Control (VSC)/
TRAC OFF switch
Rear view monitor system
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU”\
button and
select “Display” on the screen. Select “Camera” to adjust th\
e screen contrast and
brightness.
Refer to the Owner’s Manual and the Navigation and Multimedia Owner‘\
s Manual
for limitations and more details on this system.
Blind Spot Monitor (BSM) and Rear Cross
Traffic Alert (RCTA)
(if equipped)
* RCTA only
The system is designed to use radar sensors to detect vehicles traveling\
in the
Corolla HV’s blind spot when to change lanes. If a vehicle is detecte\
d, the driver
will be alerted via the outside rear view side mirror indicators.
While in reverse, when a vehicle approaching from the right or left rear\
of the
Corolla HV is detected, the outside rear view mirror indicators will fla\
sh. Also, the
RCTA icon for the detected side will be displayed on the audio system di\
splay, and
the RCTA buzzer will sound.
Refer to the Toyota Owner‘s Manual for limitations and more details o\
n this system
before attempting to use it.
145651_Corolla_Hybrid_QRG_guts.indd 253/23/20 4:11 PM

26

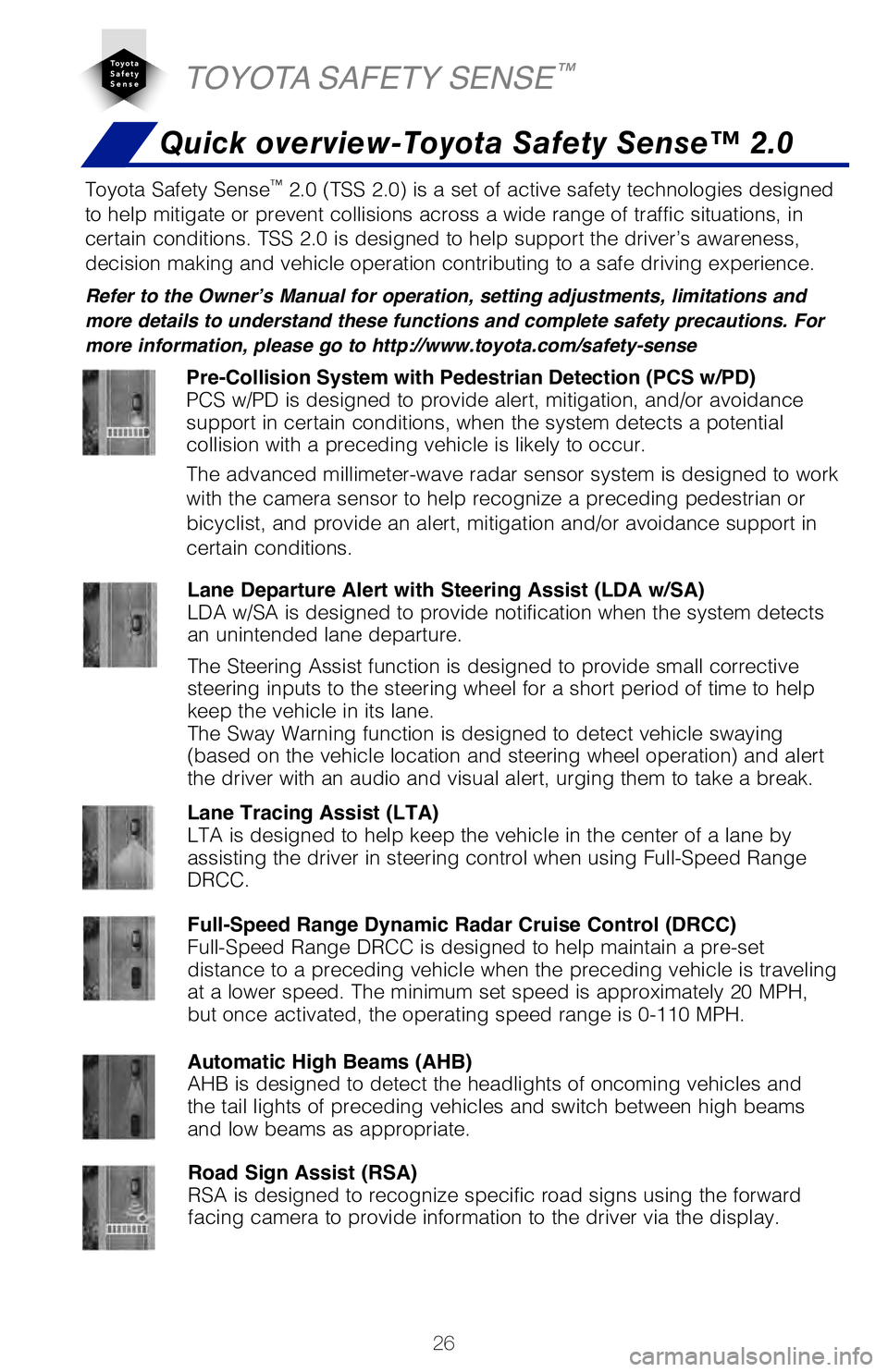

TOYOTA SAFETY SENSE™
Toyota Safety Sense™ 2.0 (TSS 2.0) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS 2.0 is designed to help support the driver’s \
awareness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense

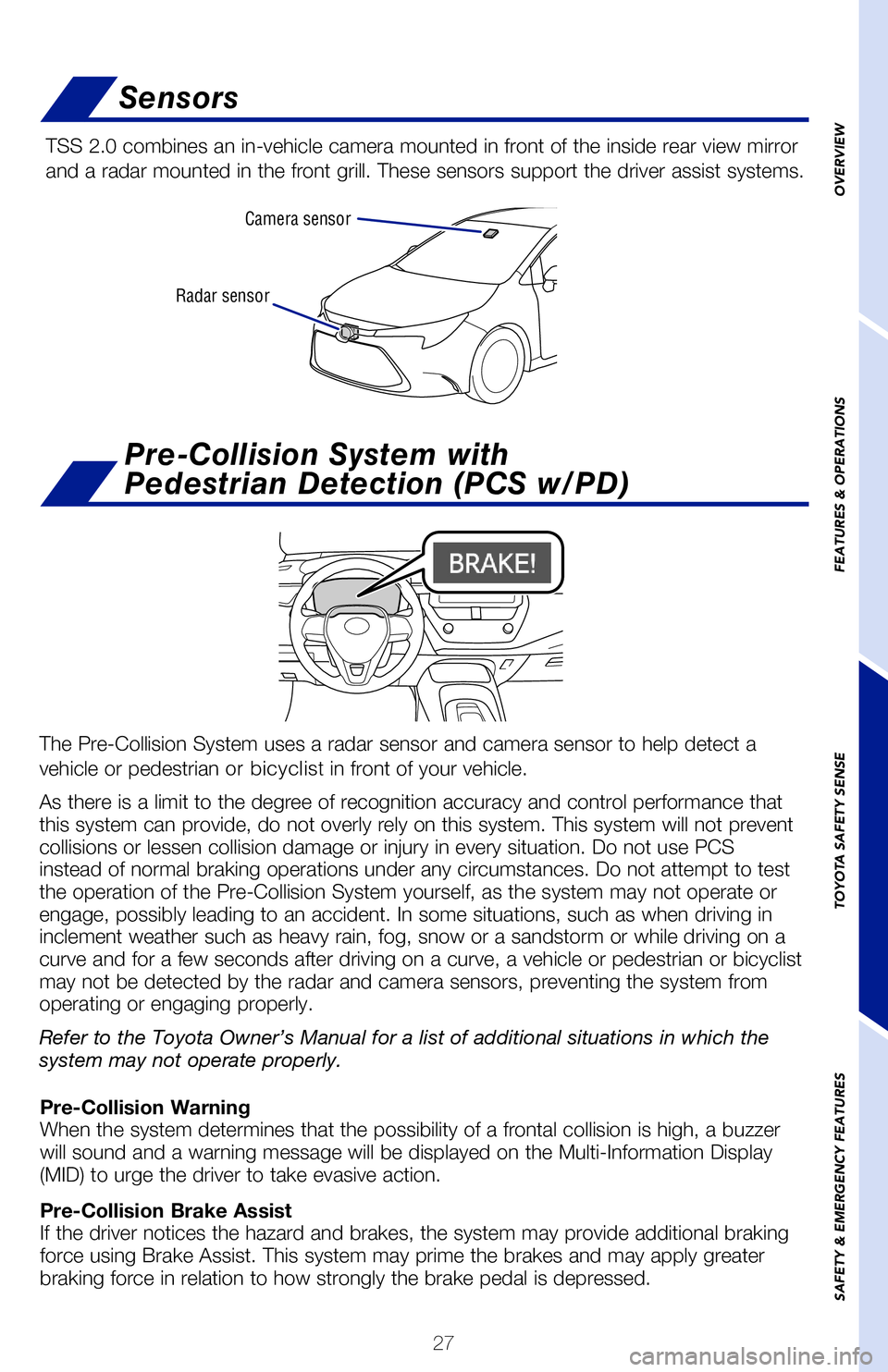

TSS 2.0 combines an in-vehicle camera mounted in front of the inside rea\
r view mirror
and a radar mounted in the front grill. These sensors support the driver\
assist systems.
The Pre-Collision System uses a radar sensor and camera sensor to help d\
etect a
vehicle or pedestrian or bicyclist in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control pe\
rformance that
this system can provide, do not overly rely on this system. This system \
will not prevent
collisions or lessen collision damage or injury in every situation. Do n\
ot use PCS
instead of normal braking operations under any circumstances. Do not att\
empt to test
the operation of the Pre-Collision System yourself, as the system may no\
t operate or
engage, possibly leading to an accident. In some situations, such as whe\
n driving in
inclement weather such as heavy rain, fog, snow or a sandstorm or while \
driving on a
curve and for a few seconds after driving on a curve, a vehicle or pedes\
trian or bicyclist
may not be detected by the radar and camera sensors, preventing the syst\
em from
operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system may not operate properly. Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a buzzer
will sound and a warning message will be displayed on the Multi-Informat\
ion Display
(MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional braking
force using Brake Assist. This system may prime the brakes and may apply\
greater
braking force in relation to how strongly the brake pedal is depressed.Quick overview-Toyota Safety Sense™ 2.0
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and
the tail lights of preceding vehicles and switch between high beams
and low beams as appropriate. Road Sign Assist (RSA)
RSA is designed to recognize specific road signs using the forward
facing camera to provide information to the driver via the display.
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced millimeter-wave radar sensor system is designed to work
with the camera sensor to help recognize a preceding pedestrian or
bicyclist, and provide an alert, mitigation and/or avoidance support in \
certain conditions.
Full-Speed Range Dynamic Radar Cruise Control (DRCC)
Full-Speed Range DRCC is designed to help maintain a pre-set
distance to a preceding vehicle when the preceding vehicle is traveling \
at a lower speed. The minimum set speed is approximately 20 MPH,
but once activated, the operating speed range is 0-110 MPH.
Lane Tracing Assist (LTA)
LTA is designed to help keep the vehicle in the center of a lane by
assisting the driver in steering control when using Full-Speed Range
DRCC.
Lane Departure Alert with Steering Assist (LDA w/SA)
LDA w/SA is designed to provide notification when the system detects
an unintended lane departure.
The Steering Assist function is designed to provide small corrective
steering inputs to the steering wheel for a short period of time to help\

keep the vehicle in its lane.
The Sway Warning function is designed to detect vehicle swaying
(based on the vehicle location and steering wheel operation) and alert\

the driver with an audio and visual alert, urging them to take a break.
145651_Corolla_Hybrid_QRG_guts.indd 263/23/20 4:11 PM

27
Radar sensorCamera sensor
Sensors
Toyota Safety Sense™ 2.0 (TSS 2.0) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS 2.0 is designed to help support the driver’s \
awareness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
TSS 2.0 combines an in-vehicle camera mounted in front of the inside rea\
r view mirror
and a radar mounted in the front grill. These sensors support the driver\
assist systems.
The Pre-Collision System uses a radar sensor and camera sensor to help d\
etect a
vehicle or pedestrian or bicyclist in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control pe\
rformance that
this system can provide, do not overly rely on this system. This system \
will not prevent
collisions or lessen collision damage or injury in every situation. Do n\
ot use PCS
instead of normal braking operations under any circumstances. Do not att\
empt to test
the operation of the Pre-Collision System yourself, as the system may no\
t operate or
engage, possibly leading to an accident. In some situations, such as whe\
n driving in
inclement weather such as heavy rain, fog, snow or a sandstorm or while \
driving on a
curve and for a few seconds after driving on a curve, a vehicle or pedes\
trian or bicyclist
may not be detected by the radar and camera sensors, preventing the syst\
em from
operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system may not operate properly.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a buzzer
will sound and a warning message will be displayed on the Multi-Informat\
ion Display
(MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional braking
force using Brake Assist. This system may prime the brakes and may apply\
greater
braking force in relation to how strongly the brake pedal is depressed.
Quick overview-Toyota Safety Sense™ 2.0
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and
the tail lights of preceding vehicles and switch between high beams
and low beams as appropriate. Road Sign Assist (RSA)
RSA is designed to recognize specific road signs using the forward
facing camera to provide information to the driver via the display.
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced millimeter-wave radar sensor system is designed to work
with the camera sensor to help recognize a preceding pedestrian or
bicyclist, and provide an alert, mitigation and/or avoidance support in \
certain conditions.
Full-Speed Range Dynamic Radar Cruise Control (DRCC)
Full-Speed Range DRCC is designed to help maintain a pre-set
distance to a preceding vehicle when the preceding vehicle is traveling \
at a lower speed. The minimum set speed is approximately 20 MPH,
but once activated, the operating speed range is 0-110 MPH.
Lane Tracing Assist (LTA)
LTA is designed to help keep the vehicle in the center of a lane by
assisting the driver in steering control when using Full-Speed Range
DRCC.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Lane Departure Alert with Steering Assist (LDA w/SA)
LDA w/SA is designed to provide notification when the system detects
an unintended lane departure.
The Steering Assist function is designed to provide small corrective
steering inputs to the steering wheel for a short period of time to help\

keep the vehicle in its lane.
The Sway Warning function is designed to detect vehicle swaying
(based on the vehicle location and steering wheel operation) and alert\

the driver with an audio and visual alert, urging them to take a break.
145651_Corolla_Hybrid_QRG_guts.indd 273/23/20 4:11 PM

28
As part of the Pre-Collision System, this function is also designed to f\
irst provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and inf\
ormation.
CHANGING PRE-COLLISION ALERT TIMINGPRE-COLLISION SYSTEM (CONTINUED)
DISABLING PRE-COLLISION SYSTEM (PCS)
TOYOTA SAFETY SENSE™
Refer to the Toyota Owner’s Manual for additional information on PCS \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it. Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the possibility
of a frontal collision with a preceding vehicle is extremely high, the s\
ystem may
automatically apply the brakes, reducing speed in order to help the driv\
er reduce the
impact and in certain cases avoid the collision.
Monocular camera sensor
Millimeter
wave radar
PCS PEDESTRIAN DETECTION
(1) Press “ ” switches and select “” from the Multi-Information Display (MID).
(2) Press “ ” switches and select “
(PCS)” and then press “”. The setting
screen is displayed.
(3) Press “ ” switches and select “Adjust alert timing” and then press “\
” to
select the desired setting. Each time it is pressed, the response to the\
PCS alert
timing changes as shown above.
(4) Press “” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
(1) Press “ ” switches and select “” from the Multi-Information Display (MID).
(2) Press “ ” switches and select “
(PCS)” and then press “”. The setting
screen is displayed.
(3) Press “ ” switches and select “PCS” and then press “
” to select the desired
setting.
(4) Press “
” to go back to the menu.
Note: The system is enabled each time the power switch is turned to ON m\
ode.
Refer to the Toyota Owner’s Manual for additional information on PCS \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
Under certain conditions, the PCS system included with the TSS 2.0 packa\
ge
may also help to detect a pedestrian or bicyclist in front of your vehic\
le using the
in-vehicle camera and front grille-mounted radar. The in-vehicle camera \
of PCS
detects a potential pedestrian or bicyclist based on size, profile, and \
motion of
the detected pedestrian or bicyclist. However, a pedestrian or bicyclist\
may not
be detected depending on the conditions, including the surrounding brigh\
tness
and the motion, posture, size, and angle of the potential detected pedes\
trian or
bicyclist, preventing the system from operating or engaging.
145651_Corolla_Hybrid_QRG_guts.indd 283/23/20 4:11 PM
