TOYOTA COROLLA iM 2018 (in English) Owner's Manual

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURESIf the vehicle is hit, the position and mounting angle of the camera
may change. Be sure to have the camera position and mounting angle
checked at your local Toyota dealer.
The camera is of water proof construction. Do not detach, disassemble
or modify it. Any of these activities may cause the system to malfunctio\
n.
If the temperature changes rapidly, such as pouring hot water on the
vehicle in cold temperatures, the system may not operate normally.
Do not hit the camera or expose it to strong impact as this may cause it\
s
position and mounting angle to change.
Do not rub the camera lens strongly. If the lens is scratched it cannot \
transmit a clear image.
Do not allow organic solvent, car wax, window cleaner or glass coat to
adhere to the camera. If contact is made with one of these substances
wipe it off as soon as possible.
When replacing tires on the vehicle, please consult your Toyota dealer. \
If
you replace the tires, the area displayed on the screen may change.
Do not use a high-pressure car-wash machine type wand to spray the
camera or camera area as this may cause serious damage to the rear
view camera. Using intensive bursts of water may result in the camera
malfunctioning.
NOTICE
The image on the screen is different from actual conditions. Depicted di\
stances
between objects and flat surfaces will differ from actual distance. If y\
ou back up
looking only at the screen monitor, you may hit an object, vehicle or pe\
rson.
Use your own eyes to confirm the vehicle’s surroundings, as the displ\
ayed image
may become faint or dark, and moving images will be distorted or not ent\
irely
visible when the outside temperature is low.
CAUTION

20
Pre-Collision System (PCS)PCS is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
Lane Departure Alert (LDA)LDA is designed to provide notification when the system detects
an unintended lane departure.
Auto High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles
and the tail lights of preceding vehicles and switch between high
beams and low beams as appropriate.

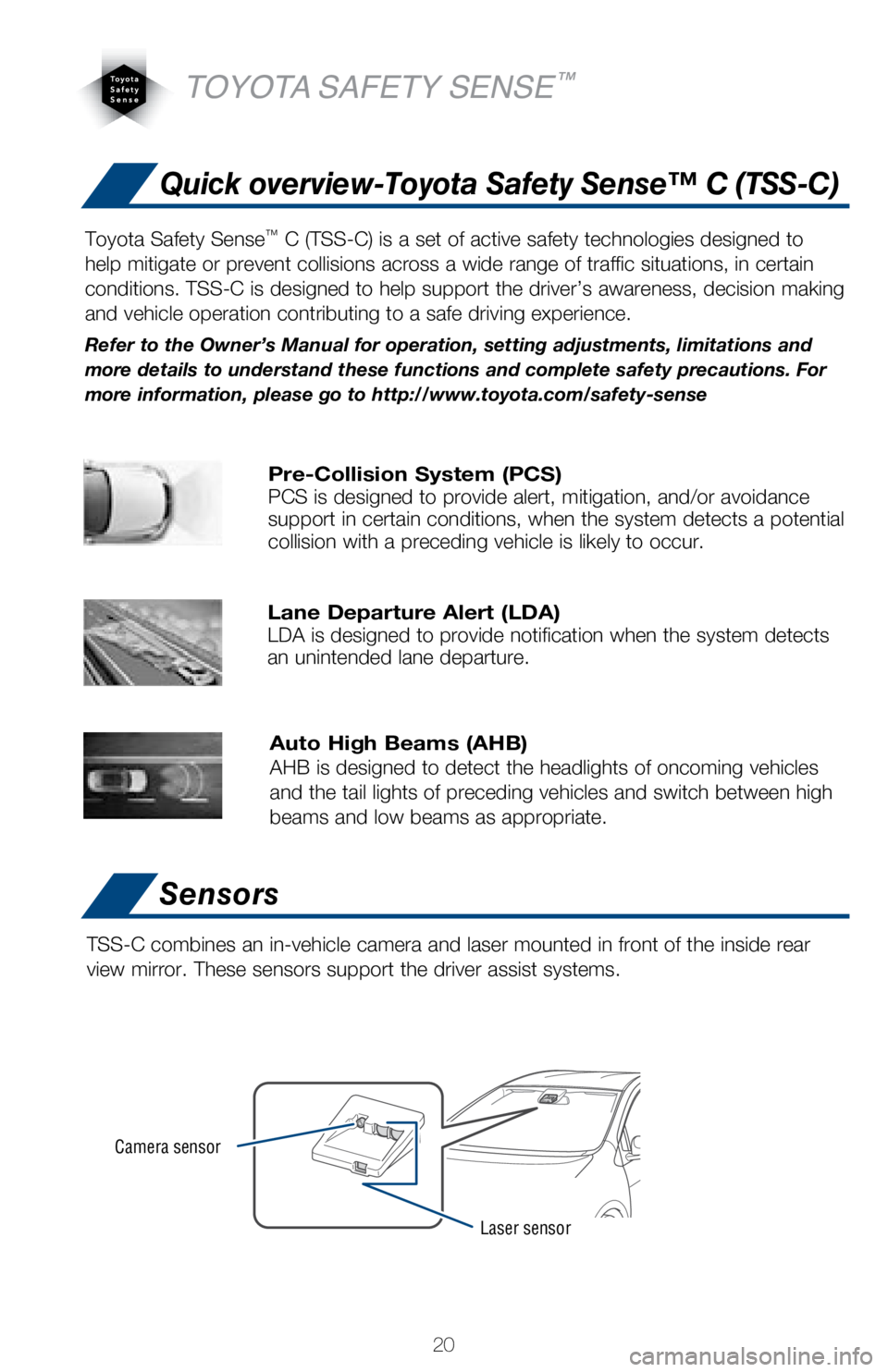

Laser sensor
Camera sensor
Quick overview-Toyota Safety Sense™ C (TSS-C)
Sensors
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ C (TSS-C) is a set of active safety technologies designed to
help mitigate or prevent collisions across a wide range of traffic situa\
tions, in certain
conditions. TSS-C is designed to help support the driver’s awareness,\
decision making
and vehicle operation contributing to a safe driving experience.
Refer to the Owner’s Manual for operation, setting adjustments, limit\
ations and
more details to understand these functions and complete safety precautio\
ns. For
more information, please go to http://www.toyota.com/safety-sense
TSS-C combines an in-vehicle camera and laser mounted in front of the in\
side rear
view mirror. These sensors support the driver assist systems.

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Pre-Collision System (PCS)
The Pre-Collision System uses a laser sensor and camera sensor to help d\
etect a
vehicle in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control pe\
rformance that
this system can provide, do not overly rely on this system. This system \
will not prevent
collisions or lessen collision damage or injury in every situation. Do n\
ot use PCS
instead of normal braking operations under any circumstances. Do not att\
empt to test
the operation of the Pre-Collision System yourself, as the system may no\
t operate or
engage, possibly leading to an accident. In some situations, such as whe\
n driving in
inclement weather such as heavy rain, fog, snow or a sandstorm or while \
driving on a
curve and for a few seconds after driving on a curve, a vehicle may not \
be detected
by the laser and camera sensors, preventing the system from operating or\
engaging
properly.
Refer to a Toyota Owner’s Manual for a list of additional situations \
in which the
system may not operate properly.
Refer to the Toyota Owner’s Manual for additional information on PCS \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a buzzer
will sound and a warning message will be displayed on the Multi-Informat\
ion Display
(MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional braking
force using Brake Assist. This system may prime the brakes and may apply\
greater
braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the possibility
of a frontal collision with a preceding vehicle is extremely high, the s\
ystem may
automatically apply the brakes, reducing speed in order to help the driv\
er reduce the
impact and in certain cases avoid the collision.

22

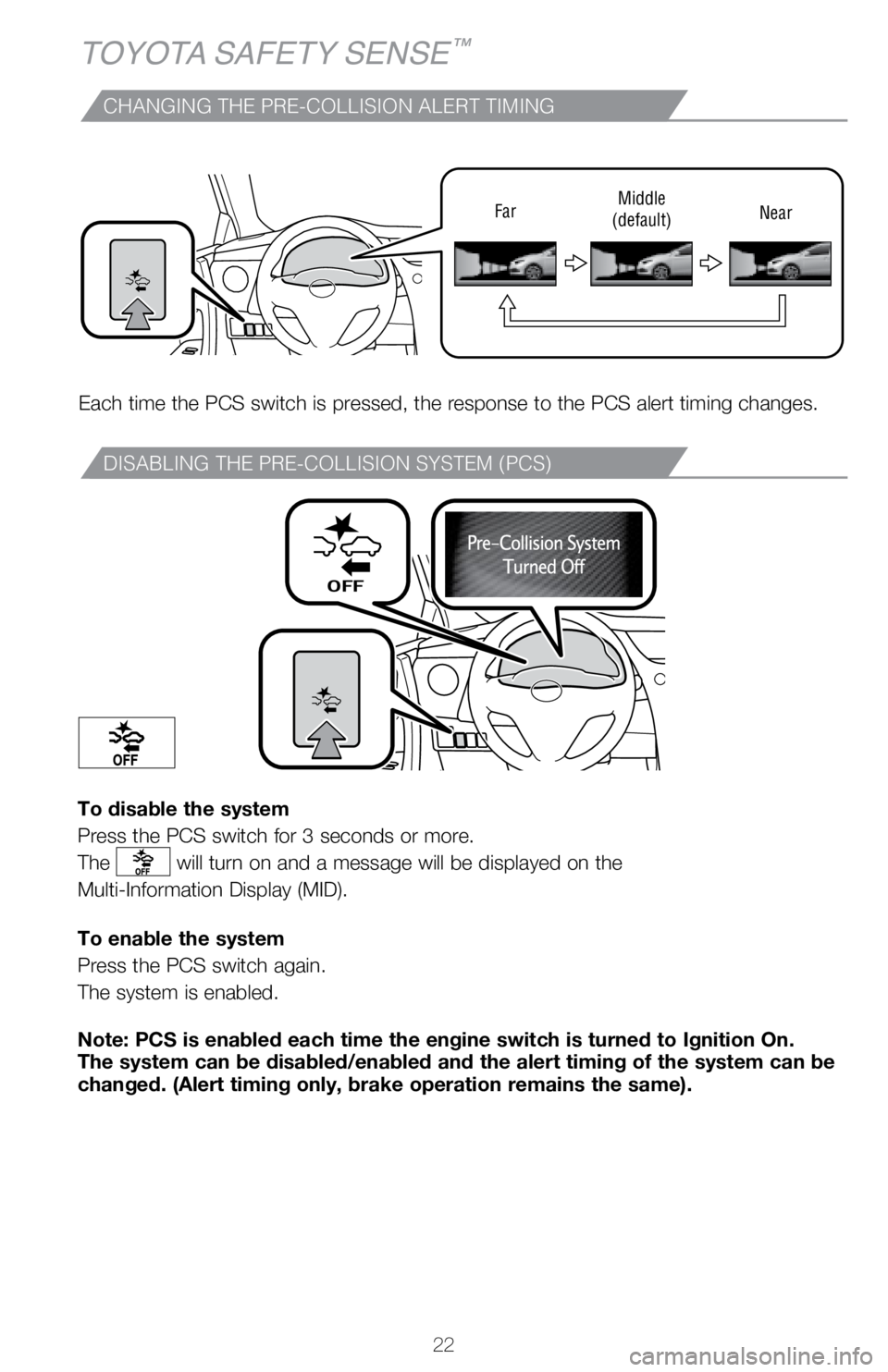

CHANGING THE PRE-COLLISION ALERT TIMING
DISABLING THE PRE-COLLISION SYSTEM (PCS)
Each time the PCS switch is pressed, the response to the PCS alert timin\
g changes.
To disable the system
Press the PCS switch for 3 seconds or more.
The
will turn on and a message will be displayed on the
Multi-Information Display (MID).
To enable the system
Press the PCS switch again.
The system is enabled.
Note: PCS is enabled each time the engine switch is turned to Ignition O\
n.
The system can be disabled/enabled and the alert timing of the system ca\
n be
changed. (Alert timing only, brake operation remains the same).
Far Middle
(default) Near
TOYOTA SAFETY SENSE™

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Press the LDA switch to turn the LDA system on. Depress again to turn it\
off.
Note: Operation of the LDA system and setting adjustments continues in t\
he
same condition regardless of Ignition cycle until changed by the driver \
or the
system is reset.
Refer to the Toyota Owner’s Manual for additional information on LDA \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
Lane Departure Alert (LDA)

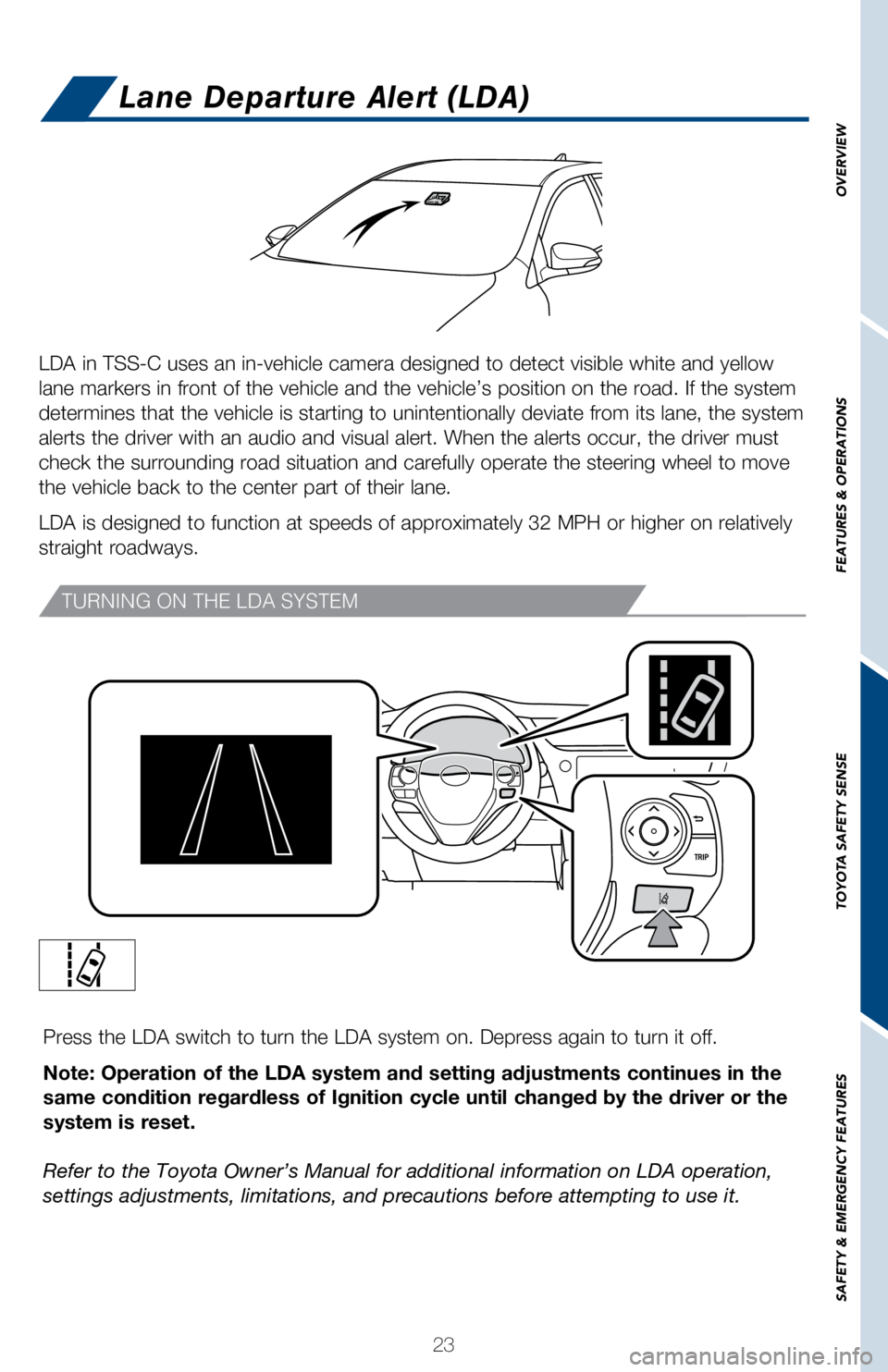

TURNING ON THE LDA SYSTEM
LDA in TSS-C uses an in-vehicle camera designed to detect visible white \
and yellow
lane markers in front of the vehicle and the vehicle’s position on th\
e road. If the system
determines that the vehicle is starting to unintentionally deviate from \
its lane, the system
alerts the driver with an audio and visual alert. When the alerts occur,\
the driver must
check the surrounding road situation and carefully operate the steering \
wheel to move
the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 MPH or higher \
on relatively
straight roadways.

24
FUNCTIONS
The LDA function displays when the Multi-Information Display (MID) is \
switched to the
driving assist system information screen.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met aga\
in,
operation of the function is automatically restored. For example, LDA ma\
y not
function on the side(s) where white/yellow lines are not detectable.
Refer to the Toyota Owner’s Manual for additional information on LDA \
operation,
settings adjustments, limitations, and precautions before attempting to \

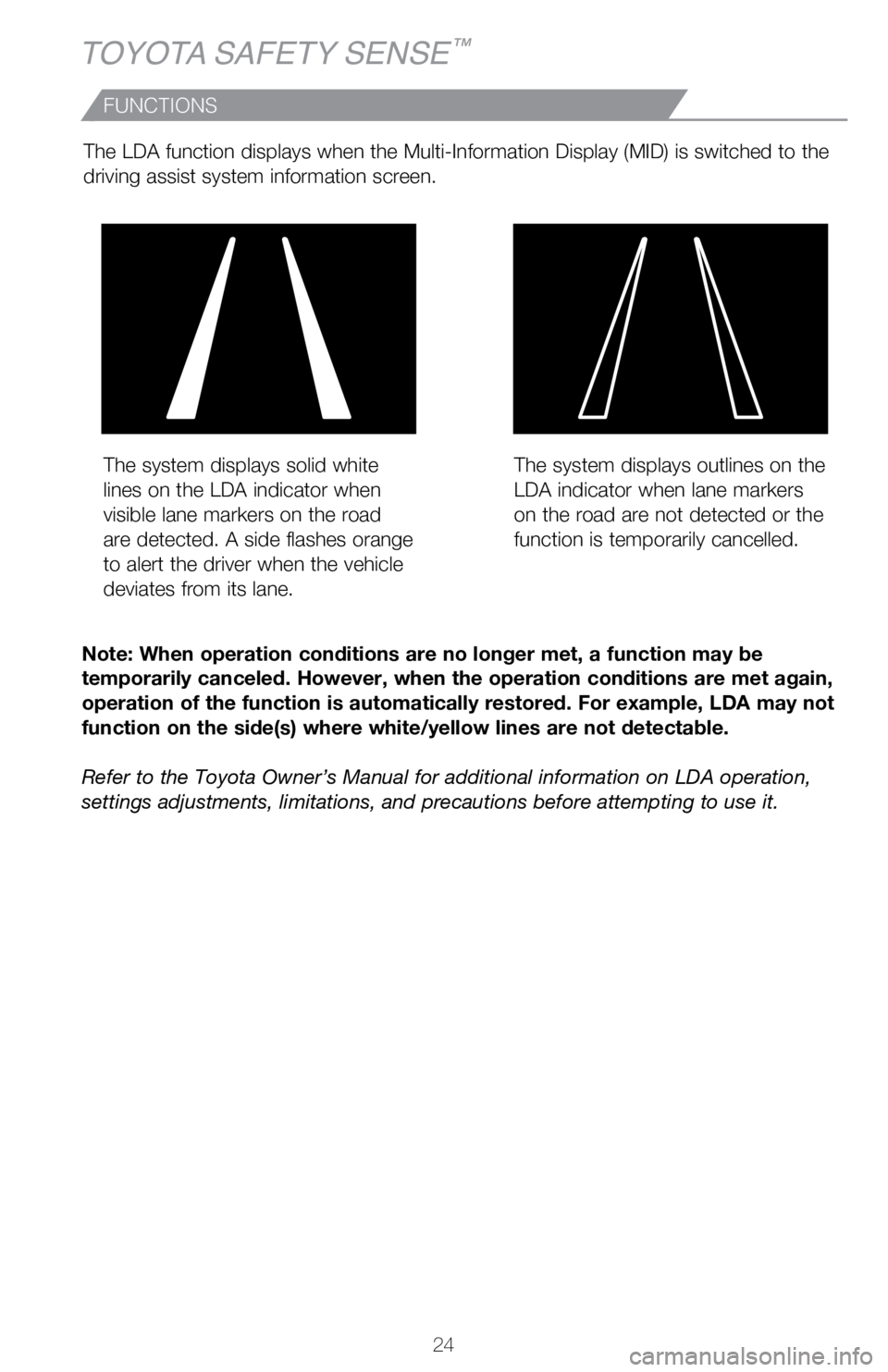

use it.The system displays solid white
lines on the LDA indicator when
visible lane markers on the road
are detected. A side flashes orange
to alert the driver when the vehicle
deviates from its lane.
The system displays outlines on the
LDA indicator when lane markers
on the road are not detected or the
function is temporarily cancelled.
TOYOTA SAFETY SENSE™

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Automatic High Beams (AHB)
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
With the engine switch in IGNITION ON mode and headlight switch turned t\
o “AUTO”
position, push lever away from you.
The
will come on when the headlights are turned on automatically to indicat\
e
that the system is active.
Note: Pull the lever back toward you to turn the AHB system off.
The
will turn off and the high beam indicator turns on.
When all of these conditions are met, high beams will be automatically t\
urned on
(after approximately 1 second):
• Vehicle speed is above approximately 21 mph (33 km/h).
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail lights turned
on.
• There are few streetlights on the road ahead.
If any of these conditions occur, high beams will be automatically turne\
d off:
• Vehicle speed drops below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lights turned on.
• There are many streetlights on the road ahead.
AHB is a safety system designed to help drivers see more of what’s ah\
ead at nighttime
without dazzling other drivers. When enabled, AHB uses an in-vehicle cam\
era to
help detect the headlights of oncoming vehicles and tail lights of prece\
ding vehicles,
then automatically switches between high and low beams as appropriate to\
provide
the most light possible and enhance forward visibility. By using high be\
ams more
frequently, the system may allow earlier detection of pedestrians and ob\
stacles.
Refer to the Toyota Owner’s Manual for additional information on AHB \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.

26

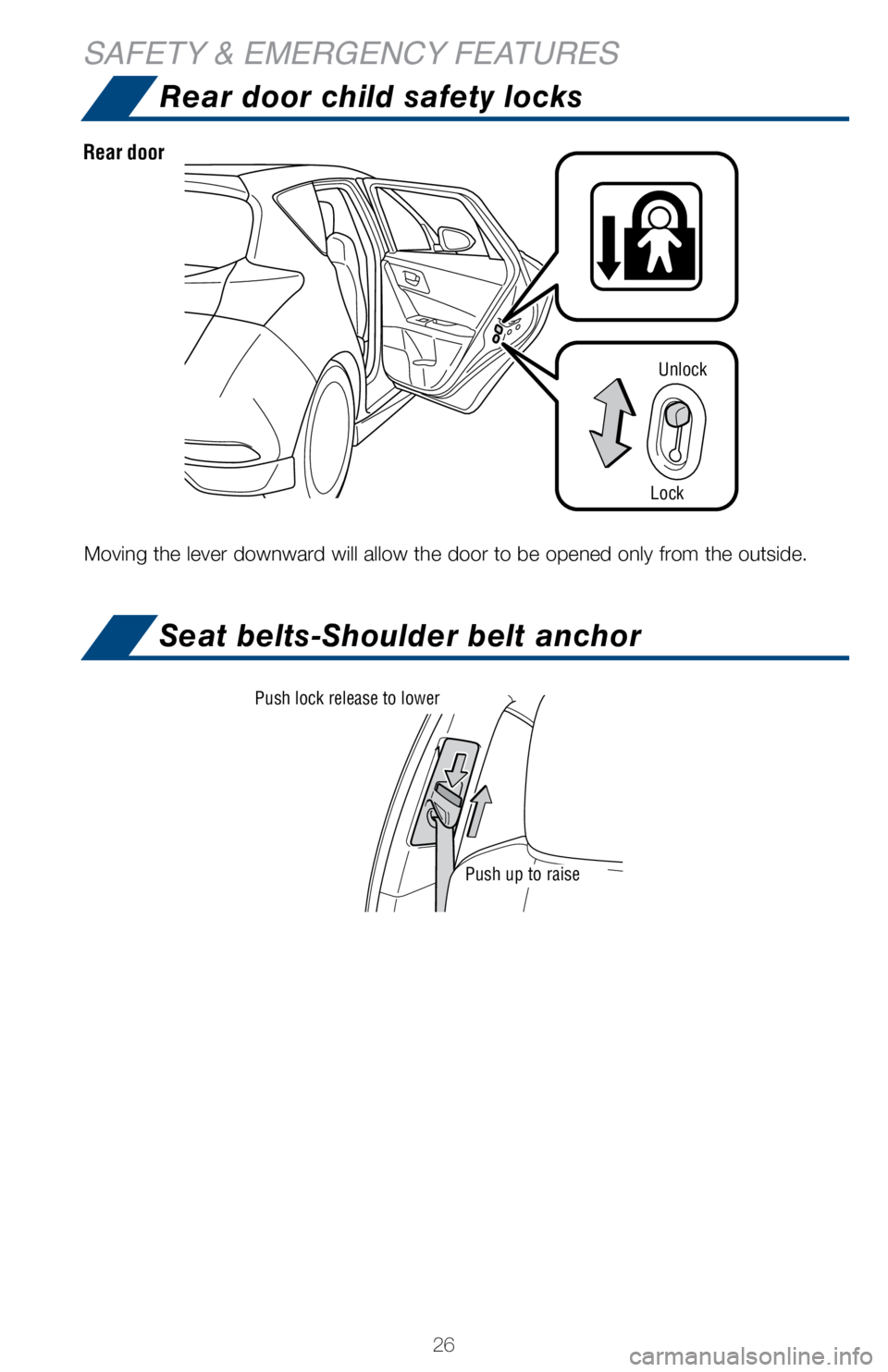

Moving the lever downward will allow the door to be opened only from the\
outside.
Rear door
Unlock
Lock
Push up to raise
Push lock release to lower
SAFETY & EMERGENCY FEATURES
Rear door child safety locks
Seat belts-Shoulder belt anchor

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Seat belts
Tire Pressure Monitoring (warning) System (TPMS)
NOTE: If a passenger’s seat belt is fully extended, then retracted ev\
en slightly,
the Automatic locking retractor (ALR) will prevent it from being re-ex\
tended
beyond that point, unless fully retracted again. This feature is used to\
help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint
system, refer to the Owner’s Manual.

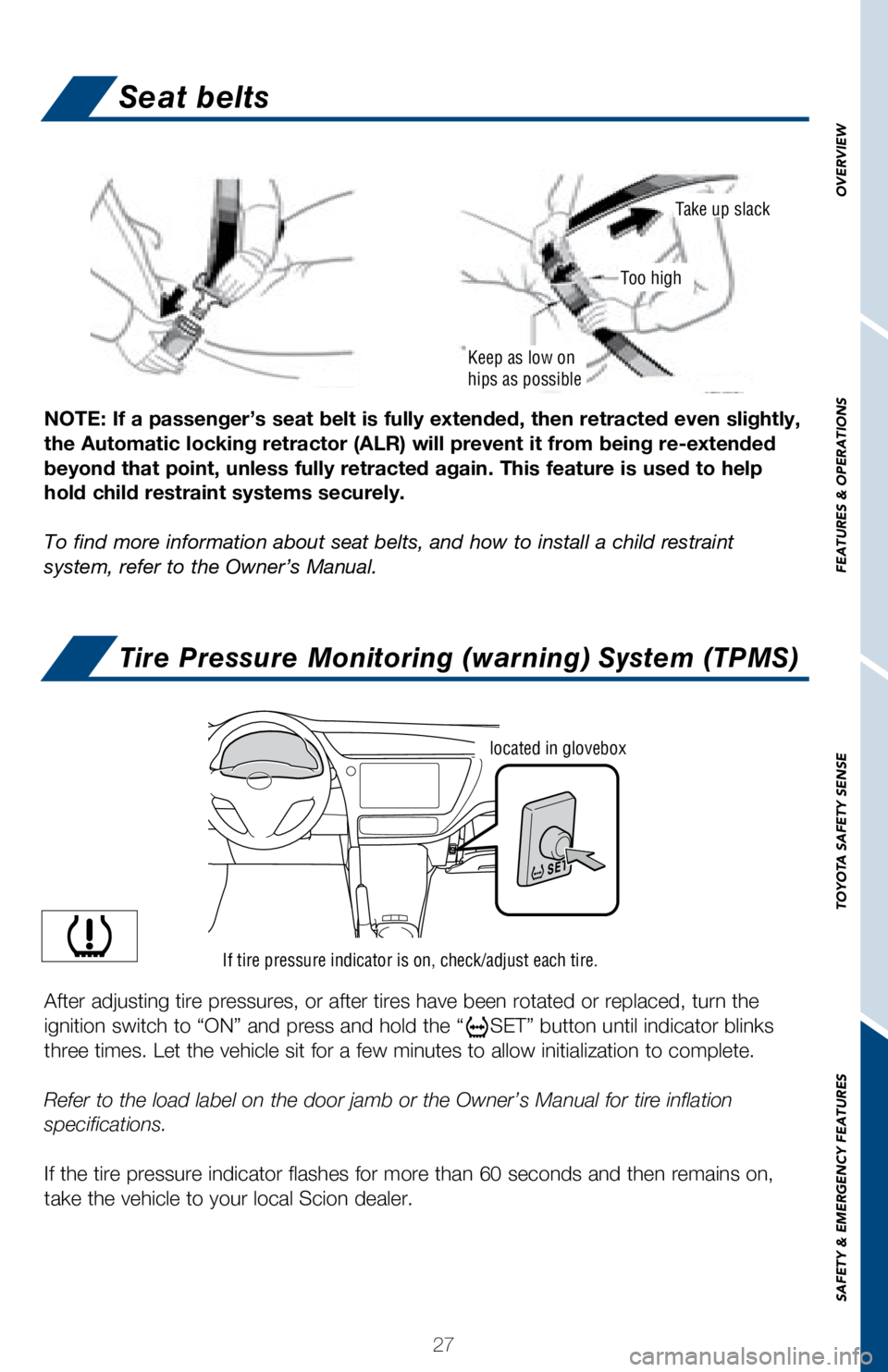

Keep as low on
hips as possible
Take up slack
Too high
If tire pressure indicator is on, check/adjust each tire.
located in glovebox
After adjusting tire pressures, or after tires have been rotated or repl\
aced, turn the
ignition switch to “ON” and press and hold the “
SET” button until indicator blinks
three times. Let the vehicle sit for a few minutes to allow initializati\
on to complete.
Refer to the load label on the door jamb or the Owner’s Manual for ti\
re inflation
specifications.

If the tire pressure indicator flashes for more than 60 seconds and then\
remains on,
take the vehicle to your local Scion dealer.

28
SAFETY & EMERGENCY FEATURES
TOOL LOCATION
REMOVING THE SPARE TIRE

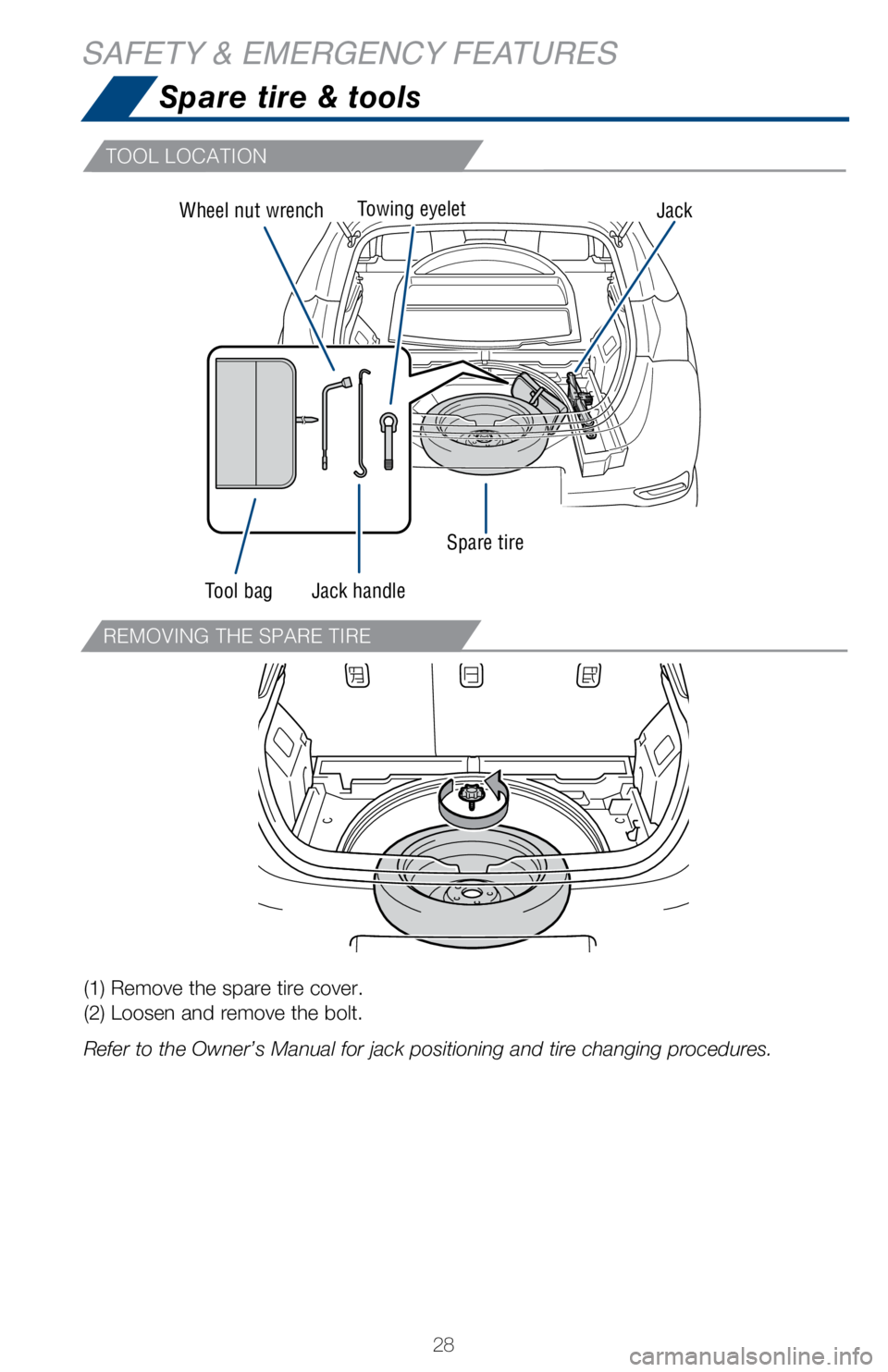

Spare tire & tools
Towing eyeletWheel nut wrenchJack
Spare tire
Jack handleTool bag
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures.
