MAINTENANCE REQUIREMENTS175
Section 6
MAINTENANCE REQUIREMENTS
DMaintenance facts 176.................................
DDoes your vehicle need repairing? 177..................
Dyna100/150_EE

176MAINTENANCE REQUIREMENTS
Regular maintenance is essential.
We urge you to protect your new vehicle
by having your Toyota serviced according
to the maintenance schedule given in the
separate booklet. Regular maintenance will
aid:
DGood fuel economy
DLong vehicle life
DDriving enjoyment
DSafety
DReliability
DWarranty coverage
DCompliance with government regula-
tions
Your Toyota has been designed for eco-
nomical driving and economical mainte-
nance. Many formerly required mainte-
nance items are no longer required or are
not required as often. To make sure your
vehicle runs at peak efficiency, follow the
maintenance schedule.
For full details of your maintenance
schedule, read the separate “Toyota
Service Booklet” or “Toyota Warranty
Booklet”.Where to go for service?
In order to maintain your vehicle in the
highest possible condition, Toyota recom-
mends that all repairs and service opera-
tions are carried out by authorized Toyota
dealers or repairers or other duly qualified
and equipped professionals. For repairs
and services covered by your warranty,
please visit an authorized Toyota dealer or
repairer, who will use genuine Toyota
parts in repairing any difficulties you may
encounter. There can also be advantages
to utilizing authorized Toyota dealers or
repairers for non−warranty repairs and
services, as due to their specialization of
working with Toyota vehicles, members of
the Toyota network will be able to expertly
assist you with any difficulties you may
encounter.
Your Toyota dealer or repairer, or another
duly qualified and equipped professional
service department will perform all of the
scheduled maintenance on your vehicle—
reliably and economically.
What about do−it−yourself maintenance?
Many of the maintenance items are easy
to do yourself if you have a little mechani-
cal ability and a few basic automotive
tools. Simple instructions for how to per-
form them are presented on page 179 in
Section 7.
Dyna100/150_EE
Maintenance facts

MAINTENANCE REQUIREMENTS177
Note, however, that some maintenance
tasks require special tools and skills.
These are best performed by qualified
technicians. Even if you’re an experienced
do−it−yourself mechanic, we recommend
that repairs and maintenance be con-
ducted by an authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional. Any authorized
Toyota dealer or repairer will keep a
record of maintenance, which could be
useful should you ever require Warranty
Service. Should you choose to select a
qualified and equipped professional other
than an authorized Toyota repairer to
service or maintain your vehicle, we
recommend that you request that a record
of maintenance be kept.
The service interval for scheduled main-
tenance is determined by the odometer
reading or time interval, whichever
comes first, shown in the schedule.
Rubber hoses (for cooling and heater
system, brake system and fuel system)
should be inspected by a qualified tech-
nician in accordance with the Toyota
maintenance schedule.
They are particularly important mainte-
nance items. Have any deteriorated or
damaged hoses replaced immediately.
Note that rubber hoses will deteriorate
with age, resulting in swelling, chafing or
cracks.Be on the alert for changes in perfor-
mance, sounds, and visual tip−offs that
indicate service is needed. Some impor-
tant clues are as follows:
DEngine missing, stumbling, or pinging
DAppreciable loss of power
DStrange engine noises
DA leak under the vehicle (However, wa-
ter dripping from the air conditioning
after use is normal.)
DChange in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaustsystem checked im-
mediately.)
DFlat−looking tire; excessive tire squeal
when cornering; uneven tire wear
DVehicle pulls to one side when driving
straight on a level road
DStrange noises related to suspension
movement
DLoss of brake effectiveness; spongy
feeling brake or clutch pedal; pedal al-
most touches floor; vehicle pulls to one
side when braking
DEngine coolant temperature continually
higher than normal
If you notice any of these clues, take your
vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional, as soon as pos-
sible. It probably needs adjustment or re-
pair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly se-
rious injury.
Dyna100/150_EE
Does your vehicle need
repairing?

178MAINTENANCE REQUIREMENTS
Dyna100/150_EE

DO−IT−YOURSELF MAINTENANCE: Introduction179
Section 7−1
DO−IT−YOURSELF MAINTENANCE
Introduction
DEngine compartment overview 180......................
DBattery locations 182..................................
DFuse locations 182.....................................
DDo−it−yourself service precautions 185..................
Dyna100/150_EE

180DO−IT−YOURSELF MAINTENANCE: Introduction

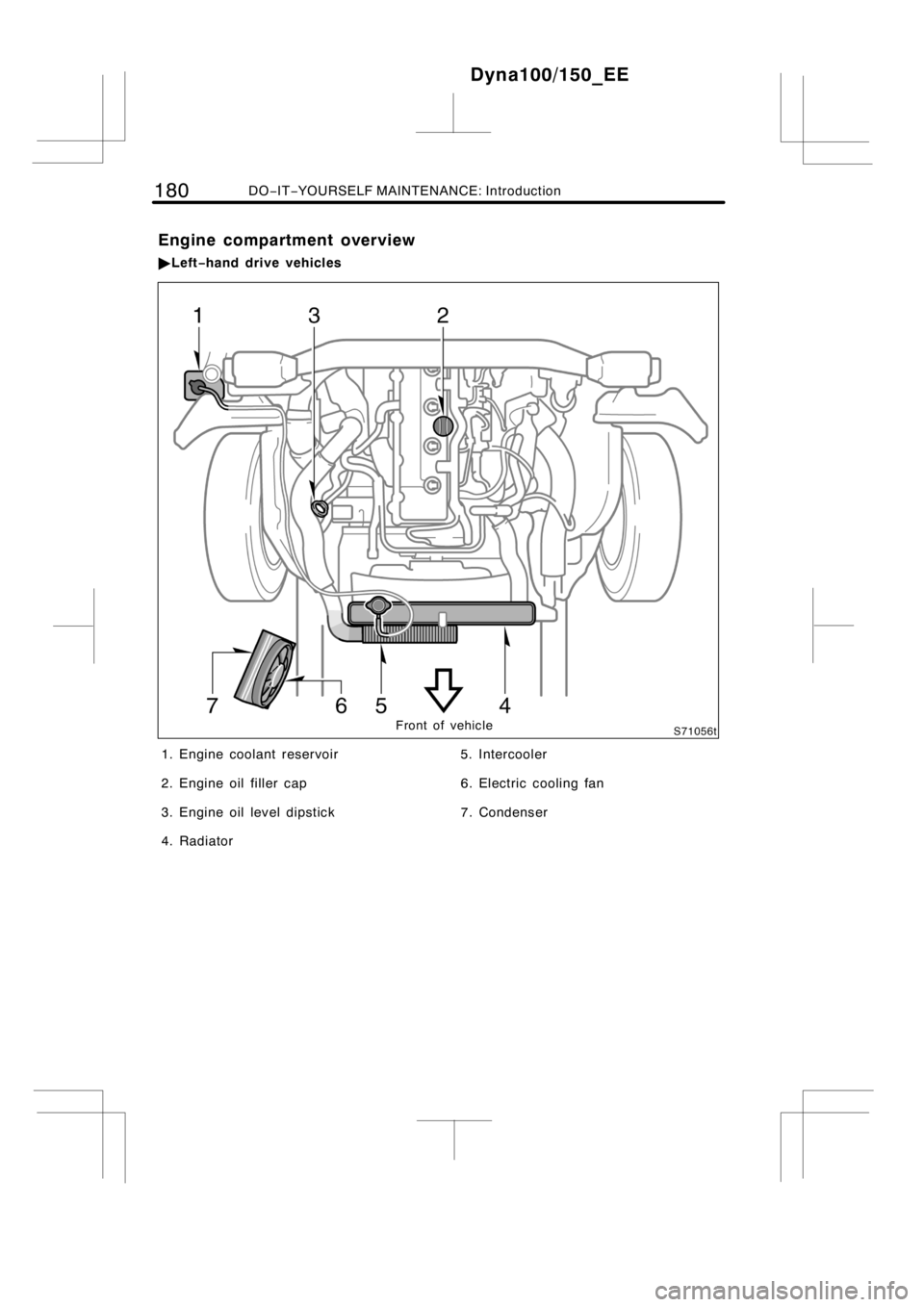

Front of vehicle
1. Engine coolant reservoir
2. Engine oil filler cap
3. Engine oil level dipstick
4. Radiator5. Intercooler
6. Electric cooling fan
7. Condenser
Dyna100/150_EE
Engine compartment overview
"Left−hand drive vehicles

DO−IT−YOURSELF MAINTENANCE: Introduction181

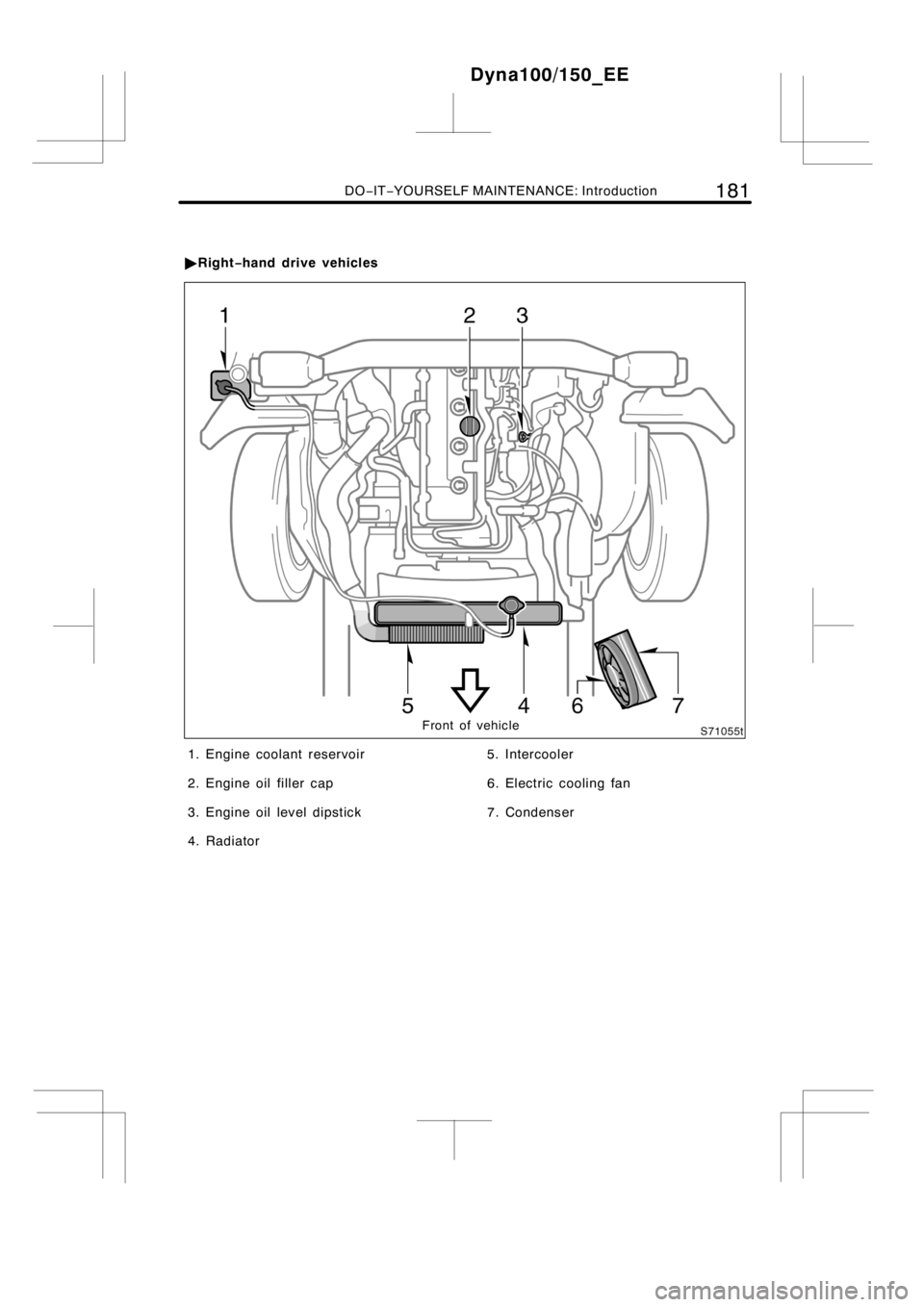

Front of vehicle
1. Engine coolant reservoir
2. Engine oil filler cap
3. Engine oil level dipstick
4. Radiator5. Intercooler
6. Electric cooling fan
7. Condenser
Dyna100/150_EE
"Right−hand drive vehicles

182DO−IT−YOURSELF MAINTENANCE: Introduction
Single cab models

Double cab models


: See “Model code” on page vi in the
beginning of this manual if you are not
sure of your vehicle model.
Single cab models

Dyna100/150_EE
Battery locations Fuse locations

DO−IT−YOURSELF MAINTENANCE: Introduction183

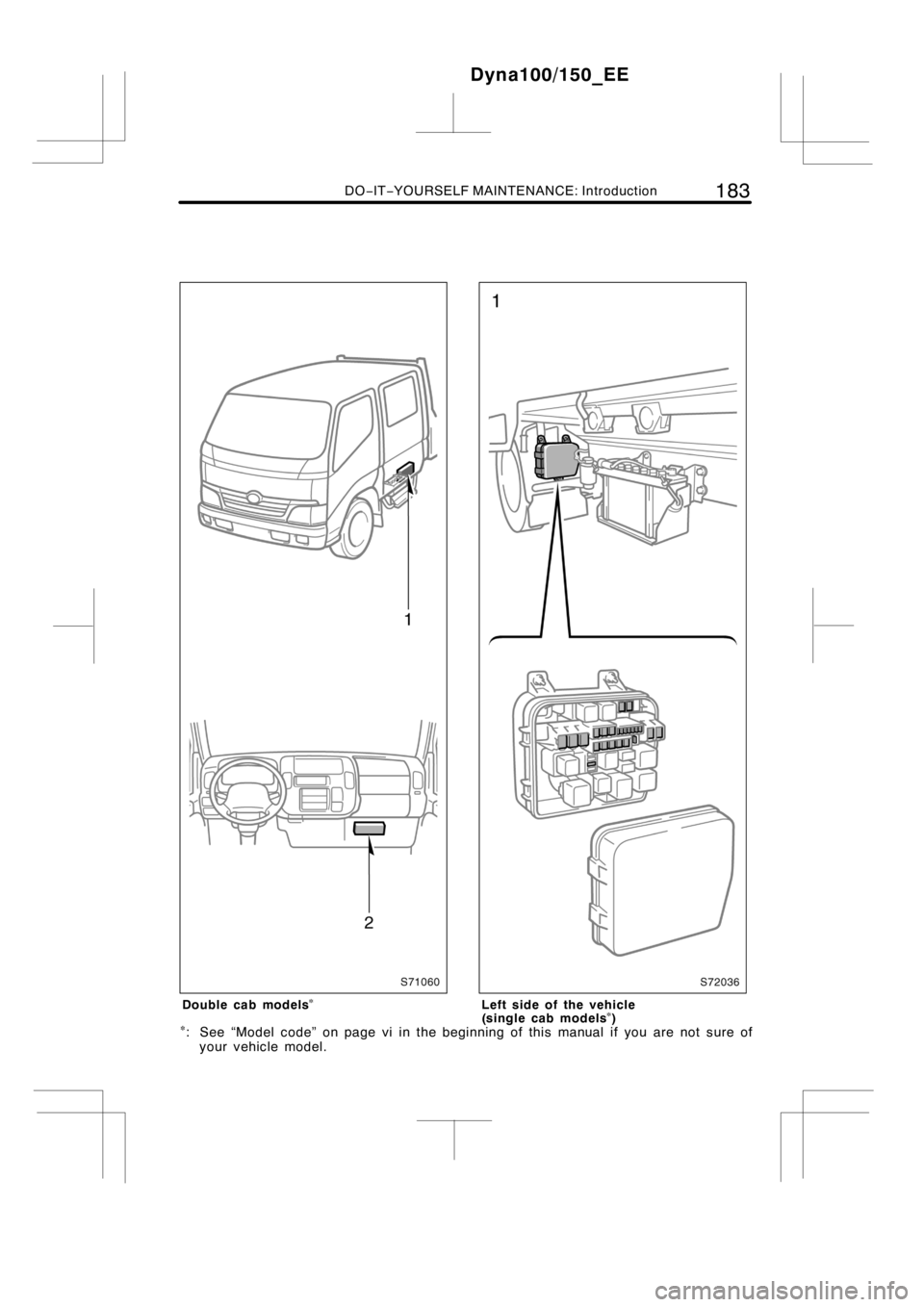

Double cab models
Left side of the vehicle
(single cab models
)
: See “Model code” on page vi in the beginning of this manual if you are not sure of
your vehicle model.
Dyna100/150_EE

184DO−IT−YOURSELF MAINTENANCE: Introduction

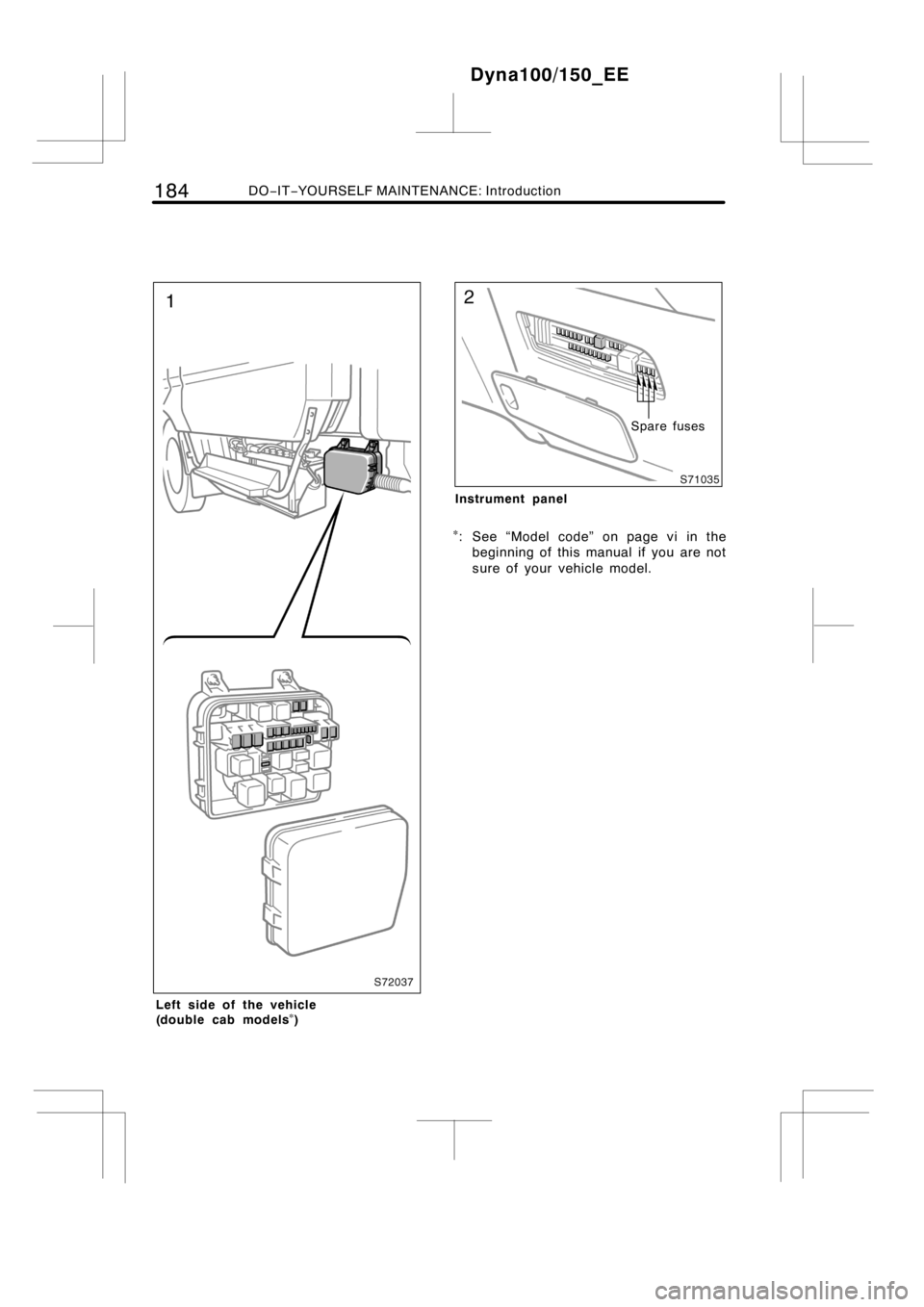

Left side of the vehicle
(double cab models
)
Spare fuses
Instrument panel

: See “Model code” on page vi in the
beginning of this manual if you are not
sure of your vehicle model.
