TOYOTA GR86 2022 Owners Manual (in English)

139
4
4-2. Driving procedures
Driving
4-2.Driving procedures
1 Check that the parking brake is
set.
2 Check that the shift lever is in P
(automatic transmission) or N
(manual transmission).
3 Firmly depress the brake pedal
(automatic transmission) or
clutch pedal (manual transmis-
sion).
, and a message will be dis- played on the multi-information display.
If it is not displayed, the engine cannot
be started.
4 Press the engine switch shortly
and firmly.
When operating the engine switch, one
short, firm press is enough. It is not necessary to press and hold the switch.
The engine will crank until it starts or for
up to 10 seconds, whichever is less.
Continue depressing the brake pedal
(automatic transmission) or clutch
pedal (manual transmission) until the engine is completely started.
The engine can be started from any
engine switch mode.
■If the engine does not start
●The engine immobilizer system may
not have been deactivated. ( P. 7 9 )
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●If a message related to start-up is
shown on the multi-information dis-
play, read the message and follow the instructions.
■If the battery is discharged
The engine cannot be started using the
smart entry & start system. Refer to P.359to restart the engine.
■Electronic key battery depletion
 P. 1 0 0
■Conditions affecting operation
 P. 1 1 1
■Notes for the entry function
 P. 1 1 1
■Steering lock function
●After turning the engine switch off and opening and closing the doors, the
steering wheel will be locked due to
the steering lock function. Operating
the engine switch again automatically cancels the steering lock.
●When the steering lock cannot be released, “Locked. Push Ignition
Switch While Turning Steering Wheel”
will be displayed on the multi-informa- tion display.
Check that the shift lever is in P (auto-
matic transmission) or N (manual
Engine (ignition) switch
Performing the following oper-
ations when carrying the elec-
tronic key on your person
starts the engine or changes
engine switch modes.
Starting the engine

1404-2. Driving procedures
transmission). Press the engine
switch while turning the steering wheel left and right.
●To prevent the steering lock motor from overheating, operation of the
motor may be suspended if the engine
is turned on and off repeatedly in a short period of time. In this case,
refrain from operating the engine
switch. After about 10 seconds, the steering lock motor will resume func-
tioning.
■When “Keyless Access System
Disabled Check Owner's Manual” is displayed on the multi-information
display
The system may be malfunctioning. Have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.
■Electronic key battery
 P.316
■Operation of the engine switch
●If the switch is not pressed shortly and
firmly, the engine switch mode may
not change or the engine may not start.
●If attempting to restart the engine immediately after turning the engine
switch off, the engine may not start in
some cases. After turning the engine switch off, please wait more than 10
seconds before restarting the engine.
■If the smart entry & start system
has been disabled
If the smart entry & start system has been disabled, refer to P.357.
■Immediately after reconnecting the
battery terminals due to replacing the battery and so forth
The engine may not start. If this occurs,
turn the engine switch to ON, and start the engine after waiting at least 10 sec-
onds. Idling may be unstable immedi-
ately after the engine starts, however, this is not a malfunction.
WA R N I N G
■When starting the engine
Always start the engine while sitting in
the driver’s seat. Do not depress the accelerator pedal while starting the
engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution while driving
If engine failure occurs while the vehi-
cle is moving, do not lock or open the
doors until the vehicle reaches a safe and complete stop. Activation of the
steering lock in this circumstance may
lead to an accident, resulting in death or serious injury.
NOTICE
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to
start or stalls frequently, have your vehicle checked by authorized
Toyota dealer or repairer, or another
duly qualifiedand equipped profes- sional immediately.
●Vehicles with an automatic trans-mission: Do not shi ft the shift lever
while the starter is operating.

141
4
4-2. Driving procedures
Driving
Automatic transmission
1 Stop the vehicle completely.
2 Set the parking brake (P.151),
and shift the shift lever to P.
Check the parking brake indicator is
illuminated.
3 Press the engine switch.
The engine will stop, and the meter dis-
play will be extinguished.
4 Release the brake pedal and
check that “ACCESSORY” or
“IGNITION ON” is not shown on
the meters.
Manual transmission
1 Stop the vehicle completely.
2 Set the parking brake. (P.151)
Check the parking brake indicator is illuminated.
3 Shift the shift lever to N.
( P.147)
4 Press the engine switch.
The engine will stop, and the meter dis-
play will be extinguished.
5 Release the brake pedal and
check that “ACCESSORY” or
“IGNITION ON” is not shown on
the meters.
Modes can be changed by pressing
the engine switch with brake pedal
(automatic transmission) or clutch
pedal (manual transmission)
released. (The mode changes each
NOTICE
■Symptoms indicating a malfunc-
tion with the engine switch
If the engine switch seems to be oper- ating somewhat differently than usual,
such as the switch sticking slightly,
there may be a malfunction. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer immediately.
Stopping the engine
WA R N I N G
■Stopping the engine in an emer-
gency
If you want to stop the engine in an
emergency while driving the vehicle,
press and hold the engine switch for
more than 2 seconds, or press it briefly 3 times or more in succession.
( P.326)
However, do not touch the engine switch while driving except in an
emergency. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be
lost. This will make it more difficult to steer and brake, so you should pull
over and stop the vehicle as soon as
it is safe to do so.
●If the engine switch is operated
while the vehicle is running, a warn- ing message will be shown on the
multi-information display and a
buzzer sounds.
●Vehicles with an automatic trans-
mission: To restart the engine after performing an emergency shut-
down, shift the shift lever to N and
then press the engine switch.
●Vehicles with a manual transmis-
sion: To restart the engine after per- forming an emergency shutdown,
depress the clutch pedal and then
press the engine switch.

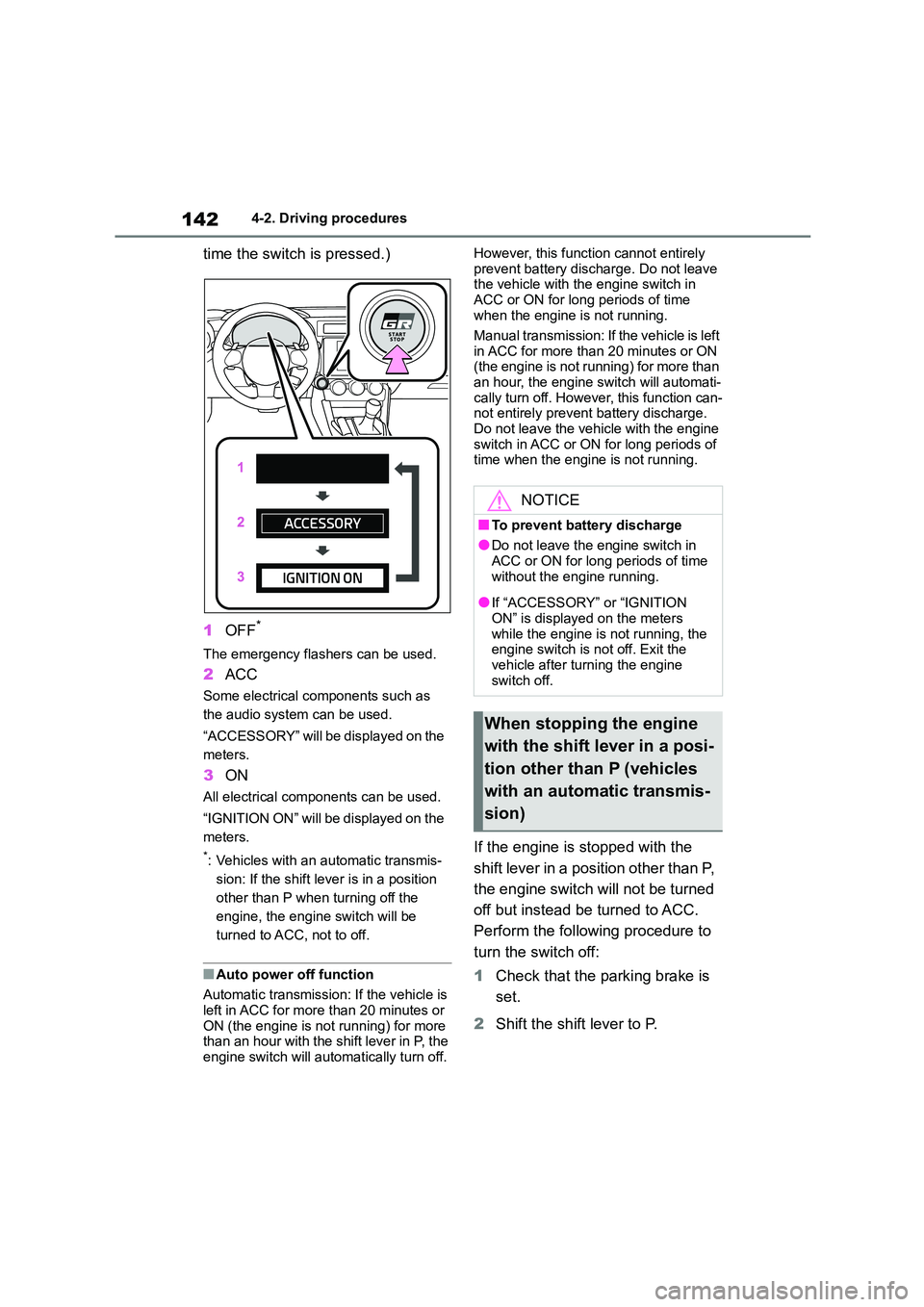

Changing engine switch
modes

1424-2. Driving procedures
time the switch is pressed.)
1 OFF*
The emergency flashers can be used.
2ACC
Some electrical components such as
the audio system can be used.
“ACCESSORY” will be displayed on the
meters.
3 ON
All electrical components can be used.
“IGNITION ON” will be displayed on the
meters.
*: Vehicles with an automatic transmis-
sion: If the shift lever is in a position
other than P when turning off the
engine, the engine switch will be
turned to ACC, not to off.
■Auto power off function
Automatic transmission: If the vehicle is
left in ACC for more than 20 minutes or
ON (the engine is not running) for more than an hour with the shift lever in P, the
engine switch will automatically turn off.
However, this function cannot entirely
prevent battery discharge. Do not leave the vehicle with the engine switch in
ACC or ON for long periods of time
when the engine is not running.
Manual transmission: If the vehicle is left
in ACC for more than 20 minutes or ON
(the engine is not running) for more than an hour, the engine switch will automati-
cally turn off. However, this function can-
not entirely prevent battery discharge. Do not leave the vehicle with the engine
switch in ACC or ON for long periods of
time when the engine is not running.
If the engine is stopped with the
shift lever in a position other than P,
the engine switch will not be turned
off but instead be turned to ACC.
Perform the following procedure to
turn the switch off:
1 Check that the parking brake is
set.
2 Shift the shift lever to P.
NOTICE
■To prevent battery discharge
●Do not leave the engine switch in
ACC or ON for long periods of time
without the engine running.
●If “ACCESSORY” or “IGNITION
ON” is displayed on the meters while the engine is not running, the
engine switch is not off. Exit the
vehicle after turning the engine switch off.
When stopping the engine
with the shift lever in a posi-
tion other than P (vehicles
with an automatic transmis-
sion)

143
4
4-2. Driving procedures
Driving
3 Check that “ACCESSORY” is
displayed on the meters and
press the engine switch shortly
and firmly.
4 Check that “ACCESSORY” or
“IGNITION ON” on the meters
are off.
*: If equipped
*1: To improve fuel efficiency and
reduce noise, shift t he shift lever to D
for normal driving.
*2: Any gear range can be fixed when
driving in Manual mode.
■To protect the automatic transmis-
sion
If the automatic transmission fluid tem- perature is high, “Transmission Oil Tem-
perature Check Owner's Manual” will be
displayed on the multi-information dis- play and the vehicle will go into trans-
mission protection mode automatically.
Have the vehicle inspected by any authorized Toyota retailer or Toyota
NOTICE
■To prevent battery discharge
Do not stop the engine when the shift lever is in a position other than P. If
the engine is stopped in another shift
lever position, the engine switch will not be turned off but instead be
turned to ACC mode. If the vehicle is
left in ACC, battery discharge may occur.
Automatic transmission*
Select the shift position
depending on your purpose
and situation.
Shift position purpose and
functions
Shift posi-
tionObjective or function
PParking the vehicle/start-
ing the engine
RReversing
N
Neutral
(Condition in which the
power is not transmitted)
D
Normal driving*1
Temporary manual mode
driving ( P.145)
MManual mode driving*2
( P.146)

1444-2. Driving procedures
authorized repairer, or any reliable
repairer.
■When driving with Adaptive Cruise Control or Conventional Cruise
Control activated
Downshifting can be performed even when using Adaptive Cruise Control or
Conventional Cruise Control. After
downshifting, the set speed continues. ( P.145, 146)
■Automatic gear selection when the
vehicle is stopped
When the vehicle is idling at high rpm in order to warm up, and the vehicle is on a
slippery road, the transmission may
automatically shift to 2nd gear for stop- ping and starting off.
■AI-SHIFT
●The AI-SHIFT automatically selects the suitable gear according to driver
performance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in D. (Shifting
the shift lever to the M position can-
cels the function.)
●G AI-SHIFT automatically selects a
suitable gear for sporty driving accord- ing to driver’s input and driving condi-
tions. G AI-SHIFT operates
automatically when the shift lever is in D and sport mode is selected for the
driving mode. (Selecting normal mode
with the driving mode select switch or shifting the shift lever to the M position
cancels this function.)
■After recharging/reconnecting the
battery
 P.361
While the engine switch is in
ON, move the shift lever with the
brake pedal depressed.
When shifting the shift lever between P
and D, make sure that the vehicle is
completely stopped.
■Shift lock system
The shift lock system is a system to pre-
vent accidental operation of the shift
lever in starting. The shift lever can be shifted from P
only when the engine switch is in ON
and the brake pedal is being depressed.
■If the shift lever cannot be shifted from P
First, check whether the brake pedal is
being depressed.
If the shift lever cannot be shifted with
your foot on the brake pedal, there may
be a problem with the shift lock system. Have the vehicle inspected by your
Toyota dealer immediately.
The following steps may be used as an emergency measure to ensure that the
shift lever can be shifted.
Releasing the shift lock:
1 Set the parking brake.
WA R N I N G
■When driving on slippery road
surfaces
Be careful of downshifting and sud- den acceleration, as this could result
in the vehicle skidding to the side or
spinning.
Shifting the shift lever

145
4
4-2. Driving procedures
Driving
2 Turn the engine switch off.
3 Depress the brake pedal.
4 Pry the cover up with a flathead
screwdriver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
5 Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
 P. 2 5 2
Temporary manual mode driving
can be changed to by operating the
paddle shift switches while the shift
lever is in the D position.
When this occurs, the selected
gear and “M” are displayed on the
shift position and shift range indica-
tor.
(When engine speed rises close to
the red zone, upshifting will be
automatically performed.)
Gear Shift Indicator: P. 1 4 6
1 Upshifting
2 Downshifting
The selected shift range, from M1 to
M6, will be displayed on the meter.
■Automatic deactivation of tempo- rary manual mode driving in the D
position
Temporary manual mode driving in the
D position will be deactivated in the fol- lowing situations:
●When the vehicle speed is too low.
●When the accelerator pedal is
depressed for more than a certain period of time.
●When the accelerator pedal is fully, or
WA R N I N G
■To prevent an accident when releasing the shift lock
Before pressing the shift lock override
button, make sure to set the parking brake and depress the brake pedal.
If the accelerator pedal is accidentally
depressed instead of the brake pedal when the shift lock override button is
pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.
Selecting the driving mode
Temporary manual mode
driving

1464-2. Driving procedures
near-fully, depressed.
●When the shift lever is shifted to a
position other than D.
●When the “+” paddle shift switch is
operated for a certain amount of time
continuously
■Downshifting restriction warning buzzer
If downshifting operations are performed
at a vehicle speed by which downshifting is not possible (when
downshifting will cause the engine
speed to enter the red zone), a buzzer will sound to warn the driver that
downshifting cannot be performed.
To enter manual mode, shift the
shift lever to the M position.
When the Gear Shift Indicator is on,
gears can be selected by operating
the shift lever or paddle shift
switches, allowing you to drive in
the gear of your choosing.
The Gear Shift Indicator display is a
guide to help the driver achieve
improved fuel economy and
reduced exhaust emissions within
limits of engine performance.
Even if upshifting operations are per-
formed, if vehicle speed is too low for
the requested gear, the gear will not
change.
Upshift indicator
Downshift indicator
1 Upshifting (+)
2 Downshifting (-)
Each time the shift lever or paddle shift
switches are operated, the gear
changes up or down one gear and the
selected gear, “1” through “6”, will be
set.
The selected gear, from M1 to M6, will
be fixed and displayed on the meter.
When in manual mo de, the gear will
not change unless the shift lever or
paddle shift switches are operated.
However, even when in the manual
mode, the gears will be automati-
cally changed in the following situa-
tion:
 When vehicle speed drops
(downshift only).
 When engine oil temperature is
high and engine speed rises
close to the red zone.
WA R N I N G
■To prevent incorrect operation
Do not attach items such as accesso- ries to the paddle shift switches.
Doing so may unintentionally move
the paddle shift switches.
Manual mode driving
A

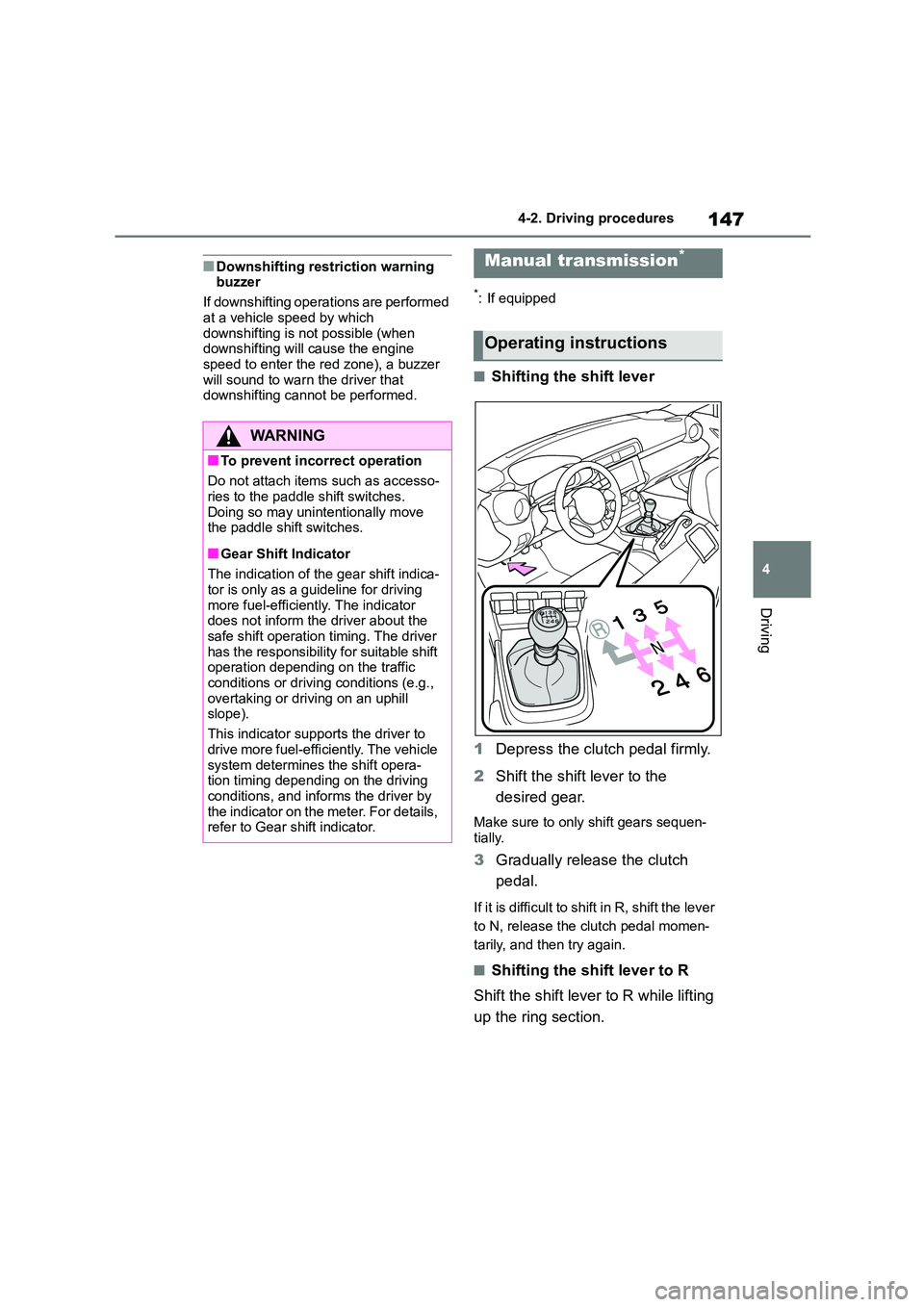

147
4
4-2. Driving procedures
Driving
■Downshifting restriction warning buzzer
If downshifting operations are performed
at a vehicle speed by which downshifting is not possible (when
downshifting will cause the engine
speed to enter the red zone), a buzzer will sound to warn the driver that
downshifting cannot be performed.
*: If equipped
■Shifting the shift lever
1 Depress the clutch pedal firmly.
2 Shift the shift lever to the
desired gear.
Make sure to only shift gears sequen-
tially.
3 Gradually release the clutch
pedal.
If it is difficult to shift in R, shift the lever
to N, release the clutch pedal momen-
tarily, and then try again.
■Shifting the sh ift lever to R
Shift the shift lever to R while lifting
up the ring section.
WA R N I N G
■To prevent incorrect operation
Do not attach items such as accesso- ries to the paddle shift switches.
Doing so may unintentionally move
the paddle shift switches.
■Gear Shift Indicator
The indication of the gear shift indica- tor is only as a guideline for driving
more fuel-efficiently. The indicator
does not inform the driver about the safe shift operation timing. The driver
has the responsibility for suitable shift
operation depending on the traffic conditions or driving conditions (e.g.,
overtaking or driving on an uphill
slope).
This indicator supports the driver to
drive more fuel-efficiently. The vehicle
system determines the shift opera- tion timing depending on the driving
conditions, and informs the driver by
the indicator on the meter. For details, refer to Gear shift indicator.
Manual transmission*
Operating instructions

1484-2. Driving procedures
■Maximum allowable speeds
Observe the following maximum allowa-
ble speeds in each gear when maximum
acceleration is necessary.
The selected shift position will be
displayed on the multi-information
display.
Shift positionMaximum speed
km/h (mph)
146 (29)
276 (48)
3108 (68)
4138 (86)
5167 (104)
6218 (136)
NOTICE
■To prevent damage to the vehicle
When shifting gears, observe the fol-
lowing precautions. Failure to do so
may cause damage to the engine, manual transmission, and/or clutch.
●Do not shift the shift lever without depressing the clutch pedal.
●Do not lift up the ring section except
when shifting the lever to R.
●Shift the shift lever to R only when
the vehicle is stationary.
●Do not rest your hand on or hold the
shift lever any time other than when
shifting.
●In order to not cause the engine to
overrev, make sure to only shift gears sequentially.
●Do not release the clutch pedal suddenly.
Shift position indicator
