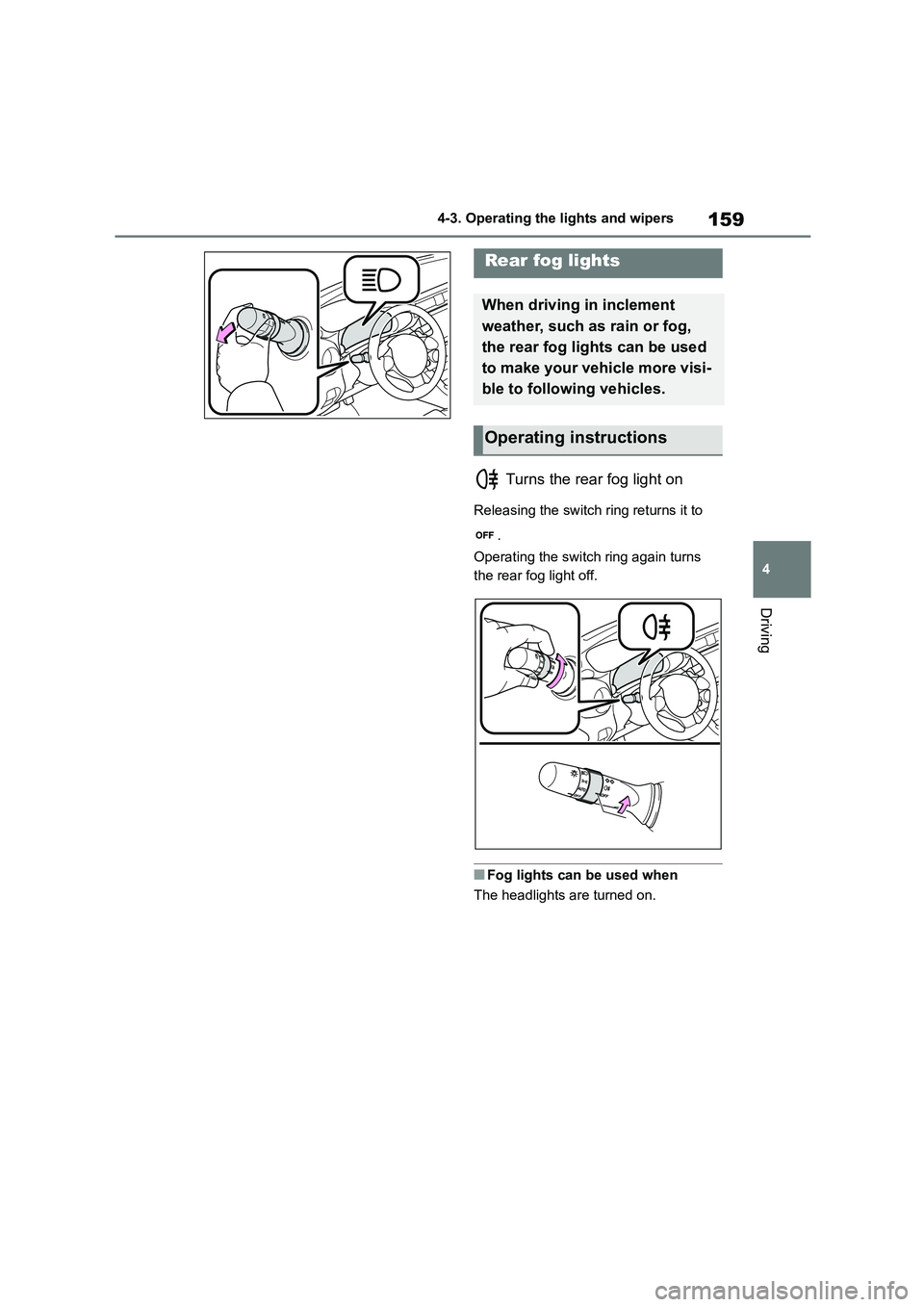

TOYOTA GR86 2022 Owners Manual (in English)

159
4
4-3. Operating the lights and wipers
Driving
Turns the rear fog light on
Releasing the switch ring returns it to
.
Operating the switch ring again turns
the rear fog light off.
■Fog lights can be used when
The headlights are turned on.
Rear fog lights
When driving in inclement
weather, such as rain or fog,
the rear fog lights can be used
to make your vehicle more visi-
ble to following vehicles.
Operating instructions

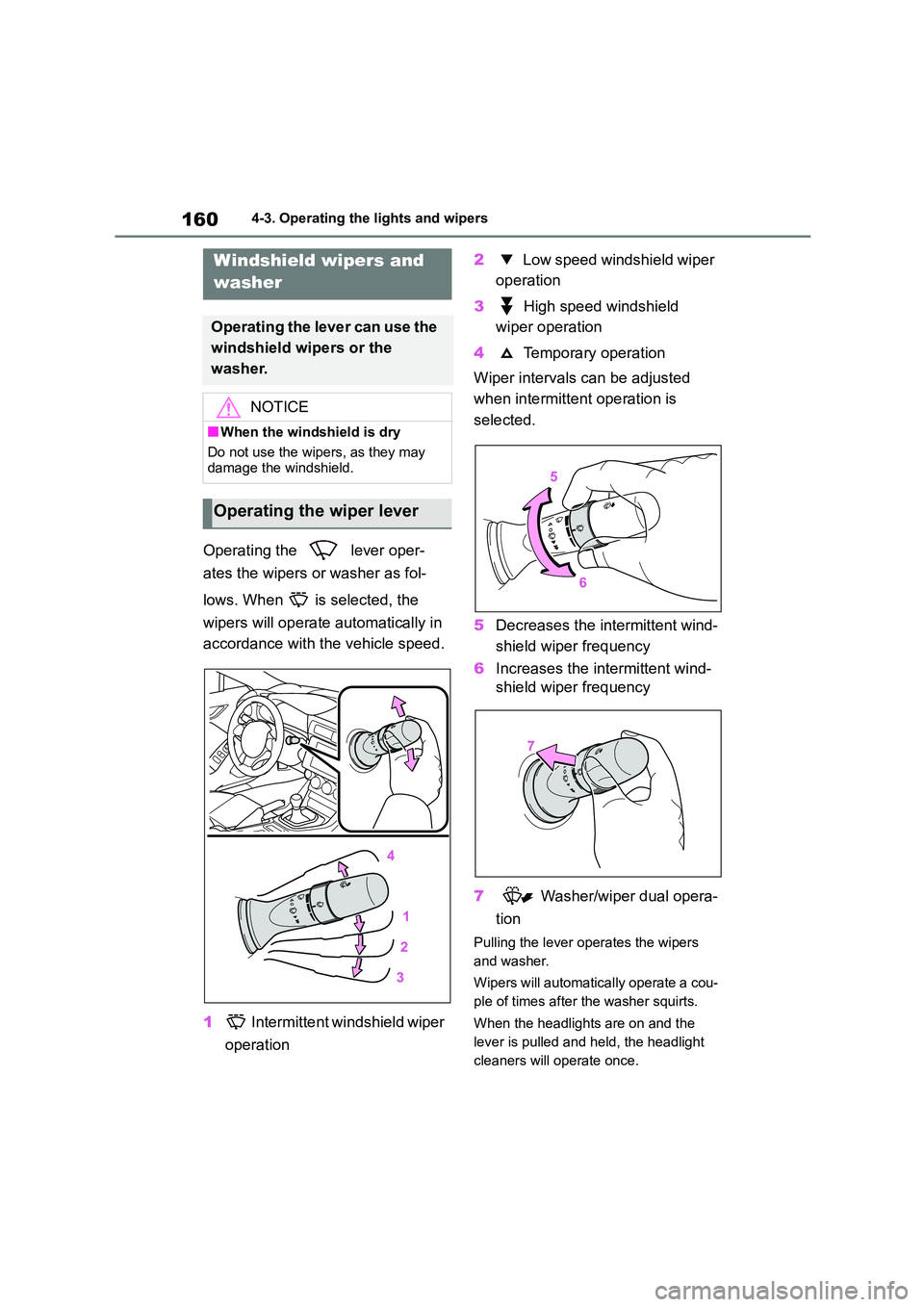

1604-3. Operating the lights and wipers
Operating the lever oper-
ates the wipers or washer as fol-
lows. When is selected, the
wipers will op erate automatically in
accordance with the vehicle speed.
1 Intermittent windshield wiper
operation
2 Low speed windshield wiper
operation
3 High speed windshield
wiper operation
4 Temporary operation
Wiper intervals can be adjusted
when intermittent operation is
selected.
5 Decreases the intermittent wind-
shield wiper frequency
6 Increases the intermittent wind-
shield wiper frequency
7 Washer/wiper dual opera-
tion
Pulling the lever operates the wipers
and washer.
Wipers will automatical ly operate a cou-
ple of times after the washer squirts.
When the headlights are on and the
lever is pulled and held, the headlight
cleaners will operate once.
Windshield wipers and
washer
Operating the lever can use the
windshield wipers or the
washer.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may
damage the windshield.
Operating the wiper lever

161
4
4-3. Operating the lights and wipers
Driving
■The windshield wiper and washer can be operated when
The engine switch is in ON.
■If no windshield washer fluid
sprays
Check that the washer nozzles are not
blocked if there is washer fluid in the
windshield washer fluid reservoir.
WA R N I N G
■Caution regarding the use of washer fluid
When it is cold, do not use the washer
fluid until the windshield becomes warm. The fluid may freeze on the
windshield and cause low visibility.
This may lead to an accident, result- ing in death or serious injury.
NOTICE
■When the washer fluid tank is
empty
Do not operate the switch continually
as the washer fluid pump may over-
heat.
■When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

1624-4. Refueling
4-4.Refueling
Close both side doors and win-
dows, and turn the engine switch
off.
 Confirm the type of fuel.
■Fuel types
 P.376
■Fuel tank opening for unleaded
gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only
accommodates the special nozzle on
unleaded fuel pumps.
Opening the fuel tank
cap
Perform the following steps to
open the fuel tank cap:
Before refueling the vehicle
WA R N I N G
■When refueling the vehicle
Observe the following precautions
while refueling the vehicle. Failure to
do so may result in death or serious injury.
●Do not handle fuel indoors.
●After exiting the vehicle and before
opening the fuel door, touch an unpainted metal surface to dis-
charge any static electricity. It is
important to discharge static elec- tricity before refueling because
sparks resulting from static electric-
ity can cause fuel vapors to ignite while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to
remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be
heard before fully removing the cap. In hot weather, pressurized
fuel may spray out the filler neck
and cause injury.
●Do not allow anyone that has not
discharged static electricity from their body to come close to an open
fuel tank.
●Do not allow anyone to approach
the area of the vehicle near the fuel
filler pipe while refueling is in pro- gress.
●Do not inhale vaporized fuel.Fuel contains substances that are
harmful if inhaled.
●Do not smoke while refueling the
vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is stati-
cally charged.
This may cause static electricity to build up, resulting in a possible igni-
tion hazard.
■When refueling
Observe the following precautions to
prevent fuel overflowing from the fuel tank:
●Securely insert the fuel nozzle into the fuel filler neck.
●Stop filling the tank after the fuel
nozzle automatically clicks off.
●Do not top off the fuel tank.

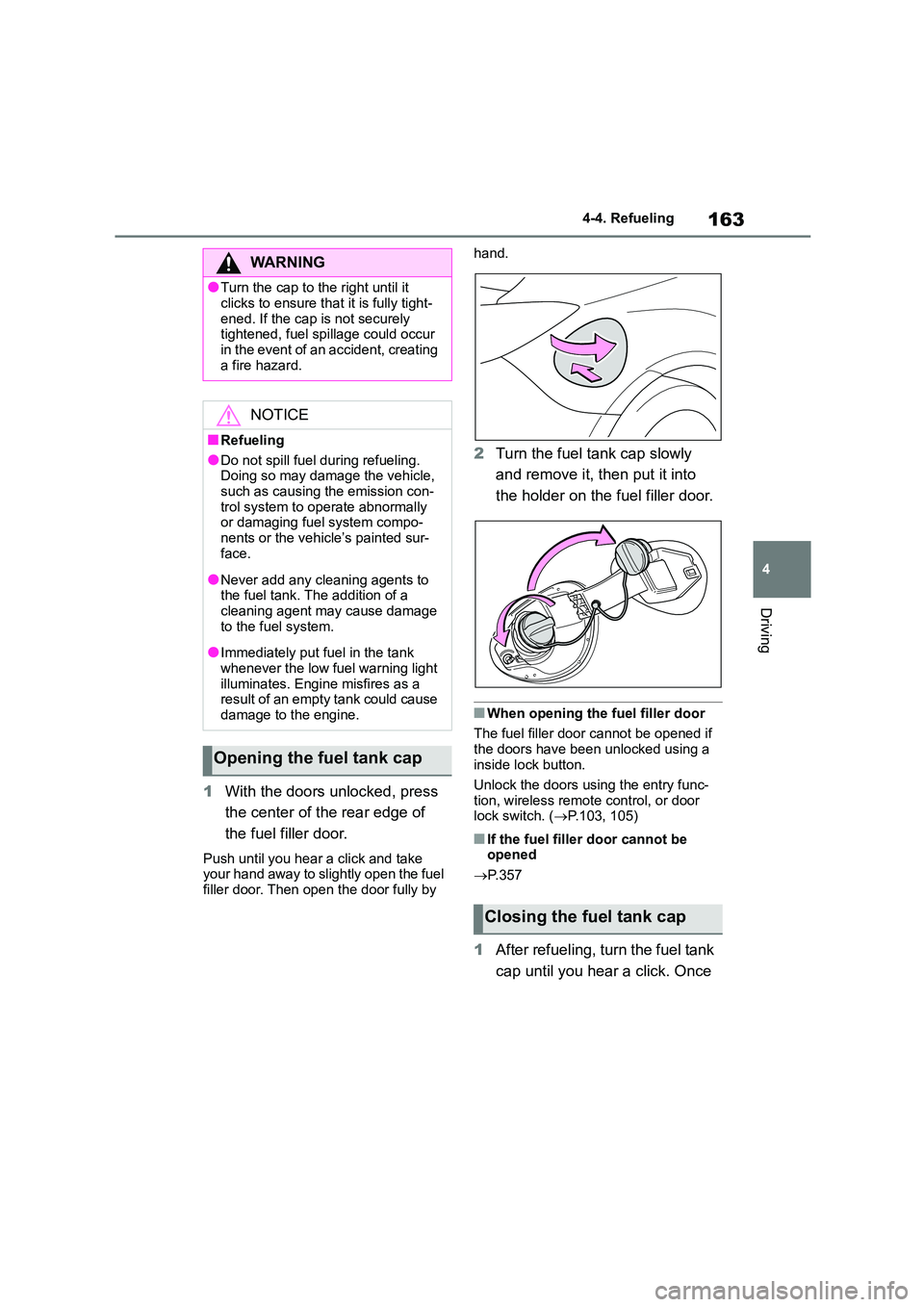

163
4
4-4. Refueling
Driving
1 With the doors unlocked, press
the center of the rear edge of
the fuel filler door.
Push until you hear a click and take your hand away to slightly open the fuel
filler door. Then open the door fully by
hand.
2 Turn the fuel tank cap slowly
and remove it, then put it into
the holder on the fuel filler door.
■When opening the fuel filler door
The fuel filler door cannot be opened if
the doors have been unlocked using a
inside lock button.
Unlock the doors using the entry func-
tion, wireless remote control, or door
lock switch. ( P.103, 105)
■If the fuel filler door cannot be opened
 P. 3 5 7
1After refueling, turn the fuel tank
cap until you hear a click. Once
WA R N I N G
●Turn the cap to the right until it
clicks to ensure that it is fully tight-
ened. If the cap is not securely tightened, fuel spillage could occur
in the event of an accident, creating
a fire hazard.
NOTICE
■Refueling
●Do not spill fuel during refueling.
Doing so may damage the vehicle,
such as causing the emission con- trol system to ope rate abnormally
or damaging fuel system compo-
nents or the vehicle’s painted sur- face.
●Never add any cleaning agents to the fuel tank. The addition of a
cleaning agent may cause damage
to the fuel system.
●Immediately put fuel in the tank
whenever the low fuel warning light
illuminates. Engine misfires as a result of an empty tank could cause
damage to the engine.
Opening the fuel tank cap
Closing the fuel tank cap

1644-4. Refueling
the cap is released, it will turn
slightly in the opposite direction.
2 Close the fuel filler door, and
press the center of the rear
edge of the fuel filler door until
you hear a click.
When you lock the doors, the fuel filler door will also lock.
■When closing the fuel filler door
Do not lock the doors before closing the
fuel filler door, as the fuel filler door can- not be closed if the doors are locked. If
the doors are locked and the fuel filler
door cannot be closed, unlock the doors and then close the fuel filler door.
WA R N I N G
■When replacing the fuel tank cap
Do not use anything but a genuine
Toyota fuel tank cap designed for your vehicle. Doing so may cause a fire or
other incident which may result in
death or serious injury.

165
4
4-5. EyeSight
Driving
4-5.EyeSight
*1: If equipped
*2: EyeSight is a registered trademark
of SUBARU CORPORATION.
EyeSight records and stores the follow- ing data when Pre-Collision Braking
System is operated. It does not record
conversations or other audio data.
●Stereo camera image data
●Distance from the vehicle in front
●Vehicle speed
●Steering wheel turning angle
●Lateral movement with regards to the direction of travel
●Accelerator pedal operation status
●Brake pedal operation status
●Shift lever position
●Odometer reading
●Data related to ABS, VSC and TRC
Toyota and third parties contracted by Toyota may acquire and use the
recorded data for the purpose of vehicle
research and development. Toyota and third parties contracted by Toyota will
not disclose or provide the acquired
data to any other third party except under the following conditions.
• The vehicle owner has given his/her
consent.
• The disclosure/provision is based on a court order or other legally enforcea-
ble request.
• Data that has been modified so that the user and vehicle cannot be identi-
fied is provided to a research institu-
tion for statistical processing or similar purposes.
EyeSight*1, 2
EyeSight is a driving support
system that uses a range of
functions to assist the driver in
making decisions in order to
provide for more safe and
comfortable driving and to
reduce driver fatigue. Making
use of images created by the
stereo camera, EyeSight
detects vehicles, obstacles,
traffic lanes and other items
ahead.
WA R N I N G
Drivers are responsible for driving
safely. Always comply with all traffic
rules and regulations regardless of the fact that your vehicle is equipped
with EyeSight. Always maintain a safe
following distance between your vehi- cle and the vehicle in front of you, pay
attention to your surroundings and
driving conditions, and take neces- sary actions in order to maintain a
safe following distance.
Never attempt to drive relying on Eye-
Sight alone.
EyeSight is intended to assist the
driver in making decisions in order to
reduce the risk of accidents or dam- age and lessen the burden on the
driver.
When an EyeSight warning is acti-
vated, pay attention to what is in front
of you and to your surroundings, and take necessary acti ons. This system
is not designed to support driving in
poor visibility or in extreme weather conditions, or to protect against care-
less driving when the driver is not
paying complete attention to the road ahead. It also cannot prevent colli-
sions from occurring in all driving con-
ditions.

1664-5. EyeSight
WA R N I N G
There are limits to the EyeSight rec-
ognition performance and control per-
formance. Be sure to read the instructions for each function before
using the system, and always use it
properly. Improper use may lead to failure of control performance, which
could cause an accident.
Refer to the following pages for each function:
●For Pre-Collision Braking System, refer to P.175.
●For Adaptive Cruise Control, refer to P.185.
●For Conventional Cruise Control, refer to P.201.
●For Pre-Collision Throttle Manage-ment, refer to P.209.
●For Lane Departure Warning, refer to P.214.
●For Lane Sway Warning, refer to P.216.
●For Lead Vehicle Start Alert, refer to P.218.
For left-hand drive: In left-hand drive vehicles, EyeSight is configured for
driving on the right-hand side of the
road. However, it can be reconfigured by changing the driving lane setting
for driving on the left-hand side.*
(P.377)
For right-hand drive: In right-hand
drive vehicles, EyeSight is configured
for driving on the left-hand side of the road. However, it can be reconfigured
by changing the driving lane setting
for driving on the right-hand side.* (P.377)
If the setting for the traffic lane (driv- ing side of the road) does not match
the traffic lane, full EyeSight perfor-
mance may not be available.
*: Characteristics and settings that
are affected by specific differences
between right-hand drive and
left-hand drive vehicles cannot be
changed.
●The system may not operate cor-
rectly under the conditions listed below. When these conditions
occur, turn off Pre-Collision Braking
System. Also, do not use Adaptive Cruise Control or Conventional
Cruise Control.
• The tire pressure is not correct.*1
• Tires that are unevenly worn or tires
with uneven wear patterns are installed.*1
• Tires that are the wrong size are installed.*1
• A flat tire has been fixed temporarily with a tire repair kit.
• The suspension has been modified (including a genuine Toyota sus-
pension that has been modified).
• An object that obstructs the stereo
camera’s view is installed on the
vehicle.
• Tire chains are installed.
• The headlights are dirty or they
have snow and ice or dirt on them.
(Objects are not correctly illumi- nated and are difficult to detect.)
• The optical axes are not aligned correctly. (Objects are not correctly
illuminated and are difficult to
detect.)
• The lights including headlights and
fog lights have been modified.
• Vehicle operation has become
unstable due to an accident or mal-
function.

167
4
4-5. EyeSight
Driving
WA R N I N G
• The brake system warning light is
illuminated in red.*2
• A heavy cargo is inside the vehicle.
• The maximum number of occu- pants is exceeded.
• The meter is not operating properly;
such as when the lights do not illu- minate, the beeps do not sound, the
display is different from when it is
normal, etc.*3
●The system will not operate cor-
rectly in the following conditions. Do not use Adaptive Cruise Control or
Conventional Cruise Control.
• The wheels are out of balance (e.g., the balance weight is removed or
misaligned).*1
• The wheels are out of alignment.*1
• A trailer or another vehicle, etc. is being towed.
*1: The wheels and tires have func-
tions that are critically important.
Be sure to use the correct ones.
(P.375)
*2: If the brake system warning light
(red) does not turn off, immediately
pull the vehicle over in a safe place
and contact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer to
have the system inspected.
*3: For details about the meter, refer to
P. 8 8 .
NOTICE
●The characteristics of the stereo
camera are similar to those of
human eyes. For this reason, con- ditions that make it difficult for the
driver to see in the forward direction
have the same effect on the stereo camera. They also make it difficult
for the system to detect vehicles,
obstacles, and traffic lanes.
●Detection by the EyeSight system
is limited to objects that are within
the range of the stereo camera’s field of view. Also, after an object
enters the range of the camera’s
field of view, it may take some time for the system to detect it as a con-
trollable target and to warn the
driver.
Low objects surrounding the vehi-
cle cannot be detected.
A

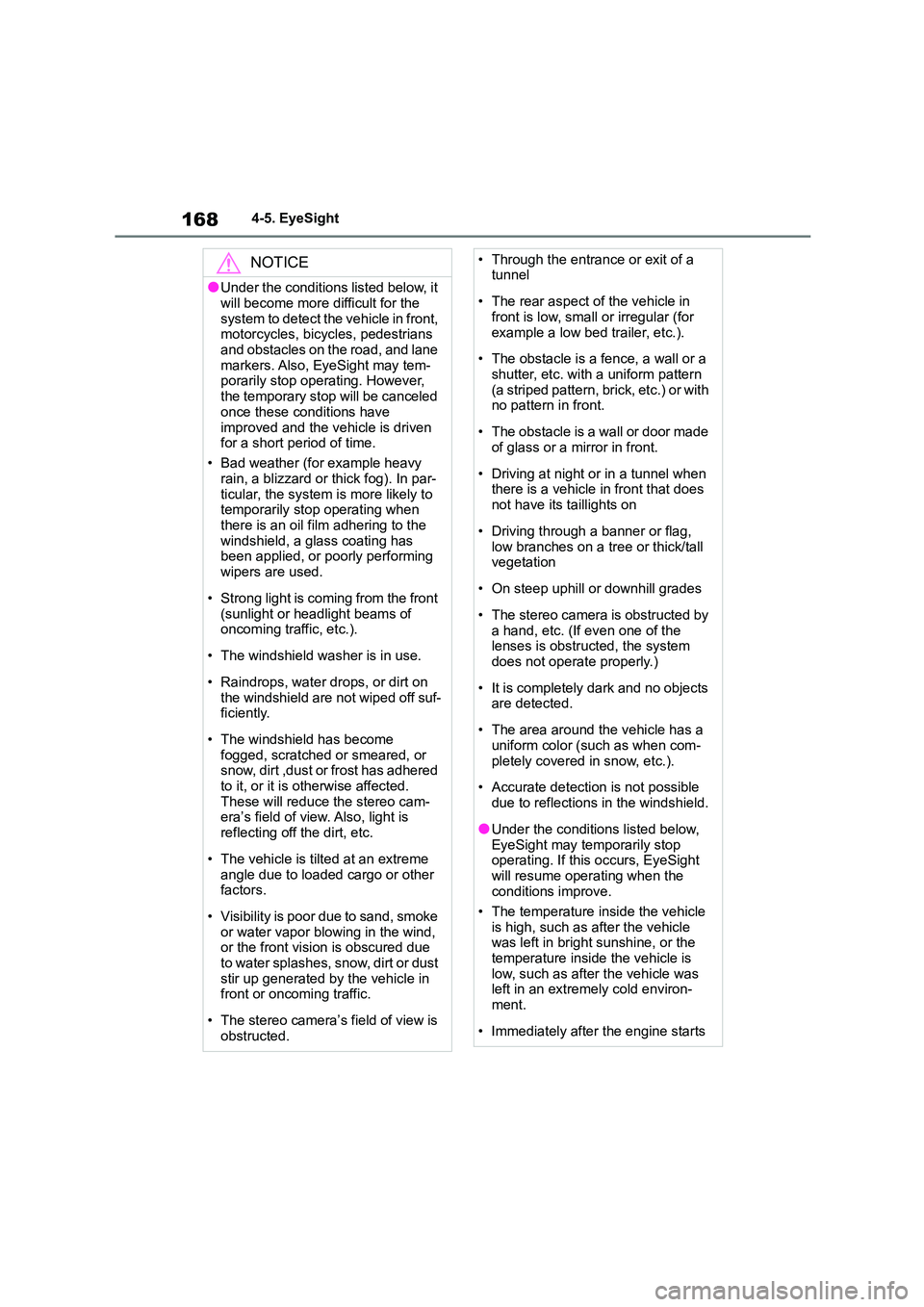

1684-5. EyeSight
NOTICE
●Under the conditions listed below, it
will become more difficult for the
system to detect the vehicle in front, motorcycles, bicycles, pedestrians
and obstacles on the road, and lane
markers. Also, EyeSight may tem- porarily stop operating. However,
the temporary stop will be canceled
once these conditions have
improved and the vehicle is driven for a short period of time.
• Bad weather (for example heavy
rain, a blizzard or thick fog). In par- ticular, the system is more likely to
temporarily stop operating when
there is an oil film adhering to the windshield, a glass coating has
been applied, or poorly performing
wipers are used.
• Strong light is coming from the front
(sunlight or headlight beams of oncoming traffic, etc.).
• The windshield washer is in use.
• Raindrops, water drops, or dirt on
the windshield are not wiped off suf- ficiently.
• The windshield has become fogged, scratched or smeared, or
snow, dirt ,dust or frost has adhered
to it, or it is otherwise affected. These will reduce the stereo cam-
era’s field of view. Also, light is
reflecting off the dirt, etc.
• The vehicle is tilted at an extreme
angle due to loaded cargo or other factors.
• Visibility is poor due to sand, smoke or water vapor blowing in the wind,
or the front vision is obscured due
to water splashes, snow, dirt or dust stir up generated by the vehicle in
front or oncoming traffic.
• The stereo camera’s field of view is
obstructed.
• Through the entrance or exit of a tunnel
• The rear aspect of the vehicle in front is low, small or irregular (for
example a low bed trailer, etc.).
• The obstacle is a fence, a wall or a
shutter, etc. with a uniform pattern
(a striped pattern, brick, etc.) or with no pattern in front.
• The obstacle is a wall or door made of glass or a mirror in front.
• Driving at night or in a tunnel when there is a vehicle in front that does
not have its taillights on
• Driving through a banner or flag,
low branches on a tree or thick/tall
vegetation
• On steep uphill or downhill grades
• The stereo camera is obstructed by
a hand, etc. (If even one of the
lenses is obstructed, the system does not operate properly.)
• It is completely dark and no objects are detected.
• The area around the vehicle has a uniform color (such as when com-
pletely covered in snow, etc.).
• Accurate detection is not possible
due to reflections in the windshield.
●Under the conditions listed below,
EyeSight may temporarily stop
operating. If this occurs, EyeSight will resume operating when the
conditions improve.
• The temperature inside the vehicle
is high, such as after the vehicle was left in bright sunshine, or the
temperature inside the vehicle is
low, such as after the vehicle was left in an extremely cold environ-
ment.
• Immediately after the engine starts
