119
3
3-3. Adjusting the seats
Before driving
1 Move the front seats forward.
( P. 1 1 7 )
2 Fold the seatback down.
Lock release buttons
Press the seatback lock release but-
tons and fold the seatback down.
Press the button until the lock is
released.
To return the seatbacks to its original
position, lift it up until it locks.
Lock release straps
Pull the seatback lock release straps in
the trunk for the seatback you wish to
fold down.
To return the seatbacks to its original
position, lift it up until it locks.
■Seat dust cover
Always remove the se at dust cover that may be attached at the time of purchase
before using the seat.
Rear seats
The rear seatbacks can be
folded down.
Folding down the rear
seatbacks
WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When folding the rear seatbacks down
●Do not fold the seatbacks down
while driving.
●Stop the vehicle on level ground,
set the parking brake and shift the shift lever to P (automatic transmis-
sion) or N (manual transmission).
●Do not allow anyone to sit on a
folded seatback or in the trunk while
driving.
●Do not allow children to enter the
trunk.

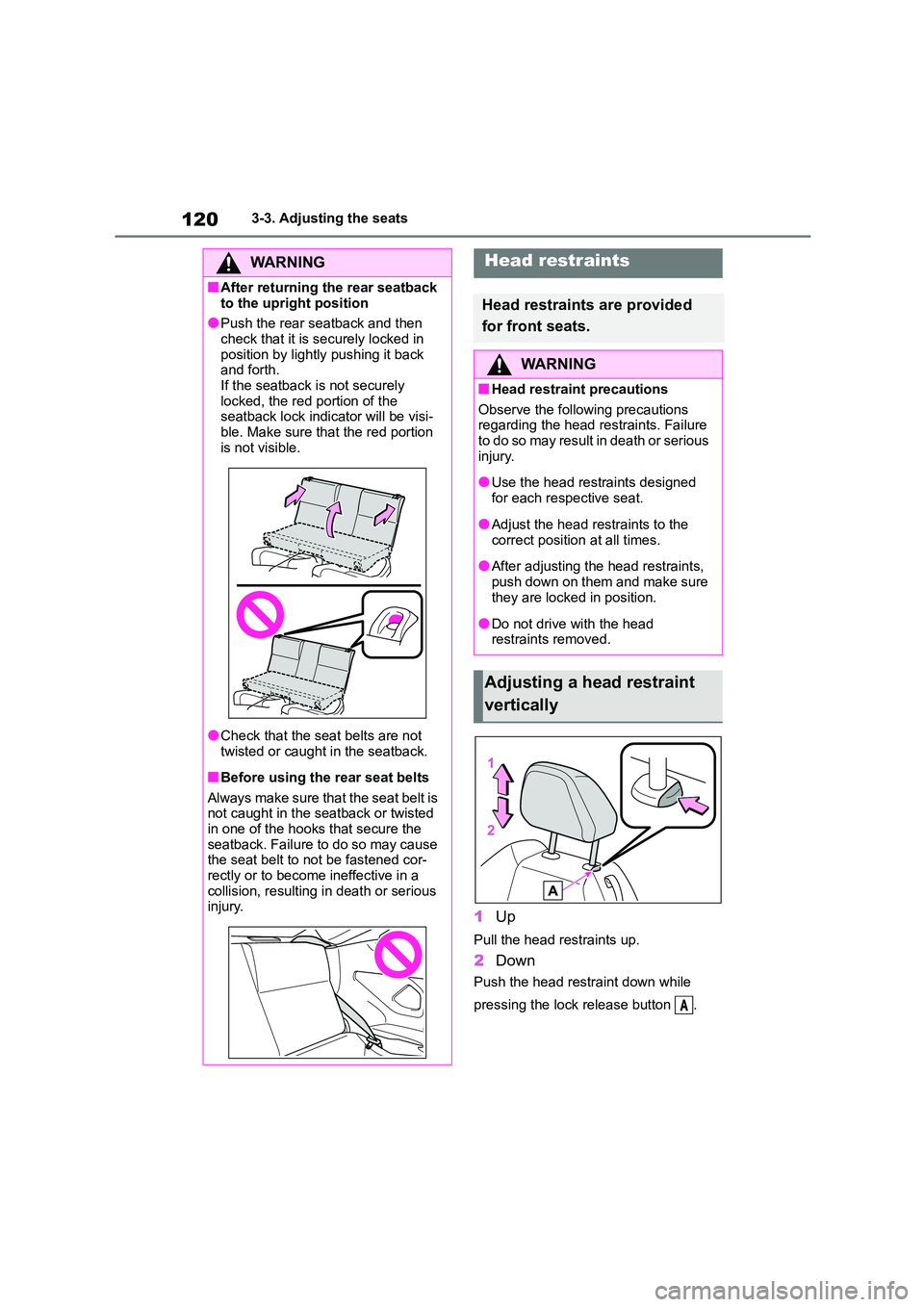

1203-3. Adjusting the seats
1Up
Pull the head restraints up.
2Down
Push the head restraint down while
pressing the lock release button .
WA R N I N G
■After returning the rear seatback
to the upright position
●Push the rear seatback and then check that it is securely locked in
position by lightly pushing it back
and forth. If the seatback is not securely
locked, the red portion of the
seatback lock indica tor will be visi-
ble. Make sure that the red portion is not visible.
●Check that the seat belts are not
twisted or caught in the seatback.
■Before using the rear seat belts
Always make sure that the seat belt is
not caught in the seatback or twisted in one of the hooks that secure the
seatback. Failure to do so may cause
the seat belt to not be fastened cor- rectly or to become ineffective in a
collision, resulting in death or serious
injury.
Head restraints
Head restraints are provided
for front seats.
WA R N I N G
■Head restraint precautions
Observe the following precautions
regarding the head restraints. Failure to do so may result in death or serious
injury.
●Use the head restraints designed
for each respective seat.
●Adjust the head restraints to the
correct position at all times.
●After adjusting the head restraints,
push down on them and make sure
they are locked in position.
●Do not drive with the head
restraints removed.
Adjusting a head restraint
vertically
A

121
3
3-3. Adjusting the seats
Before driving
■Adjusting the height of the head restraints
Make sure that the head restraints are
adjusted so that the center of the head restraint is closest to the top of your
ears.
Pull the head restraint up while
pressing the lock release button .
If the head restraint touches the
ceiling, making the removal difficult,
change the seat height or angle.
( P.117)
Align the head restraint with the
installation holes and push it down
to the lock position.
Press and hold the lock release
button when lowering the head
restraint.
Removing the head
restraints
Installing the head restraints
A
A

1223-4. Adjusting the steering wheel and mirrors
3-4.Adjusting the steering wheel and mirrors
1Hold the steering wheel and
push the lever down.
2 Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up to
secure the steering wheel.
To sound the horn, press on or
close to the mark.
Steering wheel
Adjustment procedure
WA R N I N G
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mis-
handle the vehicle and cause an acci- dent, resulting in death or serious
injury.
■After adjusting the steering wheel
Make sure that the steering wheel is
securely locked.
Otherwise, the steering wheel may
move suddenly, possibly causing an
accident, and resulting in death or serious injury. Also, the horn may not
sound if the steering wheel is not
securely locked.
Horn

123
3
3-4. Adjusting the steering wheel and mirrors
Before driving
The height of the rear view mirror
can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Reflected light from the headlights
of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
Inside rear view mirror
The rear view mirror’s position
can be adjusted to enable suf-
ficient confirmation of the rear
view.
Adjusting the height of rear
view mirror
WA R N I N G
■Caution while driving
Do not adjust the position of the mir-
ror while driving.
Doing so may lead to mishandling of
the vehicle and cause an accident,
resulting in death or serious injury.
Anti-glare function
A

1243-4. Adjusting the steering wheel and mirrors
1To select a mirror to adjust, turn
the switch.
Left
Right
2 To adjust the mirror, operate the
switch.
Left
Down
Right
Up
■Mirror angle can be adjusted when
The engine switch is in ACC or ON.
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on
the outside rear view mirror defoggers. ( P.266)
Press the switch to fold the mirrors.
Press it again to extend them to the
original position.
Outside rear view mir-
rors
The rear view mirror’s position
can be adjusted to enable suf-
ficient confirmation of the rear
view.
WA R N I N G
■Important points while driving
Observe the following precautions
while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious
injury.
●Do not adjust the mirrors while driv-
ing.
●Do not drive with the mirrors folded.
●Both the driver and passenger side
mirrors must be extended and prop-
erly adjusted before driving.
Adjustment procedure
A
WA R N I N G
■When the mirror defoggers are
operating
Do not touch the rear view mirror sur- faces, as they ca n become very hot
and burn you.
Folding and extending the
mirrors
A
C
D

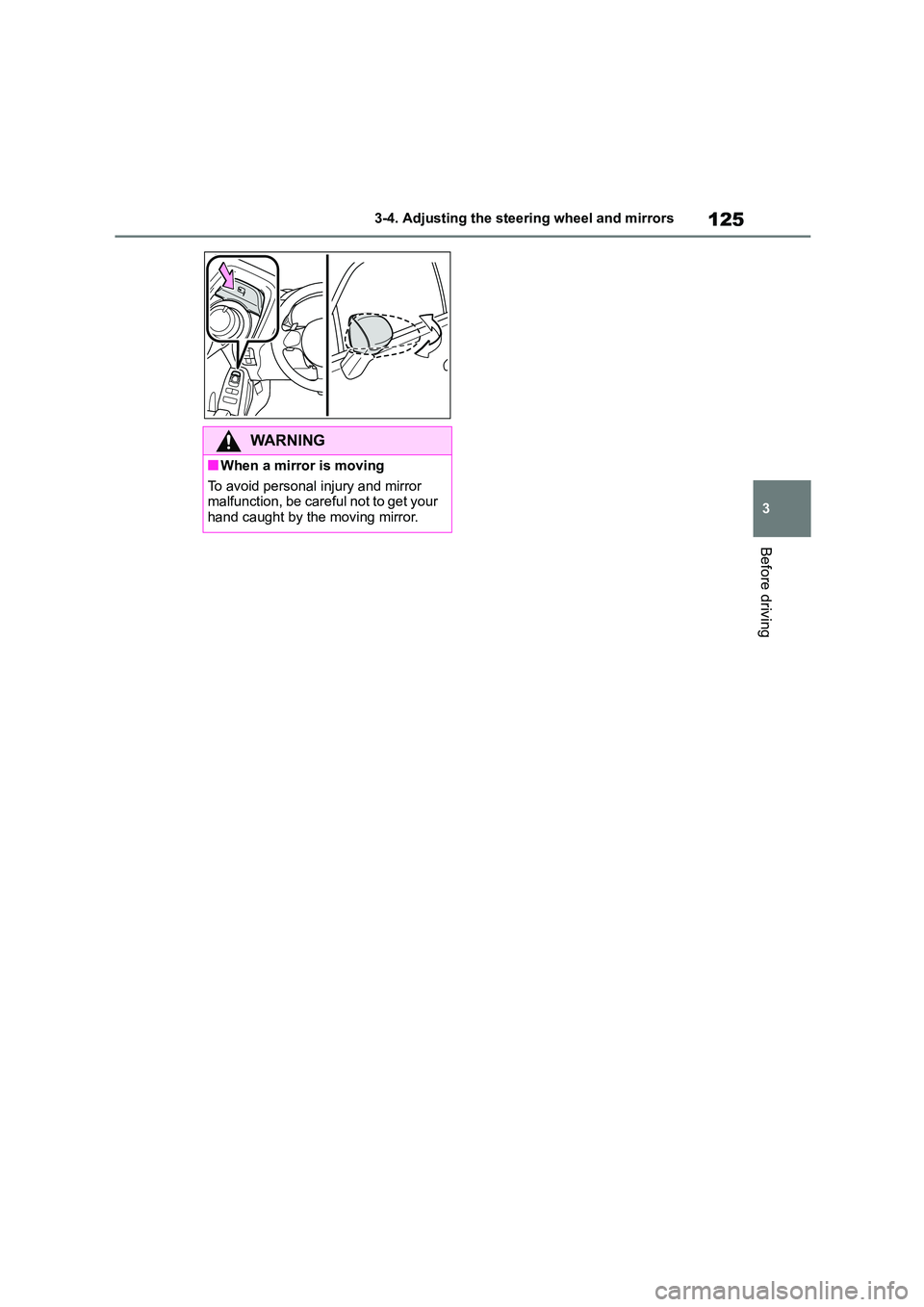

125
3
3-4. Adjusting the steering wheel and mirrors
Before driving
WA R N I N G
■When a mirror is moving
To avoid personal injury and mirror
malfunction, be careful not to get your hand caught by the moving mirror.

1263-5. Opening, closing the windows
3-5.Opening, closing the windows
The power windows can be opened
and closed using the switches.
Operating the switch moves the
windows as follows:
1 Closing
2 One-touch closing*
3Opening
4 One-touch opening*
*: To stop the window partway, operate
the switch in the opposite direction.
■The power windows can be oper-
ated when
The engine switch is in ON.
■Operating the power windows after
turning the engine off
The power windows can be operated for approximately 40 seconds after the
engine switch is turned to ACC or OFF.
They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes jammed between
the window and the body while the win- dow is closing, window movement is
stopped and the window is opened
slightly.
■Catch protection function
If an object becomes caught between the door and window while the window
is opening, window movement is
stopped.
■When the window cannot be opened or closed
When the jam protection function or
catch protection function operates unu- sually and the door window cannot be
opened or closed, perform the following
operations with the power window switch of that door.
1 Check that all of the doors are
closed.
2 Turn the engine switch to ON.
3 Press and hold the power window
switch in the one-touch opening position. After the window is fully
opened, continue pressing the
switch for approximately 1 second.
4 Pull and hold the power window switch in the one-touch closing posi-
tion. After the window is fully closed,
continue pulling the switch for approximately 1 second.
If you push the power window switch to
the opening position while the window is moving, start again from the beginning.
If the window continues to close but then
re-open slightly even after performing the above procedure correctly, have the
vehicle inspected by any authorized
Toyota dealer orrepairer, or another duly qualified and equipped professional.
■Door lock linked window operation
The power windows can be opened and
closed using the wireless remote con-
trol.* ( P.103)*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
■Customization
Some functions can be customized.
( P.377)
Power windows
Opening and closing the
power windows

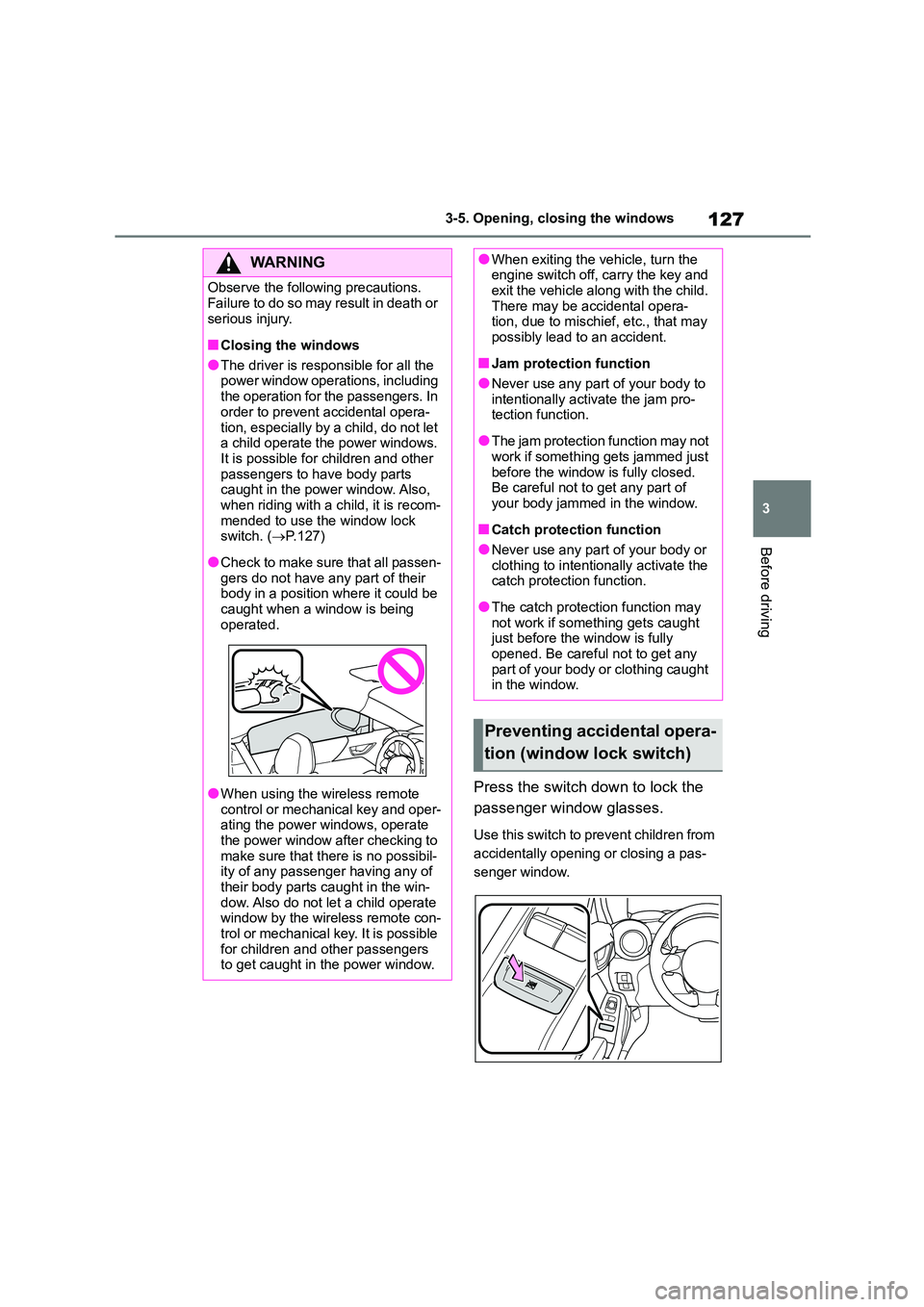

127
3
3-5. Opening, closing the windows
Before driving
Press the switch down to lock the
passenger window glasses.
Use this switch to prevent children from
accidentally opening or closing a pas-
senger window.
WA R N I N G
Observe the following precautions.
Failure to do so may result in death or
serious injury.
■Closing the windows
●The driver is responsible for all the power window operations, including
the operation for the passengers. In
order to prevent accidental opera-
tion, especially by a child, do not let a child operate the power windows.
It is possible for children and other
passengers to have body parts caught in the power window. Also,
when riding with a child, it is recom-
mended to use the window lock switch. ( P.127)
●Check to make sure that all passen- gers do not have any part of their
body in a position where it could be
caught when a window is being operated.
●When using the wireless remote control or mechanical key and oper-
ating the power windows, operate
the power window after checking to make sure that there is no possibil-
ity of any passenger having any of
their body parts caught in the win- dow. Also do not let a child operate
window by the wireless remote con-
trol or mechanical key. It is possible for children and other passengers
to get caught in the power window.
●When exiting the vehicle, turn the engine switch off, carry the key and
exit the vehicle along with the child.
There may be accidental opera- tion, due to mischief, etc., that may
possibly lead to an accident.
■Jam protection function
●Never use any part of your body to
intentionally activate the jam pro- tection function.
●The jam protection function may not work if something gets jammed just
before the window is fully closed.
Be careful not to get any part of your body jammed in the window.
■Catch protection function
●Never use any part of your body or
clothing to intentionally activate the
catch protection function.
●The catch protection function may
not work if something gets caught just before the window is fully
opened. Be careful not to get any
part of your body or clothing caught in the window.
Preventing accidental opera-
tion (window lock switch)

1283-5. Opening, closing the windows
