TOYOTA GR86 2022 Owners Manual (in English)

269
5
5-1. Using the air conditioning system
Interior features
*: If equipped
■Seat heaters
Press the switch to warm the seats.
The indicator light comes on when a
seat heater is turned on.
WA R N I N G
■To prevent the windshield defog-
ger from operating improperly
Do not place anything on the instru- ment panel which may cover the air
outlets. Otherwise, air flow may be
obstructed, preventing the windshield defoggers from defogging.
Seat heaters*
Warm up the seat upholstery.
WA R N I N G
■To prevent minor burn injuries
Care should be taken if anyone in the
following categories comes in contact with the seats when the heater is on:
●Babies, small children, the elderly, the sick and the physically chal-
lenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or
drugs that induce sleep (sleeping drugs, cold remedies, etc.)
NOTICE
■To prevent damage to the seat
heaters
Do not put heavy objects that have an
uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■To prevent battery discharge
Do not use the functions when the
engine is off.
Operation instructions

2705-1. Using the air conditioning system
1Rapid heating
2 Normal heating
When not in use, put the switch in the
neutral position. The indicator will turn
off.
■The seat heaters can be used when
The engine switch is in ON.
■When not in use
Turn the seat heater off. The indicator light goes off.
WA R N I N G
■To prevent overheating and
minor burn injuries
Observe the following precautions when using the seat heaters.
●Do not cover the seat with a blanket or cushion when using the seat
heater.
●Do not use seat heater more than
necessary.

271
5
5-2. Using the interior lights
Interior features
5-2.Using the interior lights
Interior lights ( P.271)
Door courtesy lights (if equipped)
Engine switch light
Turns the light on/off
Turns the door position on/off
1 On
2 Off
■Illuminated entry system
When the door position is on, the lights will automatically turn on/off according
Interior lights list
Location of the interior lights
A
C
Operating the interior lights

2725-2. Using the interior lights
to the presence of an electronic key,
locking/unlocking and opening/closing of the doors, and the engine switch mode.
■To prevent the battery from being
discharged
When the door position is on, if the engine switch is turned off with a door
not fully closed and the interior lights
remain illuminated, they will automati- cally be turned off after approximately
20 minutes. However, if a light lens has
been pushed to illuminate the interior light, it will not turn off automatically.
■Customization
Some functions can be customized.
( P.377)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than
necessary when the engine is not run-
ning.

273
5

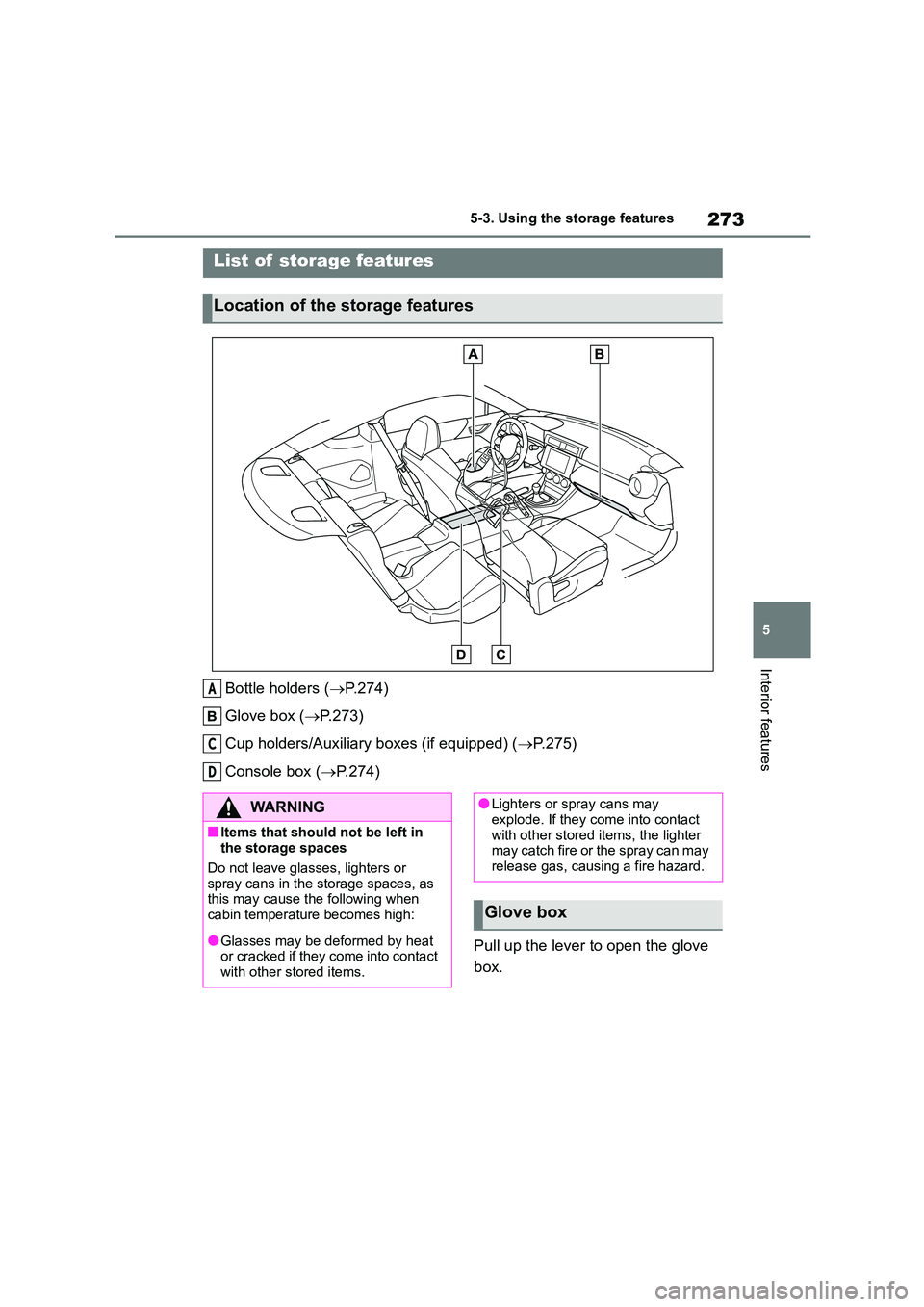

5-3. Using the storage features
Interior features
5-3.Using the storage features
Bottle holders ( P.274)
Glove box ( P.273)
Cup holders/Auxiliary bo xes (if equipped) (P.275)
Console box ( P.274)
Pull up the lever to open the glove
box.
List of storage features
Location of the storage features
A
C
D
WA R N I N G
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or
spray cans in the storage spaces, as this may cause the following when
cabin temperature becomes high:
●Glasses may be deformed by heat
or cracked if they come into contact
with other stored items.
●Lighters or spray cans may
explode. If they come into contact with other stored items, the lighter
may catch fire or the spray can may
release gas, causing a fire hazard.
Glove box

2745-3. Using the storage features
■Bottle holders
●When storing a bottle, close the cap.
●The bottle may not be stored depend- ing on its size or shape.
■Opening the lid
Push the button
■Closing the lid
Push the lid toward the center
If one side is pushed, the opposite side
will move simultaneously.
WA R N I N G
■Caution while driving
Keep the glove box closed. In the
event of sudden braking or sudden swerving, an accident may occur due
to an occupant being struck by the
open glove box or the items stored
inside.
Bottle holders
WA R N I N G
■Items unsuitable for the bottle
holders
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the
holders in the event of an accident or sudden braking and cause injury.
NOTICE
■Items unsuitable for the bottle
holder
Put the cap on before stowing a bot- tle. Do not place open bottles in the
bottle holders, or glasses and paper
cups containing liquid. The contents may spill and glasses may break.
Console box

275
5
5-3. Using the storage features
Interior features
Center console (vehicles with an
automatic transmission)
Console box
WA R N I N G
■When the console box is not in
use
Keep the console box closed when it is not being used.
If left open, in the event of sudden
braking, etc., stowed items may fly out, possibly leading to an accident.
Cup holders/Auxiliary boxes
(if equipped)
WA R N I N G
■Caution while driving
If possible, cover hot drinks to prevent burns.
Observe the following precautions when putting items. Failure to do so
may cause items to be thrown out in
the event of sudden braking or steer- ing. In these cases, the items may
interfere with pedal operation or
cause driver distraction, resulting in an accident.
●Do not store items that can easily shift or roll out.
●Do not stack items higher than the edge.
●Do not put items that may protrude over the edge.

2765-3. Using the storage features
Lift the luggage mat.
The warning reflector can be
stored.
■Warning reflector storage box
Depending on the size and shape of the warning reflector case, it may not be
able to be stored.
Trunk features
Auxiliary box
Warning reflector storage
box
WA R N I N G
■When storing a warning reflector
Make sure that the warning reflector is stored securely.
Failure to do so may cause it jump out
of position in the event of sudden braking, etc., causing an accident.

277
5
5-4. Using the other interior features
Interior features
5-4.Using the other interior features
Use the USB terminal to use or
charge an electronic device.
The USB charging ports can be
used to supply 2.1 A of electricity at
5 V to external devices.
Depending on the external device,
it may not charge properly. Refer to
the manual included with the device
before using a USB charging port.
■Using the USB charging ports
Open the console box lid.
■The USB charging ports can be used when
The engine switch is in ACC or ON.
■Situations in which the USB charg-
ing ports may not operate correctly
●If a device which consumes more than
2.1 A at 5 V is connected
●If a device designed to communicate
with a personal computer, such as a
USB memory device, is connected
●If the connected external device is
turned off (depending on device)
●If the temperature inside the vehicle is
high, such as after the vehicle has been parked in the sun
■About connected external device
Depending on the connected external device, charging may occasionally be
suspended and then start again. This is
not a malfunction.
The power outlet can be used for
12 V accessories that run on 10 A
or less.
Open the glove box lid and open
the lid.
Other interior features
USB charging ports
NOTICE
■To prevent damage to the USB
charging ports
●Do not insert foreign objects into
the ports.
●Do not spill water or other liquids
into the ports.
●When the USB charging ports are
not in use, close the lids. If a foreign object or liquid enters a port may
cause a short circuit.
●Do not apply excessive force to or
impact the USB charging ports.
●Do not disassemble or modify the
USB charging ports.
■To prevent damage to external
devices
●Do not leave external devices in the vehicle. The temperature inside the
vehicle may become high, resulting
in damage to an external device.
●Do not push down on or apply
unnecessary force to an external device or the cable of an external
device while it is connected.
■To prevent battery discharge
Do not use the USB charging ports for
a long period of time with the engine stopped.
Power outlet

2785-4. Using the other interior features
■The power outlet can be used when
The engine switch is in ACC or ON.
■When turning the engine switch off
Disconnect electrical devices with
charging functions, such as mobile bat-
tery packs. If such devices are left connected, the
engine switch may not be turned off nor-
mally.
1 To set the visor in the forward
position, flip it down.
2 To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover to use.
The vanity light turns on. (if equipped)
NOTICE
■To prevent the fuse from being blown
Do not use an accessory that uses
more than 12 V 10 A.
■To avoid damaging the power
outlet
Close the power outlet lid when the
power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.
■To prevent the battery from being discharged
Do not use the power outlet longer
than necessary when the engine is not running.
Sun visors
Vanity mirrors
