259
4
4-6. Using other driving systems
Driving
WA R N I N G
■The ABS does not operate effec-
tively when
●The limits of tire gripping perfor- mance have been exceeded (such
as excessively worn tires on a snow
covered road).
●The vehicle hydroplanes while driv-
ing at high speed on wet or slick
roads.
■Stopping distance when the ABS
is operating may exceed that of normal conditions
The ABS is not designed to shorten
the vehicle’s stopping distance. Always maintain a safe distance from
the vehicle in front of you, especially
in the following situations:
●When driving on dirt, gravel or
snow-covered roads
●When driving with tire chains
●When driving over bumps in the
road
●When driving over roads with pot-
holes or uneven surfaces
■TRC may not operate effectively
when
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRC
system is operating. Do not drive the vehicle in conditions where stability
and power may be lost.
■When the VSC and/or brake LSD
function is activated
The slip indicator flashes. Always drive carefully. Reckless driving may
cause an accident. Exercise particular
care when the indicator flashes.
■When the TRC/VSC systems are turned off
Be especially careful and drive at a
speed appropriate to the road condi- tions. As these are the systems to
help ensure vehicle stability and driv-
ing force, do not turn the TRC/VSC systems off unless necessary.
■Replacing tires
Make sure that all tires are of the
specified size, brand, tread pattern
and total load capacity. In addition, make sure that the tires are inflated to
the recommended tire inflation pres-
sure level.
The ABS, TRC and VSC systems will
not function correctly if different tires
are installed on the vehicle. Contact any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer for further information when replacing tires or wheels.
■Handling of tires and the suspen-sion
Using tires with any kind of problem
or modifying the suspension will affect the driving assist systems, and may
cause a system to malfunction.

2604-7. Driving tips
4-7.Driving tips
Use fluids that are appropriate to
the prevailing out side tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
 Have a service technician
inspect the condition of the bat-
tery.
 Have the vehicle fitted with four
snow tires or purchase a set of
tire chains for the rear tires.
Make sure to install 4 tires that are of
the specified size, and that all 4 tires
are the same size, same maker, same
brand and tread pattern. Also, make
sure to use tire chains that match the
size of the tires.
Winter driving tips
Carry out the necessary prepa-
rations and inspections before
driving the vehicle in winter.
Always drive the vehicle in a
manner appropriate to the pre-
vailing weather conditions.
Preparation for winter
WA R N I N G
■Driving with snow tires
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the specified size, and that are the same size, same
maker, same brand and tread pat-
tern.
●Maintain the recommended level of
air pressure.
●Do not drive at speeds in excess of
the speed limit or the speed limit specified for the snow tires being
used.
●Use snow tires on a ll, not just some
wheels.
■Driving with tire chains
●When any of the tires are punc-
tured, you can seal the tire tempo- rarily. However, do not use the tire
chain on a sealed tire. If any of the
rear tires are punctured although it is required to use tire chains, con-
tact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
●Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the
vehicle being unable to be driven safely, and may cause death or
serious injury.
• Do not drive in excess of the speed limit specified for the tire chains
being used, or 30 km/h (19 mph),
whichever is lower.
• Avoid driving on bumpy road sur-
faces or over potholes.
• Avoid sudden acceleration, abrupt
steering, sudden braking and shift- ing operations that cause sudden
engine braking.
• Slow down sufficiently before enter- ing a curve to ensure that vehicle
control is maintained.

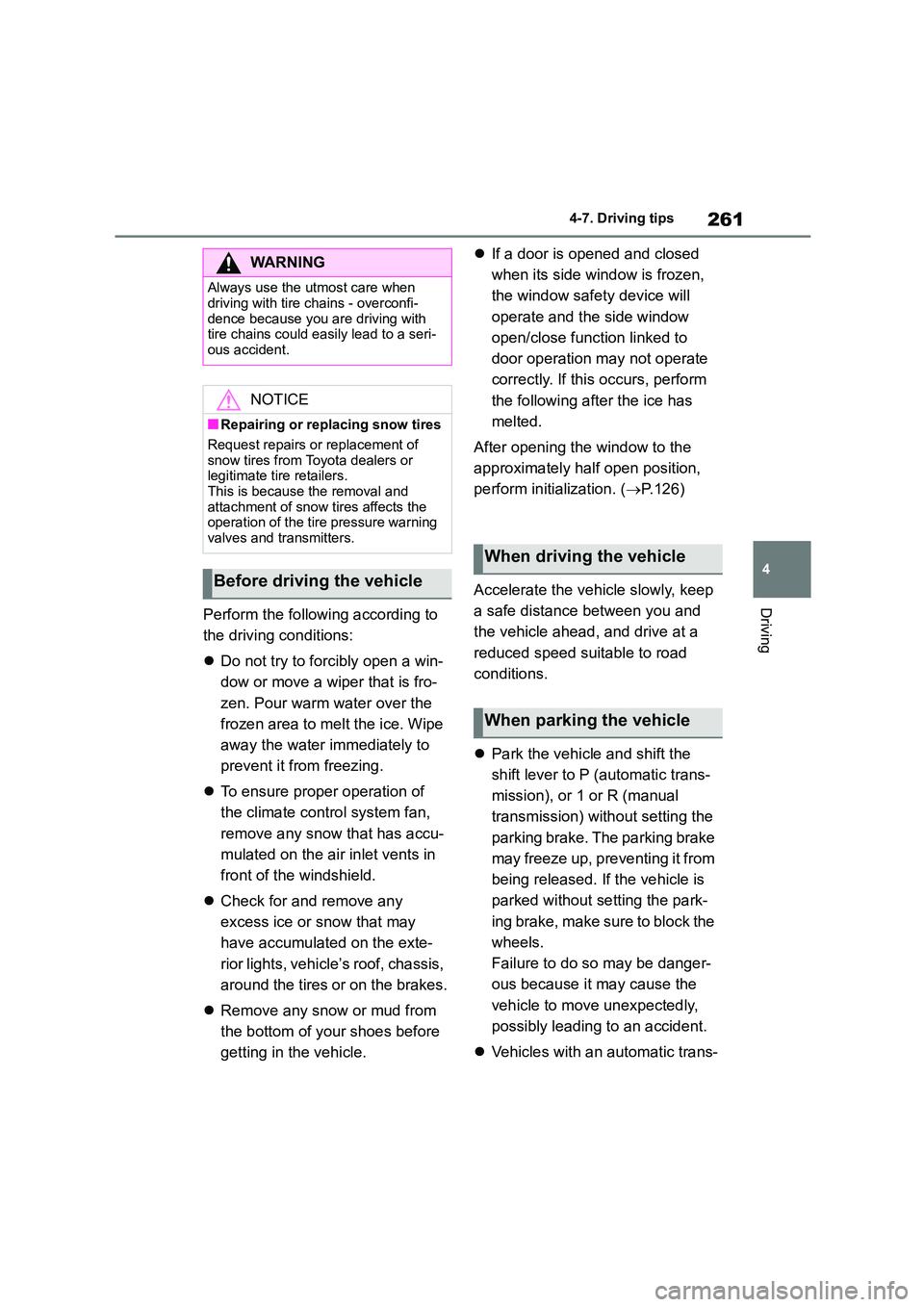

261
4
4-7. Driving tips
DrivingPerform the following according to
the driving conditions:
 Do not try to forcibly open a win-
dow or move a wiper that is fro-
zen. Pour warm water over the
frozen area to melt the ice. Wipe
away the water immediately to
prevent it from freezing.
 To ensure proper operation of
the climate control system fan,
remove any snow that has accu-
mulated on the air inlet vents in
front of the windshield.
 Check for and remove any
excess ice or snow that may
have accumulated on the exte-
rior lights, vehicle’s roof, chassis,
around the tires or on the brakes.
 Remove any snow or mud from
the bottom of your shoes before
getting in the vehicle.
 If a door is opened and closed
when its side window is frozen,
the window safety device will
operate and the side window
open/close function linked to
door operation may not operate
correctly. If this occurs, perform
the following after the ice has
melted.
After opening the window to the
approximately half open position,
perform initialization. ( P.126)
Accelerate the vehicle slowly, keep
a safe distance between you and
the vehicle ahead, and drive at a
reduced speed suitable to road
conditions.
 Park the vehicle and shift the
shift lever to P (automatic trans-
mission), or 1 or R (manual
transmission) with out setting the
parking brake. The parking brake
may freeze up, preventing it from
being released. If the vehicle is
parked without setting the park-
ing brake, make sure to block the
wheels.
Failure to do so may be danger-
ous because it may cause the
vehicle to move unexpectedly,
possibly leading to an accident.
 Vehicles with an automatic trans-
WA R N I N G
Always use the utmost care when
driving with tire chains - overconfi-
dence because you are driving with tire chains could easily lead to a seri-
ous accident.
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or
legitimate tire retailers.
This is because the removal and attachment of snow tires affects the
operation of the tire pressure warning
valves and transmitters.
Before driving the vehicle
When driving the vehicle
When parking the vehicle

2624-7. Driving tips
mission: If the vehicle is parked
without setting the parking brake,
confirm that the shift lever cannot
be moved out of P*.
*: The shift lever will be locked if it is
attempted to be shifted from P to any
other position without depressing the
brake pedal. If the shift lever can be
shifted from P, there may be a prob-
lem with the shift lock system. Have
the vehicle inspected by any author-
ized Toyota retailer or Toyota author-
ized repairer, or any reliable repairer
or legitimate tire retailers immedi-
ately.
We recommend that you consult
any authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional for infor-
mation about the chains that you
can use.
Regulations regarding the use of
tire chains vary depending on loca-
tion and type of road. Always check
local regulations before installing
chains.
■Tire chain installation
Observe the following precautions when installing and removing chains:
●Install and remove tire chains in a safe location.
●Install tire chains on the rear tires. Do not install tire chains on the front tires.
●Install tire chains on rear tires as
tightly as possible. Retighten chains after driving approximately 100 m
(328 ft.).
●Install tire chains following the instruc-
tions provided with the tire chains.
Selecting tire chains
Regulations on the use of
tire chains
NOTICE
■Using the tire chains
Use only chains that are of the correct size for your tires so as not to damage
the vehicle body or suspension.
■Fitting tire chains
The tire pressure warning valves and
transmitters may not function cor- rectly when tire chains are fitted.

5
263
5
Interior features
Interior features
.5-1. Using the air conditioning
system
Automatic air conditioning sys-
tem ................................. 264
Seat heaters ..................... 269
5-2. Using the interior lights
Interior lights list................ 271
5-3. Using the storage features
List of storage features ..... 273
Trunk features................... 276
5-4. Using the other interior fea-
tures
Other interior features....... 277

2645-1. Using the air conditioning system
5-1.Using the air conditioning system
Left-hand side temperature setting display
Left-hand side temperature control switch
Climate control mode display
Fan speed control switch
Right-hand side temperature control switch
Right-hand side temperature setting display
“MAX A/C” switch
“SYNC” switch
Outside/recirculated air mode switch
“A/C” switch
Automatic air conditioning system
Air outlets are automatically selected and fan speed is automatically
adjusted according to the set temperature setting.
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand drive vehi-
cles.
Also, the display and button positions will differ depending on the
type of the system.
Air conditioning controls
A
C
D

265
5
5-1. Using the air conditioning system
Interior features
Airflow mode control switch
Rear window defogger and outside rear view mirror defoggers switch
“ON/OFF” switch
Windshield defogger switch
Automatic mode switch
■Adjusting the temperature set-
ting
To adjust the temperature setting,
turn the temperature control switch
clockwise (warm) or
counterclockwise (cool).
If “A/C” switch is not pressed, the sys-
tem will blow ambient temperature air
or heated air.
The air conditioning system switches
between individual and synchronized
modes each time “SYNC” switch is
pressed.
Synchronized modes (indicator on):
The left-hand side temperature control
switch can be used to adjust the tem-
perature for the driver’s and front pas-
senger’s side. At this time, operate the
right-hand side temperature control
switch to enter individual mode.
Individual modes (indicator off):
The temperature for the driver’s and
front passenger’s side can be adjusted
separately.
■Setting the fan speed
To adjust the fan speed, turn the
fan speed control switch clockwise
(increase) or counterclockwise
(decrease).
Pressing the “ON/OFF” switch to turns
off the fan.
■Change the airflow mode
Press the airflow mode control
switch.
The airflow mode changes as follows
each time the switch is pressed.
1 Upper body
2 Upper body and slightly to the
feet
3 Upper body and feet
4 Feet
5 Feet and the windshield defog-
ger operates
■Switching between outside air
and recirculated air modes
Press the outside/recirculated air
mode switch.
The mode switches between outside air
mode and recirculated air mode each
time the switch is operated.

2665-1. Using the air conditioning system
When recirculated air mode is selected,
the indicator illuminates on the out-
side/recirculated air mode switch.
■Set cooling and dehumidifica-
tion function
Press the “A/C” switch.
When the function is on, the indicator
illuminates on the “A/C” switch.
■Fast cooling function
Press the “MAX A/C” switch.
When the switch is turned on, the air
conditioning will turn on, the tempera-
ture will be set to LO, the fan speed will
be set to MAX, the air outlets will be set
to upper body, and the air mode will
change to recirculated air mode auto-
matically.
To turn off fast cooling function and
return the previous setting, press the
“MAX A/C” switch again.
■Suspend function
Press the “ON/OFF” switch.
While the air condi tioning system is
being used, when the “ON/OFF” switch
is pressed, the air conditioning system
will stop and the temperature setting
display, etc. will turn off.
If the “ON/OFF” switch is pushed and
turned on, the air conditioning system
will operate in the operating state it was
in when turned off. However, if the fast
cooling function was operating when
the air conditioning system was turned
off, it will operate in the operating state
it was in before the fast cooling function
was turned on.
■Defogging the windshield
Defoggers are used to defog the
windshield and front side windows.
Press the windshield defogger
switch.
Set the outside/recirculated air mode
switch to outside air mode if the recircu-
lated air mode is used. (It may switch
automatically.)
To defog the windshield and the side
windows quickly, turn the air flow and
temperature up.
To return to the previous mode, press
the windshield defogger switch again
when the windshield is defogged.
When the windshield defogger switch is
on, the indicator illuminates on the
windshield defogger switch.
■Defogging the rear window
and outside rear view mirrors
Defoggers are used to defog the
rear window, and to remove rain-
drops, dew and frost from the out-
side rear view mirrors.
Press the rear window and outside
rear view mirror defoggers switch.
The defoggers will automatically turn off
after approximately 15 minutes.
When the rear window and outside rear
view mirror defoggers switch is on, the
indicator illuminates on the rear window
and outside rear view mirror defoggers
switch.
■Fogging up of the windows
●The windows will easily fog up when
the humidity in the vehicle is high.
Turning “A/C” on will dehumidify the air from the outlets and defog the
windshield effectively.
●If you turn “A/C” off, the windows may
fog up more easily.
●The windows may fog up if the recir-

267
5
5-1. Using the air conditioning system
Interior features
culated air mode is used.
■When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still dr awn into the vehicle
after closing the windows, it is recom-
mended that the air intake mode be set to outside air mode and the fan speed to
any setting except off.
■Outside/recirculated air mode
●Setting to the recirculated air mode
temporarily is recommended in pre-
venting dirty air from entering the vehicle interior and helping to cool the
vehicle when the outside air tempera-
ture is high.
●Outside/recirculated air mode may
automatically switch depending on the temperature setting or the inside tem-
perature.
■When the outside temperature falls
to nearly 0°C (32°F)
The dehumidification function may not
operate even when “A/C” switch is
pressed.
■Ventilation and air conditioning odors
●To let fresh air in, set the air condition-ing system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning
system. This may then cause odor to be emitted from the vents.
●To reduce potential odors from occur-ring:
• It is recommended that the air condi-
tioning system be se t to outside air mode prior to turning the vehicle off.
• The start timing of the blower may be
delayed for a short period of time
immediately after the air conditioning system is started in automatic mode.
■Air conditioning filter
 P.314
■When continuous operation is set
During continuous operation, the defog-
ger stops operating for 2 minutes after
every 15 minutes of continual operation. Even during the 2 minutes that opera-
tion stops, the operating light remains
illuminated. The rear window defogger will continue to operate in this cycle until
it is turned off.
■Customization
Some functions can be customized. ( P.377)
1Press the automatic mode
switch.
2 Adjust the temperature setting.
3 To stop the operation, press the
“ON/OFF” switch.
If the fan speed setting or air flow
modes are operated, the automatic
WA R N I N G
■To prevent the windshield from
fogging up
Do not use the windshield defogger switch during cool air operation in
extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield
can cause the outer surface of the
windshield to fog up, blocking your vision.
■When the outside rear view mir-ror defoggers are operating
Do not touch the outside rear view
mirror surfaces, as they can become very hot and burn you.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning sys- tem on longer than necessary when
the engine is off.
Using automatic mode

2685-1. Using the air conditioning system
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after the automatic mode
switch pressed.
■Location of air outlets
The air outlets and air volume
changes according to the selected
air flow mode.
■Adjusting the position of and
opening and closing the air
outlets
Center
1 Direct air flow to the left or right,
up or down
2 Turn the knob to open or close
the vent
Side
1 Direct air flow to the left or right,
up or down
2 Open the vent
3 Close the vent
Air outlet layout and opera-
tions
