1-4. Theft deterrent system
For safety and security
1-4.Theft deterrent system
The indicator light flashes after the
engine switch has been turned off
to indicate that the system is oper-
ating.
The indicator light stops flashing
after the engine switch has been
turned to ACC or ON to indicate
that the system has been canceled.
■System maintenance
The vehicle has a maintenance-free
type engine immobilizer system.
■Conditions that may cause the sys-
tem to malfunction
●If the grip portion of the key is in con-
tact with a metallic object
●If the key is in close proximity to or
touching a key registered to the secu- rity system (key with a built-in
transponder chip) of another vehicle
Engine immobilizer sys-
tem
The vehicle’s keys have
built-in transponder chips that
prevent the engine from start-
ing if a key has not been previ-
ously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the
vehicle.
This system is designed to
help prevent vehicle theft but
does not guarantee absolute
security against all vehicle
thefts.
Operating the system
NOTICE
■To ensure the system operates
correctly
Do not modify or remove the system.
If modified or removed, the proper
operation of the system cannot be guaranteed.

801-4. Theft deterrent system
*: If equipped
Turn the engine switch off, have all
the passengers exit the vehicle and
ensure that both side doors are
closed.
Using the entry function: Touch the
sensor area on the outside door
handle.
Using the wireless remote control:
Press .
Double locking system*
Unauthorized access to the
vehicle is prevented by
disabling the door unlocking
function from both the interior
and exterior of the vehicle.
Vehicles employing this sys-
tem have labels on the side
windows.
Setting the double locking
system
WA R N I N G
■Double locking system precau-
tion
Never activate the double locking sys- tem when there are people in the
vehicle because both side doors can-
not be opened from inside the vehicle.

81
1
1-4. Theft deterrent system
For safety and security
*: If equipped
■Items to check before locking
the vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make
sure of the following:
 Nobody is in the vehicle.
 The windows are closed before
the alarm is set.
 No valuables or other personal
items are left in the vehicle.
■Setting
Close the doors and trunk, and lock
both side doors using the entry
function or wireless remote control.
The system will se t automatically
after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
■Canceling or stopping
Do one of the following to deacti-
vate or stop the alarms:
 Unlock the doors or open the
trunk using the entry function or
wireless remote control.
 Turn the engine switch to ACC or
ON, or start the engine.
1 Check that both side doors and
the trunk are closed.
2 Turn the engine switch to ON.
3 Open the driver’s door while
pressing and holding on the
door lock switch and continue to
press for approximately 10
seconds after the driver’s door
has opened.
The alarm system changes between
Alarm*
The alarm uses light and
sound to give an alert when an
intrusion is detected.
The alarm is triggered when a
locked door or the trunk is
unlocked or opened in any way
other than using the entry
function or wireless remote
control while the alarm is set.
Setting/canceling/stopping
the alarm system
Activating/deactivating the
alarm system

821-4. Theft deterrent system
activated and deactivated as follows.
■System maintenance
The vehicle has a maintenance-free
type alarm system.
■Opening and closing the trunk
●If the alarm setting operations are per-
formed with the trunk left open, the
alarm will not be set. After closing the trunk, the alarm is set after 30 sec-
onds or more elapse.
●When the trunk is unlocked using the
entry function or wireless remote con-
trol while the alarm is set, the alarm goes into standby mode. After closing
the trunk, the alarm is set again after
30 seconds or more elapse.
■Triggering of the alarm
The alarm may be triggered in the fol- lowing situations:
(Stopping the alarm deactivates the
alarm system.)
●The doors are unlocked using the key
or the mechanical key.
●A person inside the vehicle opens a
door or the trunk, or unlocks the vehi- cle using an inside lock button.
●The battery is recharged or replaced when the vehicle is locked. ( P.361)
Alarm sta-
tusHorn
Multi-infor-
mation dis-
play
DeactivatedSounds
twice“AL OFF”
ActivatedSounds
once“AL ON”
NOTICE
■To ensure the system operates
correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be
guaranteed.

2

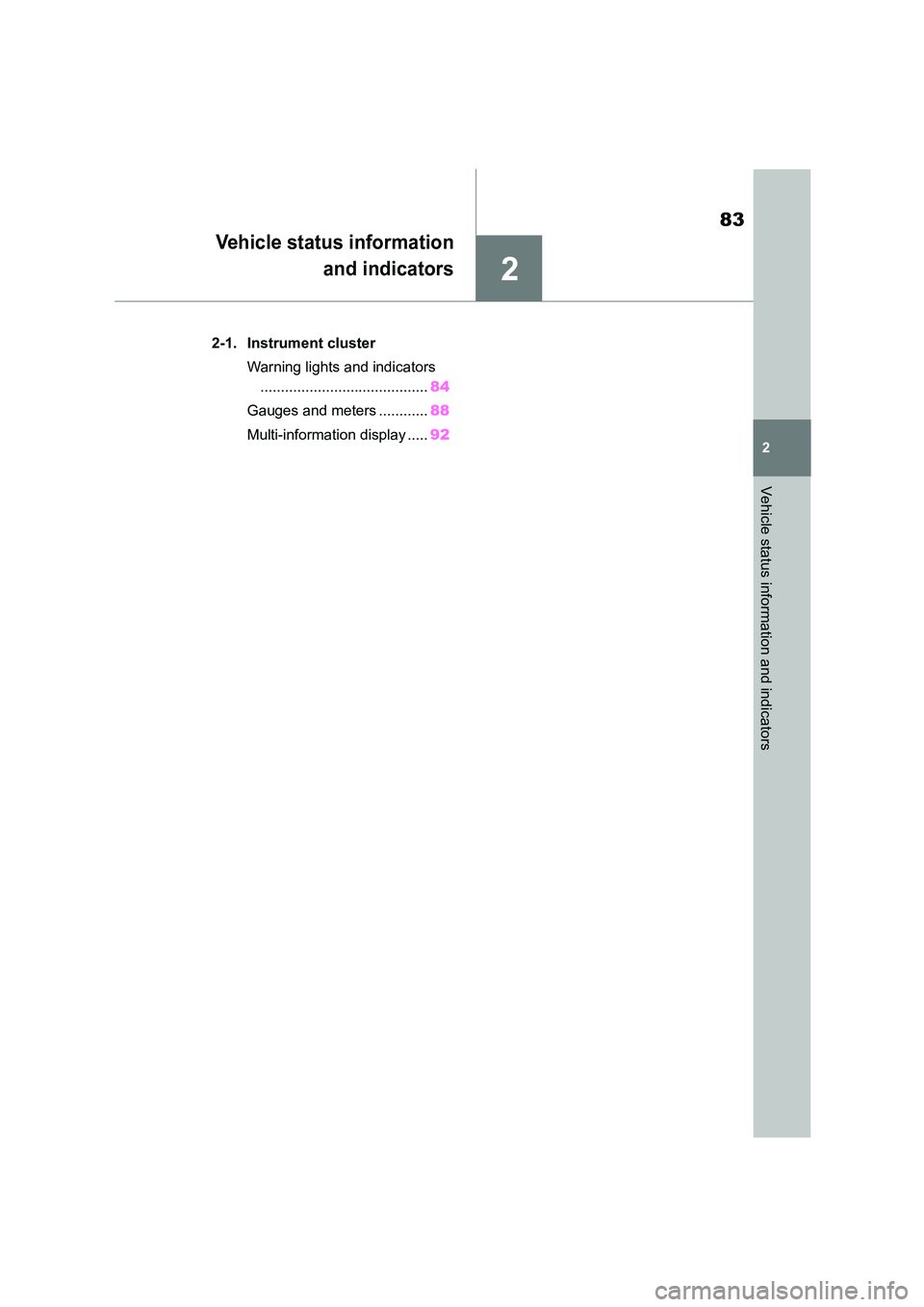

83
2
Vehicle status information and indicators
Vehicle status information
and indicators
.2-1. Instrument cluster
Warning lights and indicators
......................................... 84
Gauges and meters ............ 88
Multi-information display ..... 92

842-1. Instrument cluster
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
Warning lights inform the driver of
malfunctions in the indicated vehi-
cle systems.
War ning lights and indicators
The warning lights and indicators on the instrument cluster and
overhead console inform the driver of the status of the vehicle’s var-
ious systems.
Warning lights and indicators displayed on the instrument
cluster
Warning lights
(red)
Brake system warning light*1
( P.336)
(yellow)
Vacuum pressure system
warning light*1 ( P.336)
(red)
High coolant temperature
warning light*1 ( P.336)
Charging system warning
light*1 ( P.337)
Low engine oil pressure
warning light*1 ( P.337)
Malfunction indicator lamp*1
( P.337)
SRS warning light*1 ( P. 5 3 ,
P.337)
ABS warning light*1 ( P.338)
Electric power steering sys-
tem warning light*1 ( P.338)
Slip indicator*1 ( P.338)

85
2
2-1. Instrument cluster
Vehicle status information and indicators
*1: These lights turn on when the engine
switch is turned to ON to indicate
that a system check is being per-
formed. They will turn off after the
engine is started, or after a few sec-
onds. There may be a malfunction in
a system if a light does not come on,
or turn off. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer,
or any reliable repairer.
*2: The front passenger’s seat belt
reminder light is located on the over-
head console.
*3: This light illuminates on the over-
head console.

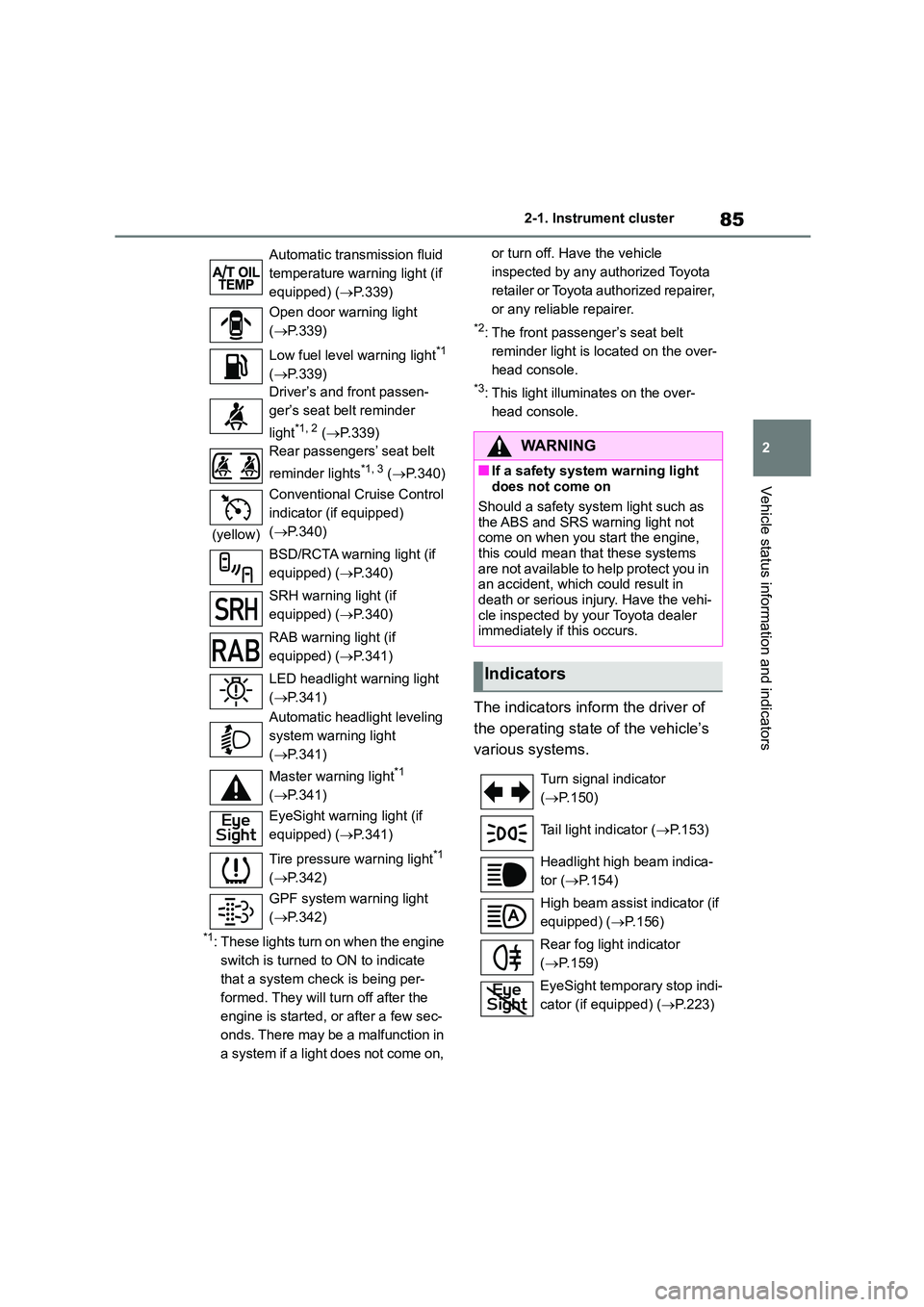

The indicators inform the driver of
the operating state of the vehicle’s
various systems.
Automatic transmission fluid
temperature warning light (if
equipped) ( P.339)
Open door warning light
( P.339)
Low fuel level warning light*1
( P.339)
Driver’s and front passen-
ger’s seat belt reminder
light*1, 2 ( P.339)
Rear passengers’ seat belt
reminder lights*1, 3 ( P.340)
(yellow)
Conventional Cruise Control
indicator (if equipped)
( P.340)
BSD/RCTA warning light (if
equipped) ( P.340)
SRH warning light (if
equipped) ( P.340)
RAB warning light (if
equipped) ( P.341)
LED headlight warning light
( P.341)
Automatic headlight leveling
system warning light
( P.341)
Master warning light*1
( P.341)
EyeSight warning light (if
equipped) ( P.341)
Tire pressure warning light*1
( P.342)
GPF system warning light
( P.342)
WA R N I N G
■If a safety system warning light
does not come on
Should a safety syst em light such as the ABS and SRS warning light not
come on when you start the engine,
this could mean that these systems are not available to help protect you in
an accident, which could result in
death or serious injury. Have the vehi- cle inspected by your Toyota dealer
immediately if this occurs.
Indicators
Turn signal indicator
( P.150)
Tail light indicator ( P.153)
Headlight high beam indica-
tor ( P.154)
High beam assist indicator (if
equipped) ( P.156)
Rear fog light indicator
( P.159)
EyeSight temporary stop indi-
cator (if equipped) ( P.223)

862-1. Instrument cluster
Drive mode indicators
Normal mode
TRACK mode
*1: These lights turn on when the engine
switch is turned to ON to indicate
that a system check is being per-
formed. They will turn off after the
engine is started, or after a few sec-
onds. There may be a malfunction in
a system if a light does not come on,
or turn off. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer,
Pre-Collision Braking Sys-
tem OFF indicator*1, 2 (if
equipped) ( P.183)
(white/gre
en)
Conventional Cruise Control
indicator (if equipped)
( P.202, 249)
(white/gre
en)
Adaptive Cruise Control indi-
cator (if equipped) ( P.191)
“READY” indicator (if
equipped) ( P.191)
Lead vehicle indicator (if
equipped) ( P.191)
Lead vehicle indicator*3 (if
equipped) ( P.191)
Your vehicle indicator (if
equipped) ( P.191)
Following distance setting
indicator (if equipped)
( P.191)
Following distance setting
indicator*3 (if equipped)
( P.191)
Lane Departure Warning
OFF indicator*1, 2 (if
equipped) ( P.215)
BSD/RCTA OFF indicator*2
(if equipped) ( P.229)
SRH OFF indicator*2 (if
equipped) ( P.156)
RAB OFF indicator*1, 2 (if
equipped) ( P.241)
(flashes)
Slip indicator*1 ( P.256)
VSC OFF indicator*1, 2
( P.257)
TRC OFF indicator*1, 2
( P.256)
Smart entry & start system
indicator*3 ( P.139)
Hill-start assist control ON
indicator ( P.253)
Security indicator ( P. 7 9 ,
81)
(blue)
Low coolant temperature
indicator*4
Gear Shift indicator ( P.145,
149)
Passenger’s frontal
airbag ON and OFF
indicator*1, 5 ( P. 3 2 )
Low outside temperature
indicator*6 ( P. 8 8 )
Snow mode indicator (if
equipped) ( P.252)
“SPORT” indicator (if
equipped) ( P.252)
Snow mode indicator (if
equipped) ( P.252)
“SPORT” indicator (if
equipped) ( P.252)
“TRACK” indicator
( P.257)
SNOW
SPORT

87
2
2-1. Instrument cluster
Vehicle status information and indicators
or any reliable repairer.
*2: The light comes on when the system
is turned off.
*3: This light illuminates on the
multi-information display.
*4: This indicator turns on when the
engine coolant temperature is low.
*5: This light illuminates on the over-
head console.
*6: When the outside temperature is
approximately 3°C (37°F) or lower,
this indicator will illuminate.

882-1. Instrument cluster
■Locations of gauges and meters
Normal mode
Multi-information display
Presents the driver with a variety of vehicle data ( P. 9 2 )
Displays warning messages in case of a malfunction (P.344)
Tachometer
Displays the engine speed in revolutions per minute
The red zone will be lower than normal, when the engine is cold
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F).
Low outside temperature indicator comes on when the ambient temperature is 3°C
(37°F) or lower.
Clock
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Speedometer
Shift position and gear position ( P.143, 148)
Odometer and trip meter display ( P. 9 0 )
Gauges and meters
Meter display
A
C
D
