TOYOTA GT86 2016 Owners Manual (in English)

201 2-2. Instrument cluster
2
When driving
FT86_EE

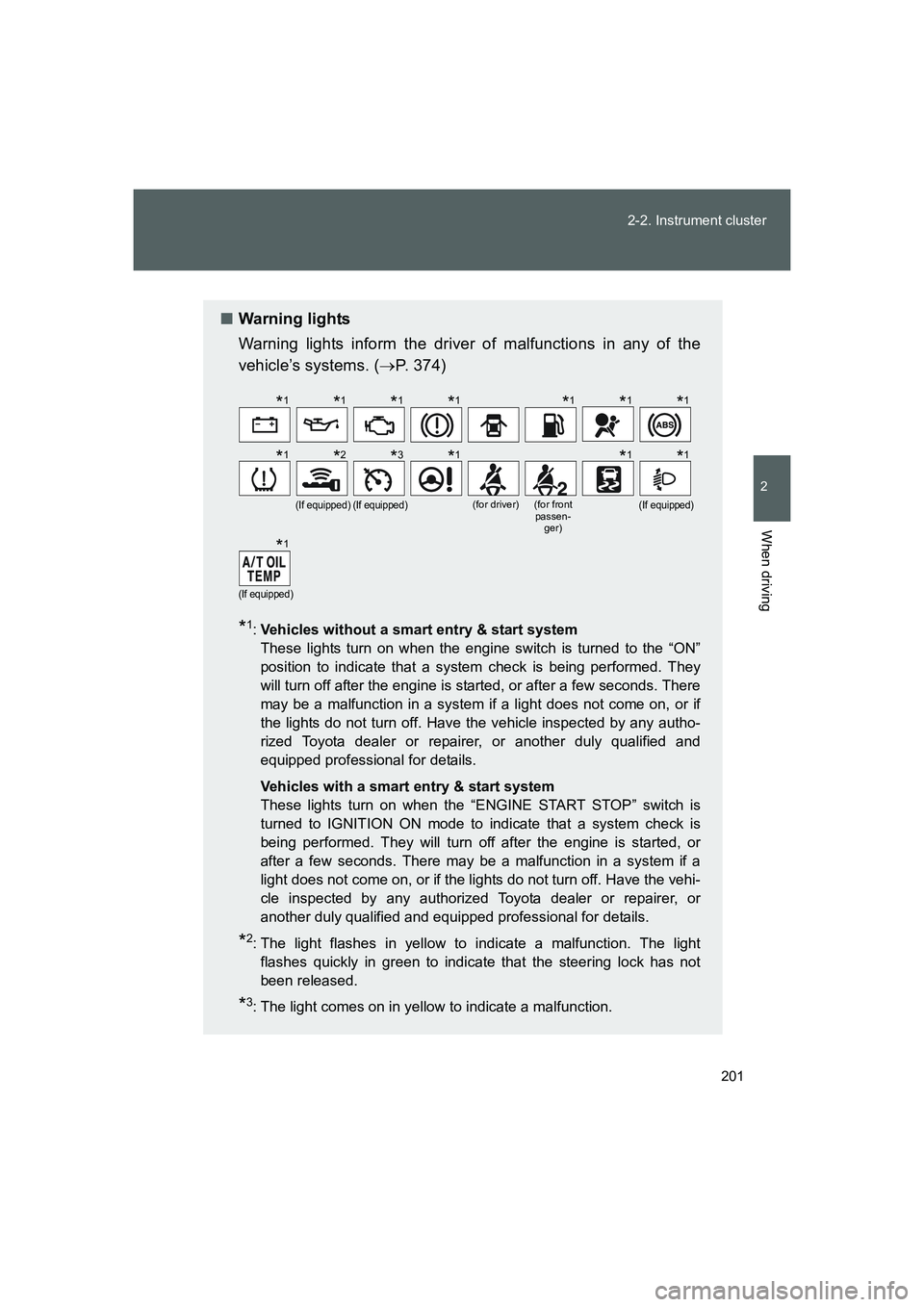

■Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (→P. 374)
*1:Vehicles without a smart entry & start system
These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Vehicles with a smart entry & start system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for details.
*2: The light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
*3: The light comes on in yellow to indicate a malfunction.
(If equipped)(If equipped)(for driver)(for front
passen-
ger)(If equipped)
(If equipped)
*1*1*1*1*1*1*1
*1*2*3*1*1*1
*1
86_OM_EE_OM18058E.book 201 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

202 2-2. Instrument cluster
FT86_EE

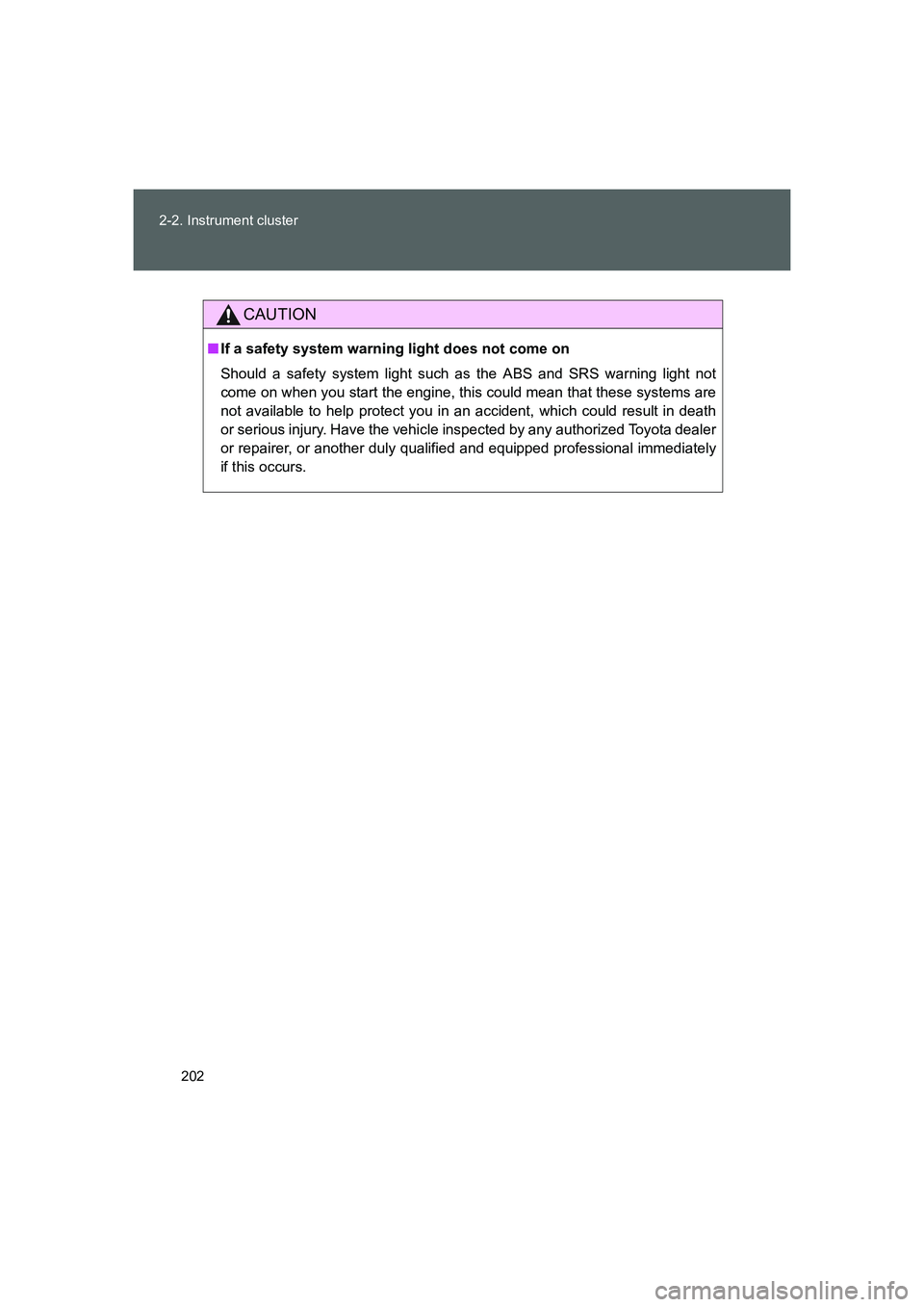

CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immediately
if this occurs.
86_OM_EE_OM18058E.book 202 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

203
2-2. Instrument cluster
2
When driving
FT86_EE

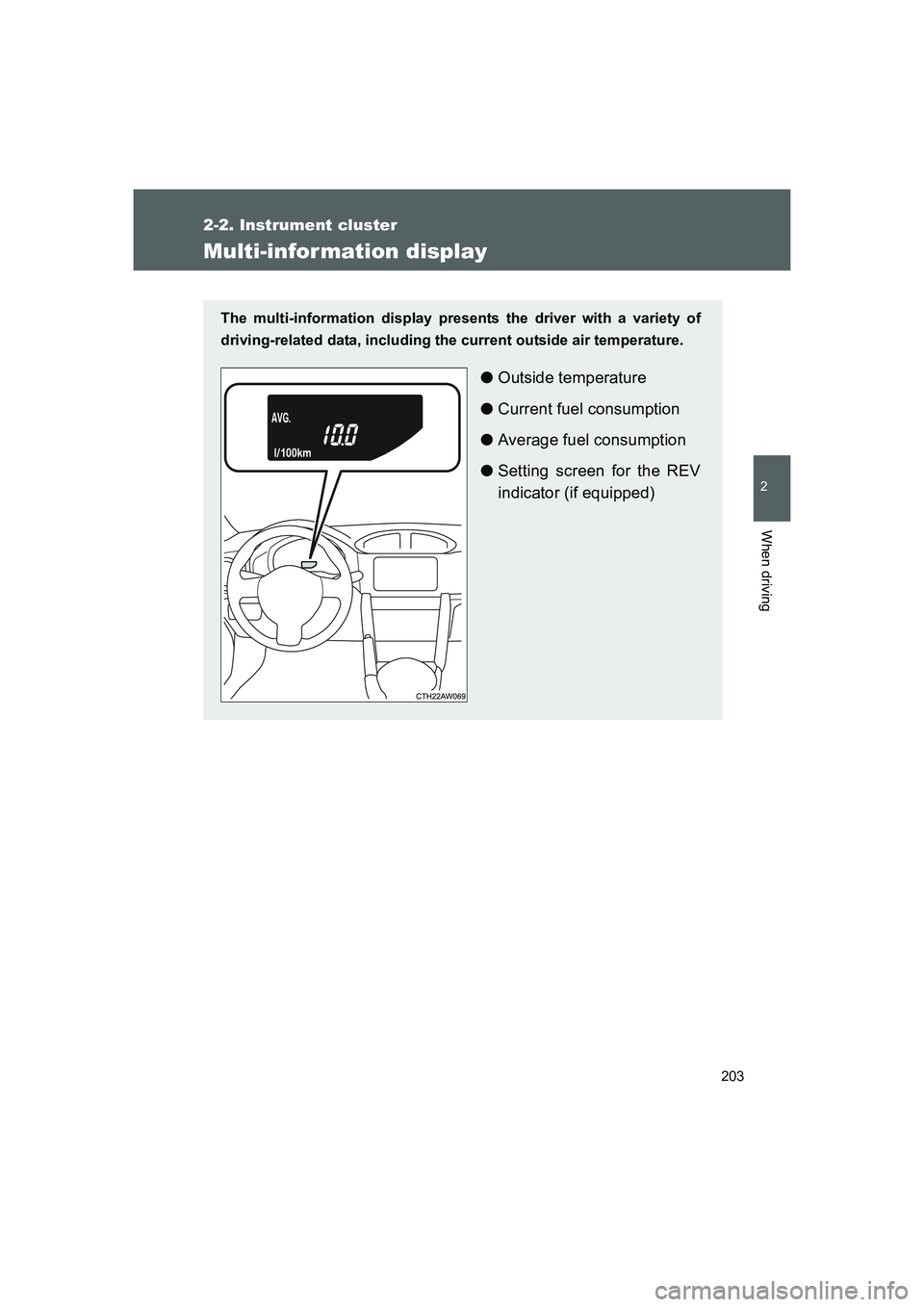

Multi-information display
The multi-information display presents the driver with a variety of
driving-related data, including the current outside air temperature.
●Outside temperature
●Current fuel consumption
●Average fuel consumption
●Setting screen for the REV
indicator (if equipped)
86_OM_EE_OM18058E.book 203 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

204 2-2. Instrument cluster
FT86_EE

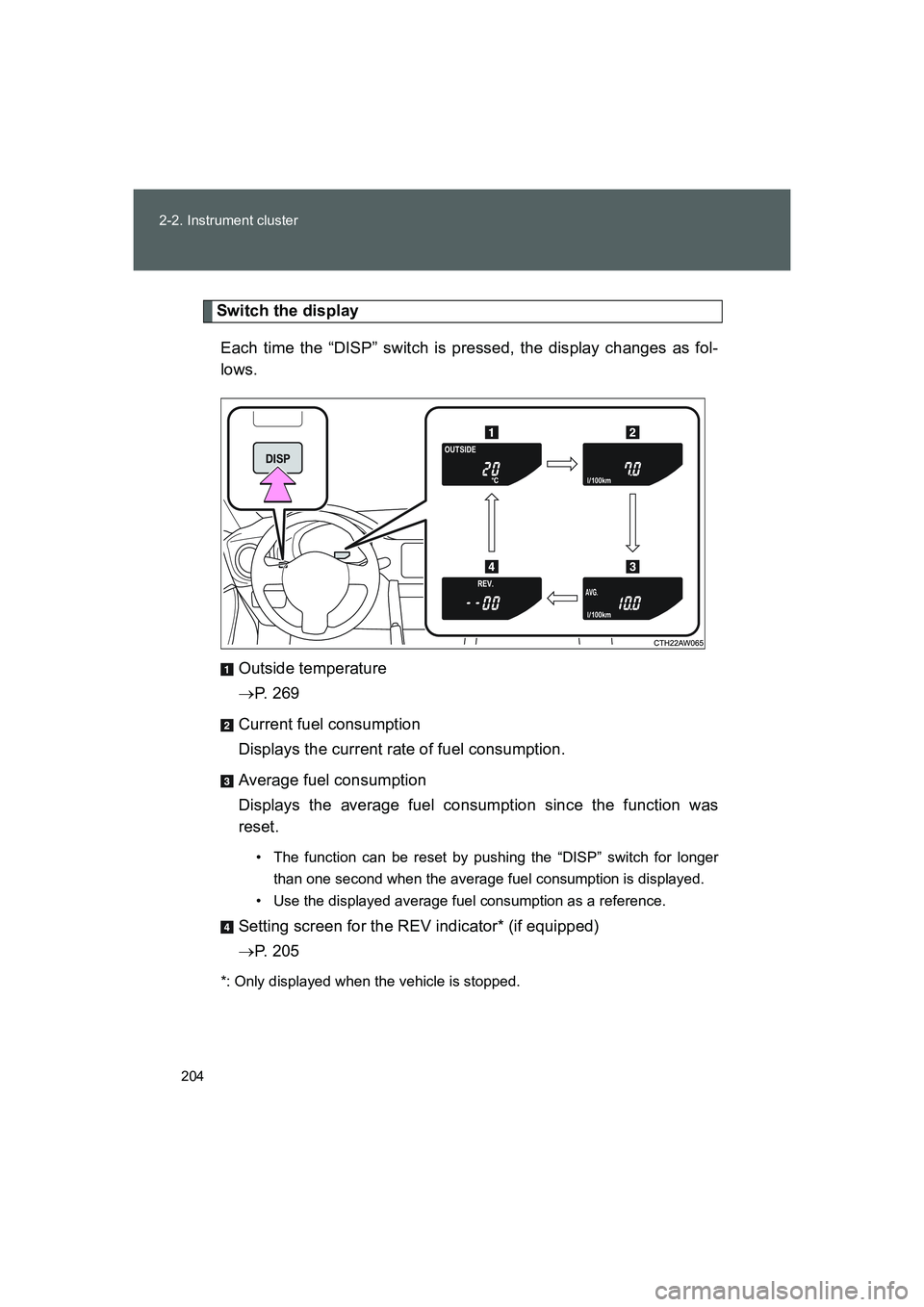

Switch the display
Each time the “DISP” switch is pressed, the display changes as fol-
lows.
Outside temperature
→P. 2 6 9
Current fuel consumption
Displays the current rate of fuel consumption.
Average fuel consumption
Displays the average fuel consumption since the function was
reset.
• The function can be reset by pushing the “DISP” switch for longer
than one second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Setting screen for the REV indicator* (if equipped)
→P. 2 0 5
*: Only displayed when the vehicle is stopped.
86_OM_EE_OM18058E.book 204 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

205 2-2. Instrument cluster
2
When driving
FT86_EE

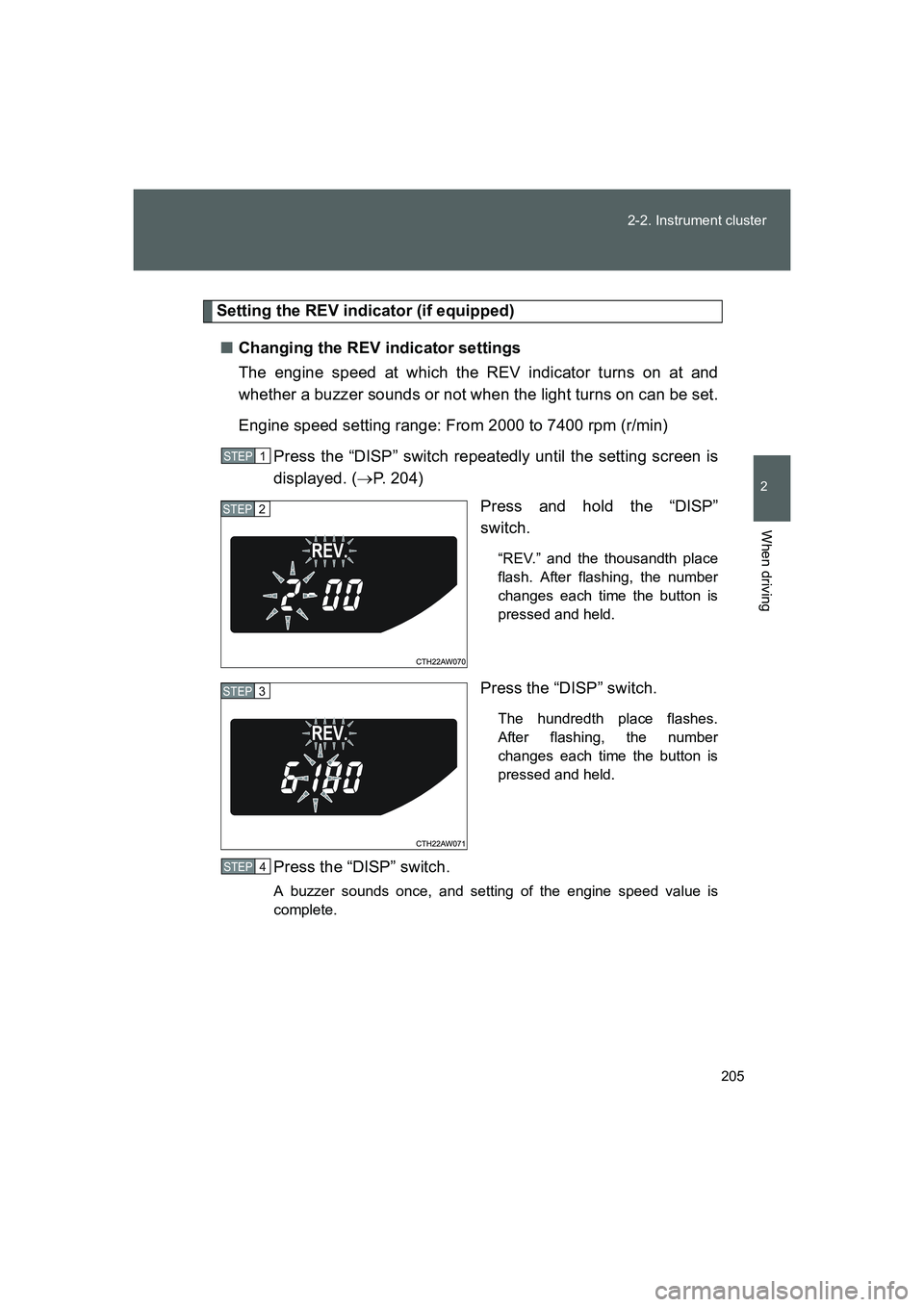

Setting the REV indicator (if equipped)
■Changing the REV indicator settings
The engine speed at which the REV indicator turns on at and
whether a buzzer sounds or not when the light turns on can be set.
Engine speed setting range: From 2000 to 7400 rpm (r/min)
Press the “DISP” switch repeatedly until the setting screen is
displayed. (→P. 204)
Press and hold the “DISP”
switch.
“REV.” and the thousandth place
flash. After flashing, the number
changes each time the button is
pressed and held.
Press the “DISP” switch.
The hundredth place flashes.
After flashing, the number
changes each time the button is
pressed and held.
Press the “DISP” switch.
A buzzer sounds once, and setting of the engine speed value is
complete.
STEP 1
STEP 2
STEP 3
STEP 4
86_OM_EE_OM18058E.book 205 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

206 2-2. Instrument cluster

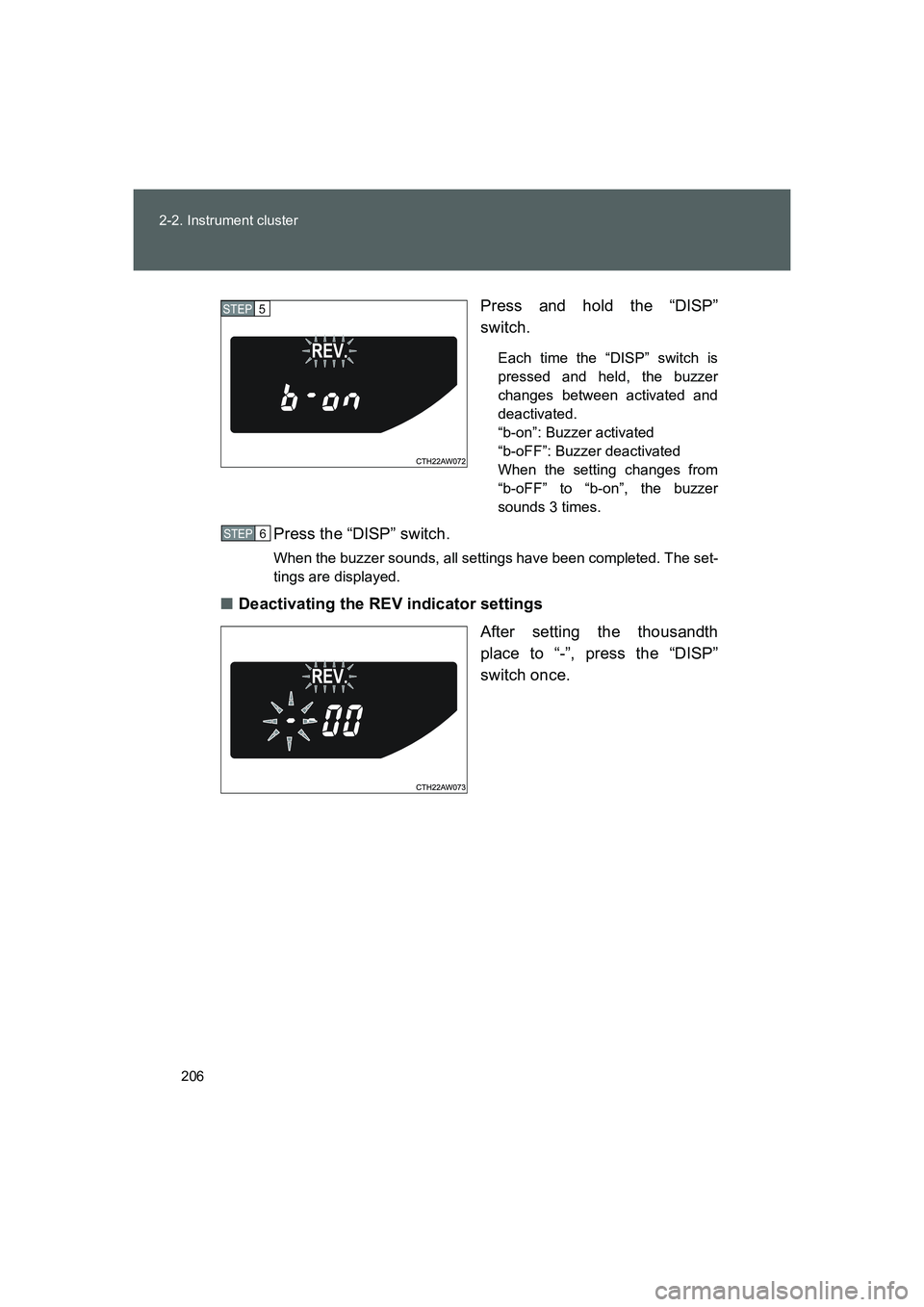

FT86_EEPress and hold the “DISP”
switch.
Each time the “DISP” switch is
pressed and held, the buzzer
changes between activated and
deactivated.
“b-on”: Buzzer activated
“b-oFF”: Buzzer deactivated
When the setting changes from
“b-oFF” to “b-on”, the buzzer
sounds 3 times.
Press the “DISP” switch.
When the buzzer sounds, all settings have been completed. The set-
tings are displayed.
■Deactivating the REV indicator settings
After setting the thousandth
place to “-”, press the “DISP”
switch once.
STEP 5
STEP 6
86_OM_EE_OM18058E.book 206 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

207 2-2. Instrument cluster
2
When driving
FT86_EE

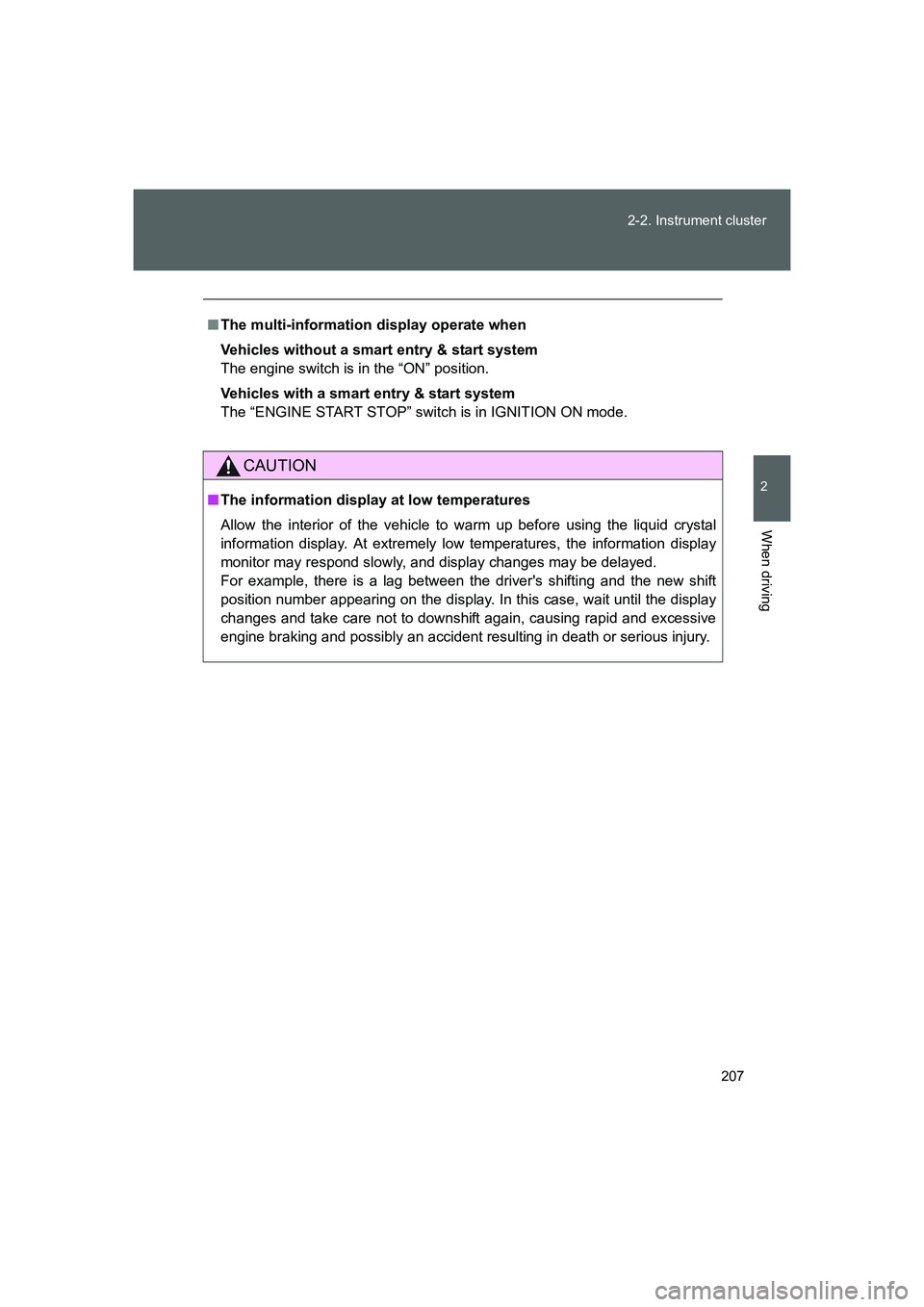

■The multi-information display operate when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and the new shift
position number appearing on the display. In this case, wait until the display
changes and take care not to downshift again, causing rapid and excessive
engine braking and possibly an accident resulting in death or serious injury.
86_OM_EE_OM18058E.book 207 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

208
FT86_EE
2-3. Operating the lights and windshield wipers

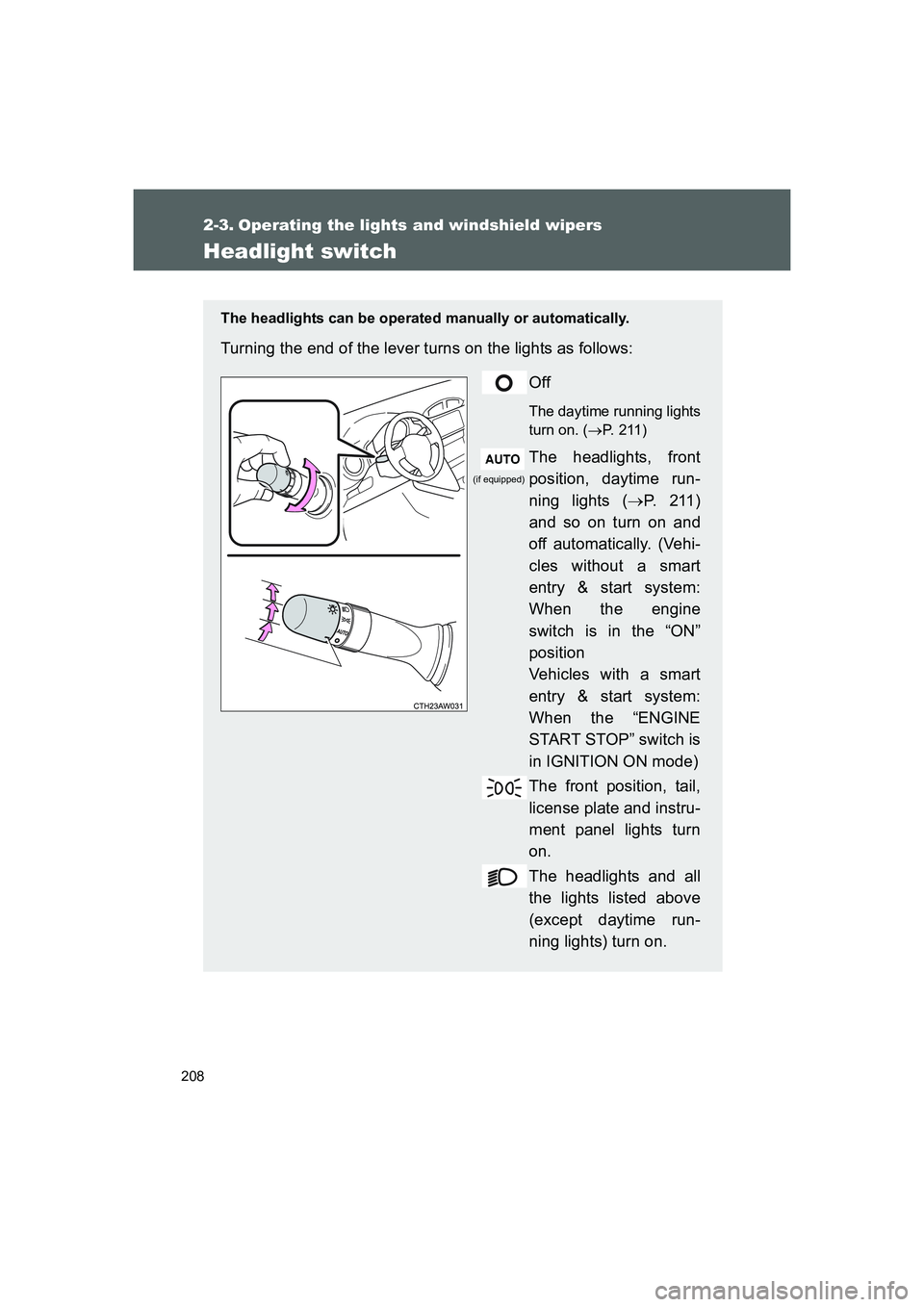

Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Off
The daytime running lights
turn on. (→P. 211)
The headlights, front
position, daytime run-
ning lights (→P. 2 1 1 )
and so on turn on and
off automatically. (Vehi-
cles without a smart
entry & start system:
When the engine
switch is in the “ON”
position
Vehicles with a smart
entry & start system:
When the “ENGINE
START STOP” switch is
in IGNITION ON mode)
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all
the lights listed above
(except daytime run-
ning lights) turn on.
(if equipped)
86_OM_EE_OM18058E.book 208 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

209 2-3. Operating the lights and windshield wipers
2
When driving
FT86_EE

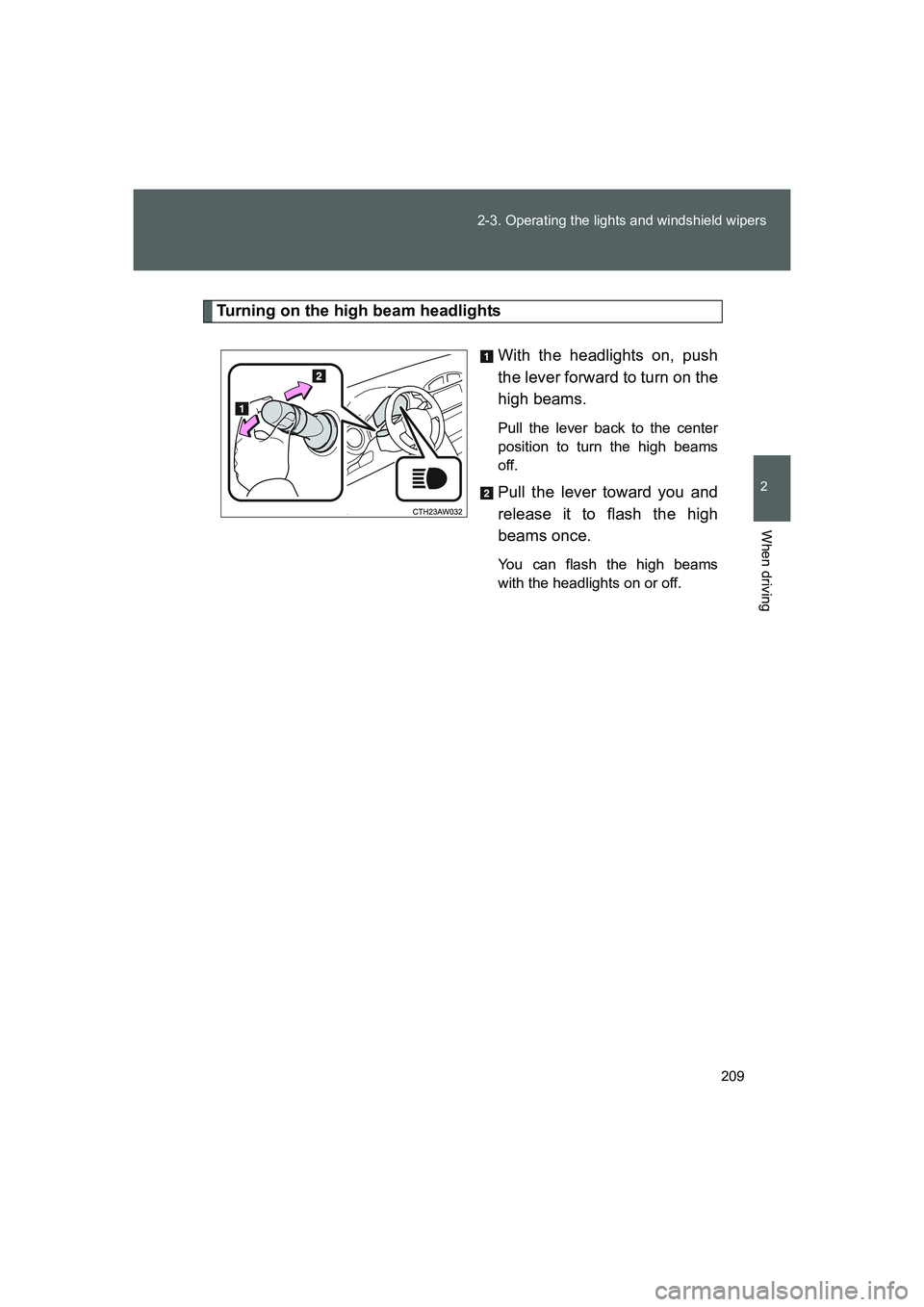

Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
86_OM_EE_OM18058E.book 209 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

210 2-3. Operating the lights and windshield wipers
FT86_EE

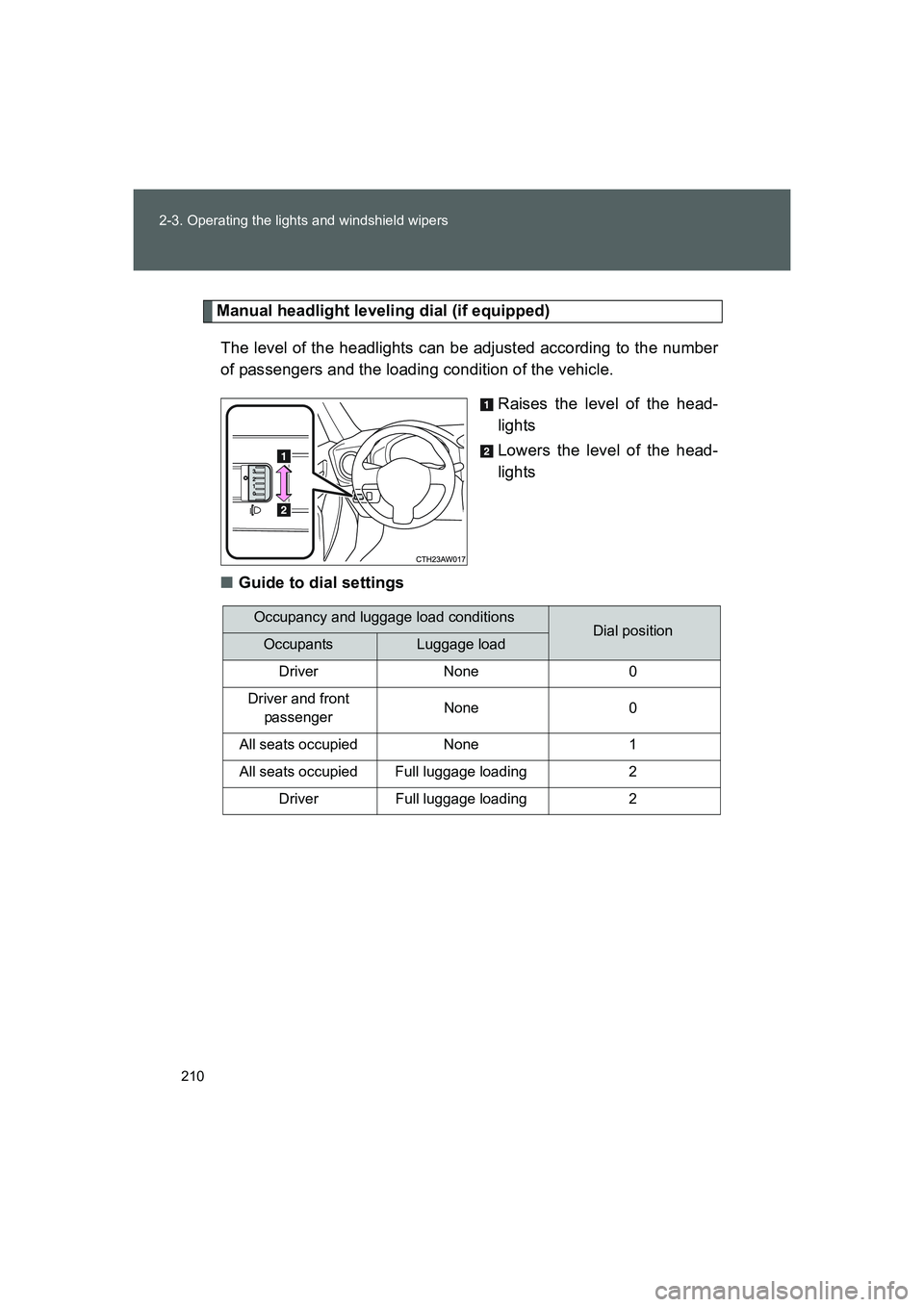

Manual headlight leveling dial (if equipped)
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
■Guide to dial settings
Occupancy and luggage load conditionsDial positionOccupantsLuggage load
Driver None 0
Driver and front
passengerNone 0
All seats occupied None 1
All seats occupied Full luggage loading 2
Driver Full luggage loading 2
