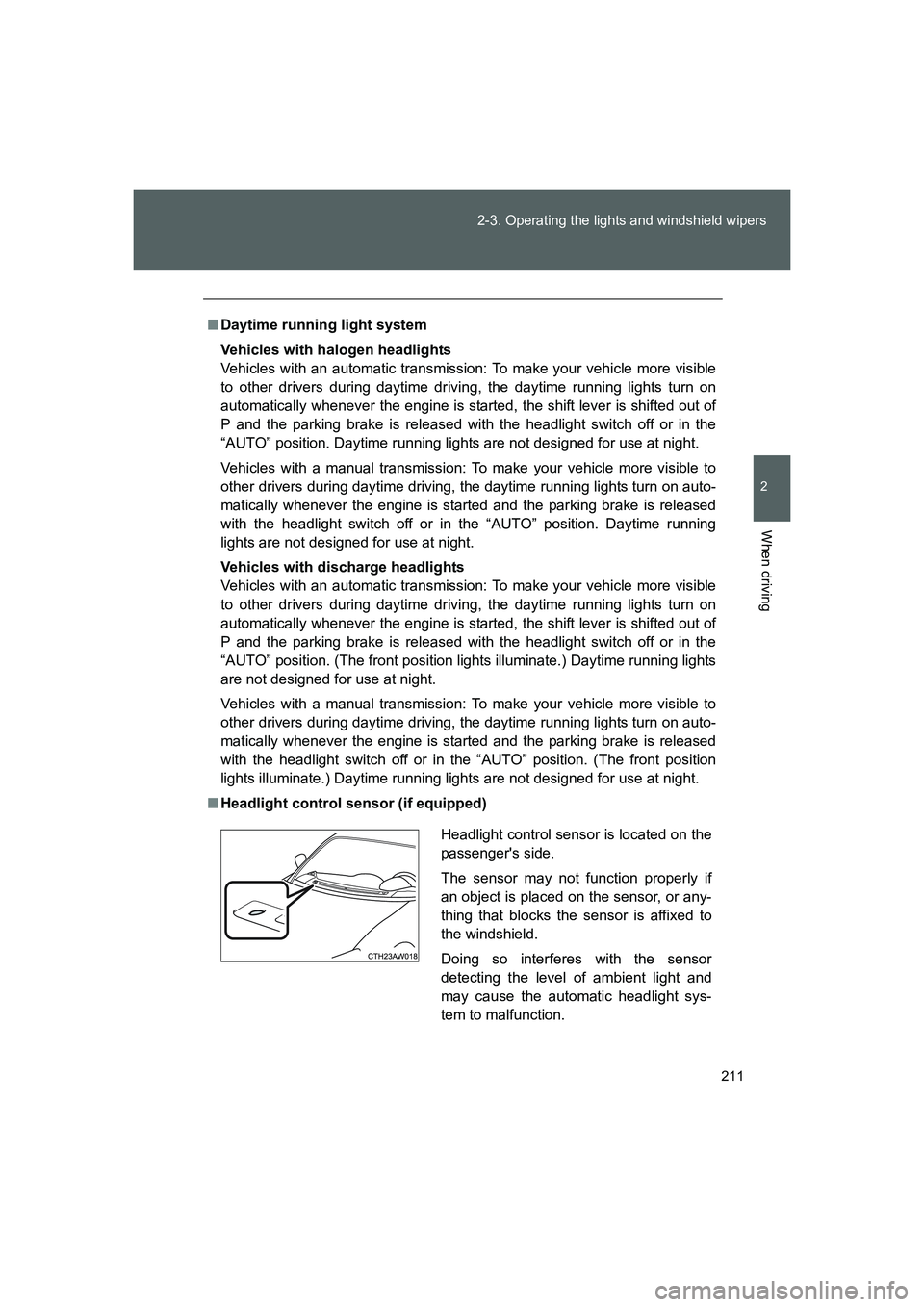

211 2-3. Operating the lights and windshield wipers
2
When driving
FT86_EE
■Daytime running light system
Vehicles with halogen headlights
Vehicles with an automatic transmission: To make your vehicle more visible
to other drivers during daytime driving, the daytime running lights turn on
automatically whenever the engine is started, the shift lever is shifted out of
P and the parking brake is released with the headlight switch off or in the
“AUTO” position. Daytime running lights are not designed for use at night.
Vehicles with a manual transmission: To make your vehicle more visible to
other drivers during daytime driving, the daytime running lights turn on auto-
matically whenever the engine is started and the parking brake is released
with the headlight switch off or in the “AUTO” position. Daytime running
lights are not designed for use at night.
Vehicles with discharge headlights
Vehicles with an automatic transmission: To make your vehicle more visible
to other drivers during daytime driving, the daytime running lights turn on
automatically whenever the engine is started, the shift lever is shifted out of
P and the parking brake is released with the headlight switch off or in the
“AUTO” position. (The front position lights illuminate.) Daytime running lights
are not designed for use at night.
Vehicles with a manual transmission: To make your vehicle more visible to
other drivers during daytime driving, the daytime running lights turn on auto-
matically whenever the engine is started and the parking brake is released
with the headlight switch off or in the “AUTO” position. (The front position
lights illuminate.) Daytime running lights are not designed for use at night.
■Headlight control sensor (if equipped)
Headlight control sensor is located on the
passenger's side.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
86_OM_EE_OM18058E.book 211 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

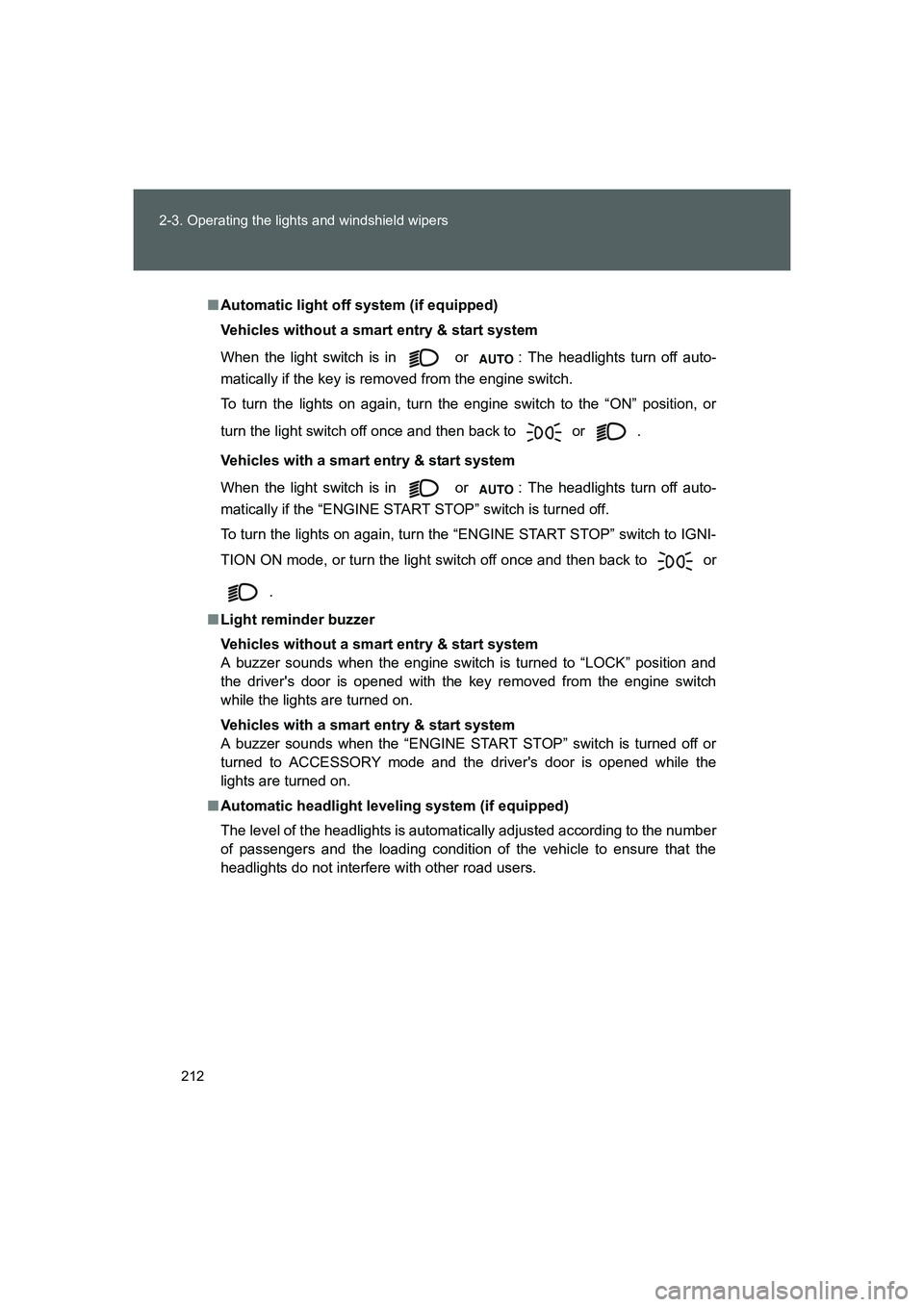

212 2-3. Operating the lights and windshield wipers
FT86_EE
■Automatic light off system (if equipped)
Vehicles without a smart entry & start system
When the light switch is in or
: The headlights turn off auto-
matically if the key is removed from the engine switch.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch off once and then back to
or .
Vehicles with a smart entry & start system
When the light switch is in or
: The headlights turn off auto-
matically if the “ENGINE START STOP” switch is turned off.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off once and then back to
or
.
■Light reminder buzzer
Vehicles without a smart entry & start system
A buzzer sounds when the engine switch is turned to “LOCK” position and
the driver's door is opened with the key removed from the engine switch
while the lights are turned on.
Vehicles with a smart entry & start system
A buzzer sounds when the “ENGINE START STOP” switch is turned off or
turned to ACCESSORY mode and the driver's door is opened while the
lights are turned on.
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
86_OM_EE_OM18058E.book 212 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

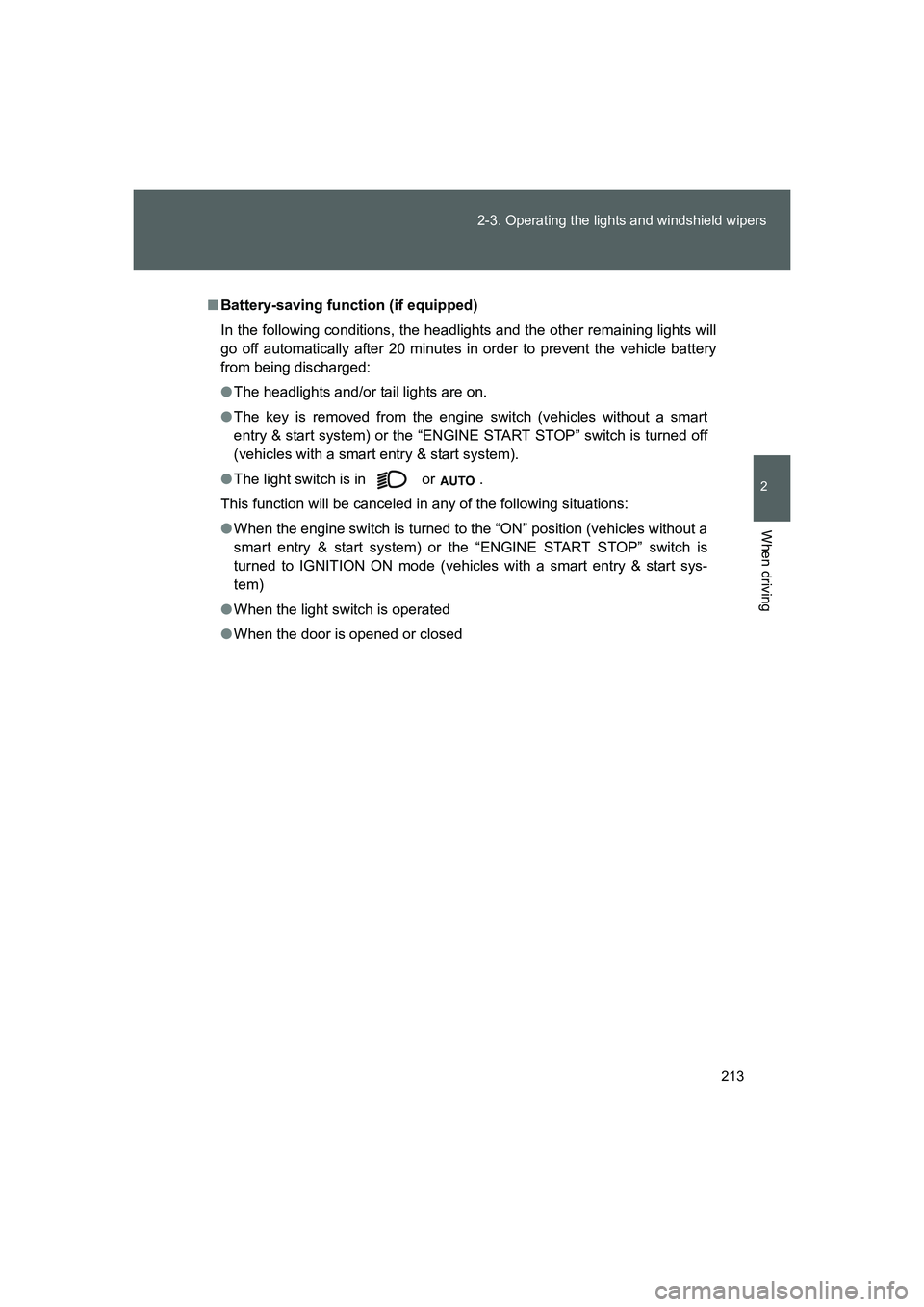

213 2-3. Operating the lights and windshield wipers
2
When driving
FT86_EE
■Battery-saving function (if equipped)
In the following conditions, the headlights and the other remaining lights will
go off automatically after 20 minutes in order to prevent the vehicle battery
from being discharged:
●The headlights and/or tail lights are on.
●The key is removed from the engine switch (vehicles without a smart
entry & start system) or the “ENGINE START STOP” switch is turned off
(vehicles with a smart entry & start system).
●The light switch is in or .
This function will be canceled in any of the following situations:
●When the engine switch is turned to the “ON” position (vehicles without a
smart entry & start system) or the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with a smart entry & start sys-
tem)
●When the light switch is operated
●When the door is opened or closed
86_OM_EE_OM18058E.book 213 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

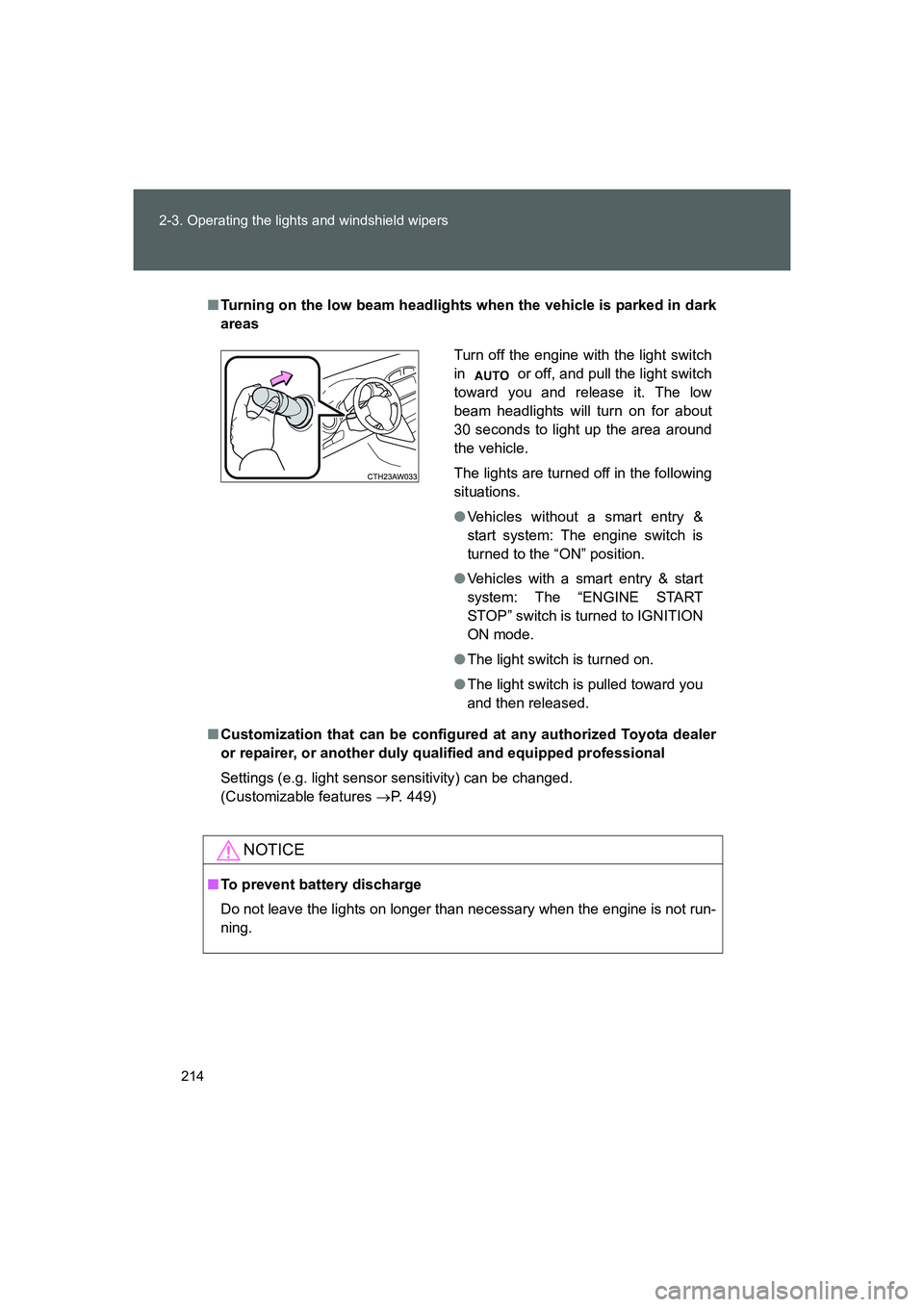

214 2-3. Operating the lights and windshield wipers
FT86_EE
■Turning on the low beam headlights when the vehicle is parked in dark
areas
■Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 449)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
Turn off the engine with the light switch
in or off, and pull the light switch
toward you and release it. The low
beam headlights will turn on for about
30 seconds to light up the area around
the vehicle.
The lights are turned off in the following
situations.
●Vehicles without a smart entry &
start system: The engine switch is
turned to the “ON” position.
●Vehicles with a smart entry & start
system: The “ENGINE START
STOP” switch is turned to IGNITION
ON mode.
●The light switch is turned on.
●The light switch is pulled toward you
and then released.
86_OM_EE_OM18058E.book 214 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

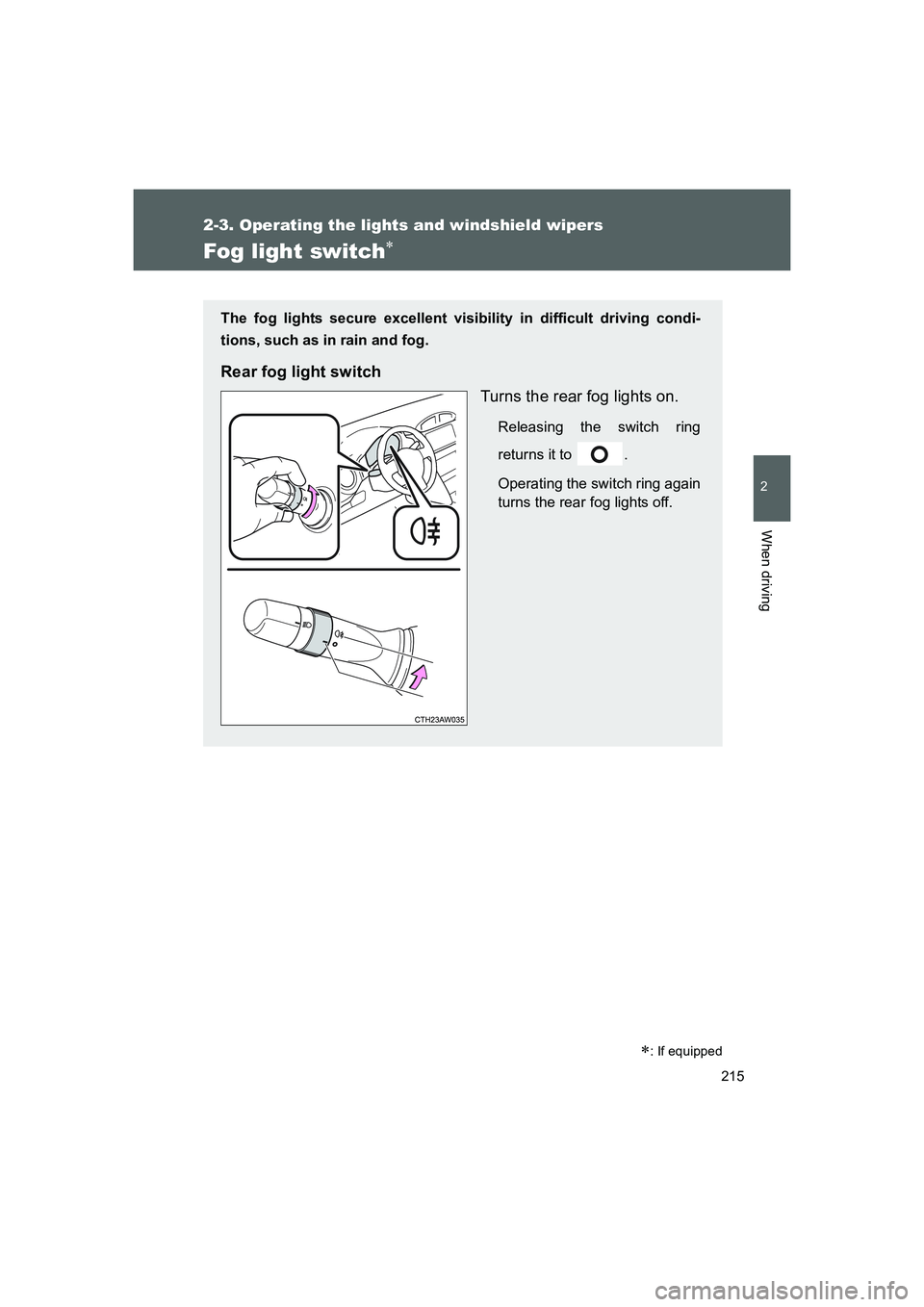

215
2-3. Operating the lights and windshield wipers
2
When driving
FT86_EE
Fog light switch∗
∗: If equipped
The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain and fog.
Rear fog light switch
Turns the rear fog lights on.
Releasing the switch ring
returns it to .
Operating the switch ring again
turns the rear fog lights off.
86_OM_EE_OM18058E.book 215 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

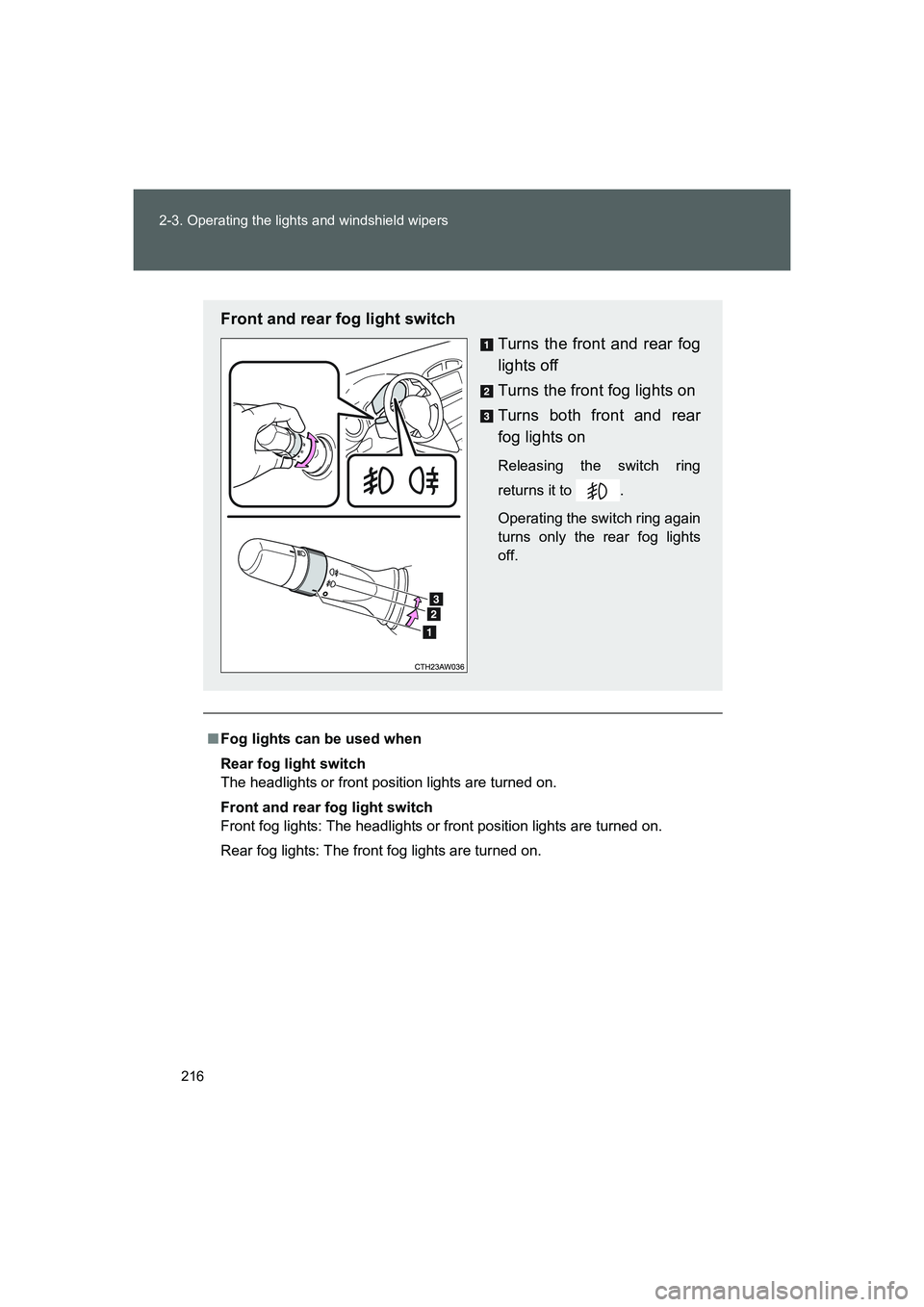

216 2-3. Operating the lights and windshield wipers
FT86_EE
■Fog lights can be used when
Rear fog light switch
The headlights or front position lights are turned on.
Front and rear fog light switch
Front fog lights: The headlights or front position lights are turned on.
Rear fog lights: The front fog lights are turned on.
Front and rear fog light switch
Turns the front and rear fog
lights off
Turns the front fog lights on
Turns both front and rear
fog lights on
Releasing the switch ring
returns it to .
Operating the switch ring again
turns only the rear fog lights
off.
86_OM_EE_OM18058E.book 216 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

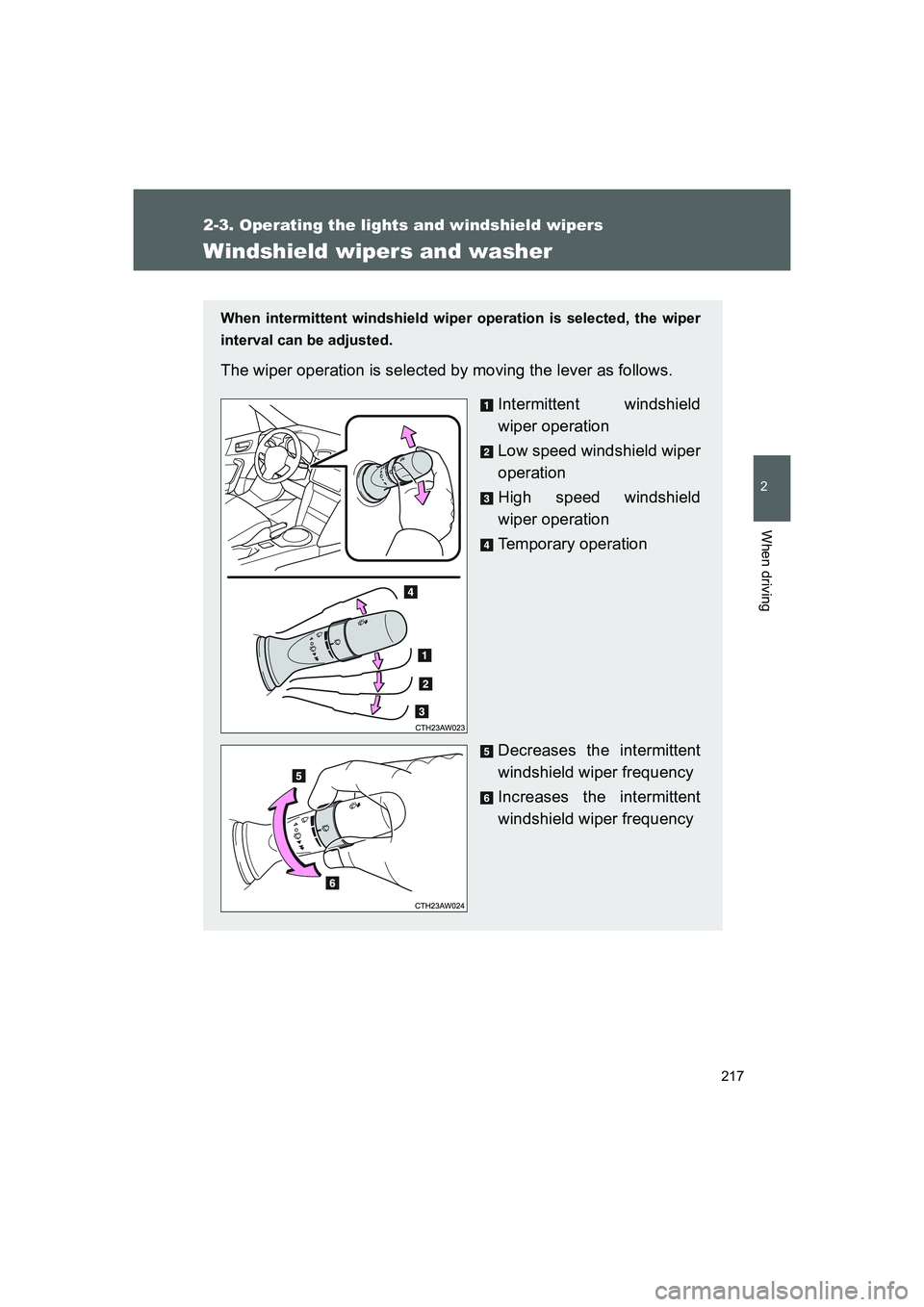

217
2-3. Operating the lights and windshield wipers
2
When driving
FT86_EE
Windshield wipers and washer
When intermittent windshield wiper operation is selected, the wiper
interval can be adjusted.
The wiper operation is selected by moving the lever as follows.
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Decreases the intermittent
windshield wiper frequency
Increases the intermittent
windshield wiper frequency
86_OM_EE_OM18058E.book 217 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

218 2-3. Operating the lights and windshield wipers
FT86_EE
■The windshield wipers and washer can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid tank.
CAUTION
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
Vehicles with discharge head-
lights: When the headlights are
on and the lever is pulled and
held, the headlight cleaners
will operate once.
86_OM_EE_OM18058E.book 218 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

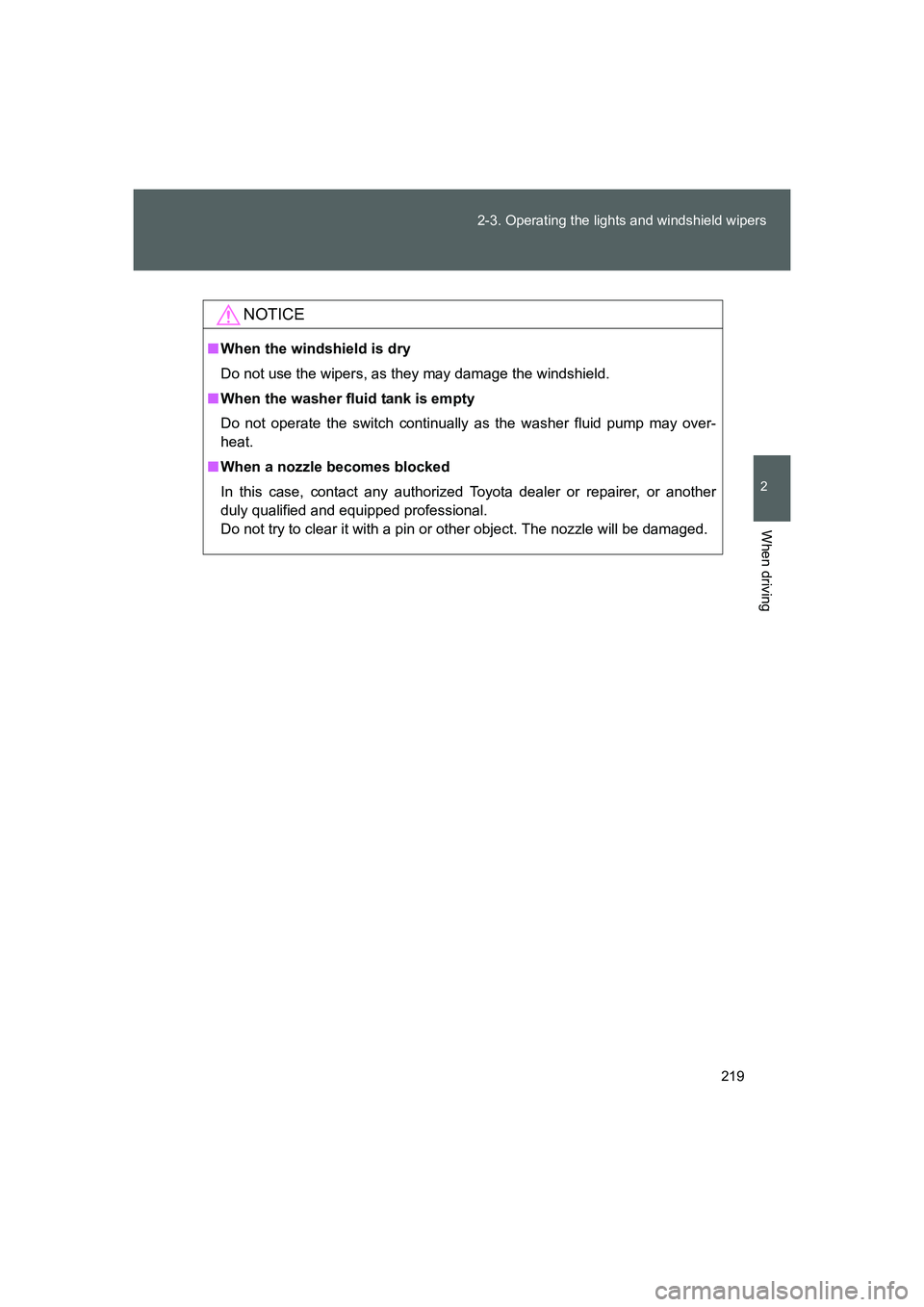

219 2-3. Operating the lights and windshield wipers
2
When driving
FT86_EE
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
86_OM_EE_OM18058E.book 219 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

220
FT86_EE
2-4. Using other driving systems

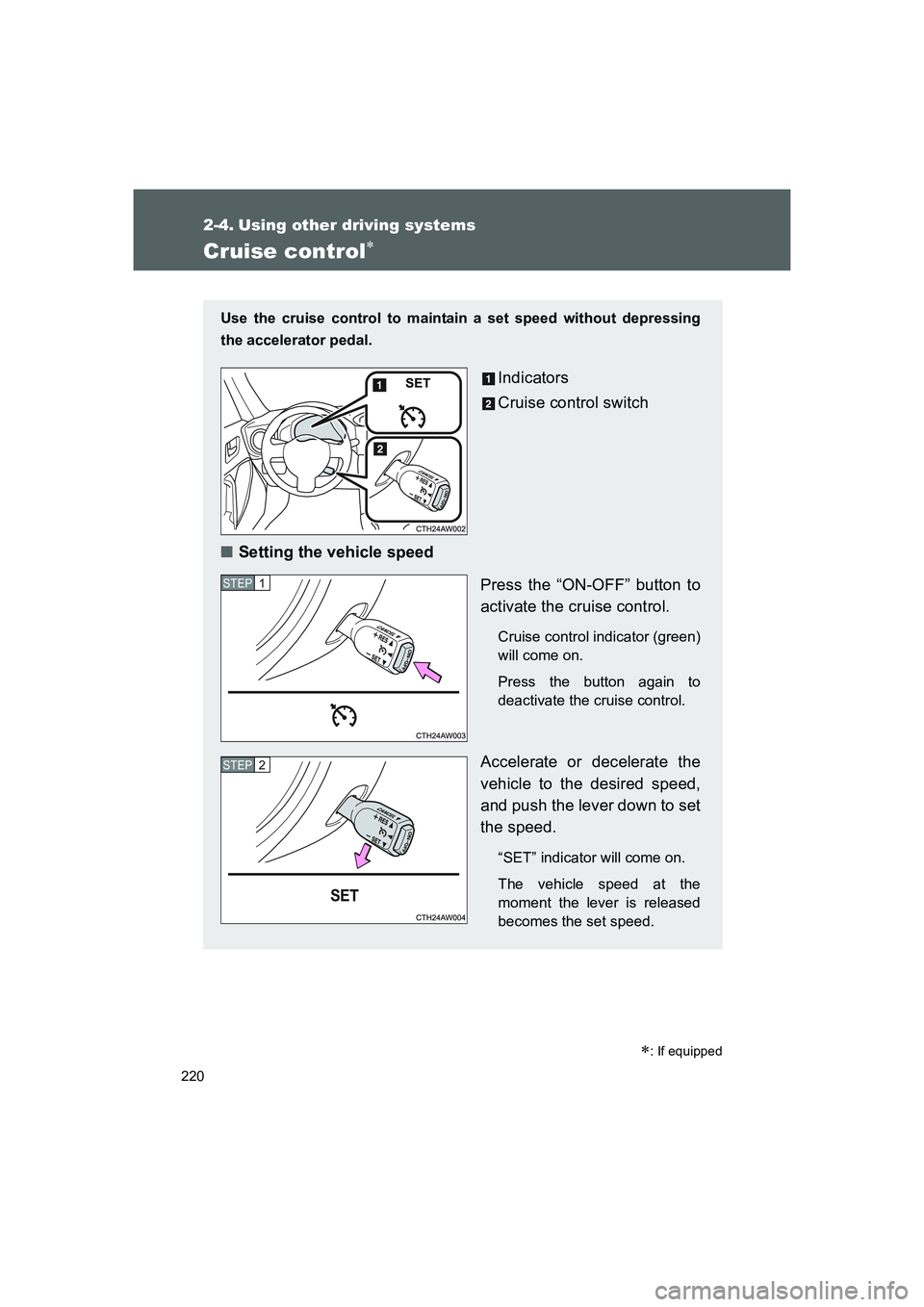

Cruise control∗
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
■Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator (green)
will come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP 1
STEP 2
∗: If equipped
