'05 HIGHLANDER_U (L/O 0409)
341
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

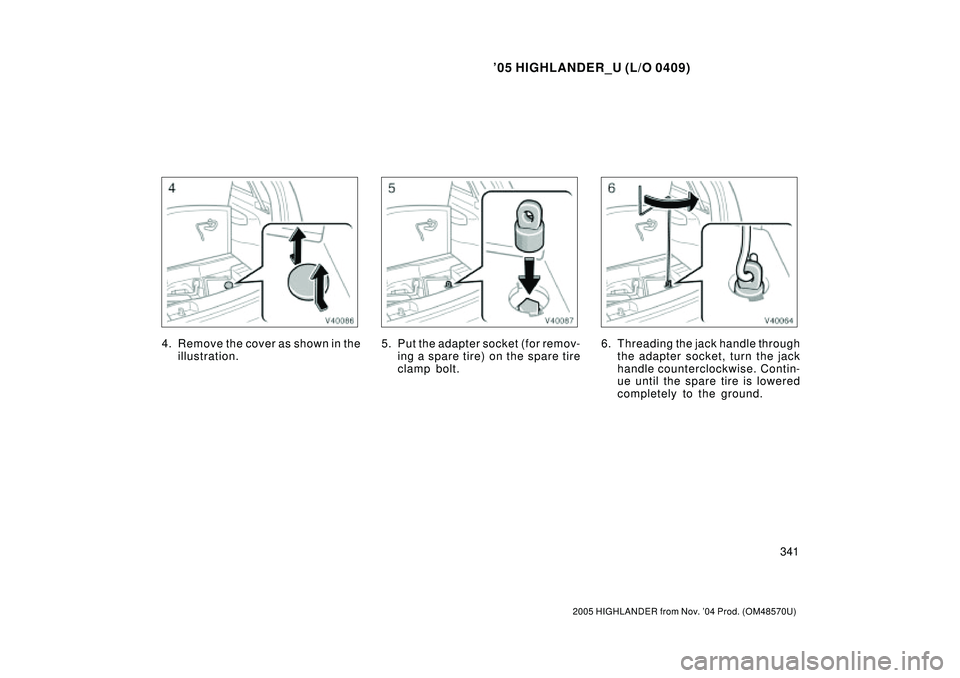

4. Remove the cover as shown in the
illustration.5. Put the adapter socket (for remov-
ing a spar e tir e) on the spar e tir e
clamp bolt.6. Threading the jack handle through
the adapter socket, turn the jack
handle counterclockwise. Contin-
ue until the spare tire is lowered
completely to the ground.

'05 HIGHLANDER_U (L/O 0409)
342
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

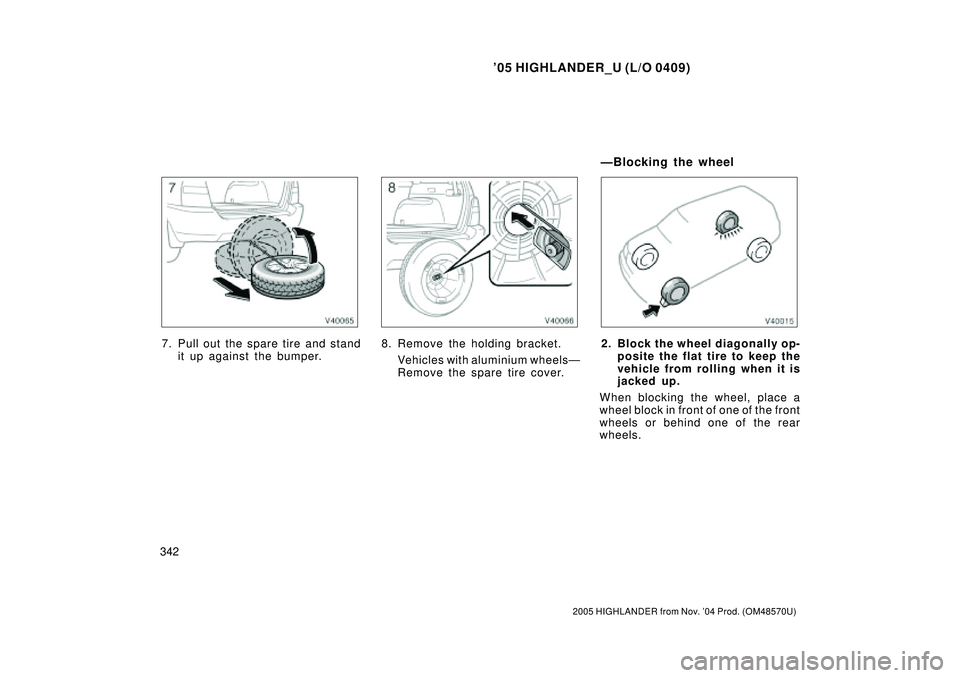

7. Pull out the spare tire and stand
it up against the bumper.8. Remove the holding bracket.
Vehicles with aluminium wheelsÐ
Remove the spare tire cover.2. Block the wheel diagonally op-
posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.
ÐBlocking the wheel

'05 HIGHLANDER_U (L/O 0409)
343
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

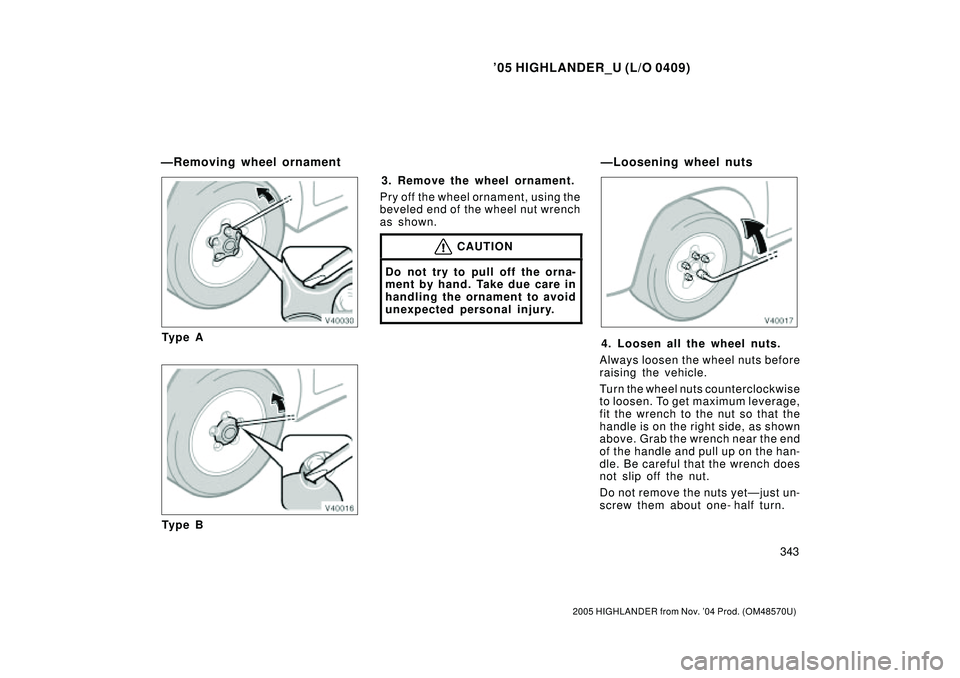

Ty p e A
Ty p e B3. Remove the wheel ornament.
Pry off the wheel ornament, using the
beveled end of the wheel nut wrench
as shown.
CAUTION
Do not try to pull off the orna-
ment by hand. Take due care in
handling the ornament to avoid
unexpected personal injury.
4. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yetÐjust un-
screw them about one- half turn.
ÐRemoving wheel ornament ÐLoosening wheel nuts

'05 HIGHLANDER_U (L/O 0409)
344
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may loose
and the wheels may fall off,
which could cause a serious ac-
cident.

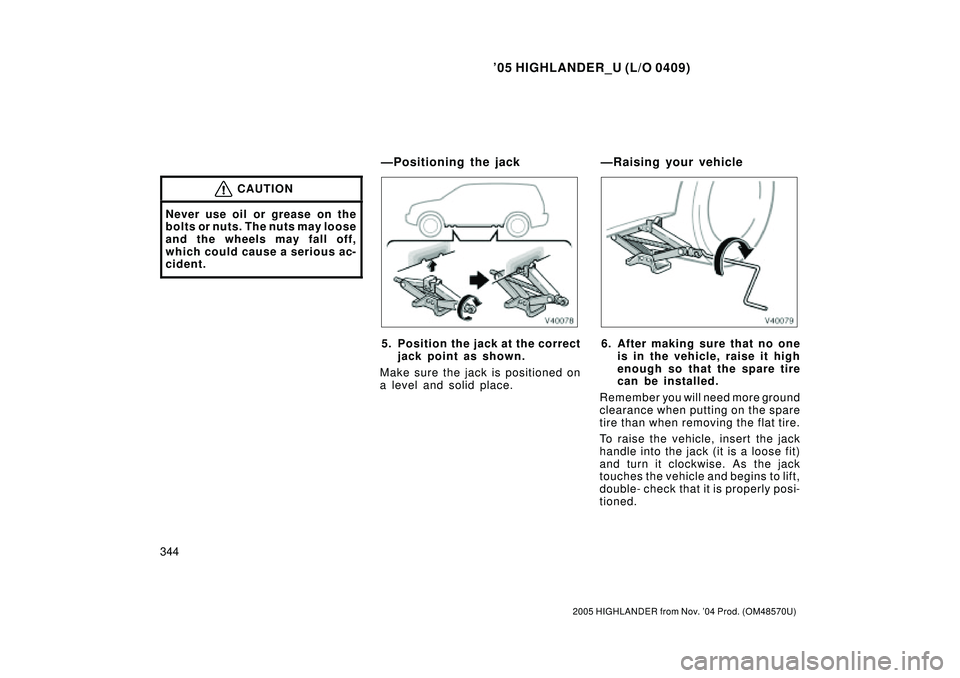

5. Position the jack at the correct
jack point as shown.
Make sure the jack is positioned on
a level and solid place.6. After making sure that no one
is in the vehicle, raise it high
enough so that the spare tire
can be installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.
To raise the vehicle, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double- check that it is properly posi-
tioned.
ÐPositioning the jack ÐRaising your vehicle

'05 HIGHLANDER_U (L/O 0409)
345
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

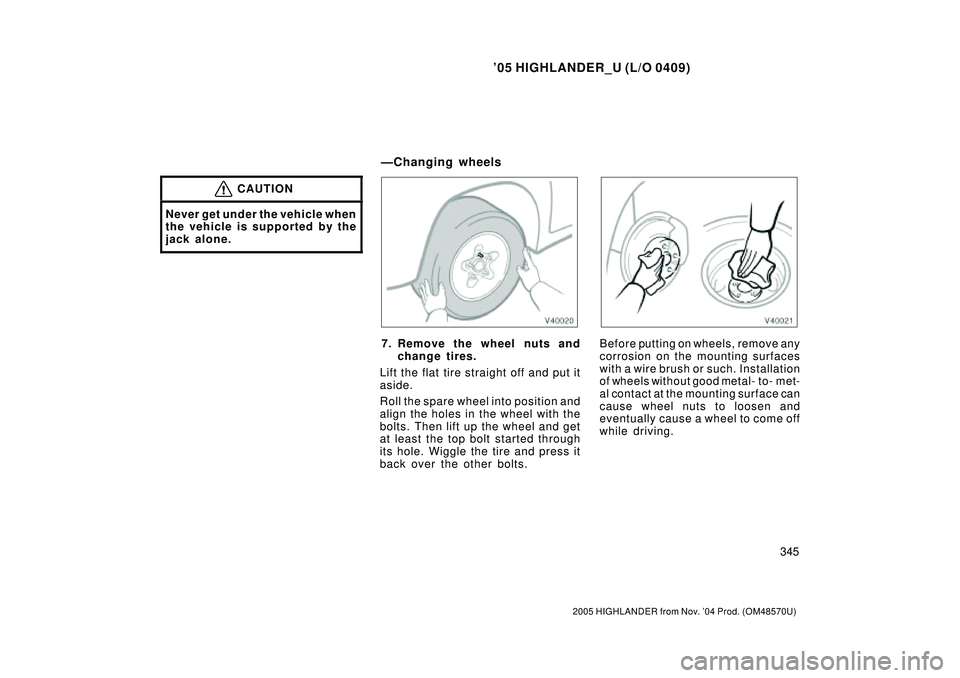

CAUTION
Never get under the vehicle when
the vehicle is supported by the
jack alone.
7. Remove the wheel nuts and
change tires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the
bolts. Then lift up the wheel and get
at least the top bolt started through
its hole. Wiggle the tire and press it
back over the other bolts.Before putting on wheels, remove any
corrosion on the mounting surfaces
with a wire brush or such. Installation
of wheels without good metal- to- met-
al contact at the mounting surface can
cause wheel nuts to loosen and
eventually cause a wheel to come off
while driving.
ÐChanging wheels

'05 HIGHLANDER_U (L/O 0409)
346
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

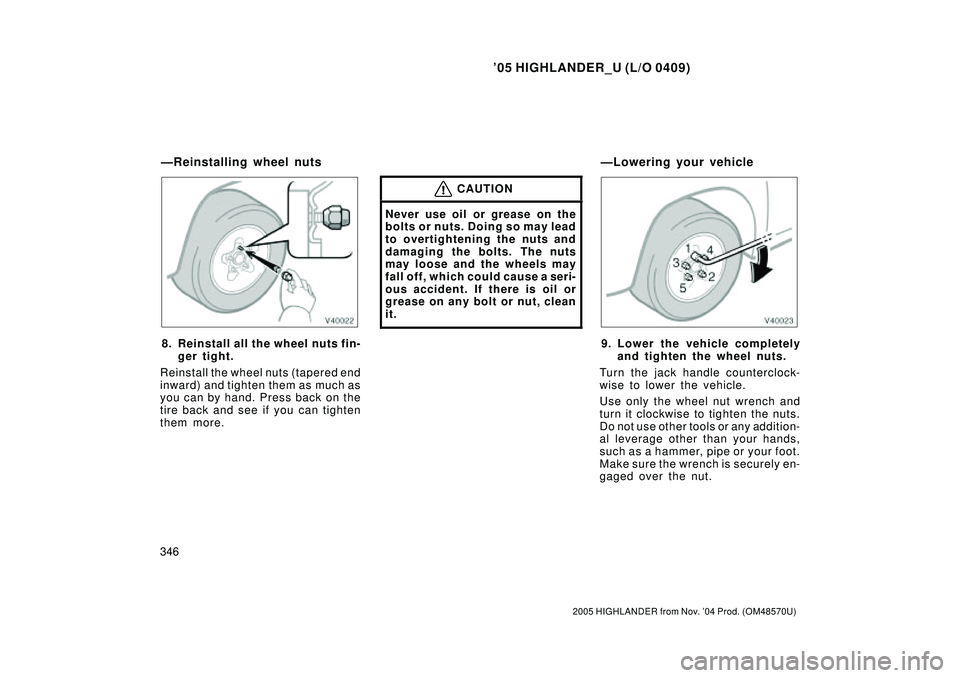

8. Reinstall all the wheel nuts fin-
ger tight.
Reinstall the wheel nuts (tapered end
inward) and tighten them as much as
you can by hand. Press back on the
tire back and see if you can tighten
them more.
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may lead
to overtightening the nuts and
damaging the bolts. The nuts
may loose and the wheels may
fall off, which could cause a seri-
ous accident. If there is oil or
grease on any bolt or nut, clean
it.
9. Lower the vehicle completely
and tighten the wheel nuts.
Turn the jack handle counterclock-
wise to lower the vehicle.
Use only the wheel nut wrench and
turn it clockwise to tighten the nuts.
Do not use other tools or any addition-
al leverage other than your hands,
such as a hammer, pipe or your foot.
Make sure the wrench is securely en-
gaged over the nut.
ÐReinstalling wheel nuts ÐLowering your vehicle

'05 HIGHLANDER_U (L/O 0409)
347
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

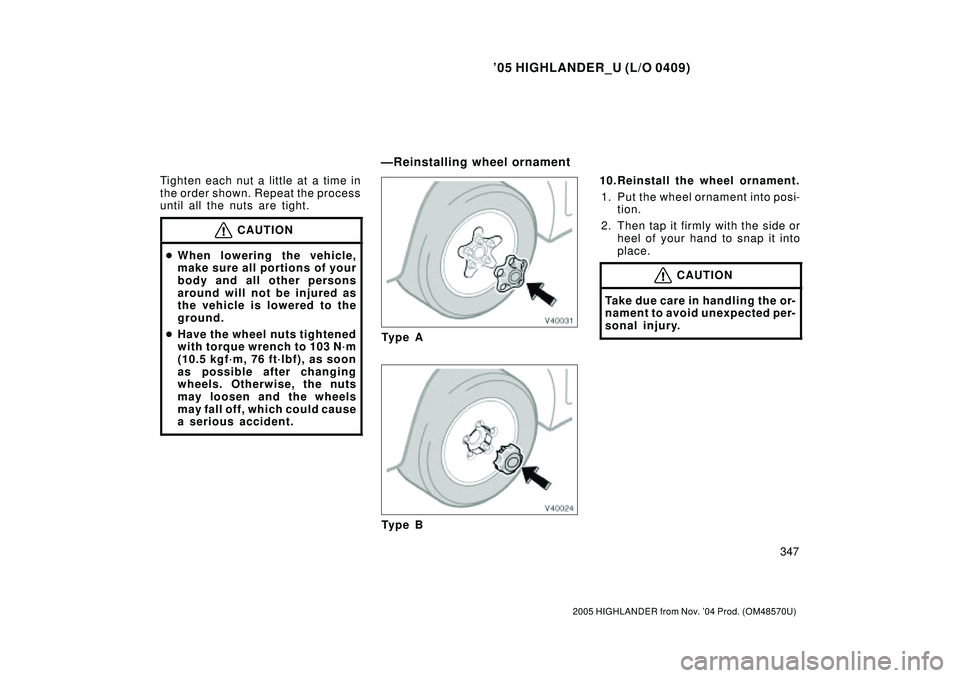

Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.
CAUTION

When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.

Have the wheel nuts tightened
with torque wrench to 103 N´m
(10.5 kgf´m, 76 ft´lbf), as soon
as possible after changing
wheels. Otherwise, the nuts
may loosen and the wheels
may fall off, which could cause
a serious accident.
Ty p e A
Ty p e B10.Reinstall the wheel ornament.
1. Put the wheel ornament into posi-
tion.
2. Then tap it firmly with the side or
heel of your hand to snap it into
place.
CAUTION
Take due care in handling the or-
nament to avoid unexpected per-
sonal injury.
ÐReinstalling wheel ornament

'05 HIGHLANDER_U (L/O 0409)
348
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

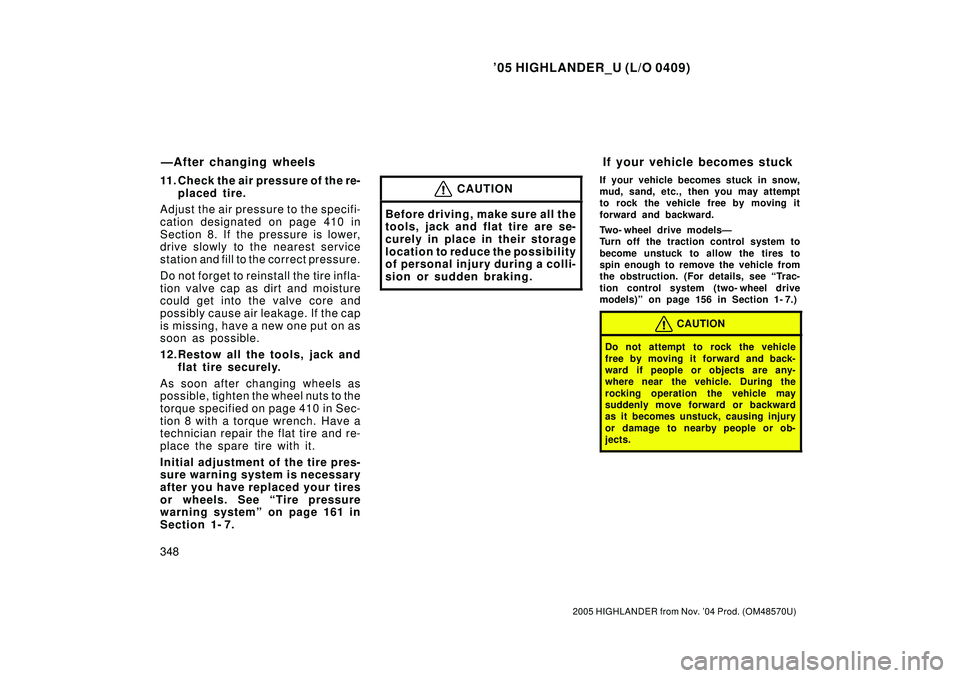

11. Check the air pressure of the re-
placed tire.
Adjust the air pressure to the specifi-
cation designated on page 410 in
Section 8. If the pressure is lower,
drive slowly to the nearest service
station and fill to the correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into the valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
12.Restow all the tools, jack and
flat tire securely.
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 410 in Sec-
tion 8 with a torque wrench. Have a
technician repair the flat tire and re-
place the spare tire with it.
Initial adjustment of the tire pres-
sure warning system is necessary
after you have replaced your tires
or wheels. See Tire pressure
warning systemº on page 161 in
Section 1- 7.CAUTION
Before driving, make sure all the
tools, jack and flat tire are se-
curely in place in their storage
location to reduce the possibility
of personal injury during a colli-
sion or sudden braking.
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
Two- wheel drive modelsÐ
Turn off the traction control system to
become unstuck to allow the tires to
spin enough to remove the vehicle from
the obstruction. (For details, see Trac-
tion control system (two- wheel drive
models)º on page 156 in Section 1- 7.)
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
ÐAfter changing wheels If your vehicle becomes stuck

'05 HIGHLANDER_U (L/O 0409)
349
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

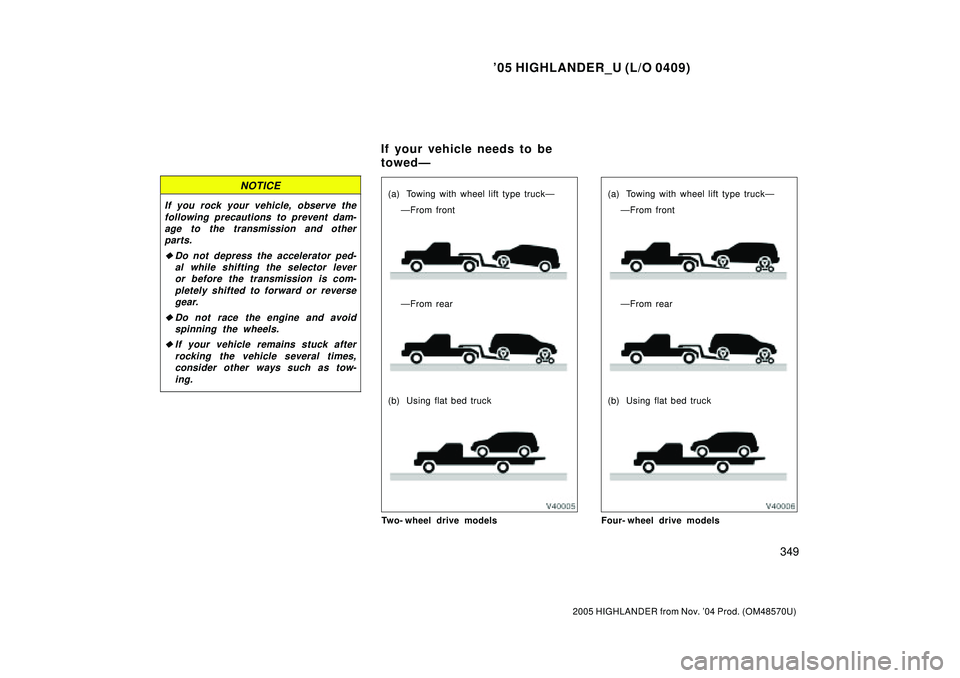

NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.

Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.

Do not race the engine and avoid
spinning the wheels.

If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
(a) Towing with wheel lift type truckÐ
ÐFrom front
ÐFrom rear
(b) Using flat bed truck
Two- wheel drive models(a) Towing with wheel lift type truckÐ
ÐFrom front
ÐFrom rear
(b) Using flat bed truck
Four- wheel drive models
If your vehicle needs to be
towedÐ

'05 HIGHLANDER_U (L/O 0409)
350
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

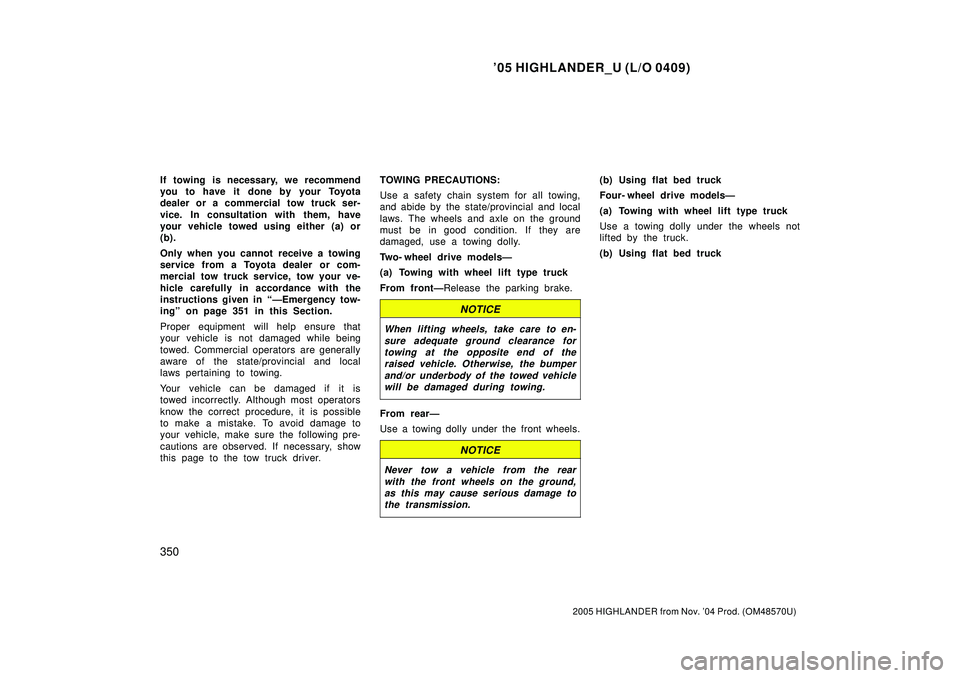

If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in ÐEmergency tow-
ingº on page 351 in this Section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.
Two- wheel drive modelsÐ
(a) Towing with wheel lift type truck
From frontÐRelease the parking brake.
NOTICE
When lifting wheels, take care to en-
sure adequate ground clearance for
towing at the opposite end of the
raised vehicle. Otherwise, the bumper
and/or underbody of the towed vehicle
will be damaged during towing.
From rearÐ
Use a towing dolly under the front wheels.
NOTICE
Never tow a vehicle from the rear
with the front wheels on the ground,
as this may cause serious damage to
the transmission.
(b) Using flat bed truck
Four- wheel drive modelsÐ
(a) Towing with wheel lift type truck
Use a towing dolly under the wheels not
lifted by the truck.
(b) Using flat bed truck
