Page 929 of 2572
H01023
H10600H01078H16855H41934
P Squib
Airbag
Sensor
Assy
Center
DTC B0106/54 DLC3
CG
TC
P-
P+ Cowl Wire
DC
SST
A19
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1255
1445 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using SST, connect A19-1 (P+) and A19-2 (P-) of con-
nector ºCº.
SST 09843-18040
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
OK:
DTC B0106/54 is not output.
HINT:
Codes other than code B0106/54 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 930 of 2572
H10600H01078H01024H10600H01078H01024H40043
DTC B0106/54 DLC3
CG
TC
Airbag
Sensor
Assy
Center P Squib
C D
05-1256
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1446 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

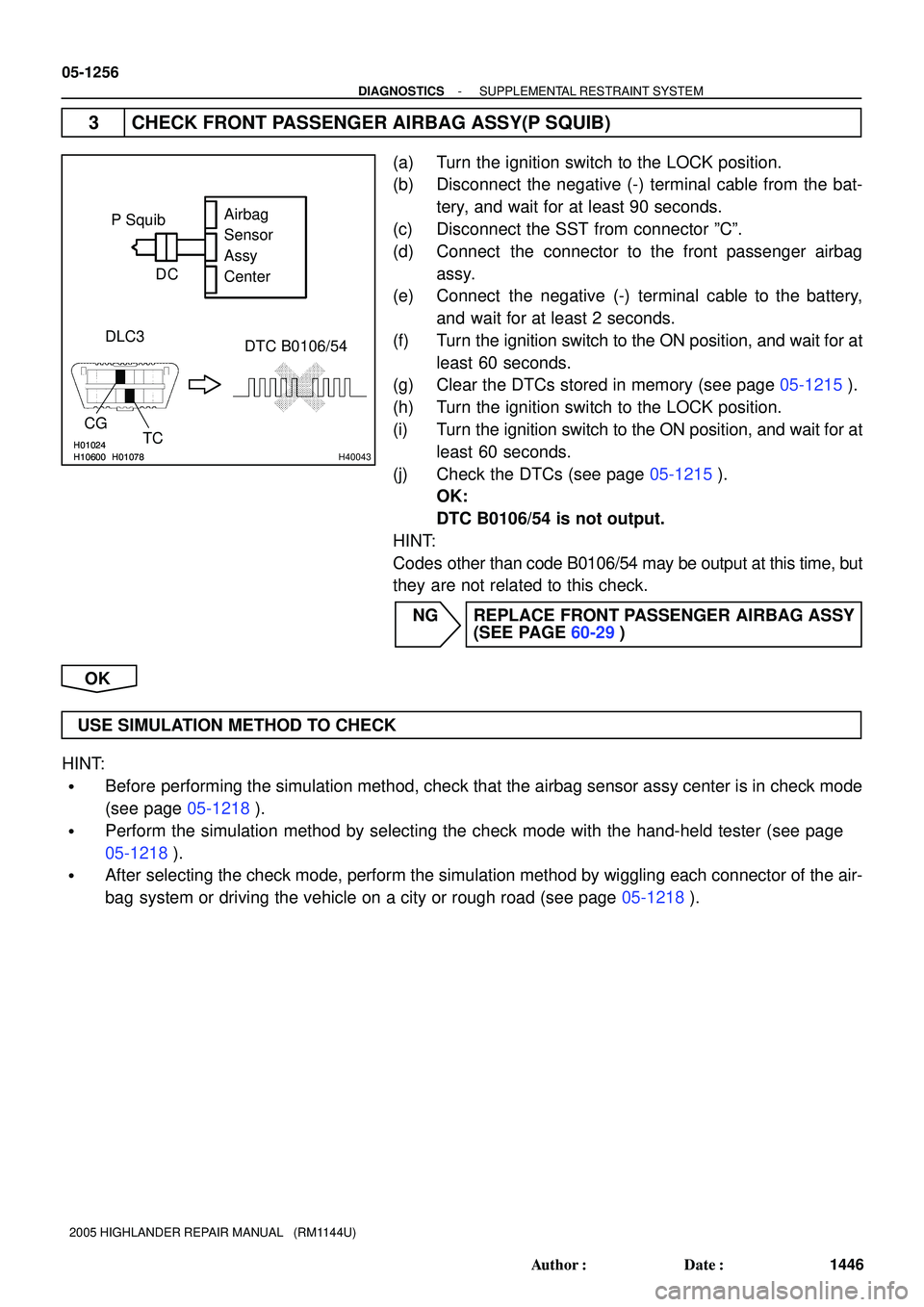

3 CHECK FRONT PASSENGER AIRBAG ASSY(P SQUIB)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the SST from connector ºCº.
(d) Connect the connector to the front passenger airbag
assy.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0106/54 is not output.
HINT:
Codes other than code B0106/54 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT PASSENGER AIRBAG ASSY
(SEE PAGE 60-29)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 931 of 2572
R14286H41424H41932
P SquibAirbag
Sensor
Assy
Center
P+ Cowl Wire
A
DC
B
P-
A19
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1257
1447 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

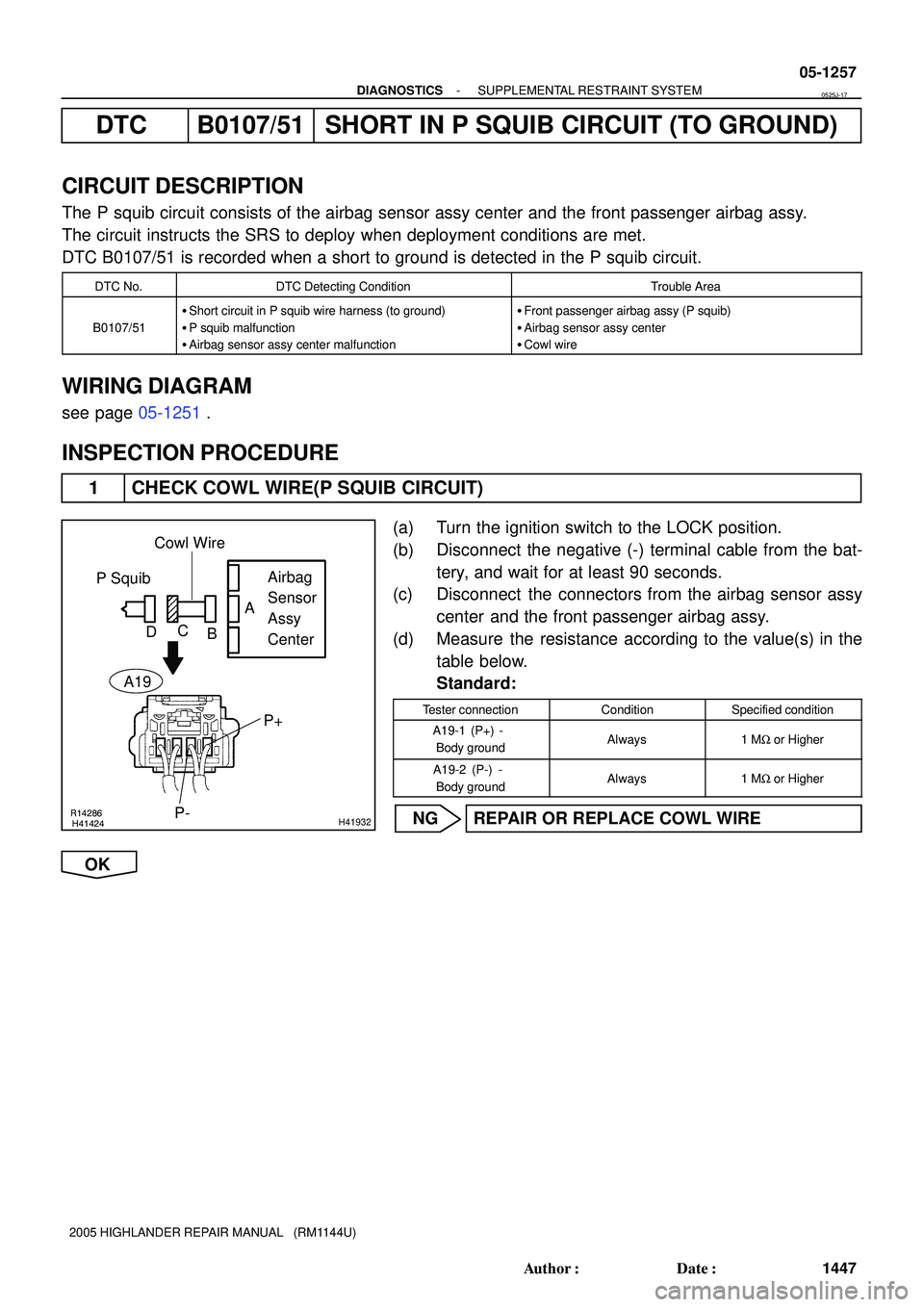

DTC B0107/51 SHORT IN P SQUIB CIRCUIT (TO GROUND)
CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assy center and the front passenger airbag assy.
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0107/51 is recorded when a short to ground is detected in the P squib circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0107/51
Short circuit in P squib wire harness (to ground)
P squib malfunction
Airbag sensor assy center malfunctionFront passenger airbag assy (P squib)
Airbag sensor assy center
Cowl wire
WIRING DIAGRAM
see page 05-1251.
INSPECTION PROCEDURE
1 CHECK COWL WIRE(P SQUIB CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the front passenger airbag assy.
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
A19-1 (P+) -
Body groundAlways1 MW or Higher
A19-2 (P-) -
Body groundAlways1 MW or Higher
NG REPAIR OR REPLACE COWL WIRE
OK
0525J-17
Page 932 of 2572
H01023H40538H10600H01075 H40579H44680
P SquibAirbag
Sensor
Assy
Center
DLC3
CG
TC
P- Cowl Wire
C D
A19
P+
SST
DTC B0107/51
05-1258
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1448 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

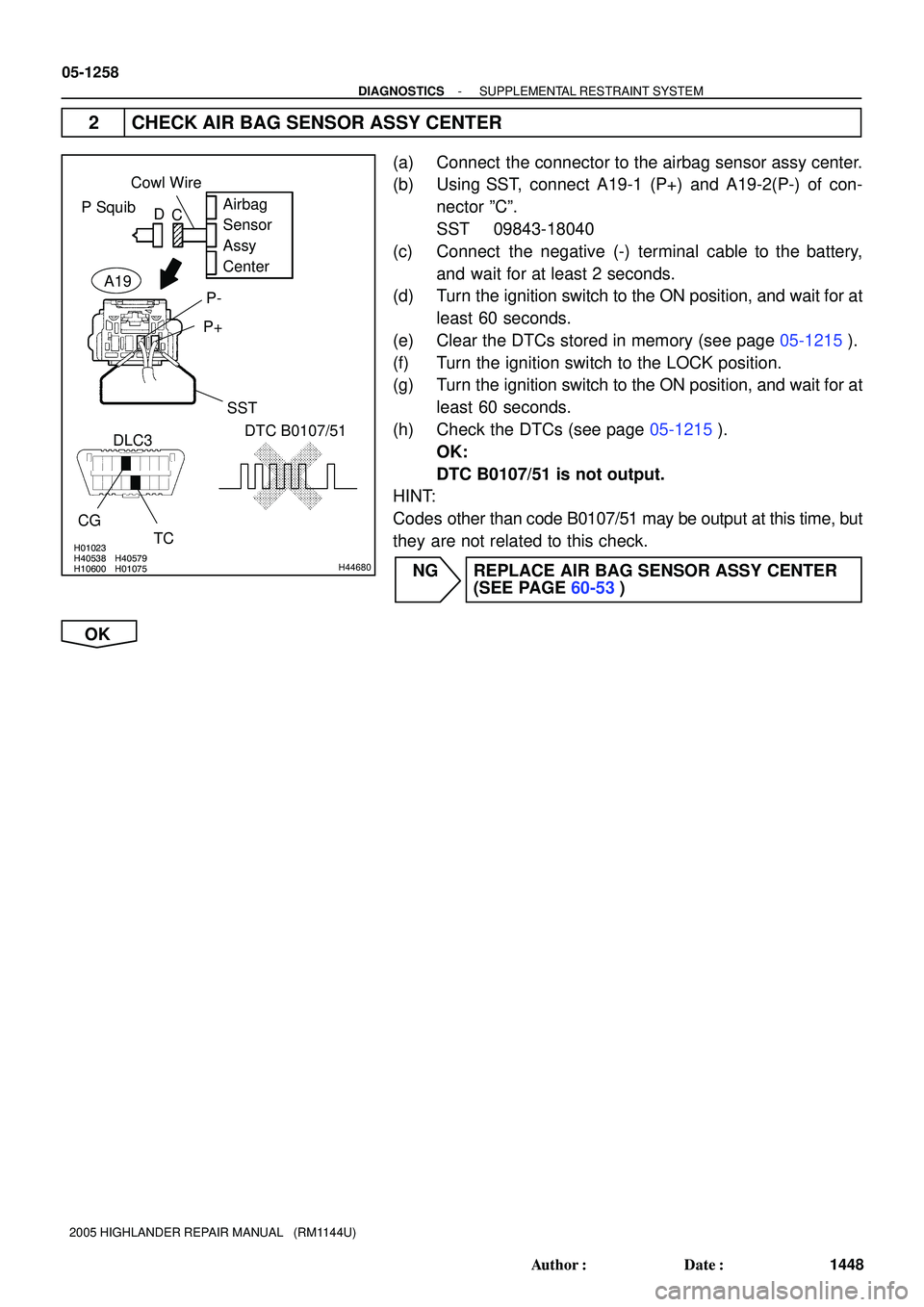

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using SST, connect A19-1 (P+) and A19-2(P-) of con-
nector ºCº.
SST 09843-18040
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
OK:
DTC B0107/51 is not output.
HINT:
Codes other than code B0107/51 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 933 of 2572
H10600H01024H01075H10600H01024H01075H40045
P Squib
DTC B0107/51 DLC3
CG
TCAirbag
Sensor
Assy
Center DC
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1259
1449 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

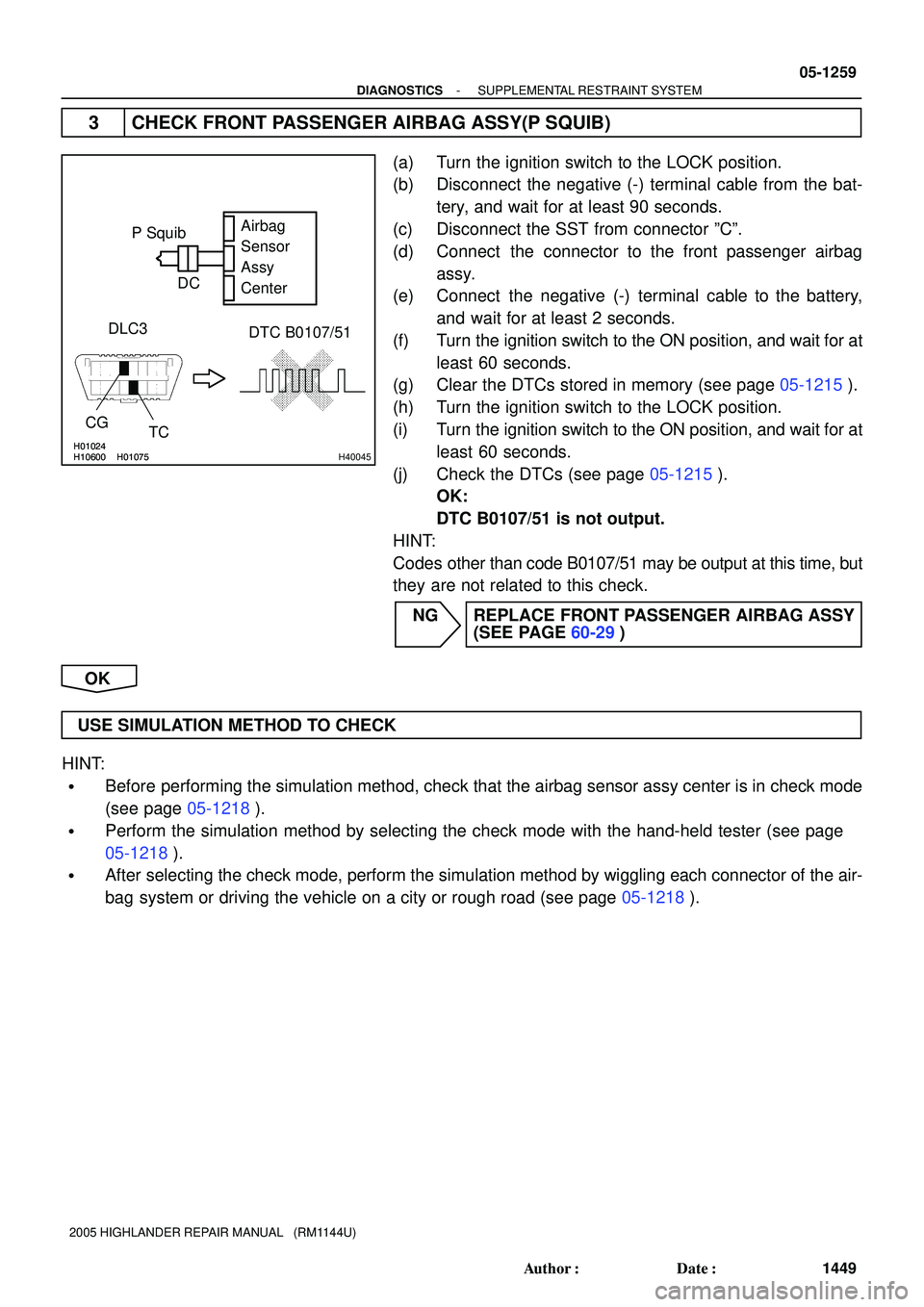

3 CHECK FRONT PASSENGER AIRBAG ASSY(P SQUIB)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the SST from connector ºCº.
(d) Connect the connector to the front passenger airbag
assy.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0107/51 is not output.
HINT:
Codes other than code B0107/51 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT PASSENGER AIRBAG ASSY
(SEE PAGE 60-29)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 934 of 2572
R14286H41424H41932
P SquibAirbag
Sensor
Assy
Center
P+ Cowl Wire
A
DC
B
P-
A19
05-1260
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1450 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

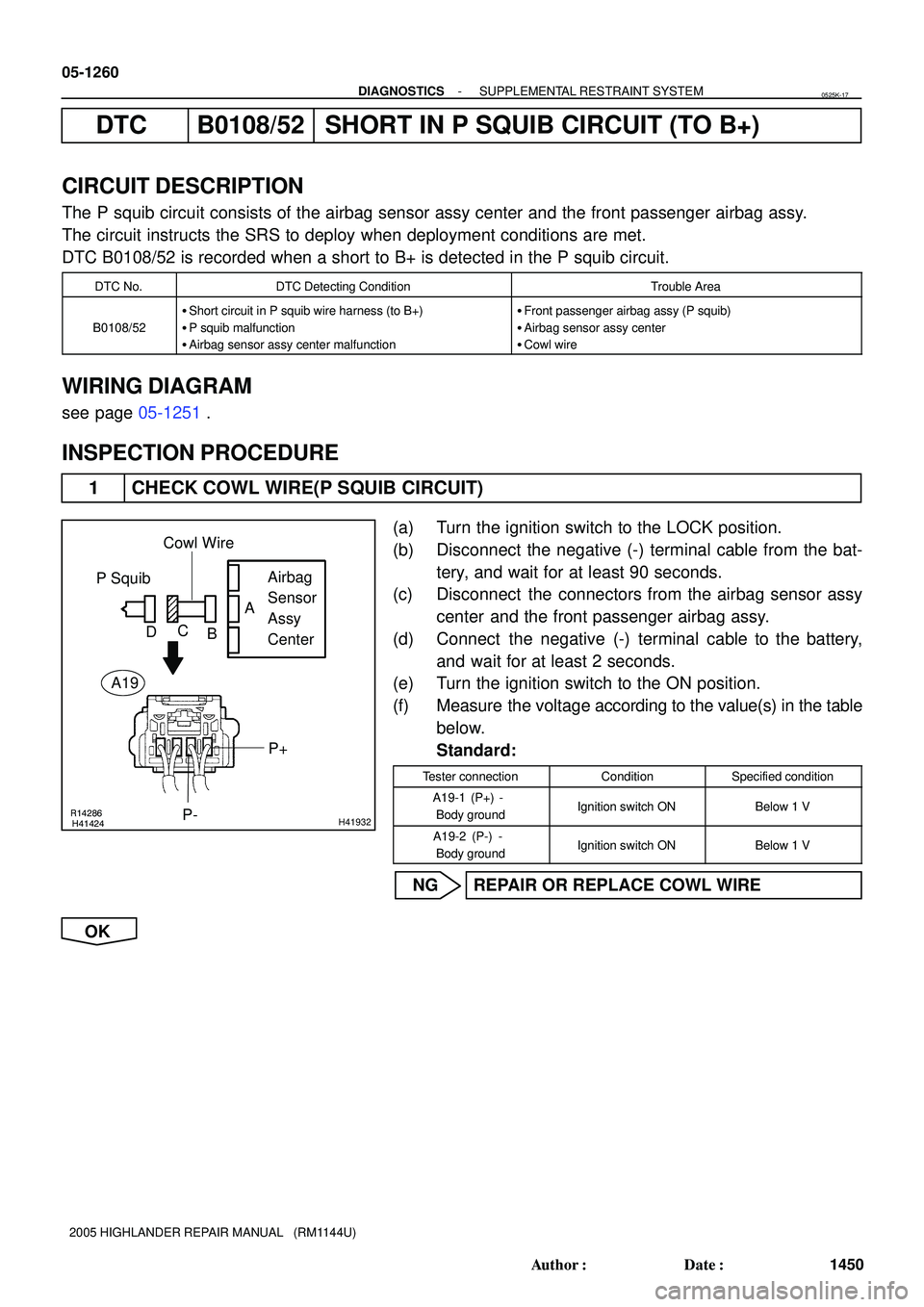

DTC B0108/52 SHORT IN P SQUIB CIRCUIT (TO B+)
CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assy center and the front passenger airbag assy.
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0108/52 is recorded when a short to B+ is detected in the P squib circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0108/52
Short circuit in P squib wire harness (to B+)
P squib malfunction
Airbag sensor assy center malfunctionFront passenger airbag assy (P squib)
Airbag sensor assy center
Cowl wire
WIRING DIAGRAM
see page 05-1251.
INSPECTION PROCEDURE
1 CHECK COWL WIRE(P SQUIB CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the front passenger airbag assy.
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
A19-1 (P+) -
Body groundIgnition switch ONBelow 1 V
A19-2 (P-) -
Body groundIgnition switch ONBelow 1 V
NG REPAIR OR REPLACE COWL WIRE
OK
0525K-17
Page 935 of 2572
H01023H40538H10600H01076H40581
Airbag
Sensor
Assy
Center P Squib
P+ P-
DLC3
CG
TC
Cowl Wire
C D
DTC B0108/52
SST
A19
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1261
1451 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

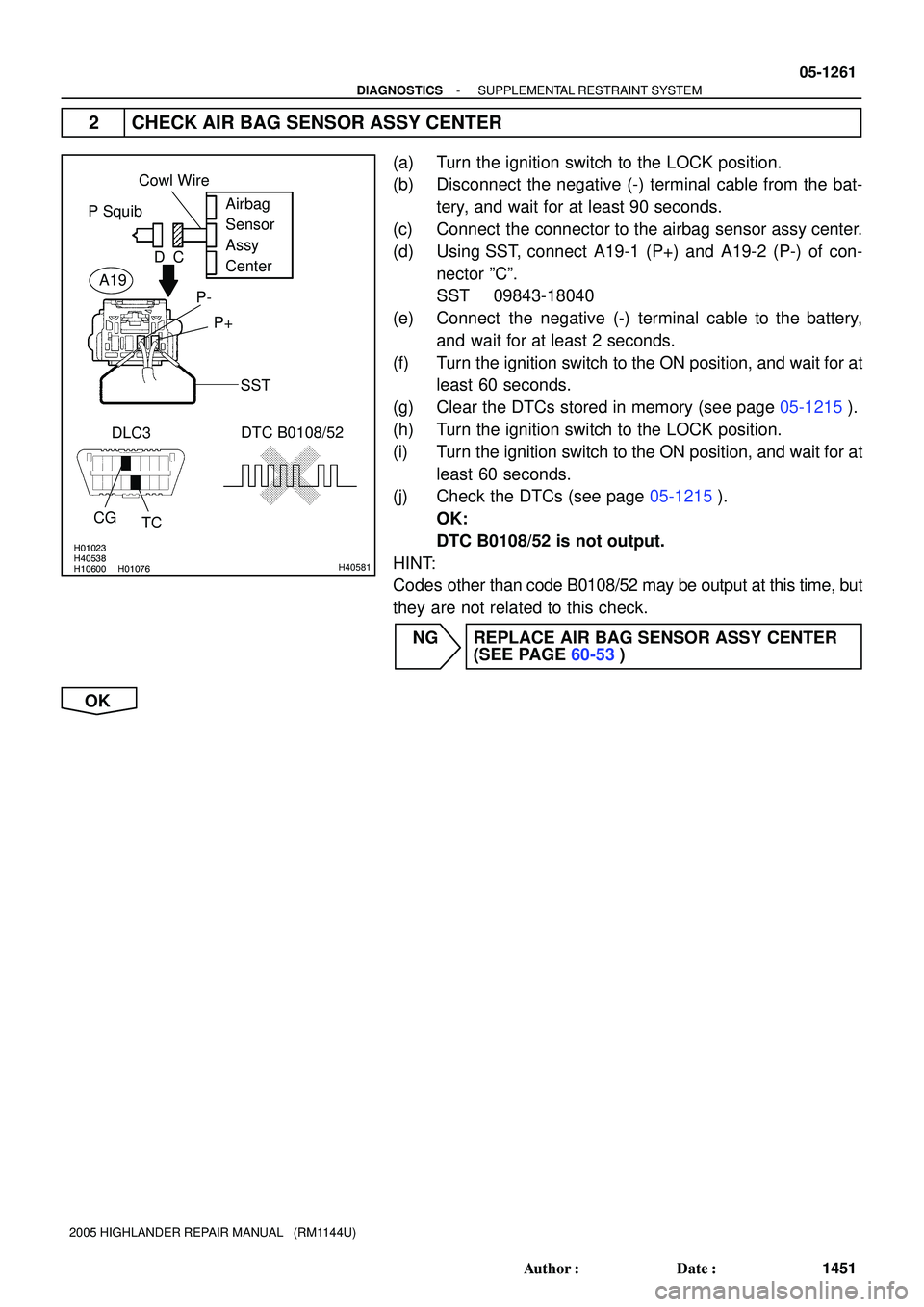

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the airbag sensor assy center.
(d) Using SST, connect A19-1 (P+) and A19-2 (P-) of con-
nector ºCº.
SST 09843-18040
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0108/52 is not output.
HINT:
Codes other than code B0108/52 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 936 of 2572
H10600 H01024H01076H10600
H01024H01076H40047
P Squib
DLC3
CG
TCDTC B0108/52Airbag
Sensor
Assy
Center DC
05-1262
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1452 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
3 CHECK FRONT PASSENGER AIRBAG ASSY(P SQUIB)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the SST from connector ºCº.
(d) Connect the connector to the front passenger airbag
assy.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0108/52 is not output.
HINT:
Codes other than code B0108/52 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT PASSENGER AIRBAG ASSY
(SEE PAGE 60-29)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 937 of 2572

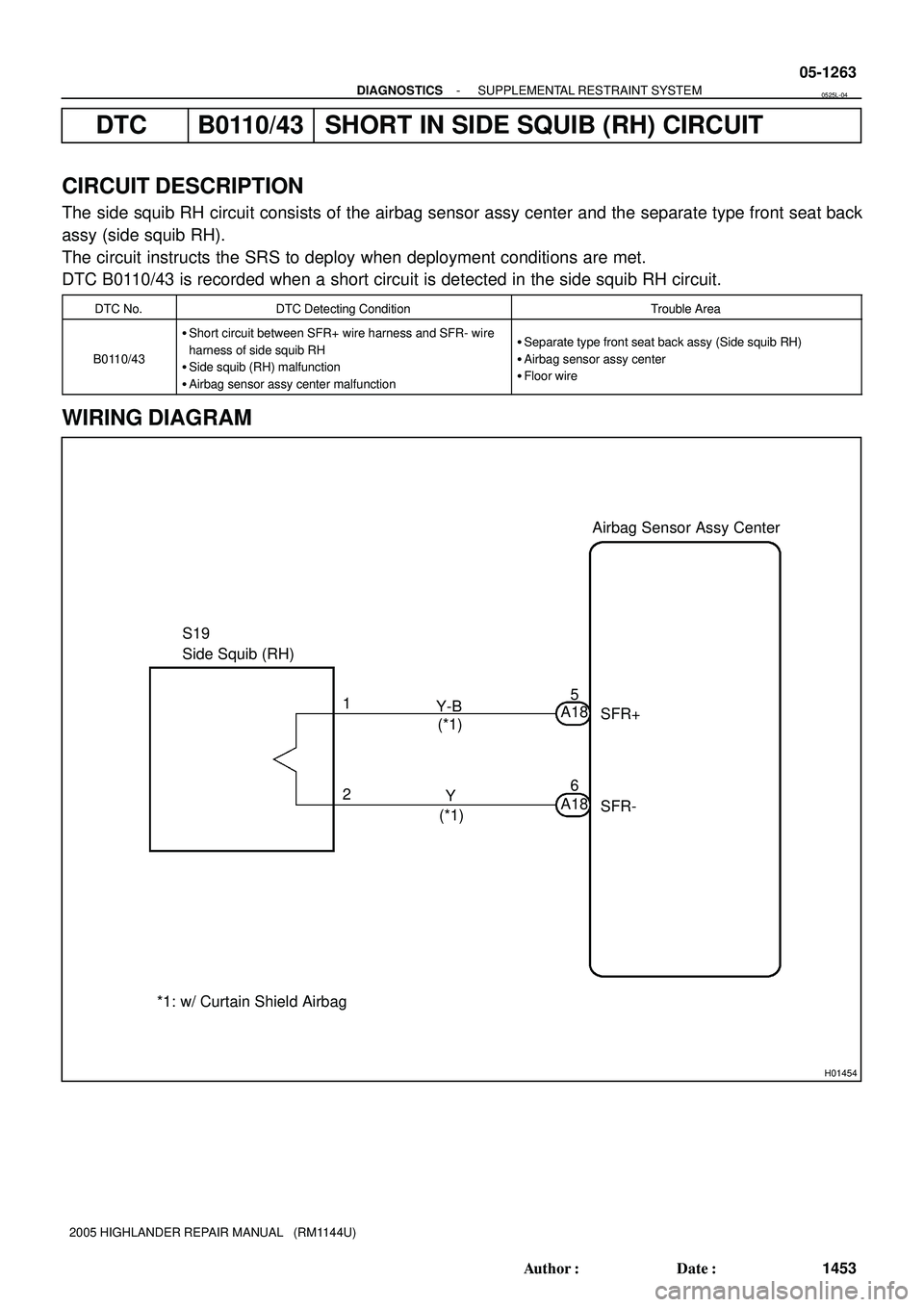

H01454
S19
Side Squib (RH)Airbag Sensor Assy Center
SFR+
SFR- Y-B
Y 1
26 5
A18
A18 (*1)
(*1)
*1: w/ Curtain Shield Airbag
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1263
1453 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC B0110/43 SHORT IN SIDE SQUIB (RH) CIRCUIT
CIRCUIT DESCRIPTION
The side squib RH circuit consists of the airbag sensor assy center and the separate type front seat back
assy (side squib RH).
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0110/43 is recorded when a short circuit is detected in the side squib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0110/43
Short circuit between SFR+ wire harness and SFR- wire
harness of side squib RH
Side squib (RH) malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib RH)
Airbag sensor assy center
Floor wire
WIRING DIAGRAM
0525L-04
Page 938 of 2572
H42497 H01019
H40977
H42497
H01019
H40977
H42849
Side Squib RHAirbag
Sensor
Assy
Center
SFR+SFR- Floor Wire
A
DC
B
S19
H01020H10600H01069H01020H10600H01069H42111
Side Squib RHAirbag
Sensor
Assy
Center
CG
TC DLC3
DTC B0110/43
DC

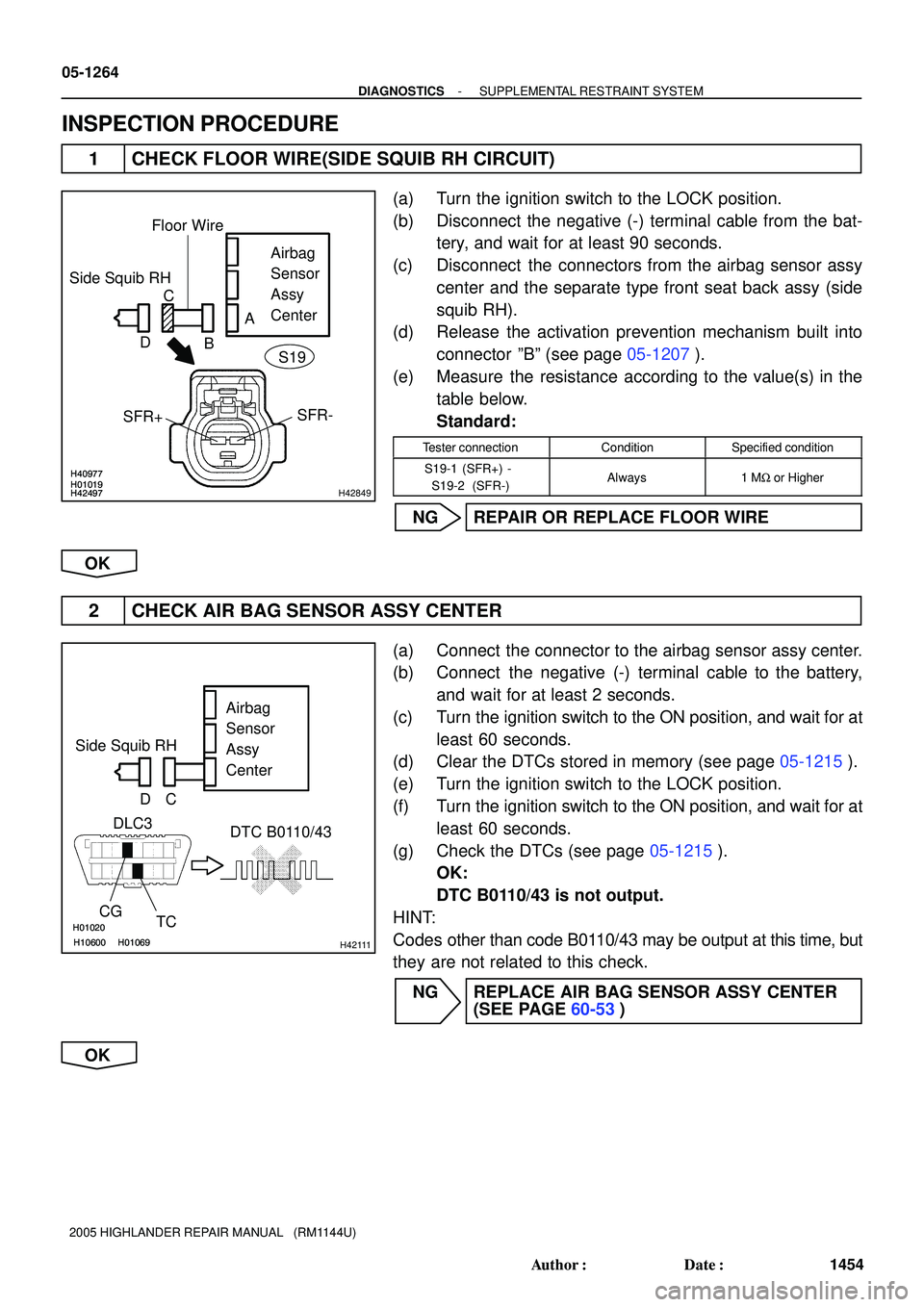

05-1264
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1454 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE(SIDE SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the separate type front seat back assy (side
squib RH).
(d) Release the activation prevention mechanism built into
connector ºBº (see page 05-1207).
(e) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
S19-1 (SFR+) -
S19-2 (SFR-)Always1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE
OK
2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(d) Clear the DTCs stored in memory (see page 05-1215).
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Check the DTCs (see page 05-1215).
OK:
DTC B0110/43 is not output.
HINT:
Codes other than code B0110/43 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
