Page 939 of 2572
H01021
H10600 H01069H01021
H10600 H01069H40979
Side Squib RH
DLC3
DTC B0110/43
TC
CGAirbag
Sensor
Assy
Center
DC
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1265
1455 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

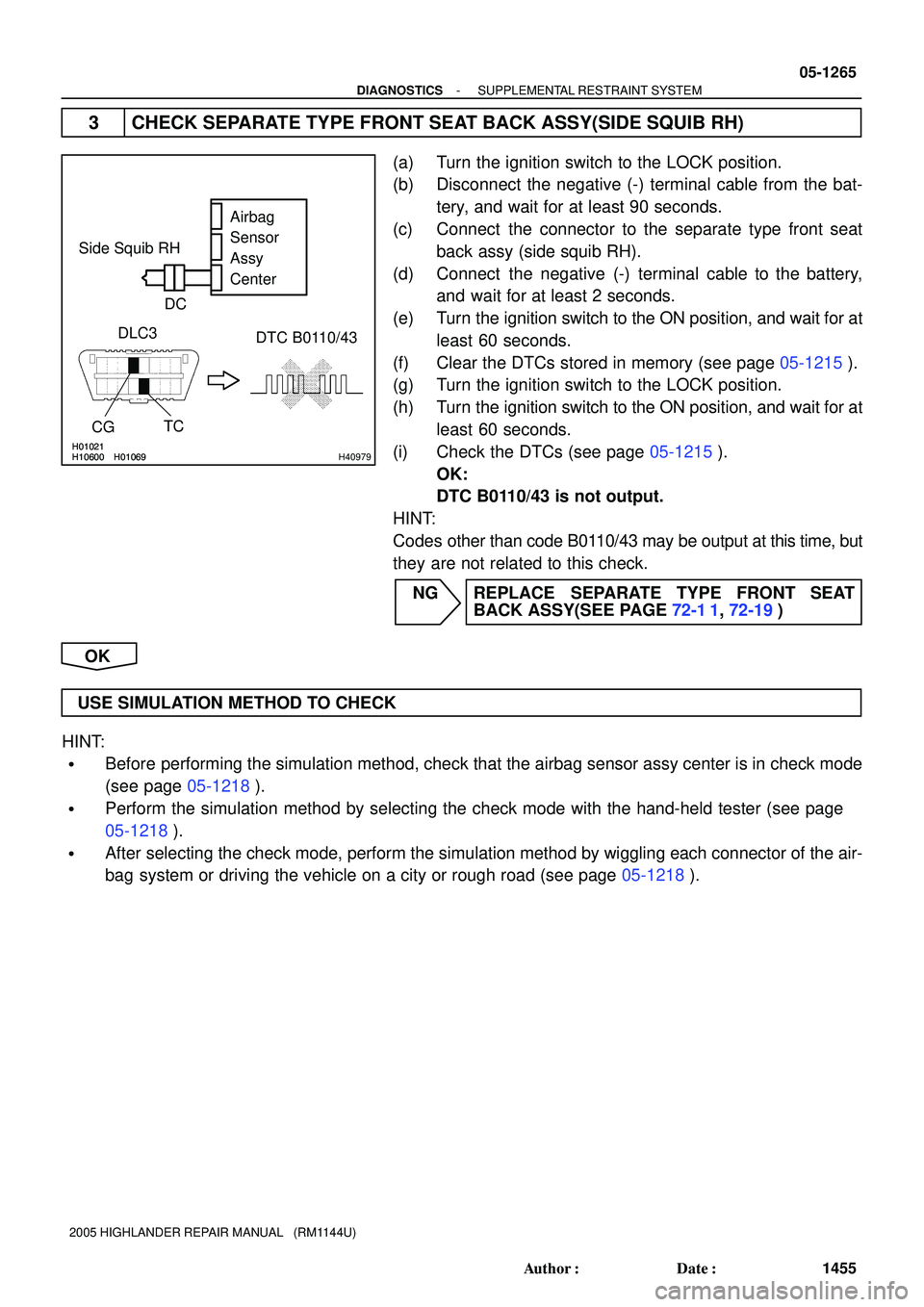

3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the separate type front seat
back assy (side squib RH).
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(f) Clear the DTCs stored in memory (see page 05-1215).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(i) Check the DTCs (see page 05-1215).
OK:
DTC B0110/43 is not output.
HINT:
Codes other than code B0110/43 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT
BACK ASSY(SEE PAGE 72-1 1, 72-19)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 940 of 2572
H42497 H01019
H40977
H42497
H01019
H40977
H42849
Side Squib RHAirbag
Sensor
Assy
Center
SFR+SFR- Floor Wire
A
DC
B
S19
05-1266
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1456 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

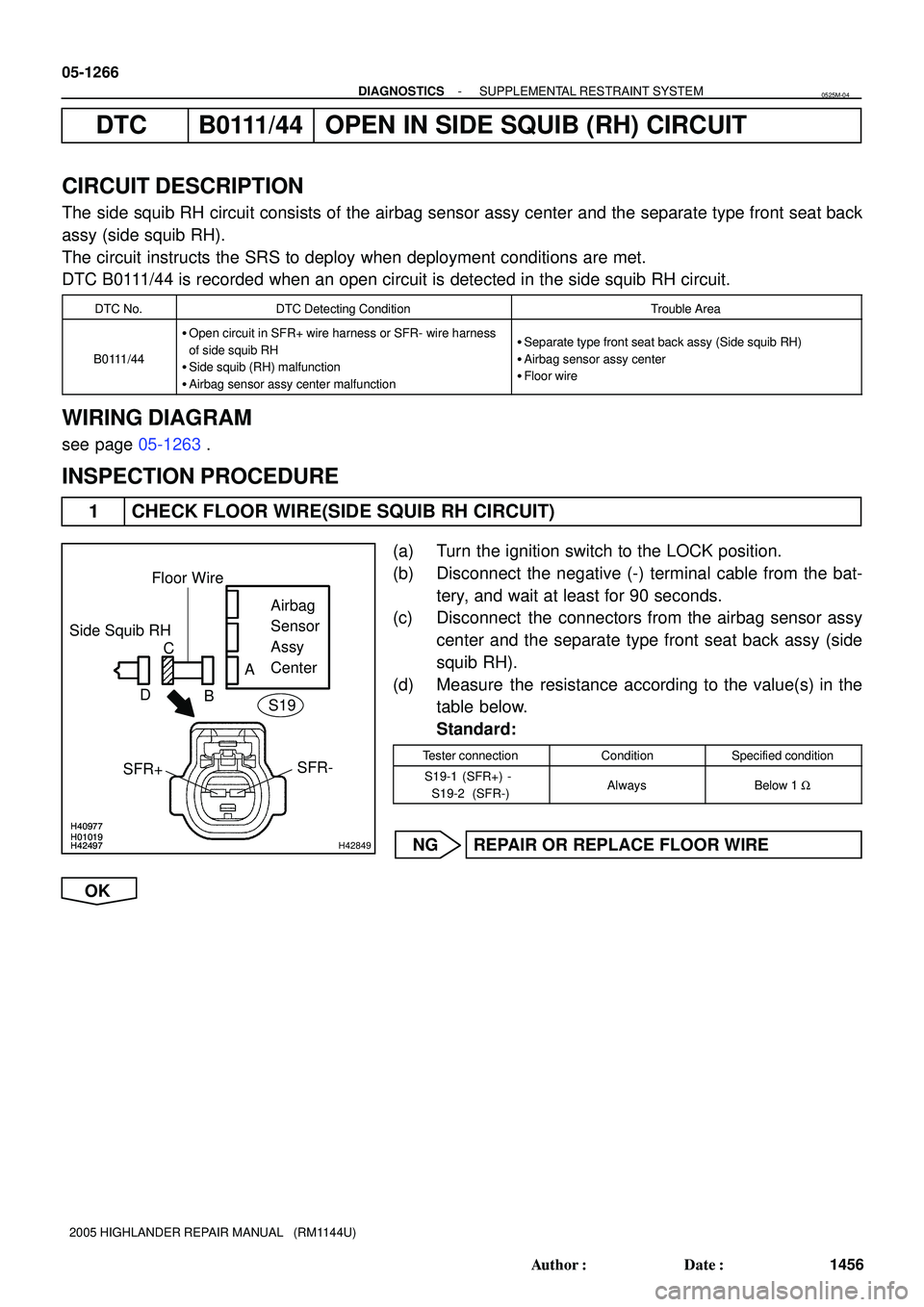

DTC B0111/44 OPEN IN SIDE SQUIB (RH) CIRCUIT
CIRCUIT DESCRIPTION
The side squib RH circuit consists of the airbag sensor assy center and the separate type front seat back
assy (side squib RH).
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0111/44 is recorded when an open circuit is detected in the side squib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0111/44
Open circuit in SFR+ wire harness or SFR- wire harness
of side squib RH
Side squib (RH) malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib RH)
Airbag sensor assy center
Floor wire
WIRING DIAGRAM
see page 05-1263.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE(SIDE SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait at least for 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the separate type front seat back assy (side
squib RH).
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
S19-1 (SFR+) -
S19-2 (SFR-)AlwaysBelow 1 W
NG REPAIR OR REPLACE FLOOR WIRE
OK
0525M-04
Page 941 of 2572
H01020
H10600 H01070H42496H01020
H10600 H01070H42496H42850
Side Squib RH
SFR+ SFR-
DTC B0111/44 DLC3
CG
TCAirbag
Sensor
Assy
Center Floor Wire
Service Wire
C
D
S19
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1267
1457 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

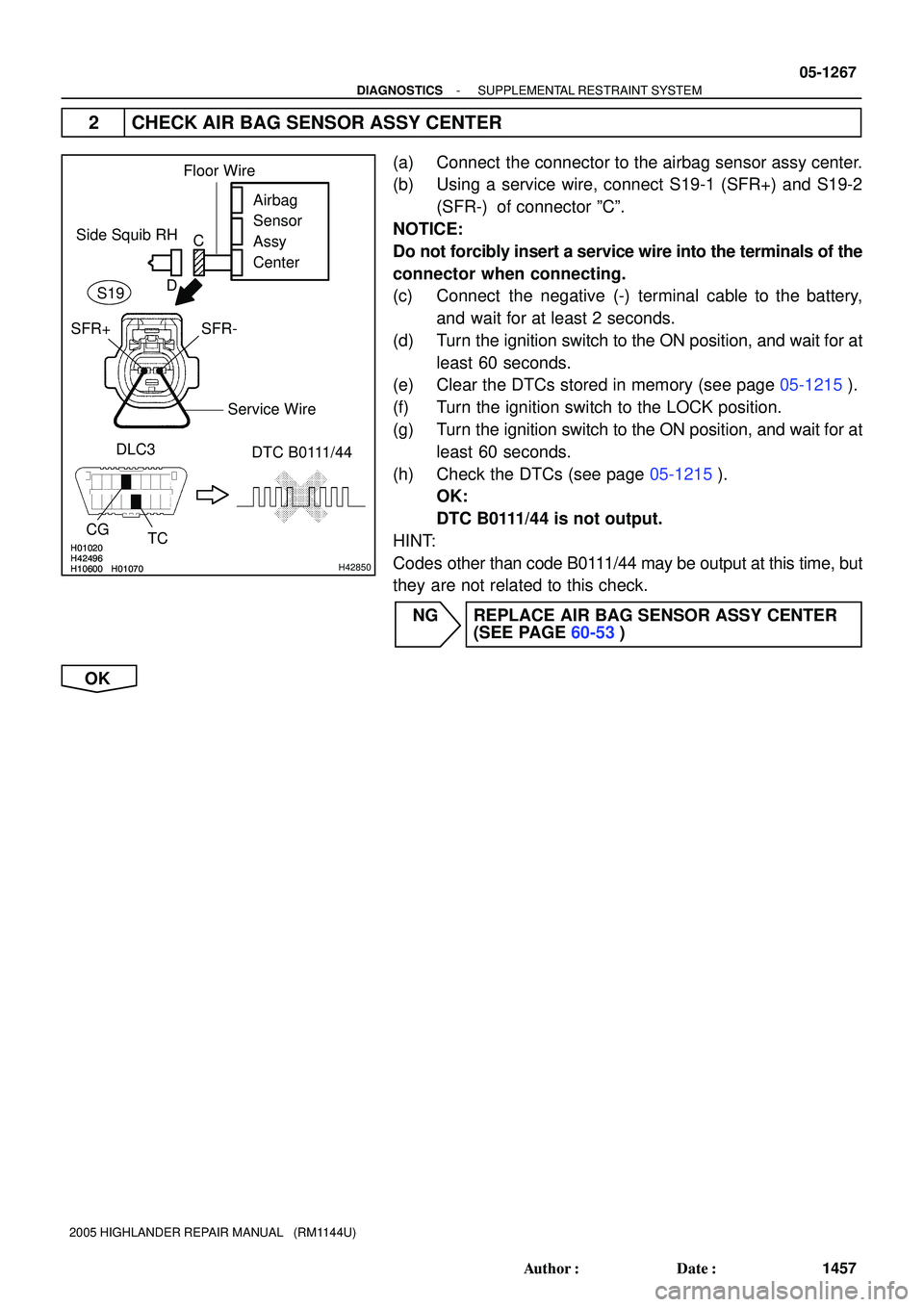

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect S19-1 (SFR+) and S19-2
(SFR-) of connector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminals of the
connector when connecting.
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
OK:
DTC B0111/44 is not output.
HINT:
Codes other than code B0111/44 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 942 of 2572
H01021
H10600 H01070H01021
H10600 H01070H40981
Side Squib RH
DTC B0111/44 DLC3
CGTCAirbag
Sensor
Assy
Center
DC
05-1268
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1458 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

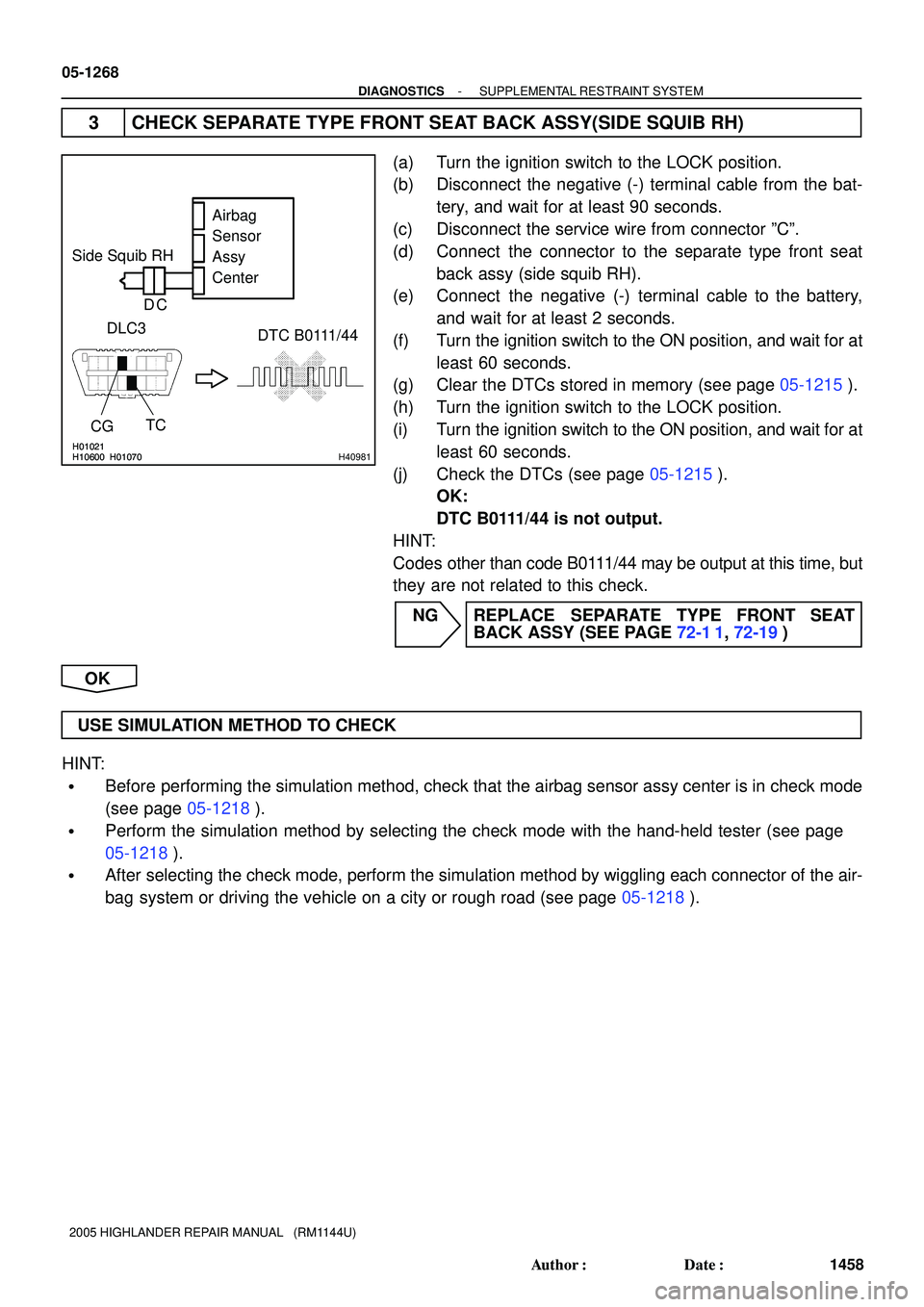

3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the separate type front seat
back assy (side squib RH).
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0111/44 is not output.
HINT:
Codes other than code B0111/44 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT
BACK ASSY (SEE PAGE 72-1 1, 72-19)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 943 of 2572
H42497 H01019
H40977
H42497
H01019
H40977
H42849
Side Squib RHAirbag
Sensor
Assy
Center
SFR+Floor Wire
A
DC
B
SFR-
S19
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1269
1459 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

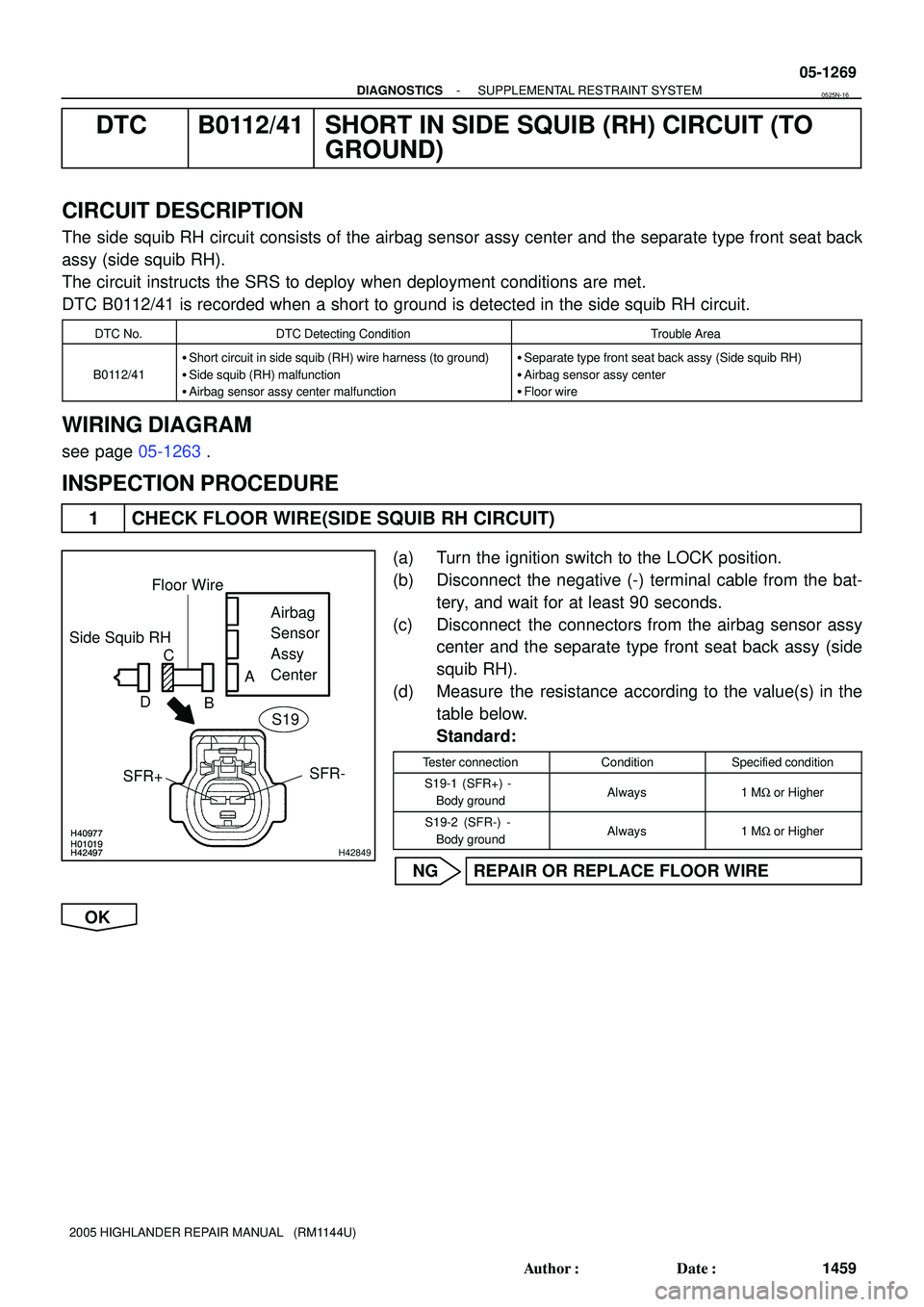

DTC B0112/41 SHORT IN SIDE SQUIB (RH) CIRCUIT (TO
GROUND)
CIRCUIT DESCRIPTION
The side squib RH circuit consists of the airbag sensor assy center and the separate type front seat back
assy (side squib RH).
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0112/41 is recorded when a short to ground is detected in the side squib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0112/41
Short circuit in side squib (RH) wire harness (to ground)
Side squib (RH) malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib RH)
Airbag sensor assy center
Floor wire
WIRING DIAGRAM
see page 05-1263.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE(SIDE SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the separate type front seat back assy (side
squib RH).
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
S19-1 (SFR+) -
Body groundAlways1 MW or Higher
S19-2 (SFR-) -
Body groundAlways1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE
OK
0525N-16
Page 944 of 2572
H01020
H10600H01067H42496H01020
H10600H01067H42496H42851
Side Squib RHAirbag
Sensor
Assy
Center
SFR+
SFR-
CG
TC DLC3DTC B0112/41
Floor Wire
Service Wire
C
D
S19
05-1270
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1460 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

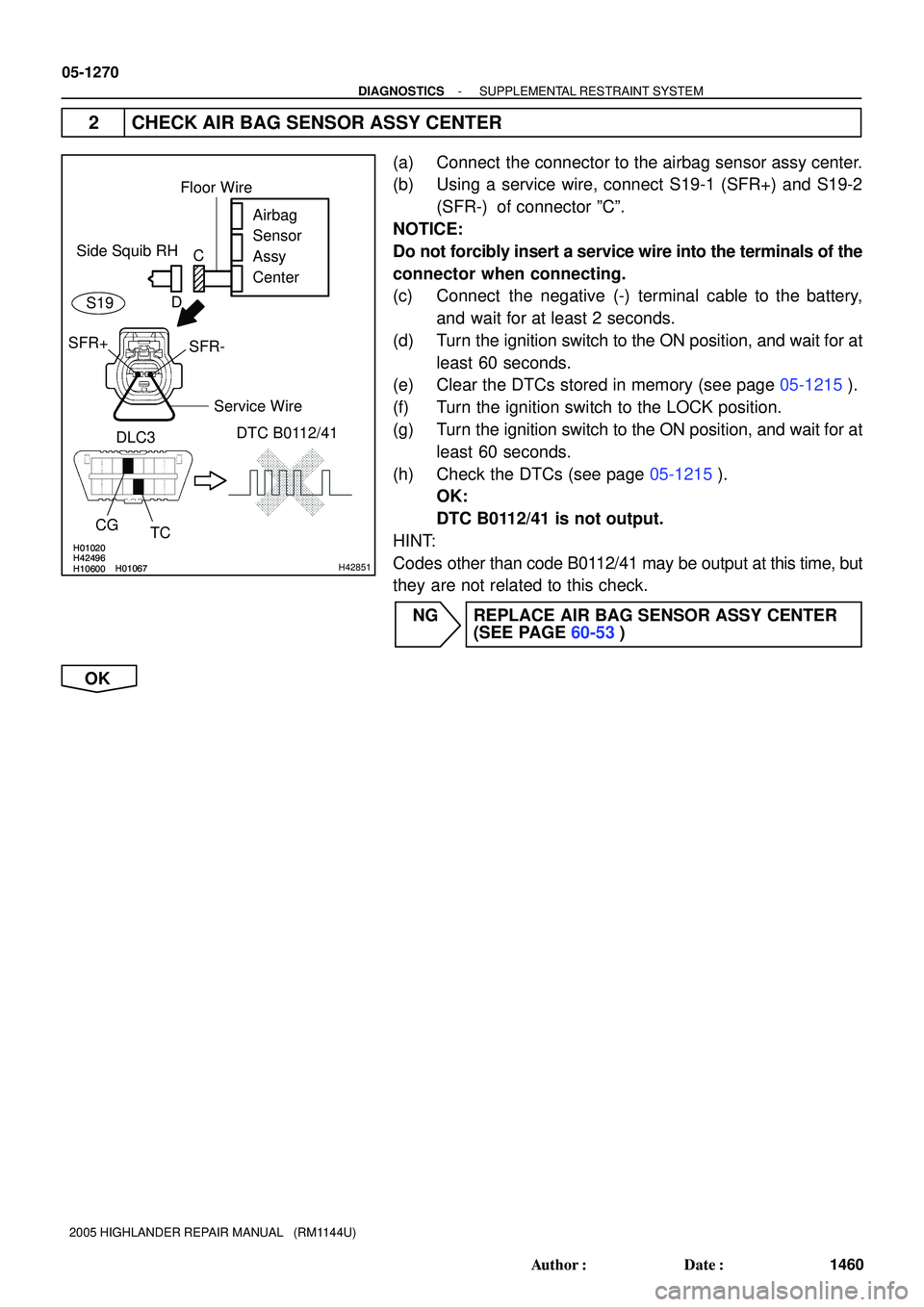

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect S19-1 (SFR+) and S19-2
(SFR-) of connector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminals of the
connector when connecting.
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
OK:
DTC B0112/41 is not output.
HINT:
Codes other than code B0112/41 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 945 of 2572
H01021
H10600 H01067H01021
H10600 H01067H40983
DTC B0112/41
TC CG Side Squib RH
DLC3Airbag
Sensor
Assy
Center
C D
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1271
1461 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

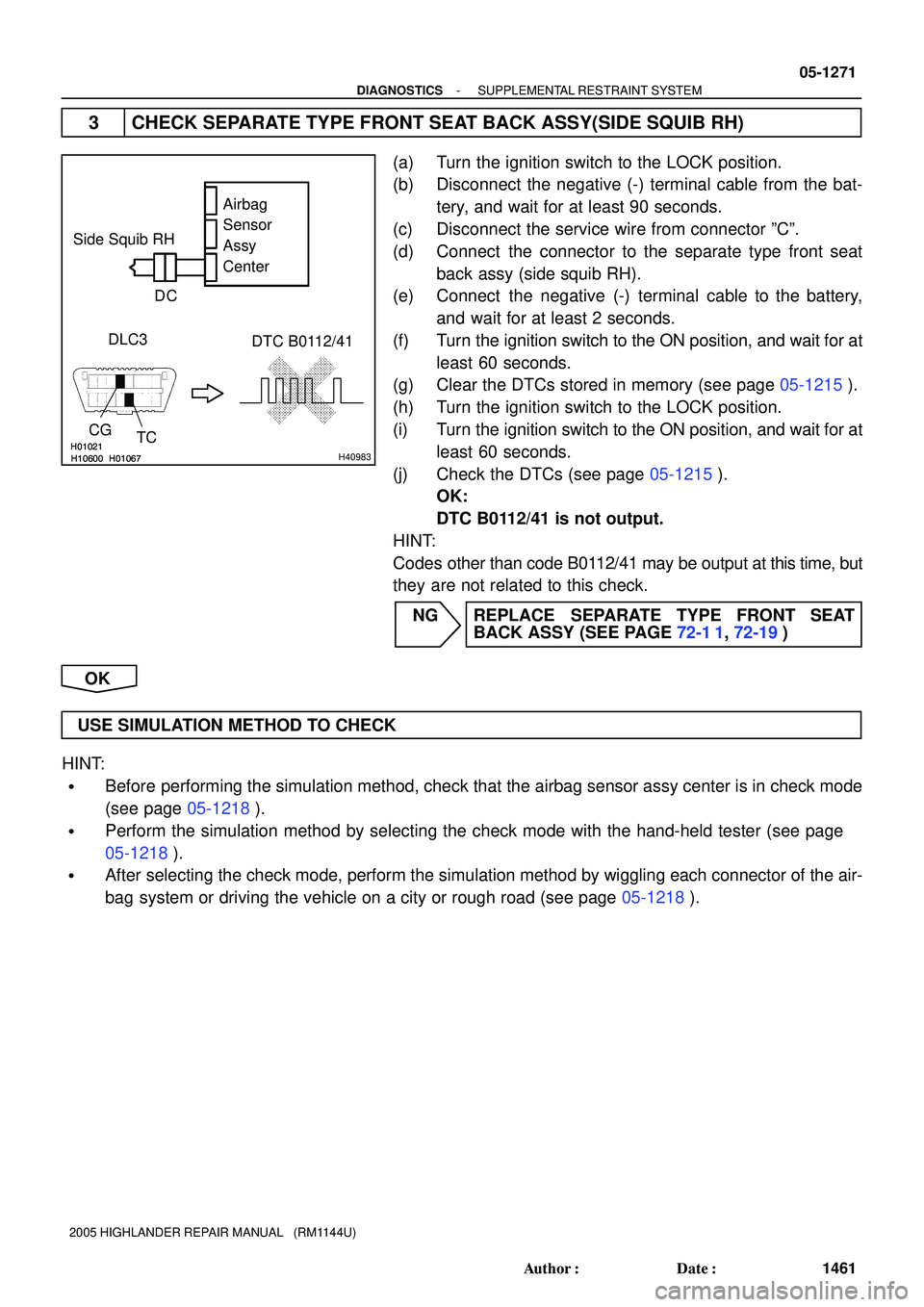

3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the separate type front seat
back assy (side squib RH).
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0112/41 is not output.
HINT:
Codes other than code B0112/41 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT
BACK ASSY (SEE PAGE 72-1 1, 72-19)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 946 of 2572
H42497 H01019
H40977
H42497
H01019
H40977
H42849
Side Squib RHAirbag
Sensor
Assy
Center
SFR+Floor Wire
A
DC
B
SFR-
S19
05-1272
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1462 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

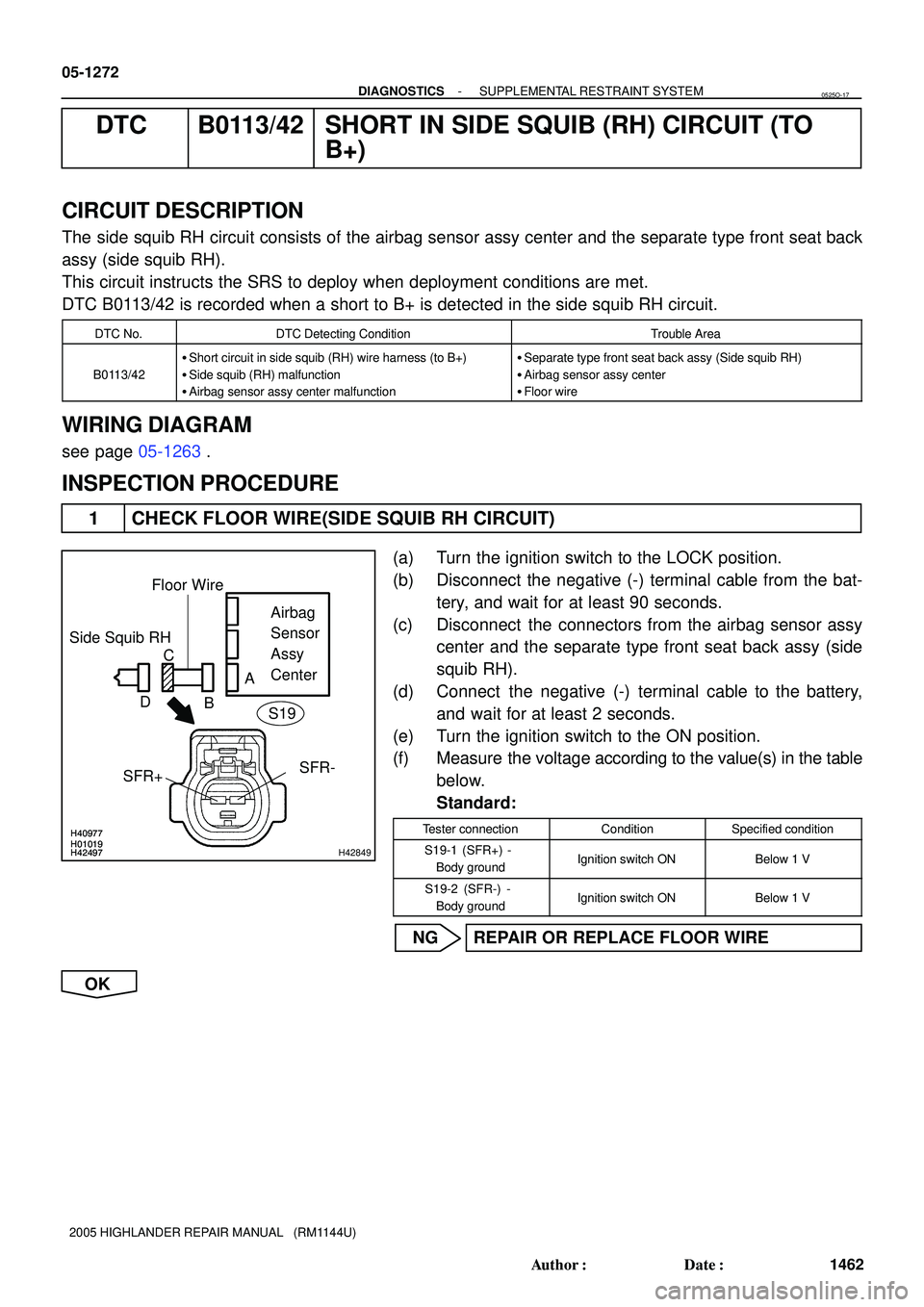

DTC B0113/42 SHORT IN SIDE SQUIB (RH) CIRCUIT (TO
B+)
CIRCUIT DESCRIPTION
The side squib RH circuit consists of the airbag sensor assy center and the separate type front seat back
assy (side squib RH).
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0113/42 is recorded when a short to B+ is detected in the side squib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0113/42
Short circuit in side squib (RH) wire harness (to B+)
Side squib (RH) malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib RH)
Airbag sensor assy center
Floor wire
WIRING DIAGRAM
see page 05-1263.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE(SIDE SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the separate type front seat back assy (side
squib RH).
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
S19-1 (SFR+) -
Body groundIgnition switch ONBelow 1 V
S19-2 (SFR-) -
Body groundIgnition switch ONBelow 1 V
NG REPAIR OR REPLACE FLOOR WIRE
OK
0525O-17
Page 947 of 2572
H01020
H10600 H01068H42496H01020
H10600 H01068H42496H42852
Side Squib RHAirbag
Sensor
Assy
Center
SFR+
SFR-
DLC3
CG
TCDTC B0113/42
Floor Wire
Service Wire
C
D S19
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1273
1463 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

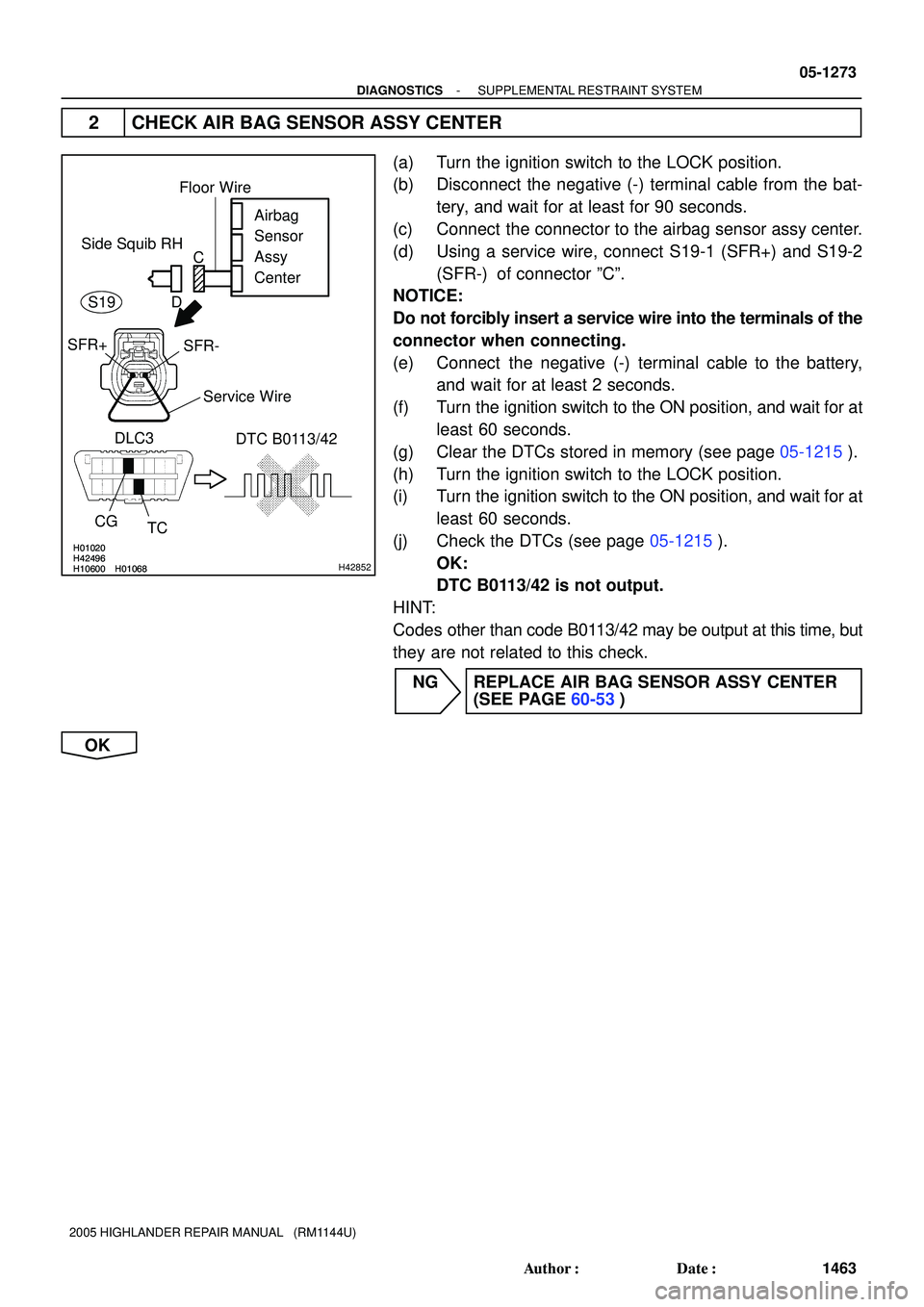

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least for 90 seconds.
(c) Connect the connector to the airbag sensor assy center.
(d) Using a service wire, connect S19-1 (SFR+) and S19-2
(SFR-) of connector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminals of the
connector when connecting.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0113/42 is not output.
HINT:
Codes other than code B0113/42 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 948 of 2572
H01021
H10600 H01068H01021
H10600 H01068H40985
Side Squib RH
CGDTC B0113/42
DLC3
TCAirbag
Sensor
Assy
Center
C D
05-1274
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1464 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

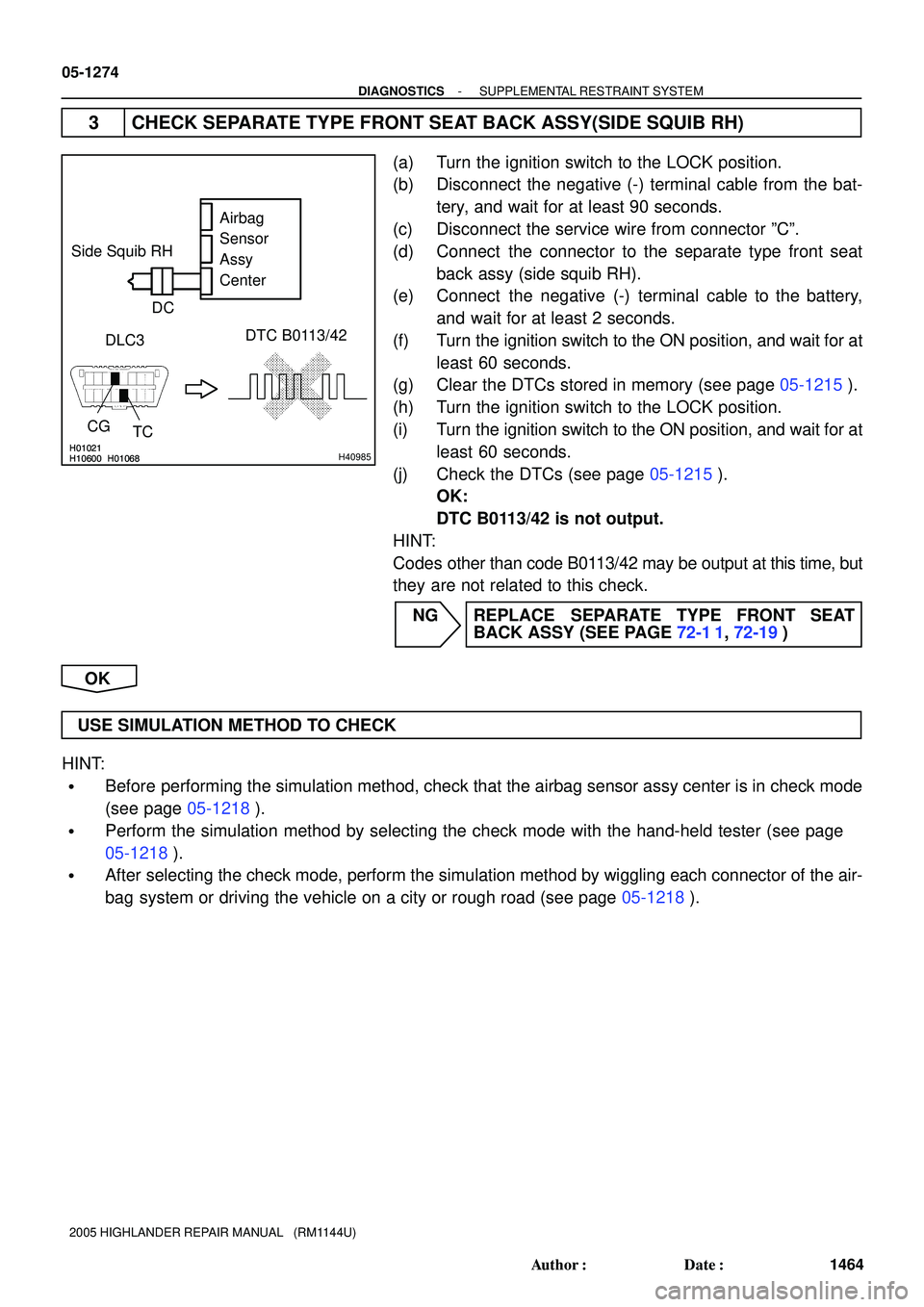

3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the separate type front seat
back assy (side squib RH).
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0113/42 is not output.
HINT:
Codes other than code B0113/42 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT
BACK ASSY (SEE PAGE 72-1 1, 72-19)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
