Page 959 of 2572
H01017
H10600 H01072H42496H01017
H10600 H01072H42496H42856
Side Squib LH
CG
TCDTC B0118/46 DLC3Airbag
Sensor
Assy
Center
SFL+
SFL-Floor Wire No.2
Service Wire
C D
S18
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1285
1475 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

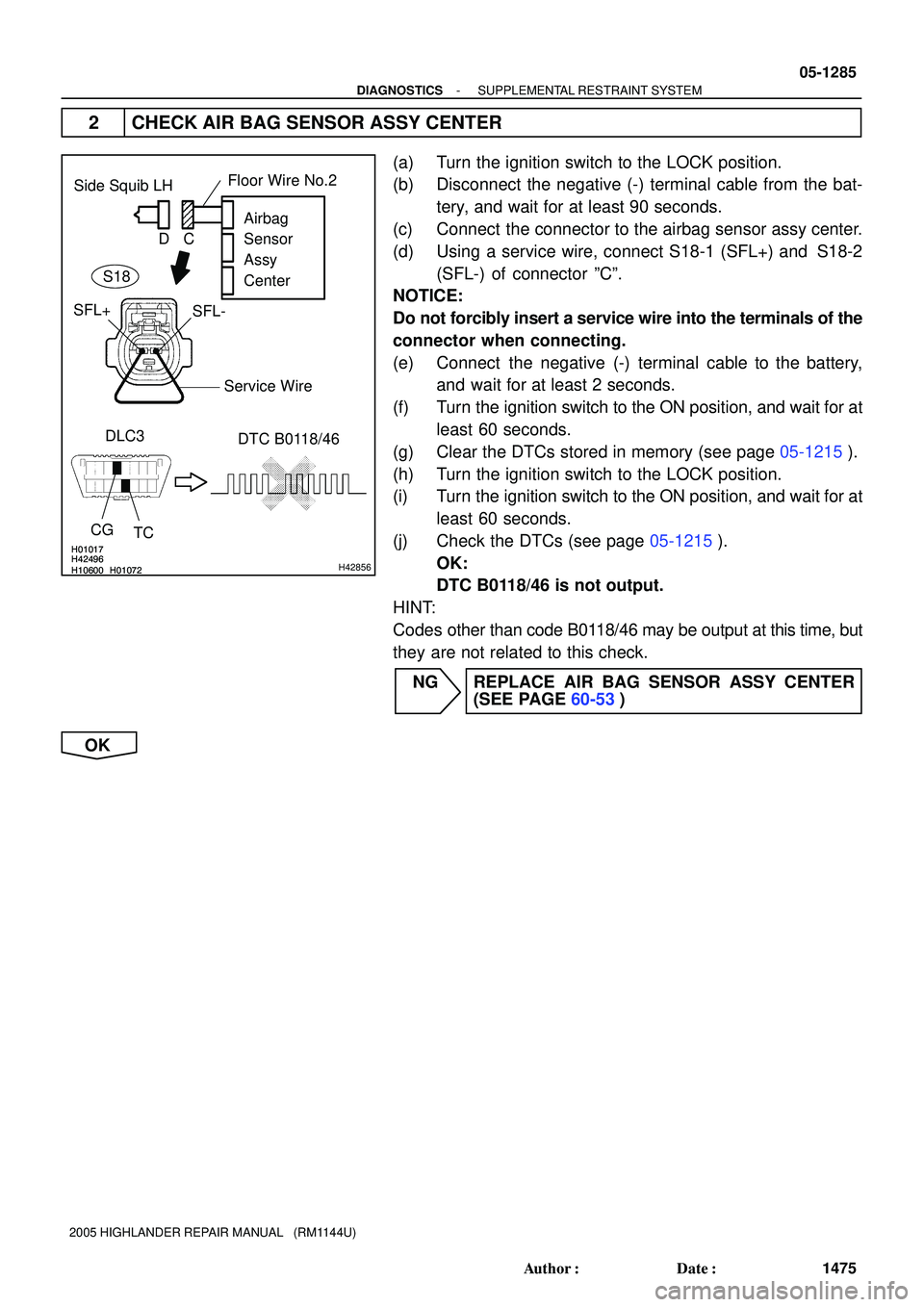

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the airbag sensor assy center.
(d) Using a service wire, connect S18-1 (SFL+) and S18-2
(SFL-) of connector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminals of the
connector when connecting.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0118/46 is not output.
HINT:
Codes other than code B0118/46 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 960 of 2572
H01018
H10600 H01072H01018
H10600 H01072H40994
Side Squib LH
DTC B0118/46 DLC3
TC CGAirbag
Sensor
Assy
Center
C D
05-1286
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1476 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

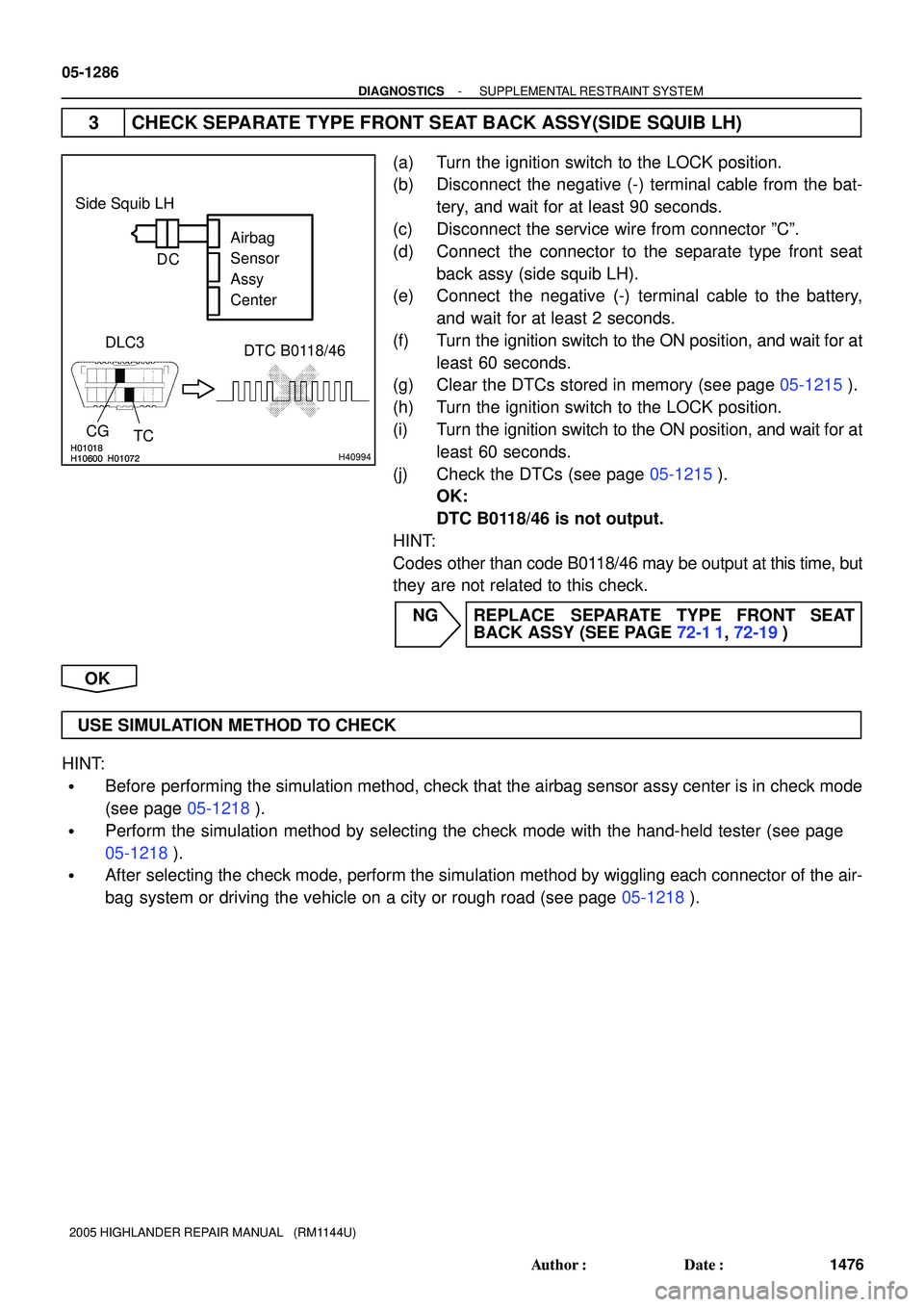

3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the separate type front seat
back assy (side squib LH).
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0118/46 is not output.
HINT:
Codes other than code B0118/46 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT
BACK ASSY (SEE PAGE 72-1 1, 72-19)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 972 of 2572
E68822E70389
4
3
1 A23
Automatic Light Control Sensor
21
20
12 B9
B9
B9CLTS
CLTE
CLTB R
W
GBody ECU
CLTS
CLTE
CLTB
- DIAGNOSTICSLIGHTING SYSTEM
05-1551
1741 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

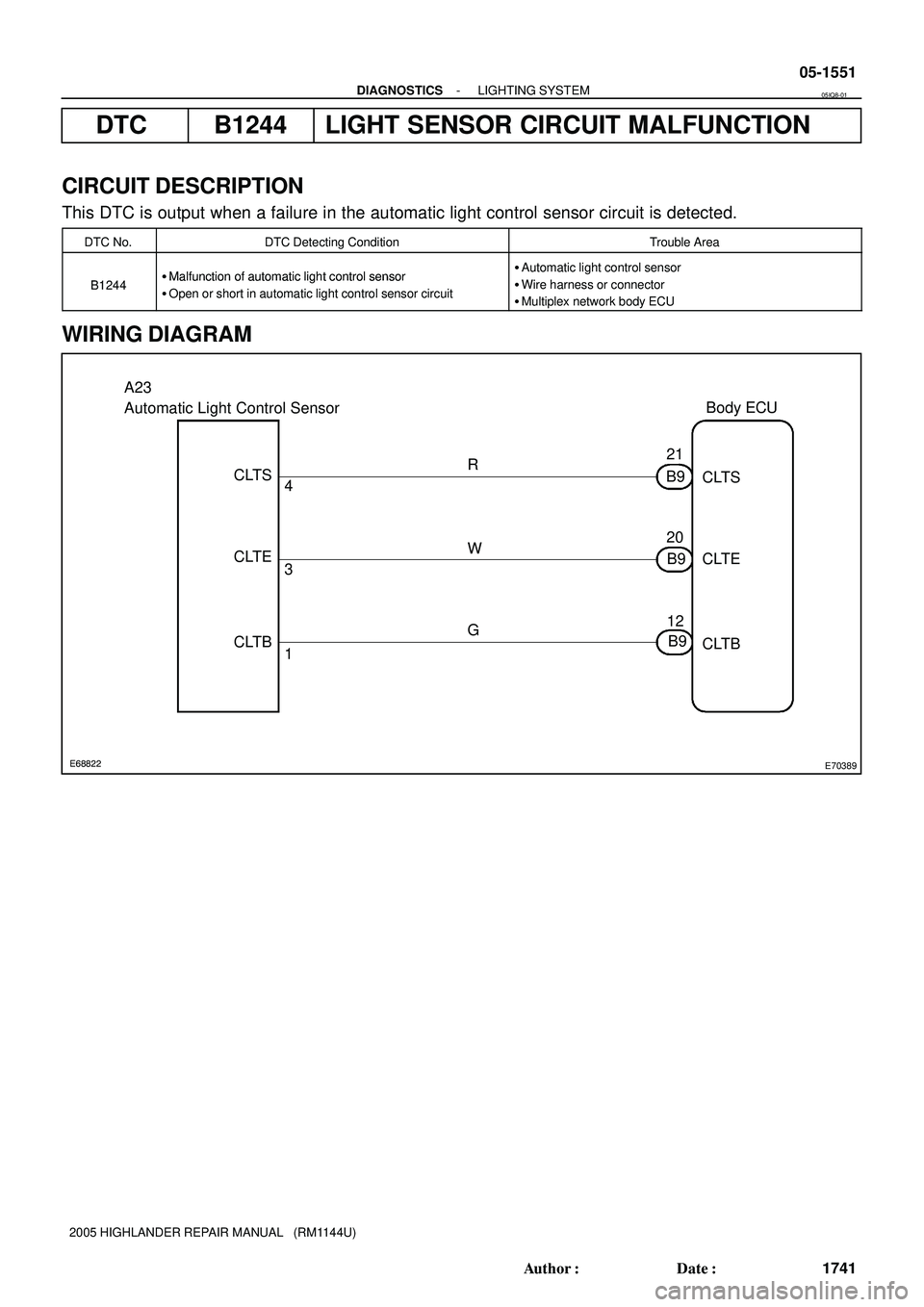

DTC B1244 LIGHT SENSOR CIRCUIT MALFUNCTION
CIRCUIT DESCRIPTION
This DTC is output when a failure in the automatic light control sensor circuit is detected.
DTC No.DTC Detecting ConditionTrouble Area
B1244Malfunction of automatic light control sensorAutomatic light control sensor
Wi h tB1244Malfunction of automatic light control sensor
Open or short in automatic light control sensor circuitWire harness or connector
Multiplex network body ECU
WIRING DIAGRAM
05IQ8-01

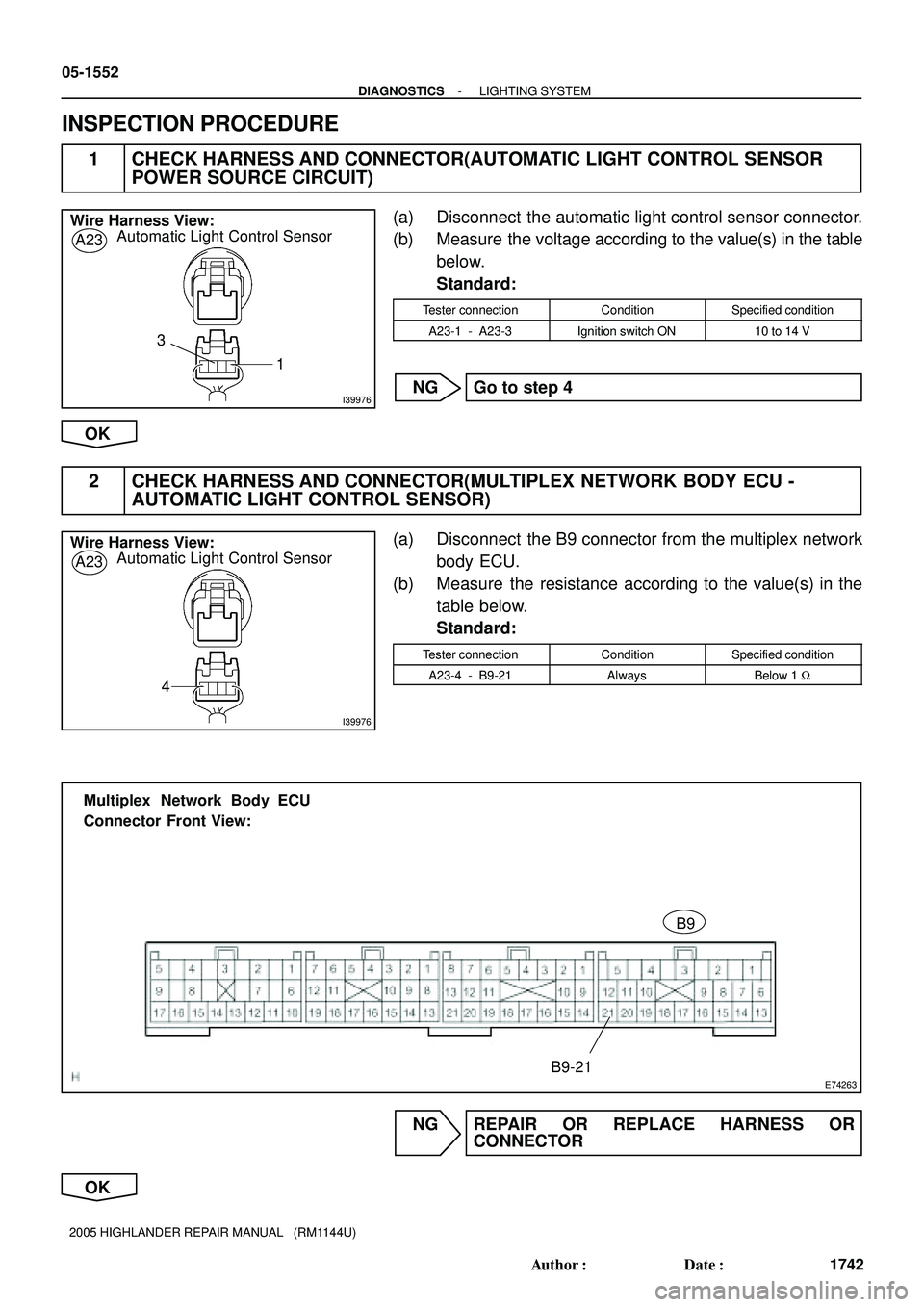

Page 973 of 2572
I39976
Wire Harness View:
Automatic Light Control Sensor
A23
1 3
I39976
Wire Harness View:
Automatic Light Control Sensor
A23
4
E74263
B9
B9-21 Multiplex Network Body ECU
Connector Front View:
05-1552
- DIAGNOSTICSLIGHTING SYSTEM
1742 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
1 CHECK HARNESS AND CONNECTOR(AUTOMATIC LIGHT CONTROL SENSOR
POWER SOURCE CIRCUIT)
(a) Disconnect the automatic light control sensor connector.
(b) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
A23-1 - A23-3Ignition switch ON10 to 14 V
NG Go to step 4
OK
2 CHECK HARNESS AND CONNECTOR(MULTIPLEX NETWORK BODY ECU -
AUTOMATIC LIGHT CONTROL SENSOR)
(a) Disconnect the B9 connector from the multiplex network
body ECU.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
A23-4 - B9-21AlwaysBelow 1 W
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
Page 974 of 2572
I39976
Wire Harness View:
Automatic Light Control Sensor
A23
1
- DIAGNOSTICSLIGHTING SYSTEM
05-1553
1743 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

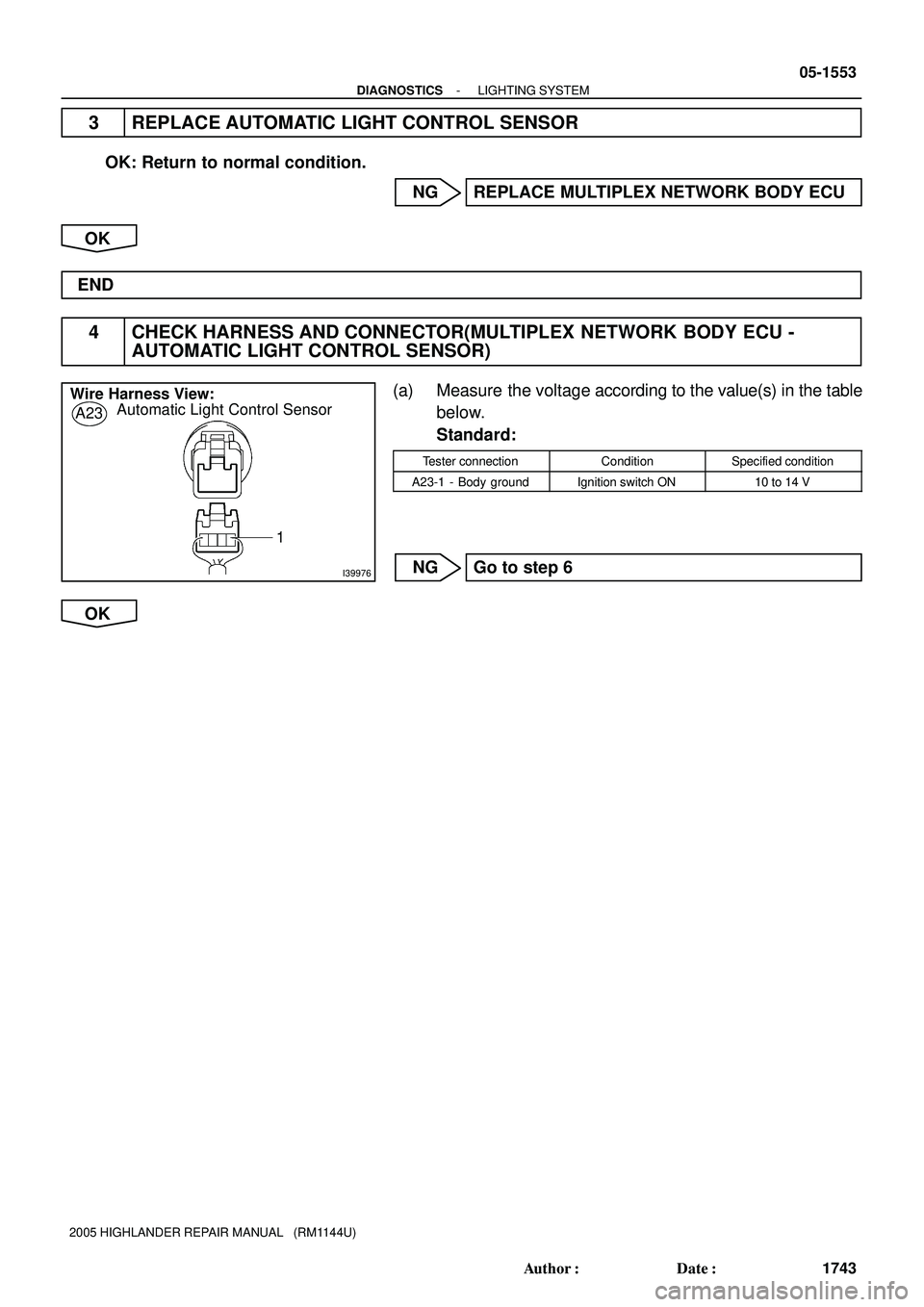

3 REPLACE AUTOMATIC LIGHT CONTROL SENSOR
OK: Return to normal condition.
NG REPLACE MULTIPLEX NETWORK BODY ECU
OK
END
4 CHECK HARNESS AND CONNECTOR(MULTIPLEX NETWORK BODY ECU -
AUTOMATIC LIGHT CONTROL SENSOR)
(a) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
A23-1 - Body groundIgnition switch ON10 to 14 V
NG Go to step 6
OK
Page 975 of 2572
I39976
Wire Harness View:
Automatic Light Control Sensor
A23
3
E74263
B9
B9-20 Multiplex Network Body ECU
Connector Front View:
05-1554
- DIAGNOSTICSLIGHTING SYSTEM
1744 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

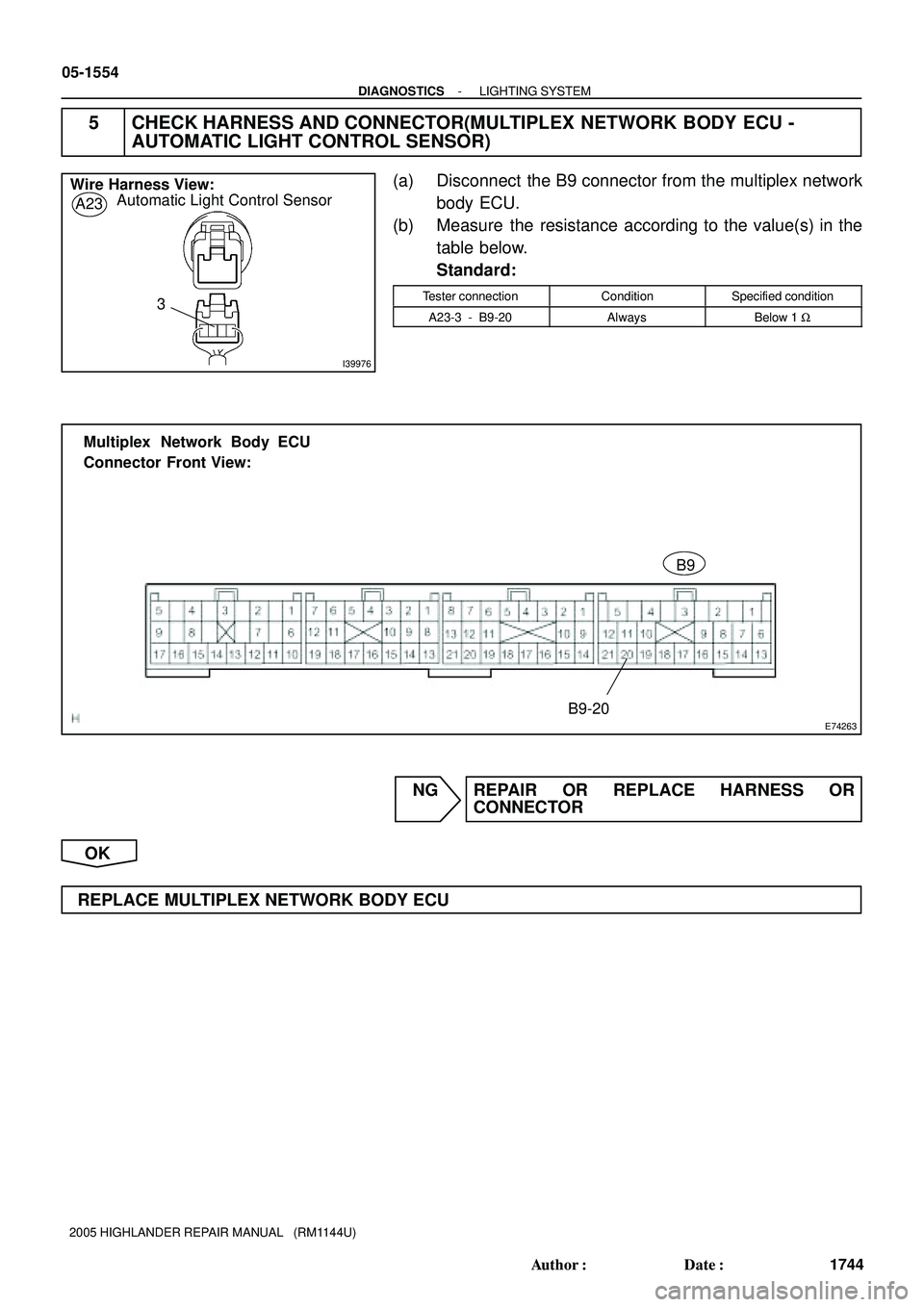

5 CHECK HARNESS AND CONNECTOR(MULTIPLEX NETWORK BODY ECU -
AUTOMATIC LIGHT CONTROL SENSOR)
(a) Disconnect the B9 connector from the multiplex network
body ECU.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
A23-3 - B9-20AlwaysBelow 1 W
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
REPLACE MULTIPLEX NETWORK BODY ECU
Page 976 of 2572
I39976
Wire Harness View:
Automatic Light Control Sensor
A23
1
E74263
B9
B9-12 Multiplex Network Body ECU
Connector Front View:
- DIAGNOSTICSLIGHTING SYSTEM
05-1555
1745 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

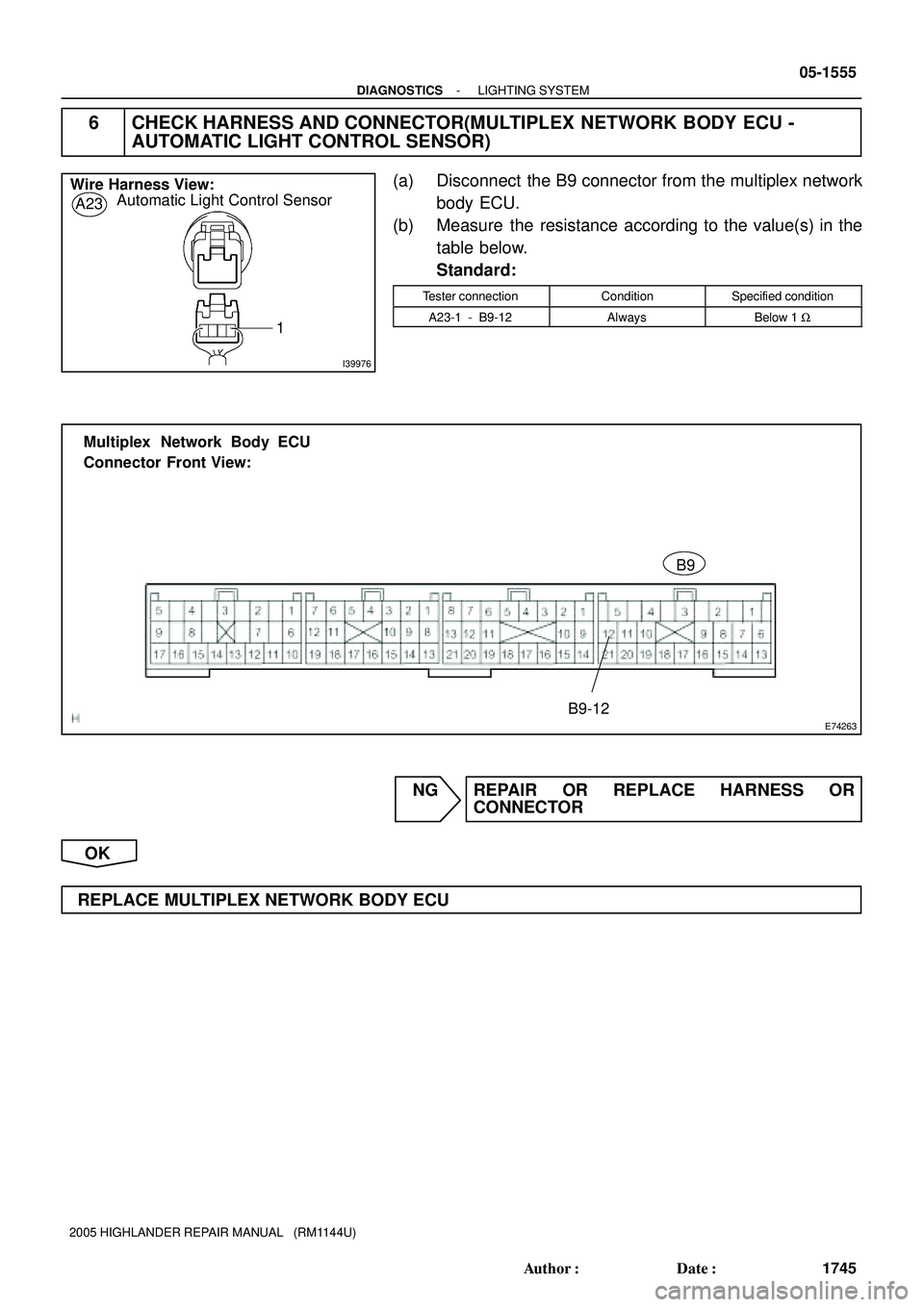

6 CHECK HARNESS AND CONNECTOR(MULTIPLEX NETWORK BODY ECU -
AUTOMATIC LIGHT CONTROL SENSOR)
(a) Disconnect the B9 connector from the multiplex network
body ECU.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
A23-1 - B9-12AlwaysBelow 1 W
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
REPLACE MULTIPLEX NETWORK BODY ECU
Page 982 of 2572
H43056H44106
B19
Buckle SW (Driver's Side)Airbag Sensor
Assy Center
LBE+ A16 G
111
3R
LBE- A166 19
2 A16
A16(*2)
(*2) (*1)
(*1)
*1: w/ Curtain Shield Airbag
*2: w/o Curtain Shield Airbag
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1287
1477 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

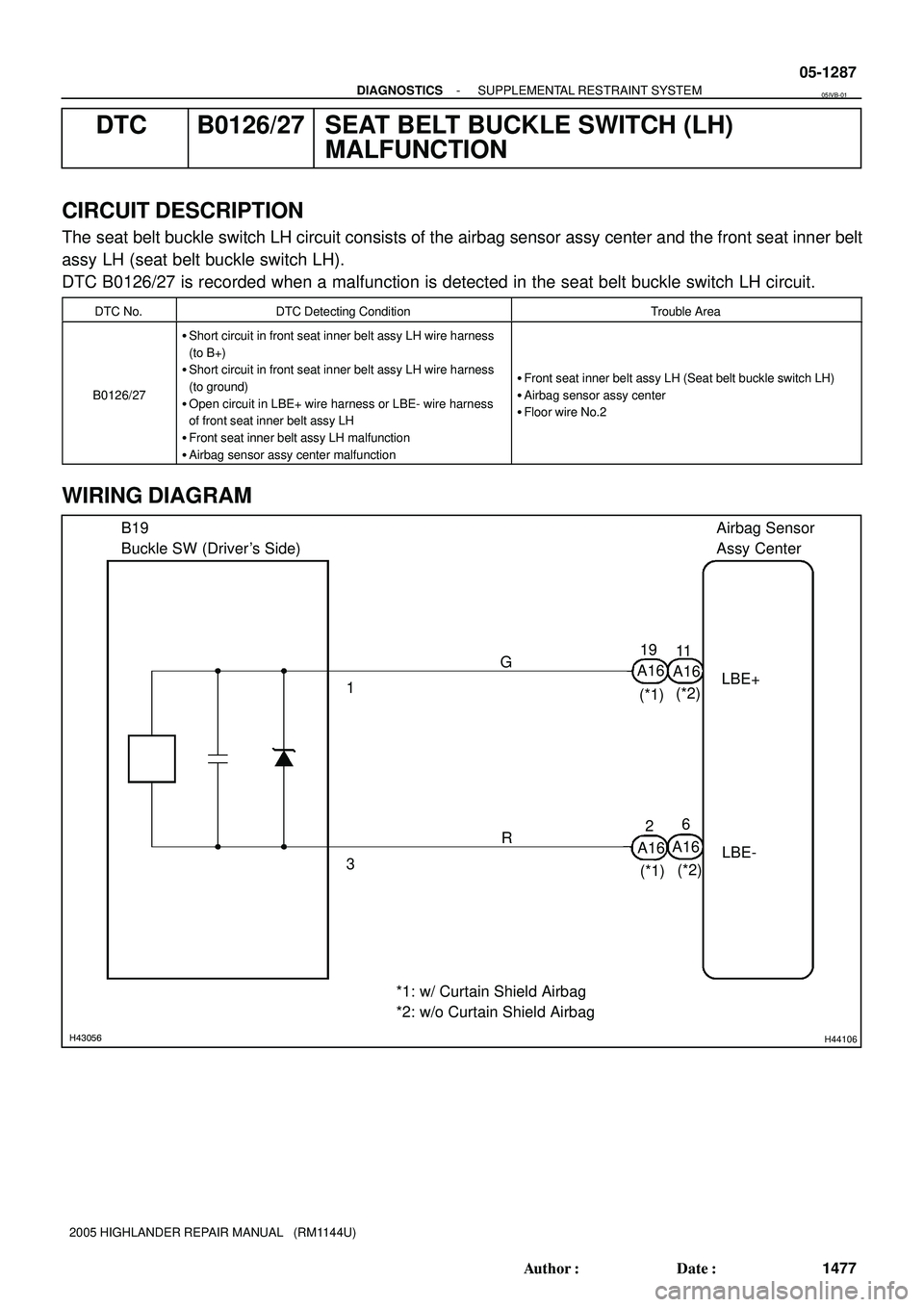

DTC B0126/27 SEAT BELT BUCKLE SWITCH (LH)
MALFUNCTION
CIRCUIT DESCRIPTION
The seat belt buckle switch LH circuit consists of the airbag sensor assy center and the front seat inner belt
assy LH (seat belt buckle switch LH).
DTC B0126/27 is recorded when a malfunction is detected in the seat belt buckle switch LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0126/27
Short circuit in front seat inner belt assy LH wire harness
(to B+)
Short circuit in front seat inner belt assy LH wire harness
(to ground)
Open circuit in LBE+ wire harness or LBE- wire harness
of front seat inner belt assy LH
Front seat inner belt assy LH malfunction
Airbag sensor assy center malfunction
Front seat inner belt assy LH (Seat belt buckle switch LH)
Airbag sensor assy center
Floor wire No.2
WIRING DIAGRAM
05IVB-01
Page 983 of 2572
C85269H10600C85273H41027
Airbag
Sensor
Assy
Center Front Seat Inner
Belt Assy LH
DTC B0126/27 DLC3
CG
TC
05-1288
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1478 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

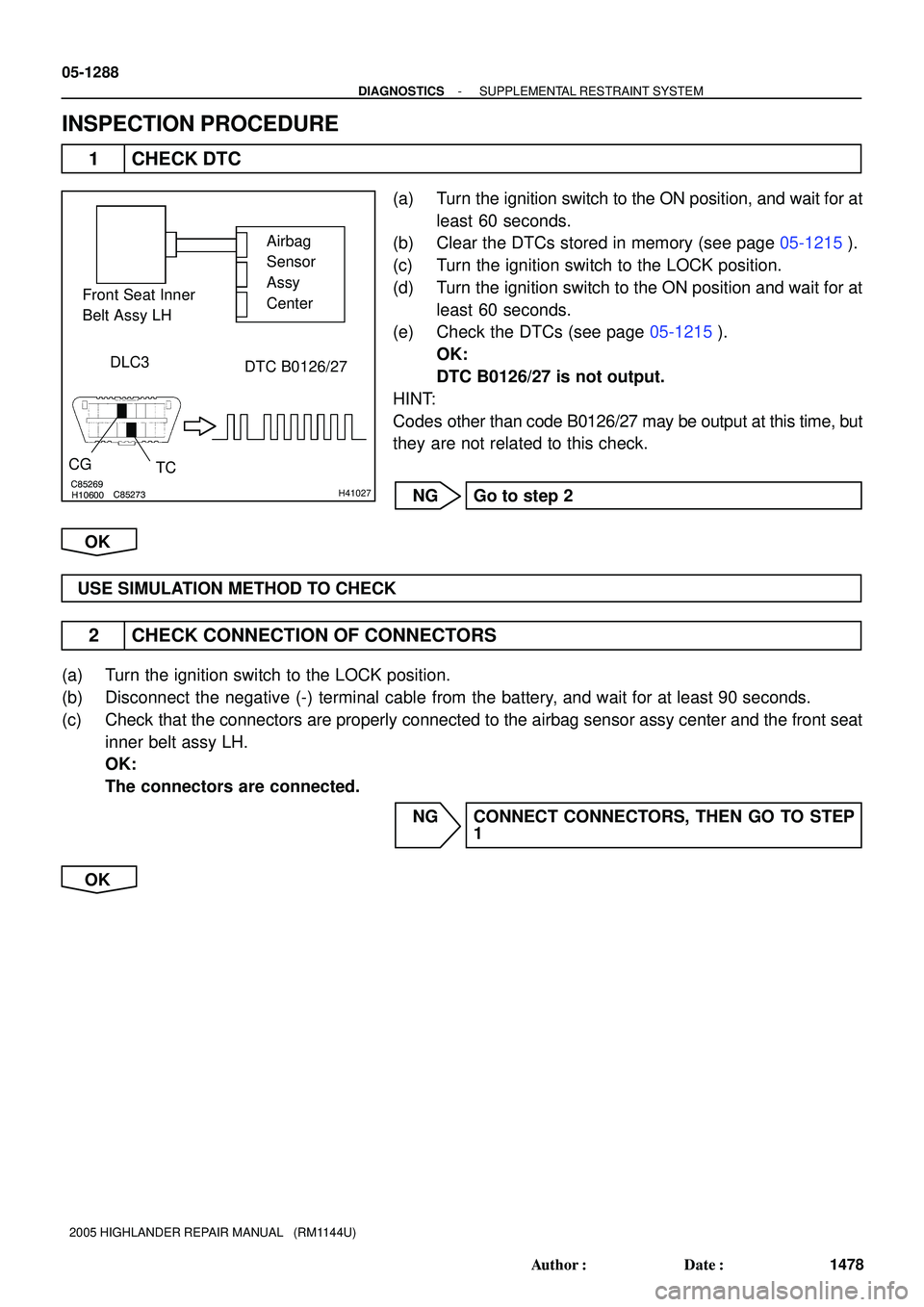

INSPECTION PROCEDURE
1 CHECK DTC
(a) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(b) Clear the DTCs stored in memory (see page 05-1215).
(c) Turn the ignition switch to the LOCK position.
(d) Turn the ignition switch to the ON position and wait for at
least 60 seconds.
(e) Check the DTCs (see page 05-1215).
OK:
DTC B0126/27 is not output.
HINT:
Codes other than code B0126/27 may be output at this time, but
they are not related to this check.
NG Go to step 2
OK
USE SIMULATION METHOD TO CHECK
2 CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the airbag sensor assy center and the front seat
inner belt assy LH.
OK:
The connectors are connected.
NG CONNECT CONNECTORS, THEN GO TO STEP
1
OK

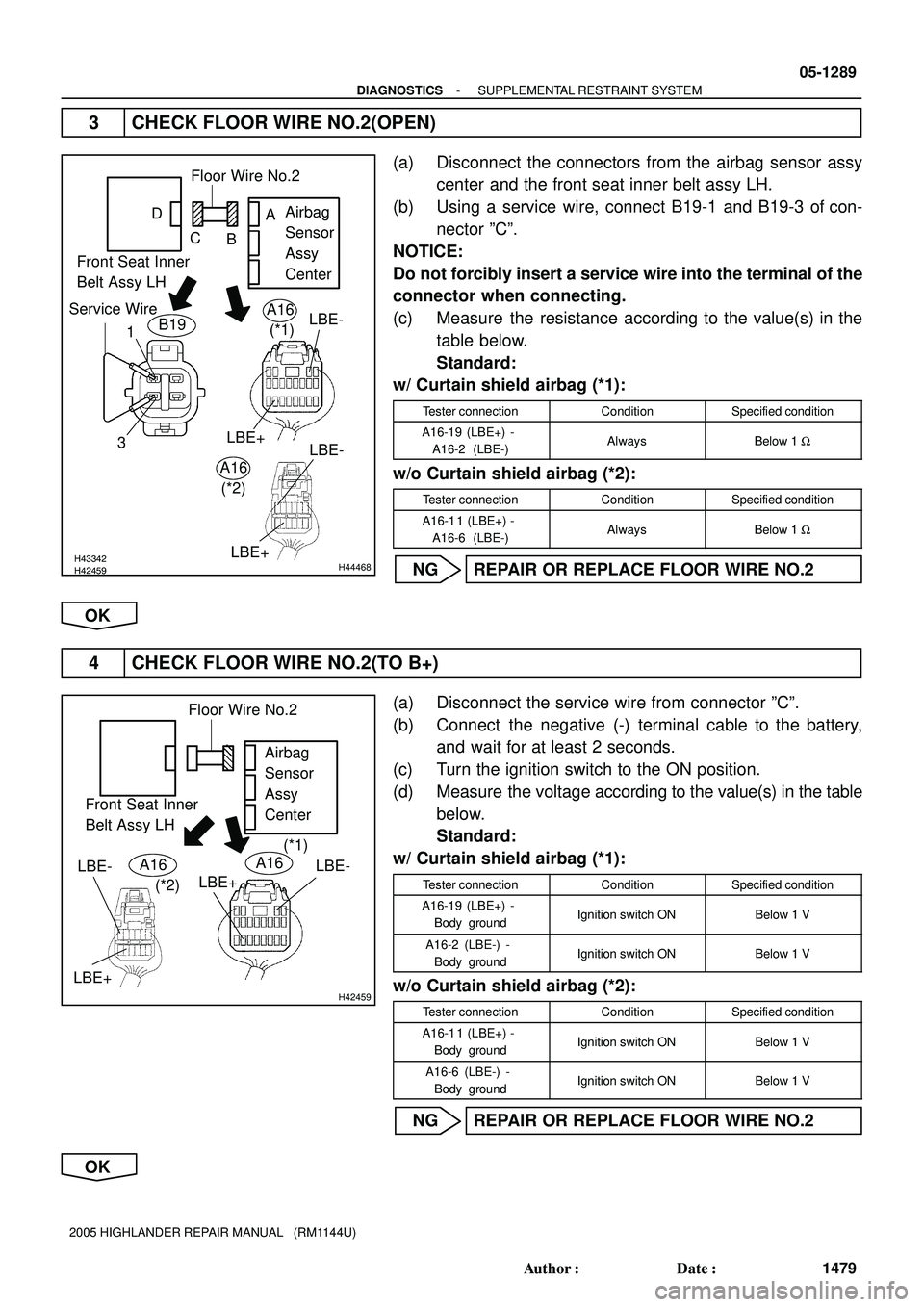

Page 984 of 2572
H43342
H42459H44468
LBE+Airbag
Sensor
Assy
Center A
B C DFloor Wire No.2
1LBE-
3
Front Seat Inner
Belt Assy LH
B19
Service Wire
A16
A16
(*2)(*1)
LBE-
LBE+
H42459
Airbag
Sensor
Assy
Center Floor Wire No.2
Front Seat Inner
Belt Assy LH
LBE+LBE-
LBE+LBE-A16
A16
(*2)(*1)
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1289
1479 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
3 CHECK FLOOR WIRE NO.2(OPEN)
(a) Disconnect the connectors from the airbag sensor assy
center and the front seat inner belt assy LH.
(b) Using a service wire, connect B19-1 and B19-3 of con-
nector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
w/ Curtain shield airbag (*1):
Tester connectionConditionSpecified condition
A16-19 (LBE+) -
A16-2 (LBE-)AlwaysBelow 1 W
w/o Curtain shield airbag (*2):
Tester connectionConditionSpecified condition
A16-1 1 (LBE+) -
A16-6 (LBE-)AlwaysBelow 1 W
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
4 CHECK FLOOR WIRE NO.2(TO B+)
(a) Disconnect the service wire from connector ºCº.
(b) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position.
(d) Measure the voltage according to the value(s) in the table
below.
Standard:
w/ Curtain shield airbag (*1):
Tester connectionConditionSpecified condition
A16-19 (LBE+) -
Body groundIgnition switch ONBelow 1 V
A16-2 (LBE-) -
Body groundIgnition switch ONBelow 1 V
w/o Curtain shield airbag (*2):
Tester connectionConditionSpecified condition
A16-1 1 (LBE+) -
Body groundIgnition switch ONBelow 1 V
A16-6 (LBE-) -
Body groundIgnition switch ONBelow 1 V
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
