Page 985 of 2572
H42459
Airbag
Sensor
Assy
Center Floor Wire No.2
Front Seat Inner
Belt Assy LH
LBE+LBE-
LBE+LBE-A16
A16
(*2)(*1)
H42459
Airbag
Sensor
Assy
Center Floor Wire No.2
Front Seat Inner
Belt Assy LH
LBE+LBE-
LBE+LBE-A16
A16
(*2)(*1)
05-1290
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1480 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

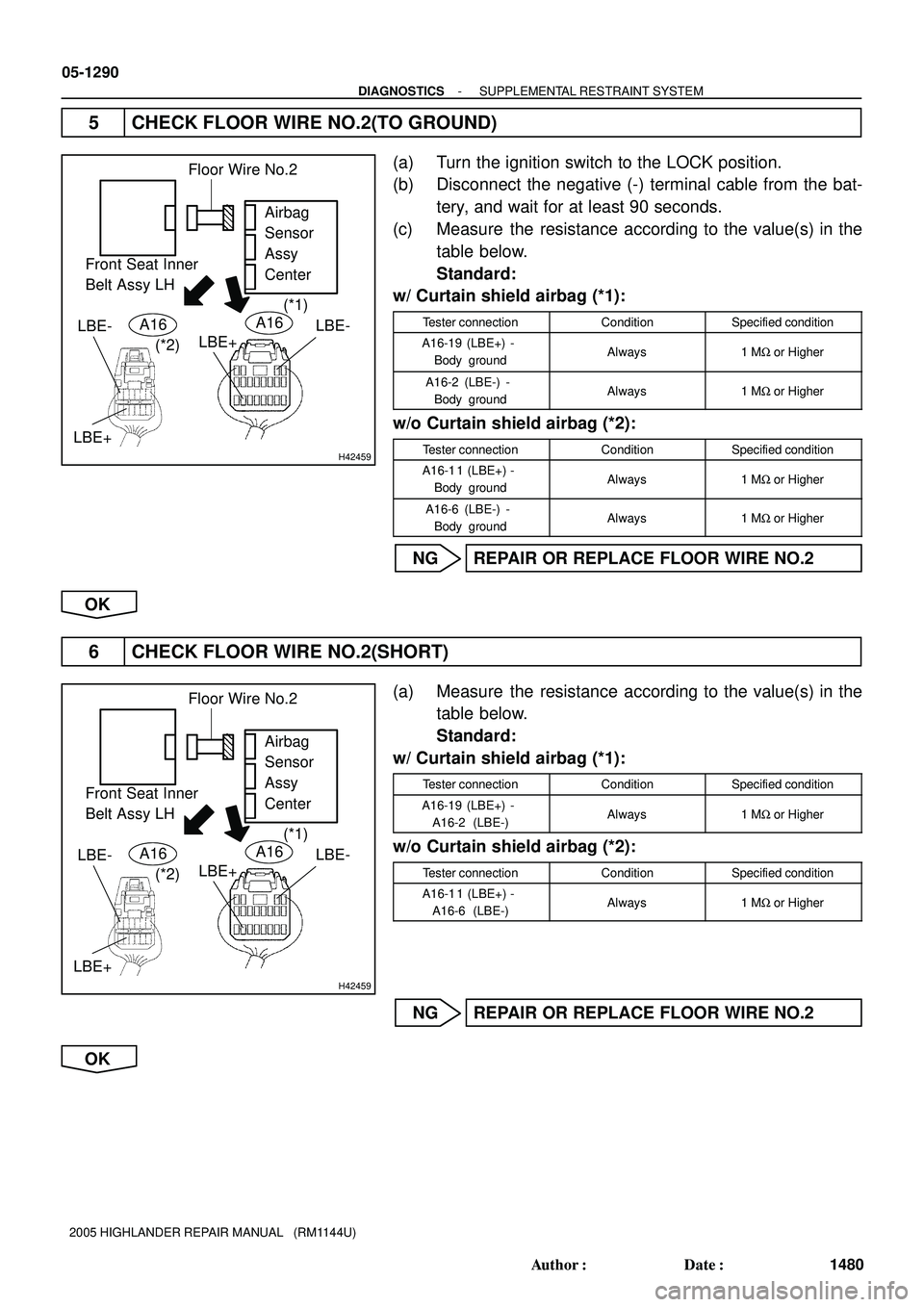

5 CHECK FLOOR WIRE NO.2(TO GROUND)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
w/ Curtain shield airbag (*1):
Tester connectionConditionSpecified condition
A16-19 (LBE+) -
Body groundAlways1 MW or Higher
A16-2 (LBE-) -
Body groundAlways1 MW or Higher
w/o Curtain shield airbag (*2):
Tester connectionConditionSpecified condition
A16-1 1 (LBE+) -
Body groundAlways1 MW or Higher
A16-6 (LBE-) -
Body groundAlways1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
6 CHECK FLOOR WIRE NO.2(SHORT)
(a) Measure the resistance according to the value(s) in the
table below.
Standard:
w/ Curtain shield airbag (*1):
Tester connectionConditionSpecified condition
A16-19 (LBE+) -
A16-2 (LBE-)Always1 MW or Higher
w/o Curtain shield airbag (*2):
Tester connectionConditionSpecified condition
A16-1 1 (LBE+) -
A16-6 (LBE-)Always1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
Page 986 of 2572
C85269H10600C85273H41027
Airbag
Sensor
Assy
Center Front Seat Inner
Belt Assy LH
DTC B0126/27
DLC3
CG
TC
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1291
1481 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

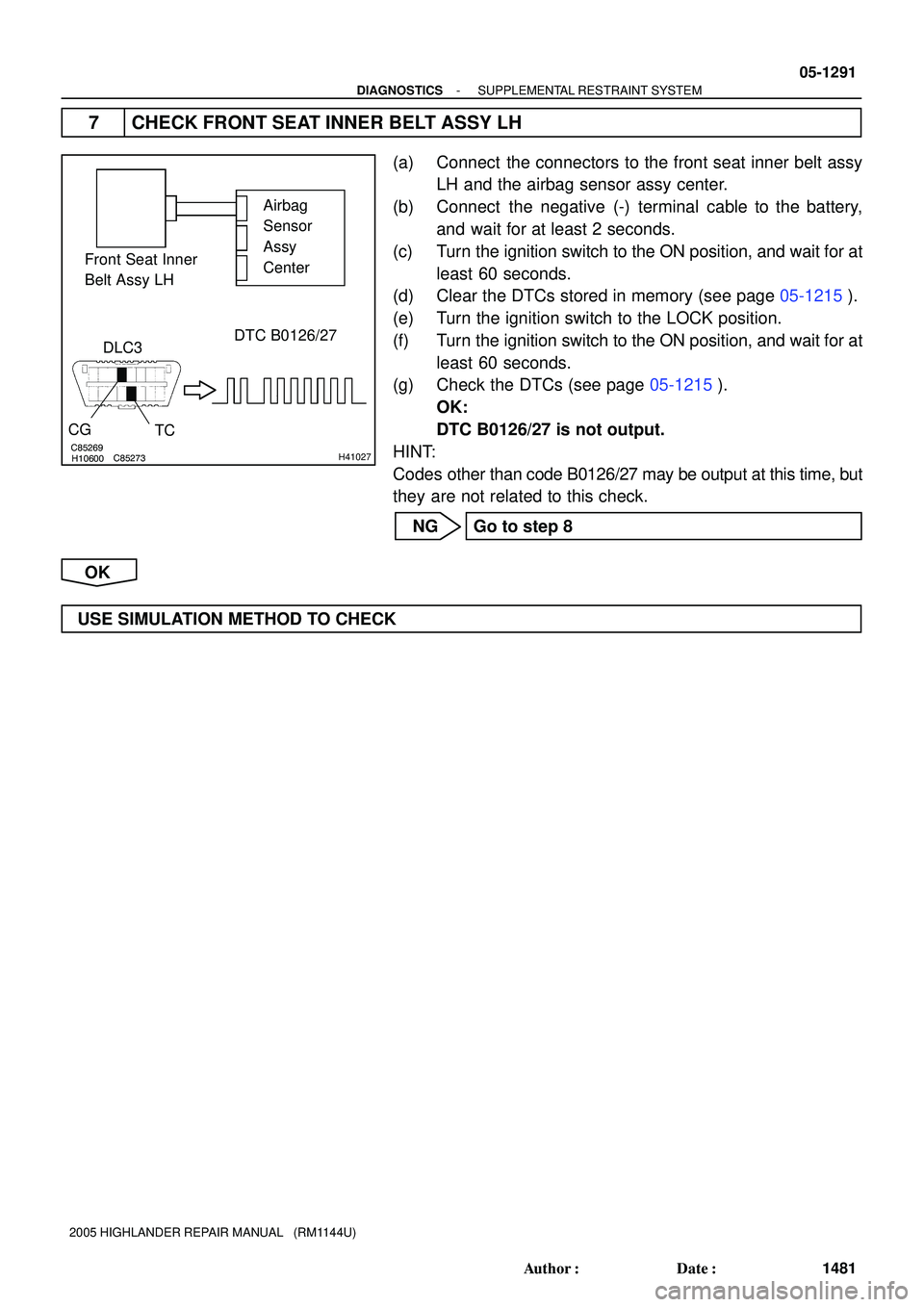

7 CHECK FRONT SEAT INNER BELT ASSY LH
(a) Connect the connectors to the front seat inner belt assy
LH and the airbag sensor assy center.
(b) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(d) Clear the DTCs stored in memory (see page 05-1215).
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Check the DTCs (see page 05-1215).
OK:
DTC B0126/27 is not output.
HINT:
Codes other than code B0126/27 may be output at this time, but
they are not related to this check.
NG Go to step 8
OK
USE SIMULATION METHOD TO CHECK
Page 987 of 2572
C85269H10600C85273H41027
Airbag
Sensor
Assy
Center Front Seat Inner
Belt Assy LH
DTC B0126/27
DLC3
CG
TC
05-1292
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1482 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

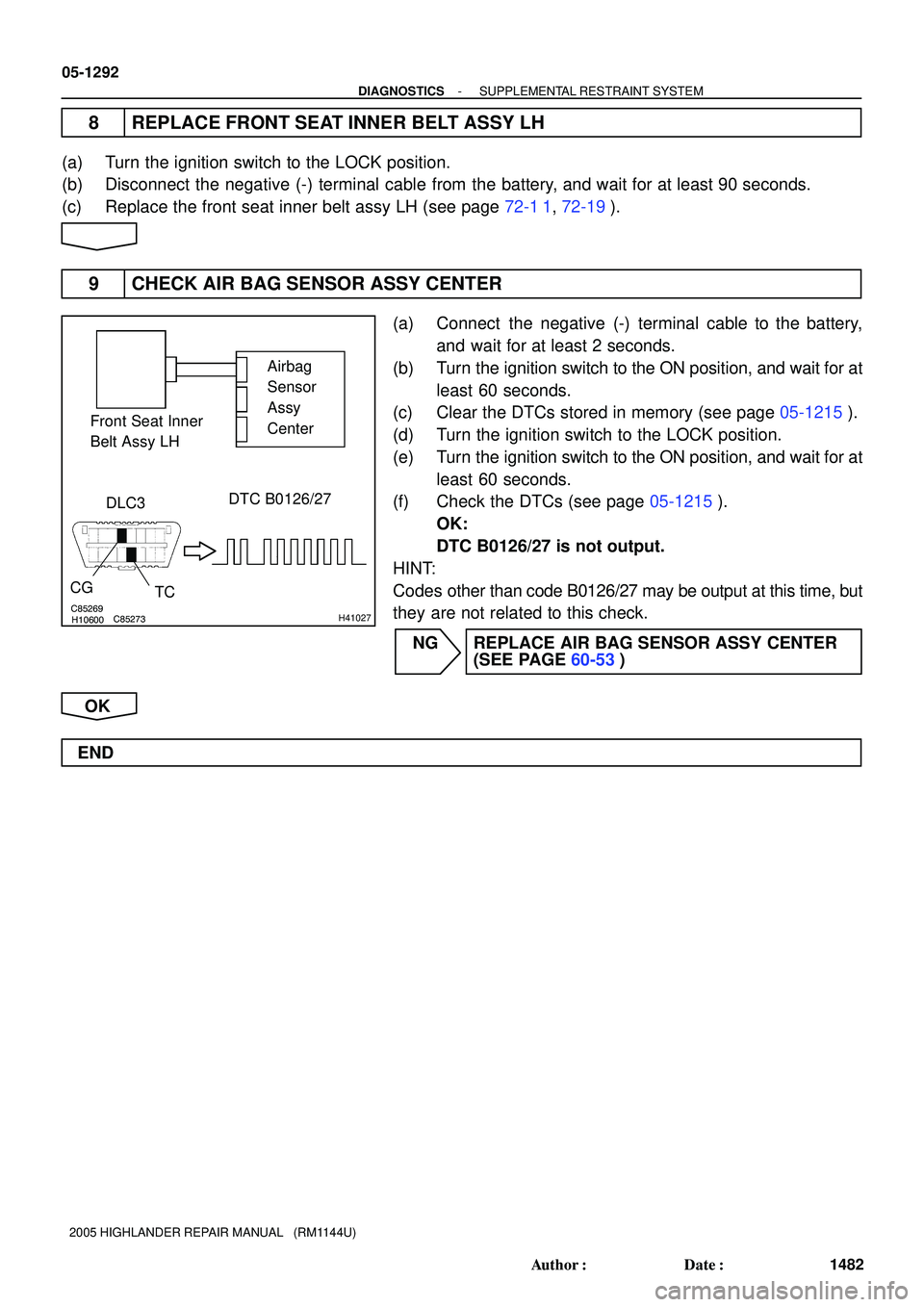

8 REPLACE FRONT SEAT INNER BELT ASSY LH
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Replace the front seat inner belt assy LH (see page 72-1 1, 72-19).
9 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(b) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(c) Clear the DTCs stored in memory (see page 05-1215).
(d) Turn the ignition switch to the LOCK position.
(e) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(f) Check the DTCs (see page 05-1215).
OK:
DTC B0126/27 is not output.
HINT:
Codes other than code B0126/27 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
END
Page 993 of 2572
H01454H44107
A185
PR+
6
PR- Y-B
Y 1
2Airbag Sensor Assy Center
P14
P/T Squib (RH)
A18 9
A18
A1810 (*1)
(*2)
(*1)
(*2)
*1: w/ Curtain Shield Airbag
*2: w/o Curtain Shield Airbag
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1293
1483 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

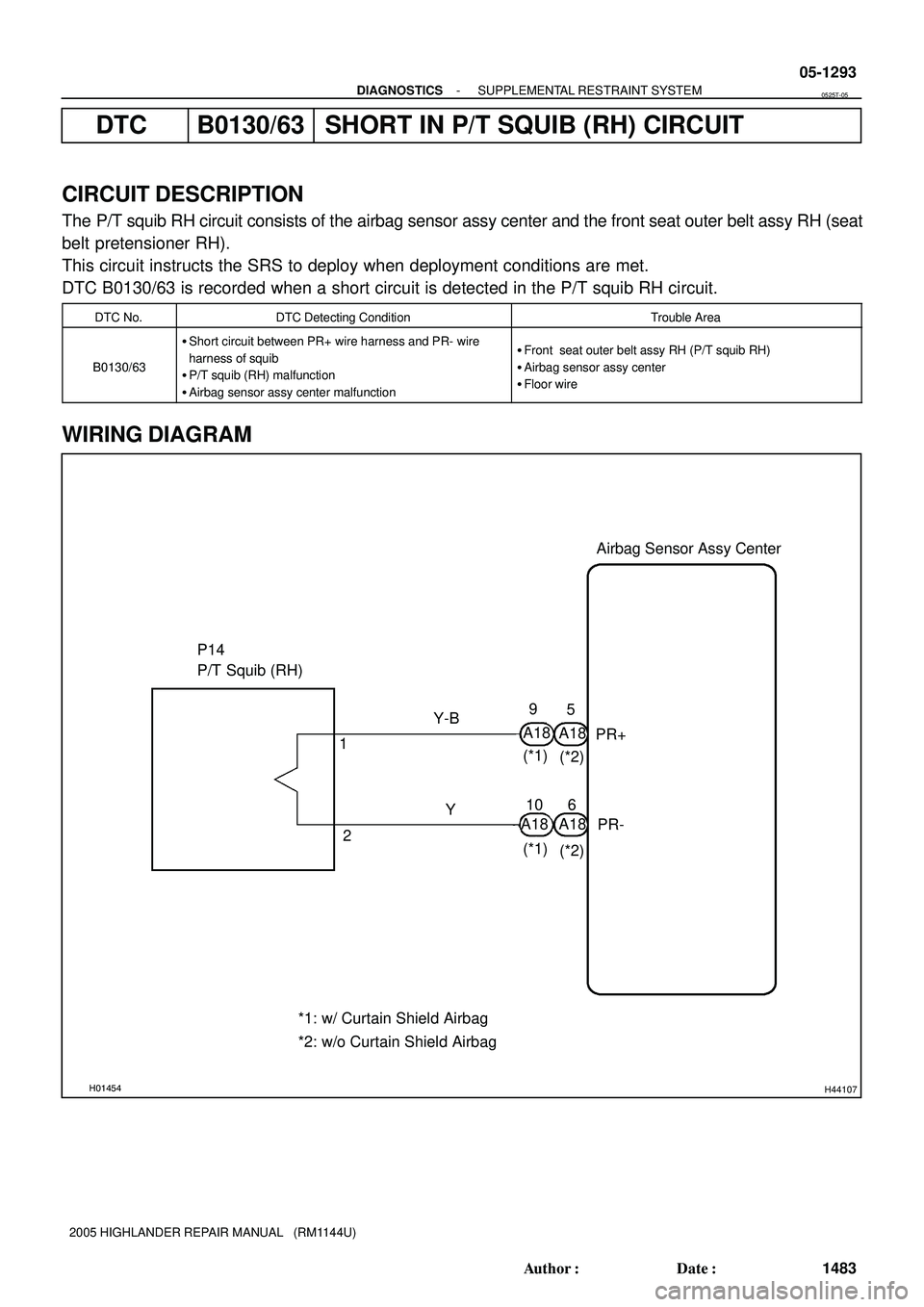

DTC B0130/63 SHORT IN P/T SQUIB (RH) CIRCUIT
CIRCUIT DESCRIPTION
The P/T squib RH circuit consists of the airbag sensor assy center and the front seat outer belt assy RH (seat
belt pretensioner RH).
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0130/63 is recorded when a short circuit is detected in the P/T squib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0130/63
Short circuit between PR+ wire harness and PR- wire
harness of squib
P/T squib (RH) malfunction
Airbag sensor assy center malfunctionFront seat outer belt assy RH (P/T squib RH)
Airbag sensor assy center
Floor wire
WIRING DIAGRAM
0525T-05
Page 994 of 2572
H01019H43108H01019H43108H43135
Airbag
Sensor
Assy
Center P/T Squib RH
PR- PR+
Floor Wire
A
B C D
P14
05-1294
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1484 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

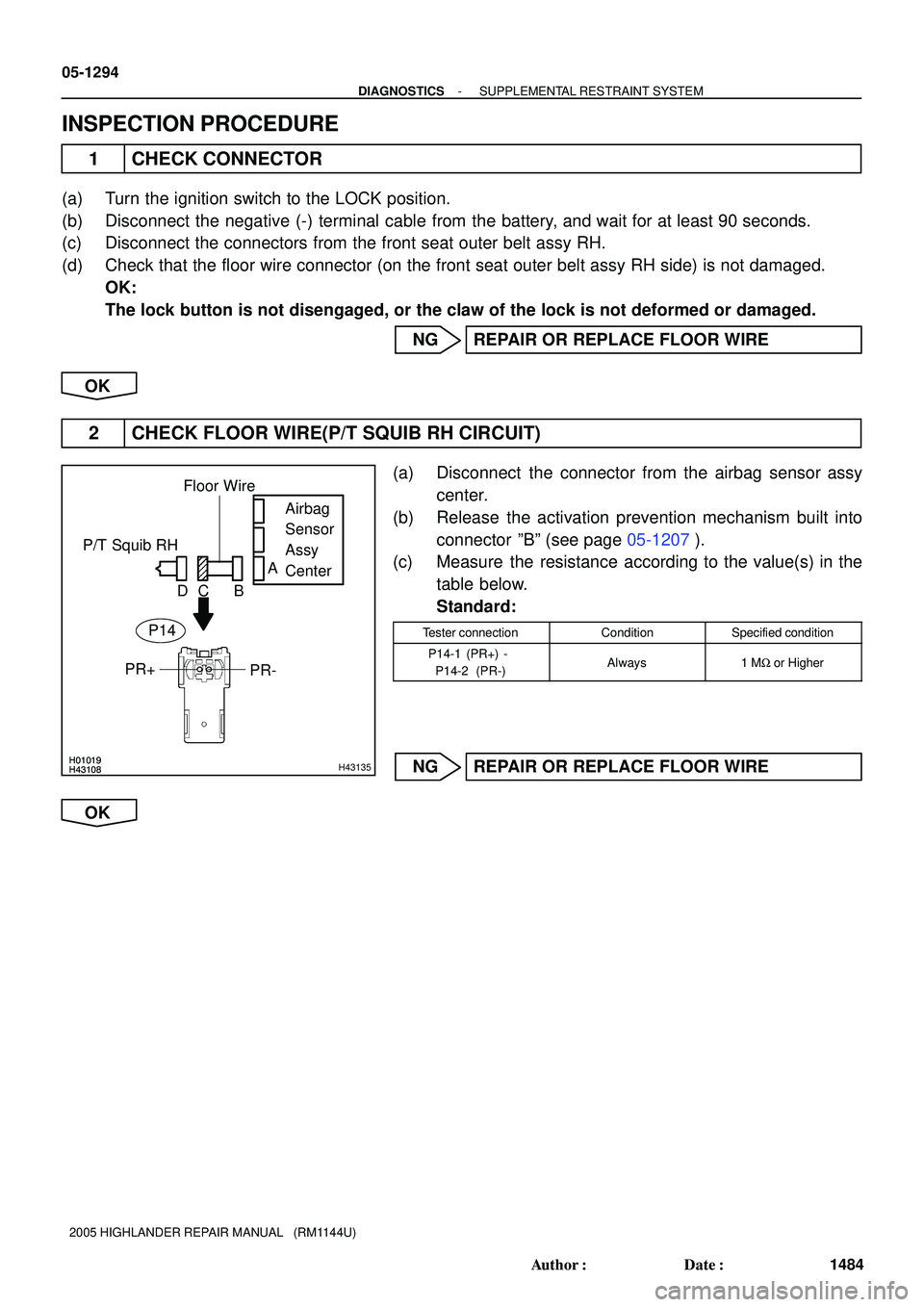

INSPECTION PROCEDURE
1 CHECK CONNECTOR
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the front seat outer belt assy RH.
(d) Check that the floor wire connector (on the front seat outer belt assy RH side) is not damaged.
OK:
The lock button is not disengaged, or the claw of the lock is not deformed or damaged.
NG REPAIR OR REPLACE FLOOR WIRE
OK
2 CHECK FLOOR WIRE(P/T SQUIB RH CIRCUIT)
(a) Disconnect the connector from the airbag sensor assy
center.
(b) Release the activation prevention mechanism built into
connector ºBº (see page 05-1207).
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
P14-1 (PR+) -
P14-2 (PR-)Always1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE
OK
Page 995 of 2572
H10600H01020H01082H10600H01020H01082H42114
P/T Squib RHAirbag
Sensor
Assy
Center
CG
TC DLC3
DTC B0130/63
C D
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1295
1485 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

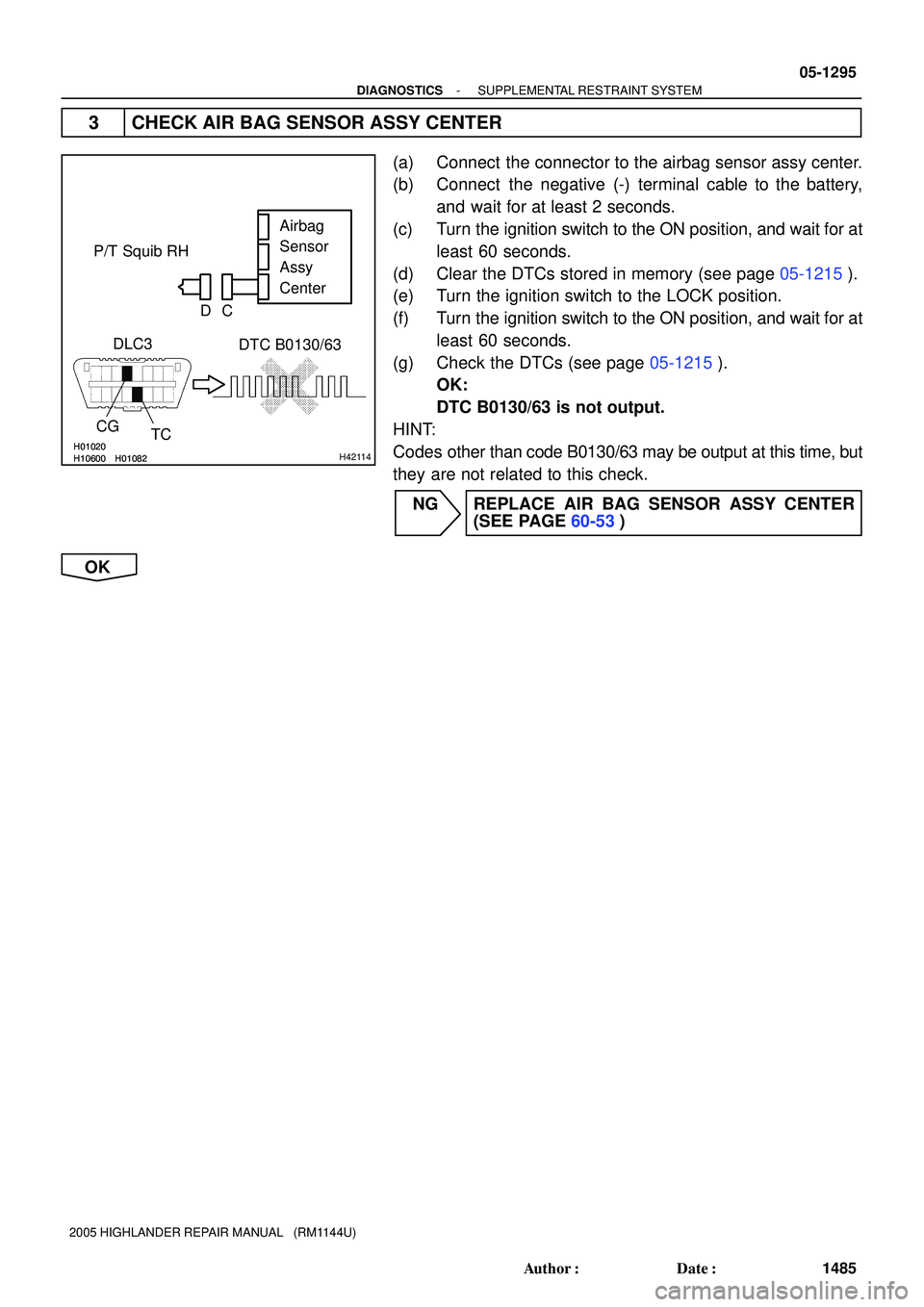

3 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(d) Clear the DTCs stored in memory (see page 05-1215).
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Check the DTCs (see page 05-1215).
OK:
DTC B0130/63 is not output.
HINT:
Codes other than code B0130/63 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 996 of 2572
H10600H01082H01021H10600H01082H01021H40050
DLC3
CG
TCDTC B0130/63
P/T Squib RHAirbag
Sensor
Assy
Center
C D
05-1296
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1486 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

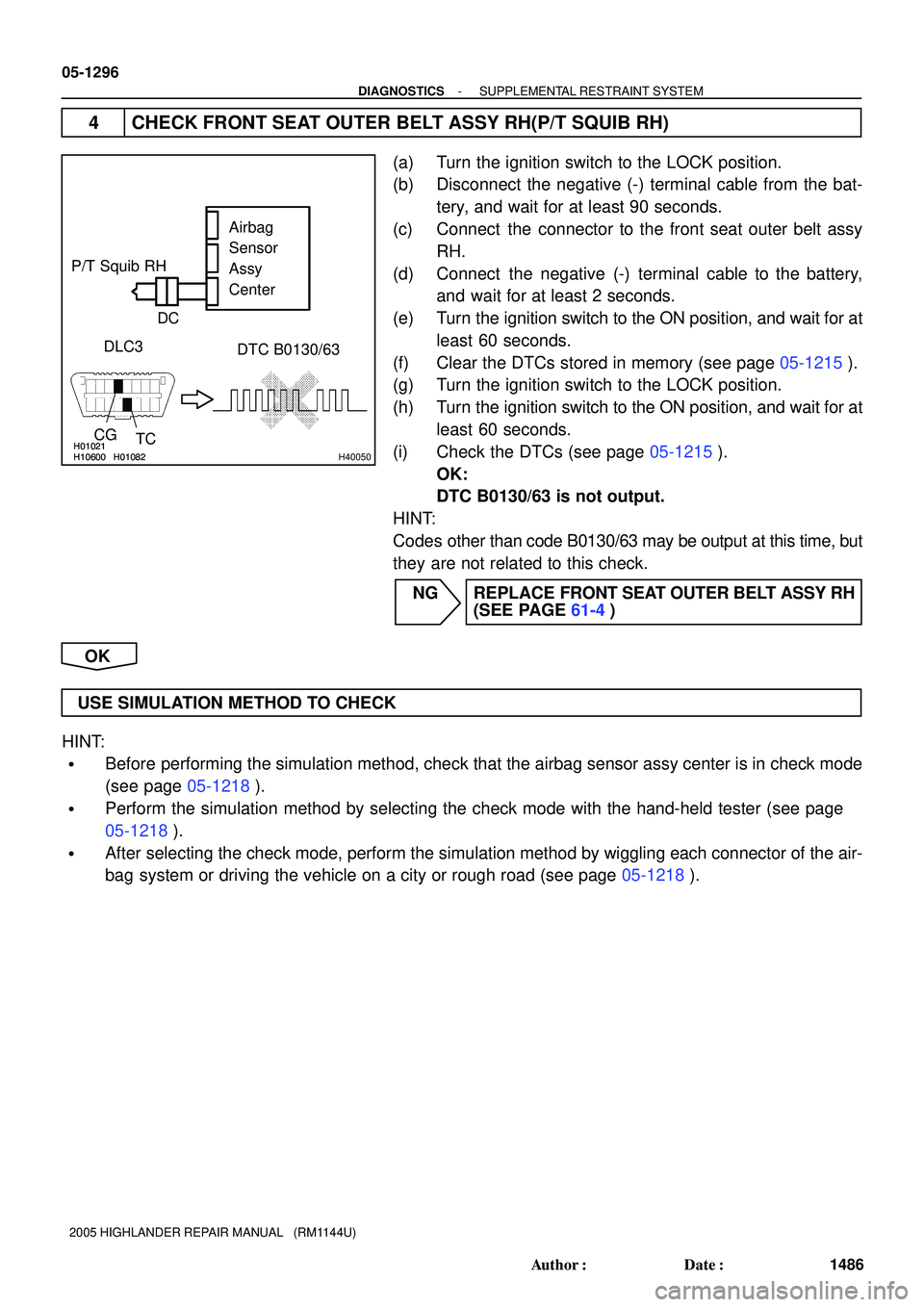

4 CHECK FRONT SEAT OUTER BELT ASSY RH(P/T SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the front seat outer belt assy
RH.
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(f) Clear the DTCs stored in memory (see page 05-1215).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(i) Check the DTCs (see page 05-1215).
OK:
DTC B0130/63 is not output.
HINT:
Codes other than code B0130/63 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT SEAT OUTER BELT ASSY RH
(SEE PAGE 61-4)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 997 of 2572
H01019H43108H01019H43108H43135
P/T Squib RHAirbag
Sensor
Assy
Center
PR- PR+
Floor Wire
A
B C
D
P14
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1297
1487 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

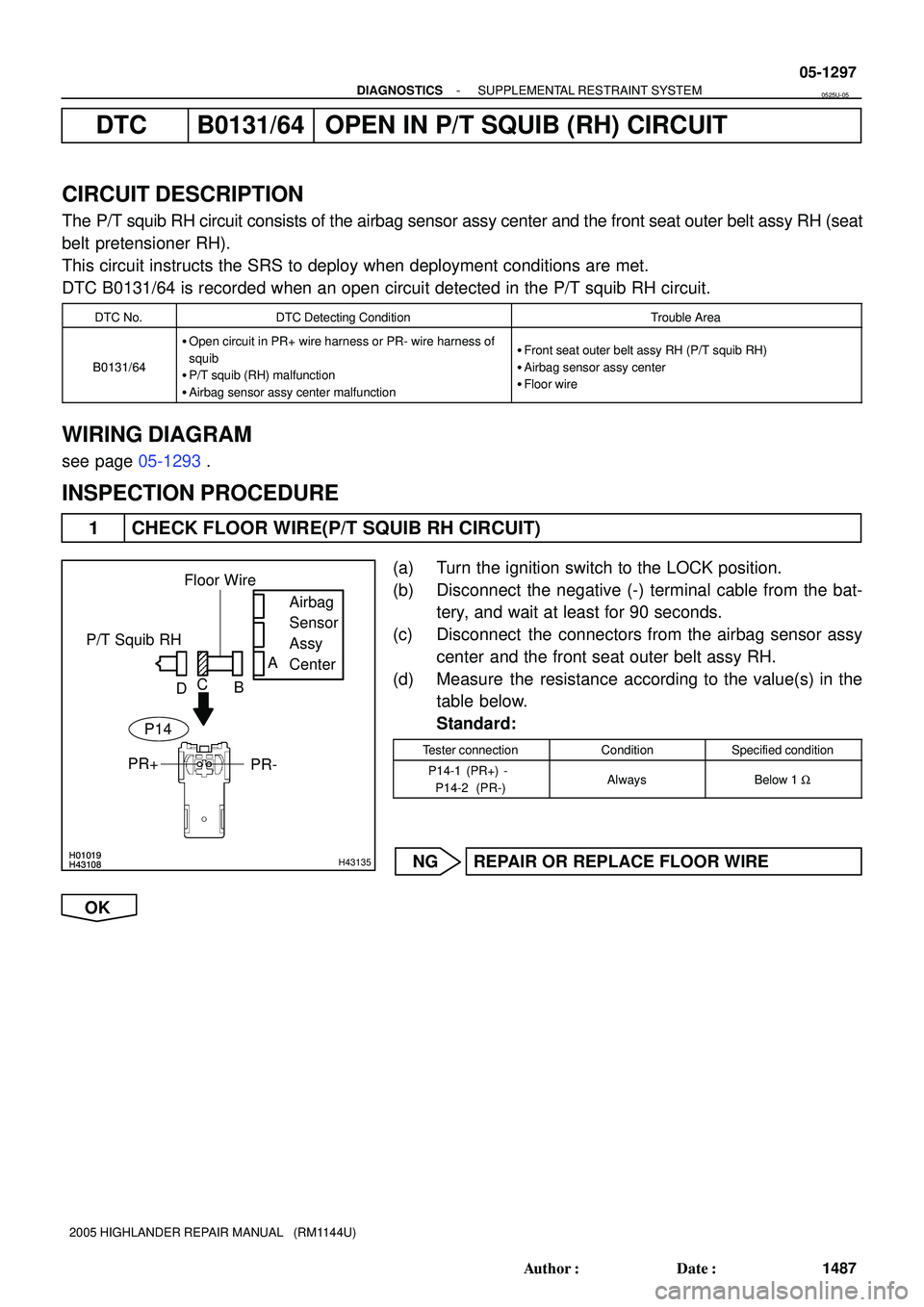

DTC B0131/64 OPEN IN P/T SQUIB (RH) CIRCUIT
CIRCUIT DESCRIPTION
The P/T squib RH circuit consists of the airbag sensor assy center and the front seat outer belt assy RH (seat
belt pretensioner RH).
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0131/64 is recorded when an open circuit detected in the P/T squib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0131/64
Open circuit in PR+ wire harness or PR- wire harness of
squib
P/T squib (RH) malfunction
Airbag sensor assy center malfunctionFront seat outer belt assy RH (P/T squib RH)
Airbag sensor assy center
Floor wire
WIRING DIAGRAM
see page 05-1293.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE(P/T SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait at least for 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the front seat outer belt assy RH.
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
P14-1 (PR+) -
P14-2 (PR-)AlwaysBelow 1 W
NG REPAIR OR REPLACE FLOOR WIRE
OK
0525U-05
Page 998 of 2572
H01020
H10600 H01083H43107H46293
P/T Squib (RH)
PR- PR+
DLC3
CG
TCDTC B0131/64
Airbag
Sensor
Assy
Center
DC
P14
05-1298
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1488 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

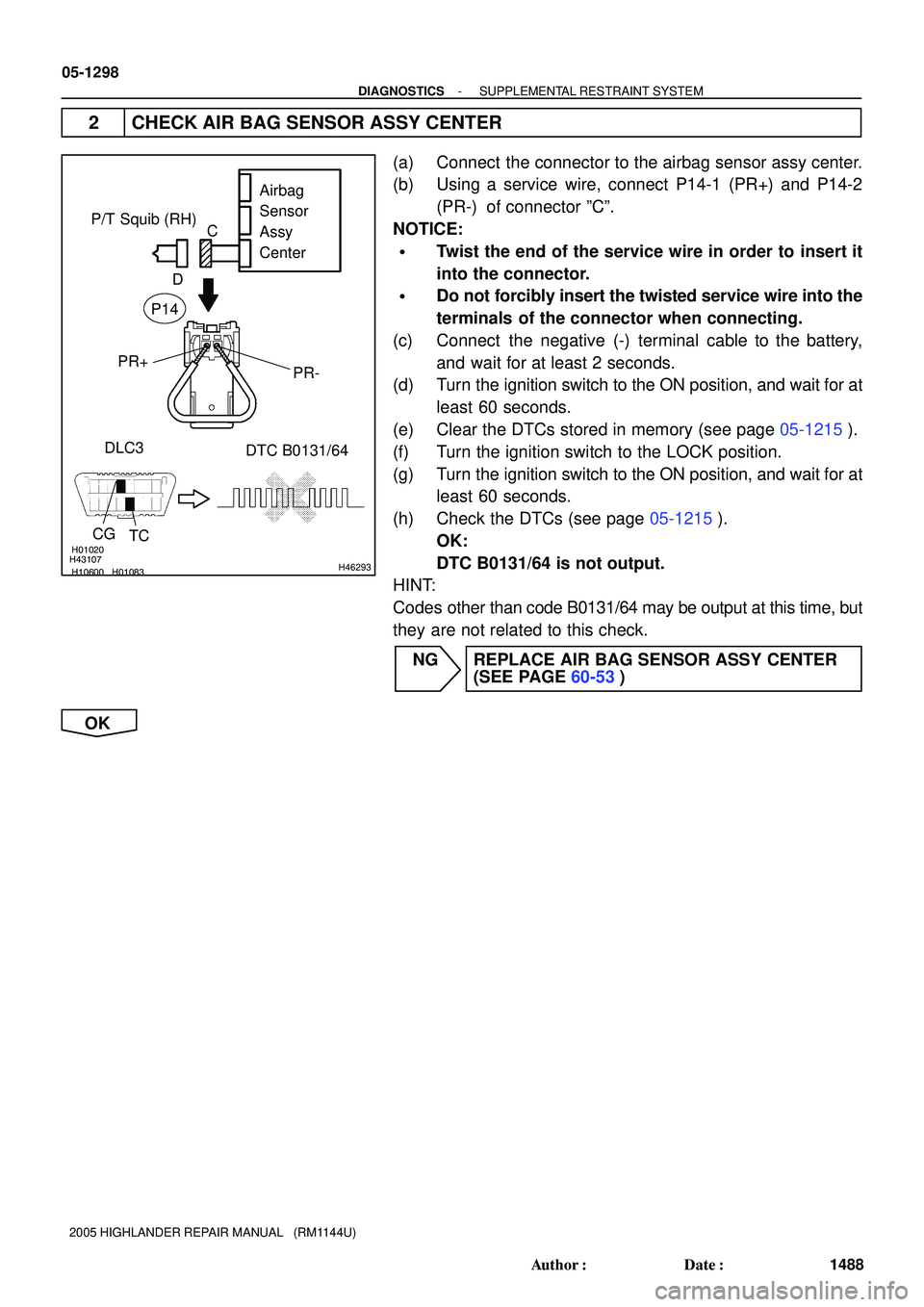

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect P14-1 (PR+) and P14-2
(PR-) of connector ºCº.
NOTICE:
Twist the end of the service wire in order to insert it
into the connector.
Do not forcibly insert the twisted service wire into the
terminals of the connector when connecting.
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
OK:
DTC B0131/64 is not output.
HINT:
Codes other than code B0131/64 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 999 of 2572
H10600 H01021H01083H10600
H01021H01083H40051
P/T Squib RH
DLC3
CG TCDTC B0131/64
Airbag
Sensor
Assy
Center
C D
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1299
1489 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

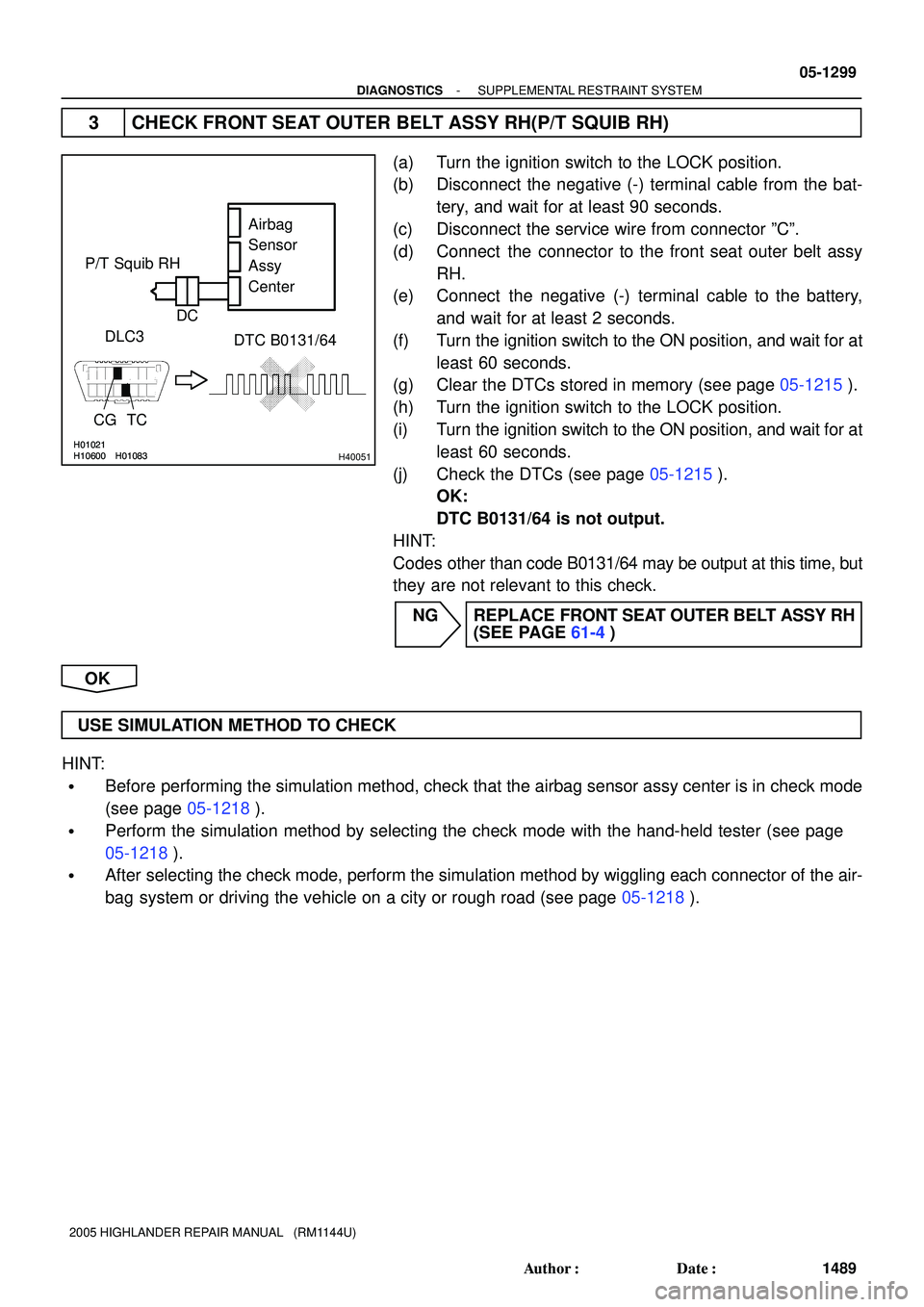

3 CHECK FRONT SEAT OUTER BELT ASSY RH(P/T SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the front seat outer belt assy
RH.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0131/64 is not output.
HINT:
Codes other than code B0131/64 may be output at this time, but
they are not relevant to this check.
NG REPLACE FRONT SEAT OUTER BELT ASSY RH
(SEE PAGE 61-4)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
