Page 949 of 2572
H01454
S18
Side Squib LHAirbag Sensor Assy Center
SFL+
SFL- Y-B
Y 1
211 12
A16
A16 (*1)
(*1)
*1: w/ Curtain Shield Airbag
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1275
1465 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

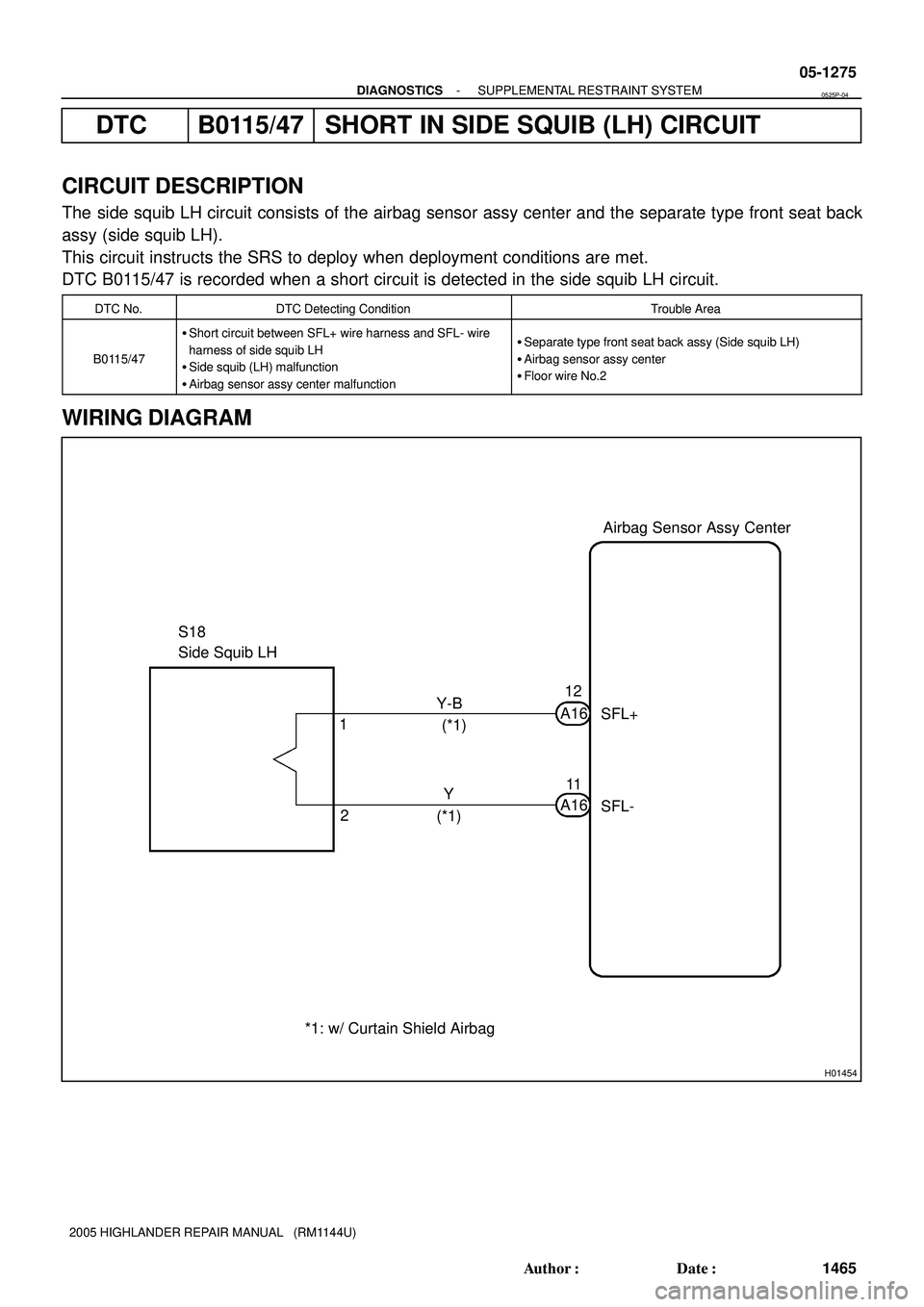

DTC B0115/47 SHORT IN SIDE SQUIB (LH) CIRCUIT
CIRCUIT DESCRIPTION
The side squib LH circuit consists of the airbag sensor assy center and the separate type front seat back
assy (side squib LH).
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0115/47 is recorded when a short circuit is detected in the side squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0115/47
Short circuit between SFL+ wire harness and SFL- wire
harness of side squib LH
Side squib (LH) malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib LH)
Airbag sensor assy center
Floor wire No.2
WIRING DIAGRAM
0525P-04
Page 950 of 2572
H01016H42497H01016H42497H42853
Side Squib LH
Airbag
Sensor
Assy
Center
SFL+
SFL-Floor Wire No.2
B C DA
S18
H01017H10600H01073H01017H10600H01073H01017H10600H01073H42153
Side Squib LH
Airbag
Sensor
Assy
Center
DLC3
CGTCDTC B0115/47
DC
05-1276
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1466 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

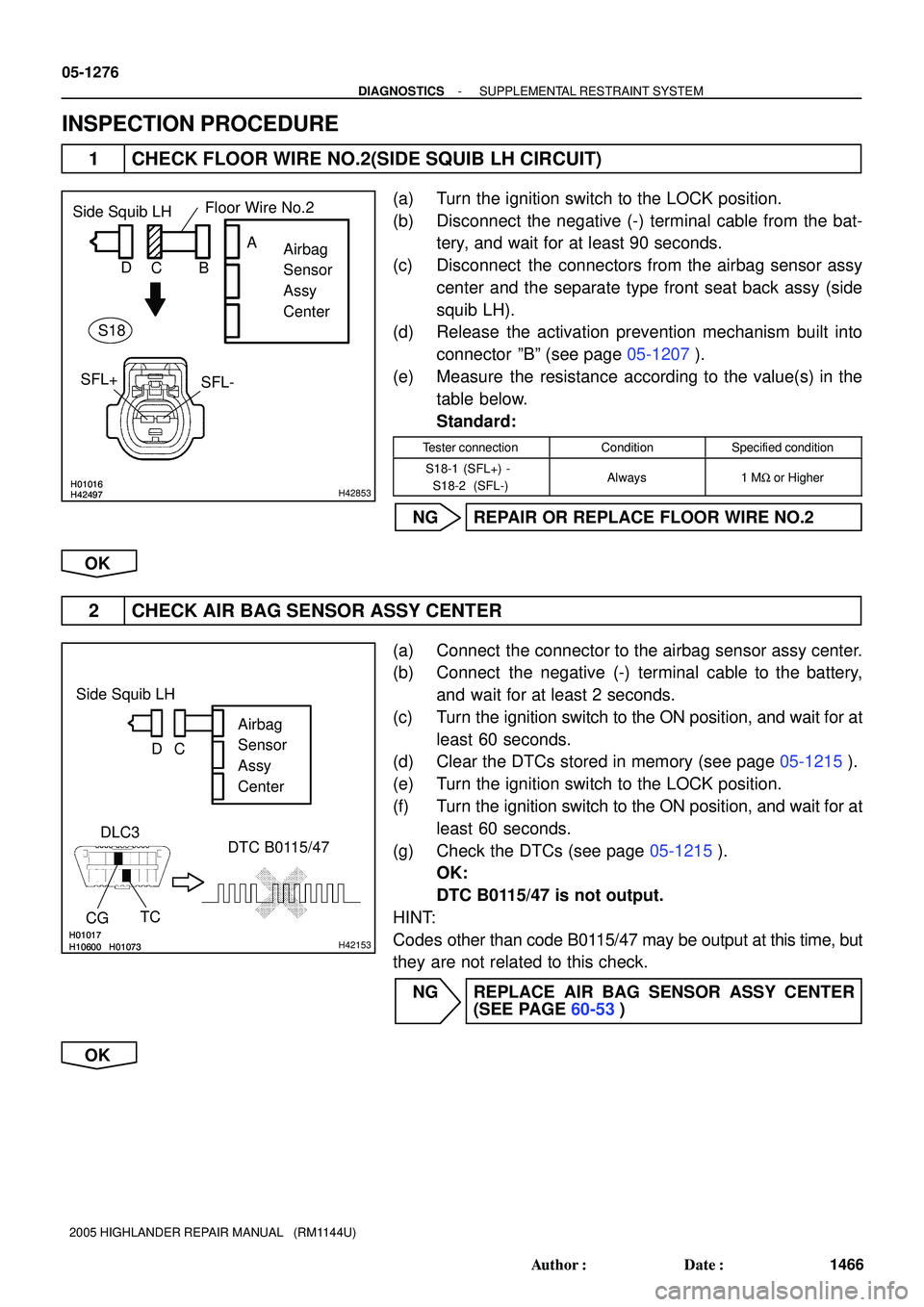

INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(SIDE SQUIB LH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the separate type front seat back assy (side
squib LH).
(d) Release the activation prevention mechanism built into
connector ºBº (see page 05-1207).
(e) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
S18-1 (SFL+) -
S18-2 (SFL-)Always1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(d) Clear the DTCs stored in memory (see page 05-1215).
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Check the DTCs (see page 05-1215).
OK:
DTC B0115/47 is not output.
HINT:
Codes other than code B0115/47 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 951 of 2572
H01018
H10600 H01073H01018
H10600 H01073H40988
Side Squib LH
DTC B0115/47 DLC3
TC CGAirbag
Sensor
Assy
Center DC
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1277
1467 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

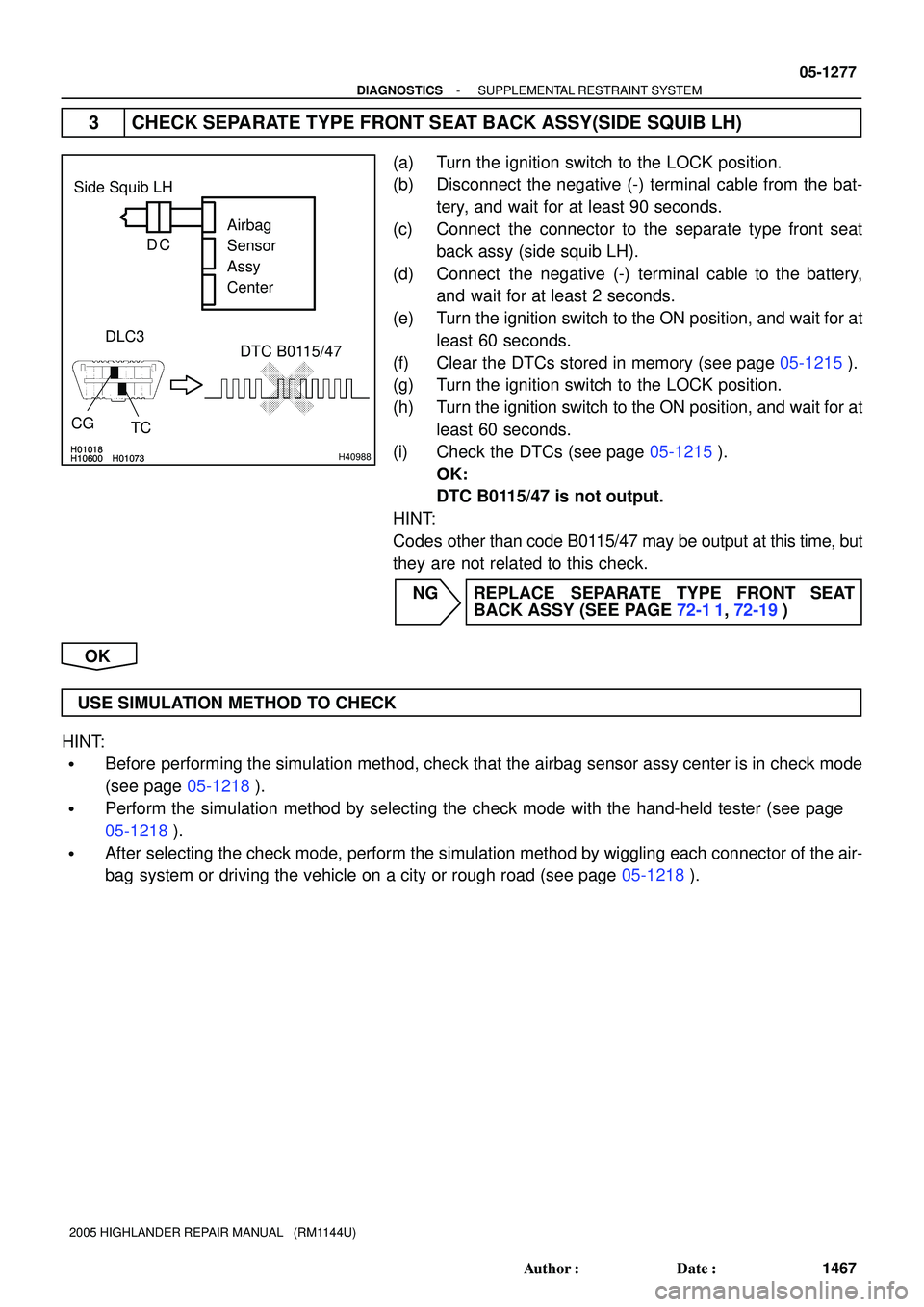

3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the separate type front seat
back assy (side squib LH).
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(f) Clear the DTCs stored in memory (see page 05-1215).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(i) Check the DTCs (see page 05-1215).
OK:
DTC B0115/47 is not output.
HINT:
Codes other than code B0115/47 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT
BACK ASSY (SEE PAGE 72-1 1, 72-19)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 952 of 2572
H01016H42497H01016H42497H42853
Side Squib LH
Airbag
Sensor
Assy
Center
SFL+
SFL-Floor Wire No.2
B C DA
S18
05-1278
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1468 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

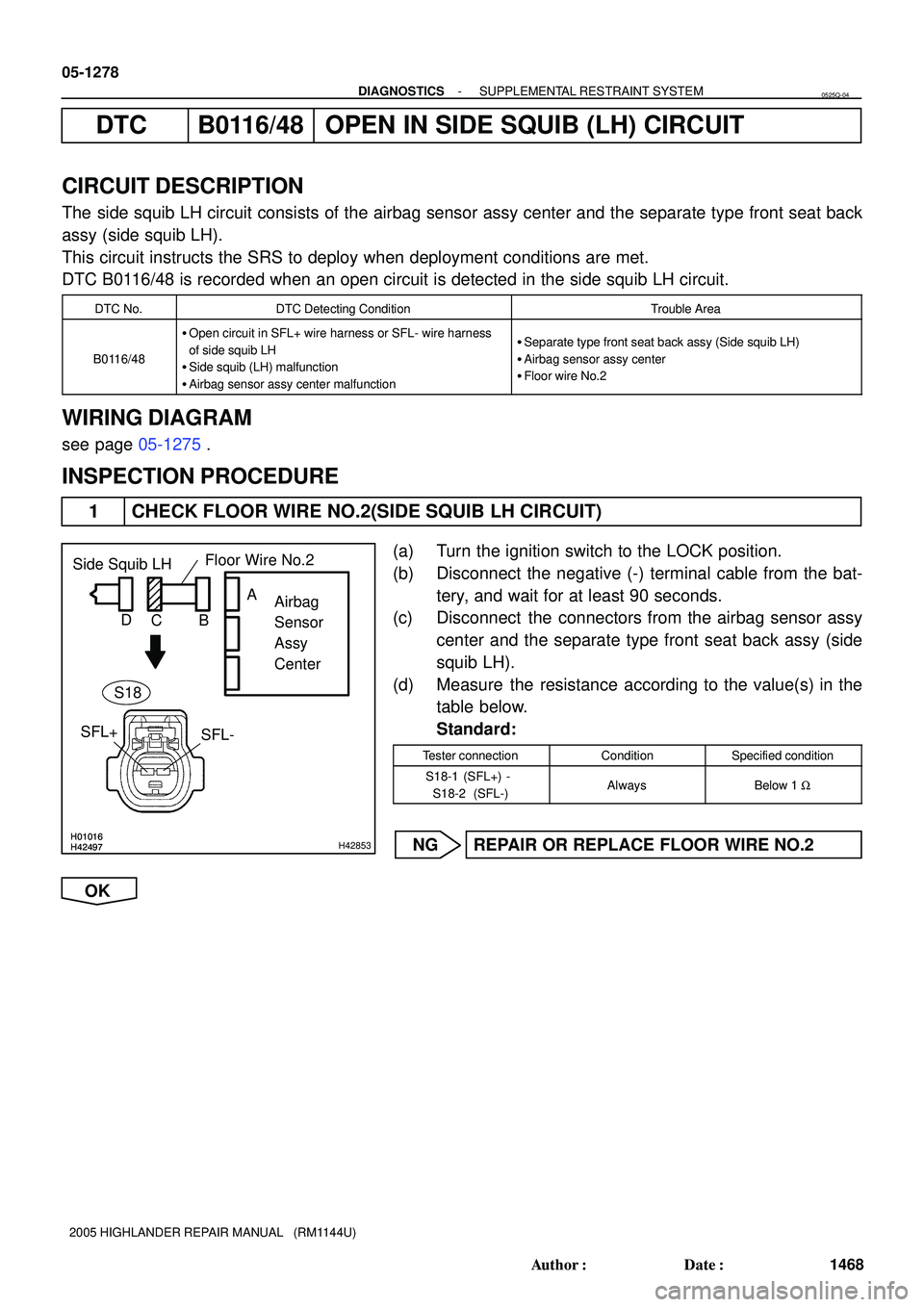

DTC B0116/48 OPEN IN SIDE SQUIB (LH) CIRCUIT
CIRCUIT DESCRIPTION
The side squib LH circuit consists of the airbag sensor assy center and the separate type front seat back
assy (side squib LH).
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0116/48 is recorded when an open circuit is detected in the side squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0116/48
Open circuit in SFL+ wire harness or SFL- wire harness
of side squib LH
Side squib (LH) malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib LH)
Airbag sensor assy center
Floor wire No.2
WIRING DIAGRAM
see page 05-1275.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(SIDE SQUIB LH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the separate type front seat back assy (side
squib LH).
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
S18-1 (SFL+) -
S18-2 (SFL-)AlwaysBelow 1 W
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
0525Q-04
Page 953 of 2572
H01017
H10600 H01074H42496H01017
H10600 H01074H42496H42854
Side Squib LH
CGDTC B0116/48 DLC3
TCAirbag
Sensor
Assy
Center
SFL+SFL-
Floor Wire No.2
Service Wire
C D
S18
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1279
1469 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

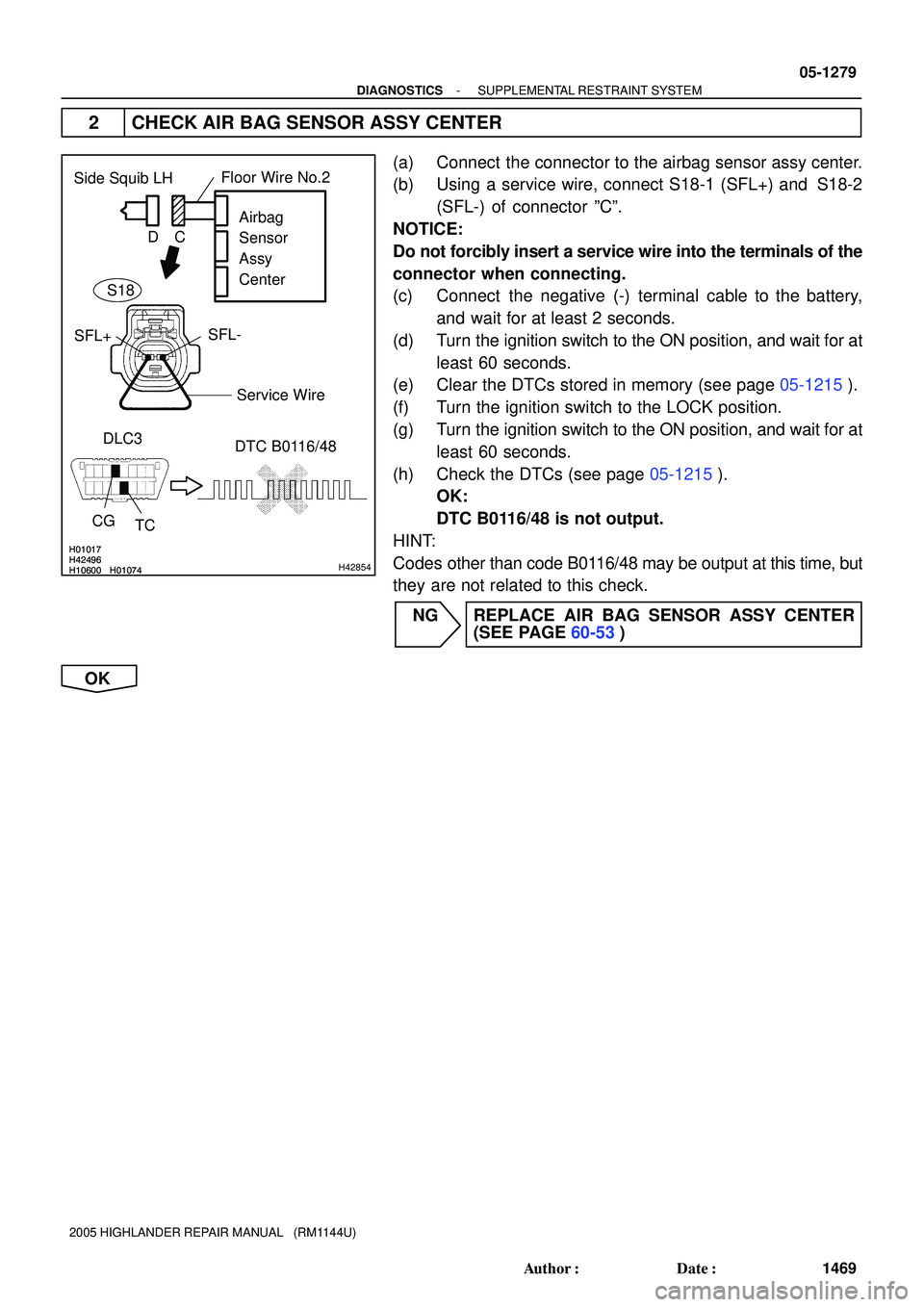

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect S18-1 (SFL+) and S18-2
(SFL-) of connector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminals of the
connector when connecting.
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
OK:
DTC B0116/48 is not output.
HINT:
Codes other than code B0116/48 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 954 of 2572
H01018
H10600 H01074H01018
H10600 H01074H40990
DLC3DTC B0116/48
TC CG Side Squib LH
Airbag
Sensor
Assy
Center C D
05-1280
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1470 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

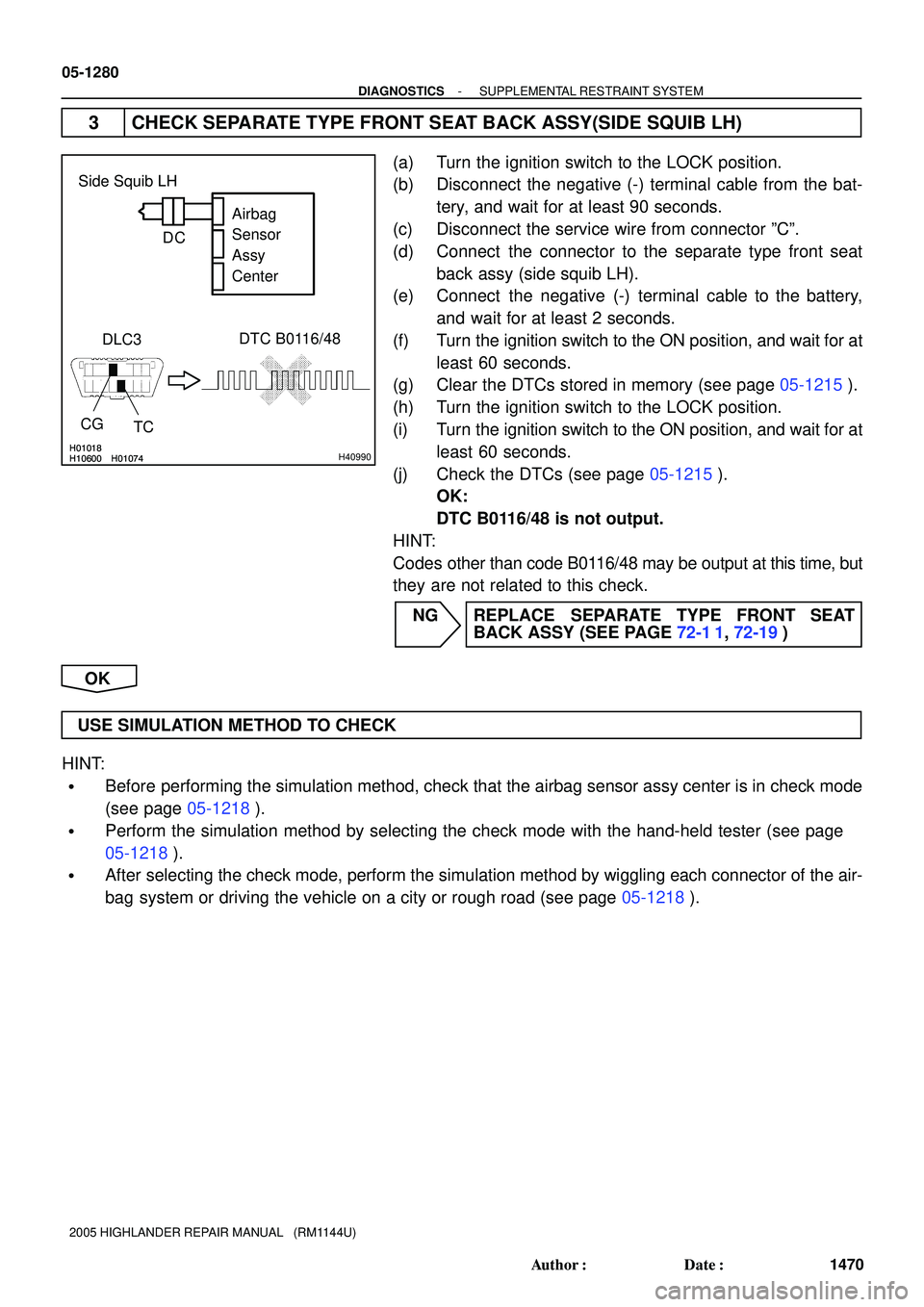

3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the separate type front seat
back assy (side squib LH).
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0116/48 is not output.
HINT:
Codes other than code B0116/48 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT
BACK ASSY (SEE PAGE 72-1 1, 72-19)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 955 of 2572
H01016H42497H01016H42497H42853
Side Squib LH
Airbag
Sensor
Assy
Center
SFL+Floor Wire No.2
B C DA
SFL-
S18
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1281
1471 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

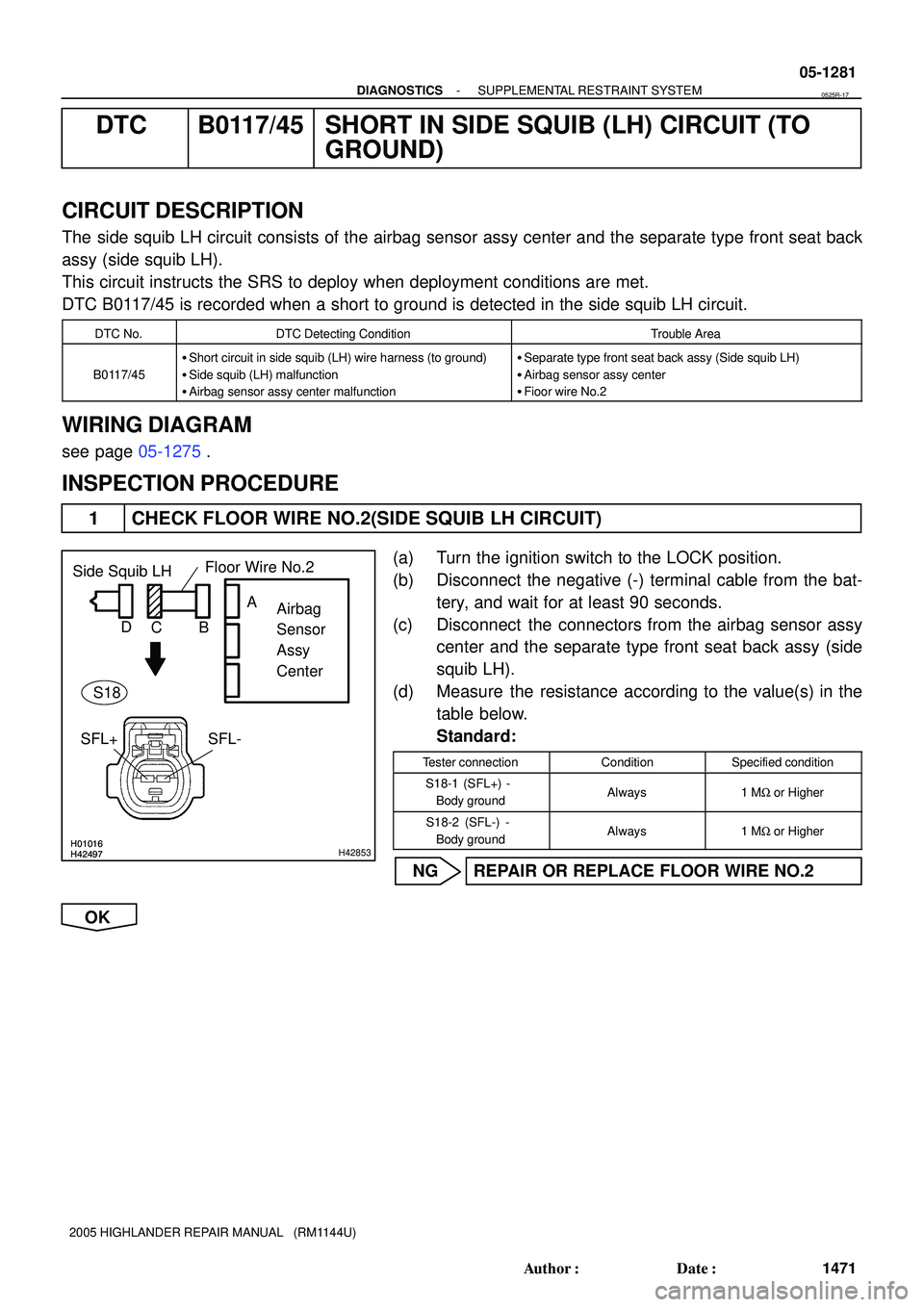

DTC B0117/45 SHORT IN SIDE SQUIB (LH) CIRCUIT (TO
GROUND)
CIRCUIT DESCRIPTION
The side squib LH circuit consists of the airbag sensor assy center and the separate type front seat back
assy (side squib LH).
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0117/45 is recorded when a short to ground is detected in the side squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0117/45
Short circuit in side squib (LH) wire harness (to ground)
Side squib (LH) malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib LH)
Airbag sensor assy center
Fioor wire No.2
WIRING DIAGRAM
see page 05-1275.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(SIDE SQUIB LH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the separate type front seat back assy (side
squib LH).
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
S18-1 (SFL+) -
Body groundAlways1 MW or Higher
S18-2 (SFL-) -
Body groundAlways1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
0525R-17
Page 956 of 2572
H01017
H10600 H01071H42496H01017
H10600 H01071H42496H42855
DLC3
CGTCDTC B0117/45Airbag
Sensor
Assy
Center Side Squib LH
SFL+
SFL-
Floor Wire No.2
Service Wire
C D
S18
05-1282
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1472 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

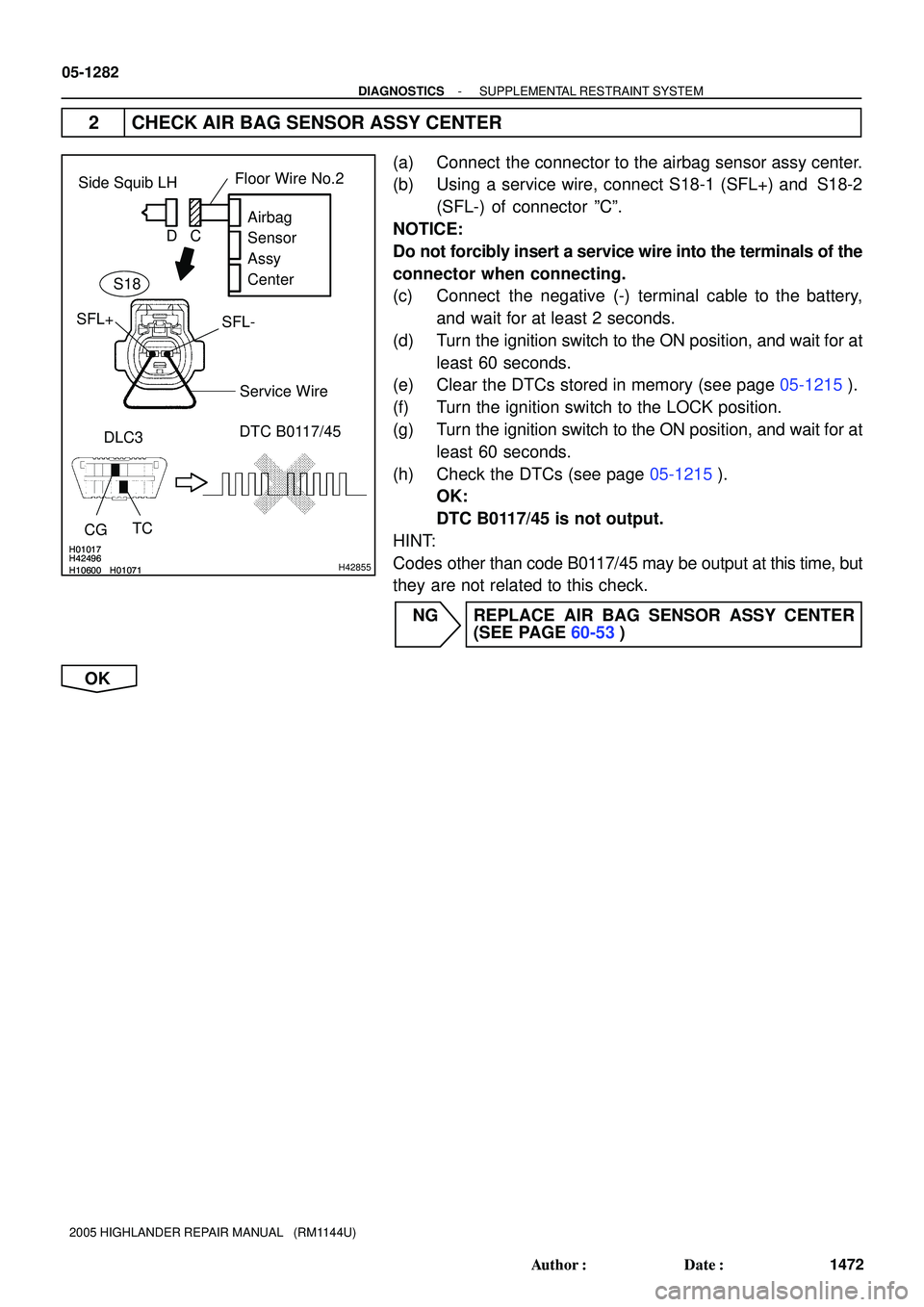

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect S18-1 (SFL+) and S18-2
(SFL-) of connector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminals of the
connector when connecting.
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
OK:
DTC B0117/45 is not output.
HINT:
Codes other than code B0117/45 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 957 of 2572
H01018
H10600 H01071H01018
H10600 H01071H40992
TC Side Squib LH
DTC B0117/45
DLC3
CGAirbag
Sensor
Assy
Center C D
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1283
1473 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

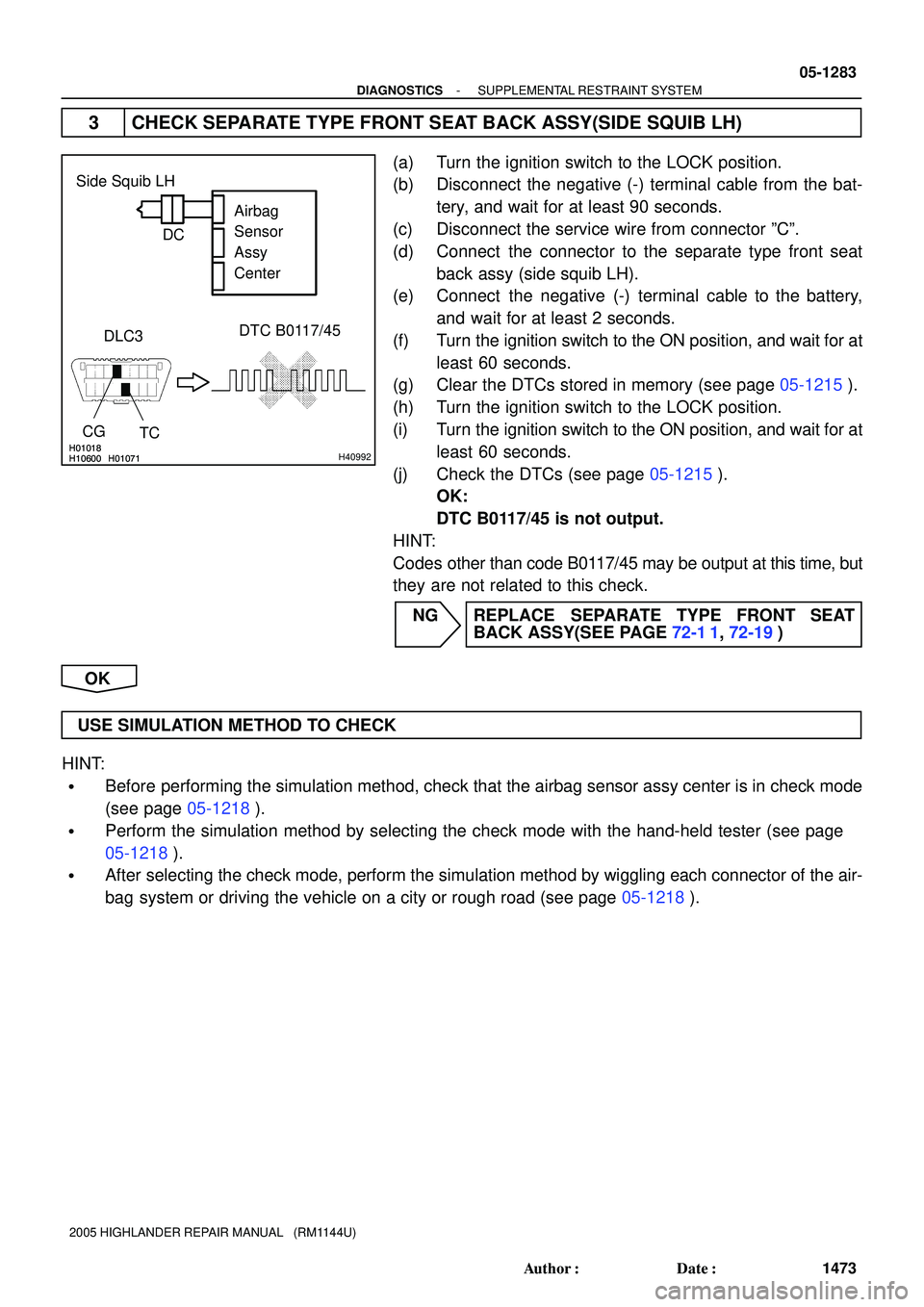

3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the separate type front seat
back assy (side squib LH).
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0117/45 is not output.
HINT:
Codes other than code B0117/45 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT
BACK ASSY(SEE PAGE 72-1 1, 72-19)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 958 of 2572
H01016H42497H01016H42497H42853
Side Squib LH
Airbag
Sensor
Assy
Center
SFL+Floor Wire No.2
B C DA
SFL-
S18
05-1284
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1474 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

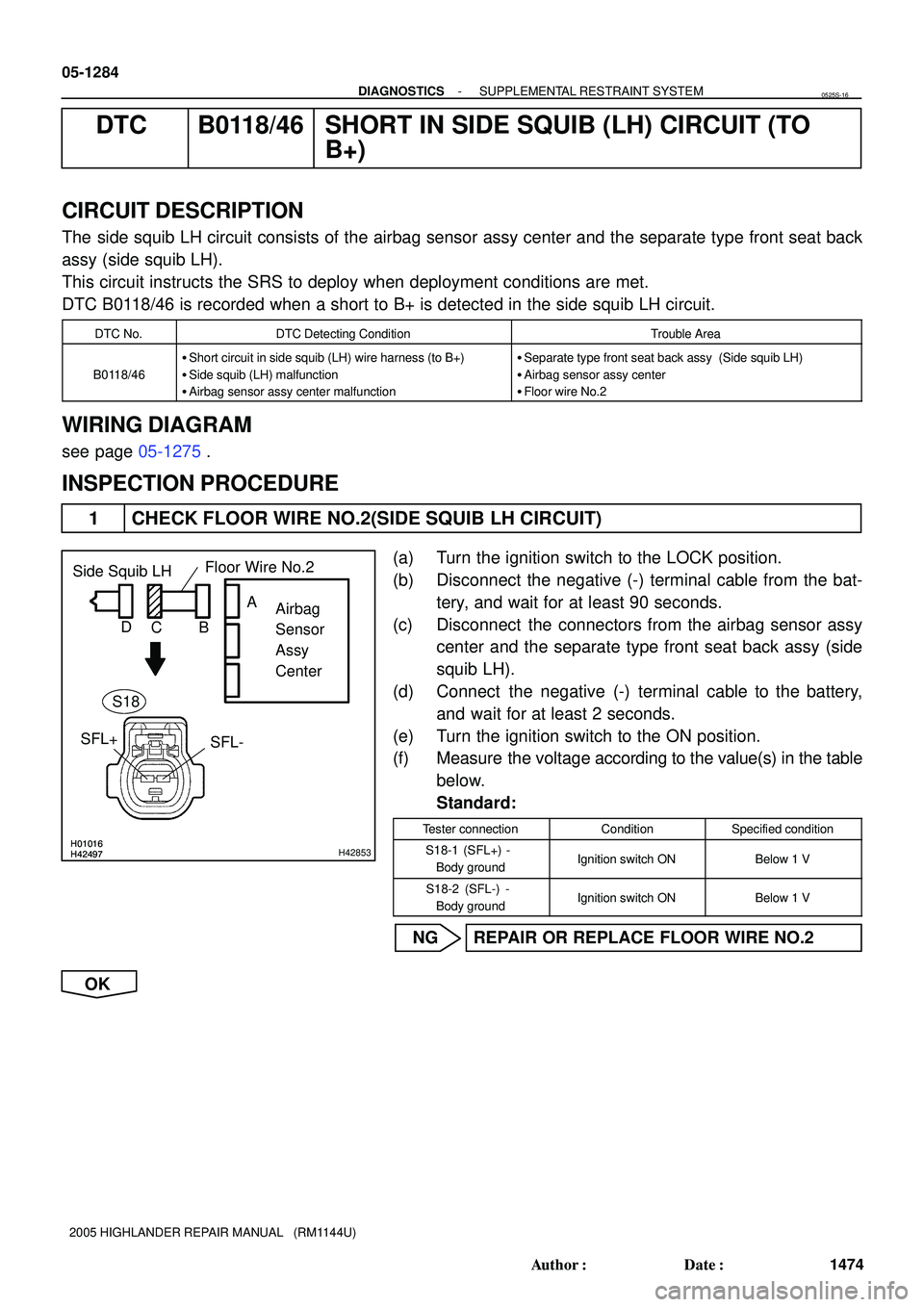

DTC B0118/46 SHORT IN SIDE SQUIB (LH) CIRCUIT (TO
B+)
CIRCUIT DESCRIPTION
The side squib LH circuit consists of the airbag sensor assy center and the separate type front seat back
assy (side squib LH).
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0118/46 is recorded when a short to B+ is detected in the side squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0118/46
Short circuit in side squib (LH) wire harness (to B+)
Side squib (LH) malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib LH)
Airbag sensor assy center
Floor wire No.2
WIRING DIAGRAM
see page 05-1275.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(SIDE SQUIB LH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the separate type front seat back assy (side
squib LH).
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
S18-1 (SFL+) -
Body groundIgnition switch ONBelow 1 V
S18-2 (SFL-) -
Body groundIgnition switch ONBelow 1 V
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
0525S-16
