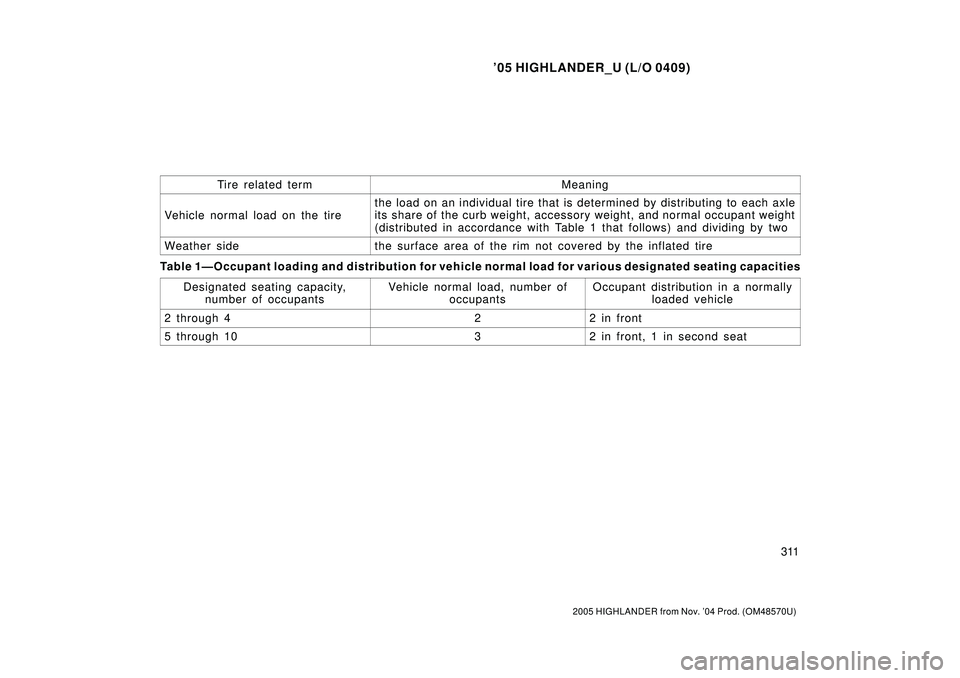

'05 HIGHLANDER_U (L/O 0409)
311
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Ti r e relat ed ter mMeaning
Vehicle normal load on the tire
the load on an individual tire that is determined by distributing to each axle
its share of the curb weight, accessory weight, and normal occupant weight
(distributed in accordance with Table 1 that follows) and dividing by two
Weather sidethe surface area of the rim not covered by the inflated tire
Table 1ÐOccupant loading and distribution for vehicle normal load for various designated seating capacities
Designated seating capacity,
number of occupants
Vehicle normal load, number of
occupantsOccupant distribution in a normally
loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
Page 42 of 2572

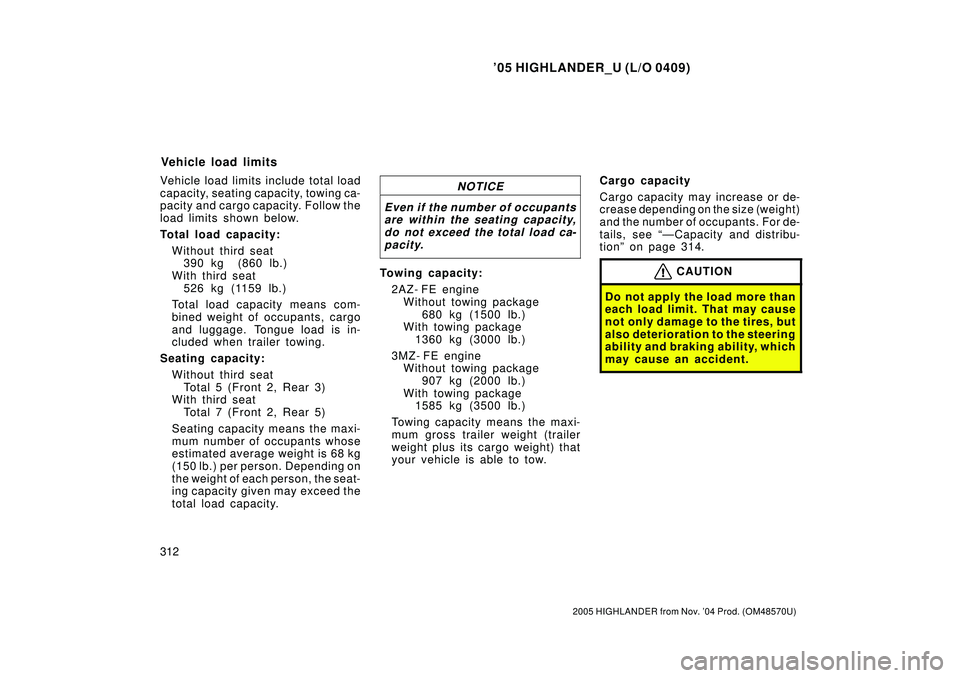

'05 HIGHLANDER_U (L/O 0409)
312
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Vehicle load limits include total load
capacity, seating capacity, towing ca-
pacity and cargo capacity. Follow the
load limits shown below.
Total load capacity:
Without third seat
390 kg (860 lb.)
With third seat
526 kg (1159 lb.)
Total load capacity means com-
bined weight of occupants, cargo
and luggage. Tongue load is in-
cluded when trailer towing.
Seating capacity:
Without third seat
Total 5 (Front 2, Rear 3)
With third seat
Total 7 (Front 2, Rear 5)
Seating capacity means the maxi-
mum number of occupants whose
estimated average weight is 68 kg
(150 lb.) per person. Depending on
the weight of each person, the seat-
ing capacity given may exceed the
total load capacity.NOTICE
Even if the number of occupants
are within the seating capacity,
do not exceed the total load ca-
pacity.
Towing capacity:
2AZ- FE engine
Without towing package
680 kg (1500 lb.)
With towing package
1360 kg (3000 lb.)
3MZ- FE engine
Without towing package
907 kg (2000 lb.)
With towing package
1585 kg (3500 lb.)
Towing capacity means the maxi-
mum gross trailer weight (trailer
weight plus its cargo weight) that
your vehicle is able to tow.Cargo capacity
Cargo capacity may increase or de-
crease depending on the size (weight)
and the number of occupants. For de-
tails, see ÐCapacity and distribu-
tionº on page 314.CAUTION
Do not apply the load more than
each load limit. That may cause
not only damage to the tires, but
also deterioration to the steering
ability and braking ability, which
may cause an accident.
Veh icle lo ad limit s
Page 43 of 2572

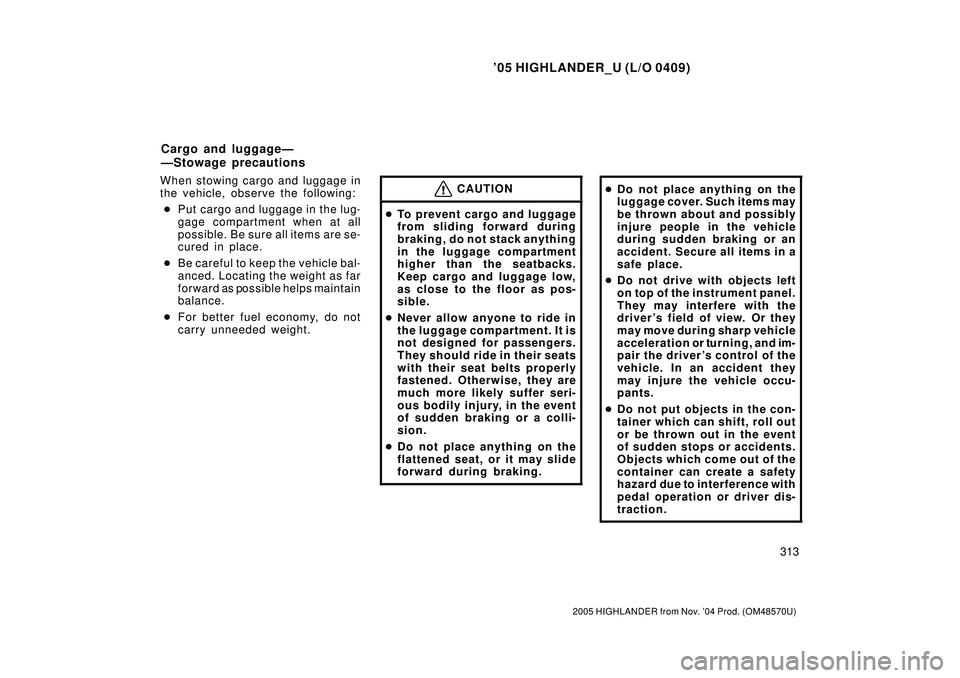

'05 HIGHLANDER_U (L/O 0409)
313
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
When stowing cargo and luggage in
the vehicle, observe the following:
Put cargo and luggage in the lug-
gage compartment when at all
possible. Be sure all items are se-
cured in place.
Be careful to keep the vehicle bal-
anced. Locating the weight as far
forward as possible helps maintain
balance.
For better fuel economy, do not
carry unneeded weight.CAUTION
To prevent cargo and luggage
from sliding forward during
braking, do not stack anything
in the luggage compartment
higher than the seatbacks.
Keep cargo and luggage low,
as close to the floor as pos-
sible.
Never allow anyone to ride in
the luggage compartment. It is
not designed for passengers.
They should ride in their seats
with their seat belts properly
fastened. Otherwise, they are
much more likely suffer seri-
ous bodily injury, in the event
of sudden braking or a colli-
sion.
Do not place anything on the
f l at t en ed seat , or it may sl i d e
forward during braking.
Do not place anything on the
luggage cover. Such items may
be thrown about and possibly
injure people in the vehicle
during sudden braking or an
accident. Secure all items in a
safe place.
Do not drive with objects left
on top of the instrument panel.
They may interfere with the
driver's field of view. Or they
may move during sharp vehicle
acceleration or turning, and im-
pair the driver's control of the
vehicle. In an accident they
may injure the vehicle occu-
pants.
Do not put objects in the con-
tainer which can shift, roll out
or be thrown out in the event
of sudden stops or accidents.
Objects which come out of the
container can create a safety
hazard due to interference with
pedal operation or driver dis-
traction.
Cargo and luggageÐ
ÐStowage precautions
Page 44 of 2572

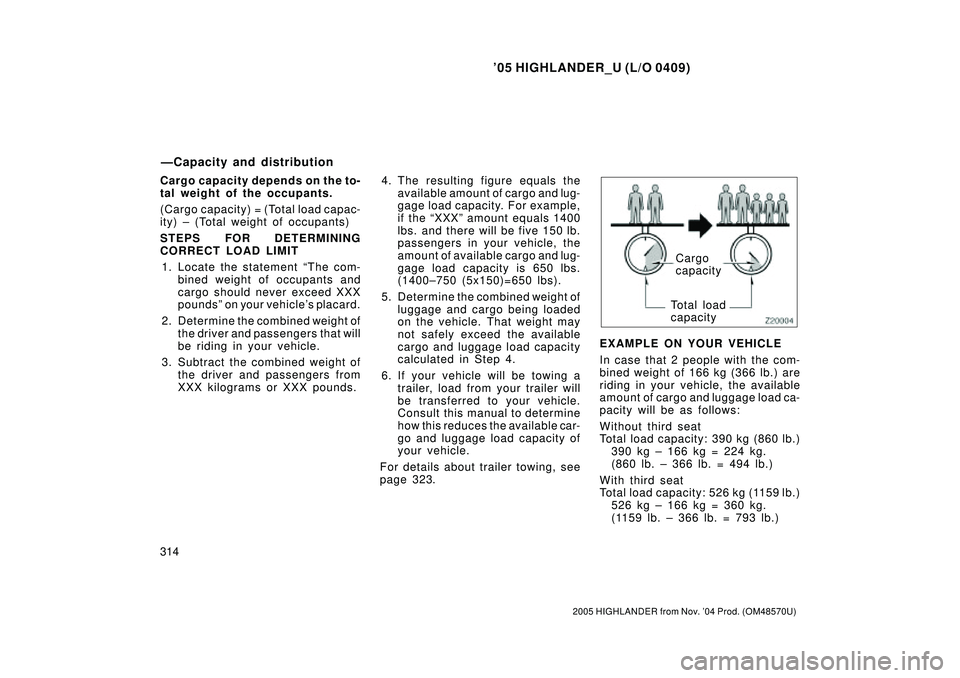

'05 HIGHLANDER_U (L/O 0409)
314
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Cargo capacity depends on the to-
tal weight of the occupants.
(Cargo capacity) = (Total load capac-
ity) ± (Total weight of occupants)
STEPS FOR DETERMINING
CORRECT LOAD LIMIT
1. Locate the statement The com-
bined weight of occupants and
cargo should never exceed XXX
poundsº on your vehicle's placard.
2. Determine the combined weight of
the driver and passengers that will
be riding in your vehicle.
3. Subtract the combined weight of
the driver and passengers from
XXX kilograms or XXX pounds.4. The resulting figure equals the
available amount of cargo and lug-
gage load capacity. For example,
if the XXXº amount equals 1400
lbs. and there will be five 150 lb.
passengers in your vehicle, the
amount of available cargo and lug-
gage load capacity is 650 lbs.
(1400±750 (5x150)=650 lbs).
5. Determine the combined weight of
luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity
calculated in Step 4.
6. If your vehicle will be towing a
trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available car-
go and luggage load capacity of
your vehicle.
For details about trailer towing, see
page 323.
Cargo
capacity
Total load
capacity
EXAMPLE ON YOUR VEHICLE
In case that 2 people with the com-
bined weight of 166 kg (366 lb.) are
riding in your vehicle, the available
amount of cargo and luggage load ca-
pacity will be as follows:
Without third seat
Total load capacity: 390 kg (860 lb.)
390 kg ± 166 kg = 224 kg.
( 860 lb. ± 366 lb. = 494 lb. )
With third seat
Total load capacity: 526 kg (1159 lb.)
526 kg ± 166 kg = 360 kg.
( 1159 lb. ± 366 lb. = 793 lb. )
ÐCapacity and distribution
Page 45 of 2572

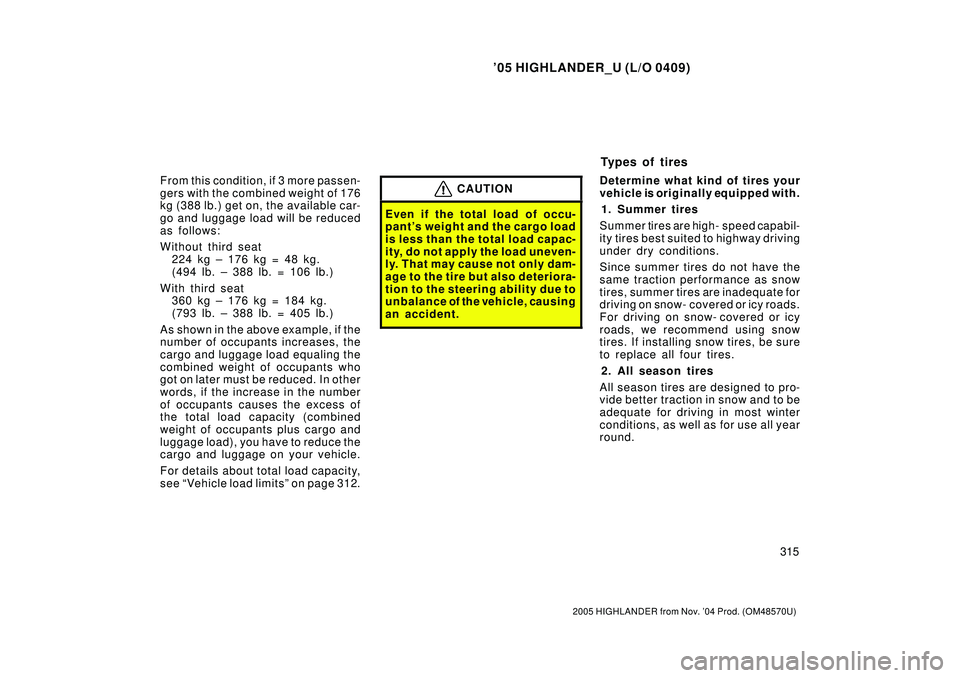

'05 HIGHLANDER_U (L/O 0409)
315
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
From this condition, if 3 more passen-
gers with the combined weight of 176
kg (388 lb.) get on, the available car-
go and luggage load will be reduced
as follows:
Without third seat
224 kg ± 176 kg = 48 kg.
( 494 lb. ± 388 lb. = 106 lb. )
With third seat
360 kg ± 176 kg = 184 kg.
( 793 lb. ± 388 lb. = 405 lb. )
As shown in the above example, if the
number of occupants increases, the
cargo and luggage load equaling the
combined weight of occupants who
got on later must be reduced. In other
words, if the increase in the number
of occupants causes the excess of
the total load capacity (combined
weight of occupants plus cargo and
luggage load), you have to reduce the
cargo and luggage on your vehicle.
For details about total load capacity,
see Vehicle load limitsº on page 312.CAUTION
Even if the total load of occu-
pant's weight and the cargo load
is less than the total load capac-
ity, do not apply the load uneven-
ly. That may cause not only dam-
age to the tire but also deteriora-
tion to the steering ability due to
unbalance of the vehicle, causing
an accident.
Determine what kind of tires your
vehicle is originally equipped with.
1. Summer tires
Summer tires are high- speed capabil-
ity tires best suited to highway driving
under dry conditions.
Since summer tires do not have the
same traction performance as snow
tires, summer tires are inadequate for
driving on snow- covered or icy roads.
For driving on snow- covered or icy
roads, we recommend using snow
tires. If installing snow tires, be sure
to replace all four tires.
2. All season tires
All season tires are designed to pro-
vide better traction in snow and to be
adequate for driving in most winter
conditions, as well as for use all year
round.
Types of tires
Page 46 of 2572

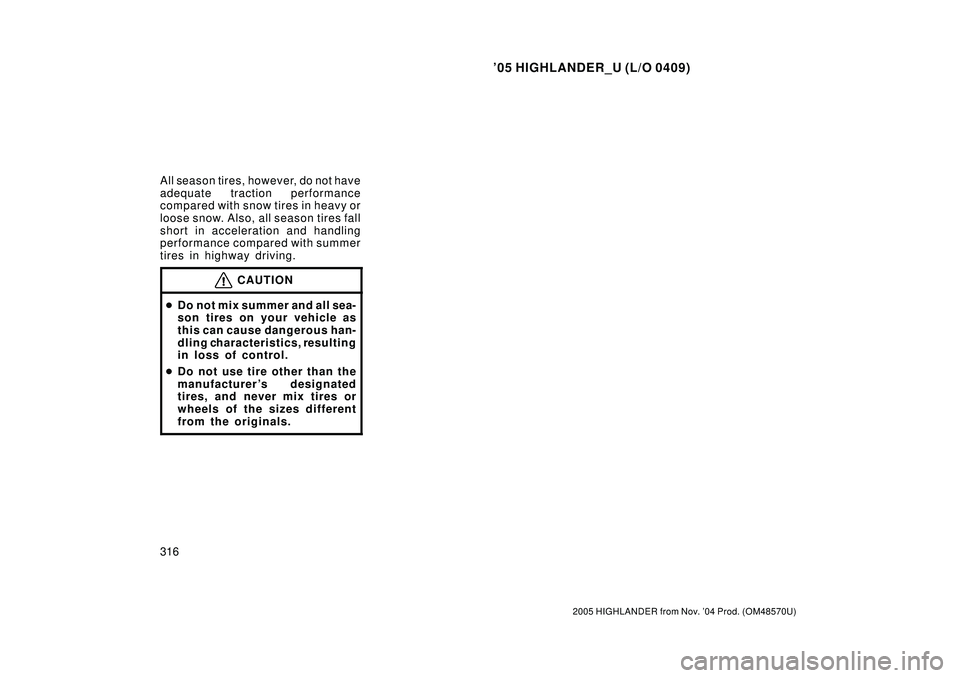

'05 HIGHLANDER_U (L/O 0409)
316
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
All season tires, however, do not have
adequate traction performance
compared with snow tires in heavy or
loose snow. Also, all season tires fall
short in acceleration and handling
performance compared with summer
tires in highway driving.
CAUTION
Do not mix summer and all sea-
son tires on your vehicle as
this can cause dangerous han-
dling characteristics, resulting
in loss of control.
Do not use tire other than the
manufacturer's designated
tires, and never mix tires or
wheels of the sizes different
from the originals.

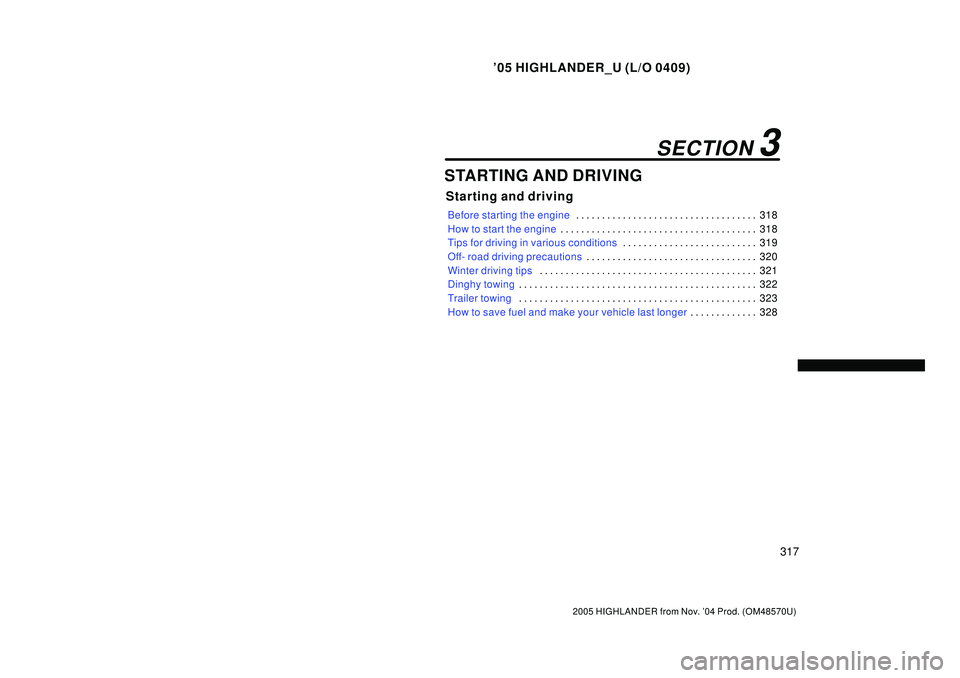

Page 47 of 2572
'05 HIGHLANDER_U (L/O 0409)
317
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
STARTING AND DRIVING
Starting and driving
Before starting the engine318 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine318 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

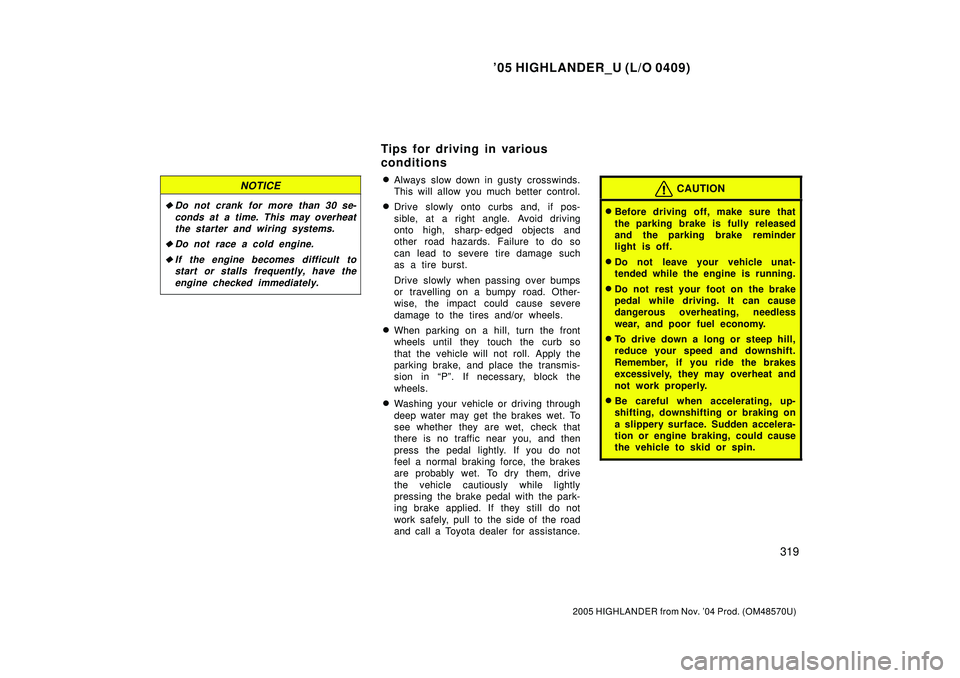

Tips for driving in various conditions319 . . . . . . . . . . . . . . . . . . . . . . . . . .

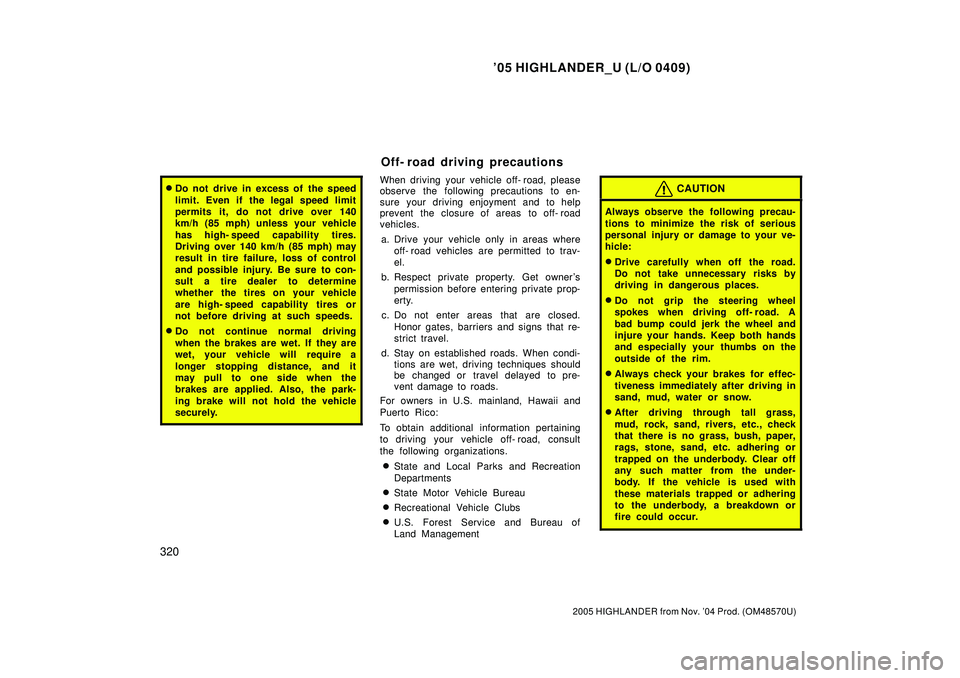

Off- road driving precautions320 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Winter driving tips321 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dinghy towing322 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer towing323 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to save fuel and make your vehicle last longer328 . . . . . . . . . . . . .
SECTION 3

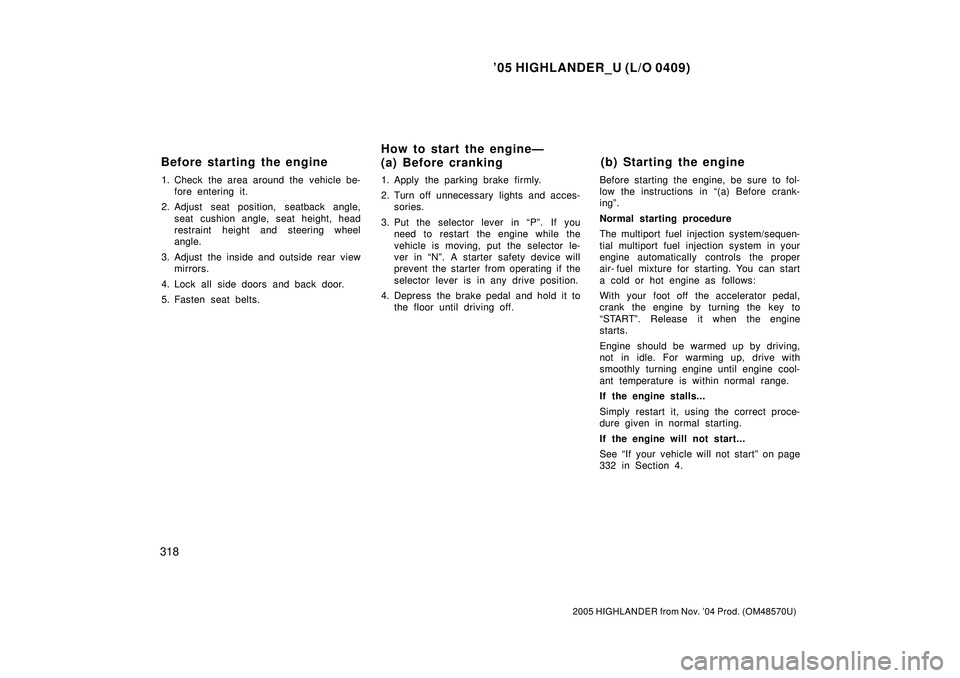

Page 48 of 2572
'05 HIGHLANDER_U (L/O 0409)
318
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
1. Check the area around the vehicle be-
fore entering it.
2. Adjust seat position, seatback angle,
seat cushion angle, seat height, head
restraint height and steering wheel
angle.
3. Adjust the inside and outside rear view
mirrors.
4. Lock all side doors and back door.
5. Fasten seat belts.1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces-
sories.
3. Put the selector lever in Pº. If you
need to restart the engine while the
vehicle is moving, put the selector le-
ver in Nº. A starter safety device will
prevent the starter from operating if the
selector lever is in any drive position.
4. Depress the brake pedal and hold it to
the floor until driving off.Before starting the engine, be sure to fol-
low the instructions in (a) Before crank-
ingº.
Normal starting procedure
The multiport fuel injection system/sequen-
tial multiport fuel injection system in your
engine automatically controls the proper
air- fuel mixture for starting. You can start
a cold or hot engine as follows:
With your foot off the accelerator pedal,
crank the engine by turning the key to
STARTº. Release it when the engine
starts.
Engine should be warmed up by driving,
not in idle. For warming up, drive with
smoothly turning engine until engine cool-
ant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start...
See If your vehicle will not startº on page
332 in Section 4.
Before starting the engineHow to start the engineÐ
(a) Before cranking(b) Starting the engine
Page 49 of 2572
'05 HIGHLANDER_U (L/O 0409)
319
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
NOTICE
Do not crank for more than 30 se-
conds at a time. This may overheat
the starter and wiring systems.
Do not race a cold engine.
If the engine becomes difficult to
start or stalls frequently, have the
engine checked immediately.
Always slow down in gusty crosswinds.
This will allow you much better control.
Drive slowly onto curbs and, if pos-
sible, at a right angle. Avoid driving
onto high, sharp- edged objects and
other road hazards. Failure to do so
can lead to severe tire damage such
as a tire burst.
Drive slowly when passing over bumps
or travelling on a bumpy road. Other-
wise, the impact could cause severe
damage to the tires and/or wheels.
When parking on a hill, turn the front
wheels until they touch the curb so
that the vehicle will not roll. Apply the
parking brake, and place the transmis-
sion in Pº. If necessary, block the
wheels.
Washing your vehicle or driving through
deep water may get the brakes wet. To
see whether they are wet, check that
there is no traffic near you, and then
press the pedal lightly. If you do not
feel a normal braking force, the brakes
are probably wet. To dry them, drive
the vehicle cautiously while lightly
pressing the brake pedal with the park-
ing brake applied. If they still do not
work safely, pull to the side of the road
and call a Toyota dealer for assistance.
CAUTION
Before driving off, make sure that
the parking brake is fully released
and the parking brake reminder
light is off.
Do not leave your vehicle unat-
tended while the engine is running.
Do not rest your foot on the brake
pedal while driving. It can cause
dangerous overheating, needless
wear, and poor fuel economy.
To drive down a long or steep hill,
reduce your speed and downshift.
Remember, if you ride the brakes
excessively, they may overheat and
not work properly.
Be careful when accelerating, up-
shifting, downshifting or braking on
a slippery surface. Sudden accelera-
tion or engine braking, could cause
the vehicle to skid or spin.
Tips for driving in various
conditions
Page 50 of 2572
'05 HIGHLANDER_U (L/O 0409)
320
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Do not drive in excess of the speed
limit. Even if the legal speed limit
permits it, do not drive over 140
km/h (85 mph) unless your vehicle
has high- speed capability tires.
Driving over 140 km/h (85 mph) may
result in tire failure, loss of control
and possible injury. Be sure to con-
sult a tire dealer to determine
whether the tires on your vehicle
are high- speed capability tires or
not before driving at such speeds.
Do not continue normal driving
when the brakes are wet. If they are
wet, your vehicle will require a
longer stopping distance, and it
may pull to one side when the
brakes are applied. Also, the park-
ing brake will not hold the vehicle
securely.
When driving your vehicle off- road, please
observe the following precautions to en-
sure your driving enjoyment and to help
prevent the closure of areas to off- road
vehicles.
a. Drive your vehicle only in areas where
off- road vehicles are permitted to trav-
el.
b. Respect private property. Get owner 's
permission before entering private prop-
erty.
c. Do not enter areas that are closed.
Honor gates, barriers and signs that re-
strict travel.
d. Stay on established roads. When condi-
tions are wet, driving techniques should
be changed or travel delayed to pre-
vent damage to roads.
For owners in U.S. mainland, Hawaii and
Puerto Rico:
To obtain additional information pertaining
to driving your vehicle off- road, consult
the following organizations.
State and Local Parks and Recreation
Departments
State Motor Vehicle Bureau
Recreational Vehicle Clubs
U.S. Forest Service and Bureau of
Land Management
CAUTION
Always observe the following precau-
tions to minimize the risk of serious
personal injury or damage to your ve-
hicle:
Drive carefully when off the road.
Do not take unnecessary risks by
driving in dangerous places.
Do not grip the steering wheel
spokes when driving off- road. A
bad bump could jerk the wheel and
injure your hands. Keep both hands
and especially your thumbs on the
outside of the rim.
Always check your brakes for effec-
tiveness immediately after driving in
sand, mud, water or snow.
After driving through tall grass,
mud, rock, sand, rivers, etc., check
that there is no grass, bush, paper,
rags, stone, sand, etc. adhering or
trapped on the underbody. Clear off
any such matter from the under-
body. If the vehicle is used with
these materials trapped or adhering
to the underbody, a breakdown or
fire could occur.
Off- road driving precautions
