Page 21 of 60
19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

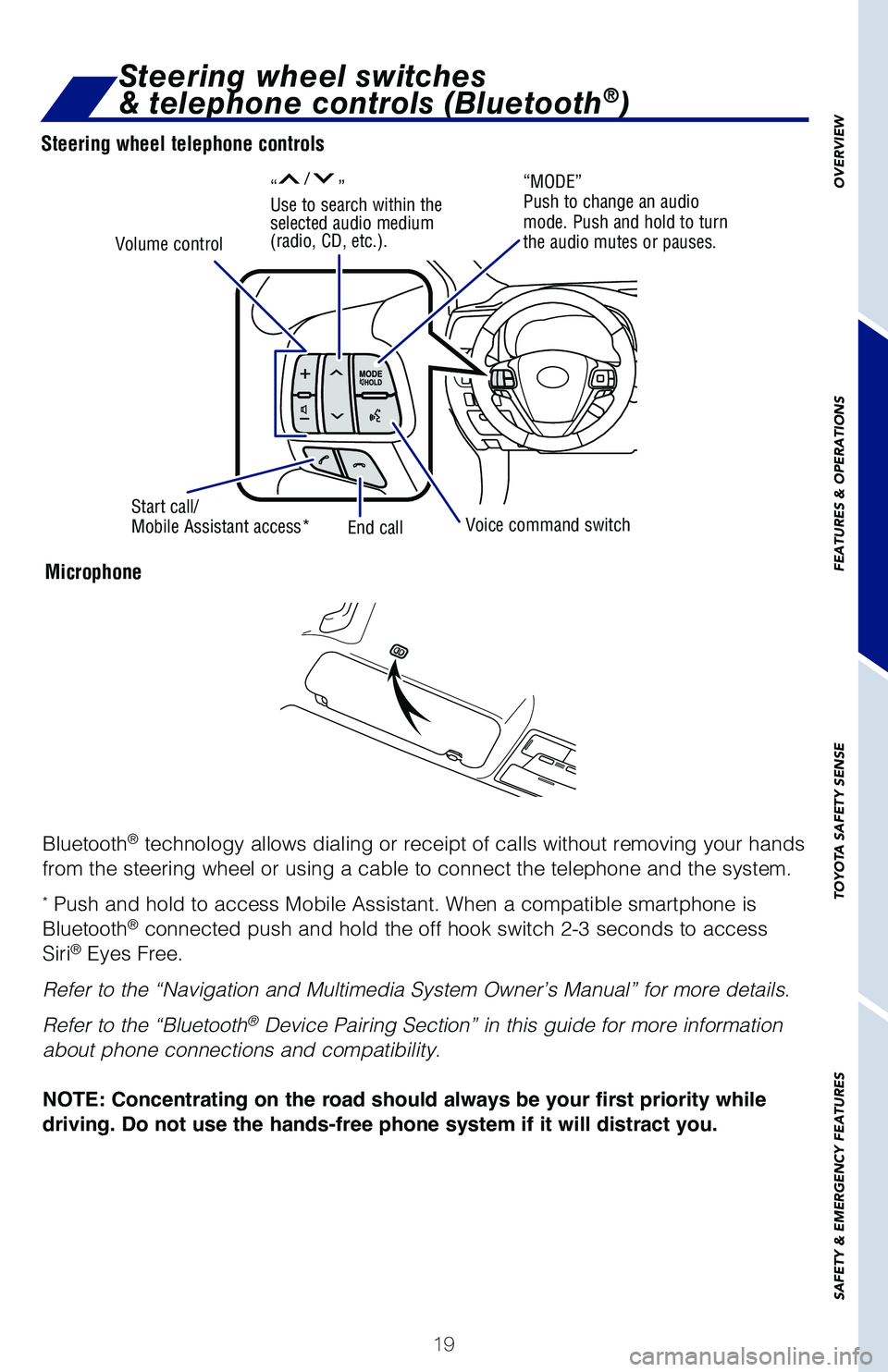

Microphone
Steering wheel telephone controls
Bluetooth
® technology allows dialing or receipt of calls without removing your hands
from the steering wheel or using a cable to connect the telephone and the system.
* Push and hold to access Mobile Assistant. When a compatible smartphone is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.
Refer to the “Navigation and Multimedia System Owner’s Manual” for more details.
Refer to the “Bluetooth® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the hands-free phone system if it will distract you.
Volume control
End callVoice command switch
Start call/
Mobile Assistant access*
Steering wheel switches
& telephone controls (Bluetooth®)
“MODE”
Push to change an audio
mode. Push and hold to turn
the audio mutes or pauses.
“/”
Use to search within the
selected audio medium
(radio, CD, etc.).
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 198/14/18 1:22 AM
Page 22 of 60
20
For more information, refer to the “Navigation and Multimedia System Owner’s
Manual” and “2019 Entune™ Audio Quick Reference Guide.”
Seek station/
CD track select
Eject CD
Push to turn
ON/OFF Turn to tune
radio stations
manually or
select tracks or
files
Access
hands-free
system
* The Entune App Suite may not be pre-installed in your vehicle. In order to activate the Entune App
Suite, download and launch the Entune app on your smartphone, connect the phone to the vehicle via
Bluetooth®, and open the Entune™ App on the phone and sign in. Press the “Apps” button on the audio
unit and accept the prompt to update the Apps. The download process will take up to 15 minutes, and
when it is complete, follow the
on-screen prompts to complete installation. Once the update is complete,
the available Apps will be listed on the Apps menu screen.
** LE models have “SETUP” button while LE Plus models have “APPS” button.
SETUP Button**
Access to Setup screen.
APPS Button
Access to Entune
® App Suite, sports, stocks, news,
traffic, weather and driver easy speak.
HOME SCREEN - the home screen offers a two
panel and a three panel layout. Information and
layout will vary depending on selected set up. Map card insert
(Entune™ Premium
Audio only
AUDIO Button
Access to audio
functions.
AUDIO Button
Access to audio
functions. CAR Button
Access to vehicle
information screen.
HOME/Button
Access to home
screen.
ENTUNE PREMIUM (JBL®) AUDIO WITH INTEGRATED NAVIGATION
AND APP SUITE* Limited models may be equipped with the JBL upgrade in this unit.
Audio
ENTUNE™ AUDIO PLUS
ENTUNE™ AUDIO
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
Visually match your vehicle’s Entune
TM audio system to one featured in this
guide for the most accurate information.
FEATURES & OPERATIONS
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 208/14/18 1:22 AM
Page 23 of 60
21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

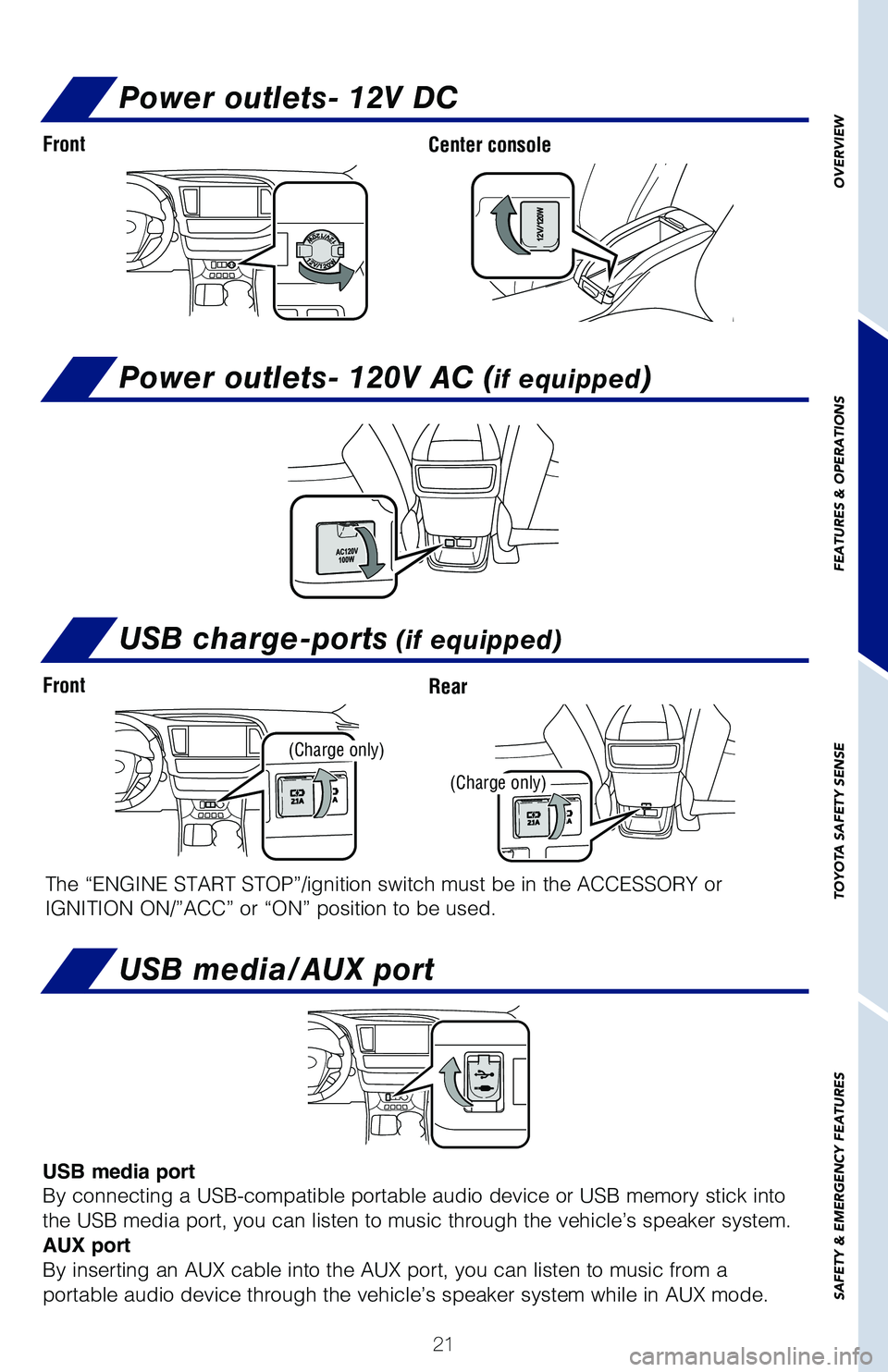

Power outlets- 12V DC
Power outlets- 120V AC (if equipped)
The “ENGINE START STOP”/ignition switch must be in the ACCESSORY or
IGNITION ON/”ACC” or “ON” position to be used.
Front
Front
Center console
Rear
USB charge-ports (if equipped)
(Charge only)
(Charge only)
USB media/AUX port
USB media port
By connecting a USB-compatible portable audio device or USB memory stick\� into
the USB media port, you can listen to music through the vehicle’s spe\�aker system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 218/14/18 1:22 AM
Page 24 of 60
22
Rear window and
outside rear view
mirror defogger Front windshield
airflow/defogger
Front windshield
airflow/defogger“SYNC” button*
Fan OFF Temperature selector dial
Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically.
*Indicator ON: Synchronize temperature settings for driver and all passengers.
Indicator OFF: Separate temperature settings for driver, front passenger and rear
passengers. Air Conditioning ON/OFF
Air Conditioning ON/OFF
Lower airflow mode
Dual airflow mode
Upper airflow mode
Recirculate cabin air
(outside air when OFF)
Rear window and outside
rear view mirror defogger
Lower airflow mode and
window defoggerRear Air Conditioning ON/OFF
Rear Air Conditioning ON/OFF
Temperature selector (rear)
Temperature selector
Airflow mode selector
Fan speed
Fan speed Recirculate cabin air
(outside air when OFF)
Air conditioning/heating
FRONT AUTOMATIC AIR CONDITIONING (IF EQUIPPED)
FRONT MANUAL AIR CONDITIONING (IF EQUIPPED)
FEATURES & OPERATIONS
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 228/14/18 1:22 AM
Page 25 of 60
23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Automatic
Manual
Fan speed Fan speed Fan OFF
Fan OFF Airflow mode selector
Airflow mode selector Automatic mode selector
Temperature selector
Temperature selector
REAR AIR CONDITIONING (IF EQUIPPED)
Steering wheel-Heater (if equipped)
The “ENGINE START STOP”/ignition switch must be in the ACCESSORY or
IGNITION ON/”ACC” or “ON” position to be used.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 238/14/18 1:22 AM
Page 26 of 60
24
FEATURES & OPERATIONSSeat heaters/ventilators
Hi temperature
OFF switch
Low temperature
Hi temperature
OFF switch
Low temperature
Turn the seat heater on and adjust the number, the higher the number, th\�e warmer
the seat becomes.
Driver’s seatDriver’s seat Front
passenger’s seat
Front
passenger’s seat
Seat heaters/ventilators
Seat heaters
FRONT SEAT HEATERS AND VENTILATORS (IF EQUIPPED)
SECOND ROW SEAT HEATERS (IF EQUIPPED)
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 248/14/18 1:22 AM
Page 27 of 60
25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Refer to section 7-1 of the Navigation and Multimedia System Owner’s \�Manual for
more information.
This feature utilizes the vehicle’s built-in microphone to amplify th\�e driver’s voice
through the rear speakers. To activate this feature, select “Driver E\�asy Speak” from
the Apps screen on the audio unit. The feature must be turned on every t\�ime you
enter the vehicle, and automatically turns off when any door (including the liftgate) is
opened. There are 7 volume settings.
Audio System Rear seat entertainment
system (DVD player)
Remote controlAV input port
Rear seat entertainment system (if equipped)
Driver Easy Speak (if equipped)
Garage door opener (HomeLink®)* (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\�.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manua\�l for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink ®
is a registered trademark of Gentex Corporation.
HomeLink® indicator light
ButtonsGarage door operation indicator
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 258/14/18 1:22 AM
Page 28 of 60
26
FEATURES & OPERATIONS
Intelligent parking assist (if equipped)
Rear
center sensor
Corner sensors
(front, if quipped)
Corner sensors
(rear)
Corner sensors
(front, if quipped)
Corner sensors (rear)
The parking assist sonar system operates when the vehicle approaches an \�
obstacle. The distance from your vehicle to nearby obstacles when parall\�el parking
or maneuvering into a garage is measured by sensors and communicated via\� the
Multi-Information Display (MID), the navigation system screen and audible beeps.
When the sensor detects an obstacle, the direction of and the approximat\�e
distance to the obstacle are displayed on the MID display or the navigat\�ion system
screen by illuminating continuously (far) or blinking (near), and beeping sounds will
switch from intermittent to continuous as you approach and get closer to\� a detected
obstacle. When the sensors detect two or more obstacles, the audible ale\�rts will
respond to the nearest zone.
Always check the surrounding area when using this system.
Refer to section Intuitive parking assist in the Navigation and Multimed\�ia System
Owner’s Manual for more details.
Multi-Information Display (MID)
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 268/14/18 1:22 AM
Page 29 of 60
27
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling in the
Highlander’s blind spot and advises the driver of the vehicles’ presence via the
outside rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
Indicator
Multi-Information
Display
RCTA function
display Rear Cross Traffic Alert buzzer
Outside rear view mirror indicators
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Rear view monitor system (if equipped)
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual and Navigation and Multimedia System Owner’s
Manual for limitations and more details on this system.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 278/14/18 1:22 AM
Page 30 of 60
28
FEATURES & OPERATIONS
See-through view switchMoving view switch
Rotation pause switch
Rotation pause switch
The Bird’s Eye View Camera with Perimeter Scan function assists the d\�river in
viewing the surroundings, when operating at low speeds or parking, by co\�mbining
front, side and rear cameras and displaying an overhead image on the Ent\�une™
screen.
To view or turn OFF the screen, press the camera switch when the shift l\�ever is in
the “P” position. It will display two angles, the Moving view and \�the See Through
view.
For limitations and more details, refer to section 6-3 in the “Naviga\�tion and
Multimedia System Owner’s Manual.”
Moving viewSee through view
Bird’s Eye View Camera
with Perimeter Scan Function
(if equipped)
