TOYOTA HIGHLANDER 2019 (in English) Service Manual
Manufacturer: TOYOTA, Model Year: 2019, Model line: HIGHLANDER, Model: TOYOTA HIGHLANDER 2019Pages: 60, PDF Size: 5.33 MB
Page 41 of 60
39
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

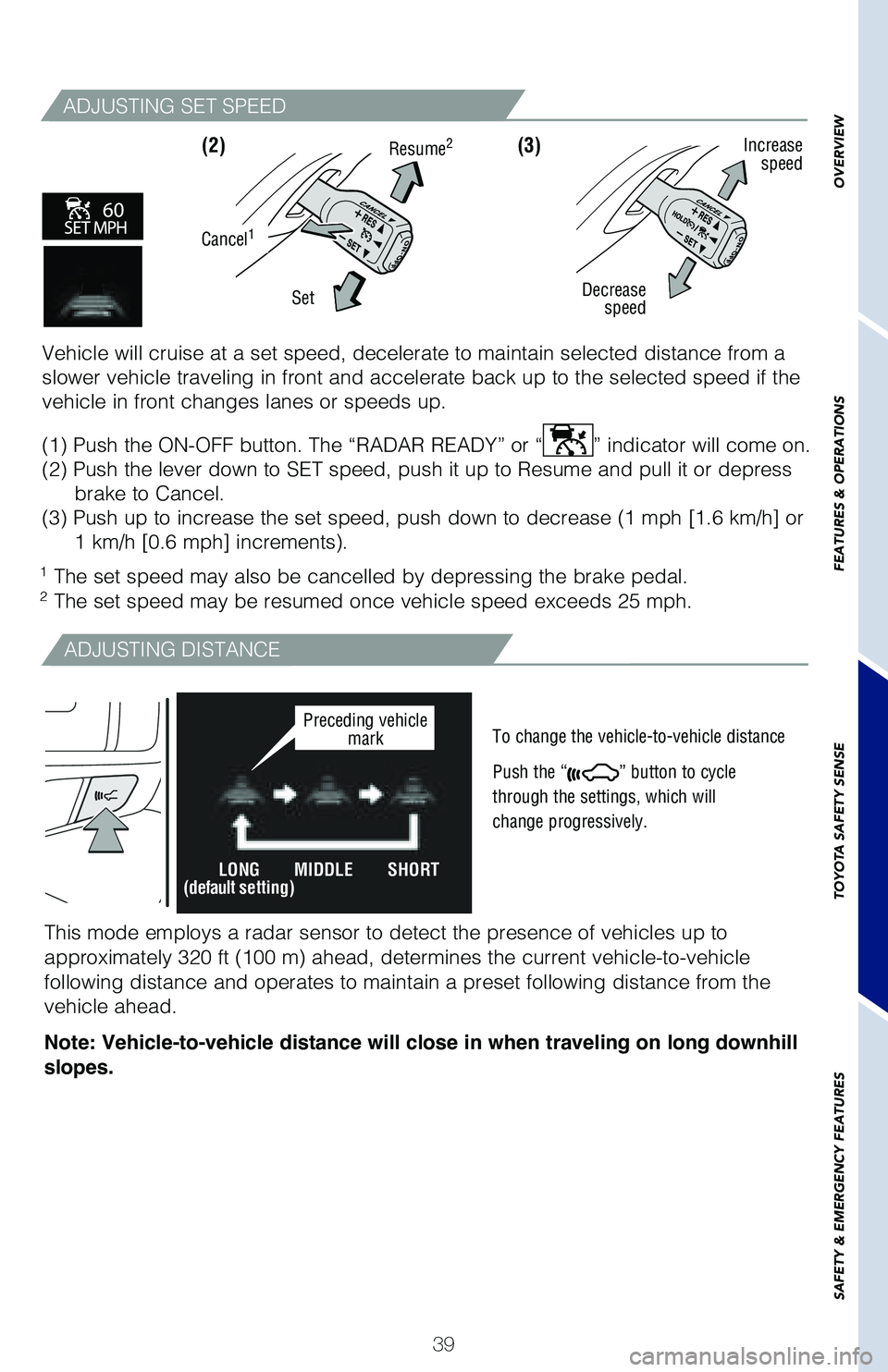

ADJUSTING SET SPEED
1
The set speed may also be cancelled by depressing the brake pedal.
2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Vehicle will cruise at a set speed, decelerate to maintain selected dist\�ance from a
slower vehicle traveling in front and accelerate back up to the selected\� speed if the
vehicle in front changes lanes or speeds up.
(1) Push the ON-OFF button. The “RADAR READY” or “
” indicator will come on.
(2) Push the lever down to SET speed, push it up to Resume and pull it or depress brake to Cancel.
(3) Push up to increase the set speed, push down to decrease (1 mph [1.6 km/h] or 1 km/h [0.6 mph] increments).
(3) (2)
ADJUSTING DISTANCE
To change the vehicle-to-vehicle distance
Push the “
” button to cycle
through the settings, which will
change progressively.
Decrease speed Increase
speed
Cancel1
Resume2
Set
This mode employs a radar sensor to detect the presence of vehicles up t\�o
approximately 320 ft (100 m) ahead, determines the current vehicle-to-vehicle
following distance and operates to maintain a preset following distance \�from the
vehicle ahead.
Note: Vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
LONG
(default setting)MIDDLE SHORTPreceding vehicle
mark
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 398/14/18 1:22 AM
Page 42 of 60
40

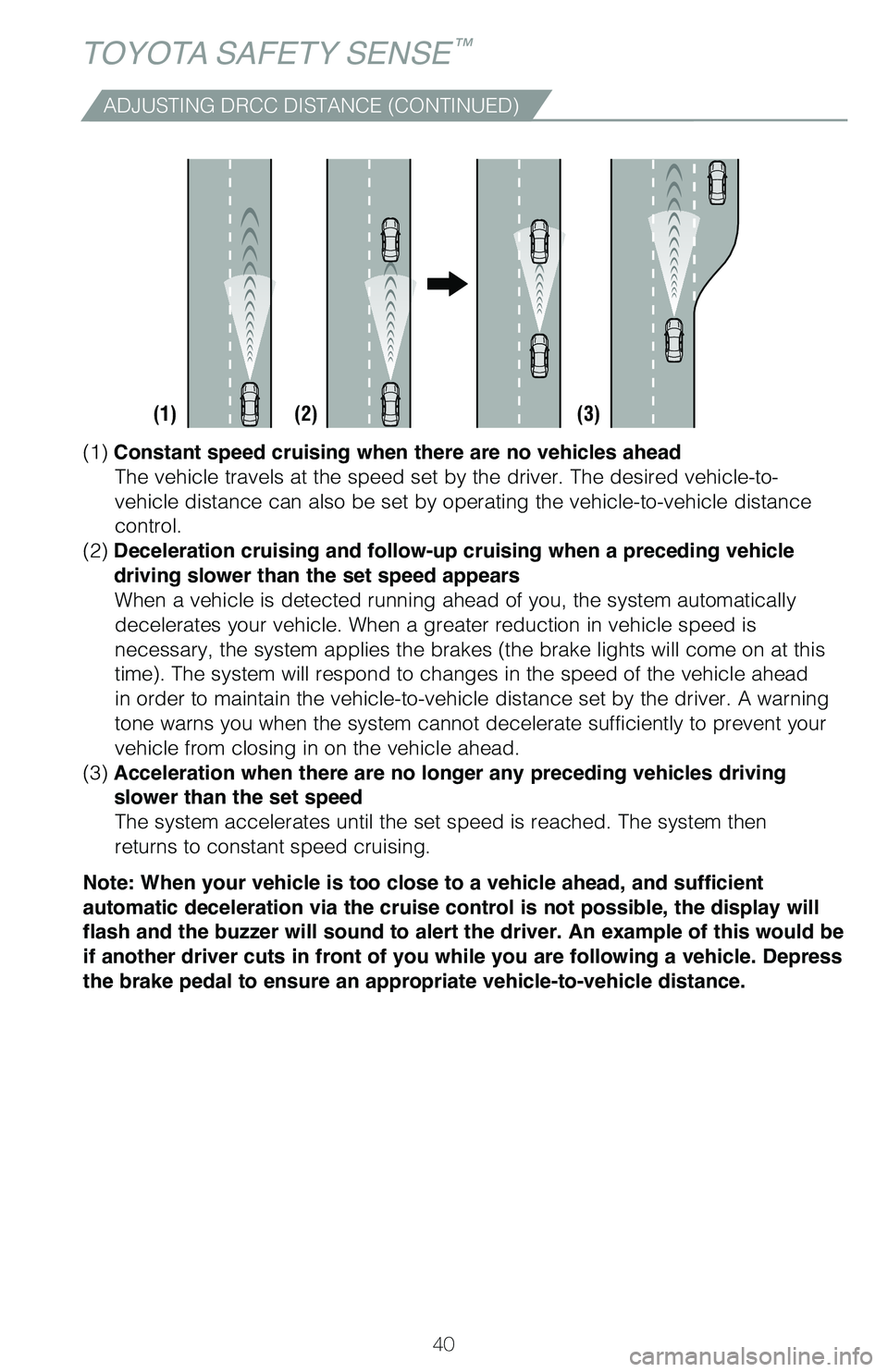

TOYOTA SAFETY SENSE™
(1) Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-\�to-
vehicle distance can also be set by operating the vehicle-to-vehicle dis\�tance
control.
(2) Deceleration cruising and follow-up cruising when a preceding vehicle
driving slower than the set speed appears When a vehicle is detected running ahead of you, the system automaticall\�y
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the brake lights will come on at this
time). The system will respond to changes in the speed of the vehicle ahead
in order to maintain the vehicle-to-vehicle distance set by the driver. \�A warning
tone warns you when the system cannot decelerate sufficiently to prevent\� your
vehicle from closing in on the vehicle ahead.
(3) Acceleration when there are no longer any preceding vehicles driving
slower than the set speed The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Note: When your vehicle is too close to a vehicle ahead, and sufficient
automatic deceleration via the cruise control is not possible, the display will
flash and the buzzer will sound to alert the driver. An example of this would be
if another driver cuts in front of you while you are following a vehicle. Depress
the brake pedal to ensure an appropriate vehicle-to-vehicle distance.
(1) (2) (3)
ADJUSTING DRCC DISTANCE (CONTINUED)
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 408/14/18 1:22 AM
Page 43 of 60
41
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

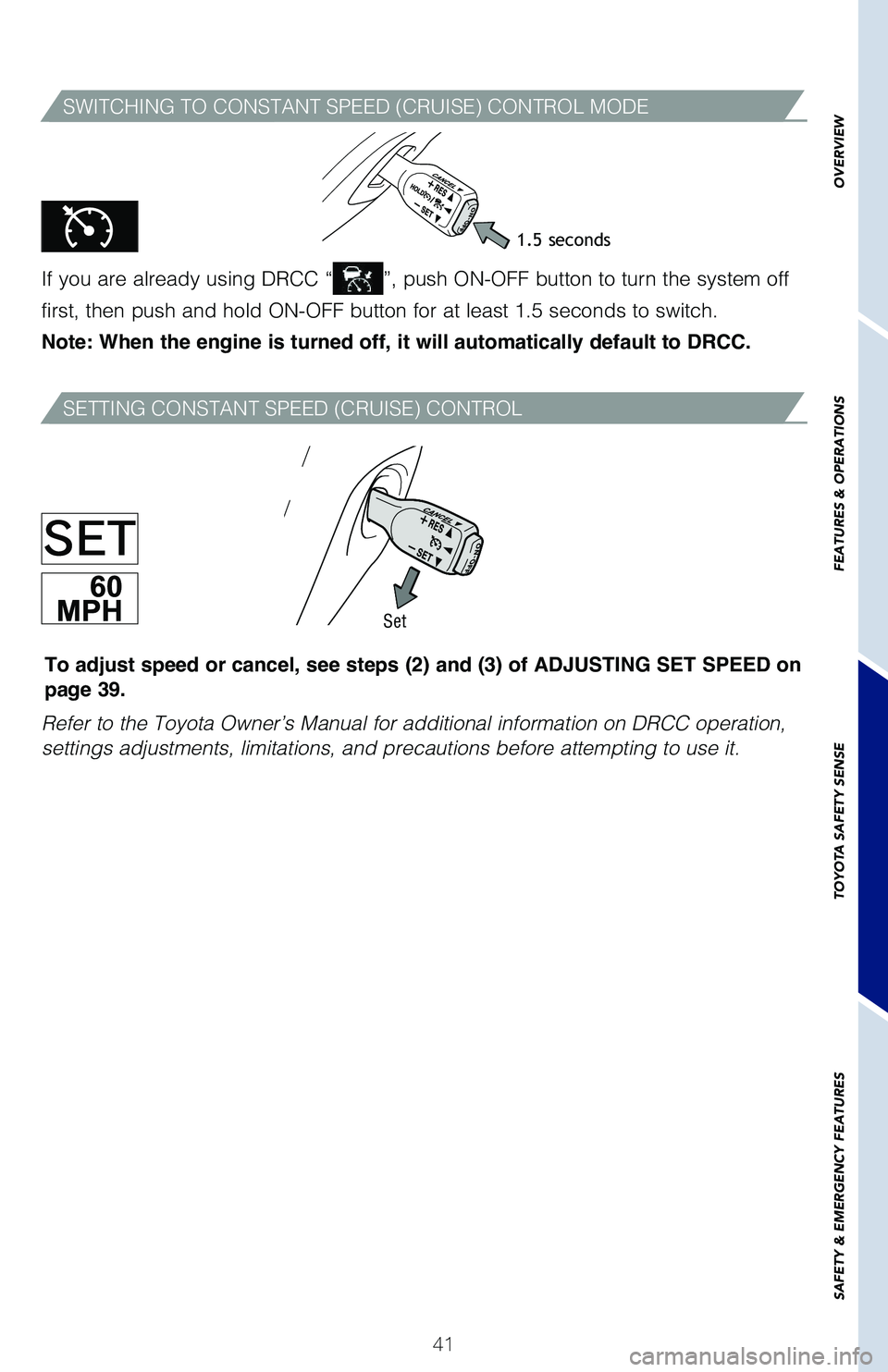

SWITCHING TO CONSTANT SPEED (CRUISE) CONTROL MODE
If you are already using DRCC “”, push ON-OFF button to turn the system off
first, then push and hold ON-OFF button for at least 1.5 seconds to swit\�ch.
Note: When the engine is turned off, it will automatically default to DRCC.
1.5 seconds
SETTING CONSTANT SPEED (CRUISE) CONTROL
Set
Refer to the Toyota Owner’s Manual for additional information on DRCC\� operation,
settings adjustments, limitations, and precautions before attempting to \�use it. To adjust speed or cancel, see steps (2) and (3) of ADJUSTING SET SPEED on
page 39.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 418/14/18 1:22 AM
Page 44 of 60
42
TOYOTA SAFETY SENSE™
When all of these conditions are met, high beams will be automatically t\�urned on
(after approximately 1 second):• Vehicle speed is above approximately 21 mph (34 km/h).
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail\� lights turned on.
• There are few street lights on the road ahead.
If any of these conditions occur, the system is designed to automaticall\�y turn off
high beams: • Vehicle speed drops below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lightsturned on.
• There are many streetlights on the road ahead.
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
(1) With the engine switch in IGNITION ON mode and headlight switch turned to “AUTO” or “
”position, push lever away from you.
(2) Press the “
” switch.
The “
” indicator will come on when the headlights are turned on
automatically to indicate that the system is active.
Note: Pull the lever back toward you to turn the AHB system off.
The AHB indicator will turn off. To turn switch to “
” position and the manual
high beam indicator “
” turns on.
ACTIVATING THE AHB SYSTEM
Automatic High Beams (AHB)
AHB is a safety system designed to help drivers see more of what’s ah\�ead at
nighttime and reduce glare for oncoming drivers. When enabled, AHB uses \�an
in-vehicle camera to help detect the headlights of oncoming vehicles and\� tail lights
of preceding vehicles, then automatically switches between high and low \�beams
as appropriate to provide the most light possible and enhance forward vi\�sibility.
By using high beams more frequently, the system may allow earlier detect\�ion of
pedestrians and obstacles.
Refer to the Toyota Owner’s Manual for additional information on AHB \�operation,
settings adjustments, limitations, and precautions before attempting to \�use it.
(2) (1)
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 428/14/18 1:22 AM
Page 45 of 60
43
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
SAFETY & EMERGENCY FEATURES
Push up or squeeze
lock release to lower
Seat belts
Seat belts-3rd row center
Seat belt reminder indicator
Seat belts-Shoulder belt anchor
A buzzer sounds and an indicator will display as a reminder when a
rear second or third row passenger is not wearing a seat belt.
Plate “A ”
Buckle “A ”
Plate “B”
Buckl e “B”
Take the plate out of the holder,
and then pull down the seat beltPush plate “A” into buckle “A”
until a click sound is heard.
Plate “A”
Plate “B”
Buckle “A”Buckle “B”
Push plate “B” into buckle “B”
until a click sound is heard.
Keep as low on
hips as possible
Take up slack
Too high
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child restraint system,
refer to the Owner’s Manual.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 438/14/18 1:22 AM
Page 46 of 60
44
SAFETY AND EMERGENCY FEATURES
Unlock
Lock
Rear door child safey locks
Tire Pressure Monitoring (warning) System (TPMS)
Moving the lever to the lock position will allow the door to be opened o\�nly from the
outside.
Rear door
System reset initialization
1. Push and hold “
SET” button
until the indicator blinks three times.
2. Wait a few minutes to allow initialization to complete.
After adjusting tire pressures, or after tires have been rotated or repl\�aced, turn the
ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks
three times. Let the vehicle sit for a few minutes to allow initializati\�on to complete.
Refer to the load label on the door jamb or the Owner’s Manual for ti\�re inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\� remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the
light.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 448/14/18 1:22 AM
Page 47 of 60
45
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Refer to the Owner’s Manual for tire changing and jack positioning pr\�ocedures. Remove the cover under the
center deck board to find the
spare tire clamp bolt.
Assemble the jack handle.Put the socket adapter on
the spare tire clamp bolt.
Loosen the bolt by turning
it counterclockwise with the
jack handle.
(1)(3)(2)
SPARE TIRE, JACK AND TOOL LOCATION
REMOVING THE SPARE TIRE
Spare tire & tools
Adapter socket
Jack handles Wheel nut wrench Wheel lock key (if equipped)
Jack
Spare tire
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 458/14/18 1:22 AM
Page 48 of 60
46

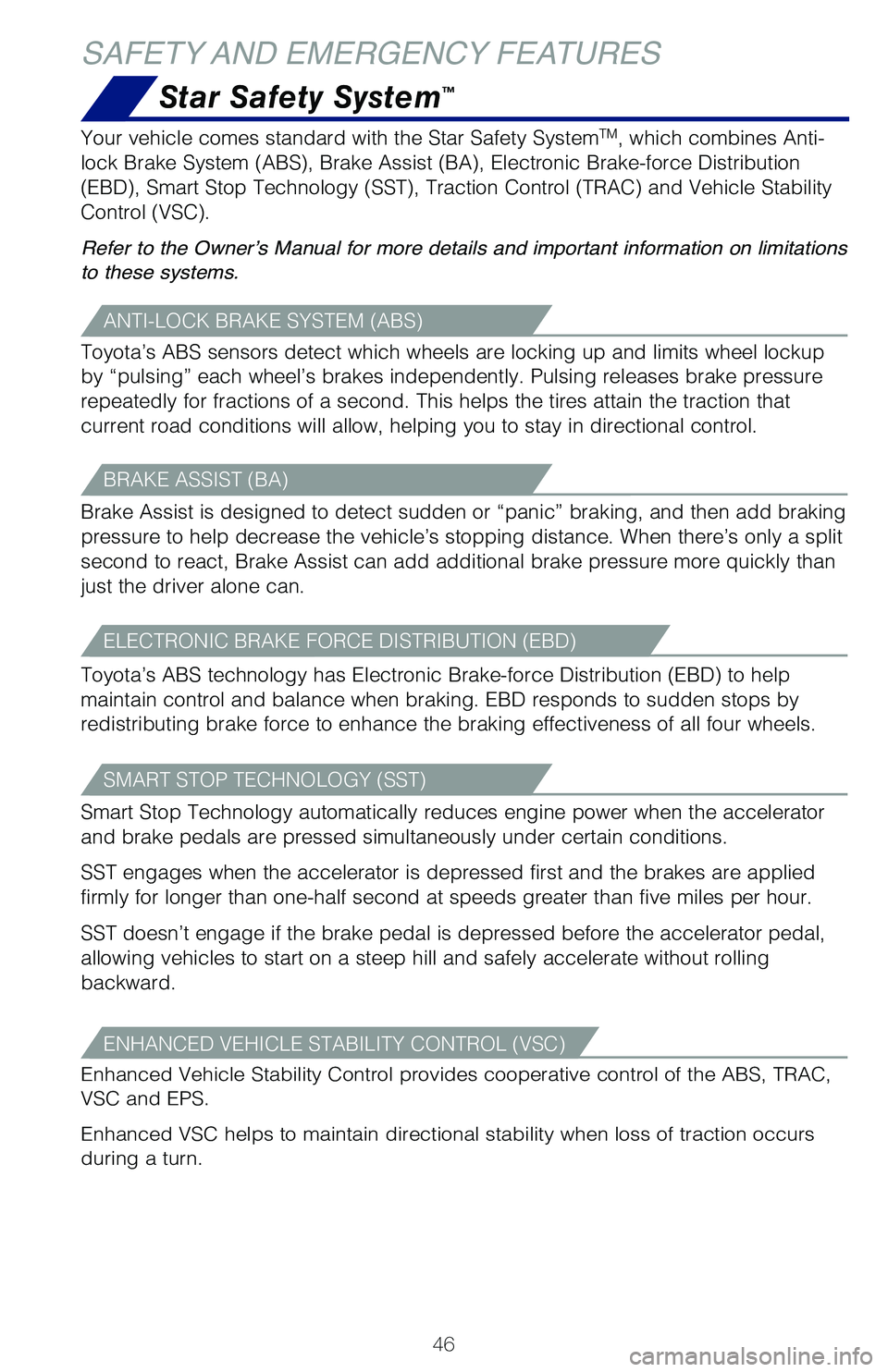

SAFETY AND EMERGENCY FEATURESStar Safety System
™
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-
lock Brake System (ABS), Brake Assist (BA), Electronic Brake-force Distribution
(EBD), Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Stability
Control (VSC).
Refer to the Owner’s Manual for more details and important information on limitations
to these systems.
ANTI-LOCK BRAKE SYSTEM (ABS)
Toyota’s ABS sensors detect which wheels are locking up and limits wh\�eel lockup
by “pulsing” each wheel’s brakes independently. Pulsing release\�s brake pressure
repeatedly for fractions of a second. This helps the tires attain the tr\�action that
current road conditions will allow, helping you to stay in directional c\�ontrol.
BRAKE ASSIST (BA)
Brake Assist is designed to detect sudden or “panic” braking, and \�then add braking
pressure to help decrease the vehicle’s stopping distance. When there\�’s only a split
second to react, Brake Assist can add additional brake pressure more qui\�ckly than
just the driver alone can.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. EBD responds to sudden stops \�by
redistributing brake force to enhance the braking effectiveness of all f\�our wheels.
SMART STOP TECHNOLOGY (SST)
Smart Stop Technology automatically reduces engine power when the accele\�rator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are a\�pplied
firmly for longer than one-half second at speeds greater than five miles\� per hour.
SST doesn’t engage if the brake pedal is depressed before the acceler\�ator pedal,
allowing vehicles to start on a steep hill and safely accelerate without\� rolling
backward.
ENHANCED VEHICLE STABILITY CONTROL (VSC)
Enhanced Vehicle Stability Control provides cooperative control of the A\�BS, TRAC,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of tracti\�on occurs
during a turn.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 468/14/18 1:22 AM
Page 49 of 60
47
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

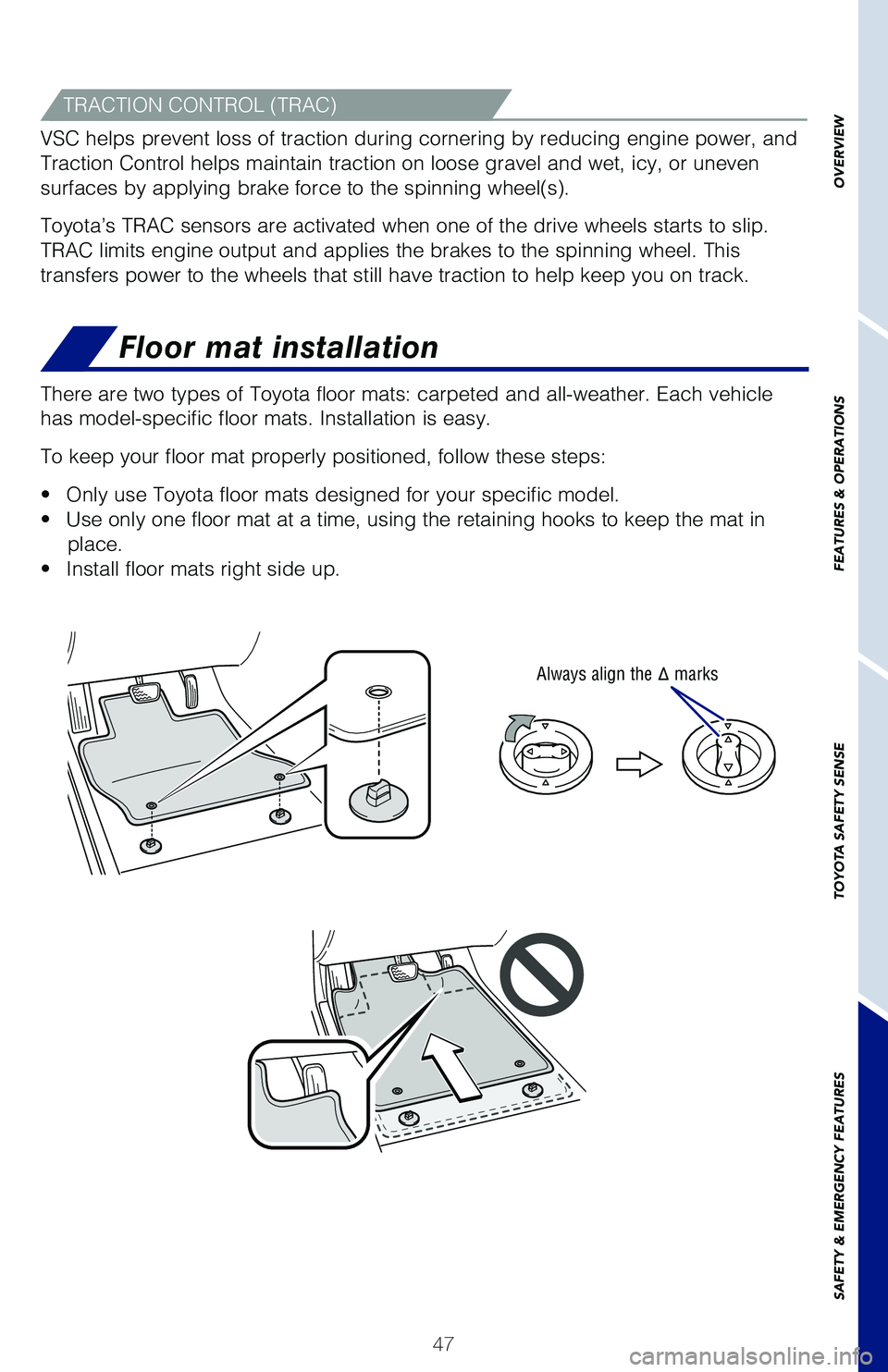

Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each\� vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the \�mat in
place.
• Install floor mats right side up.
Always align the Δ marks
TRACTION CONTROL (TRAC)
VSC helps prevent loss of traction during cornering by reducing engine p\�ower, and
Traction Control helps maintain traction on loose gravel and wet, icy, o\�r uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels star\�ts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. \�This
transfers power to the wheels that still have traction to help keep you \�on track.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 478/14/18 1:22 AM
Page 50 of 60
48
BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 488/14/18 1:22 AM
