OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

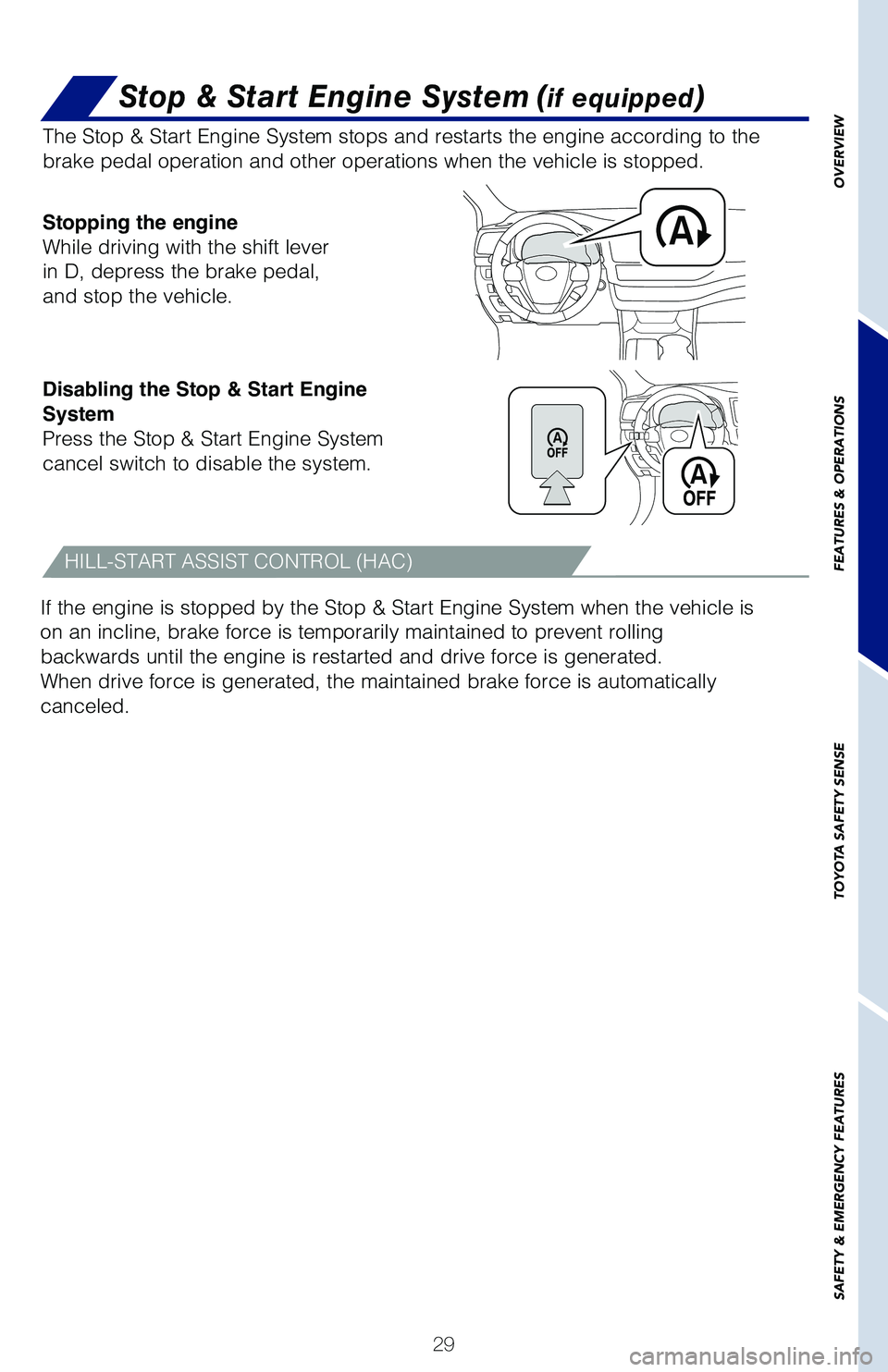

The Stop & Start Engine System stops and restarts the engine according t\�o the
brake pedal operation and other operations when the vehicle is stopped.
Stopping the engine
While driving with the shift lever
in D, depress the brake pedal,
and stop the vehicle.
Disabling the Stop & Start Engine
System
Press the Stop & Start Engine System
cancel switch to disable the system.
Stop & Start Engine System (if equipped)
If the engine is stopped by the Stop & Start Engine System when the vehi\�cle is
on an incline, brake force is temporarily maintained to prevent rolling
backwards until the engine is restarted and drive force is generated.
When drive force is generated, the maintained brake force is automatical\�ly
canceled.
HILL-START ASSIST CONTROL (HAC)
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 298/14/18 1:22 AM
Page 32 of 60
30
FEATURES & OPERATIONSDownhill Assist Control system (DAC)
(AWD models)
With the downhill assist control system, the vehicle is able to descend \�a steep hill,
maintaining a constant low speed of about 18 mph (30 km/h) without brake pedal
operation.
Press the “DAC” button to activate the system. The slip indicator \�will flash to
indicate that the downhill assist control system is operating.
Refer to the Owner’s Manual for more details.
Vehicle Stability Control (VSC)/
TRAC OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\�ngs like
mud, dirt or snow. While the vehicle is stopped, press switch to disable\� the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at l\�east 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 308/14/18 1:22 AM
Page 33 of 60
31
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
All-wheel drive lock switch (AWD models)
Snow mode button
Use snow mode for accelerating and driving on slippery road surfaces, su\�ch as on
snow.
Refer to the Owner’s Manual for more details.
All-wheel drive lock mode can be used when a large amount of drive power\� needs
to be applied to all the wheels, such as when the vehicle gets stuck in \�mud and you
need to free it.
Refer to the Owner’s Manual for more details.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 318/14/18 1:22 AM
Page 34 of 60
32

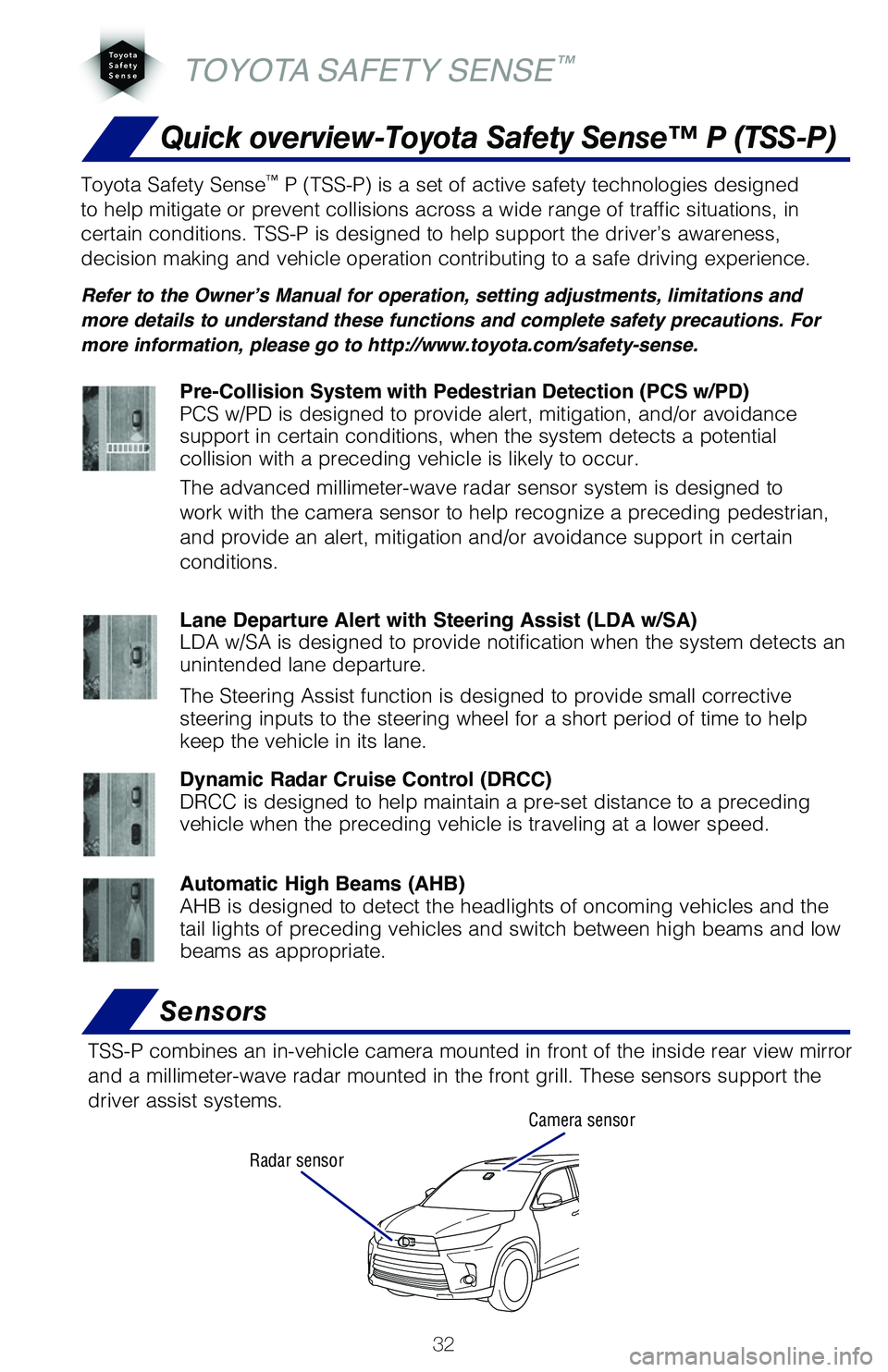

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear \�view mirror
and a millimeter-wave radar mounted in the front grill. These sensors su\�pport the
driver assist systems.
Camera sensor
Radar sensor
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\�tuations, in
certain conditions. TSS-P is designed to help support the driver’s aw\�areness,
decision making and vehicle operation contributing to a safe driving exp\�erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense.
Lane Departure Alert with Steering Assist (LDA w/SA)
LDA w/SA is designed to provide notification when the system detects an
unintended lane departure.
The Steering Assist function is designed to provide small corrective
steering inputs to the steering wheel for a short period of time to help\�
keep the vehicle in its lane.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and the
tail lights of preceding vehicles and switch between high beams and low \�
beams as appropriate. Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced millimeter-wave radar sensor system is designed to
work with the camera sensor to help recognize a preceding pedestrian,
and provide an alert, mitigation and/or avoidance support in certain
conditions.
Dynamic Radar Cruise Control (DRCC)
DRCC is designed to help maintain a pre-set distance to a preceding
vehicle when the preceding vehicle is traveling at a lower speed.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 328/14/18 1:22 AM
Page 35 of 60
33
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

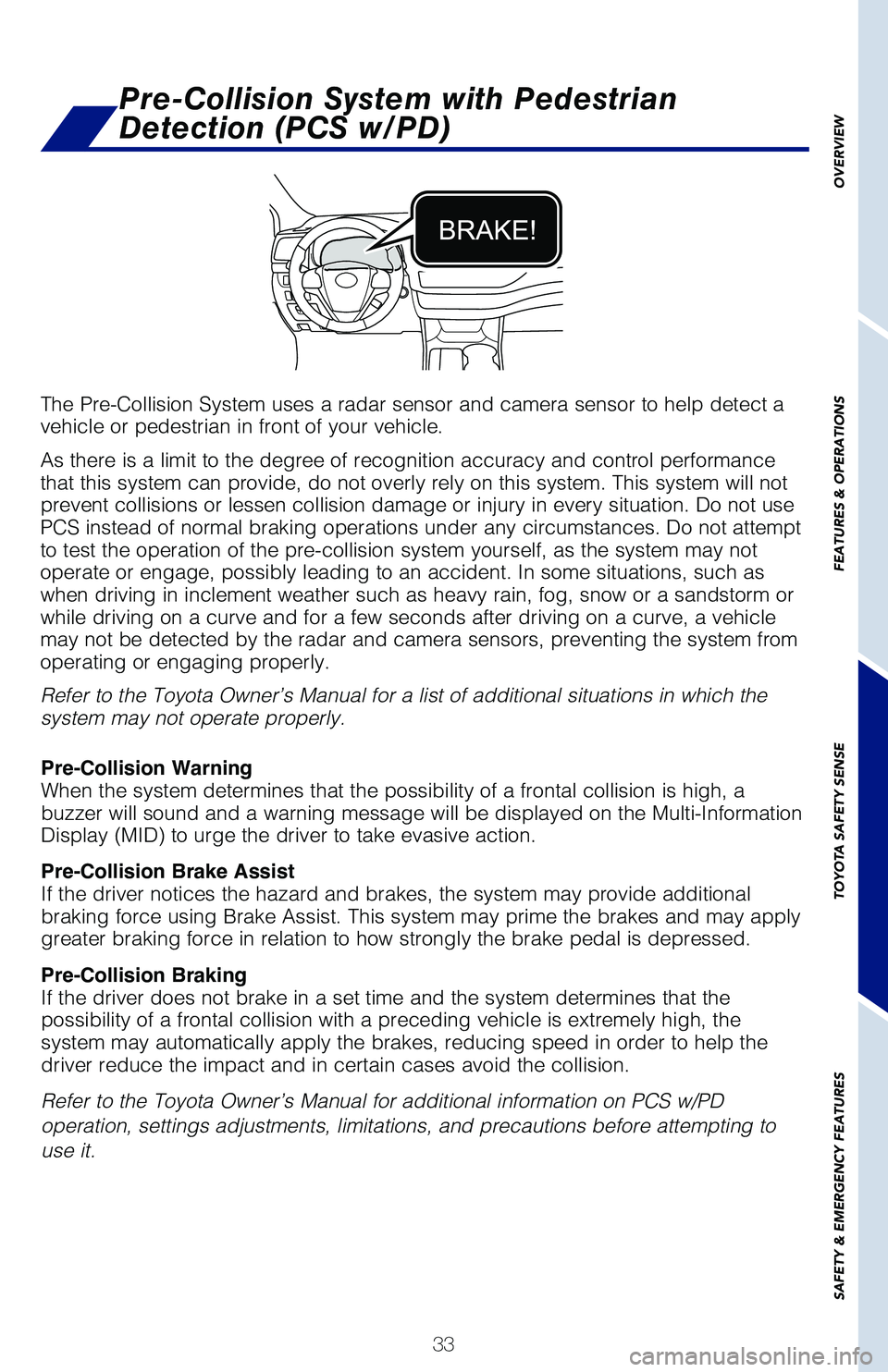

The Pre-Collision System uses a radar sensor and camera sensor to help d\�etect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control pe\�rformance
that this system can provide, do not overly rely on this system. This sy\�stem will not
prevent collisions or lessen collision damage or injury in every situati\�on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\� attempt
to test the operation of the pre-collision system yourself, as the syste\�m may not
operate or engage, possibly leading to an accident. In some situations, \�such as
when driving in inclement weather such as heavy rain, fog, snow or a san\�dstorm or
while driving on a curve and for a few seconds after driving on a curve,\� a vehicle
may not be detected by the radar and camera sensors, preventing the syst\�em from
operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situation\�s in which the
system may not operate properly.
Refer to the Toyota Owner’s Manual for additional information on PCS \�w/PD
operation, settings adjustments, limitations, and precautions before att\�empting to
use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\�s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\�nformation
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\�tional
braking force using Brake Assist. This system may prime the brakes and m\�ay apply
greater braking force in relation to how strongly the brake pedal is dep\�ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\�t the
possibility of a frontal collision with a preceding vehicle is extremely\� high, the
system may automatically apply the brakes, reducing speed in order to he\�lp the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection (PCS w/PD)
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 338/14/18 1:22 AM
Page 36 of 60
34
TOYOTA SAFETY SENSE™
CHANGING PCS ALERT TIMING
FarMiddle
(default) Near
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select from the MID and then press “.”
(3) Select “Sensitivity” and then press “
.”
Each time “
” is pressed, the response to the PCS alert timing changes as shown
above. You can press “
” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to f\�irst provide an
alert and then automatic braking if needed.
Refer to a Toyota Owner’s Manual for additional limitations and infor\�mation.Under certain conditions, the PCS system included with the TSS-P package\� may
also help to detect a pedestrian in front of your vehicle using the in-v\�ehicle camera
and front-grill mounted millimeter wave radar. The in-vehicle camera of \�PCS
detects a potential pedestrian based on size, profile, and motion of the\� detected
pedestrian. However, a pedestrian may not be detected depending on the
conditions, including the surrounding brightness and the motion, posture\�, size, and
angle of the potential detected pedestrian, preventing the system from o\�perating or
engaging.

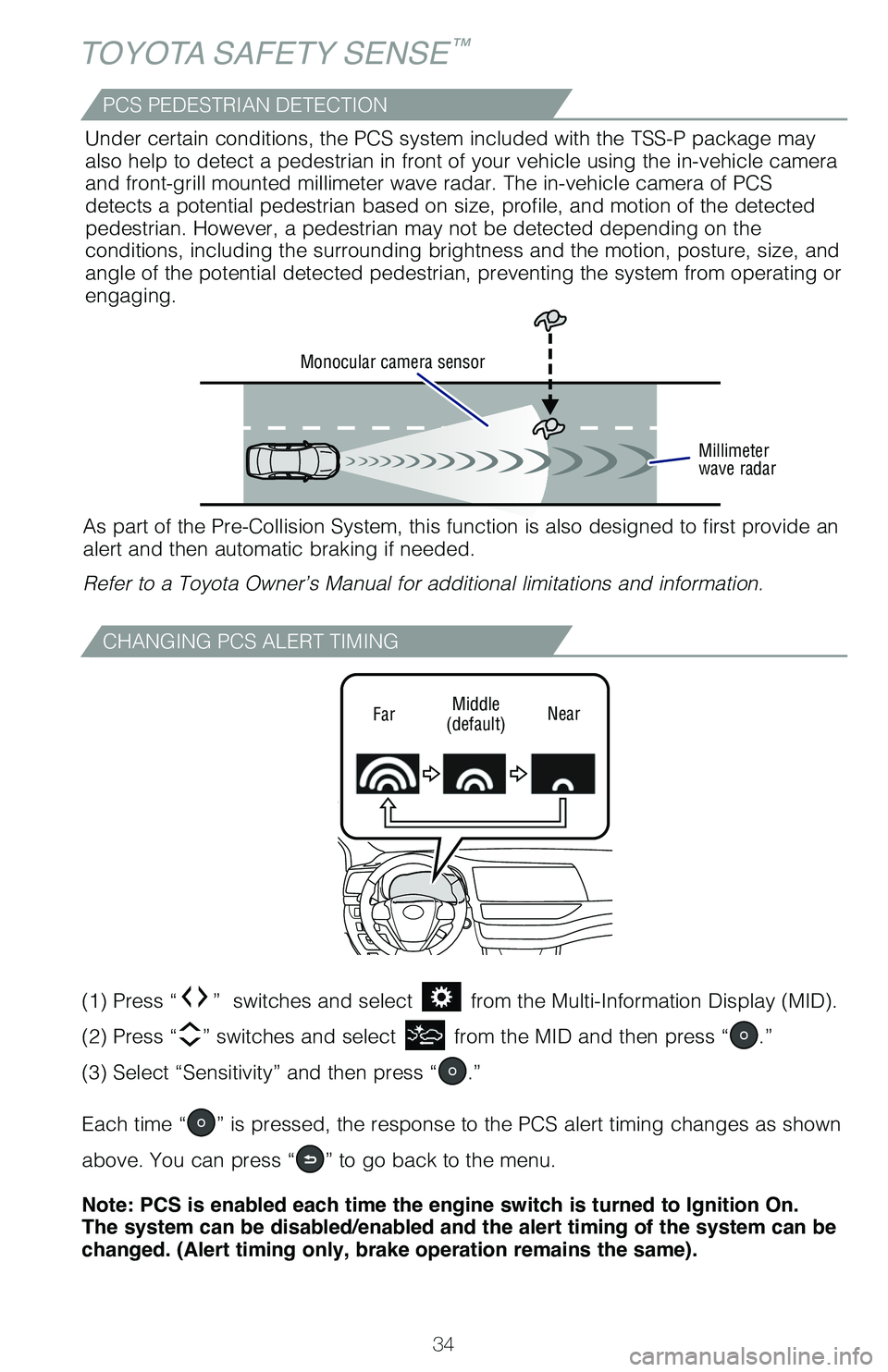

PCS PEDESTRIAN DETECTION
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 348/14/18 1:22 AM
Page 37 of 60
35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the setting function from the MID and then
press “
”. The setting screen is displayed.
(3) Select
and then press “.” The Pre-Collision System will be disabled. You
can press “
” to go back to the menu.
Note: The system is enabled each time the engine switch is turned to Ignition
On.
LDA in TSS-P uses an in-vehicle camera designed to detect visible white \�and yellow
lane markers in front of the vehicle and the vehicle’s position on th\�e road. If the
system determines that the vehicle is starting to unintentionally deviat\�e from its lane,
the system alerts the driver with an audio and visual alert. When the al\�erts occur, the
driver must check the surrounding road situation and carefully operate t\�he steering
wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 MPH or higher \�on
relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering assist
function. When enabled, if the system determines that the vehicle is on \�a path to
unintentionally depart from its lane, the system may provide small corrective steering
inputs to the steering wheel for a short period of time to help keep the\� vehicle in its
lane.
Lane Departure Alert with Steering Assist
(LDA w/SA)
DISABLING PRE-COLLISION SYSTEM (PCS)
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 358/14/18 1:22 AM
Page 38 of 60
36
TOYOTA SAFETY SENSE™
LANE DEPARTURE ALERT
LDA function display
Lane markers
Lane Departure Alert (LDA)
indicator (flashes orange
while operating)
Steering wheel assist
illuminates in green
while operating
(2)
(1)
Lane Departure Alert (LDA) indicator flashes orange when operating
The LDA function displays when the Multi-Information Display (MID) is
switched to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible lane
markers on the road are detected. A side flashes orange to alert the dri\�ver when the
vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers on the
road are not detected or the function is temporarily cancelled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable.
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it\� off.
Note: The system will continue in the last state it was in (ON or OFF) when the
engine is started again.
Refer to the Toyota Owner’s Manual for additional information on LDA \�operation,
settings adjustments, limitations, and precautions before attempting to \�use it.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 368/14/18 1:22 AM
Page 39 of 60
37
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the setting function and then press “”.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.

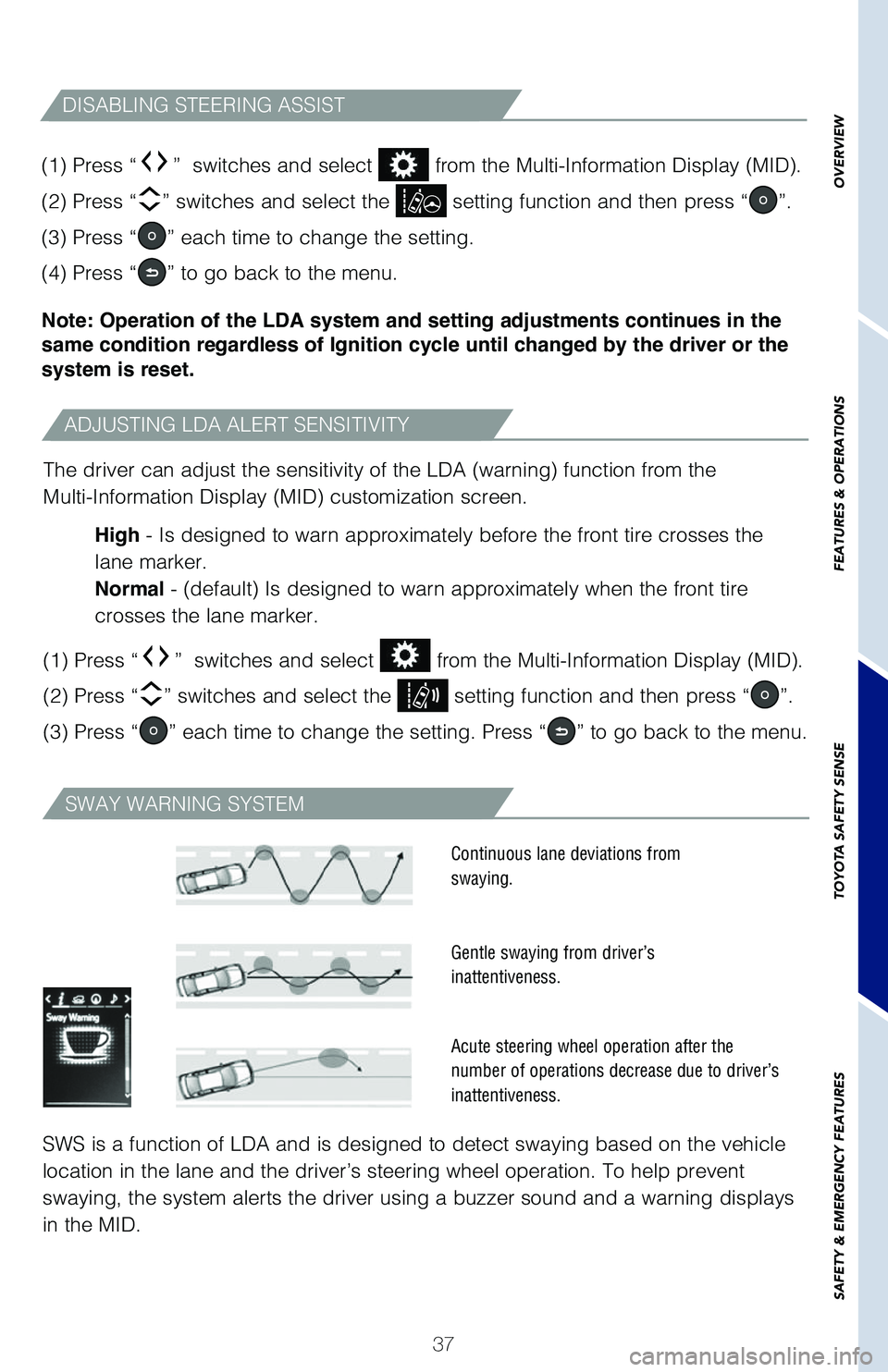

ADJUSTING LDA ALERT SENSITIVITY
SWAY WARNING SYSTEM
SWS is a function of LDA and is designed to detect swaying based on the \�vehicle
location in the lane and the driver’s steering wheel operation. To he\�lp prevent
swaying, the system alerts the driver using a buzzer sound and a warning\� displays
in the MID.
Continuous lane deviations from
swaying.
Gentle swaying from driver’s
inattentiveness.
Acute steering wheel operation after the
number of operations decrease due to driver’s
inattentiveness.
DISABLING STEERING ASSIST
The driver can adjust the sensitivity of the LDA (warning) function from the
Multi-Information Display (MID) customization screen. High - Is designed to warn approximately before the front tire crosses the
lane marker.
Normal - (default) Is designed to warn approximately when the front tire
crosses the lane marker.
(1) Press “
” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the setting function and then press “”.
(3) Press “
” each time to change the setting. Press “” to go back to the menu.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 378/14/18 1:22 AM
Page 40 of 60
38
TOYOTA SAFETY SENSE™
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the SWS setting function and then press “”.
(3) Press “
” each time to change the setting. Press “” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
Dynamic Radar Cruise Control (DRCC)
TURNING SYSTEM ON/OFF
(1)
DISABLING LDA SWAY WARNING SYSTEM
DRCC helps maintain a pre-set distance to a preceding vehicle when the p\�receding
vehicle is traveling at a lower speed. This mode is always selected firs\�t when the
cruise control button is depressed. Constant speed control mode is also \�available.
Display Set speed
Indicators Dynamic Radar Cruise Control (DRCC)
vehicle-to-vehicle distance button
Cruise control switch
Push once: On
Push twice: Off
Refer to page 41 for switching to Constant Speed (Cruise) Control Mode\�.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 388/14/18 1:22 AM
