TOYOTA HIGHLANDER 2019 Owners Manual (in English)

121
3
Operation of each component
HIGHLANDER_U
3-2. Opening, closing and locking the doors
◆Entry function (vehicles with a smart key system)
Carry the electronic key to enable this function.
Front doors
Grip the driver’s door handle
to unlock the door. Grip the
passenger's door handle to
unlock all the doors.
*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*: The door unlock settings can be changed. (P. 127)
Touch the lock sensor (indentation on the upper part of the doo r
handle) to lock all the doors.
Check that the door is securely locked.
Back door
Press the unlock button to
unlock all the doors.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Press the lock button to lock
all the doors.
Check that the door is securely
locked.
Side doors
Unlocking and locking the doors from the outside
1
2
1
2

1223-2. Opening, closing and locking the doors
HIGHLANDER_U
◆Wireless remote control
Vehicles without a smart key system
Locks all the doors
Check that the door is securely
locked.
Unlocks the door
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
Press and hold to open the front
side windows and moon roof.
*
(P. 180, 183)
*: This setting must be customized at your Toyota dealer.
Vehicles with a smart key system
Locks all the doors
Check that the door is securely
locked.
Unlocks the door
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
Models available with one touch
opening/closing on the front side
windows:
Press and hold to open the front
side windows and moon roof
*
(P. 180, 183)
Models available with one touch opening/closing on all side win dows:
Press and hold to open all side windows and moon roof
*
( P. 180, 183)
*: This setting must be customized at your Toyota dealer.
1
2
1
2

1233-2. Opening, closing and locking the doors
3
Operation of each component
HIGHLANDER_U
◆Key
Vehicles without a smart key system
Locks all the doors
Turn and hold to close the front
side windows and moon roof.
*
(P. 180, 183)
Unlocks the door
Turning the key unlocks the
driver's door. Turning the key
again within 5 seconds unlocks
the other doors.
Turn and hold to open the front side windows and moon roof.
*
(P. 180, 183)
*: This setting must be customized at your Toyota dealer.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical
key. ( P. 6 3 7 )
■Operation signals
●Doors: A buzzer sounds and the emergency flashers flash to indicate that
the doors have been locked/unlocked using the entry function or wireless
remote control. (Locked: once; Unlocked: twice)
● Windows and moon roof: A buzzer sounds to indicate that the win dows and
moon roof are operating.
■ Security feature
If a door is not opened within approximately 60 seconds after t he doors are
unlocked using the entry function or wireless remote control, t he security fea-
ture automatically locks the doors again.
1
2

1243-2. Opening, closing and locking the doors
HIGHLANDER_U■
When the door cannot be locked by the lock sensor on the upper part of
the front door handle (veh icles with a smart key system)
■ Door lock buzzer (vehicles with a smart key system)
If an attempt to lock the doors using the entry function or wir eless remote
control is made when a door is not fully closed, a buzzer will sound continu-
ously for 5 seconds. Fully close the door to stop the buzzer, a nd lock the
doors again.
■ Wireless reservation lock (vehicles without a smart key system)
If a door is not fully closed and the wireless remote control i s used to lock the
doors, the doors other than the open door will be locked. The o pen door will
be locked after it is fully closed.
■ Power back door reservation lo ck (vehicles with a power back do or)
Vehicles without a smart key system
If the wireless remote control is used to lock the doors while the power back
door is closing with all side doors fully closed, the side door s are locked. The
back door will be locked when it is fully closed.
Vehicles with a smart key system
If the wireless remote control is used to lock the doors while the power back
door is closing with all side doors fully closed, a buzzer will sound and the
emergency flashers will flash to indicate that the reservation lock is activated.
At this time the side doors are locked. The back door will be l ocked when it is
fully closed.
■ Alarm (if equipped)
Locking the doors will set the alarm system. ( P. 88)
■ If the smart key system or the wireless remote control does not operate
properly
Vehicles with a smart key system: Use the mechanical key to loc k and unlock
the doors. ( P. 637)
Replace the key battery with a new one if it is depleted. ( P. 551)
If the door will not lock even when the top-
side sensor area is touched, try touching
both the topside and underside sensor
areas at the same time.

1253-2. Opening, closing and locking the doors
3
Operation of each component
HIGHLANDER_U
◆Door lock switchLocks all the doors
Unlocks all the doors
◆Inside lock buttonsLocks the doors
Unlocks the doors
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside lock bu tton to the lock position.
Close the door.
Vehicles without a smart key system
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart key system
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehi cle.
The key may not be detected correctly and the door may be locke d.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2

1263-2. Opening, closing and locking the doors
HIGHLANDER_U

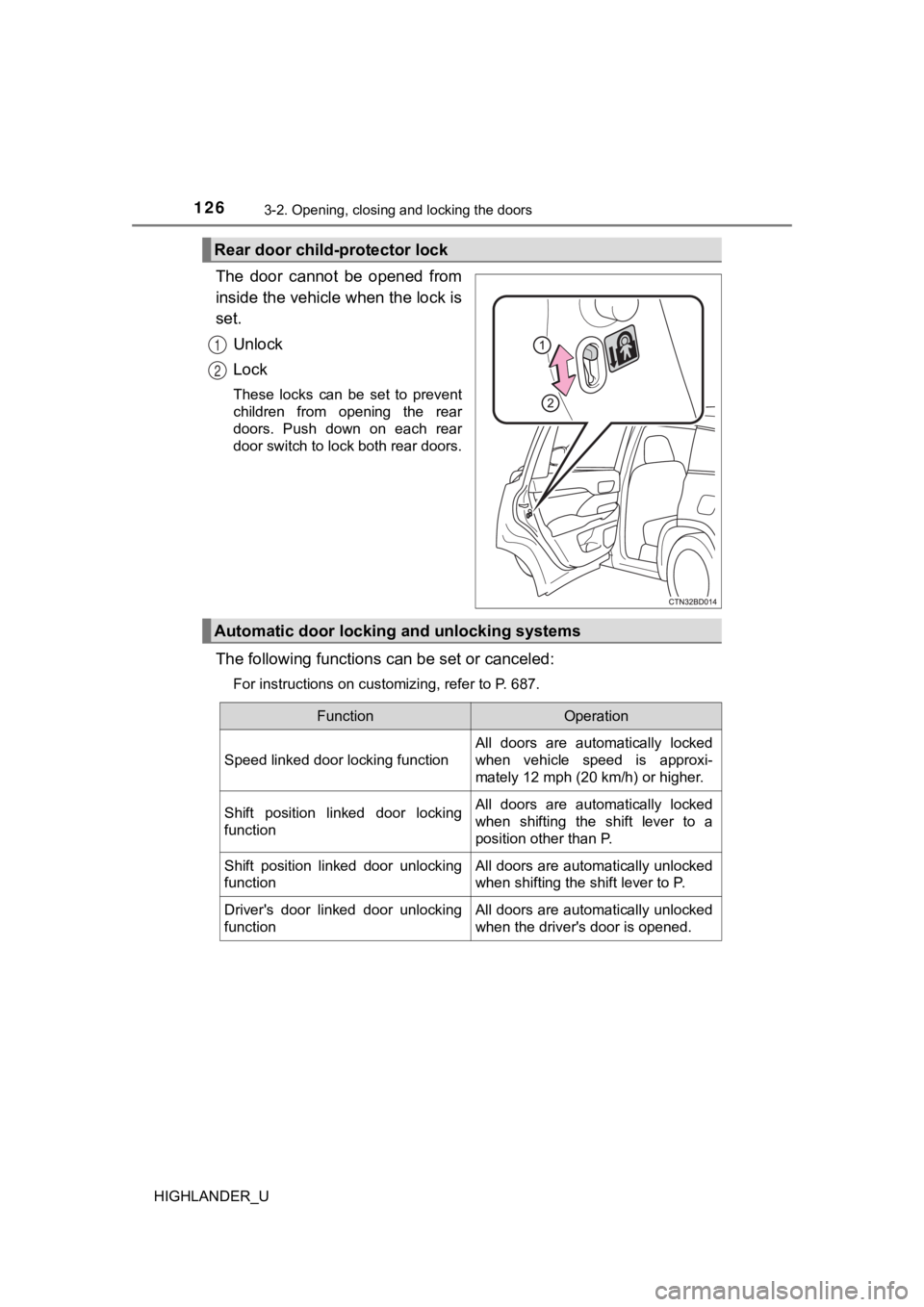

The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
The following functions can be set or canceled:
For instructions on customizing, refer to P. 687.
Rear door child-protector lock
1
2
Automatic door locking and unlocking systems
FunctionOperation
Speed linked door locking function
All doors are automatically locked
when vehicle speed is approxi-
mately 12 mph (20 km/h) or higher.
Shift position linked door locking
functionAll doors are automatically locked
when shifting the shift lever to a
position other than P.
Shift position linked door unlocking
functionAll doors are automatically unlocked
when shifting the shift lever to P.
Driver's door linked door unlocking
functionAll doors are automatically unlocked
when the driver's door is opened.

1273-2. Opening, closing and locking the doors
3
Operation of each component
HIGHLANDER_U

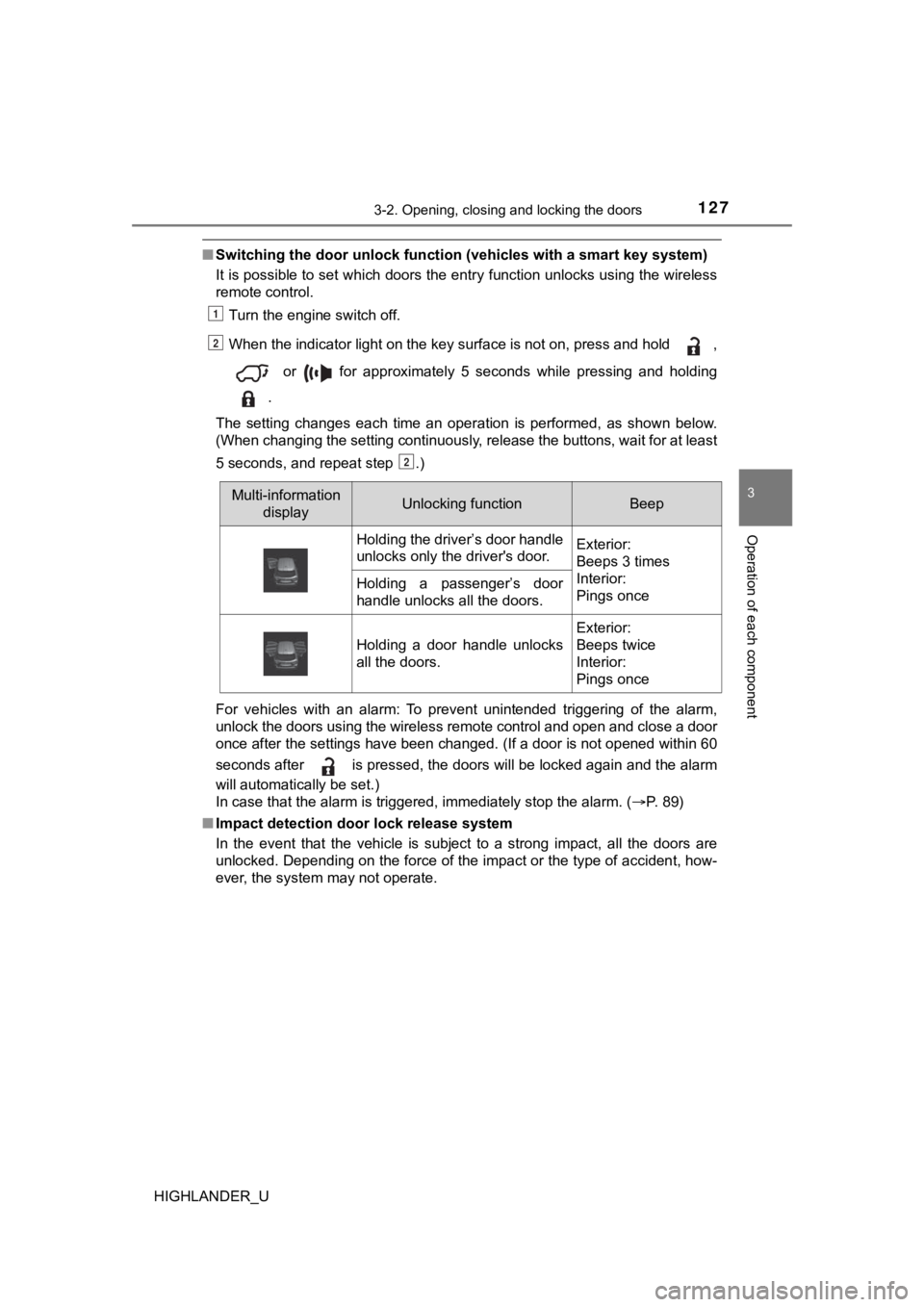

■Switching the door unlock func tion (vehicles with a smart key system)
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the engine switch off.
When the indicator light on the key surface is not on, press and hold ,
or for approximately 5 seconds while pressing and holding
.
The setting changes each time an operation is performed, as sho wn below.
(When changing the setting continuously, release the buttons, w ait for at least
5 seconds, and repeat step .)
For vehicles with an alarm: To prevent unintended triggering of the alarm,
unlock the doors using the wireless remote control and open and close a door
once after the settings have been changed. (If a door is not op ened within 60
seconds after is pressed, the doors will be locked again and t he alarm
will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm . ( P. 89)
■ Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of a ccident, how-
ever, the system may not operate.
1
2
2
Multi-information displayUnlocking functionBeep
Holding the driver’s door handle
unlocks only the driver's door.Exterior:
Beeps 3 times
Interior:
Pings once
Holding a passenger’s door
handle unlocks all the doors.
Holding a door handle unlocks
all the doors.
Exterior:
Beeps twice
Interior:
Pings once

1283-2. Opening, closing and locking the doors
HIGHLANDER_U■
Conditions affecting the operation of the smart key system or w ireless
remote control
Vehicles without a smart key system
P. 117
Vehicles with a smart key system
P. 150
■ Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 682)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant f alling out of
the vehicle, resulting in death or serious injury.
● Ensure that all doors are properly closed and locked.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seate d in the rear
seats.

1293-2. Opening, closing and locking the doors
3
Operation of each component
HIGHLANDER_U■
Door lock switch

P. 1 2 5
■Entry function (vehicles with a smart key system)
 P. 1 2 1
■Wireless remote control
P. 1 2 2
■Key
P. 1 2 3
Press and hold the switch to open
or close the back door, when the
back door is unlocked.
Pressing the switch while the back
door is opening/closing stops the
operation.
To operate the back door again,
press and hold the switch. The
back door will then move in the
opposite direction.
Back door
The back door can be locked/unl ocked and opened/closed by
the following procedures.
Locking and unlocking the back door
Opening/closing the back door fro m inside the vehicle (vehicles
with a power back door)

1303-2. Opening, closing and locking the doors
HIGHLANDER_U
◆Back door opener
Vehicles without a power
back door
Raise the back door while
pressing up the back door
opener switch.
Vehicles with a power back
door
When the back door is
unlocked: Press the back door
opener switch.
When the back door is locked (veh icles with a smart key system):
While carrying the electronic k ey on your person, press and hol d
the back door opener switch.
Pressing the switch while the back door is opening/closing stop s the
operation.
◆Wireless remote control (vehic les with a power back door)
Vehicles without a smart key system
Opens and closes the power
back door (press and hold)
Pressing the button while the
back door is opening/closing
stops the operation.
To operate the back door again,
press and hold the button. The
back door will then move in the
opposite direction.
Opening the back door from outside the vehicle
