■When replacing light bulbs
Toyota recommends that you use
genuine Toyota products designed
for this vehicle. Because certain
bulbs are connected to circuits
designed to prevent overload,
non-genuine parts or parts not
designed for this vehicle may be
unusable.
Adjustment bolt A
Adjustment bolt B
 Make sure the vehicle has a
full tank of gasoline and the
area around the headlight is
not deformed.
 Park the vehicle on level
ground.
 Make sure the tire inflation
pressure is at the specified
level.
 Have someone sit in the
driver’s seat.
 Bounce the vehicle several
times.
WARNING
■To prevent system break-
downs and vehicle fire
Observe the following precau-
tions.
Failure to do so may cause dam-
age to the vehicle, and possibly a
fire or injury.
●Never use a fuse of a higher
amperage rating than that indi-
cated, or use any other object in
place of a fuse.
●Always use a genuine Toyota
fuse or equivalent.
Never replace a fuse with a
wire, even as a temporary fix.
●Do not modify the fuses or fuse
boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical over-
load determined and repaired by
your Toyota dealer as soon as
possible.

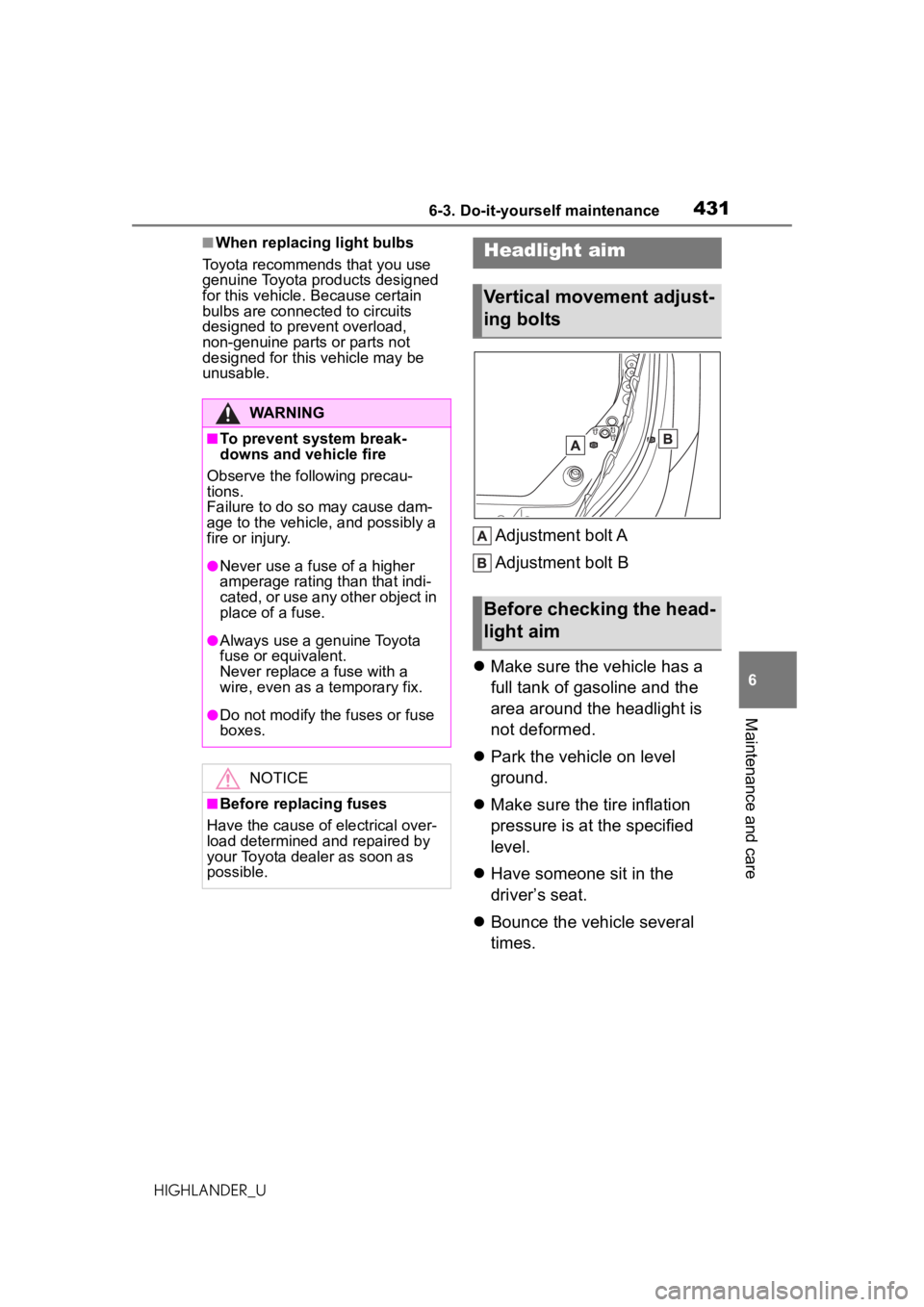

Headlight aim
Vertical movement adjust-
ing bolts
Before checking the head-
light aim

4326-3. Do-it-yourself maintenance
HIGHLANDER_U
1Using a Phillips-head screw-
driver, turn bolt A in either
direction.
Remember the turning direction
and the number of turns.
2Turn bolt B the same number
of turns and in the same
direction as step 1.
If the headlight cannot be adjusted
using this procedure, take the vehi-
cle to your Toyota dealer to adjust
the headlight aim.
Check the wattage of the light
bulb to be replaced. ( P.501)
 P.520
Front (type A)
Front turn signal lights/park-

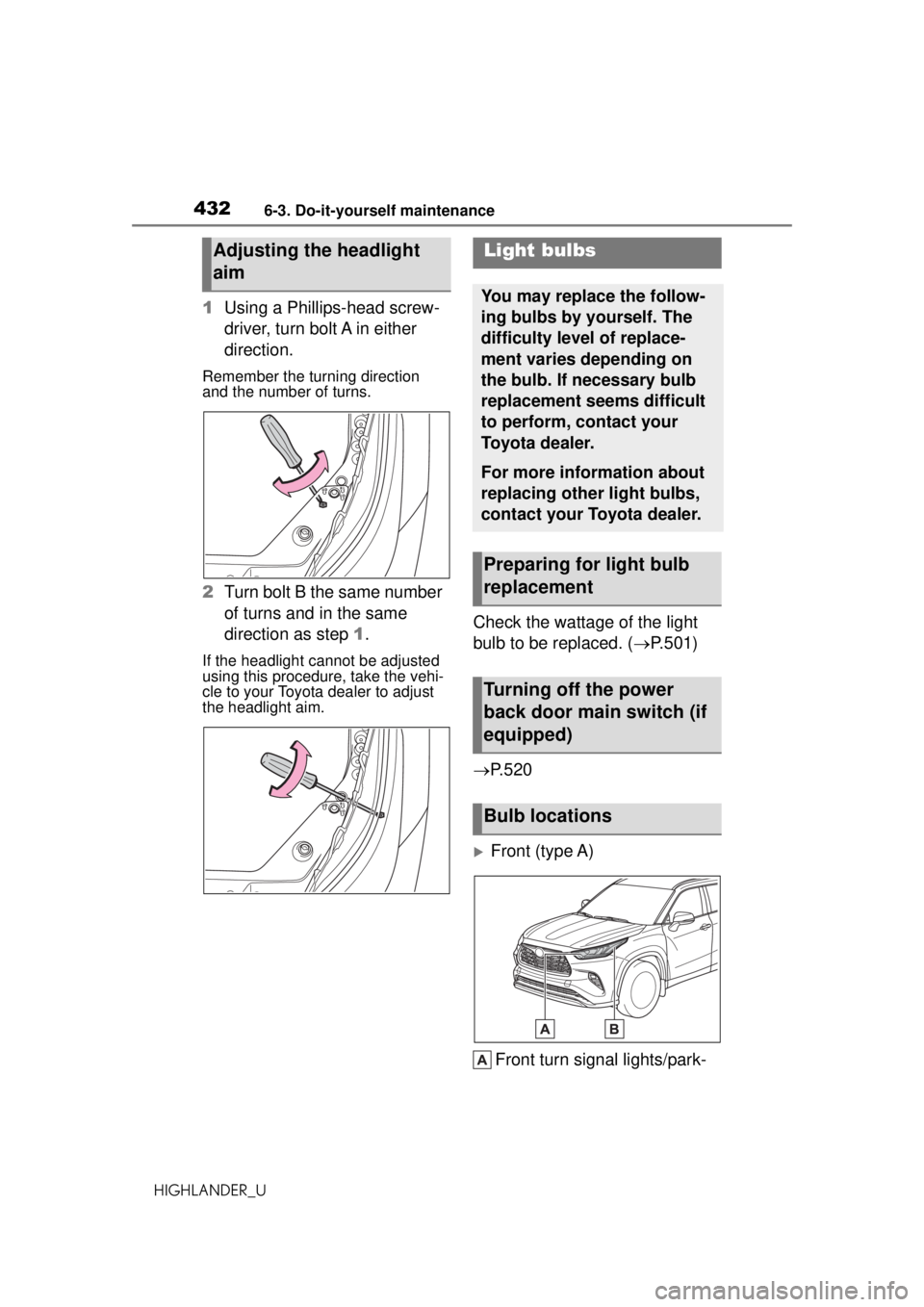

Adjusting the headlight
aimLight bulbs
You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.
For more information about
replacing other light bulbs,
contact your Toyota dealer.
Preparing for light bulb
replacement
Turning off the power
back door main switch (if
equipped)

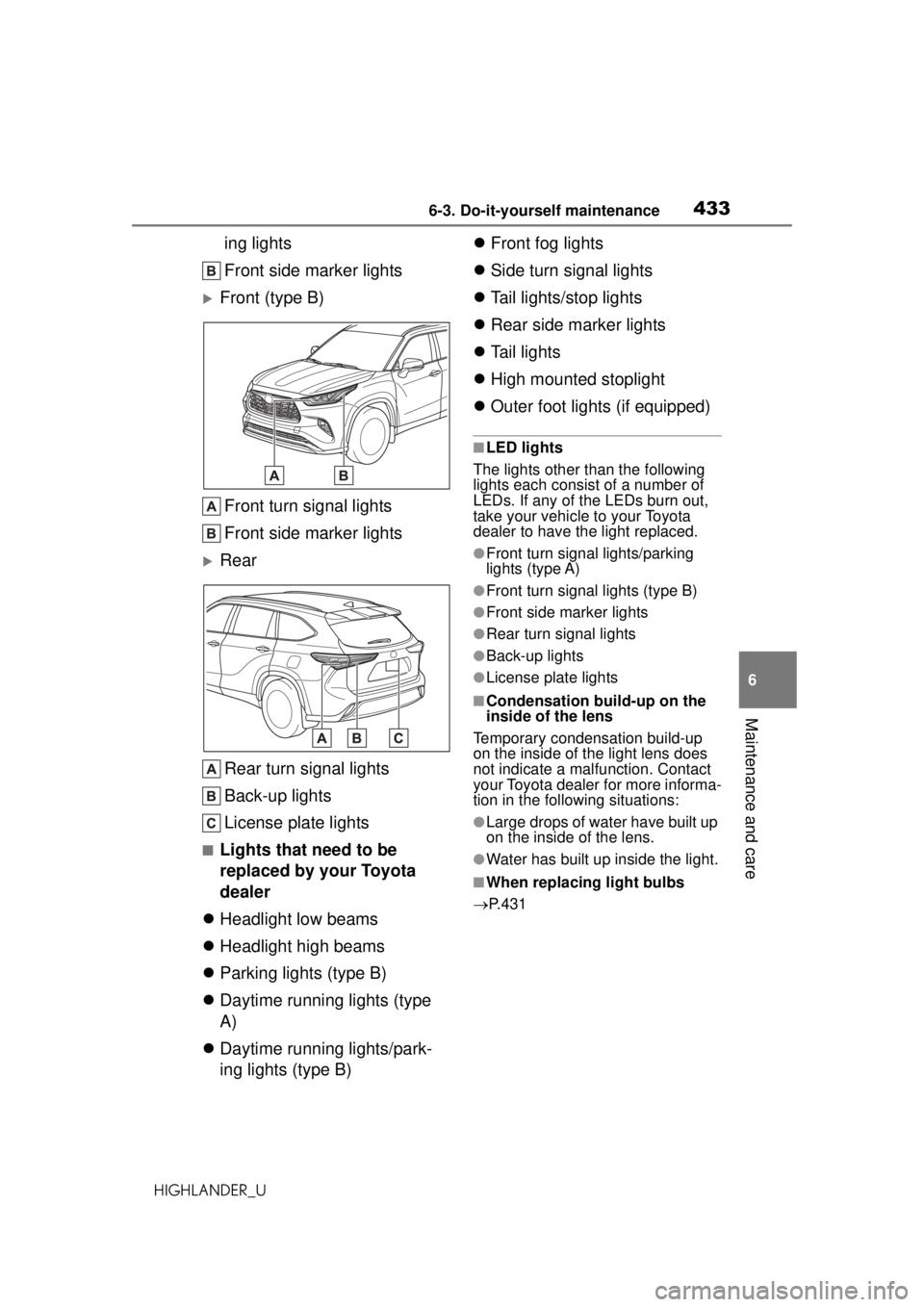

Bulb locations

4336-3. Do-it-yourself maintenance
HIGHLANDER_U
6
Maintenance and care
ing lights
Front side marker lights
Front (type B) Front turn signal lights
Front side marker lights
Rear
Rear turn signal lights
Back-up lights
License plate lights
■Lights that need to be
replaced by your Toyota
dealer
 Headlight low beams
 Headlight high beams
 Parking lights (type B)
 Daytime running lights (type
A)
 Daytime running lights/park-
ing lights (type B) 
Front fog lights
 Side turn signal lights
 Tail lights/stop lights
 Rear side marker lights
 Tail lights
 High mounted stoplight
 Outer foot lights (if equipped)
■LED lights
The lights other than the following
lights each consist of a number of
LEDs. If any of the LEDs burn out,
take your vehicle to your Toyota
dealer to have the light replaced.
●Front turn signal lights/parking
lights (type A)
●Front turn signal lights (type B)
●Front side marker lights
●Rear turn signal lights
●Back-up lights
●License plate lights
■Condensation build-up on the
inside of the lens
Temporary condensation build-up
on the inside of the light lens does
not indicate a malfunction. Contact
your Toyota dealer for more informa-
tion in the following situations:
●Large drops of water have built up
on the inside of the lens.
●Water has built up inside the light.
■When replacing light bulbs
 P.431

4346-3. Do-it-yourself maintenance
HIGHLANDER_U

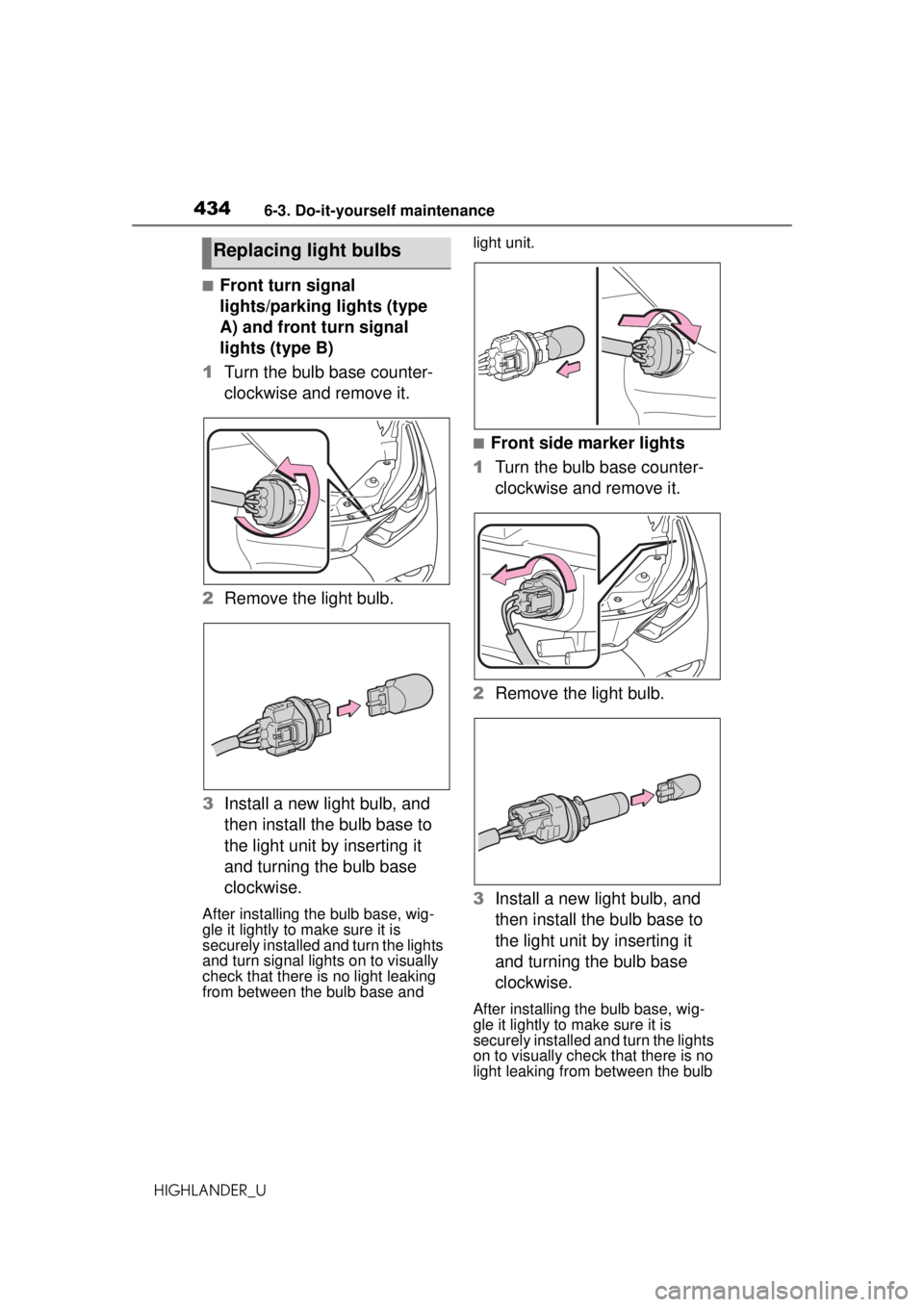

■Front turn signal
lights/parking lights (type
A) and front turn signal
lights (type B)
1 Turn the bulb base counter-
clockwise and remove it.
2 Remove the light bulb.
3 Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning the bulb base
clockwise.
After installing the bulb base, wig-
gle it lightly to make sure it is
securely installed and turn the lights
and turn signal lights on to visually
check that there is no light leaking
from between the bulb base and light unit.
■Front side marker lights
1 Turn the bulb base counter-
clockwise and remove it.
2 Remove the light bulb.
3 Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning the bulb base
clockwise.
After installing the bulb base, wig-
gle it lightly to make sure it is
securely installed and turn the lights
on to visually check that there is no
light leaking from between the bulb
Replacing light bulbs

4356-3. Do-it-yourself maintenance
HIGHLANDER_U
6
Maintenance and care
base and light unit.

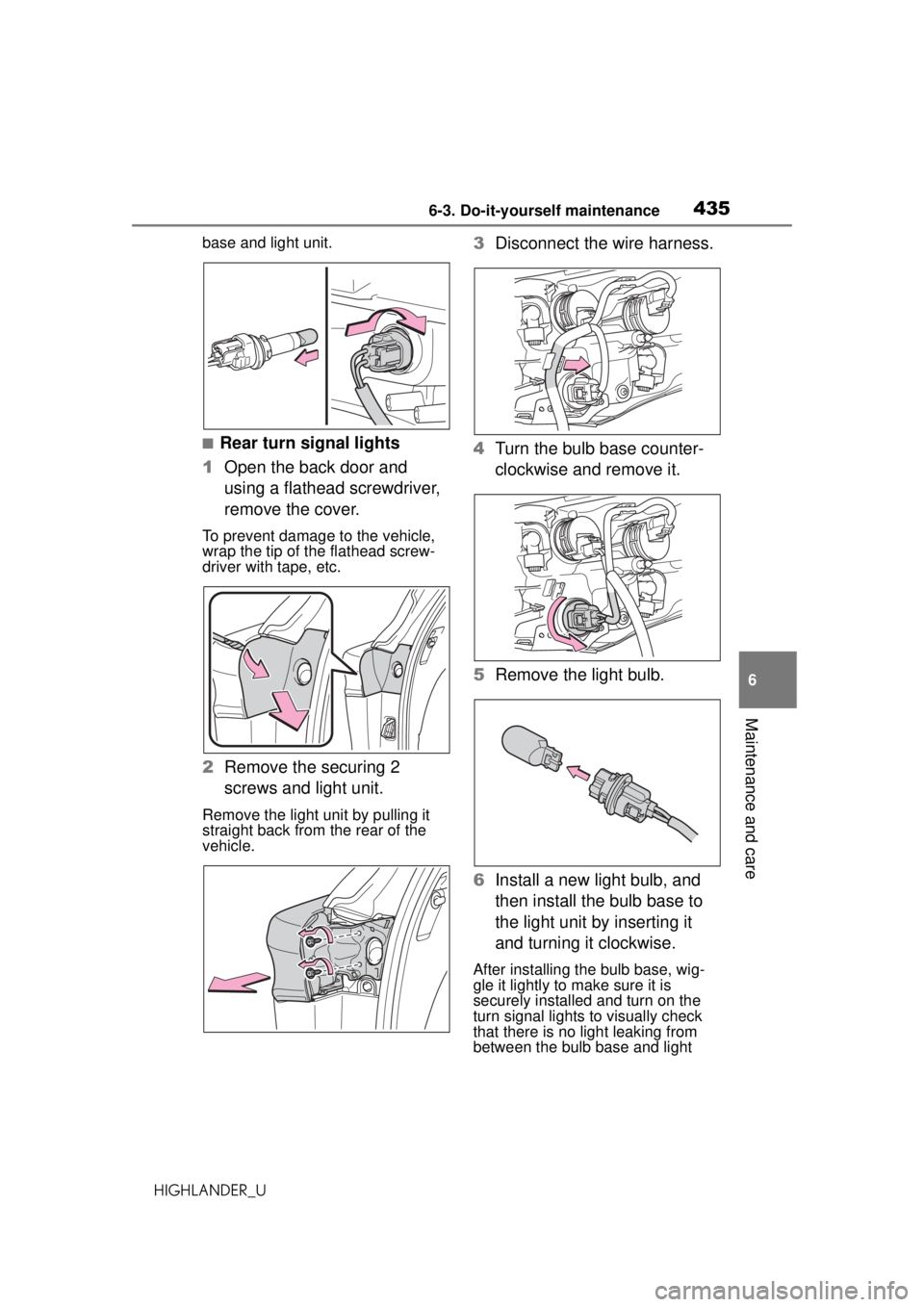

■Rear turn signal lights
1 Open the back door and
using a flathead screwdriver,
remove the cover.
To prevent damage to the vehicle,
wrap the tip of the flathead screw-
driver with tape, etc.

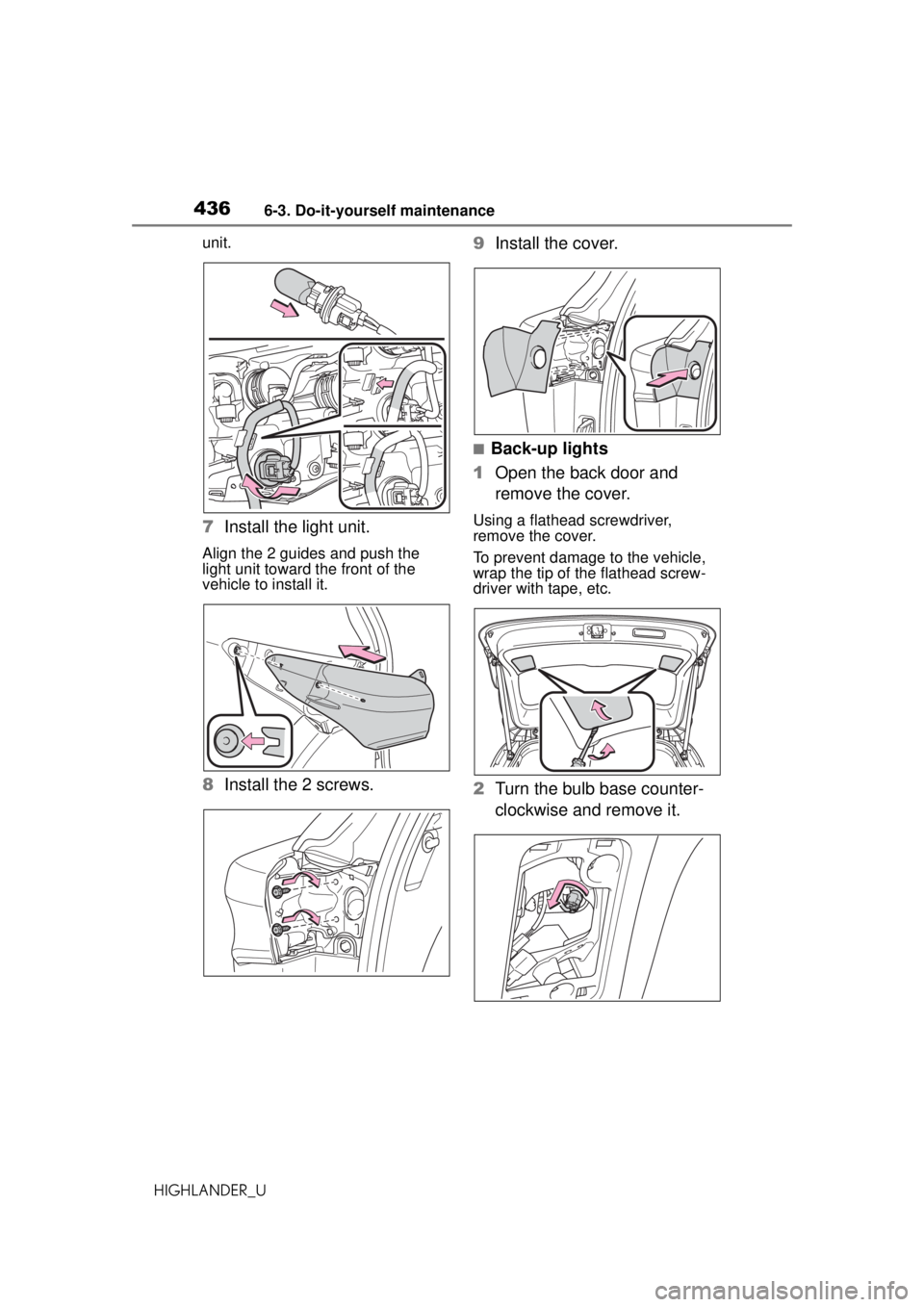

2Remove the securing 2
screws and light unit.
Remove the light unit by pulling it
straight back from the rear of the
vehicle.
3Disconnect the wire harness.
4 Turn the bulb base counter-
clockwise and remove it.
5 Remove the light bulb.
6 Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning it clockwise.
After installing the bulb base, wig-
gle it lightly to make sure it is
securely installed and turn on the
turn signal lights to visually check
that there is no light leaking from
between the bulb base and light

4366-3. Do-it-yourself maintenance
HIGHLANDER_Uunit.
7
Install the light unit.
Align the 2 guides and push the
light unit toward the front of the
vehicle to install it.
8Install the 2 screws. 9
Install the cover.

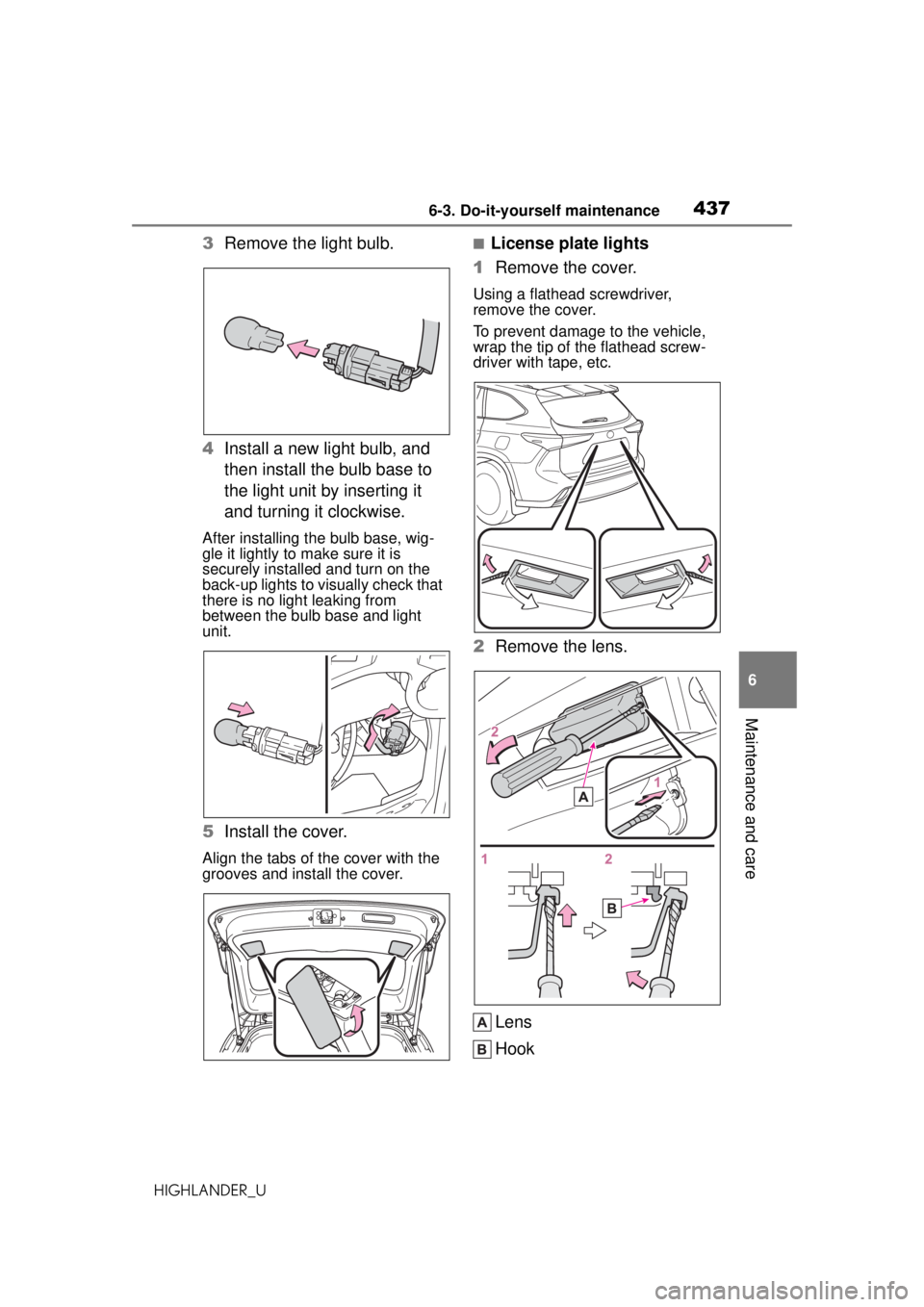

■Back-up lights
1 Open the back door and
remove the cover.
Using a flathead screwdriver,
remove the cover.
To prevent damage to the vehicle,
wrap the tip of the flathead screw-
driver with tape, etc.
2Turn the bulb base counter-
clockwise and remove it.

4376-3. Do-it-yourself maintenance
HIGHLANDER_U
6
Maintenance and care
3 Remove the light bulb.
4 Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning it clockwise.
After installing the bulb base, wig-
gle it lightly to make sure it is
securely installed and turn on the
back-up lights to visually check that
there is no light leaking from
between the bulb base and light
unit.
5Install the cover.
Align the tabs of the cover with the
grooves and install the cover.

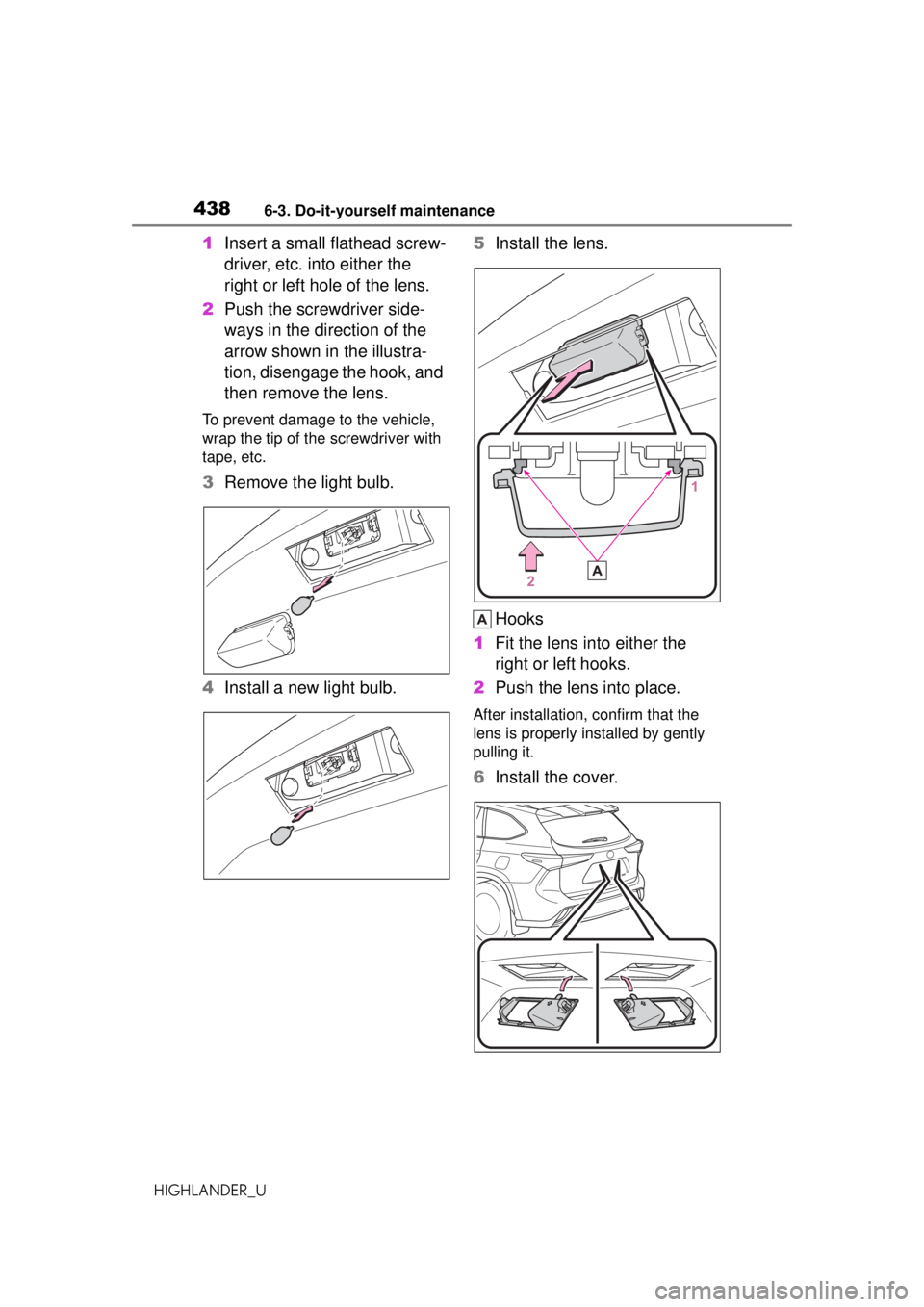

■License plate lights
1 Remove the cover.
Using a flathead screwdriver,
remove the cover.
To prevent damage to the vehicle,
wrap the tip of the flathead screw-
driver with tape, etc.
2Remove the lens.
Lens
Hook

4386-3. Do-it-yourself maintenance
HIGHLANDER_U
1Insert a small flathead screw-
driver, etc. into either the
right or left hole of the lens.
2 Push the screwdriver side-
ways in the direction of the
arrow shown in the illustra-
tion, disengage the hook, and
then remove the lens.
To prevent damage to the vehicle,
wrap the tip of the screwdriver with
tape, etc.
3Remove the light bulb.
4 Install a new light bulb. 5
Install the lens.
Hooks
1 Fit the lens into either the
right or left hooks.
2 Push the lens into place.
After installation, confirm that the
lens is properly in stalled by gently
pulling it.
6 Install the cover.

4396-3. Do-it-yourself maintenance
HIGHLANDER_U
6
Maintenance and care
WARNING
■To prevent injury
Before performing any light bulb
replacement procedure, be sure
to turn the engine switch off. Fail-
ure to do so may result in burns
from hot components or a part of
your body may get caught on an
operating component, possibly
causing serious injury.
■Replacing light bulbs
●Turn off the lights. Do not
attempt to replace the bulb
immediately after turning off the
lights.The bulbs become very
hot and may cause burns.
●Do not touch the glass portion
of the light bulb with bare
hands. When it is unavoidable
to hold the glass portion, use
and hold with a clean dry cloth
to avoid getting moisture and
oils on the bulb. Also, if the bulb
is scratched or dropped, it may
blow out or crack.
●Fully install light bulbs and any
parts used to secure them. Fail-
ure to do so may result in heat
damage, fire, or water entering
the light unit. This may damage
the lights or cause condensa-
tion to build up on the lens.
●Do not attempt to repair or dis-
assemble light bulbs, connec-
tors, electric circuits or
component parts.
Doing so may result in death or
serious injury due to electric
shock.
■To prevent damage or fire
●Make sure bulbs are fully
seated and locked.
●Check the wattage of the bulb
before installing to prevent heat
damage.

4406-3. Do-it-yourself maintenance
