TOYOTA HIGHLANDER 2021 Accessories, Audio & Navigation (in English)

2114-8. Rear seat entertainment system operation
4
Audio/visual system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
1Select “Wi-Fi*”.
2 DLNA standby stops.
*:Wi-Fi® is a registered trademark
of Wi-Fi Alliance®.
●Miracast® is a registered trade-
mark of Wi-Fi Alliance®.
●Wi-Fi® is a registered trademark
of Wi-Fi Alliance®.
●The Wi-Fi® networks serve
best-effort traffic.
●If a connected device is taken out
of the Wi-Fi® connection area, the
connection will be severed.
●Depending on the environment in
which the access point is used,
the communication speed may be
low or communication may not be
possible.
●When a device is connected to the
rear seat entertainment system
via Wi-Fi
®, the device may not be
able to be connected to the inter-
Stop DLNA standbyUsing the Miracast®
mode
The screen of a Miracast®
compatible device (with
Android OS version 4.4 or
later) can be displayed on
the rear seat entertainment
system display.
This function is not avail-
able if the smartphone is
not certified by Wi-Fi Alli-
ance
® as Miracast® device.
Refer to the instruction
manual and other documen-
tation included with the
external device to determine
whether it supports Mira-
cast
®.
Press the “INPUT” button
repeatedly until the Mira-
cast
® mode is selected.

2124-8. Rear seat entertainment system operation
HIGHLANDER_HIGHLANDER HV_NAVI_(U)net via mobile network (3G or 4G).
1
Display the Miracast® opera-
tion screen. 2
Check that the following
screen is displayed.
3 Using your Miracast
®-com-
patible device, perform a
Miracast
® connection opera-
tion to connect to the rear
seat entertainment system
display.
4 The screen of the Mira-
cast
®-compatible device is
displayed on the rear seat
display.
 Press the “INPUT” button to
return to the “Rear-Mira-
cast™” screen. To display the
video again, select “Mira-
cast™”.
●Depending on the device, Mira-
cast® may be displayed as
“Screen Mirroring”, “Media Out-
put”, etc.
●Miracast® streaming will stop in
the following situations:
• The Miracast
® function of the con-
nected device is turned off.
• Select “Disconnect” on the
“Rear-Miracast™” screen.
• The rear seat entertainment sys- tem source is changed to a differ-
ent source. ( P.181)
WA R N I N G
●Use Wi-Fi® devices only when
safe and legal to do so.
●Your audio unit is fitted with
Wi-Fi® antennas. People with
implantable cardiac pacemak-
ers, cardiac resynchronization
therapy-pacemakers or implant-
able cardioverter defibrillators
should maintain a reasonable
distance between themselves
and the Wi-Fi
® antennas. The
radio waves may affect the
operation of such devices.
●Before using Wi-Fi® devices,
users of any electrical medical
device other than implantable
cardiac pacemakers, cardiac
resynchronization ther-
apy-pacemakers or implantable
cardioverter defib rillators should
consult the manufacturer of the
device for information about its
operation under the influence of
radio waves. Radio waves could
have unexpected e ffects on the
operation of such medical
devices.
NOTICE
●Do not leave your smartphone
in the vehicle. In particular, high
temperatures inside the vehicle
may damage the smartphone.
Connecting to the system

2134-8. Rear seat entertainment system operation
4
Audio/visual system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
Select to disconnect the
Miracast
® device.
●With Miracast®, the screen of the
Miracast®-compatible device is
sent unmodified. Therefore, if
video playback is stopped on the
device that is sending data via
Miracast
®, the video on the rear
seat display also stops.
●When Bluetooth® (Bluetooth®
audio, hands-free function or con-
nected services) is being used in
the front seat s, Miracast
® cannot
be used on the rear seat display.
Turning on the HDMI mode
Volume up/down
Miracast® operation
A
Using the HDMI mode
The rear seat entertainment
system plays videos and
sound when audio/visual
equipment is connected to
the HDMI input port.
Press the “INPUT” button
repeatedly until the HDMI
mode is selected.
Remote controller
A
B

2144-9. Tips for operating rear seat entertainment system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
4-9.Tips for operating rear seat entertainment system
■Certification
For vehicles sold in the U.S.A
and Canada
CAUTION:
 Part 15 of the FCC Rules
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s aut hority to operate
the equipment.
 Laser products
THIS PRODUCT IS A CLASS (1)
LASER PRODUCT. USE OF CON-
TROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCE-
DURES OTHER THAN THOSE
SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIA-
TION EXPOSURE. DO NOT OPEN
COVERS AND DO NOT REPAIR
BY YOURSELF. REFER SERVIC-
ING TO QUALIFIED PERSONNEL.The following discs cannot be
used on this system:
• SACD
• Ultra HD Blu-ray™
• BDXL™ disc
• BD-RE with the cartridge
• HD DVD
•DVD-Audio
Special shaped discs
Operating infor mation
CD/DVD/Blu-ray Disc™
player and discs
Discs that can be used

2154-9. Tips for operating rear seat entertainment system
4
Audio/visual system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
Transparent/translucent discs
Low quality discs
Labeled discs 
Compatible media: Media that
can be used for playback are
BD-ROMs, BD-Rs, BD-REs,
DVD-ROMs, DVD-Rs and
DVD-RWs.
 Compatible disc formats: Disc
formats that can be used for
playback are BD video for-
mats, BDAV formats, AVCHD
formats, DVD video formats
and Video CD formats.
 This player conforms to
NTSC/PAL color TV formats.
 Region codes: Some BD/DVD
video discs have a region
code indicating the region in
which you can use the
BD/DVD video disc. If the BD
video disc is not labeled “A” or
“ABC” or if the DVD video disc
is not labeled “1” or “ALL”, you
cannot use it on this player. If
you attempt to play BD/DVD
video discs with incompatible
region codes on this player,
an error message appears on
the screen. Even if the
BD/DVD video disc does not
NOTICE
●Do not special shaped, trans-
parent/translucent, low quality
or labeled discs such as those
shown in the illu strations. The
use of such discs may damage
the player, or it may be impossi-
ble to eject the disc.
●This system is not designed for
use of Dual Discs. Do not use
Dual Discs because they may
cause damage to the player.
●Do not use discs with a protec-
tion ring. The use of such discs
may damage the player, or it
may be impossible to eject the
disc.
●Do not use print able discs. The
use of such discs may damage
the player, or it may be impossi-
ble to eject the disc.
BD/DVD video discs

2164-9. Tips for operating rear seat entertainment system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
have a region code, in some
cases it cannot be used. Even
if a BD video disc has a com-
patible region code, depend-
ing on the intention of the
maker, the BD video disc may
not be able to play in a spe-
cific region or country.
 When storing content on
BD-R, BD-RE, DVD-R or
DVD-RW discs, they must be
finalized using a recorder.
Discs that are not finalized
cannot be played by this sys-
tem.
 Discs that are recorded with
multi session cannot be
played by this system.
 BD-Live™ is not supported.
 Blu-ray 3D™ discs is not sup-
ported in 3D playback, it will
play back in 2D. Symbols shown on
BD/DVD video discs
SymbolMeaning
Indicates PAL/NTSC for-
mat
Indicates the number of
audio tracks
Indicates the number of
language subtitles
Indicates the number of
angles
Indicates the screen dis-
play ratios available
Wide screen: 16:9
Standard: 4:3
Indicates the disc’s
region code

BD video
“ABC”: all regions
Alphabet: region code
 DVD video
“ALL”: all regions
Number: region code

2174-9. Tips for operating rear seat entertainment system
4
Audio/visual system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
Parental controls
This feature lim its what can be
viewed in conformity with the level
of restrictions of the country. The
level of restrictions varies depend-
ing on the BD/DVD video disc.
Some BD/DVD video discs cannot
be played at all, or violent scenes
are skipped or replaced with other
scenes.
• DVD video
Level 1: DVD video discs for chil-
dren can be played.
Level 2 - 7: DVD video discs for
children and G-rated movies can be
played.
Level 8: All types of DVD video
discs can be played.
• BD video
Parental controls o f BD videos can
be set up by inputting an age. If the
target age of BD video exceeds the
age restriction that was set up, then
playback will not be possible.
 Multi-angle feature
You can enjoy the same scene from
different angles.
Multi-language option
You can select t he subtitle and
audio languages.
 Region codes
The region codes are provided on
BD/DVD players and BD/DVD
discs. If the BD/DVD disc does not
have the same region code as the
BD/DVD player, you cannot play
the disc on the player.
Title and chapter
Video and audio programs stored in
BD/DVD video discs are divided
into parts by title and chapter.
Title: The largest unit of the video
and audio programs stored on
BD/DVD video discs. Usually, one
movie, one album, or one audio
program is assigned as a title.
Chapter: A title comprises of one or
more chapters.
AVCHD
AVCHD is a new format (standard)
for high definition video cameras
that can record and play high-reso-
lution HD images. DVDs and SD
cards with videos recorded in
AVCHD format can playback on this
system.
BDAV (Blu-ray Disc™
Audio/Visual)
BDAV is one of the audio/video
recording formats for Blu-ray
Disc™, has been made primarily
for the purpose of broadcasting the
recording. It is used when recording
to BD-R and BD-RE by Blu-ray™
recorder.
BD-J
Some BD video discs contain Java
applications, and these applications
are called BD-J. You can enjoy var-
ious interactive fea tures in addition
to playing normal video.
 Pop-up menu
Some BD video discs have a popup
navigation menu that can be called
up and be operated on the screen
without interrupting playback.
Picture-in-picture
BD/DVD video disc infor-
mation

2184-9. Tips for operating rear seat entertainment system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)This is a function of BD video that
plays the primary video and sec-
ondary video simultaneously. For
instance, the function is capable of
playing the original movie as the
primary video while playing video
commentary from the film director
on a small screen as a secondary
video.

DUBA (Disc Unbound BD-J
Application)
For BD videos that come as a 2
disc set or more, after finishing and
ejecting one of the discs, continua-
tion of the video can be seen
shortly after replac ing the disc with
the proper disc.
 Playlist (BDAV only)
A playlist of favorite scenes by
Blu-ray™ recorder can be created
and the scenes can playback via
playlist.
This player can play Linear
PCM, Dolby Audio, DTS, AAC
and MPEG audio format. Other
decoded types cannot be
played. Audio
Language codes list
CodeLanguage
0514English
1001Japanese
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
111 5Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Belorussian
0207Bulgarian
0208Bihari
0209Bislama
0214Bengali, Bangla

2194-9. Tips for operating rear seat entertainment system
4
Audio/visual system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)

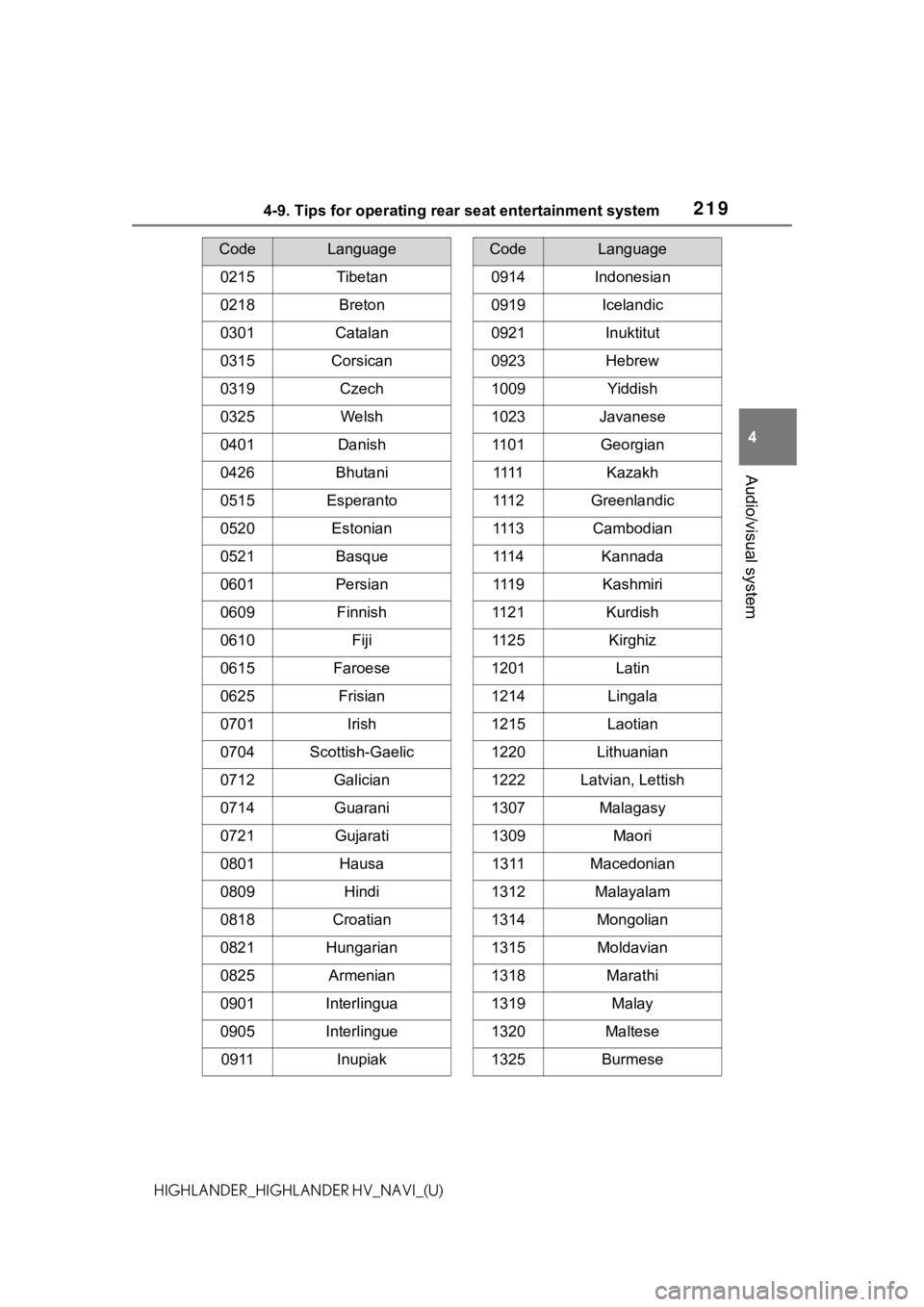

0215Tibetan
0218Breton
0301Catalan
0315Corsican
0319Czech
0325Welsh
0401Danish
0426Bhutani
0515Esperanto
0520Estonian
0521Basque
0601Persian
0609Finnish
0610Fiji
0615Faroese
0625Frisian
0701Irish
0704Scottish-Gaelic
0712Galician
0714Guarani
0721Gujarati
0801Hausa
0809Hindi
0818Croatian
0821Hungarian
0825Armenian
0901Interlingua
0905Interlingue
0911Inupiak
CodeLanguage
0914Indonesian
0919Icelandic
0921Inuktitut
0923Hebrew
1009Yiddish
1023Javanese
1101Georgian
1111Kazakh
111 2Greenlandic
111 3Cambodian
111 4Kannada
111 9Kashmiri
1121Kurdish
1125Kirghiz
1201Latin
1214Lingala
1215Laotian
1220Lithuanian
1222Latvian, Lettish
1307Malagasy
1309Maori
1311Macedonian
1312Malayalam
1314Mongolian
1315Moldavian
1318Marathi
1319Malay
1320Maltese
1325Burmese
CodeLanguage

2204-9. Tips for operating rear seat entertainment system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)

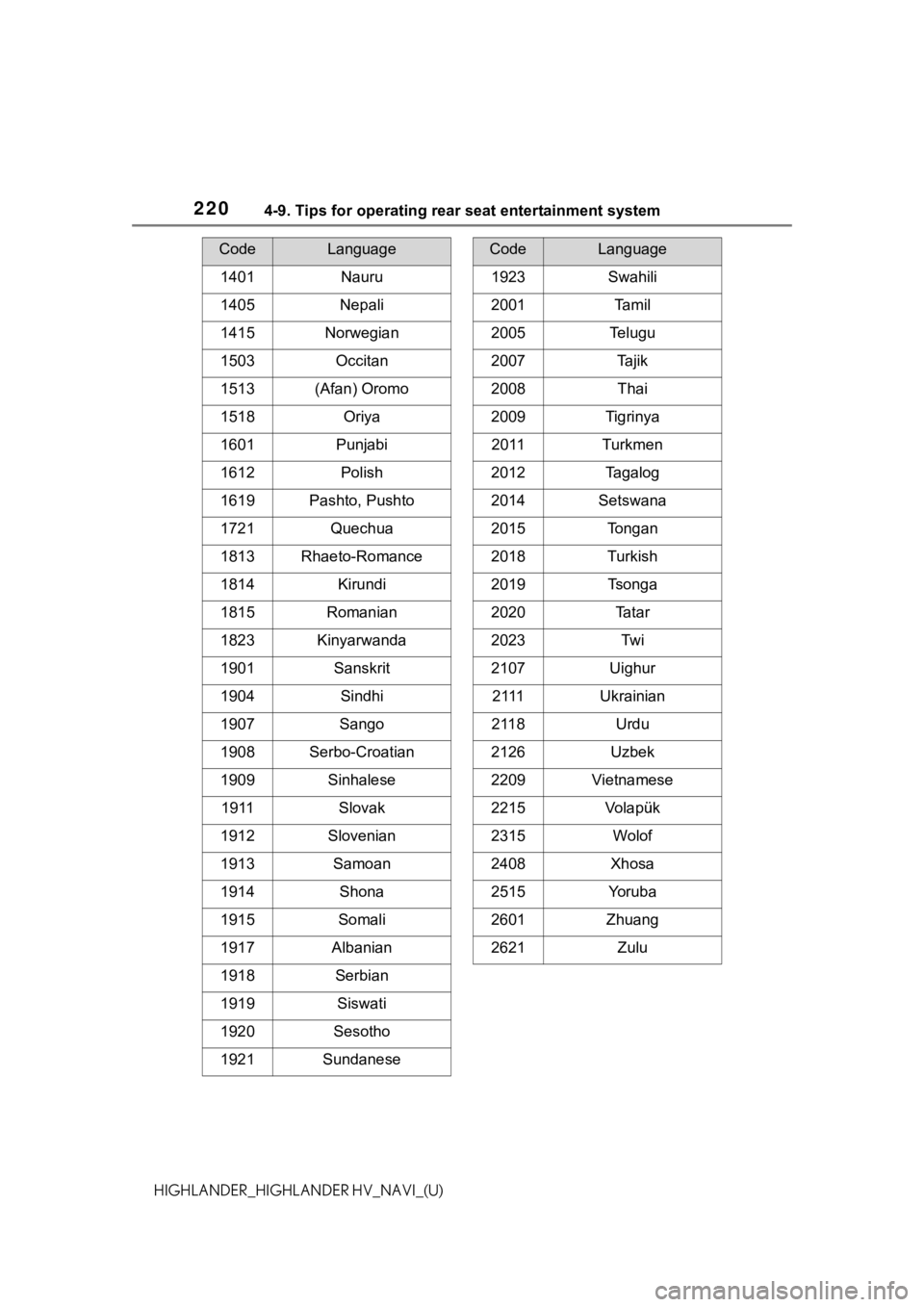

1401Nauru
1405Nepali
1415Norwegian
1503Occitan
1513(Afan) Oromo
1518Oriya
1601Punjabi
1612Polish
1619Pashto, Pushto
1721Quechua
1813Rhaeto-Romance
1814Kirundi
1815Romanian
1823Kinyarwanda
1901Sanskrit
1904Sindhi
1907Sango
1908Serbo-Croatian
1909Sinhalese
1911Slovak
1912Slovenian
1913Samoan
1914Shona
1915Somali
1917Albanian
1918Serbian
1919Siswati
1920Sesotho
1921Sundanese
CodeLanguage
1923Swahili
2001Ta m i l
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tongan
2018Turkish
2019Tsonga
2020Ta t a r
2023Tw i
2107Uighur
2 111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Vo l a p ü k
2315Wolof
2408Xhosa
2515Yo r u b a
2601Zhuang
2621Zulu
CodeLanguage
