TOYOTA HIGHLANDER HYBRID 2020 (in English) Repair Manual

59
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Refer to the Owner’s Manual for tire changing and jack positioning pr\�ocedures.
Remove the cover under the
center deck board to find the
spare tire clamp bolt.
Assemble the jack handle. Put the socket adapter on
the spare tire clamp bolt.
Loosen the bolt by turning
it counterclockwise with the
jack handle.
(1)(3)(2)

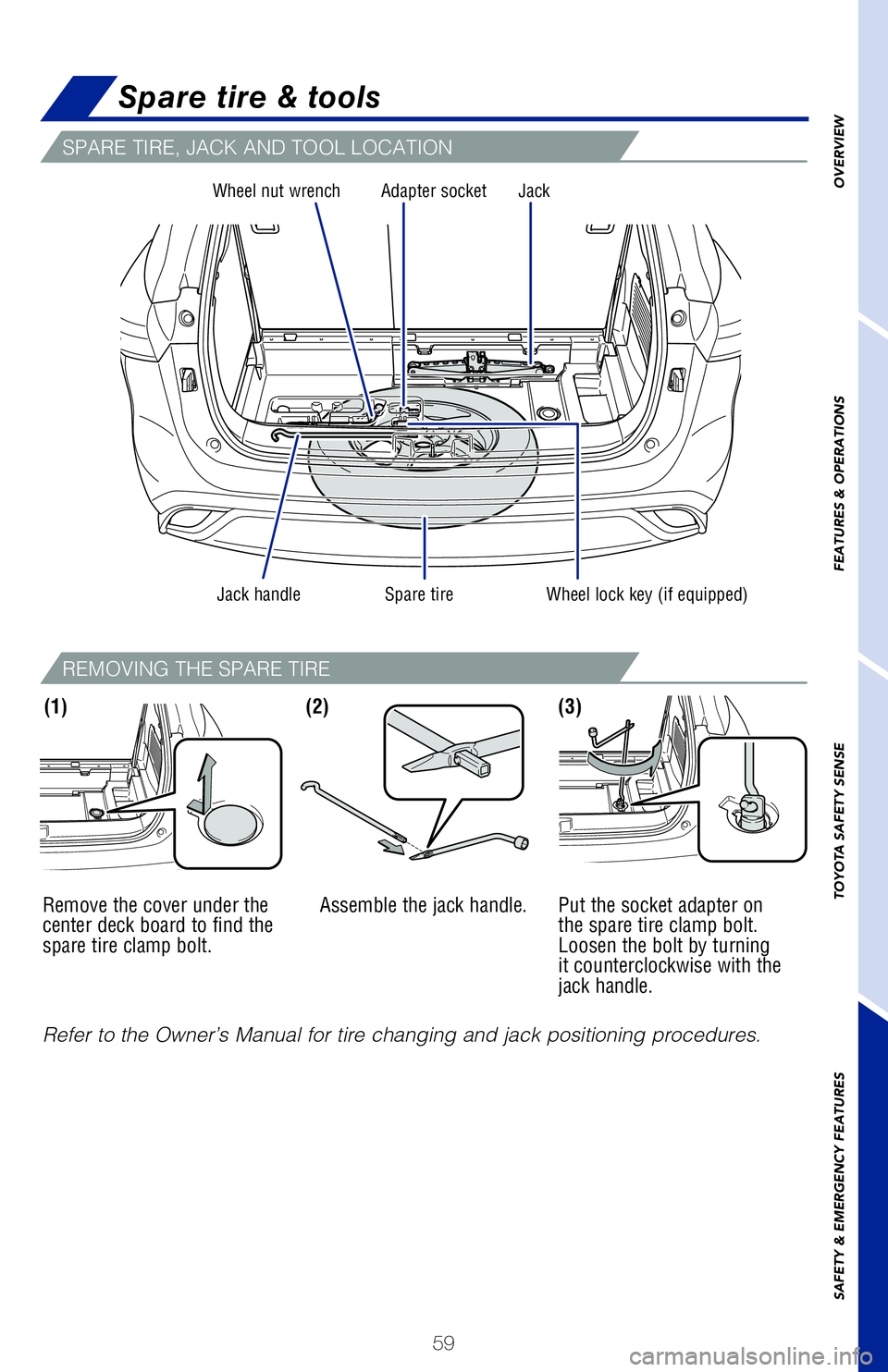

SPARE TIRE, JACK AND TOOL LOCATION
REMOVING THE SPARE TIRE
Spare tire & tools
Wheel nut wrench Adapter socket Jack
Spare tireJack handleWheel lock key (if equipped)

60
SAFETY AND EMERGENCY FEATURESSafety Connect
® (if equipped)
Safety Connect is a subscription-based telematics service that uses Glob\�al
Positioning System (GPS) data and embedded cellular technology to prov\�ide safety
and security features to subscribers. Safety Connect is staffed with liv\�e agents at
the Toyota response center, which operates 24 hours per day, 7 days per \�week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle locator
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
For additional information, refer to the “Owner’s Manual” or vi\�sit www.Toyota.com/
connected-services.
Microphone
LED Indicators
“SOS” button

61

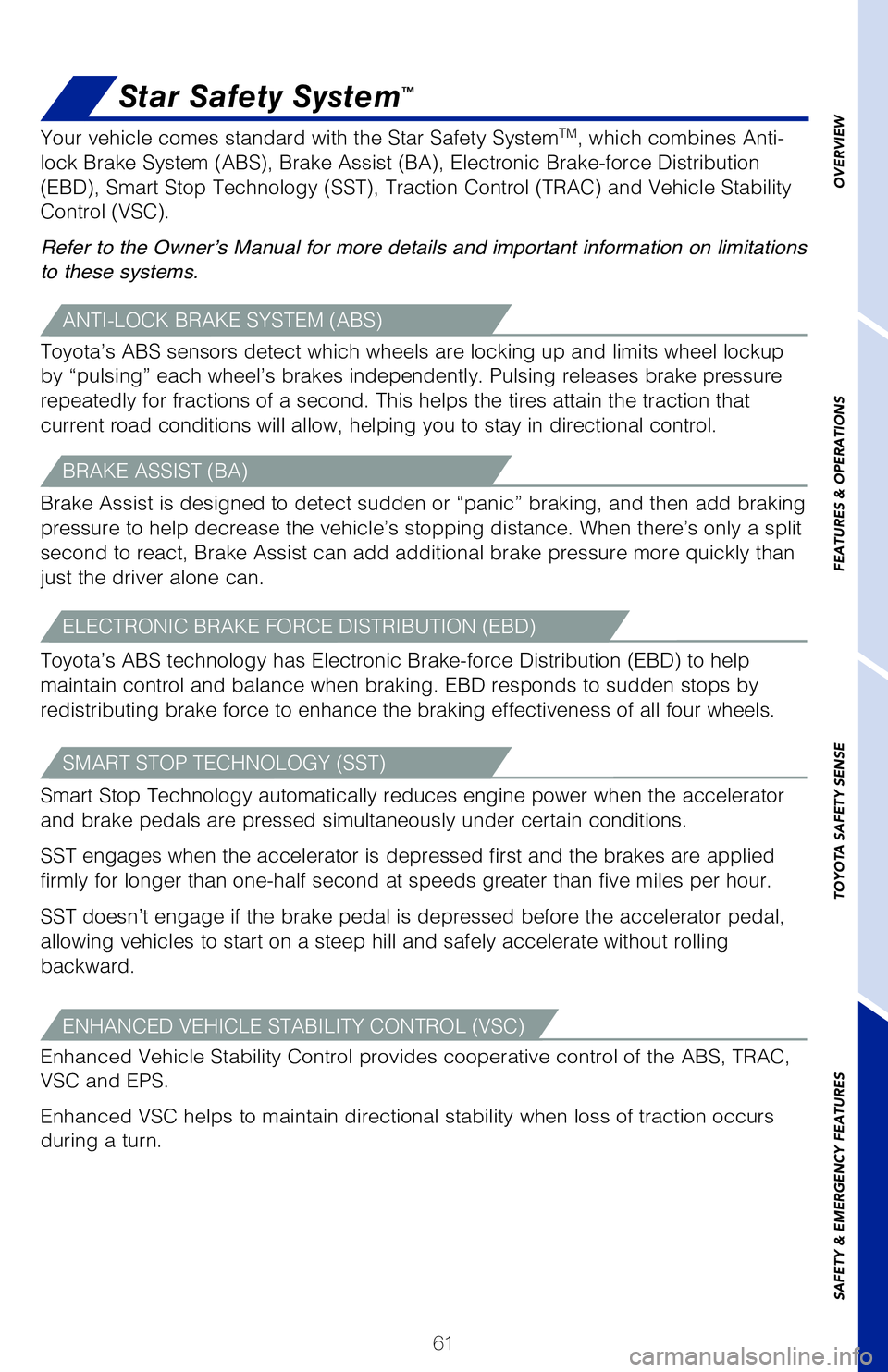

Star Safety System™
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-
lock Brake System (ABS), Brake Assist (BA), Electronic Brake-force D\�istribution
(EBD), Smart Stop Technology (SST), Traction Control (TRAC) and Ve\�hicle Stability
Control (VSC).
Refer to the Owner’s Manual for more details and important information on limitations
to these systems.
ANTI-LOCK BRAKE SYSTEM (ABS)
Toyota’s ABS sensors detect which wheels are locking up and limits wh\�eel lockup
by “pulsing” each wheel’s brakes independently. Pulsing release\�s brake pressure
repeatedly for fractions of a second. This helps the tires attain the tr\�action that
current road conditions will allow, helping you to stay in directional c\�ontrol.
BRAKE ASSIST (BA)
Brake Assist is designed to detect sudden or “panic” braking, and \�then add braking
pressure to help decrease the vehicle’s stopping distance. When there\�’s only a split
second to react, Brake Assist can add additional brake pressure more qui\�ckly than
just the driver alone can.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD\�) to help
maintain control and balance when braking. EBD responds to sudden stops \�by
redistributing brake force to enhance the braking effectiveness of all f\�our wheels.
SMART STOP TECHNOLOGY (SST)
Smart Stop Technology automatically reduces engine power when the accele\�rator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are a\�pplied
firmly for longer than one-half second at speeds greater than five miles\� per hour.
SST doesn’t engage if the brake pedal is depressed before the acceler\�ator pedal,
allowing vehicles to start on a steep hill and safely accelerate without\� rolling
backward.
ENHANCED VEHICLE STABILITY CONTROL (VSC)
Enhanced Vehicle Stability Control provides cooperative control of the A\�BS, TRAC,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of tracti\�on occurs
during a turn.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

62

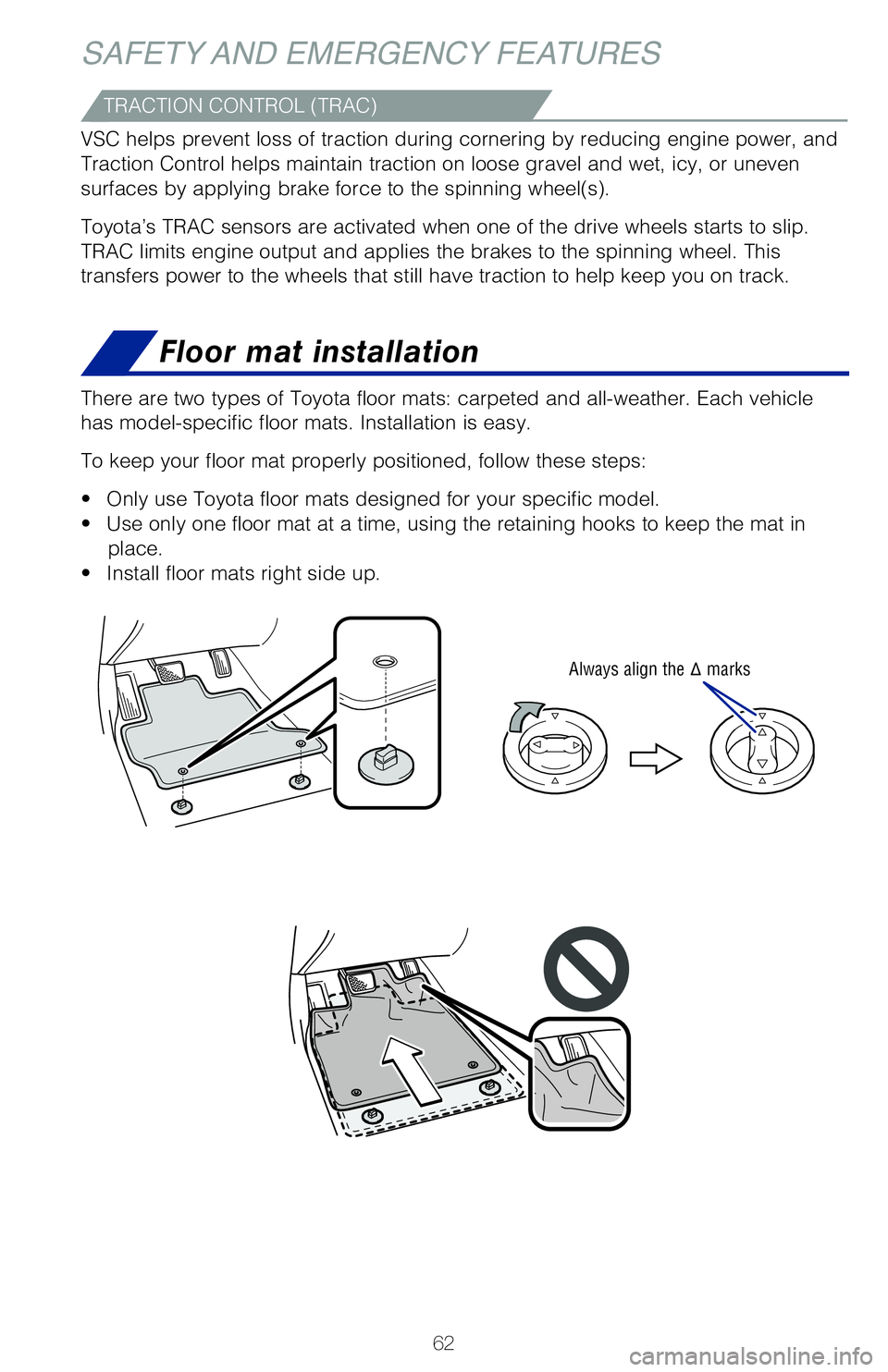

Floor mat installation
SAFETY AND EMERGENCY FEATURES
There are two types of Toyota floor mats: carpeted and all-weather. Each\� vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
•
Only use Toyota floor mats designed for your specific model.
•
Use only one floor mat at a time, using the retaining hooks to keep the \�mat in place.
•
Install floor mats right side up.
TRACTION CONTROL (TRAC)
VSC helps prevent loss of traction during cornering by reducing engine p\�ower, and
Traction Control helps maintain traction on loose gravel and wet, icy, o\�r uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels star\�ts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. \�This
transfers power to the wheels that still have traction to help keep you \�on track.
Always align the Δ marks

63
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

64

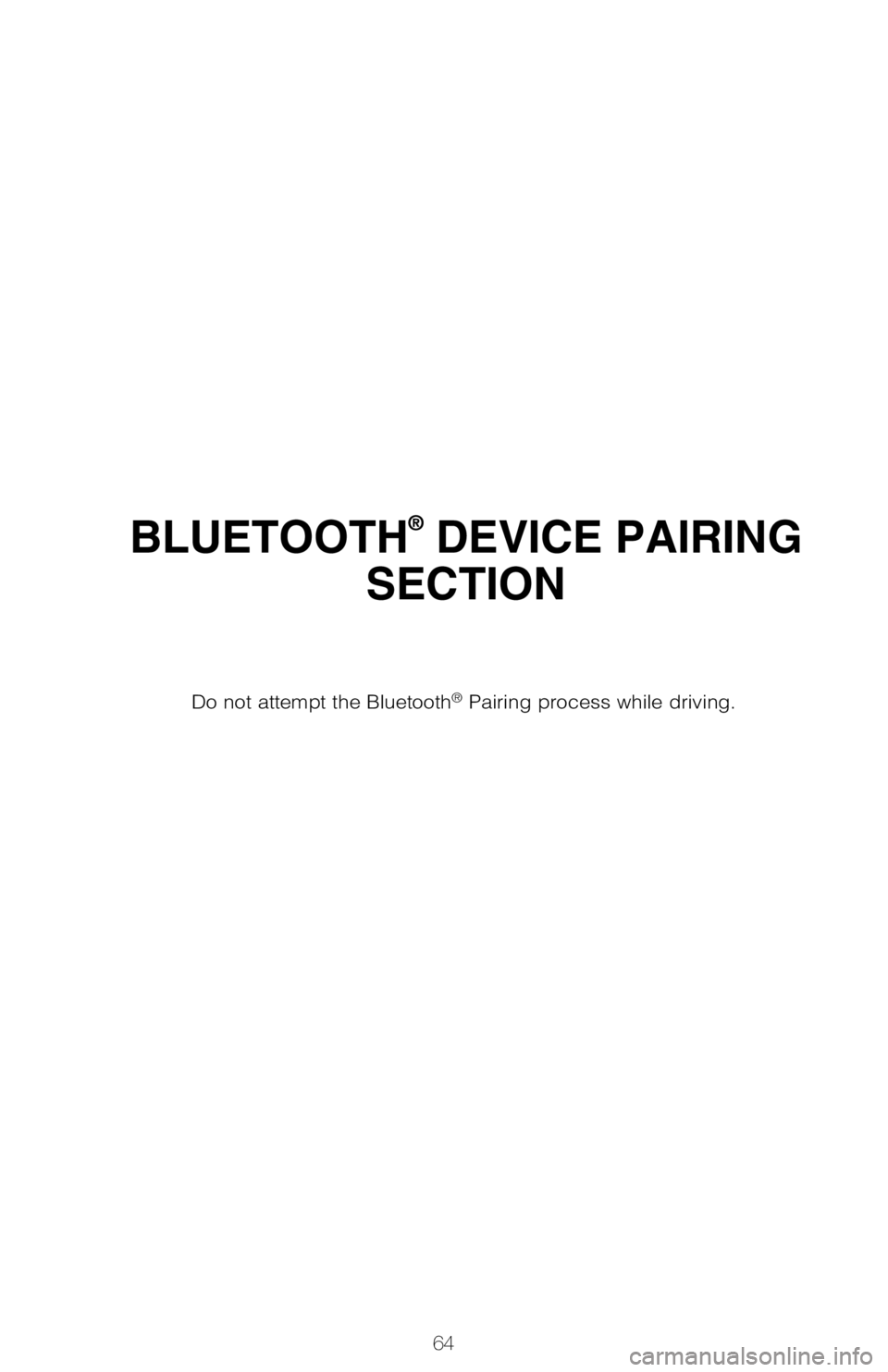

BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving.

65

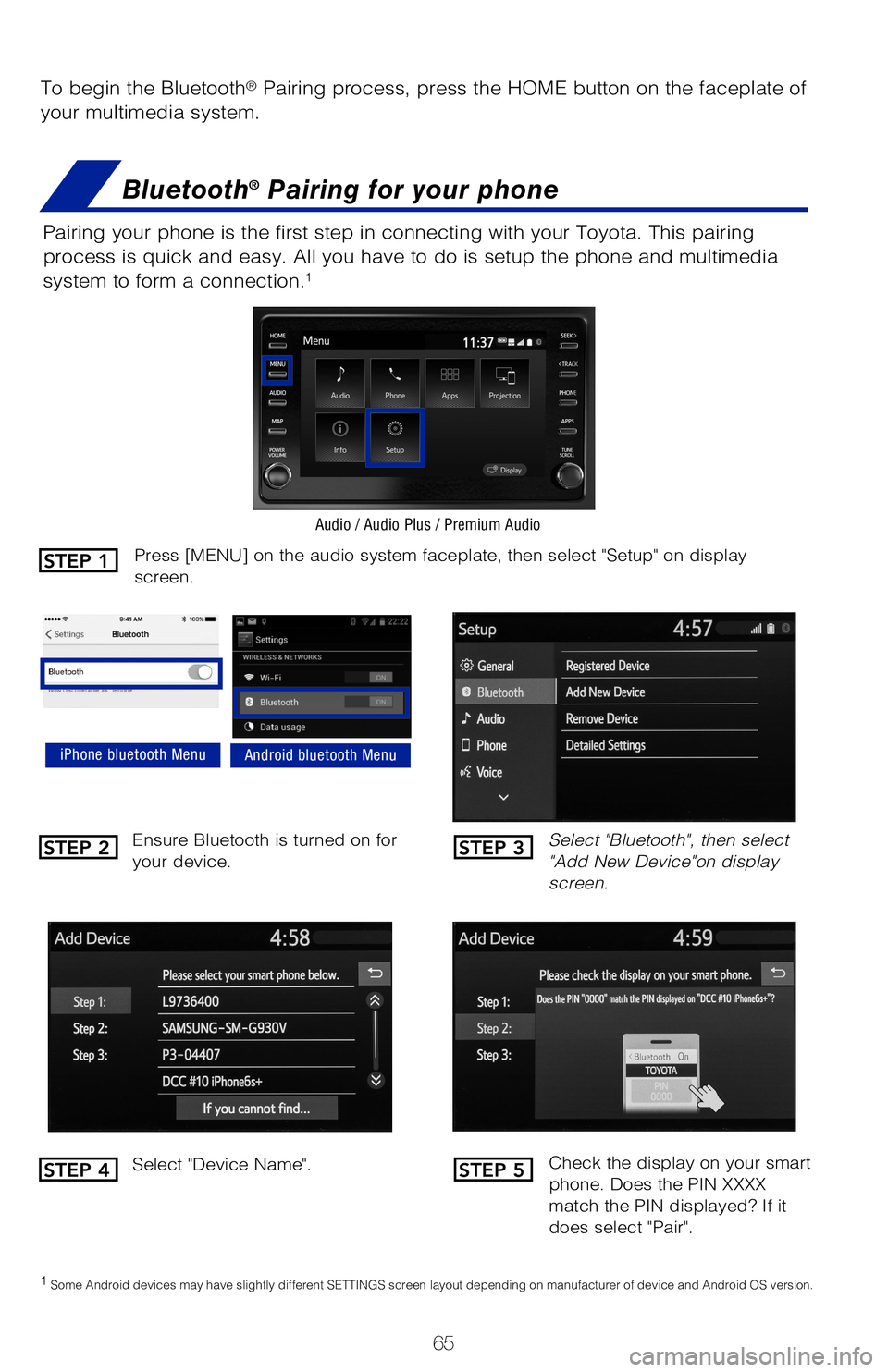

To begin the Bluetooth® Pairing process, press the HOME button on the faceplate of
your multimedia system.
Bluetooth® Pairing for your phone
Pairing your phone is the first step in connecting with your Toyota. This pairing
process is quick and easy. All you have to do is setup the phone and multimedia
system to form a connection.
1
Select "Bluetooth", then select
"Add New Device"on display
screen.
Ensure Bluetooth is turned on for
your device.
Select "Device Name".
iPhone bluetooth MenuAndroid bluetooth Menu
1
Some Android devices may have slightly different SETTINGS screen layout depending on manufacturer of device and Android OS version.
Check the display on your smart
phone. Does the PIN XXXX
match the PIN displayed? If it
does select "Pair".
Press [MENU] on the audio system faceplate, then select "Setup" on display
screen.
Audio / Audio Plus / Premium Audio
STEP 1
STEP 2
STEP 4
STEP 3
STEP 5

66

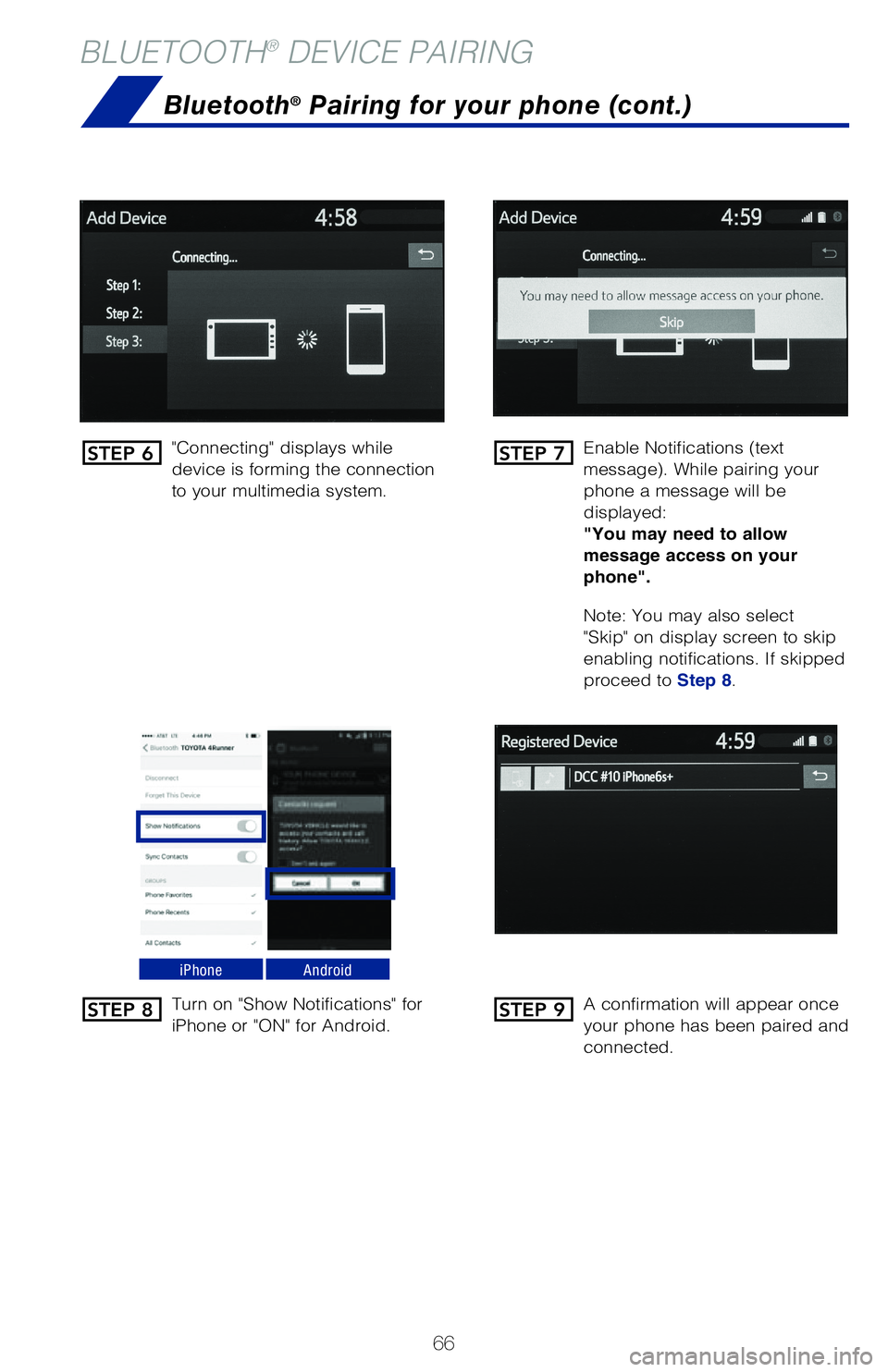

BLUETOOTH® DEVICE PAIRING
"Connecting" displays while
device is forming the connection
to your multimedia system.Enable Notifications (text
message). While pairing your
phone a message will be
displayed:
"You may need to allow
message access on your
phone".
Note: You may also select
"Skip" on display screen to skip
enabling notifications. If skipped
proceed to Step 8.
Turn on "Show Notifications" for
iPhone or "ON" for Android.
A confirmation will appear once
your phone has been paired and
connected.
iPhoneAndroid
Bluetooth® Pairing for your phone (cont.)
STEP 6
STEP 8
STEP 7
STEP 9

67

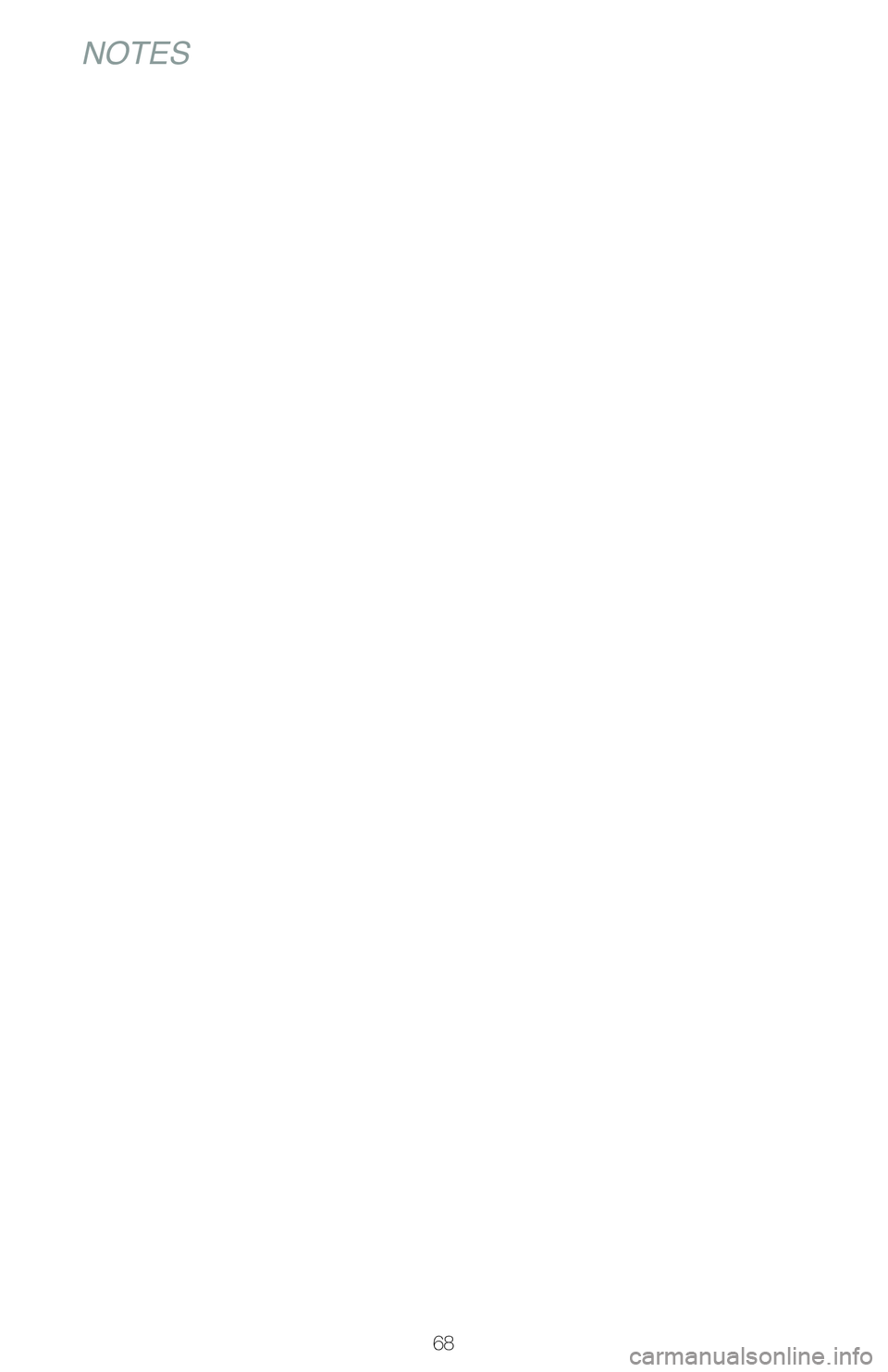

NOTES
